SECTION 9E

INSTRUMENTATION, DRIVER INFORMATION

CAUTION: Disconnect the negative battery cable before removing or installing any electrical unit or when a
tool or equipment could easily come in contact with exposed electrical terminals. Disconnecting this cable
will help prevent personal injury and damage to the vehicle. The ignition must also be in LOCK unless
otherwise noted.

TABLE OF CONTENTS

Description and Operation ..................................  9E-2

Cigar Lighter .......................................................  9E-2

Ashtray ..............................................................  9E-2

Instrument Panel Vents .......................................  9E-2

Glove Box ..........................................................  9E-2

Digital Clock .......................................................  9E-2

Instrument Cluster ..............................................  9E-2

Speedometer and Tachometer ............................  9E-2

Trip Odometer ....................................................  9E-2

Fuel Gauge .........................................................  9E-2

Temperature Gauge ............................................  9E-2

Instrument Cluster Indicator Lamps .....................  9E-2

Chime Module ....................................................  9E-2

Components Locator ...........................................  9E-3

Instrumentation/Driver Information .......................  9E-3

Diagnostic Information and Procedure ..............  9E-5

Cigar Lighter .......................................................  9E-5

Disital Clock .......................................................  9E-5

Speedo Meter .....................................................  9E-6

Fuel Gauge .........................................................  9E-7

Temperature Gauge ............................................  9E-8

Instrument Cluster Indicator Lamps .....................  9E-9

Repair Instructions .............................................  9E-10

On-Vehice Service Unit Repair .............................  9E-10

Center Tray .......................................................  9E-10

Center Facia .....................................................  9E-10

Ashtray ............................................................  9E-10

Cigar Lighter .....................................................  9E-11

Cup Holder .......................................................  9E-11

Instrument Panel Vent .......................................  9E-11

Glove Box ........................................................  9E-12

Chime Module ..................................................  9E-12

Hood Latch Release Handle ..............................  9E-12

Instrument Lower Cover ....................................  9E-13

Instrument Cluster Trim Panel ...........................  9E-13

Instrument Cluster ............................................  9E-13

Speedometer/Odometer/Trip Odometer/

Tachometer ...................................................  9E-14

Fuel Gauge .......................................................  9E-14

Temperature Gauge ..........................................  9E-15

Digital Clock .....................................................  9E-15

Instrument Cluster Indicator Lamps ...................  9E-15

Instrument Panel ...............................................  9E-16

Specifications ....................................................  9E-18

Bulb Usage Chart .............................................  9E-18

Schematic and Routing Diagram .....................  9E-19

Instrument Panel Illumination ............................  9E-19

Cluster (VSS, Meter & Gauge): Diesel ................. 9E-20

Cluster (VSS, Meter & Gauge): Gasoline ............  9E-21

Warning Lamp, TCS Indicator ...........................  9E-22

Indicator ...........................................................  9E-23

Warning Lamp ..................................................  9E-24

Digital Clock, Warning Cluster Illumination .........  9E-25

Selector Lever Position Lamp ............................  9E-26

SSANGYONG  MY2002

9E-2  INSTRUMENTATION, DRIVER INFORMATION

DESCRIPTION AND OPERATION

CIGAR LIGHTER

The cigar lighter is located in the front portion of the
floor console. To use the lighter, push it in completely.
When the lighter is hot, it will release itsef from contact
with the heating element. The lighter and the heating
element can be damaged if the lighter does not fully
release itsef from the heating element.

ASHTRAY

The ashtray is located in the console. To access the
ashtray, pullit out of the ashtray housing. The ashtray
lamp will go on when the parking lamps or headlamps
are turned on.

INSTRUMENT PANEL VENTS

The center and the side vents in the instrument panel
can be adjusted up and down and from side to side.
The side  vents can also be aimed toward the side
windows to defog them.

GLOVE BOX

The glove box can be opened by pulling upon the latch
handle.

DIGITAL CLOCK

The digital clock is located in the instrument cluster.

INSTRUMENT CLUSTER

The instrument cluster is located above the steering
column and in the instrument cluster trim panel. The
instrument  cluster contains the instruments that
provide the driver with vehicle performance information.
The instrument  cluster contains a speedometer, a
tachometer, an  o d o m e t e r ,   a   t r i p   o d o m e t e r ,   a
temperature gauge, a fuel gauge, and several indicator
lamps. For replacement of  the indicator lamp bulbs
contained in the instrument cluster, refer to “Instrument
Cluster Indicator Lamps Specifications” in the section.

SPEEDOMETER AND
TACHOMETER

The speedometer measures the speed of the vehicle
in km/h (with mph) or mph (with km/h). It consists of
an instrument cluster gauge connected to the vehicle
speed  sensor on the transaxle output shaft. The
tachometer measures the engine’s speed in terms of
thousands of revolutions per minute. It consists of an
instrument cluster gauge connected to a sending unit
in the engine con-trol  module. Do not operate the
engine in the red zone. Engine damage may occur.

TRIP ODOMETER

The trip odometer measures the distance the vehicle
has  traveled since it was last reset. It consists of an
instrument cluster gauge connected to the sending unit
on the tasnsaxle output shaft. The trip oddometer can
be record the distance traveled from any starting point.

FUEL GAUGE

The fuel gauge consists of an instrument cluster gauge
connected to a sending unit in the fuel tank. The fuel
gauge indicates the quantity of fuel in the tank only
when the ignition is turned to ON or ACC. When the
ignition is turned to LOCK or START, the pointer may
come to rest at any position.

TEMPERATURE GAUGE

The temperature gauge consists of an instrument
cluster gauge connected to a temperature sensor that
is in con-tact with the circulating engine coolant. The
temperature  gauge indicates the temperature of the
coolant. Prolonged driving or idling in very hot weather
may cause the pointer to move beyond the center of
the gauge. The engine  is overheating if the pointer
moves into the red zone at the upper limit of the gauge.

INSTRUMENT CLUSTER
INDICATOR  LAMPS

The instrument cluster contains indicator lamps that
indicatethe functioning of certain systems or the
existenceof potential problems with the operation of
the vehicle. The indicator lamps are replaceable. For
replacement of  the indicator lamps contained in the
instrument cluster, refer to “instrument cluster indicator
lamps specifications” in this section.

CHIME MODULE

The chime module will sound to bring attention to one
or more of the following conditions:

•

The lights are on and the ignition not in ACC, ON,
or START.

•

The ignition key is in the ignition switch when the
driver’s side door is open.

•

The seat belt is unbuckled when the ignition is in
ACC, ON, or START.

Voltage is supplied at all times through the fuse block
to power the chime module.

INSTRUMENTATION, DRIVER INFORMATION  9E-3

SSANGYONG  MY2002

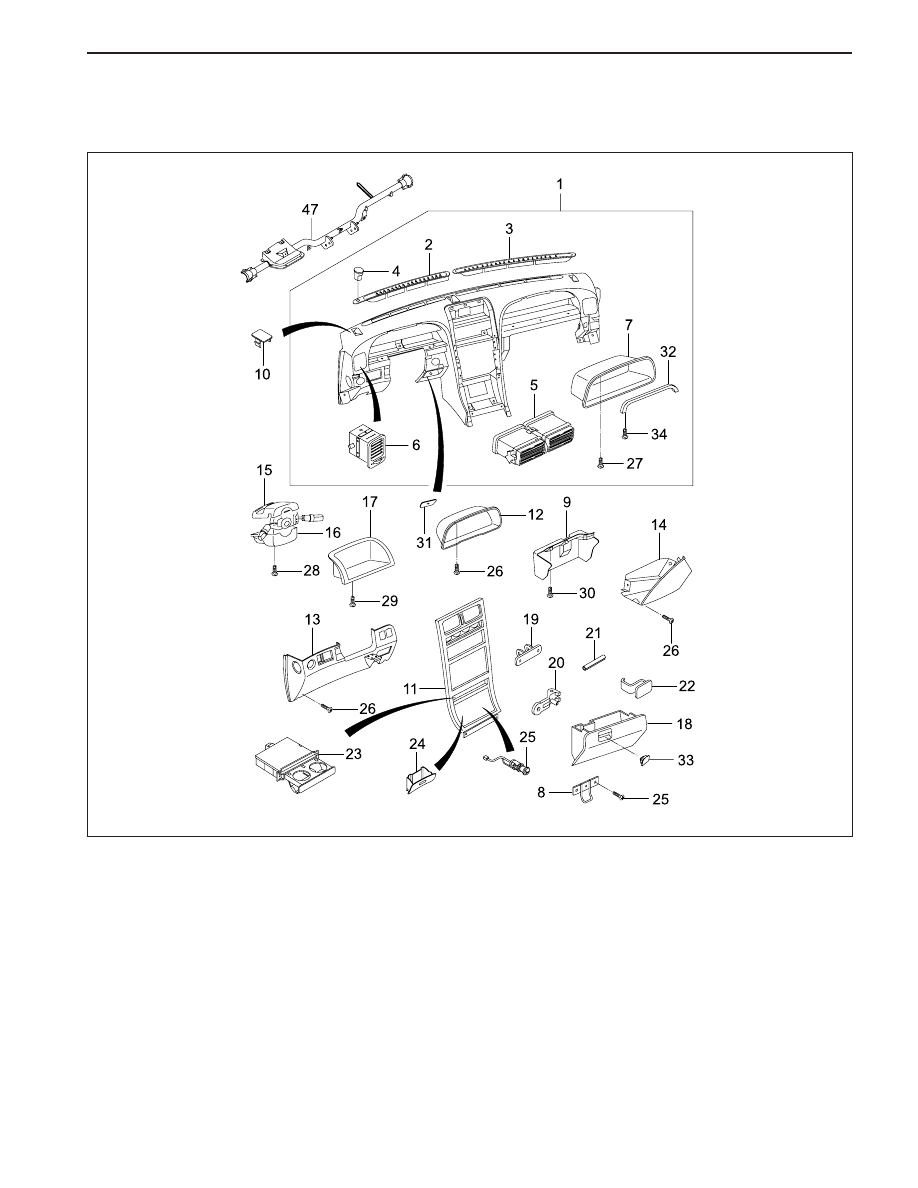

COMPONENTS LOCATOR

INSTRUMENTATION/DRIVER INFORMATION

KAA9E010

SSANGYONG  MY2002

9E-4  INSTRUMENTATION, DRIVER INFORMATION

1 Crash Pad Complete
2 Cover A-Def Nozzle
3 Cover A-Def Nozzle
4 Blacking Cover-Sun Sensor
5 Louver A-CTR A/Vent
6 Louver A-Side A/Vent
7 PNL A-Side Facia
8 Striker A-Glove Box
9 Shroud-Gloved Box Behind

10 Cover-C/Pad Main MTG
11 PNL A-CTR Facia
12 PNL A-Cluster Facia
13 PNL A-C/Pad LWR Main
14 PNL A-C/Pad LWR Main
15 PNL A-Shroud UPR
16 PNL A-Shroud LWR
17 Tray A-C/Pad CTR
18 Glove Box A

19 BRKT-Glove Box Hinge #1
20 BRKT-Glove Box Hinge #2
21 PNL-Glove Box Hinge
22 Stopper-G/Box Housing
23 Holder-Cup
24 Ash Tray-FRT
25 Cigar Lighter A
26 Screw-Truss
27 T/Screw-Oval
28 T/Screw-Oval
29 T/Screw
30 T/Screw-Truss SEMS
31 Cover-Black Out SW
32 Handel A-C/Pad
33 Lock A-Glove Box
34 Grommet-Shroud
35 Member A-Cowl Cross
