HORNS 9C-3

SSANGYONG MY2002

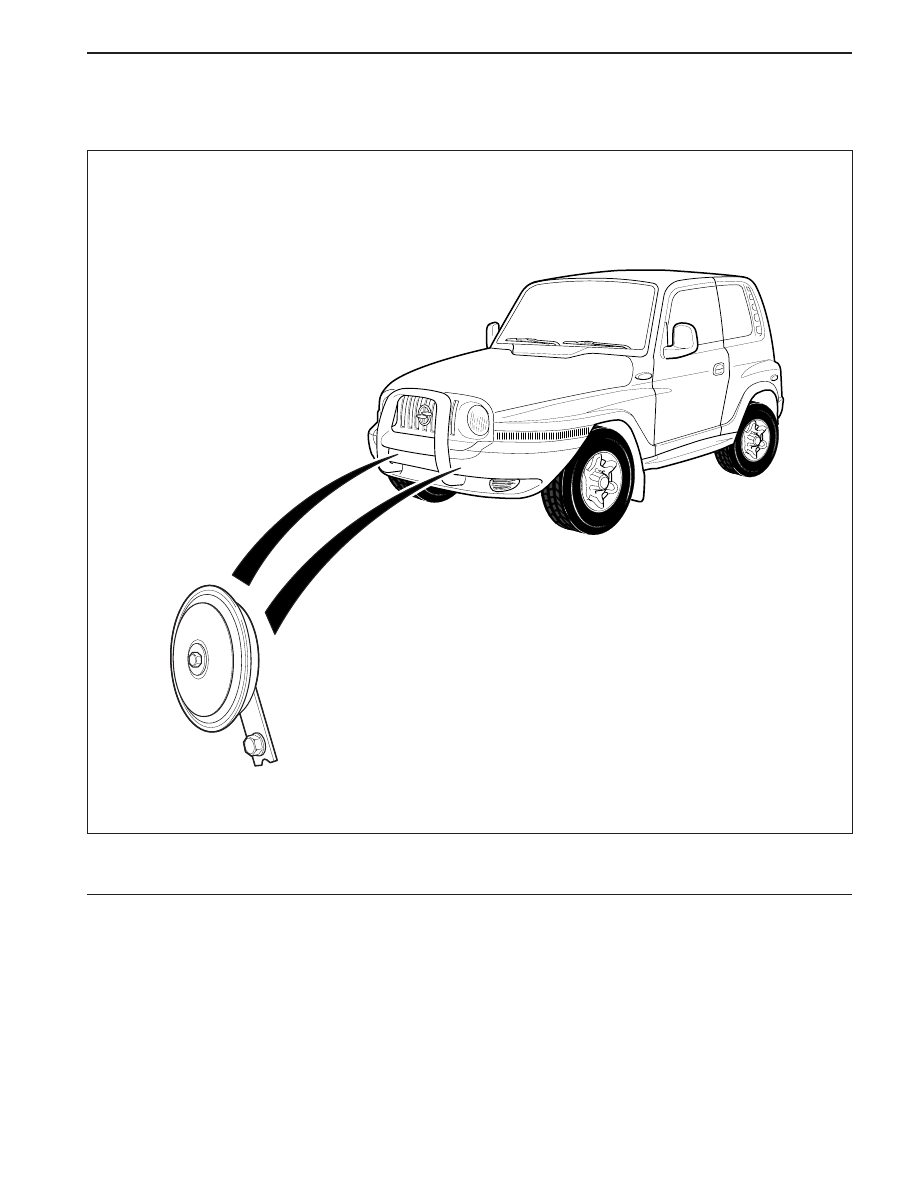

COMPONENTS LOCATOR

LIGHTING SYSTEM

1 HORN

KAA9C010

SSANGYONG MY2002

9C-4 HORNS

REPAIR INSTRUCTIONS

KAA9C020

ON-VEHICLE SERVICE

UNIT REPAIR

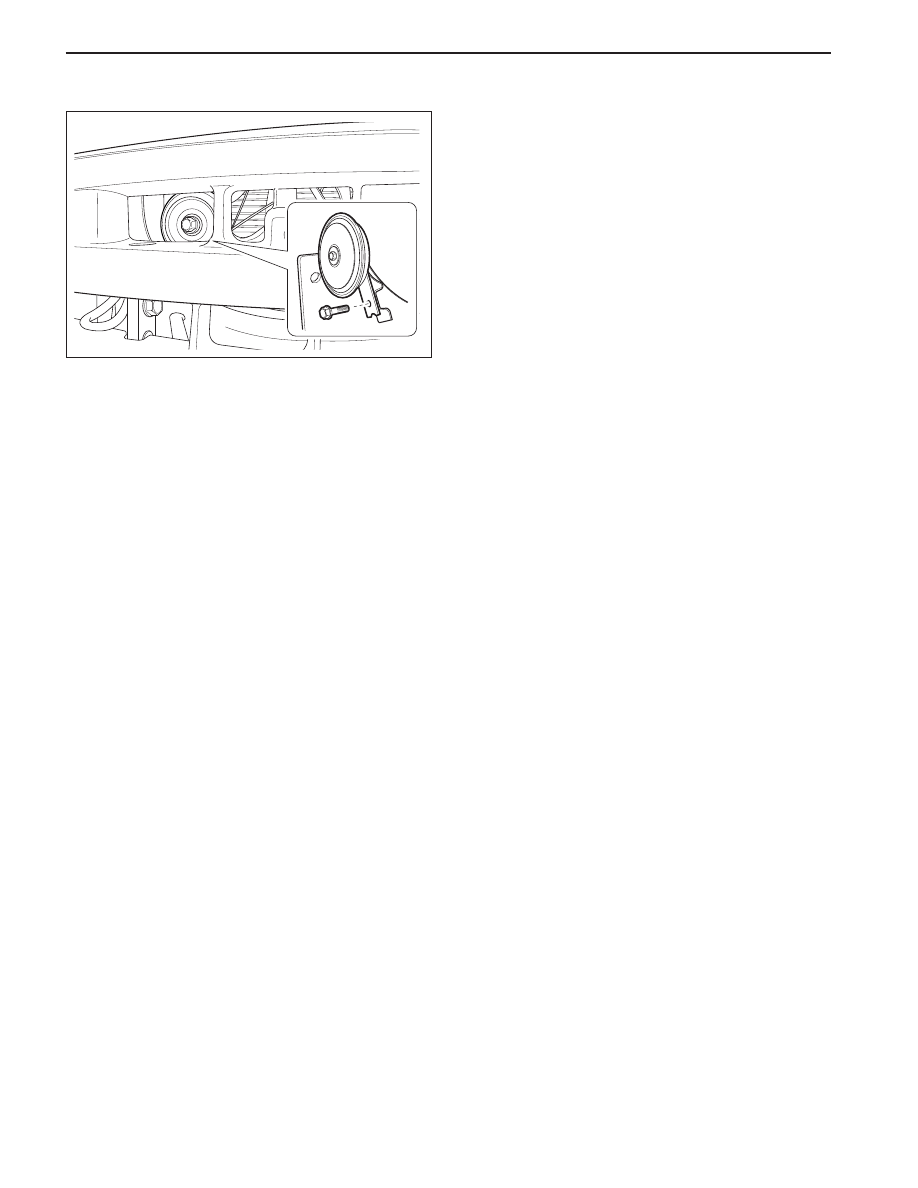

DUAL HORNS (LEFT HORN
SHOWN, RIGHT HORN SIMILAR)

Removal and Installation Procedure

1. Disconnect the negative battery cable.

2. Disconnect the electrical connector.

3. Remove the bolt and the horn.

•

Dissimilar metals in direct contact with each
other may corrode rapidly. Make sure to use
the correct fasteners to prevent premature
corrosion.

4. Installation should follow the removal procedure

in the reverse order.

HORNS 9C-5

SSANGYONG MY2002

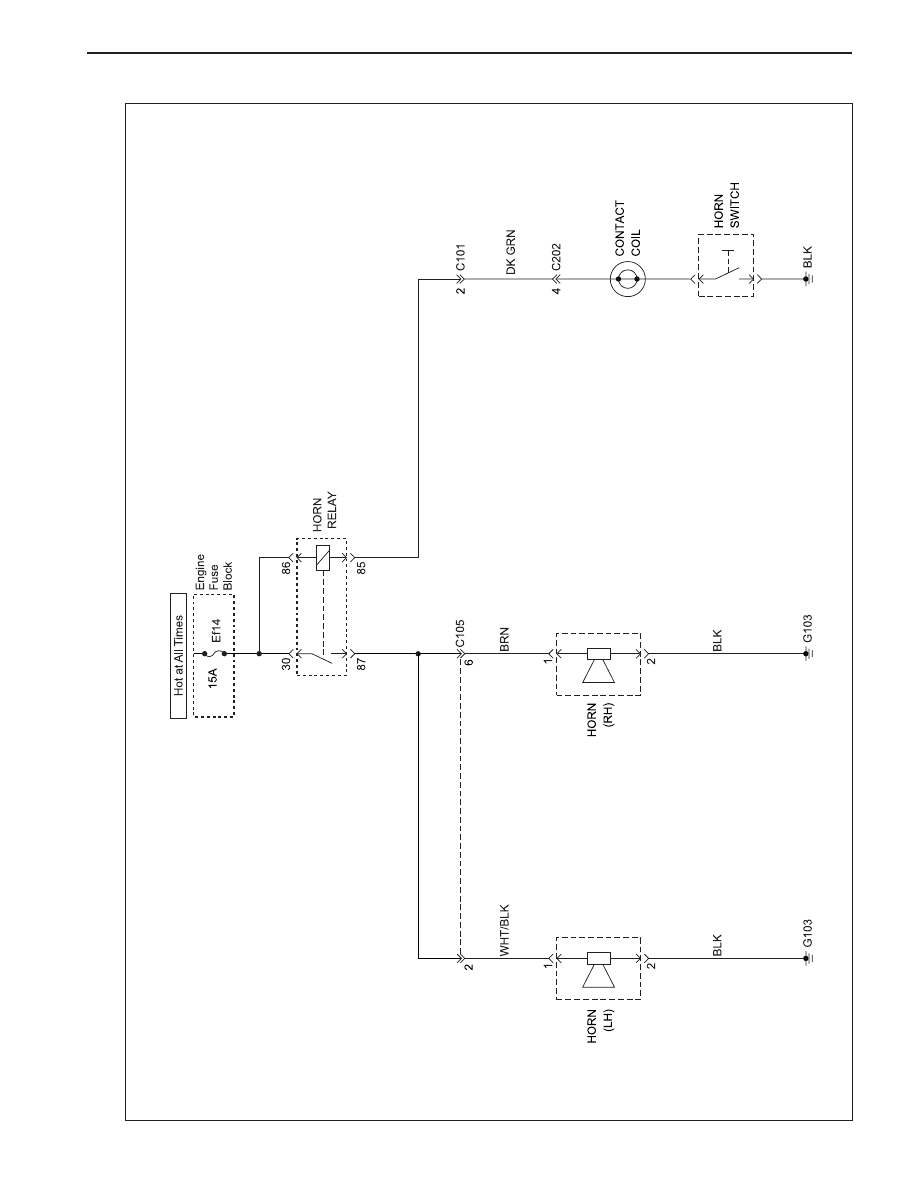

SCHEMATIC AND ROUTING DIAGRAMS

HORN WIRING SYSTEM

KAA9C030

Description and Operation ..................................  9D-2

Windshield Wiper System ...................................  9D-2

Windshield Washer System ................................  9D-2

Components Locator ...........................................  9D-3

Lighting System .................................................  9D-3

Repair Instructions ...............................................  9D-4

On-Vehice Service Unit Repair ...............................  9D-4

Windshield Wiper Arm ........................................  9D-4

Windshield Wiper Motor ......................................  9D-4

Windshield Wiper Blade .....................................  9D-5

Windshield Washer Reservoir .............................  9D-5

SECTION 9D

WIPER, WASHER SYSTEMS

CAUTION: Disconnect the negative battery cable before removing or installing any electrical unit or when a
tool or equipment could easily come in contact with exposed electrical terminals. Disconnecting this cable
will help prevent personal injury and damage to the vehicle. The ignition must also be in LOCK unless
otherwise noted.

TABLE OF CONTENTS

Windshield Washer Pump ...................................  9D-6

Windshield Washer Nozzles ................................  9D-6

Windshield Washer Hoses ..................................  9D-6

Rear Wiper Arm ..................................................  9D-6

Rear Wiper Motor ................................................  9D-7

Rear Washer Reservoir .......................................  9D-7

Specifications ......................................................  9D-8

Fastener Tightening Specifications ......................  9D-8

Schematic and Routing Diagrams ......................  9D-9

Windshield Wipers System .................................  9D-9
