SSANGYONG  MY2002

9B-28  LIGHTING SYSTEM

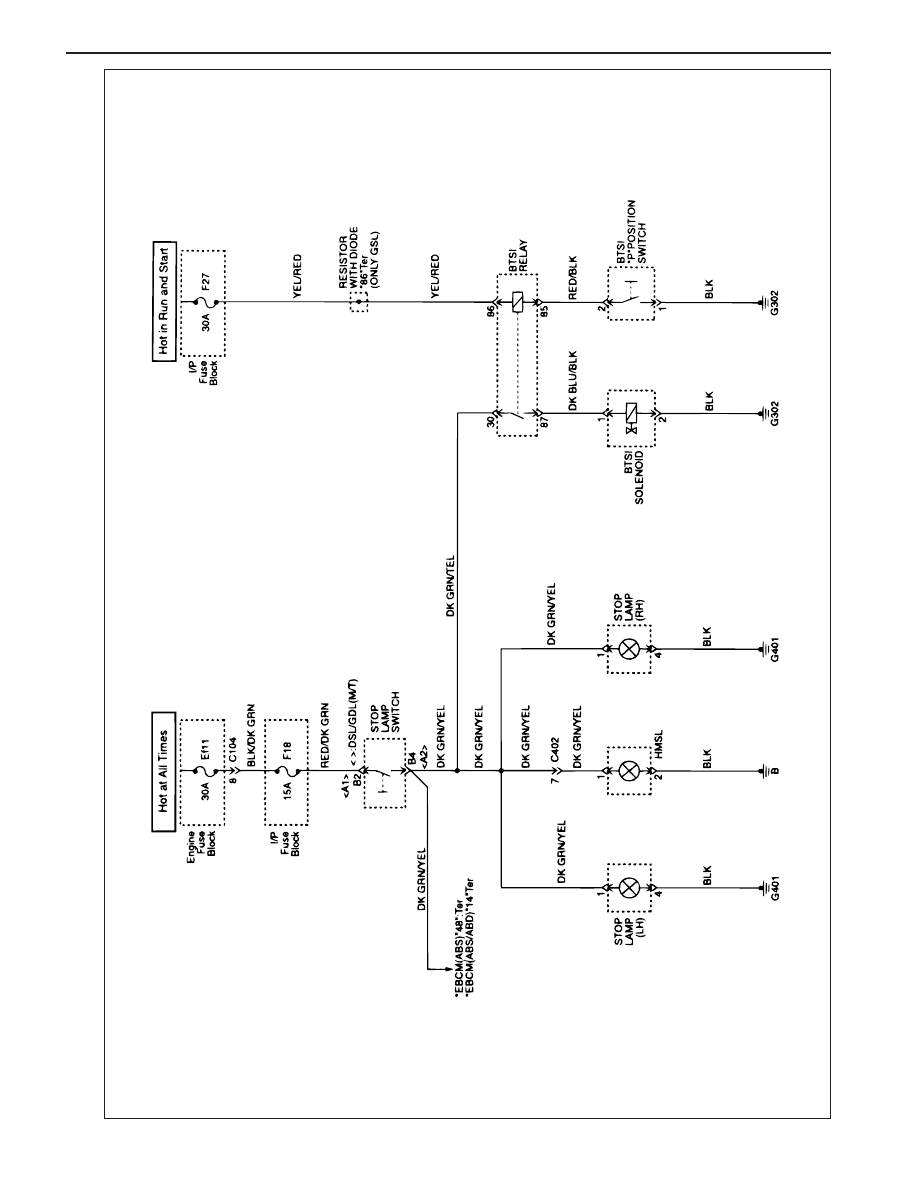

STOP LAMP, BTSI (BRAKE TRANSMISSION SHIFT INTERLOCK) - METAL TOP

KAA9B260

LIGHTING SYSTEM  9B-29

SSANGYONG  MY2002

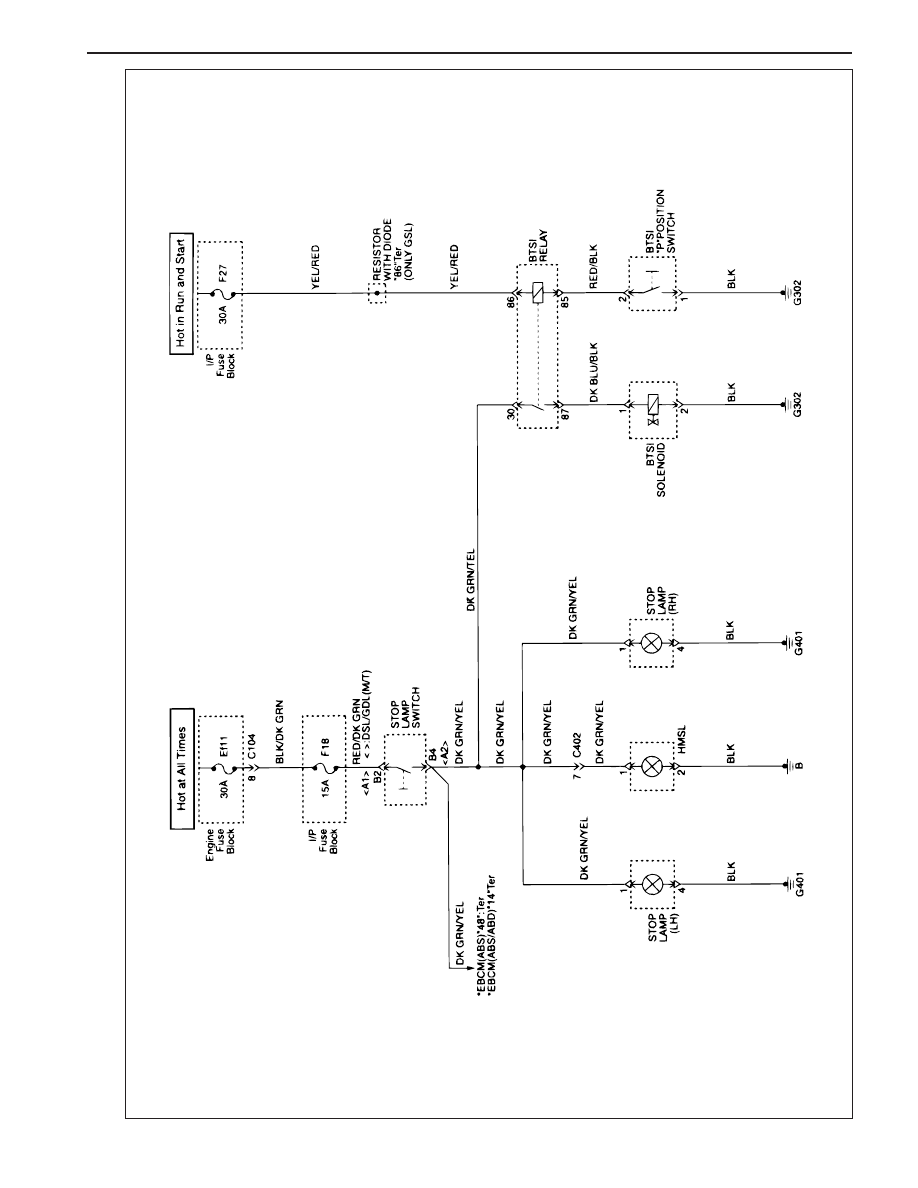

STOP LAMP, BTSI (BRAKE TRANSMISSION SHIFT INTERLOCK) - SOFT TOP

KAA9B270

SECTION 9C

HORNS

CAUTION: Disconnect the negative battery cable before removing or installing any electrical unit or when a
tool or equipment could easily come in contact with exposed electrical terminals. Disconnecting this cable
will help prevent personal injury and damage to the vehicle. The ignition must also be in LOCK unless
otherwise noted.

TABLE OF CONTENTS

Description and Operation ..................................  9C-2

Horns .................................................................  9C-2

Components Locator ...........................................  9C-3

Lighting System .................................................  9C-3

Repair Instructions ...............................................  9C-4

On-Vehice Service Unit Repair ...............................  9C-4

Dual Horns .........................................................  9C-4

Schematic and Routing Diagram .......................  9C-5

Horn Wiring System ............................................  9C-5

SSANGYONG MY2002

9C-2 HORNS

DESCRIPTION AND OPERATION

HORNS

The horns are located in the front bumper. They are at
tached near the radiator at the front of the vehicle. The
horns are actuated by pressing the steering wheel pad,
which grounds the horns’ electrical circuit.
