SSANGYONG MY2002

6E-8  POWER STEERING AND COLUMN

Check the ignition switch for damage.

Check the ignition switch for improper installation.

Check the ignition switch electrical connector for

improper installation.

Checks

Action

Replace the ignition switch.

Remove and inspect the ignition switch. Reinstall the

ignition switch.

Reconnect the ignition switch electrical connector.

Replace the ignition switch electrical connector.

Ignition Switch Will Not Turn

Wiper/Cruise Control Switch Lever

Switch Inoperative: No LOW, HIGH, INTERMITTENT or WASH

Check the wiper switch for damage.

Check the wiper switch for improper installation.

Check the cruise control switch for damage.

Checks

Action

Replace the wiper/cruise control switch.

Remove and inspect the wiper/cruise control switch.

Reinstall the wiper/cruise control switch.

Replace the wiper/cruise control switch.

Ignition Switch

Electrical System Will Not Function

Check the ignition switch for damage.

Check the ignition switch for improper installation.

Checks

Action

Replace the ignition switch.

Remove and inspect the ignition switch. Reinstall the

ignition switch.

POWER STEERING AND COLUMN  6E-9

SSANGYONG MY2002

KAA6E060

KAA6E040

ON-VEHICLE SERVICE

HEADLAMP/TURN SIGNAL
SWITCH AND LEVER

Removal and Installation Procedure

1. Disconnect the negative battery cable.

2. Remove the upper and the lower steering column

cover screws.

3. Remove the upper and the lower steering column

cover.

REPAIR INSTRUCTIONS

KAA6E050

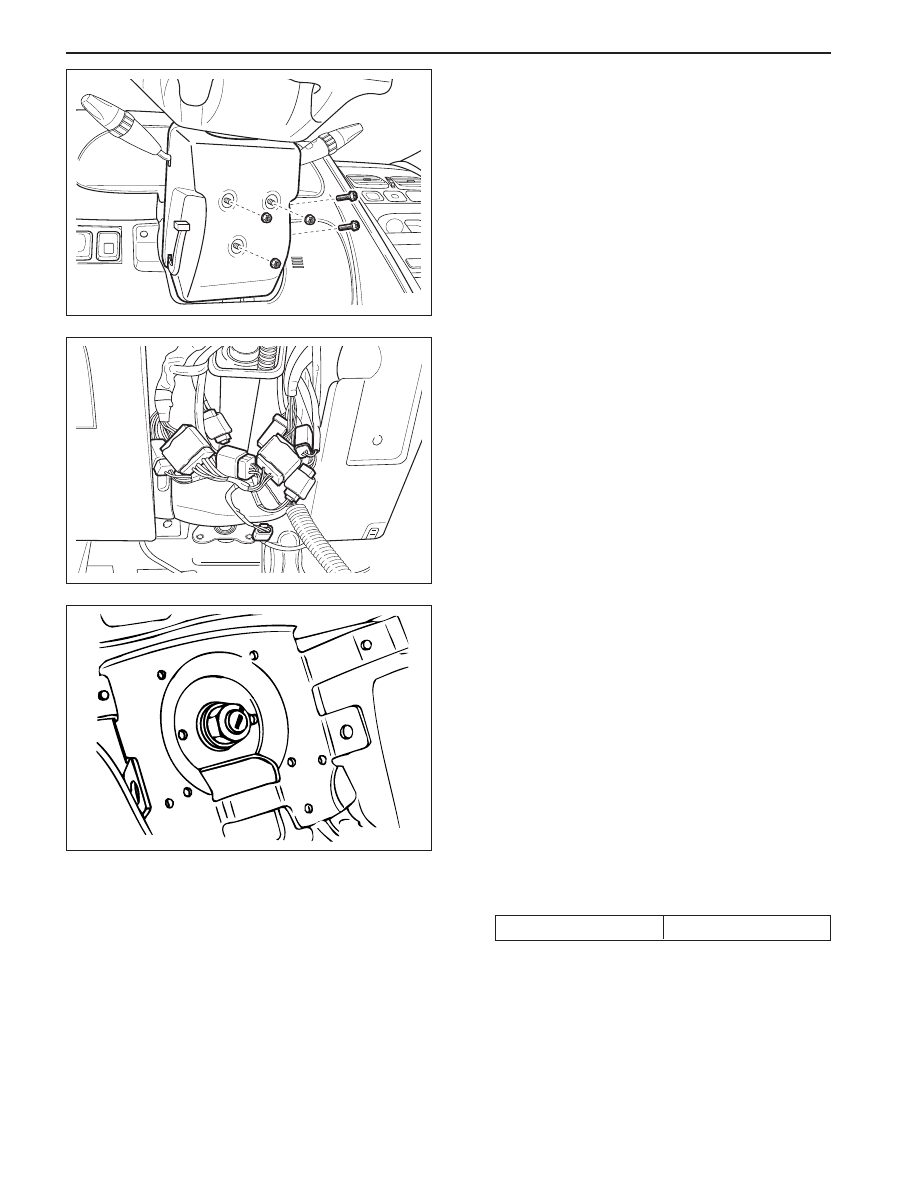

4. Remove the turn signal switch mounting screws.

5. Disconnect the turn signal switch connector.

6. Remove the turn signal switch.

SSANGYONG MY2002

6E-10  POWER STEERING AND COLUMN

KAA6E060

KAA6E080

KAA6E070

WIPER SWITCH AND LEVER

Removal and Installation Procedure

1. Disconnect the negative battery cable.

2. Remove the upper and the lower steering column

cover screws.

3. Remove the upper and the lower steering column

cover.

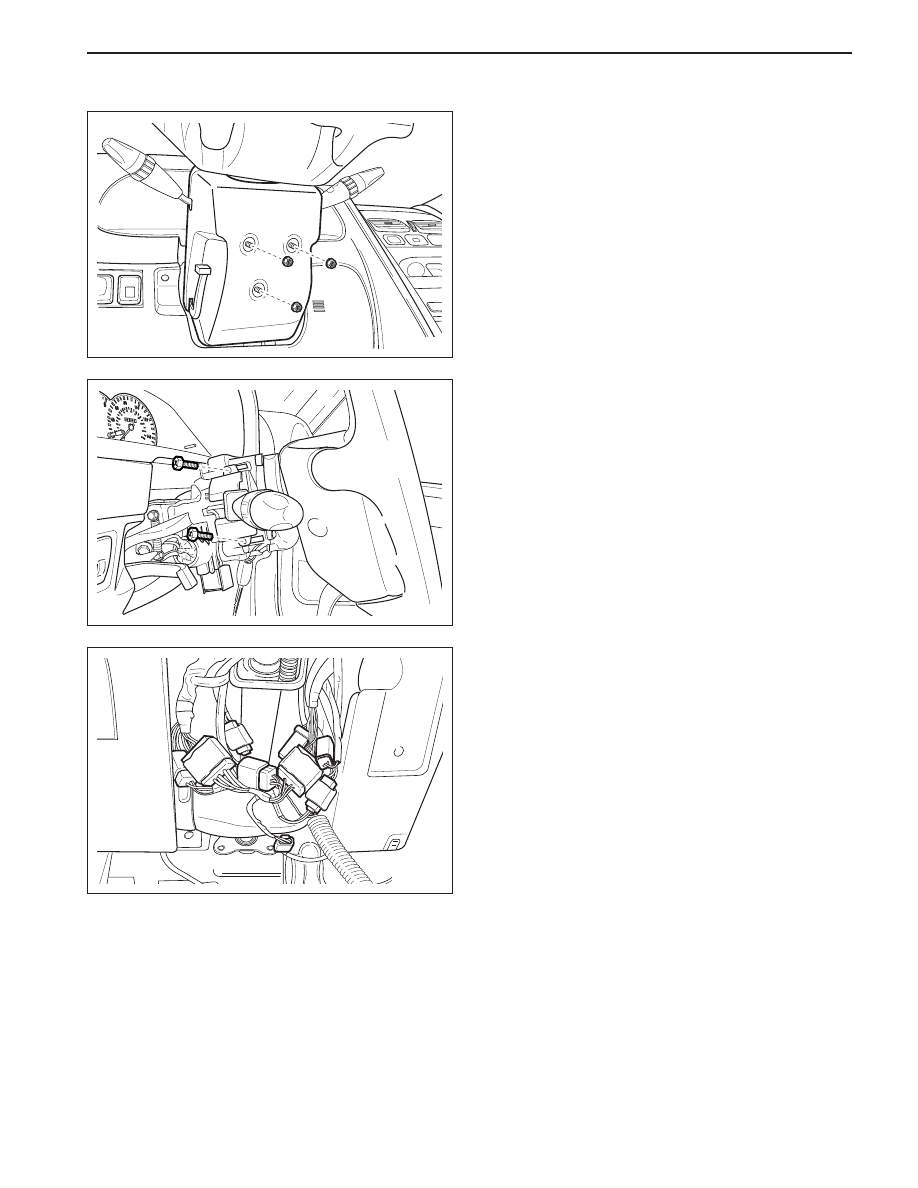

4. Remove the wiper switch and lever mounting

mounting screws.

Tightening Torque

65 N•m (48 lb-ft)

5. Disconnect the wiper switch and lever connector.

6. Remove the wiper switch and lever.

STEERING WHEEL WITH SIR

Tools Required

661 589 00 33 00 Steering Wheel Puller

Removal and Installation Procedure

1. Disconnect the negative battery cable.

2. Remove the SIR module. Refer to Section 8B, Sup-

plemental Inflatable Restraints.

3. Remove the steering wheel nut.

Removal Notice:

In order to install the steering wheel correctly,
match mark the steering column shaft to the
steering wheel.

Installation Notice

POWER STEERING AND COLUMN  6E-11

SSANGYONG MY2002

KAA6E040

KAA6E100

KAA6E090

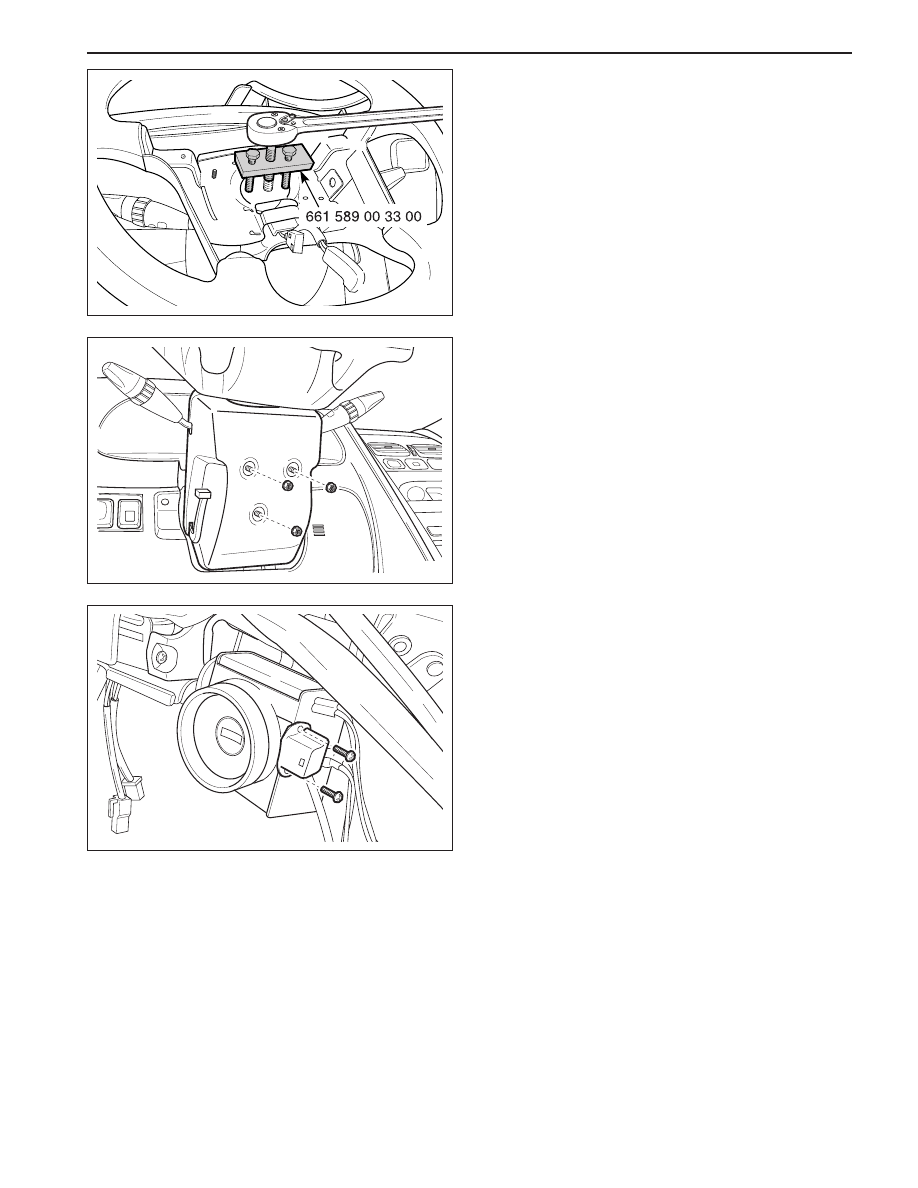

4. Remove the steering wheel using the steering

wheel puller 661 589 00 33 00.

Installation Notice:

Align the match marks on the steering wheel
and the steering column shaft.

IGNITION LOCK CYLINDER AND
SWITCH

Removal and Installation Procedure

1. Disconnect the negative battery cable.

2. Remove the upper and the lower steering column

cover screws.

3. Remove the upper and the lower steering column

cover.

4. Remove the screws for illumination keyhole

connection.

5. With the key in the ignition turned to the position

designated ACC, remove the lock cylinder by
pressing down the detent spring with a 2.5 mm
allen wrench or other suitable tool, and pulling the
lock cylinder out of the cylinder housing.
