SSANGYONG MY2002

6C-18  POWER STEERING GEAR

SPECIAL TOOLS AND EQUIPMENT

SPECIAL TOOLS TABLE

DW 310 - 040

Power Steering Rack

Guide Spring Cap

Wrench

KAA6C270

SECTION 6E

POWER STEERING AND COLUMN

TABLE OF CONTENTS

Description and Operation ................................... 6E-2

General Description ............................................. 6E-2

Ignition Switch Keyhole Lamp .............................. 6E-2

Ignition Key Reminder ......................................... 6E-2

Component Locator ............................................. 6E-3

Diagnostic Information and Procedures .............. 6E-4

Steering Wheel Freeplay Inspection ..................... 6E-4

Steering Effort Inspection ..................................... 6E-4

Steering Column Diagnosis .................................. 6E-5

Repair Instructions ................................................ 6E-9

On-Vehicle Service ................................................. 6E-9

Headlamp/Turn Signal Switch and Lever ............... 6E-9

Wiper Switch and Lever ..................................... 6E-10

Steering Wheel With Sir ..................................... 6E-10

Ignition Lock Cylinder and Switch ...................... 6E-11

Steering Column ................................................ 6E-12

Specifications ..................................................... 6E-14

Fastener Tightening Specifications ..................... 6E-14

Special Tools and Equipment ............................ 6E-15

Special Tools Table ............................................ 6E-15

SSANGYONG MY2002

6E-2  POWER STEERING AND COLUMN

GENERAL DESCRIPTION

Caution: To ensure the energy-absorbing action of
the steering column, it is important to use only the
specified screws, bolts, and nuts, tightened to the
specified torque.

In addition to the steering function, the steering column
provides safety and security.

The energy-absorbing column is designed to compress
in a front-end collision to lessen the chance of driver
injury.

The ignition switch and the lock are mounted on the
column, allowing the ignition and steering operations
to be locked to inhibit theft of the car.

The column levers trigger the turn signals, the headlight
beams, and the windshield washer and wipers.

A tilt steering column uses a spherical joint to allow
the steering wheel to tilt up and down. This enables
the driver to adjust the steering wheel to a comfortable
position.

Notice: Apply a thin coat of lithium grease to all friction
points when reassembling.

The column may be disassembled and reassembled
easily.

DESCRIPTION AND OPERATION

IGNITION SWITCH KEYHOLE LAMP

For description and lamp replacement information, Re-
fer to Section 9B, Lighting Systems.

IGNITION KEY REMINDER

The ignition key reminder alerts the driver that the key
is still in the ignition when the driver attempts to exit
the vehicle.

An internal switch in the ignition lock cylinder supplies
battery voltage to the reminder chime module when all
of the following conditions are true:

•

The key is in the ignition switch.

•

The ignition is OFF.

•

The driver’s door is open.

For information on removal and installation of the re-
minder chime module, Refer to Section 9E, Instrumen-
tation/Driver Information.

POWER STEERING AND COLUMN  6E-3

SSANGYONG MY2002

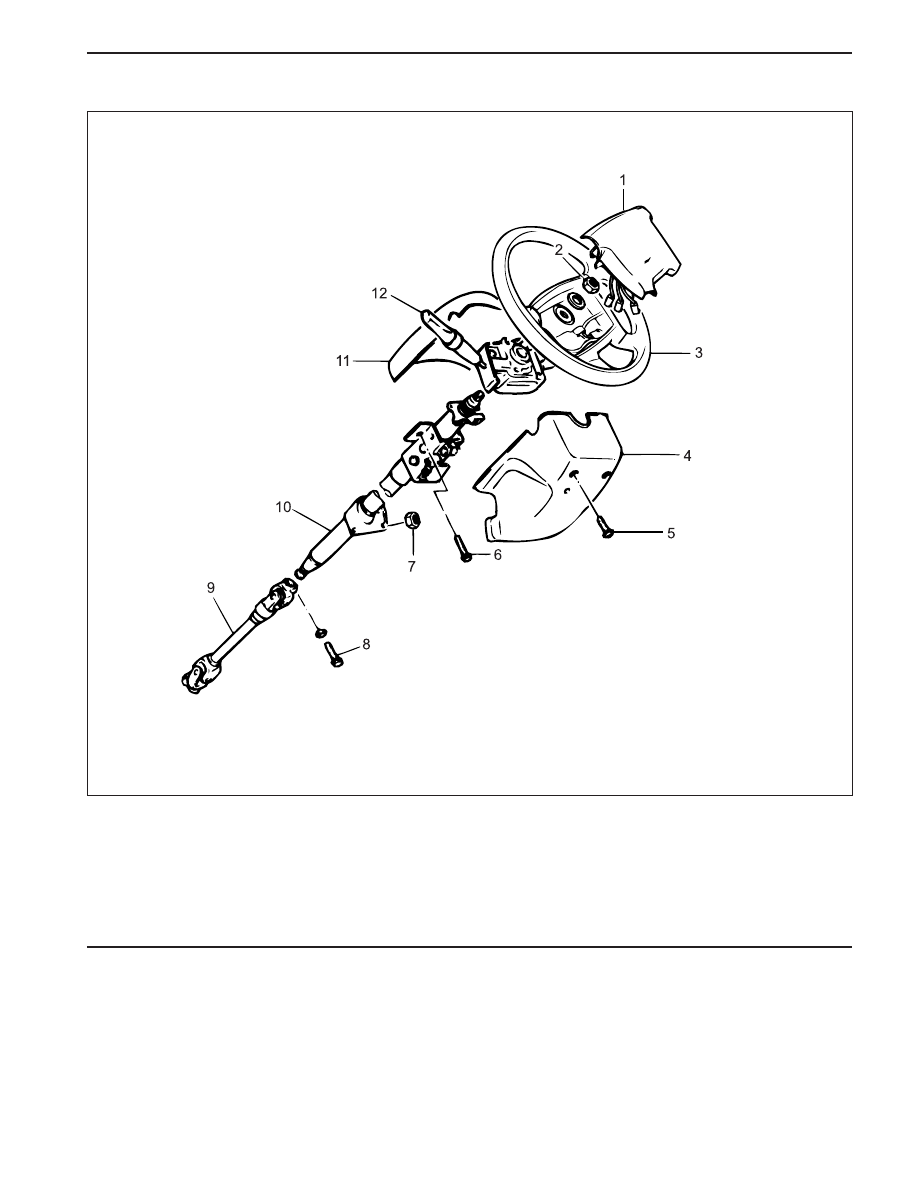

COMPONENT  LOCATOR

KAA6E010

1 Driver Airbag Module
2 Steering Wheel Nut
3 Steering Wheel
4 Lower Steering Column Cover
5 Lower Steering Column Cover Screw
6 Steering Column Upper Mounting Bolt

7 Steering Column Lower Mounting Nut
8 Intermediate Shaft Upper Pinch Bolt
9 Intermediate Shaft

10 Steering Column
11 Upper Steering Column Cover
12 Headlamp/Turn Signal Switch and Lever
