SsangYong Korando II (1996-2006 year). Manual - part 369





SSANGYONG MY2002

6C-6  POWER STEERING GEAR

POWER STEERING RACK AND
PINION GEAR BENCH TESTING

Removal and Installation Procedure

Notice: Pressure checks or pressure and flow checks
may also be conducted using this setup.

1. Disconnect and remove the power steering gear.

Refer to “Rack and Pinion Assembly” in this
section.

2. Place the power steering gear on a bench next to

the vehicle.

3. Disconnect the pressure line at the point where the

hose connects to the pipe. Extend this line to reach
the power steering gear on the bench.

4. Disconnect the return line from the power steering

fluid reservoir. Extend this line to reach the power
steering gear on the bench.

5. Connect the power steering pipes to the power

steering gear.

6. Start the engine and allow it to idle for 10 seconds.

7. Check the power steering fluid level. Refer to

Section 6A, Power Steering System.

8. Start the engine and turn the rack and pinion stub

shaft a full turn in each direction. Hold the shaft
against each stop for 5 seconds.

9. Inspect for possible leak points. Refer to Section

6A, Power Steering System.

Installation Procedure

1. Stop the engine.

2. Disconnect the power steering pipes from the power

steering gear.

KAA6C020

3. Remove the extensions and reconnect the pressure

and return lines.

4. Install and connect the power steering gear. Refer

to “Rack and Pinion Assembly” in this section.

5. Start the engine and allow it to idle for 10 seconds.

6. Check the power steering fluid level. Refer to

Section 6A, Power Steering System.

STRAIGHT-AHEAD CHECK

After all the necessary operations on the steering gear
are completed (removing and installing, disassembling
and assembling), check the exact straight-ahead posi-
tion of the steering in each case.

With the vehicle on the floor, place the steering wheel
in the straight-ahead position. Mark the centerline of
both tires on the floor. Turn the steering wheel all the
way to the right and mark the new centerline of both
tires on the floor.

POWER STEERING GEAR  6C-7

SSANGYONG MY2002

Yes

Go to Step 2

Go to Step 3
Go to Step 5

Go to Step 2

Go to Step 3

System OK

Go to Step 6

No

-

Go to Step 4
Go to Step 6

-

-

Go to Step 7

-

Value

-

-
-

-

-

Inner angle :

33°39

Outer angle :

31°54

-

Step

1

2

3

4

5

6

7

Action

Place the steering wheel in the straight-ahead position.
Is the wheel in the correct position?
Is the lower intermediate shaft pinch bolt lying parallel to
the steering gear?
Is the steering wheel off center by more than 5 degrees?
The pinion is displaced on the rack. The steering pinion
position must be corrected.
Is the repair complete?
Remove steering wheel and center on the spindle
splines.
Is the repair complete?

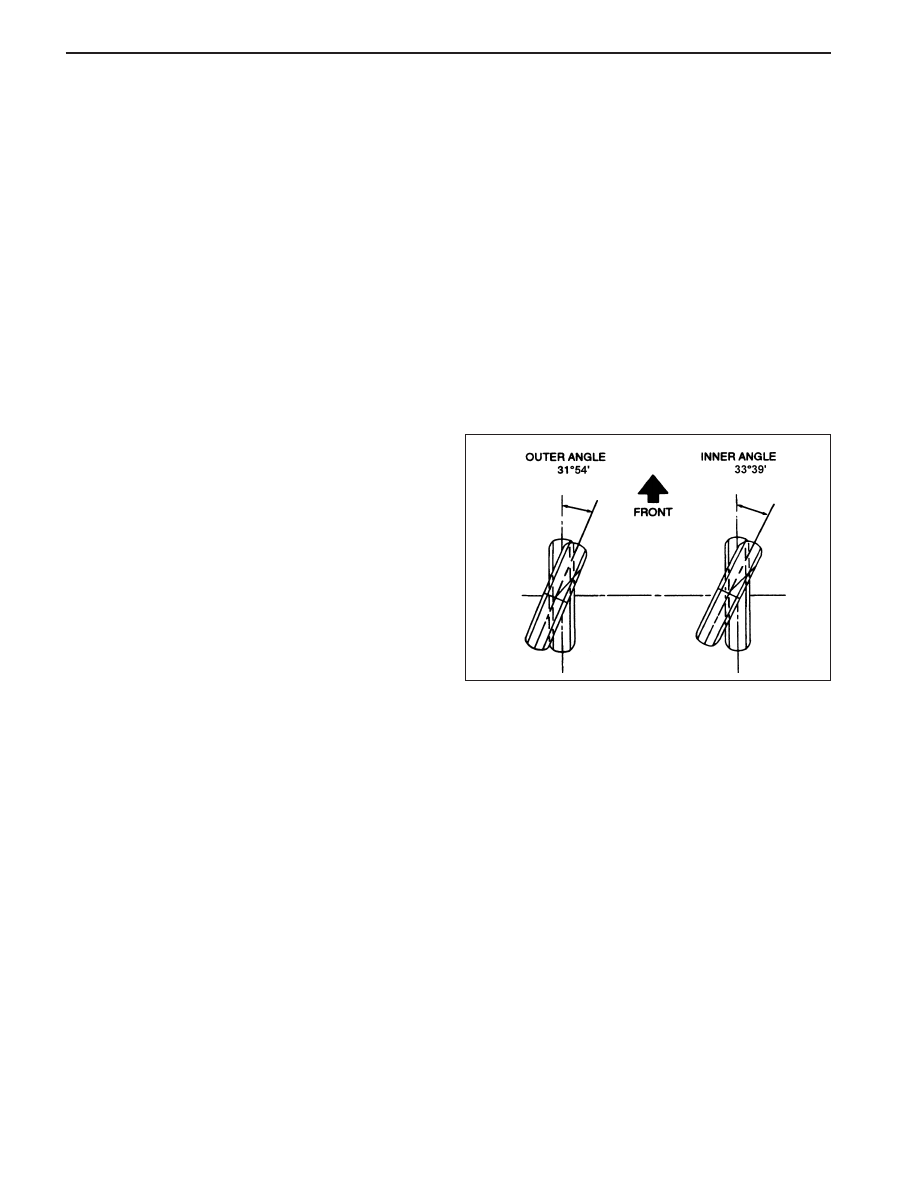

Turn the steering wheel all the way to the right.
Measure the inner and the outer angles of the tire
centerline compared to the straight-ahead centerline.
Are the angle within specifications?
The rack assembly was not assembled correctly.
Repair as needed.
Is the repair complete?

Straight-Ahead Check Table

SSANGYONG MY2002

6C-8  POWER STEERING GEAR

KAA6C040

KAA6C030

ON-VEHICLE SERVICE

RACK AND PINION ASSEMBLY

Tools Required

661 589 13 33 00

Ball Joint Remover

Removal and Installation Procedure

1. Raise and suitably support the vehicle.

2. Remove the wheels. Refer to Section 2E, Tires

and Wheels.

3. R e m o v e   t h e   i n t e r m e d i a t e   s h a f t .   R e f e r   t o

“Intermediate shaft” in this section.

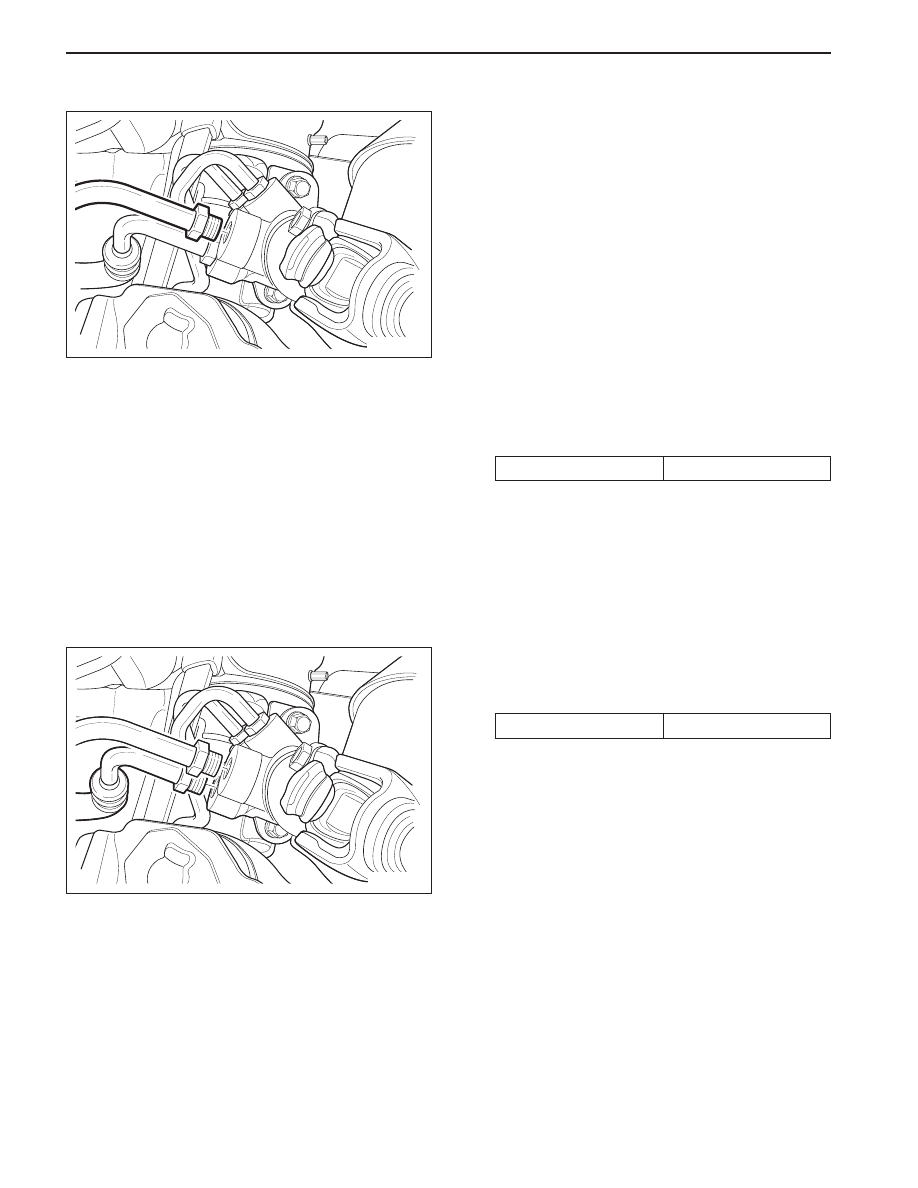

4. Disconnect the return line pipe from the power

steering gear outlet. Place a drain pan under the
steering gear to catch the power steering fluid.

Installation Notice

REPAIR INSTRUCTIONS

Tightening Torque

17 N•m (13 lb-ft)

5. Disconnect the pressure line pipe from the power

steering gear inlet.

Installation Notice

Tightening Torque

17 N•m (13 lb-ft)

POWER STEERING GEAR  6C-9

SSANGYONG MY2002

KAA6C140

KAA6C050

KAA6C050

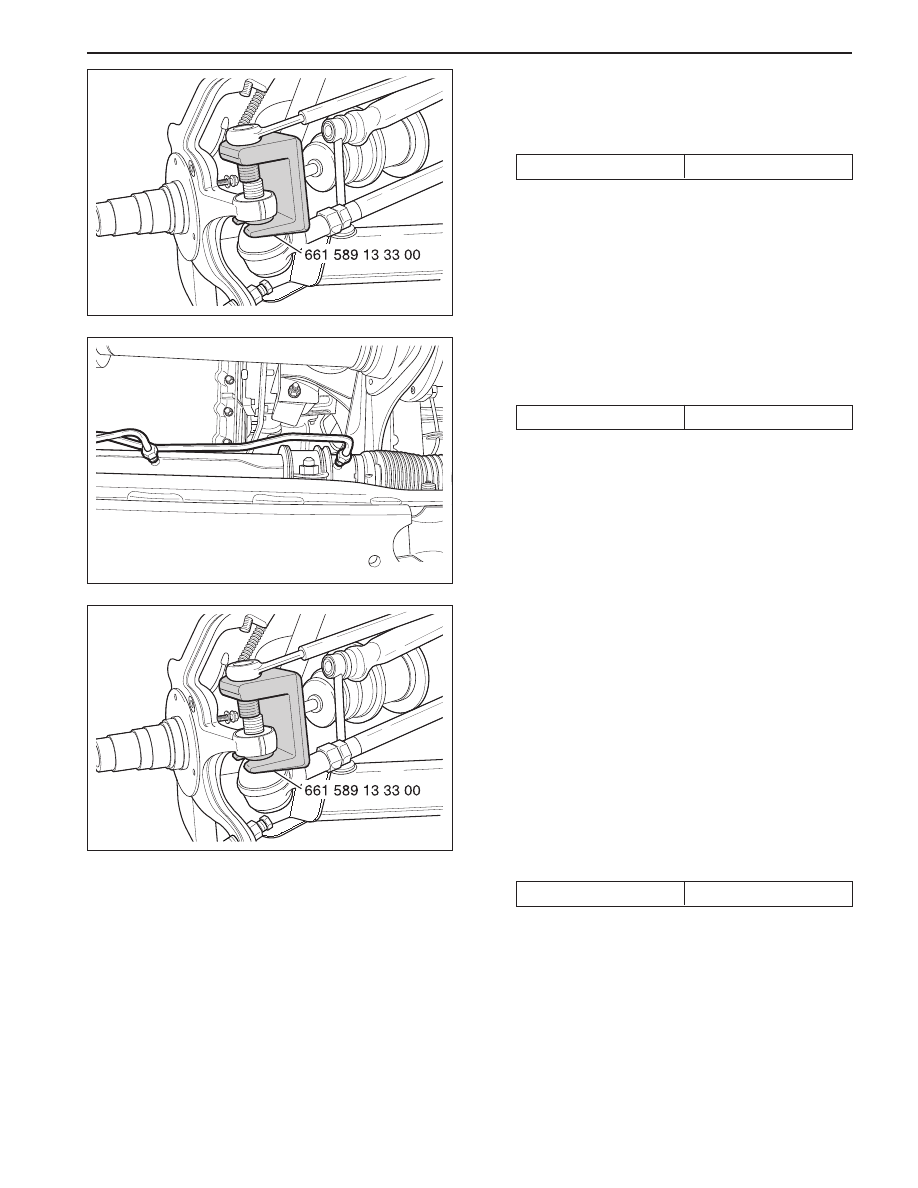

6. Remove the outer tie rod nuts and disconnect the

tie rod ends from the knuckle using the ball joint
remover 661 589 13 33 00.

Installation Notice

7. Remove the rack and pinion assembly mounting

bolts and remove therackand pinion assembly.

Installation Notice

Tightening Torque

40 N•m (30 lb-ft)

After installing the rack and pinion assembly,
bleed the power steering system. Refer to
Section 6A, Power Steering System.

OUTER TIE ROD

Tools Required

661589 13 33 00

BallJointRemover

Removal and Installation Procedure

1. Remove the wheel. Refer to Section 2E, Tires and

wheels.

2. Mark the threads on the inner tie rod to aid in

repositioning the adjusting nut.

3. Remove the outer tie rod nut and disconnect the

outer tie rod from the knuckle using the ball joint
remover 661 589 13 33 00.

Installation Notice

Tightening Torque

78 N•m (58 lb-ft)

Tightening Torque

40 N•m (30 lb-ft)
