ABS AND TCS 4F-23

SSANGYONG MY2002

Step

1

2

3

4

5

6

7

8

9

10

11

12

13

Traction Control System (TCS) Indicator Lamp Inoperative

Action

Yes

No

Value(s)

Install the scan tool and check for any DTCs.
Is any DTC set?
1. Turn the ignition to LOCK.
2. Disconnect the scan tool.
3. Turn the ignition to ON.
4. Observe the TCS indicator lamp.
Does the lamp illuminate for about 2 seconds, then
turn off?
With the ignition still ON, observe the oil pressure
lamp.
Is the oil pressure lamp illuminated?
1. Turn the ignition to LOCK.
2. Disconnect the connector from the EBCM.
3. Connect a jumper from terminal 32 to the grounding

bar in the connector.

4. Turn the ignition to ON.
Does the TCS indicator illuminate?
1. Turn the ignition to LOCK.
2. Examine terminals 19 and 32 at the EBCM connec-

tor on both the ABS wiring harness and on the
EBCM.

Is there a poor connection at any of these terminals?
Repair the faulty terminals or replace the ABS unit, as
required.
Is the repair complete?
Replace the ABS unit.
Is the repair complete?
1. Turn the ignition to LOCK.
2. Disconnect the wire from the negative battery

terminal.

3. Measure the resistance between the negative

battery wire, which is attached to ground, and the
shorting bar in the EBCM connector.

Is the resistance equal to the specified value?
Repair the open or high resistance in the circuit from
EBCM connector, terminal 29 to ground G303.
Is the repair complete?
1. Remove the I/P cluster.
2. Remove and check the TCS indicator bulb.
Is the bulb burned out?
1. Replace the TCS indicator bulb.
2. Replace the I/P cluster.
Is the repair complete?
Check continuity at the I/P cluster connector terminal
A6.
Is the continuity equal to the specified value?
Repair the contact at the I/P cluster connector terminal
A6.
Is the repair complate?

-

-

-

-

-

-

-

≈

 0

Ω

-

-

-

≈

 0

Ω

-

Go to the chart

for the DTC

Go to “Intermit-

tents and Poor

Connections”

Go to Step 4

Go to Step 5

Go to Step 6

System OK

System OK

Go to Step 10

System OK

Go to Step 11

System OK

Go to Step 14

System OK

Go to Step 2

Go to Step 3

Go to Step 19

Go to Step 8

Go to Step 7

-

-

Go to Step 9

-

Go to Step 12

-

Go to Step 13

-

SSANGYONG MY2002

4F-24 ABS AND TCS

Check the wiring harnesses and connectors in circuit
DK BLU from the I/P cluster terminal A6 to terminal 32
of the EBCM connector.
Is the voltage equal to the specified value?
Repair the open or high resistance.
Is the repair complete?
Check for continuity between terminal 19 of the ABS
connector and ground G205.
Is the continuity equal to the specified value?
Replace the ABS unit.
Is the repair complete?
Repair the continuity between terminal 19 of the EBCM
connector and ground G205.
Is the repair complete?
1. Turn the ignition to LOCK.
2. Check fuse F30 in the I/P fuse block.
Is fuse F30 blown?
Replace fuse F30.
Is the repair complete?
1. Turn the ignition ON.
2. Check the voltage at fuse F30.
Is the voltage equal to the specifies value?
Repair the power supply to fuse F30.
Is the repair complete?
1. Remove the I/P cluster.
2. Check circuit LR from fuse F30 to terminal A1 of

the I/P cluster connector.

3. Repair any open or high resistance found in a wiring

harness, a splice pack, or a connector.

Is the repair complete?

Step

14

15

16

17

18

19

20

21

22

23

Traction Control System (TCS) Indicator Lamp Inoperative (Cont’d)

Action

Yes

No

Value(s)

≈

 0

Ω

-

≈

 0

Ω

-

-

-

-

11 - 14v

-

-

Go to Step 15

System OK

Go to Step 17

System OK

System OK

Go to Step 20

System OK

Go to Step 22

System OK

System OK

Go to Step 16

-

Go to Step 18

-

-

Go to Step 21

-

Go to Step 23

-

ABS AND TCS 4F-25

SSANGYONG MY2002

BLANK

SSANGYONG MY2002

4F-26 ABS AND TCS

ELECTRONIC BRAKE-FORCE DISTRIBUTION SYSTEM (EBD)

INDICATOR LAMP INOPERATIVE

KAA4F120

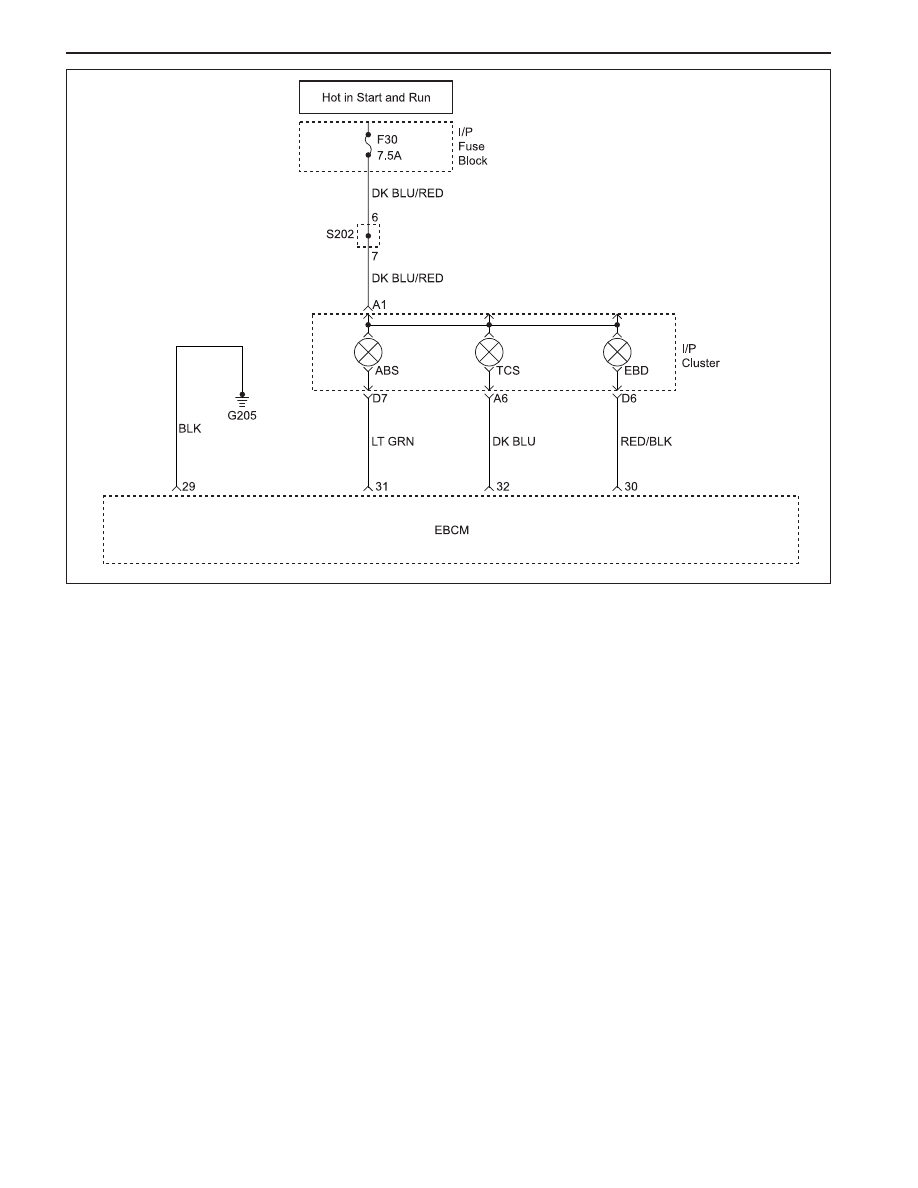

Circuit Description

Battery voltage is supplied to the EBD warning lamp
with the ignition in ON or START. The warning lamp can
be activated only by the ABS control module internally
supplying ground to terminal 30.

Diagnosis

This procedure checks for a problem in the wiring, a
faulty ground, a voltage supply problem, a burned out
indicator lamp, or a contact problem in a connector.

Cause(s)

•

A fuse has blown.

•

The indicator lamp has burned out.

•

There is a corroded or broken connector terminal.

•

There is a faulty ground connection.

•

There is a broken wire in a wiring harness.

•

The EBCM is faulty.

Test Description

The number(s) below refer to step(s) on the diagnostic
table.

1. This test checks for any DTCs that may cause

the EBD indicator lamp to be inoperative.

2. This test verifies an inoperative lamp condition.

3. This test checks for voltage on the lamp circuit.

4. This begins a series of tests of the circuit from

the indicator lamp to the EBCM and ground.

19.  This begins a series of tests of the voltage supply

circuits that power the indicator lamp.
