SSAMGYONG MY2002

4A-6  HYDRAULIC BRAKES

Action

1. Turn the ignition ON.
2. Apply the parking brake.
Does the BRAKE warning lamp turn on?
Check fuse F30.
Is fuse F30 blown?
Check for a short circuit and repair it, if necessary.
Replace fuse F30.
1. Turn the ignition ON.
2. Check the voltage at F30.
Is the voltage equal to the specified value?
Repair the power supply to fuse F30.
Is the repair complete?
1. Disconnect terminal A1 of the instrument cluster.
2. Turn the ignition ON.
3. Use a voltmeter to check the voltage at terminal A1.
Is the voltage equal to the specified value?
Repair the open circuit between terminal A1 of the
instrument cluster and fuse F30.
Is the repair complete?
1. Reconnect terminal A1 of the instrument cluster.

Turn the ignition ON.

2. Use a voltmeter to backprobe terminal D10 of the

instrument cluster.

Is the voltage equal to the specified value?
1. Remove the BRAKE warning lamp from its socket.
2. Test the Brake warning lamp.
Is the BRAKEwarning lamp OK?
Replace the instrument cluster.
Is the repair complete?
Replace the BRAKE warning lamp.
Is the repair complete?
1. Disconnect terminal C10 of the STICS.
2. Connect a jumper wire between terminal C10 and

ground.

3. Turn the ignition ON.
Is the BRAKE warning lamp on?
Replace the STICS.
Is the repair complete?
1. Disconnect the STICS connector.
2. Connect a jump wire between terminal C19 and

ground.

3. Turn the ignition ON.
Is the BRAKE warning lamp on?
Replace the brake warning lamp switch.
Is the repair complete?
Repair the open circuit between the brake warning
lamp switch and terminal C19 of the STICS

BRAKE LAMP WARNING CIRCUIT (Cont’d)

Yes

Go To Step 31

Go To Step 17

System OK

Go To Step 20

System OK

Go To Step 22

System OK

Go To Step 26

Go To Step 24

System OK

System OK

Go To Step 27

System OK

Go To Step 29

System OK

System OK

NO

Go To Step 16

Go To Step 18

-

Go To Step 19

-

Go To Step 21

-

Go To Step 23

Go To Step 25

-

-

Go To Step 28

-

Go To Step 30

-

-

Step

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

Value

-

-

-

11 - 14 v

-

11 - 14 v

-

11 - 14 v

-

-

-

-

-

-

-

-

HYDRAULIC BRAKES  4A-7

SSANGYONG MY2002

BRAKE LAMP WARNING CIRCUIT (Cont’d)

Action

1. Disconnect the brake fluid level switch.
2. Use an ohmmeter to check the resistance between

terminal 2 of the switch connector and ground.

Is the resistance equal to the specified value?
Repair the open circuit between ground and the brake
fluid level switch.
Is the repair complete?
Repair the open circuit between terminal 1 of the brake
fluid level switch and terminal D10 of the instrument
cluster.
Is the repair complete?

Yes

Go To Step 32

System OK

System OK

NO

Go To Step 33

-

-

Step

31

32

33

Value(s)

≈

0

 Ω

-

-

SSAMGYONG MY2002

4A-8  HYDRAULIC BRAKES

YAD4A170

YAD4A180

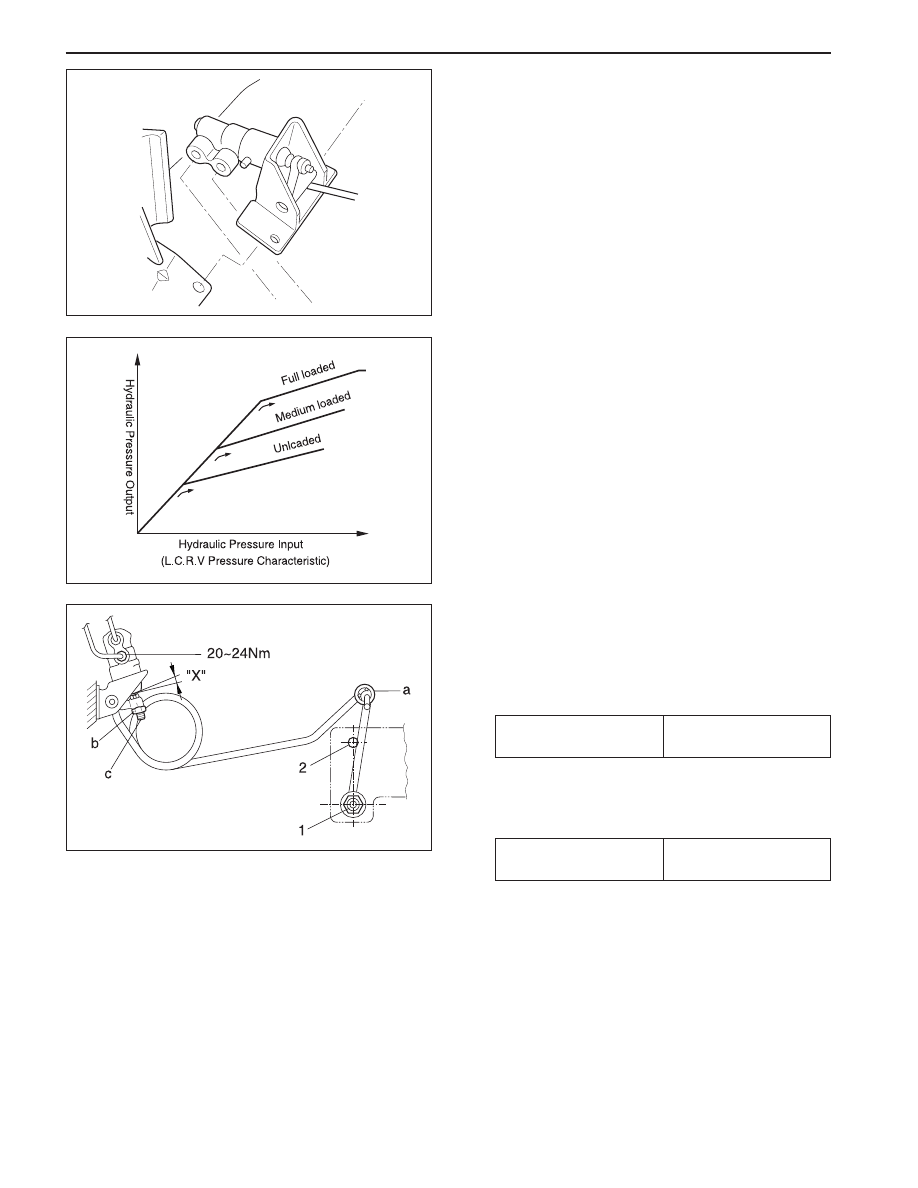

LCRV (LOAD CONSCIOUS
REDUCING VALVE)

LCRV consists of sensing part and hydraulic control
part.

1. Sensing Part

It detects the changes of vehicle height caused
by vehicle load. It consists of load sensing spring
and control lever which change according to
vehicle load.

2. Hydraulic Control Part

It consists of valve stem devices which controls
hydraulic pressure according to load detected by
sensing part.

YAD4A190

4. Place alignment marks between the lock nut (b)

and adjusting screw (c) after the valve setting.

5. LCRV setting should be performed with unloaded

vehicle condition.

Setting Method

1. Install the connecting rod (a) to the No.1 hole.

2. Adjust the clearance “X” to be 0mm and tighten

the bolt (c) using the lock nut (b).

Installation Notice

Tightening Torque

14 - 18 N•m

 (10 - 13 lb-ft)

3. Remove the connecting rod (a) from the No.1 hole

and reinstall it to the No.2 hole.

Installation Notice

Tightening Torque

14 - 18 N•m

 (10 - 13 lb-ft)

HYDRAULIC BRAKES  4A-9

SSANGYONG MY2002

Inspection

When it occurs the malfunction in the LCRV, the sensor
spring, valve body assembly, rear axle or rear spring
may be replaced. For these replacement, the following
inspection should perform;

Symptom

Poor Braking Performance

Rear Wheels Lock Early

Possible Cause

Air in Brake System

Poor Adjustment of Sensor Spring

Damaged Sensor Spring

Fluid Leaking from LCRV

Poor Adjustment of Sensor Spring

Internal Fluid Leaking of LCRV

Action

Bleeding

Adjust

Replace

Replace

Adjust

Replace

Notice:

•

Fluid leaking from LCRV results from poor valve
open/close or sealing wear caused by the foreign
materials in the LCRV.

•

When you change or repair the LCRV, it may affect
the braking performance. Thus, ensure to use the
approved part.
