SsangYong Korando II (1996-2006 year). Manual - part 26





M162 ENGINE MECHANICAL 1B1 -- 75

DAEWOO MY_2000

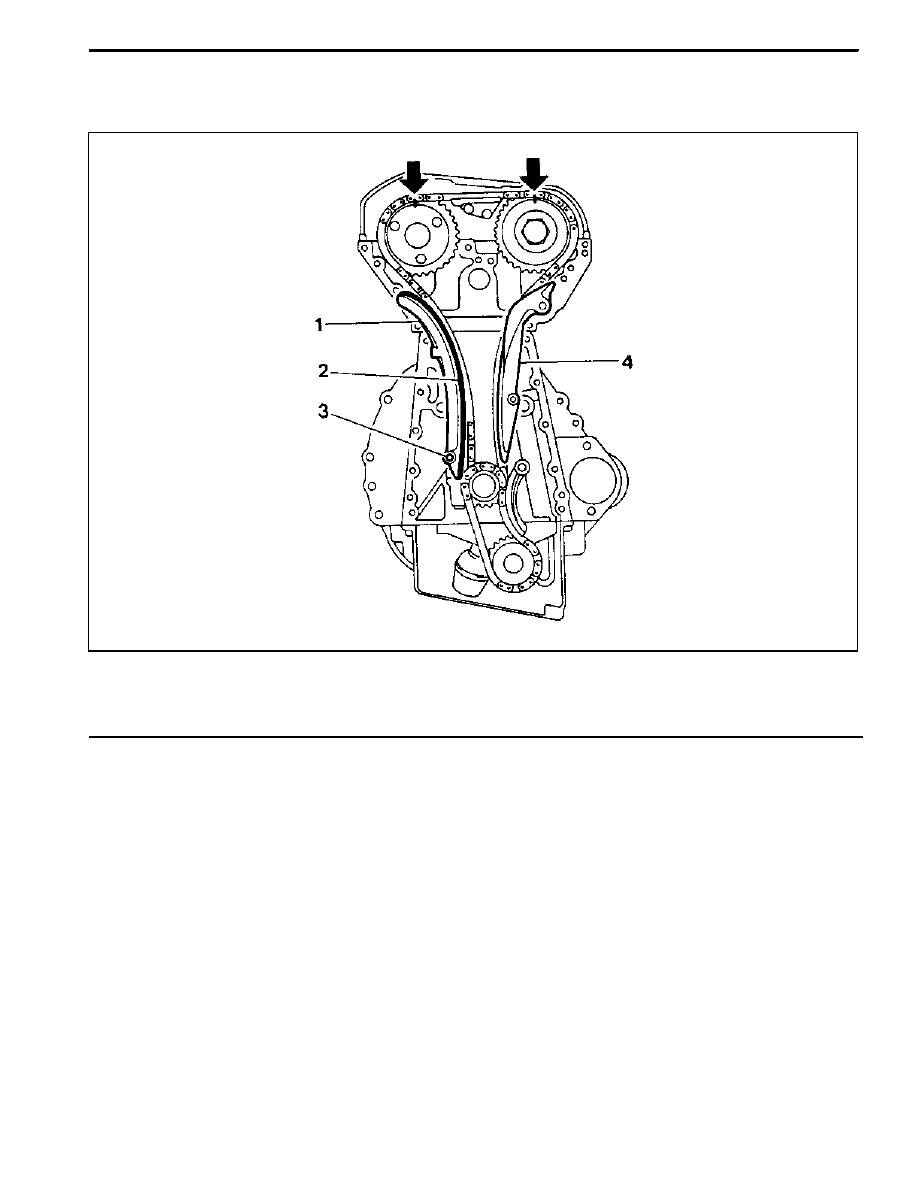

TENSIONING RAIL

Preceding Work: Removal of timing gear case cover

1 Tensioning Rail

2 Plastic Guide

3 Tensioning Rail Pin

4 Guide Rail

Removal & Installation Procedure

1. Put the assembly mark at the camshaft sprocket and

the timing chain with the paint (arrow).

2. Remove the exhaust camshaft sprocket.
3. Remove the tensioning rail (1) from the tensioning rail

pin (3).

Notice:

D

Replace the plastic guide (2) if it is damaged.

D

For installation, exactly align the plastic guide (2) with

the tensioning rail (1).

4. Installation should follow the removal procedure in

the reverse order.

5. Check the camshaft timing position.

1B1 -- 76 M162 ENGINE MECHANICAL

DAEWOO MY_2000

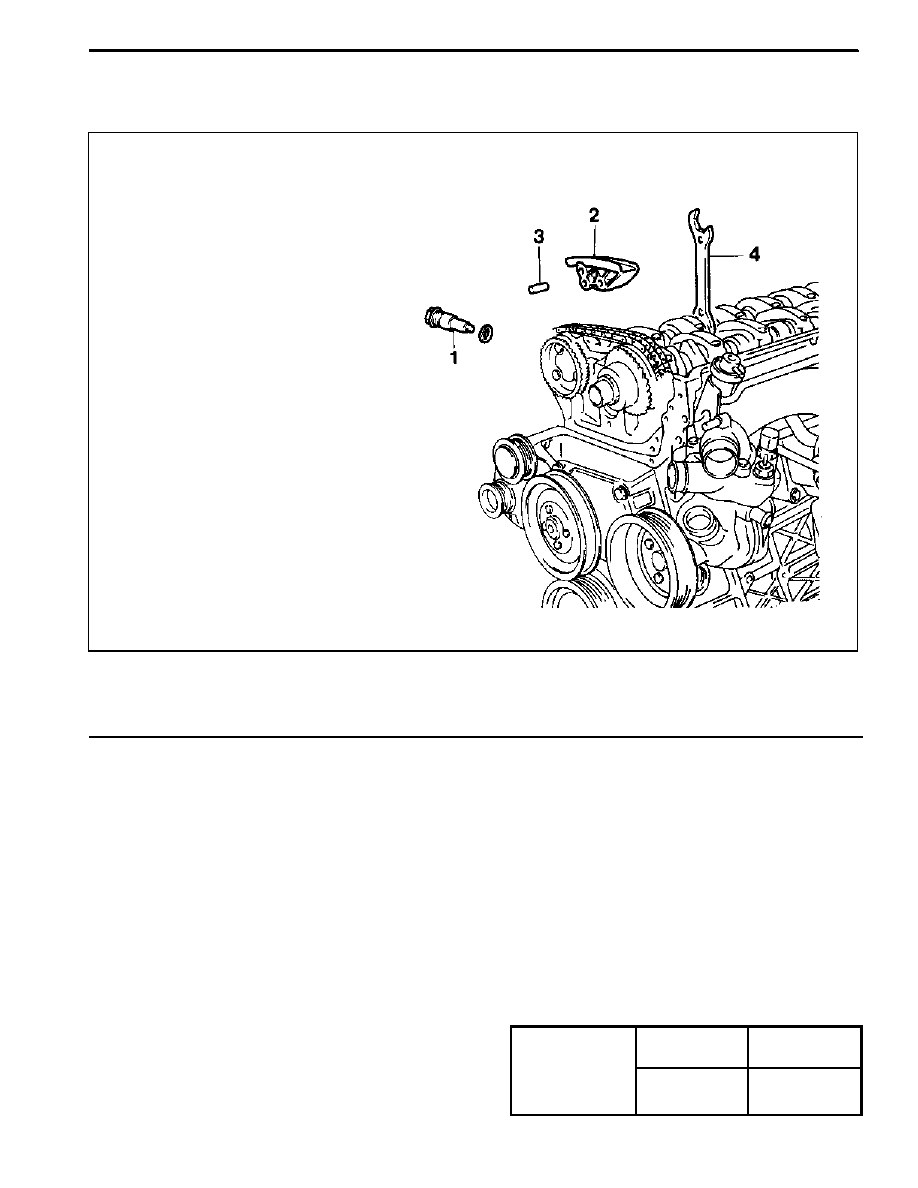

CYLINDER HEAD GUIDE RAIL

Preceding Work: Removal of cylinder head front cover

1 Chain Tensioner

2 Upper Guide Rail

3 Upper Guide Rail Pin

4 Wrench

Removal & Installation Procedure

1. Remove the chain tensioner (1).
2. Turn the exhaust camshaft to the camshaft rotating

direction using the wrench (4) and loosen the timing

chain at upper guide rail (2).

3. Pull out the upper guide rail pin from the guide rail (2).
4. Turn the exhaust camshaft to the opposite direction

of rotation using the wrench.

5. Check for damages at the upper sliding rail and re-

place it if necessary. Install the upper guide rail pin.

6. Install the chain tensioner.

Installation Notice

Tightening

Screw Plug

40 NSm

(30 lb-ft)

Tightening

Torque

Tensioner

Assembly

72 -- 88 NSm

(53 -- 65 lb-ft)

M162 ENGINE MECHANICAL 1B1 -- 77

DAEWOO MY_2000

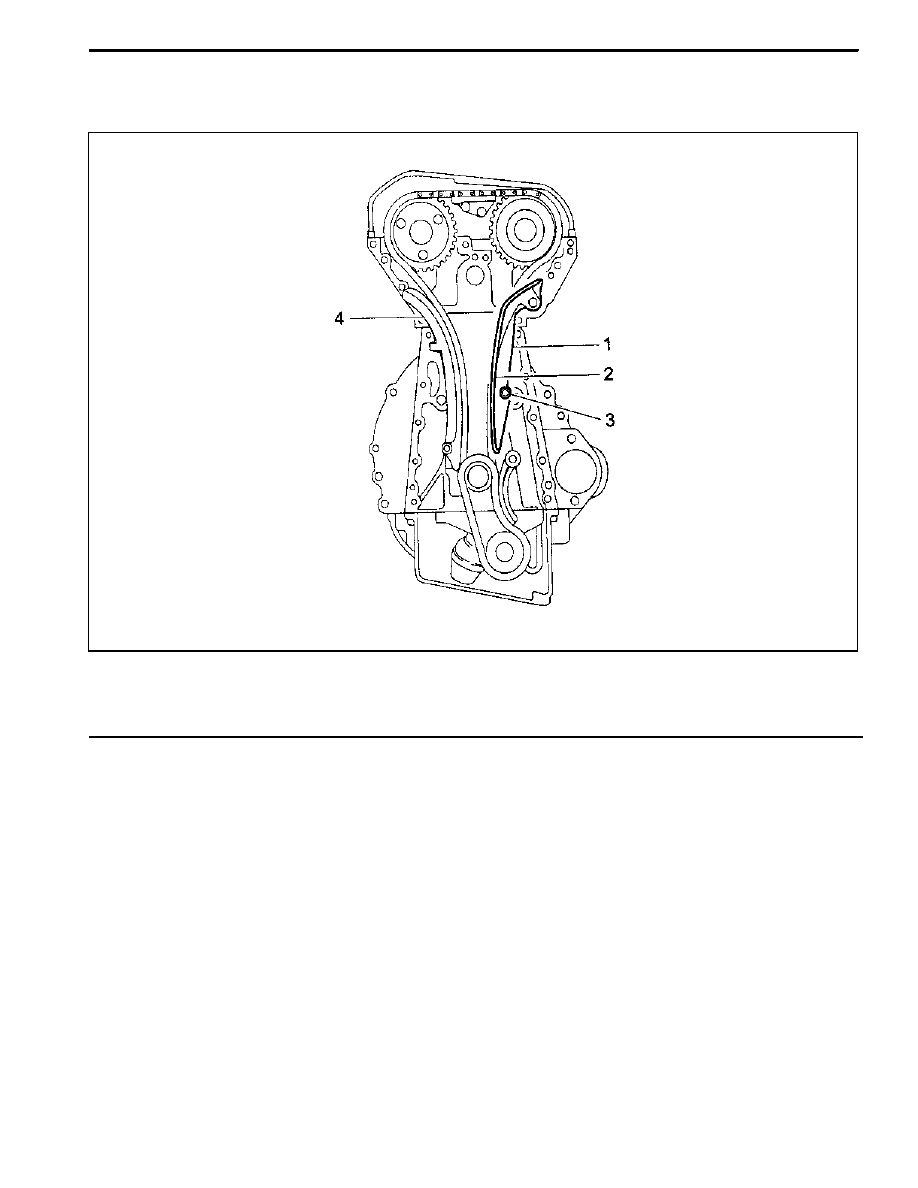

CRANKCASE GUIDE RAIL

Preceding Work: Removal of timing gear case cover

1 Guide Rail

2 Plastic Guide

3 Guide Rail Pin

4 Tensioning Rail

Removal & Installation Procedure

1. Put the assembly mark at the camshaft sprocket and

the timing chain with the paint (arrow).

2. Remove the exhaust camshaft sprocket.
3. Remove the guide rail (1) from the guide rail pin (3).
Notice:

D

Replace the plastic guide (2) if damaged.

D

Connect the plastic guide (2) and the guide rail (1) by

aligning them accurately when installing.

4. Installation should follow the removal procedure in

the reverse order.

5. Check the camshaft timing position.

1B1 -- 78 M162 ENGINE MECHANICAL

DAEWOO MY_2000

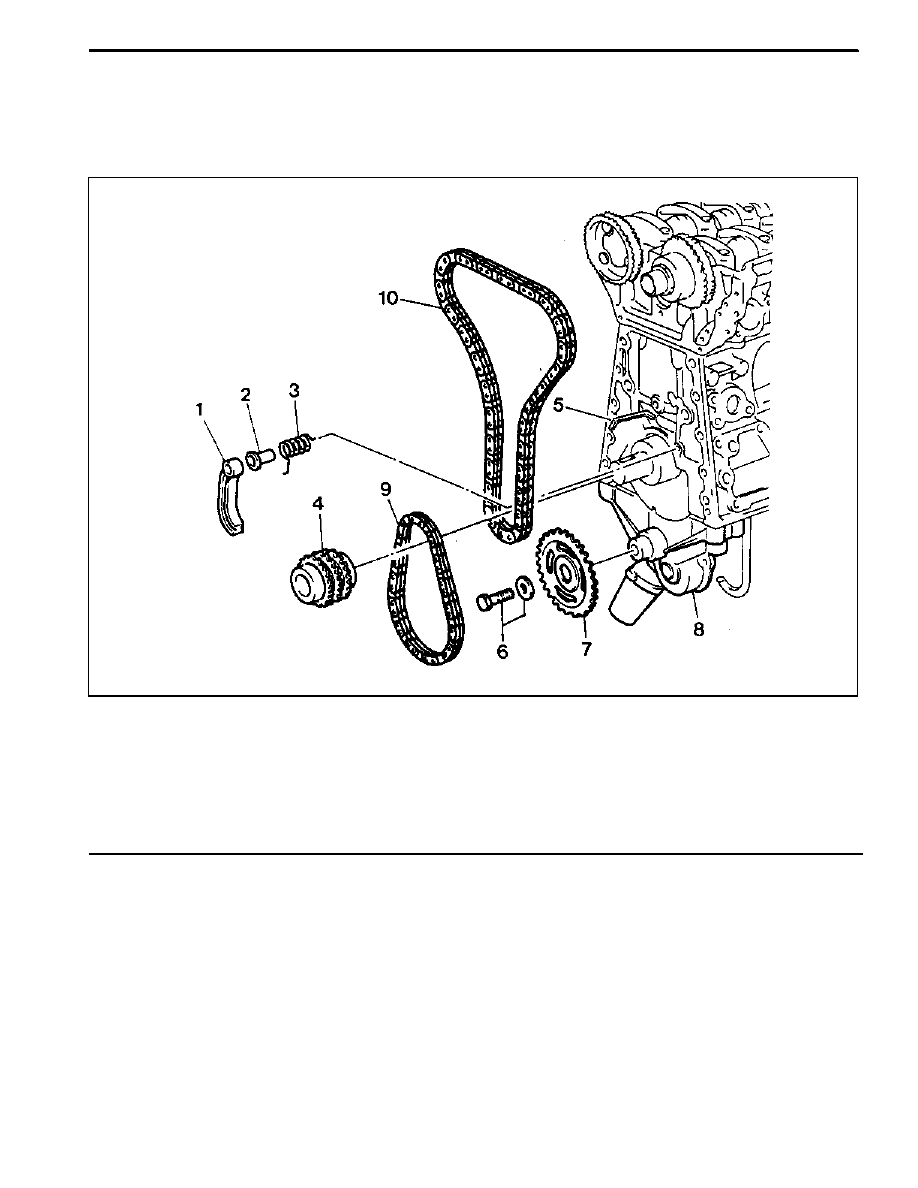

CRANKSHAFT SPROCKET

Preceding Work: Removal of oil pan

Removal of tensioning rail
Removal of crank case guide rail

1 Oil Pump Chain Tensioner

2 Oil Pump Chain Bushing

3 Oil Pump Chain Spring

4 Crankshaft Sprocket

5 Key

6 Bolt (M8 x 20, 1 piece) / Washer

29--35 NSm (21--26 lb-ft)

. . . . . . . . . . . . . . . . . . . .

7 Oil Pump Sprocket

8 Oil Pump

9 Oil Pump Roller Chain

10 Timing Chain
