SsangYong Actyon Sports II. Manual - part 122

01-39

3680-01

8) Power flow - 6th gear (D)

Functioning elements

▶

Control

▶

C1 applied, Rear Planet Carrier driven

B1 applied, RSG (Rear Sun Gera) locked

-

-

S1 OFF, S2 and S4 ON

S3 ON, C2 shift valve moved to the left end, C2 clutch not engaged

C1 shift valve open (S1 OFF), C1 clutch engaged by drive oil

S4 ON, B1 shift valve moved to the left end, B1 Band engaged

-

-

-

-

Connecting Components

▶

Gear

ratio

ON / OFF solenoids

Variable pressure sol. valve-VBS

S1 S2 S3 S4 S5(A) S6(A) S7(A) S8(A) S9(A) S10(A)

0.68 ON ON

0

1

1

0-1

Gear

ratio

Engaged element

C1 C2 C3

B1

B2  OWC

Lock-up
clutch

AO AI  R AO AI

0.68 ON

ON

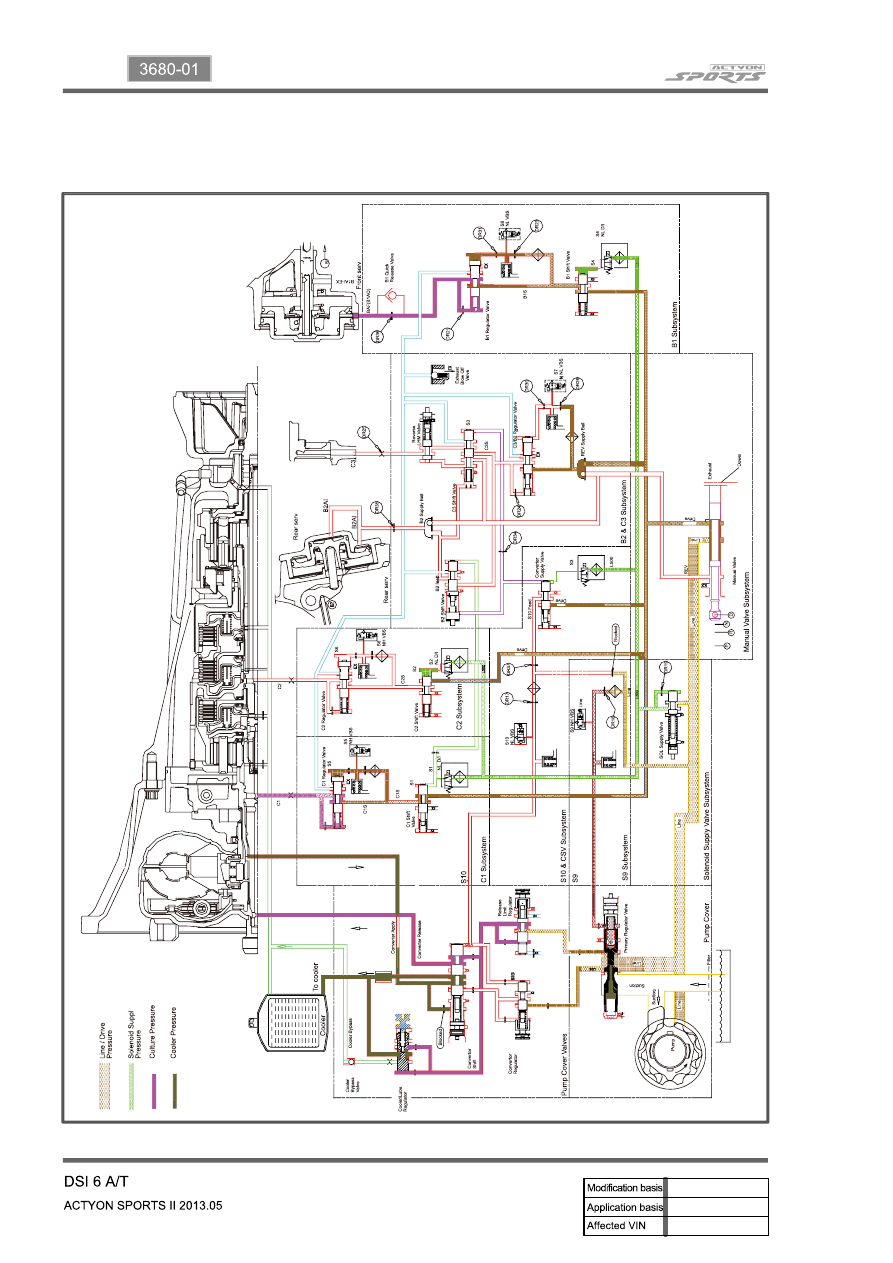

Power Flow Diagram

▶

01-40

6th gear (D) (0.68:1)

▶

01-41

3680-01

9) Power flow - Reverse (R)

Functioning elements

▶

Control

▶

C3 applied, RSG (Rear Sun Gera) locked

B2 applied, Rear Planet Carrier locked

-

-

S1, S2 and S3 ON

Line pressure applied to B2 Band directly through manual valve

S3 ON, Pressure to C3 increased or regulated

S1 and S2 ON, C1 not engaged in any case

-

-

-

-

Connecting Components

▶

Gear

ratio

ON / OFF solenoids

Variable pressure sol. valve-VBS

S1 S2 S3 S4 S5(A) S6(A) S7(A) S8(A) S9(A) S10(A)

3.09  ON ON ON

1

1

1

0-1

Gear

ratio

Engaged element

C1 C2 C3

B1

B2  OWC

Lock-up
clutch

AO AI  R AO AI

3.09 ON

ON

ON

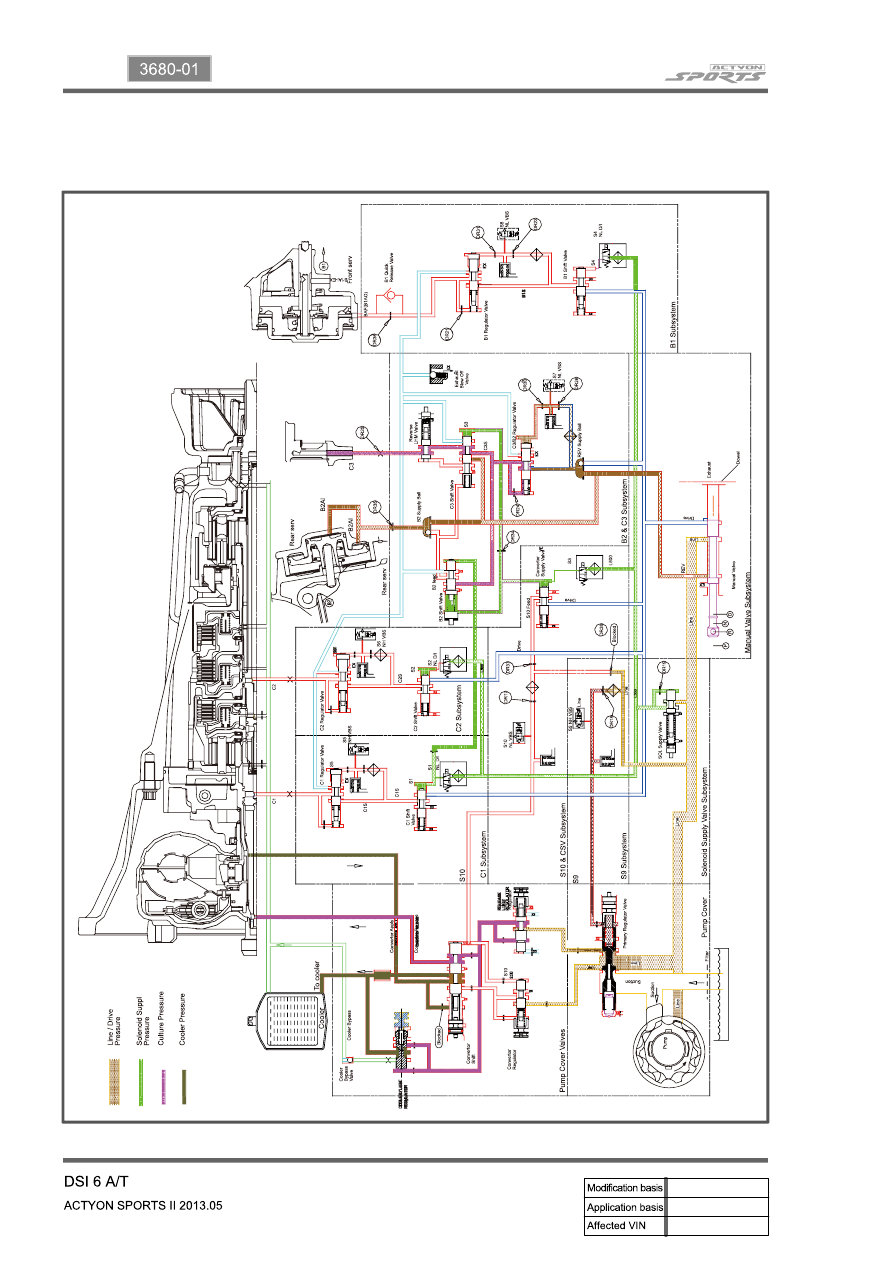

Power Flow Diagram

▶

01-42

Reverse gear (R) (3.09:1)

▶
