01-31

3680-01

4) Power Flow - 2nd Gear (D) Lock-Up

Connecting Components

▶

Gear

ratio

ON / OFF solenoids

Variable pressure sol. valve-VBS

S1  S2  S3

S4 S5(A) S6(A) S7(A)

S8(A) S9(A) S10(A)

2.14

ON

ON

ON

1 0 0 1 0-1 1

Gear

ratio

Engaged element

C1 C2 C3

B1

B2  OWC

Lock-up
clutch

AO AI  R AO AI

2.14 ON ON

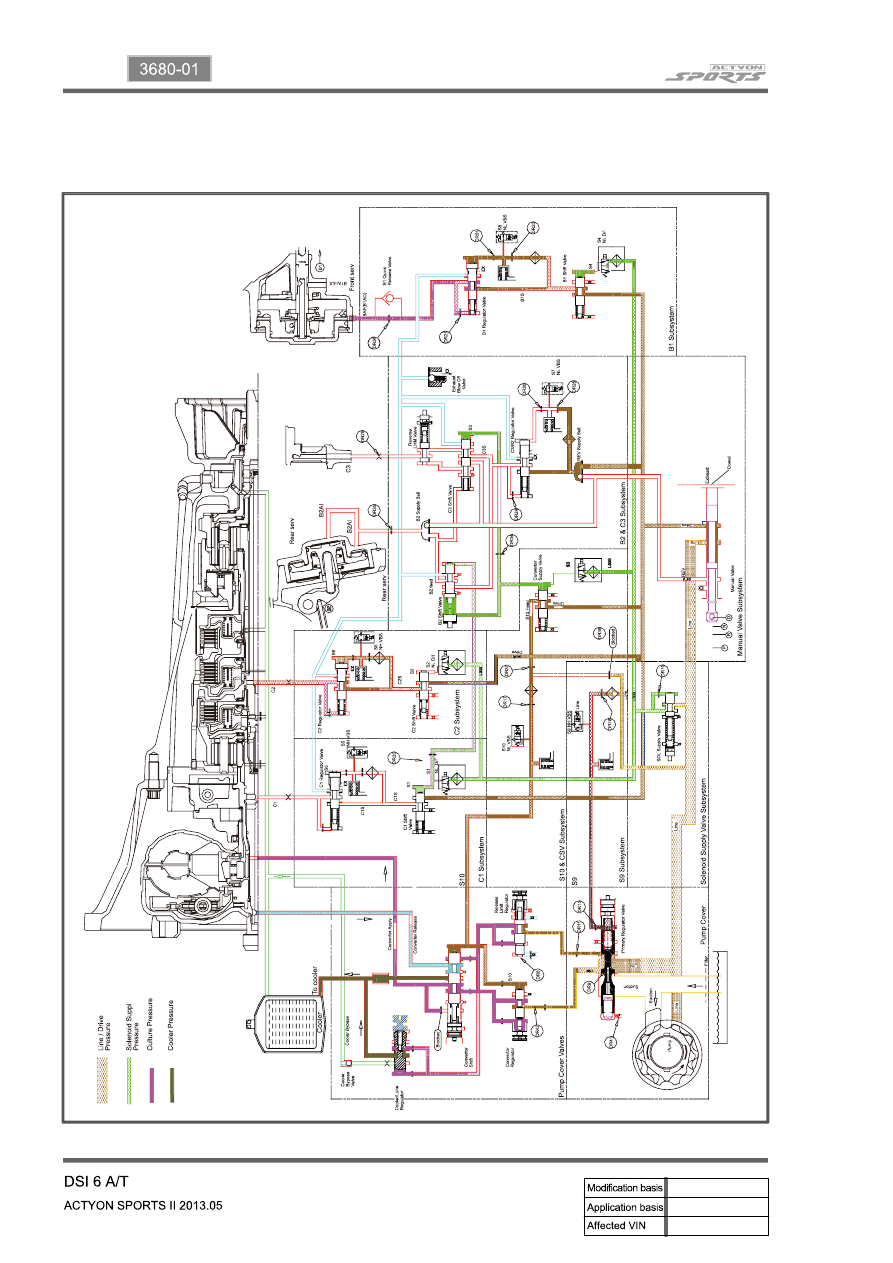

Power Flow Diagram

▶

01-32

2nd Gear (D) Lock-Up

▶

01-33

3680-01

5) Power Flow - 3rd Gear (D)

Functioning elements

▶

Control

▶

C2 applied, FSG (Forward Sun Gear)

driven

C3 applied, Rear Planet Carrier driven

Rear Planet Gear Set is locked and its

output has the same gear ratio with Front

Gear Set.

-

-

-

S1 ON, C1 shift valve moved to the left end, C1 clutch not engaged

C2 shift valve open (S2 OFF), C2 clutch engaged by drive oil

S3 and S7 ON, C3 shift valve moved to the left end, C3 clutch engaged

-

-

-

Connecting Components

▶

Gear

ratio

ON / OFF solenoids

Variable pressure sol. valve-VBS

S1 S2 S3 S4 S5(A) S6(A) S7(A) S8(A) S9(A) S10(A)

1.48 ON

ON

1

0

1

0-1

Gear

ratio

Engaged element

C1 C2 C3

B1

B2  OWC

Lock-up
clutch

AO AI  R AO AI

1.48 ON

ON

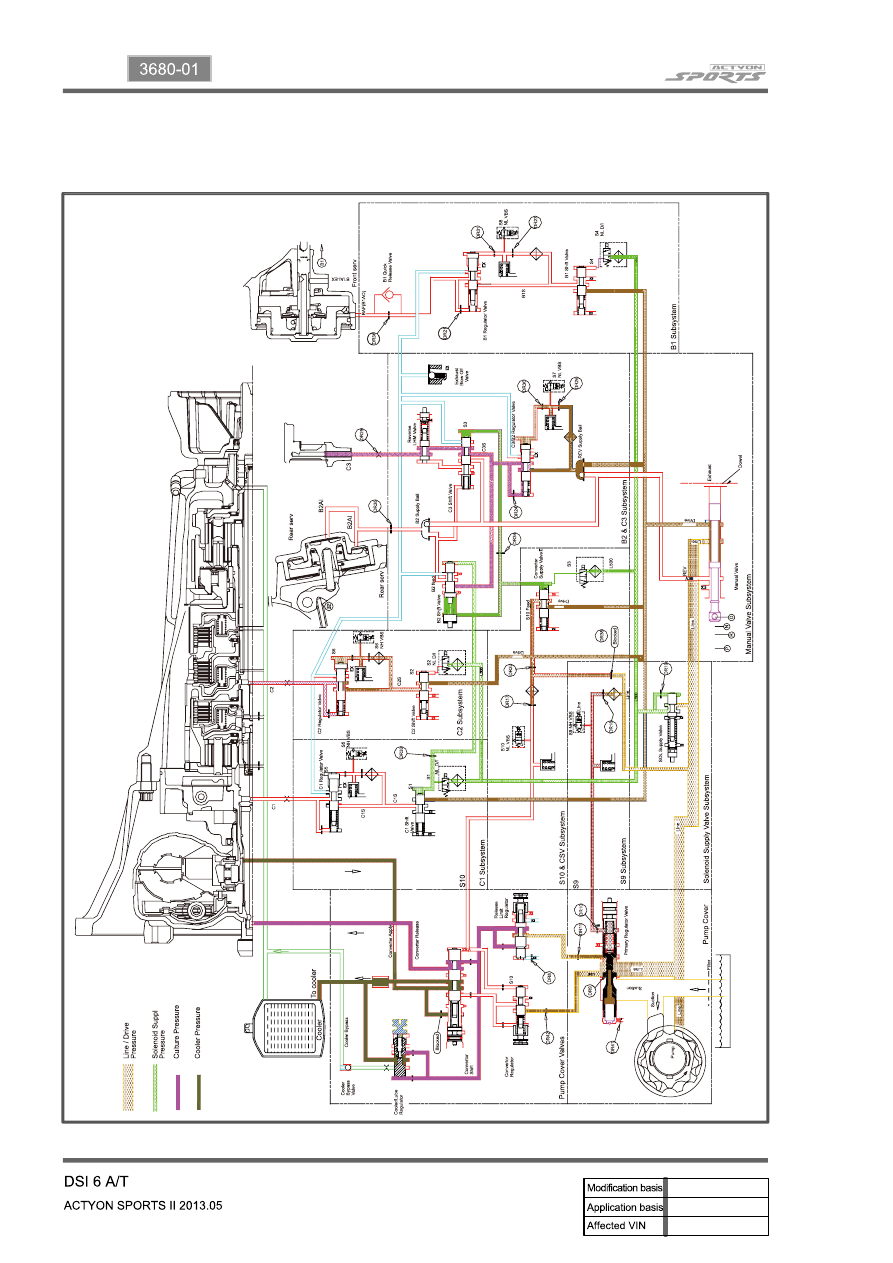

Power Flow Diagram

▶

C3 clutch cannot be engaged if S7 is OFF

and the oil pressure is not supplied to C3

regulator valve.

01-34

3rd Gear (D) (1.48:1)

▶
