01-27

3680-01

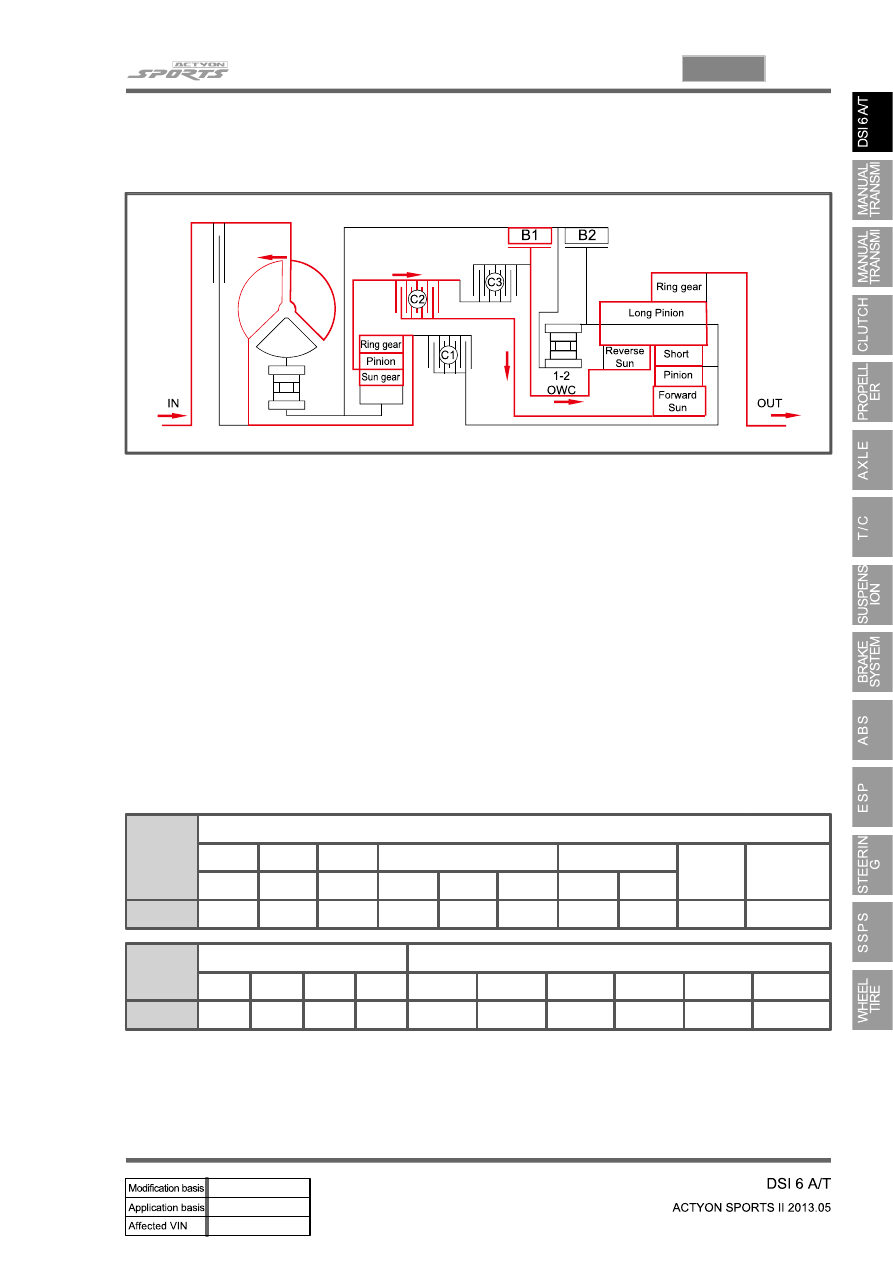

2) Power Flow - 1st Gear (D)

Functioning elements

▶

Control

▶

C2 applied, FSG (Forward Sun Gear) driven

1-2 OWC (One-Way Clutch) operated to hold Rear Planet Carrier stationary

-

-

S1 ON, S2 OFF

S1 ON, C1 shift valve moved to the left end, C1 clutch not engaged

C2 shift valve open (S2 OFF), C2 clutch engaged by drive oil

Drive oil (for C2 clutch engagement) is regulated by VBS S6

-

-

-

-

Connecting Components

▶

Gear

ratio

ON / OFF solenoids

Variable pressure sol. valve-VBS

S1 S2 S3 S4 S5(A) S6(A) S7(A) S8(A) S9(A) S10(A)

3.53 ON

1

0

0-1

Gear

ratio

Engaged element

C1 C2 C3

B1

B2  OWC

Lock-up
clutch

AO AI  R AO AI

3.53 ON

ON

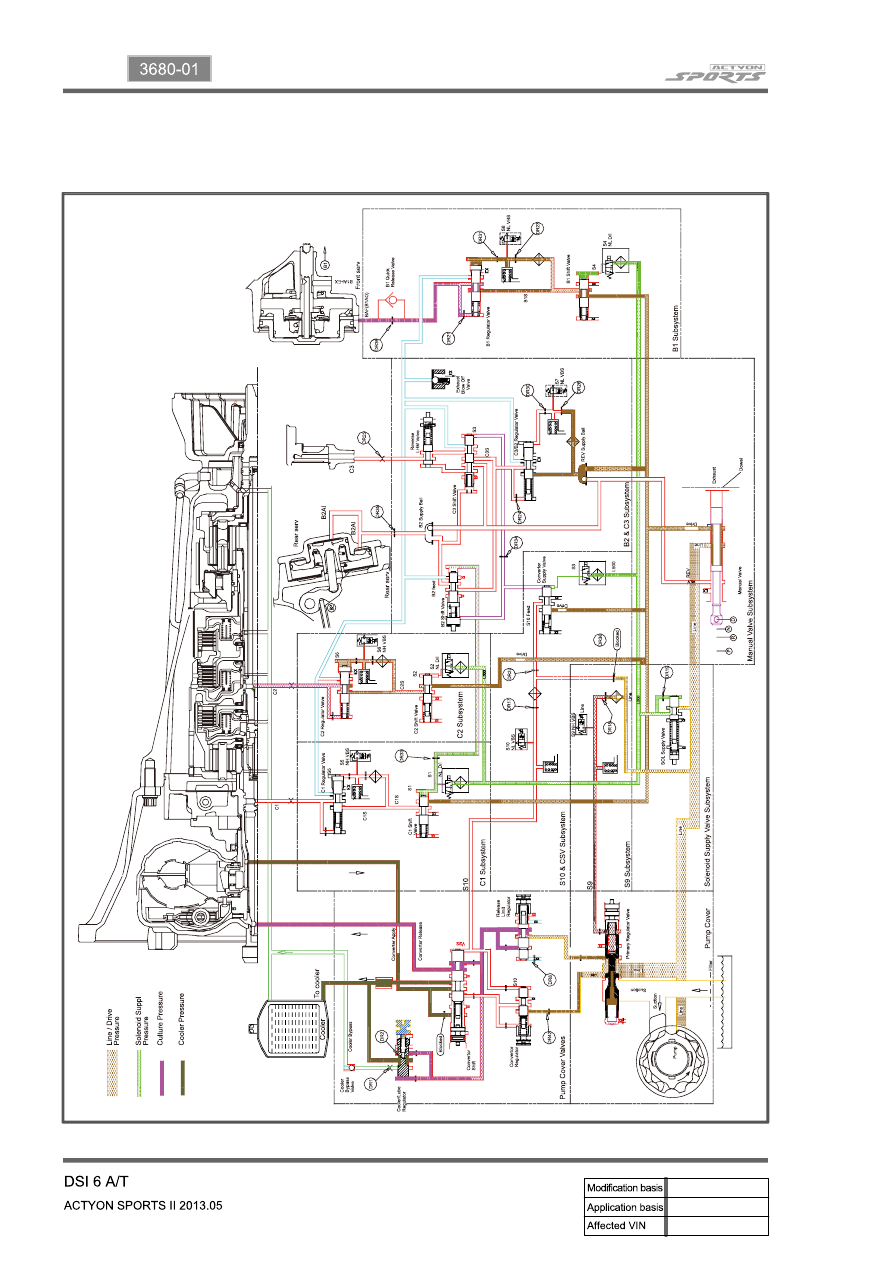

Power Flow Diagram

▶

01-28

1st Gear (D) (3.53:1)

▶

01-29

3680-01

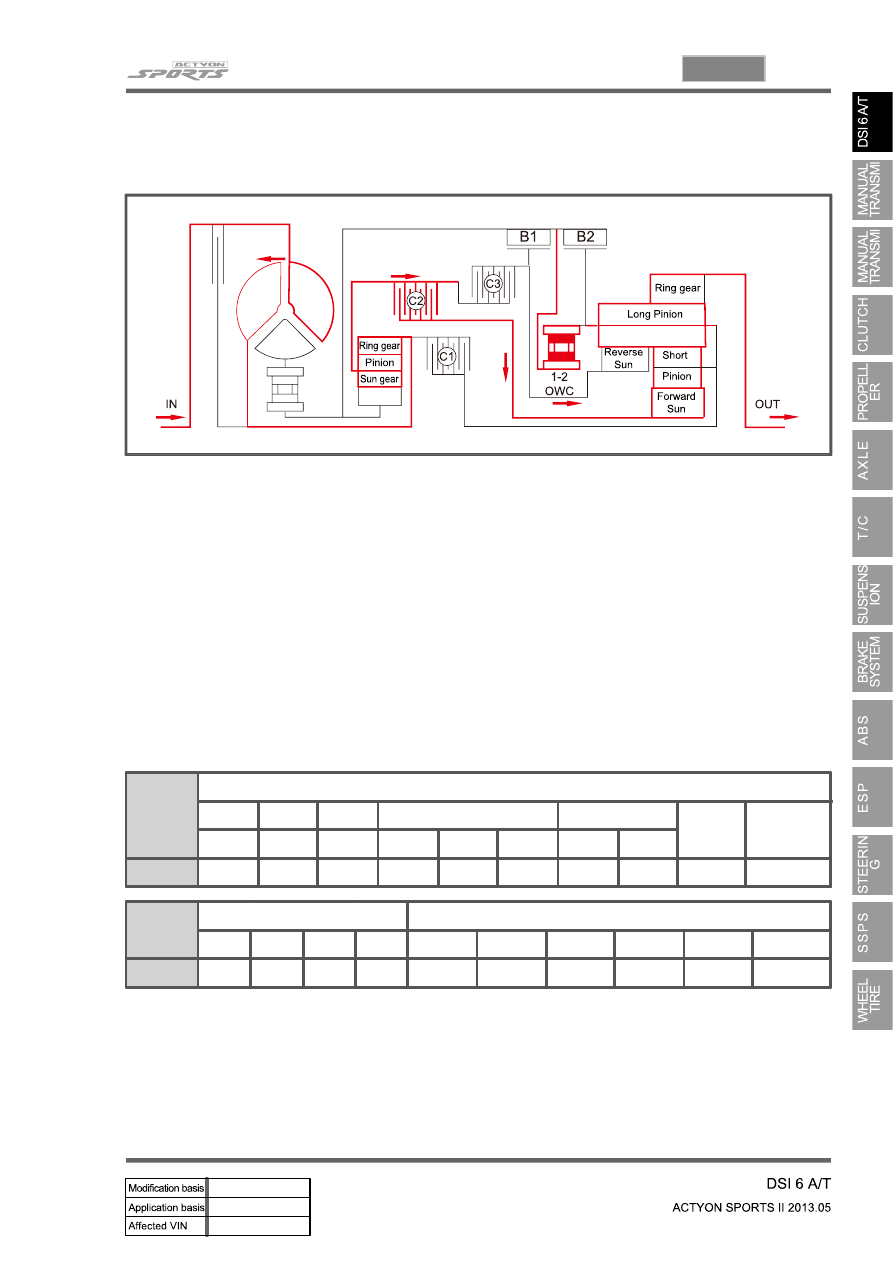

3) Power Flow - 2nd Gear (D)

Functioning elements

▶

 Control

▶

C2 applied, FSG (Forward Sun Gear) driven

B1 applied to hold Rear Planet Carrier stationary

-

-

S1 ON, S4 ON, S2 OFF

S1 ON, C1 shift valve moved to the left end, C1 clutch not engaged

C2 shift valve open (S2 OFF), C2 clutch engaged by drive oil

Drive oil (for C2 clutch engagement) is regulated by VBS S6

S4 ON, B1 shift valve moved to the left end, B1 band operated

Drive oil (for B1 band engagement) is regulated by VBS S6

-

-

-

-

-

-

Connecting Components

▶

Gear

ratio

ON / OFF solenoids

Variable pressure sol. valve-VBS

S1 S2 S3 S4 S5(A) S6(A) S7(A) S8(A) S9(A) S10(A)

2.14 ON

ON  1

0

1

0-1

Gear

ratio

Engaged element

C1 C2 C3

B1

B2  OWC

Lock-up
clutch

AO AI  R AO AI

2.14 ON ON

Power Flow Diagram

▶

01-30

2nd Gear (D) (2.14:1)

▶
