02-39

8710-01

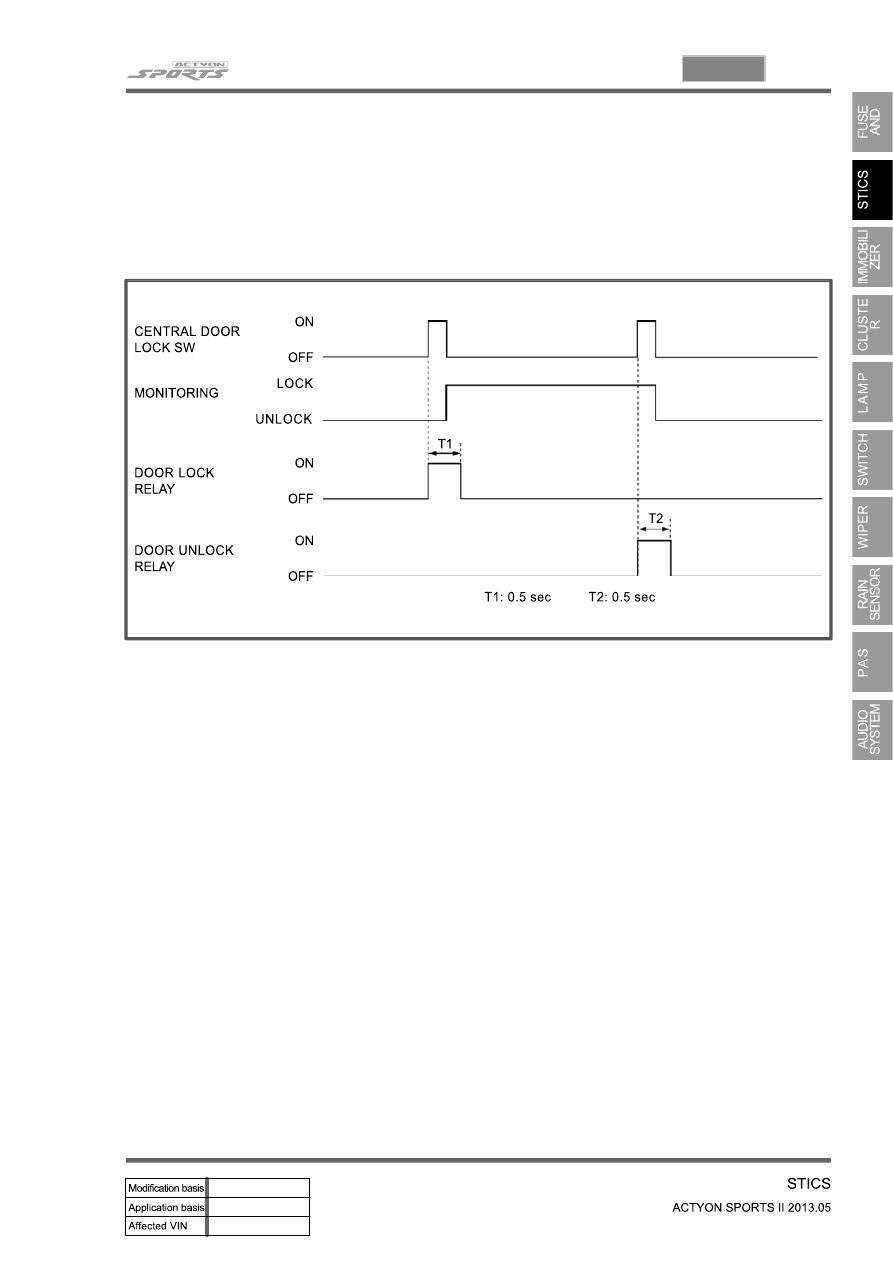

▶Door Lock/Unlock Control by Central Door Lock Switch

When the central door lock switch is activated, LOCK/UNLOCK output is performed.

(However, if the driver's/passenger's lock switch is previously locked, UNLOCK output is

performed and if the driver's/passenger's lock switch is unlocked, LOCK output is

performed.)

The input of the central door lock switch is overridden in armed mode.

1.

2.

02-40

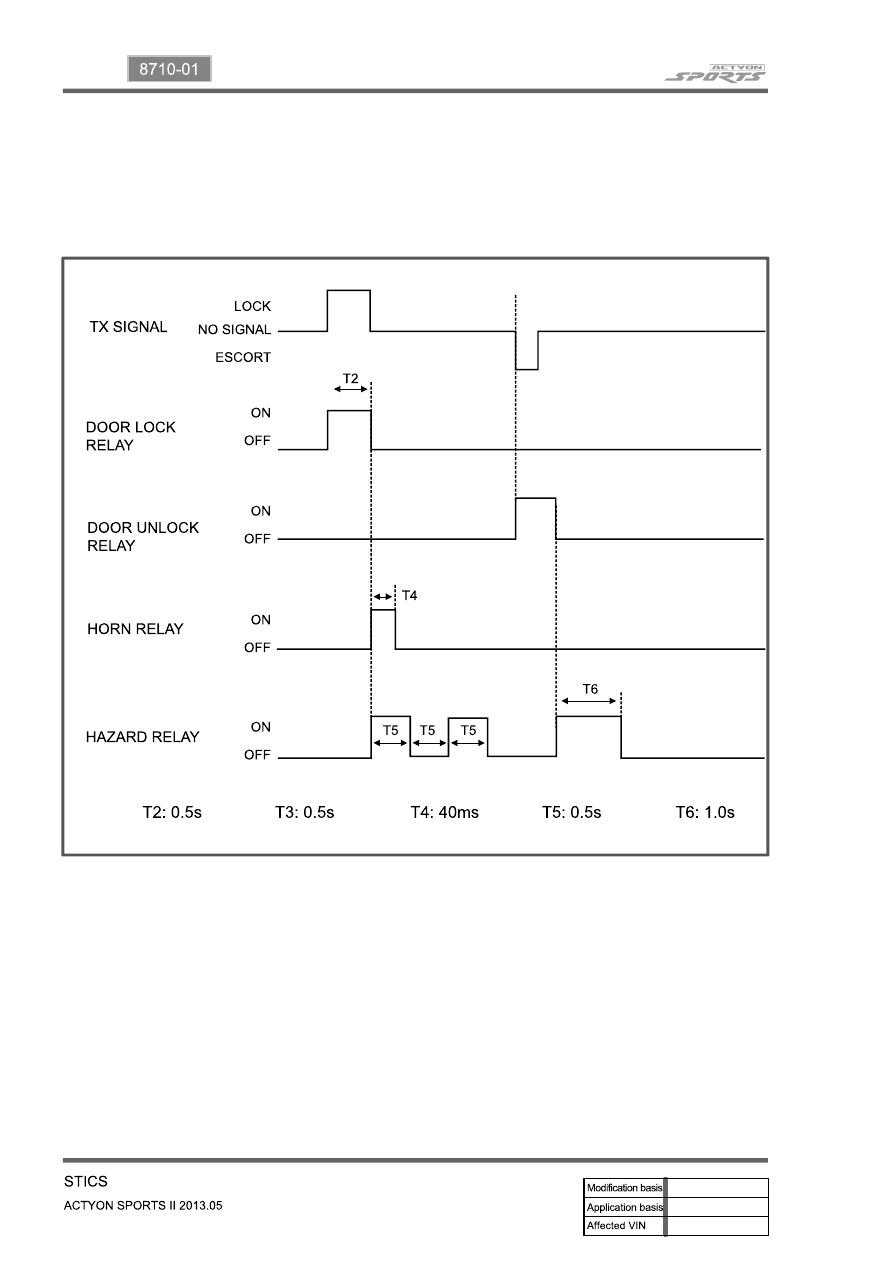

▶Door Lock/Unlock Control by Remote Control Key

The door lock relay output is "ON" for 0.5 seconds when receiving the lock signal from the

remote control key.

The door unlock relay output is "ON" for 0.5 seconds when receiving the unlock signal from the

remote control key.

1.

2.

02-41

8710-01

The door lock system outputs "LOCK" when the vehicle speed maintains over 30 km/h.

However, it doesn't output "LOCK" when all doors are locked or failed.

If any of doors is unlocked after outputting "LOCK" in step 1, outputs "LOCK" up to 5 times

(except step (1)) at the interval of one second.

If any of doors is unlocked after 5 times of "LOCK" outputs, the door (driver's/passenger's/rear) is

regarded as "FAIL".

If the door that was regarded as fail is changed (UNLOCK to LOCK), it will be recognized as a

normal one.

If any door is regarded as FAIL, the auto door lock function does not work. (if it is occurred when

the vehicle speed is over 30 km/h, the auto door lock output does not occur even if the vehicle

speed falls below 30 km/h and accelerates again to over 30 km/h.) Nonetheless, the central

door lock function works properly.

When the system receives "UNLOCK" signal from a door switch, it outputs "LOCK" signals 5

times. If additional "LOCK" signal from another door switch is detected during the period, the

system outputs five "LOCK" signals 5 times for the switch.

The door lock system outputs "UNLOCK" automatically if the "LOCK" output conditions are

established by this function or the key is cycled (IGN=OFF) (even when there is no "LOCK"

output while the vehicle speed maintains over 30 km/h under lock condition).

(If the LOCK condition is established with the ignition switch ON, the system outputs UNLOCK

signal unconditionally when turning the ignition switch to OFF position.)

However, when the ignition key is turned to "OFF" position, the lock output conditions will be

cancelled.

The "FAIL" condition of the door will be erased when the ignition key is turned to "OFF" position.

1.

2.

3.

4.

5.

6.

7.

8.

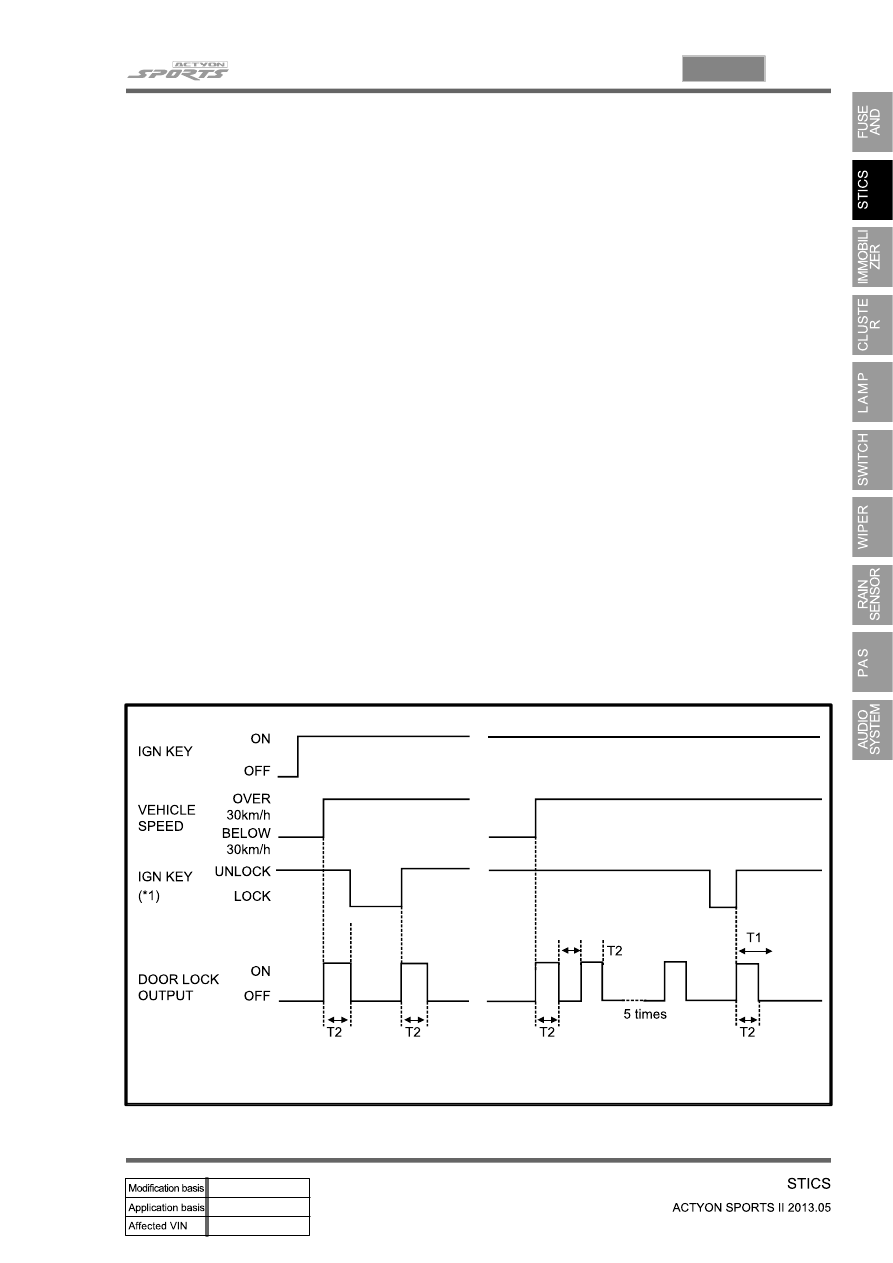

▶Auto Door Lock

T2: 0.5 s

(*1) LOCK: Driver's & Passenger's & Rear door & = Lock

02-42

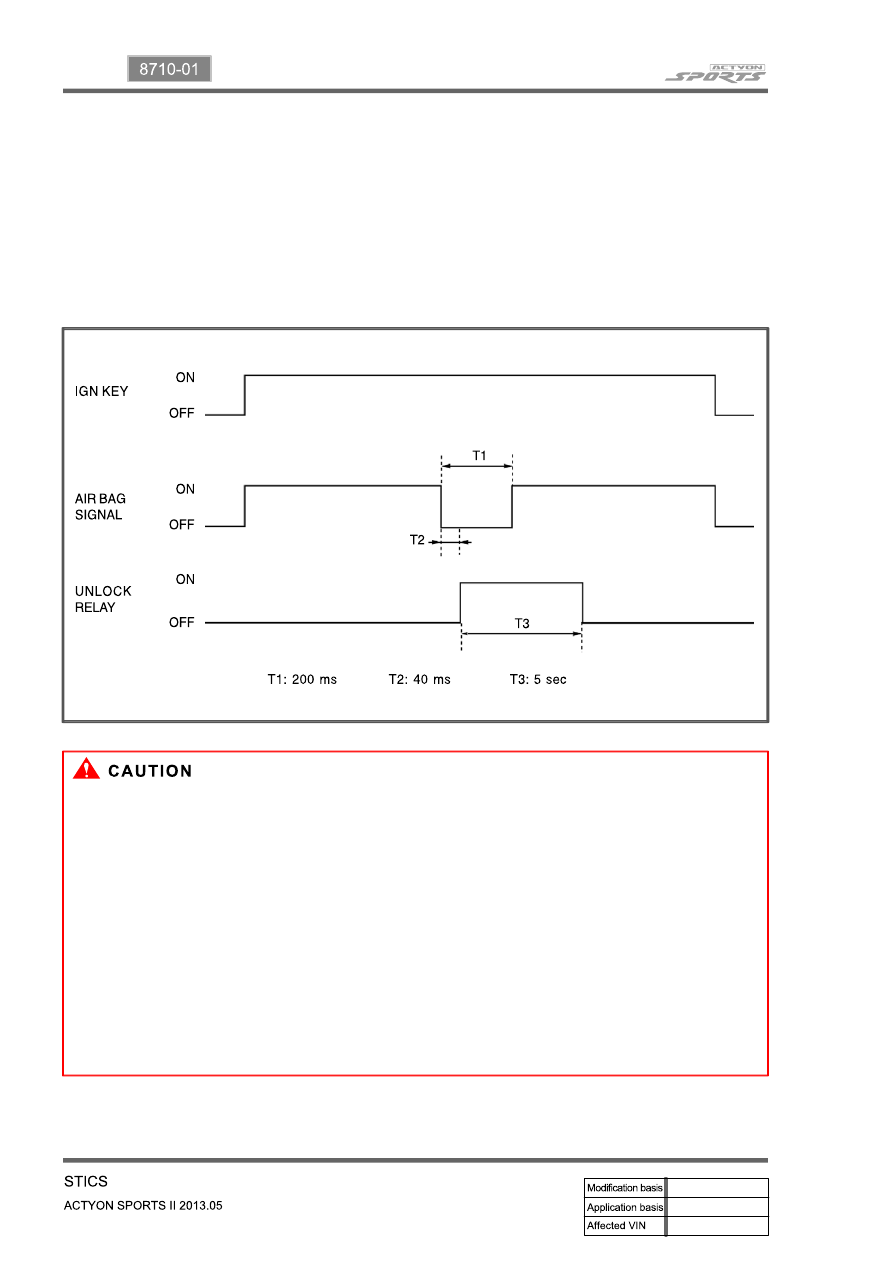

▶Auto Door Unlock (Crash Unlock: Automatic Door Unlock in Collision)

The air bag collision signal input cannot be accepted within 7 seconds after turning the ignition

key to "ON" position.

After this period, the door lock system outputs "UNLOCK" for all doors for 5 seconds from 40 ms

after receiving the air bag collision signal.

Even though the key is turned to "OFF" position during the output of "UNLOCK", the output

continues on for remaining period.

The function is erased when turning "OFF" the ignition switch.

1.

2.

3.

4.

Cautions for door lock/unlock control

The "Unlock" control by air bag signal prevails over any "LOCK" or "UNLOCK" control by other

functions.

The "LOCK/UNLOCK" request by other functions will be ignored after/during the output of

"UNLOCK" by the air bag.

However, the door lock is controlled by other functions when the ignition switch is "OFF".

"LOCK" (or "UNLOCK") output is ignored if "LOCK" (or "UNLOCK") output is required while

performing the output of "LOCK" (or "UNLOCK").

(However, UNLOCK by air bag signal and operation by the remote control key are valid.)

If the door lock system outputs "LOCK" and "UNLOCK" simultaneously, only the "LOCK" output

can be activated.

1.

2.

3.

4.
