SsangYong Actyon Sports II. Manual - part 86

02-31

8710-01

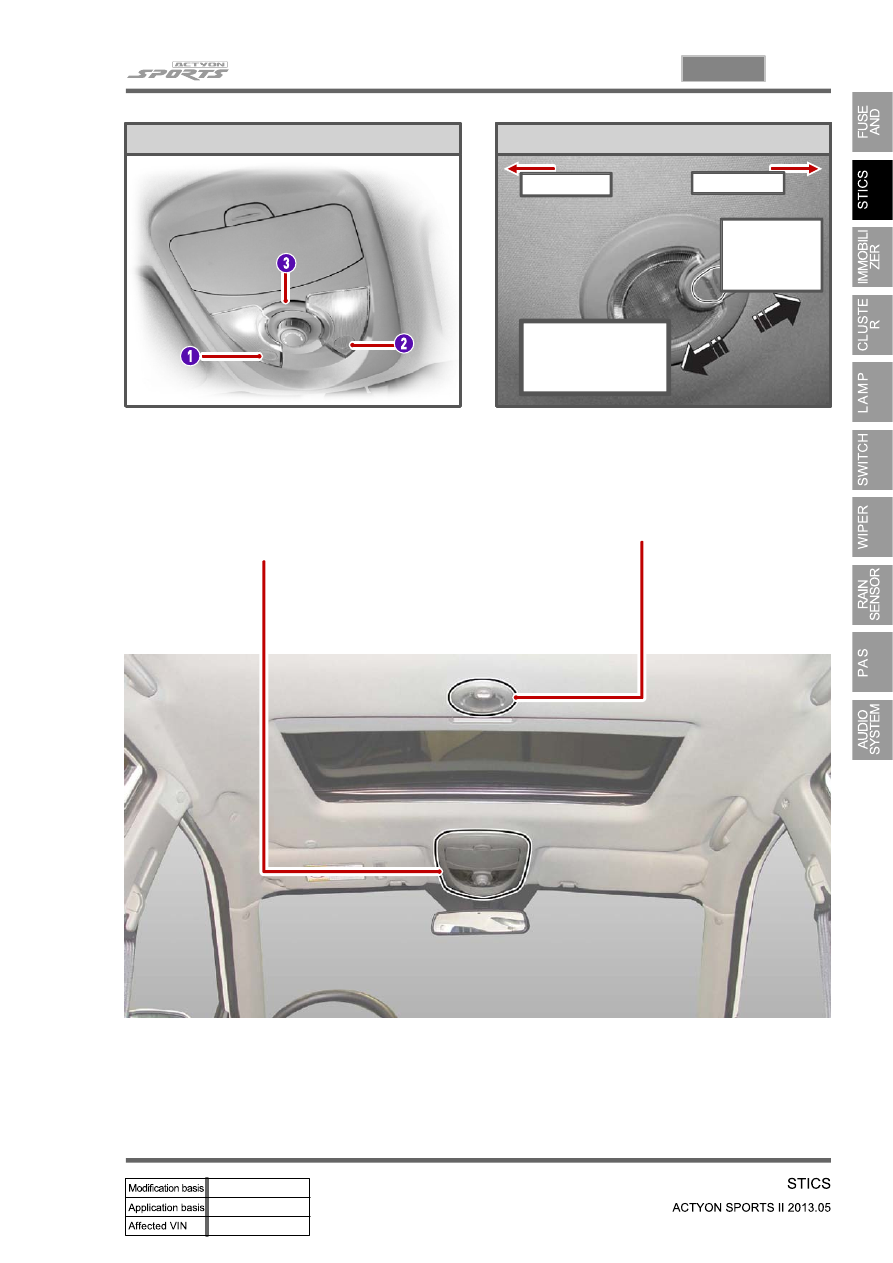

Center Room Lamp: 12V / 8W - 1 EA

Front Room Lamp: 12V / 8W - 2 EA

Front room lamp (driver's or passenger's) is

turned on and off when pressing the switch (1 or

2). However, it comes on when a door is opened

and goes off when the door is closed. The front

and center room lamps come on when pressing

the room lamp main switch (3).

Center Room Lamp

If the switch is at the door coupled position, the

center room lamp comes on whenever a door is

opened. The lamp always comes on while the

switch is at the other position.

Driver's seat

Tailgate

Center Room Lamp

(Door coupled

operation)

Center Room

Lamp

(Lamp: ON)

02-32

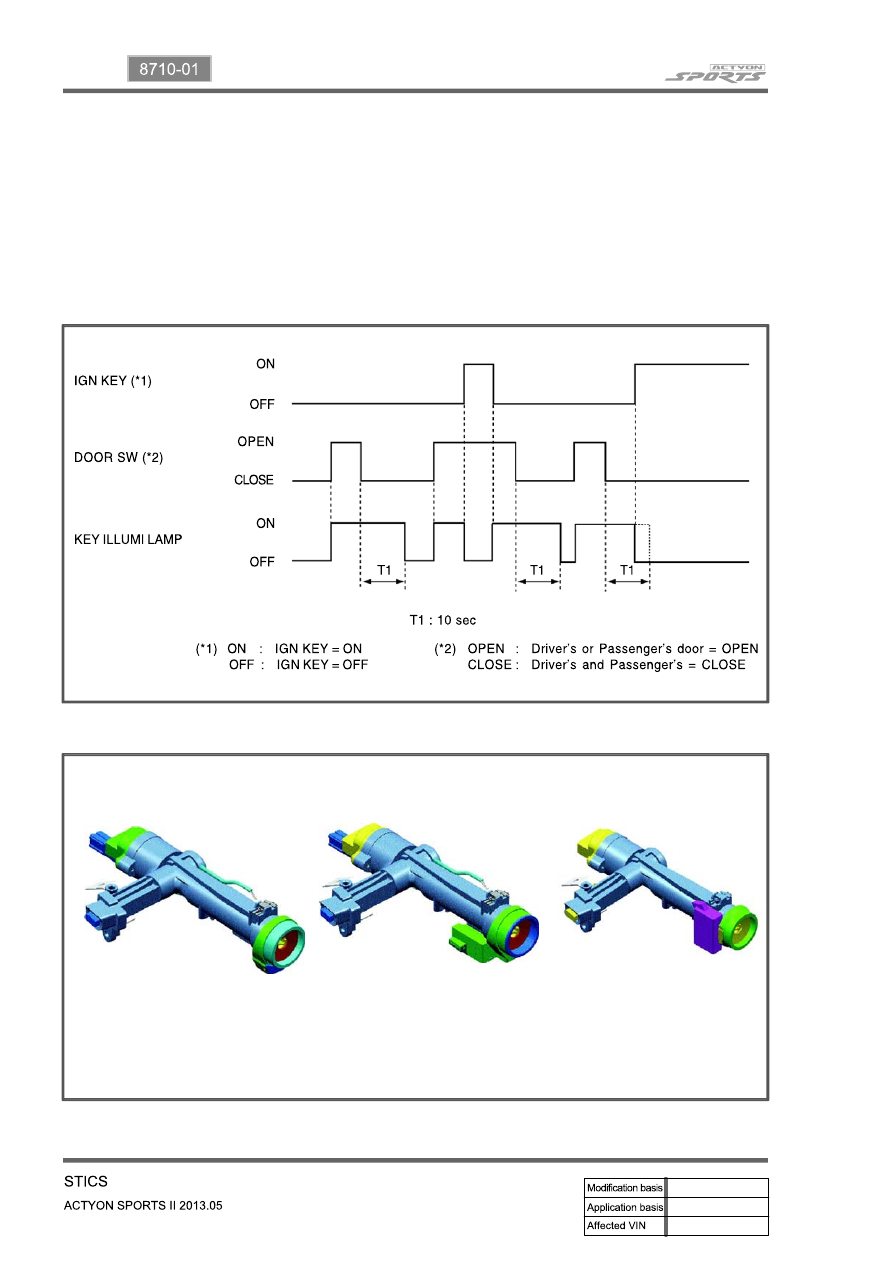

▶Ignition Key Hole Illumination

The ignition key hole illumination comes on when opening the driver's door or passenger's door

while the ignition key is removed.

The ignition key hole illumination stays on for 10 seconds when closing the door after step (1).

The output stops when the ignition key is turned to the "ON" position.

The output stops when receiving the lock signal from the remote control key and entering armed

mode.

1.

2.

3.

4.

▶Key cylinder with key hole illumination

With diesel and gasoline engine

With diesel engine

With gasoline engine

Without immobilizer
→With key hole

illumination

With immobilizer
→With key hole

illumination

With immobilizer
→Without key hole

illumination function

02-33

8710-01

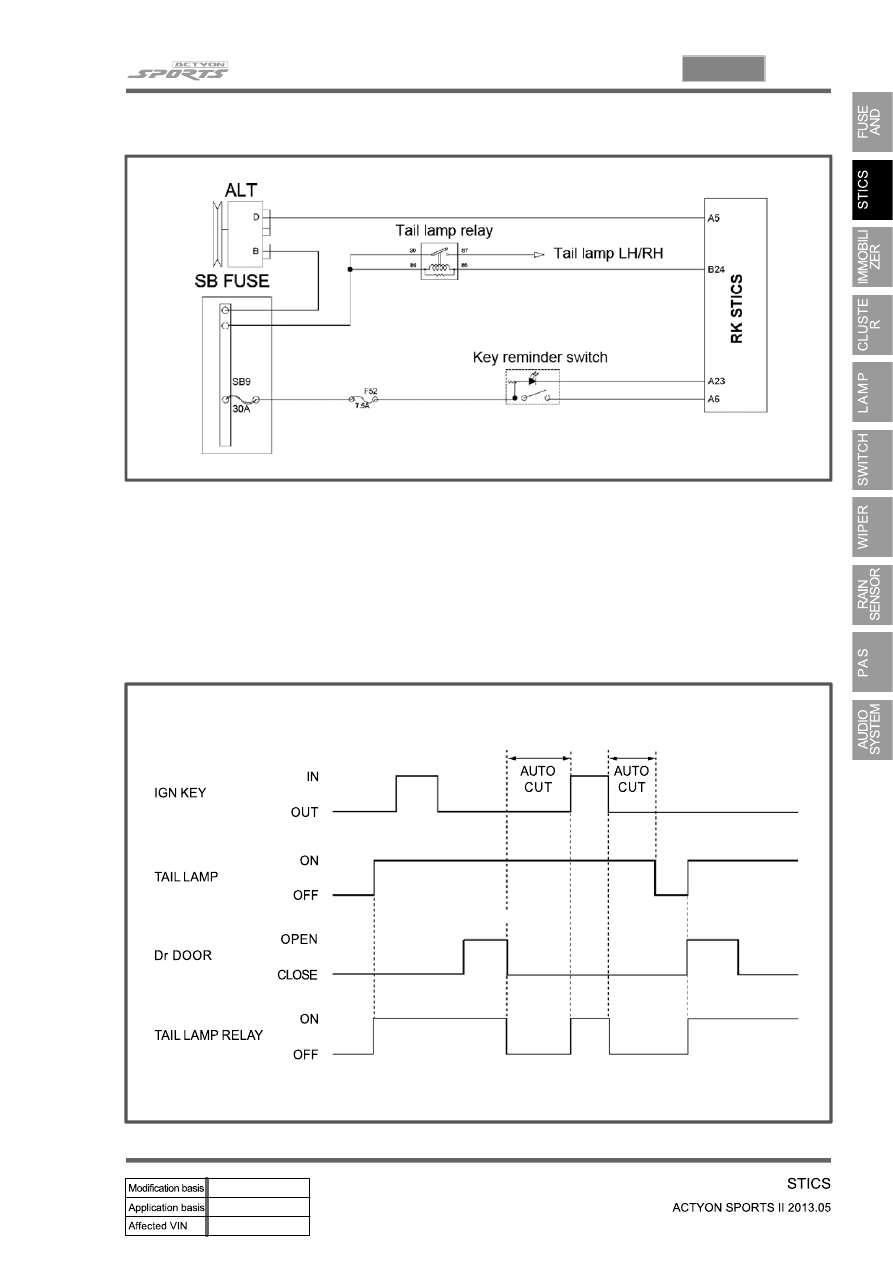

▶STICS Circuit for Tail Lamp Auto Cut (Battery Saver)

▶Tail Lamp Auto Cut (Battery Saver)

The tail lamp is turn on or off according to the operations of the tail lamp switch.

The tail lamp relay is turned off (auto cut) when opening and closing the driver's door after

removing the ignition key without turning off the tail lamp.

The tail lamp relay is turned on when inserting the ignition key into the ignition switch.

The tail lamp relay is turned off (auto cut) when opening and closing the driver's door while the

ignition key is removed and the tail lamp is turned on.

1.

2.

3.

4.

02-34

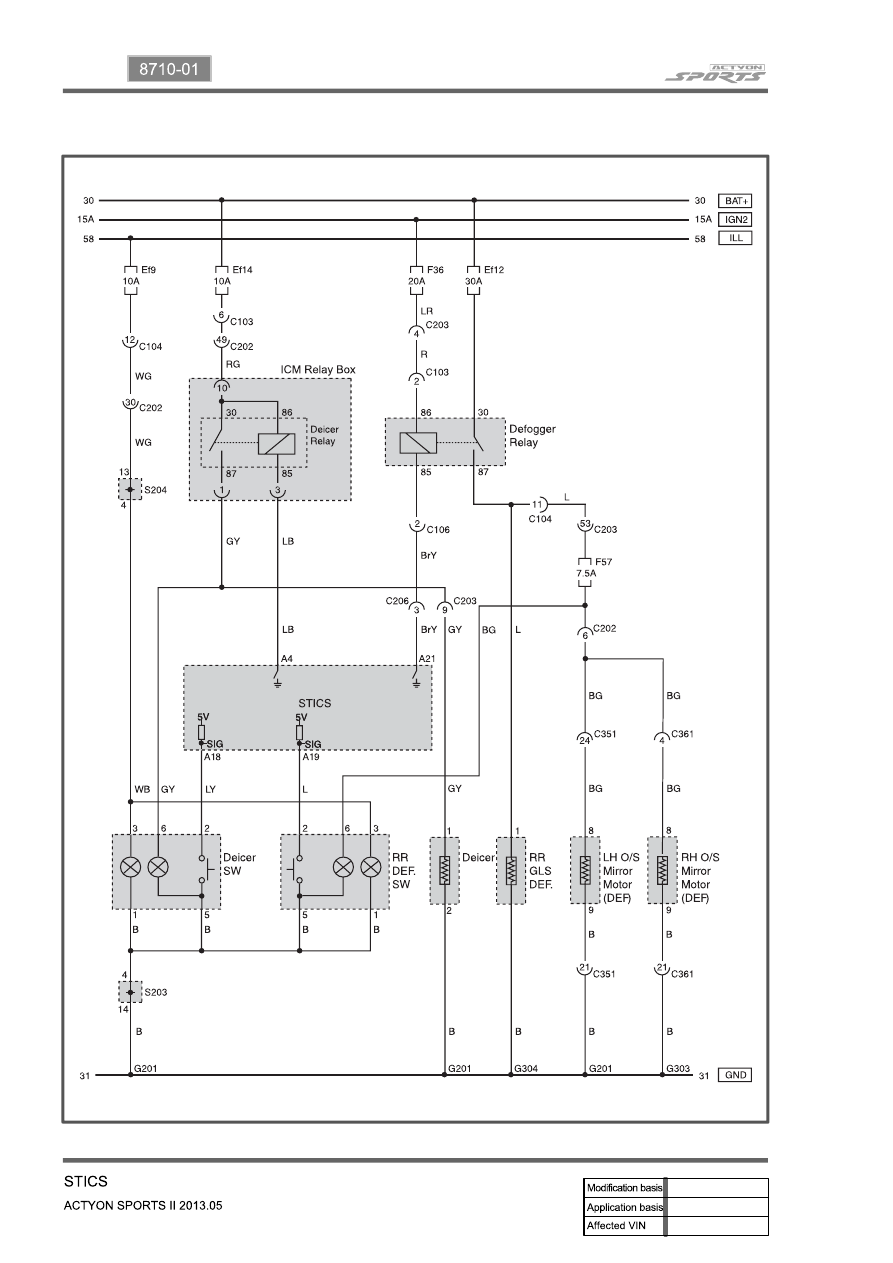

▶STICS Circuit for Front/Rear Defogger Timer
