02-27

8710-01

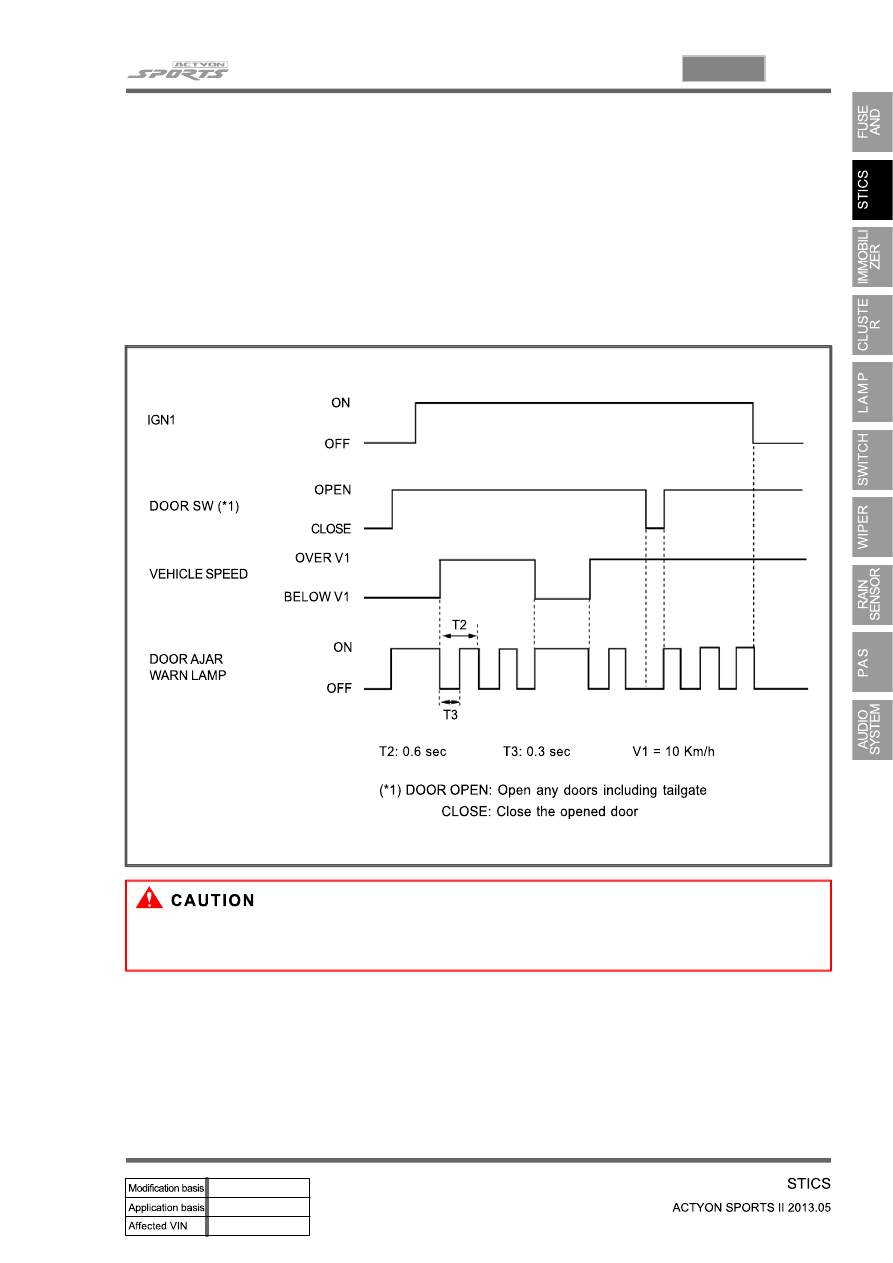

▶Door Ajar Warning

The warning light comes on when opening any door while the vehicle speed is below 10 km/h.

The warning light goes off when closing the door under step (1).

The warning light blinks when the vehicle speed is over 10 km/h while the warning light is turned

on.

The warning light blinks when a door is open while the vehicle speed is over 10 km/h.

The warning light goes off when closing the door under step (3).

The warning light comes on when the vehicle speed goes below 10 km/h under step (3).

1.

2.

3.

4.

5.

6.

Since the luggage room tailgate does not have the door switch, the door ajar warning light does not

come on when it is open.

02-28

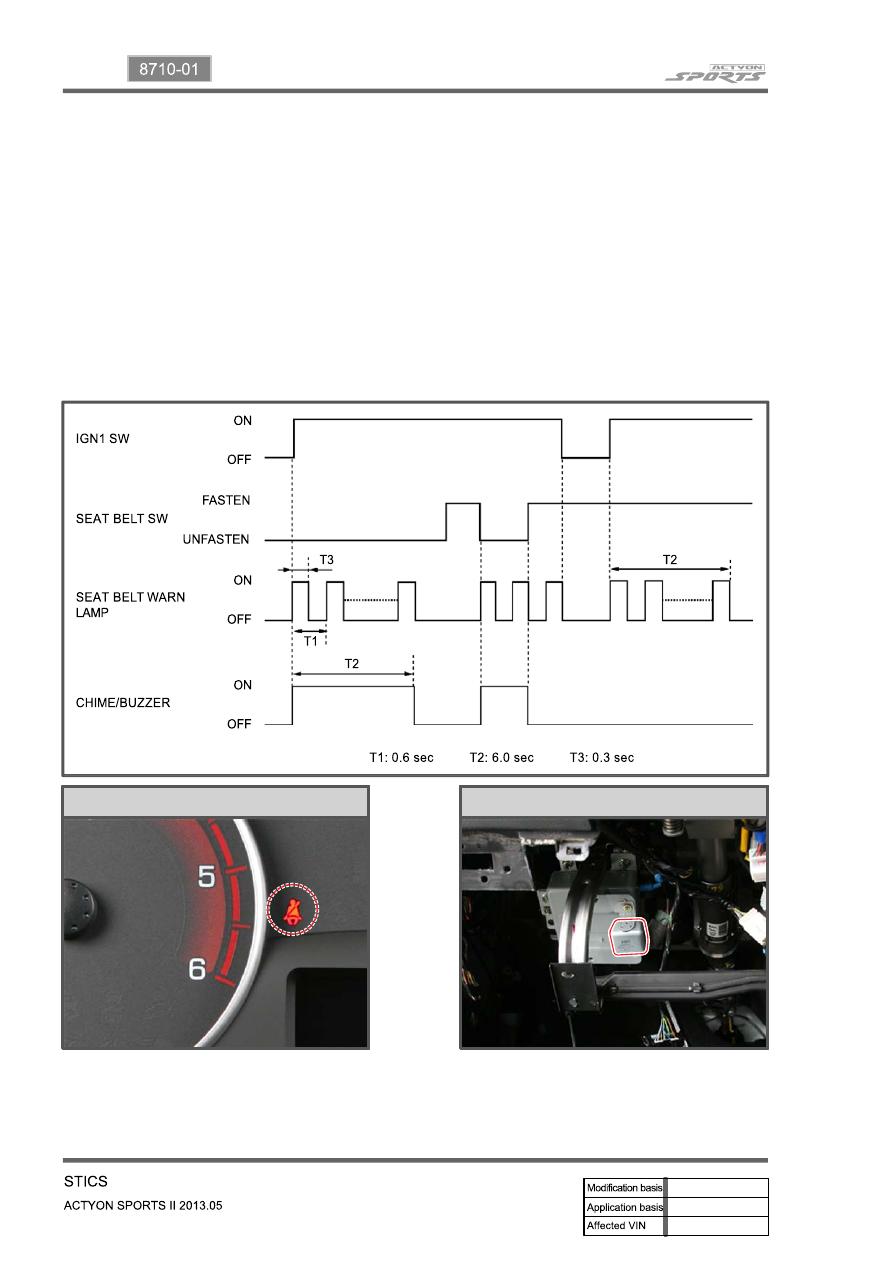

▶Seat Belt Warning

The seat belt warning light comes on and the chime buzzer sounds for 6 seconds when turning

the ignition key to "ON" from "OFF".

If the seat belt is fastened before turning the ignition key to the the "ON" position, the warning light

blinks, however, the chime buzzer does not sound.

The seat belt warning light goes off and the chime buzzer stops when turning the ignition switch to

the "OFF" position during the warning operation.

The chime buzzer stops and the seat belt warning light stays on for the remainig time when

fastening the seat belt.

The seat belt warning light comes on and the chime buzzer sounds for 6 seconds again when

unfastening the seat belt during fastening operation while the ignition key is "ON" position.

1.

2.

3.

4.

The seat belt warning light blinks and the chime buzzer sounds for 6 seconds when turning the ignition

key to "ON" without fastening the seat belt. After fastening the seat belt, the chime buzzer stops.

Seat Belt Warning Light

Chime Buzzer

02-29

8710-01

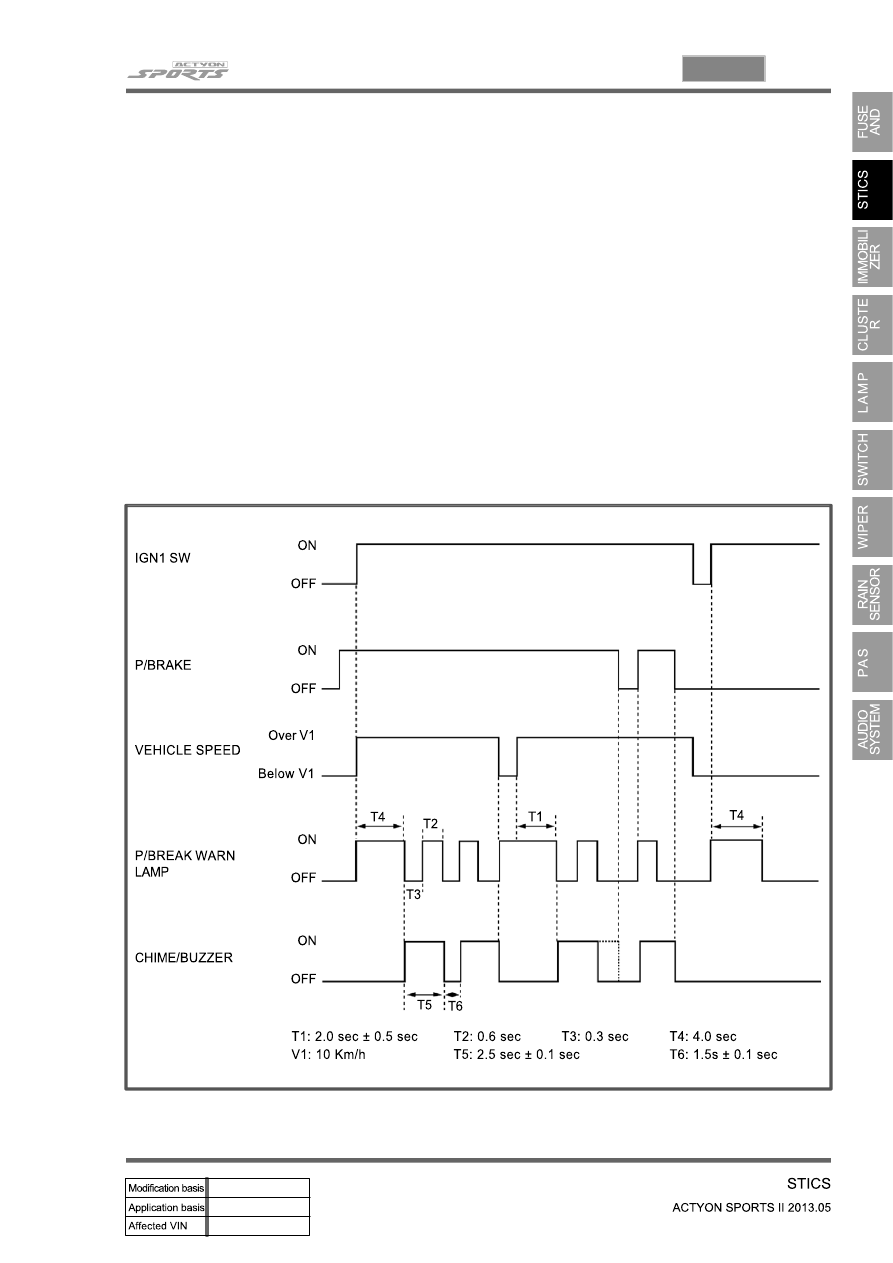

▶Parking Brake Warning

The parking brake warning light comes on for approx. 4 seconds when turning the ignition key

from the "OFF" to the "ON" position regardless of the vehicle speed and the parking brake switch

position. After this 4 seconds, the warning light comes on, goes off or blinks according to the

vehicle speed and the parking brake switch position.

The warning light comes on when the parking brake is applied and the vehicle speed is below 10

km/h.

The warning light goes off when releasing the parking brake under step (2).

The warning light blinks and the chime buzzer sounds for 2.5 seconds and stops for 1.5 seconds

when the vehicle speed is over 10 km/h for more than 2 seconds while the parking brake is

applied.

The warning light goes off and the chime buzzer stops when releasing the parking brake under
step (4).

The warning light comes on and the chime buzzer stops when the vehicle speed goes down

below 10 km/h under step (4).

This function does not work when the ignition switch is in "OFF" position.

1.

2.

3.

4.

5.

6.

7.

02-30

▶Center Room Lamp Control

The overhead console lamp (front room lamp) and the center room lamp come on at 100% when

opening the door (driver's/passenger's/rear) while the center room lamp switch is at the door

coupled/tailgate coupled operating position and the key reminder switch is "OFF".

When the door (driver's/passenger's/rear) is opened, the front and center room lamps come on at

100% and automatically go off after 30 seconds.

The room lamp stays on for 2 seconds and then dims through 3 seconds when closing the doors

within 30 seconds.

The dimming operation must have greater than 32 steps per one second.

The room lamp output should stop immediately after turning on the ignition key during the

dimming operation.

The front room lamp and the center room lamp come on for 30 seconds when receiving the

unlock signal from the remote control key while the doors are closed.

The front room lamp and the center room lamp output period is extended by 30 seconds when

receiving the unlock signal from the remote control key again during output under step (5). (The

lamp stays on when unlocked by the remote control key.)

When a door is opened during its extended period, the lamp stays on. If closed, operates as in

step (2).

The room lamp output stops immediately after receiving the lock signal from door lock switches

while all doors are closed or entering into the anti-theft mode by pushing LOCK button on the

remote control key.

1.

2.

3.

4.

5.

6.

7.

8.
