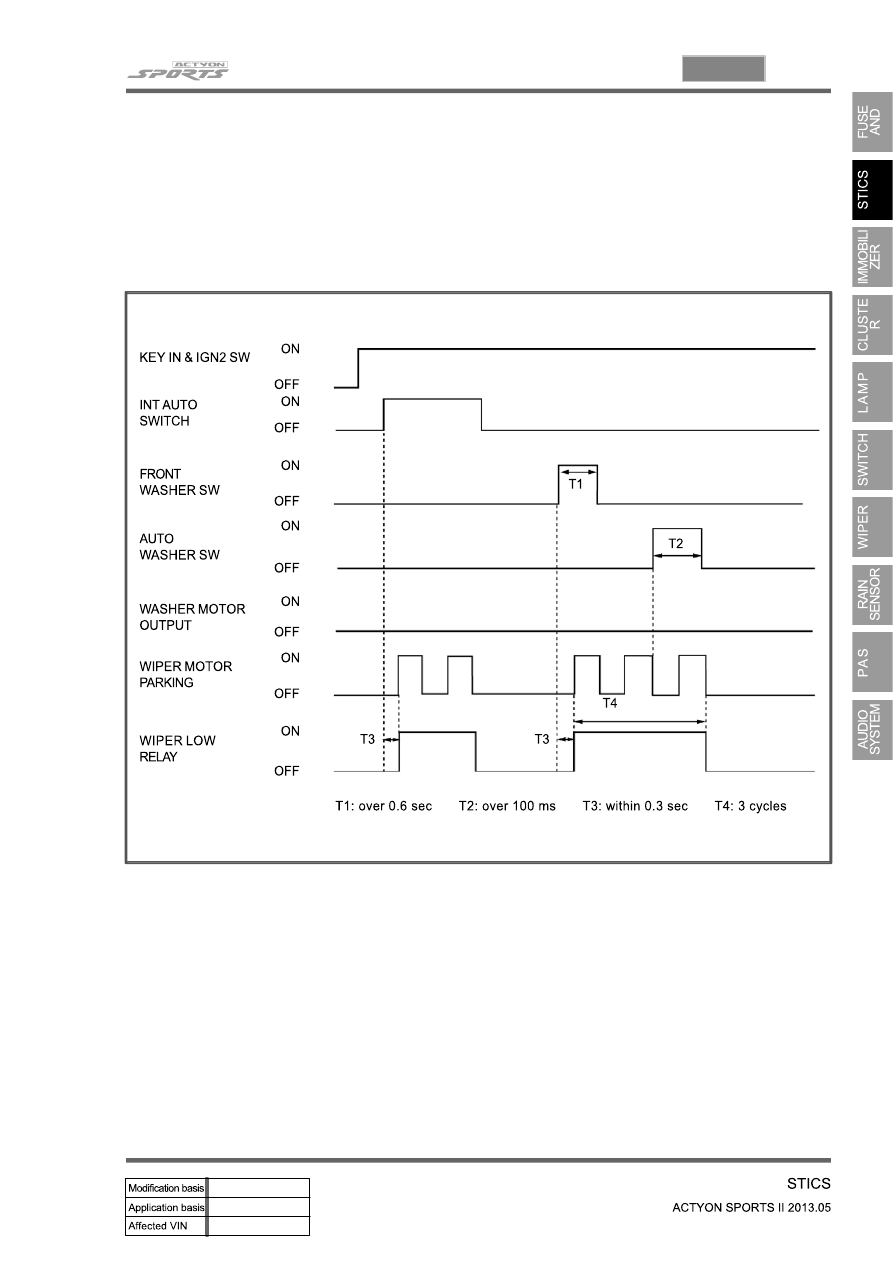

The auto washer switch input is overridden during the washer coupled wiper operation.

The auto washer switch input is overridden during the auto washer coupled wiper operation.

The auto washer switch input is overridden during the rain sensor coupled wiper or vehicle

speed sensitive INT wiper operation.

When the auto INT switch input is received during the auto washer operation, the auto washer

operation stops and the auto INT operation is activated.

-

-

-

-

02-12

▶Rain Sensor Coupled Wiper and Auto Light Control

If equipped with RKSTICS rain sensor, it has following operation system.

-

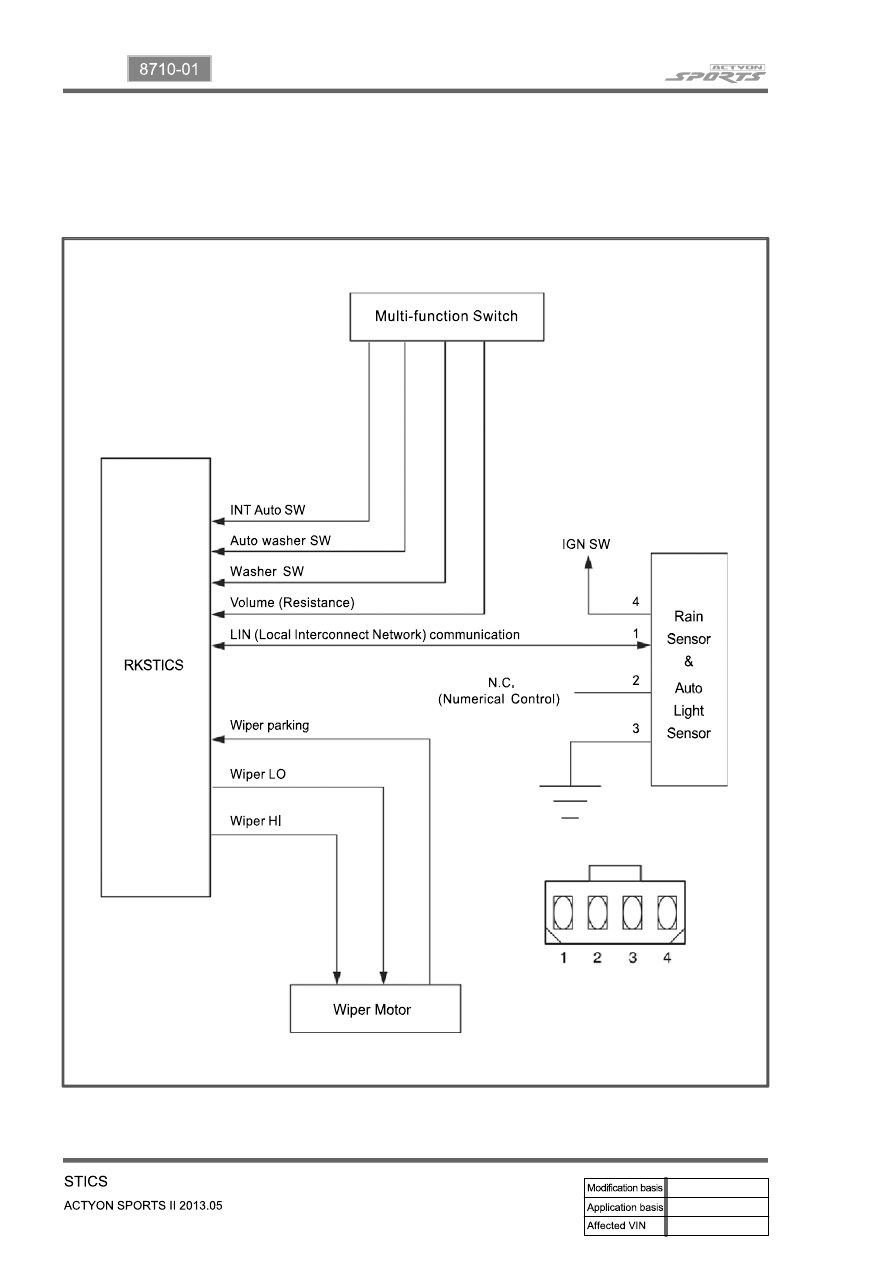

▶System layout

02-13

8710-01

Rain sensing unit

 (AUTO light integrated type)

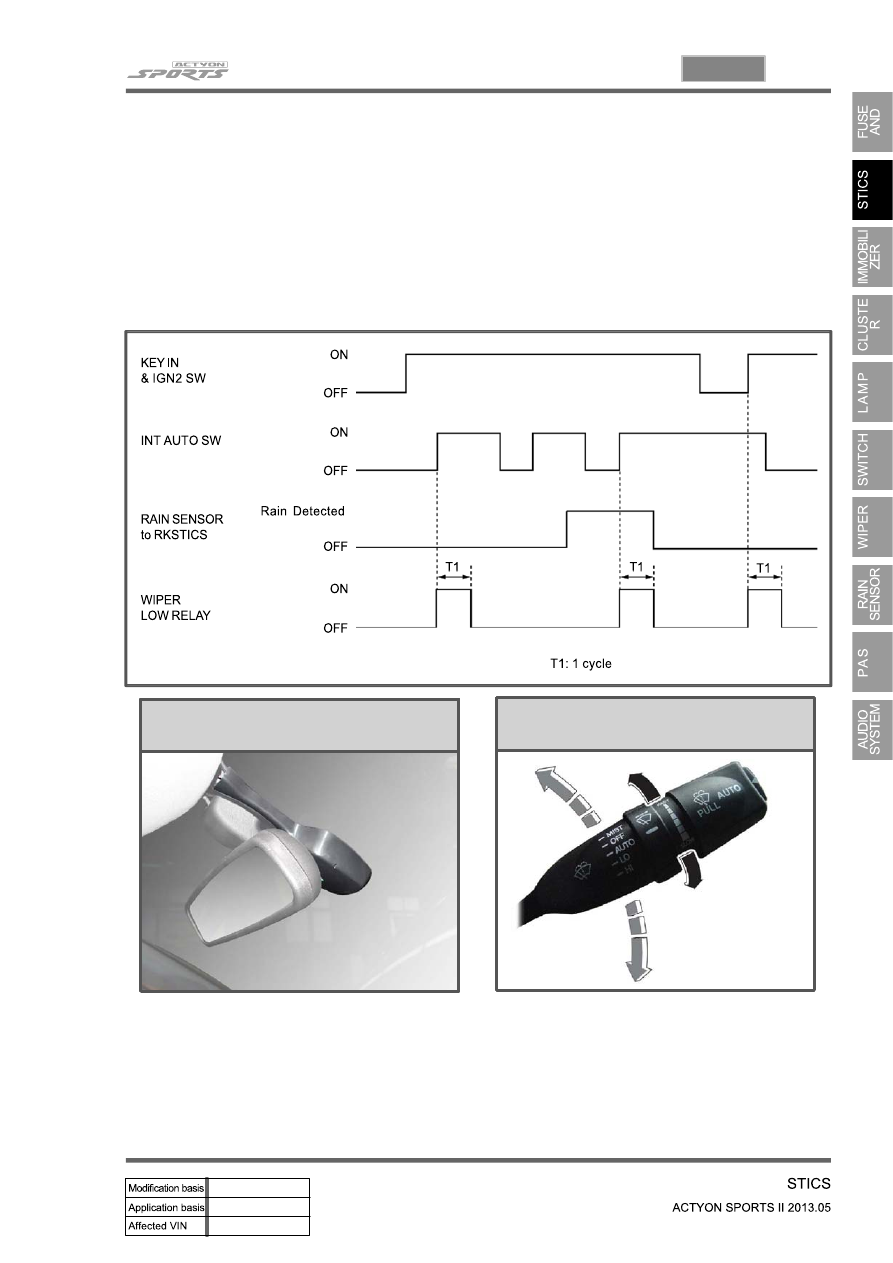

▶INT Switch Auto Position Reminder (Power-Up Reminder Wiper)

When turning off and on the auto INT switch, the system drives the wiper motor through LOW

relay regardless of communication with rain sensor.

When turning the INT-AUTO switch from the "OFF" to "ON" position with the ignition switch in the

"ON" mode, the LOW relay operates to drive the wiper motor for 1 cycle, regardless of the rain

sensor communication.

After that, when turning the INT-AUTO switch from the "OFF" to "ON" position, the LOW relay

operates to drive the wiper motor for 1 cycle only if data from the rain sensor indicates rain drops.

-

-

Multifunction wiper switch:

AUTO and sensitivity control

A sensor that emits infrared rays through LED and

then detects the amount of rain drops by receiving

reflected rays against sensing section (rain sensor

mounting section on the windshield) with

photodiode (auto light sensor integrated type)

AUTO: Wiper operates automatically by rain sensor
FAST↔SLOW: Auto delay/Auto speed control. A
position that can control sensitivity against rains on

the windshield and transmits wiping demand signal

accordingly

02-14

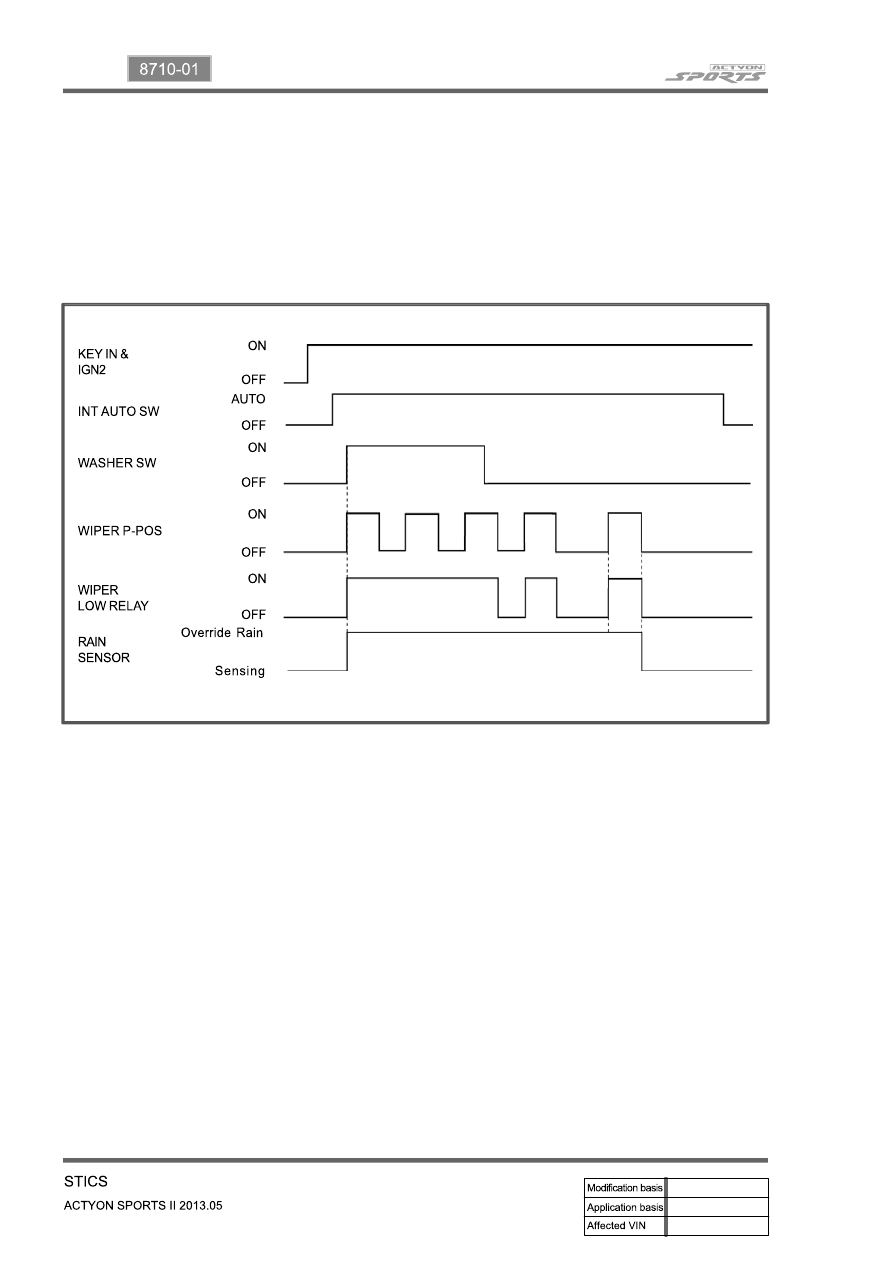

▶Washer Coupled Wiper in Rain Sensing Mode

The washer coupled wiper is operated when receiving the washer switch input with the ignition

switch and the INT-AUTO switch "ON" in the rain sensing mode. At this moment, the

communication with the rain sensor is overridden. However, a washer input is overridden if there is

an output for continuous operation.

The operation data is sent to the rain sensor even during the washer coupled wiper's operation.

-

-
