1. PERFORMANCE AND SPECIFICATIONS

1) Rated Load & Input Signals

Rated Load

▶

NO.

Item

Rated Load

1

Chime bell / Buzzer

DC 12V 350 mA (Inductive load)

2

Front room lamp

DC 12V 16W (Lamp load)

3

Rear room lamp

DC 12V 8W (Lamp load)

4

Ignition key illumination

DC 12V 1.2W (Lamp load)

5

Seat belt indicator

DC 12V 1.2W (Lamp load)

6

Parking brake warning lamp

DC 12V 1.2W (Lamp load)

7

Door ajar warning lamp

DC 12V 1.2W (Lamp load)

8

Door lock relay

DC 12V 200 mA (Inductive load)

9

Door unlock relay

DC 12V 200 mA (Inductive load)

10

Horn relay

DC 12V 260 mA

11

Tail lamp relay

DC 12V 200 mA (Inductive load)

12

Hazard warning lamp relay

DC 12V 200 mA (Inductive load)

13

Power window relay

DC 12V 200 mA (Inductive load)

14

Rear defogger relay

DC 12V 200 mA (Inductive load)

15

Wiper LOW relay

DC 12V 200 mA (Inductive load)

16

Wiper HIGH relay

DC 12V 200 mA (Inductive load)

17

Front washer motor

DC 12V 1.5A

18

Head lamp relay

DC 12V 750 mA (Inductive load)

19

Front defogger relay

DC 12V 200 mA (Inductive load)

20

Mirror lock relay

DC 12V 200 mA (Inductive load)

21

Mirror unlock relay

DC 12V 200 mA (Inductive load)

02-4

Input Signals

▶

NO.

Input Signal Name

Logic Status

1

IGN1

ON = BAT
(IGN ON or START)

2

IGN2

ON = BAT (IGN ON)

3

ALT_D

ON = BAT (engine started)

4

Key reminder switch

IN = BAT (key in)

5

Driver's door switch

OPEN = GND, CLOSE = OPEN

6

Passenger's door switch

OPEN = GND, CLOSE = OPEN

7

Rear door switch

- OPEN (one of rear doors) = GND
- CLOSE (all rear doors) = OPEN

8

Hood switch

OPEN = GND, CLOSE = OPEN

9

Driver's door lock/unlock switch

LOCK = OPEN, UNLOCK = GND

10

Passenger's door lock/unlock switch

LOCK = OPEN, UNLOCK = GND

11

Rear door lock/unlock switch

- UNLOCK (one of rear doors)
  = GND
- LOCK (all rear doors) = OPEN

12

Tailgate lock/unlock switch

LOCK = OPEN, UNLOCK = GND

13

Rear defogger switch

ON = GND, OFF = OPEN

14

Seat belt switch

Unfastened = GND, Fastened = OPEN

15

Sunroof open switch

ON = GND, OFF = OPEN

16

Parking brake switch

ON = GND, OFF = OPEN

17

Air bag collision sensor

ON = 200 ms output (LOW), OFF = OPEN

18

Wiper motor (parking) switch

STOP = BAT VOLTAGE, ROTATING = GND

19

Washer switch

ON = BAT, OFF = OPEN

20

INT-AUTO switch

ON = BAT, OFF = OPEN

21

Auto washer switch

ON = BAT, OFF = OPEN

22

Intermittent resistance

0W ~ 51KW (for intermittent wiper)

23

Speed sensor

ON = GND (PWM), OFF = OPEN

24

Mirror lock/unlock switch

ON = GND, OFF = OPEN

25

Front defogger switch

ON = GND, OFF = OPEN

26

Auto hazard switch

ON = GND, OFF = OPEN

02-5

8710-01

NO.

Input Signal Name

Logic Status

27

Central door lock switch

ON = GND, OFF = OPEN

28

Multifunction auto light switch

ON = GND, OFF = OPEN

29

Turn signal lamp switch

ON = BAT/GND, OFF = OPEN
(approx. 5.1 V ~ 9.2 V)

30

Rain sensor

ON = GND (DATA), OFF = BAT

31

Telematics

ON = GND (DATA), OFF = BAT

32

Diagnosis

ON = GND (DATA), OFF = BAT (KWP2000)

02-6

1. GENERAL

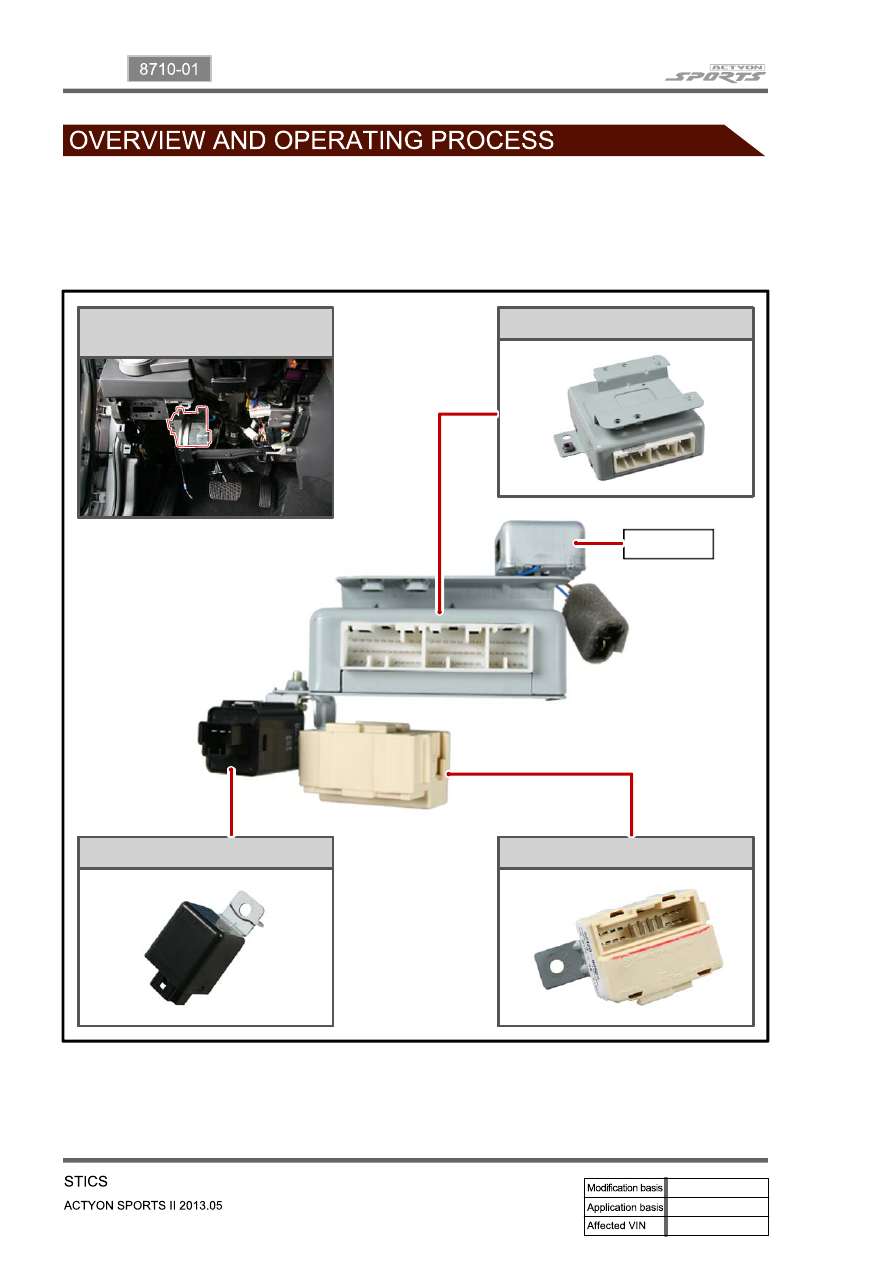

STICS of KORANDO SPORTS, called as RKSTICS (REKES + STICS (Super Time & Integrated

Control System)), is almost the same as that of ACTYON SPORTS in terms of its function and role.

Chime

STICS unit

PAS buzzer

ICM relay box

Inside of Lower IP Cover on

Driver Side
