3. CAPACITY AND NAME OF FUSE AND RELAY IN ENGINE
    COMPARTMENT

The label attached on each fuse box

indicates only major fuses and

relays. Therefore, there are more

fuses and relays than indicated. For

details about the connection of fuses

and relays, refer to the power

distribution circuit diagram on the

following pages.

*

01-7

8410-02

4. CAPACITY AND NAME OF INTERIOR FUSE AND RELAY

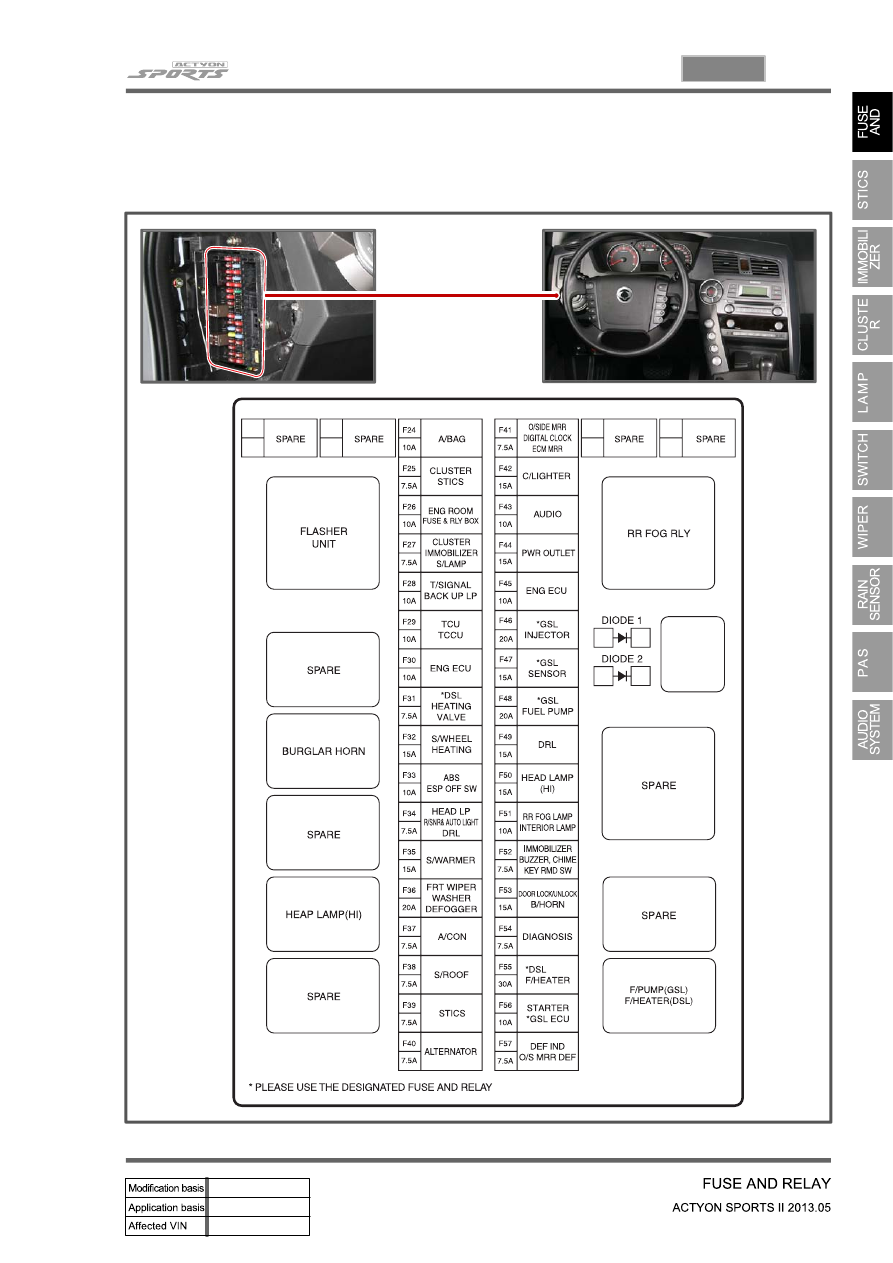

1) Interior Fuse and Relay Box on Driver Side

01-8

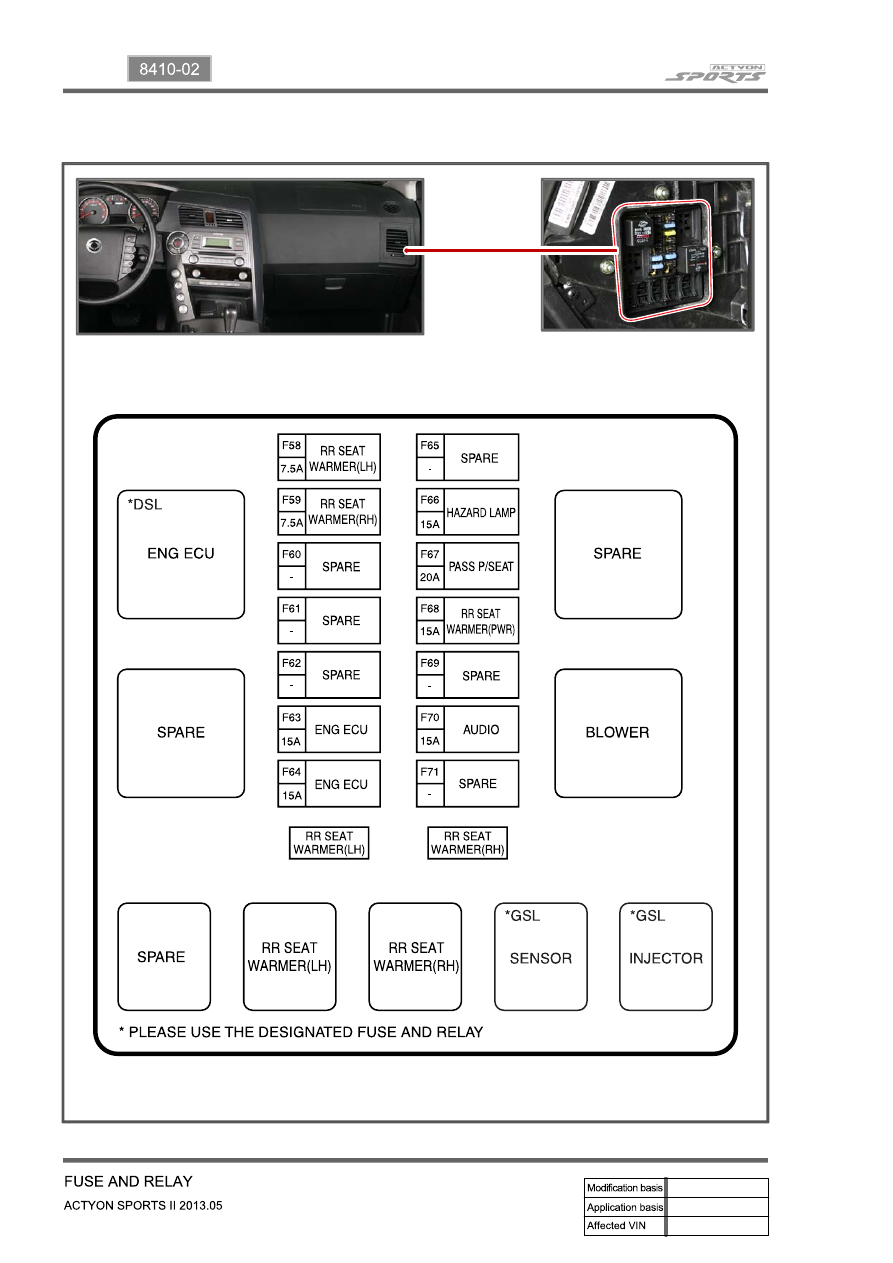

2) Interior Fuse and Relay Box on Passenger Side

01-9

8410-02

5. OPERATING PROCESS OF ICM BOX

The following relays are integrated into the ICM (Integrated Control Module) box.

Door lock/unlock relay

Windshield de-icer relay

Turn signal lamp relay

-

-

-

1) Overview

2) Mounting Location

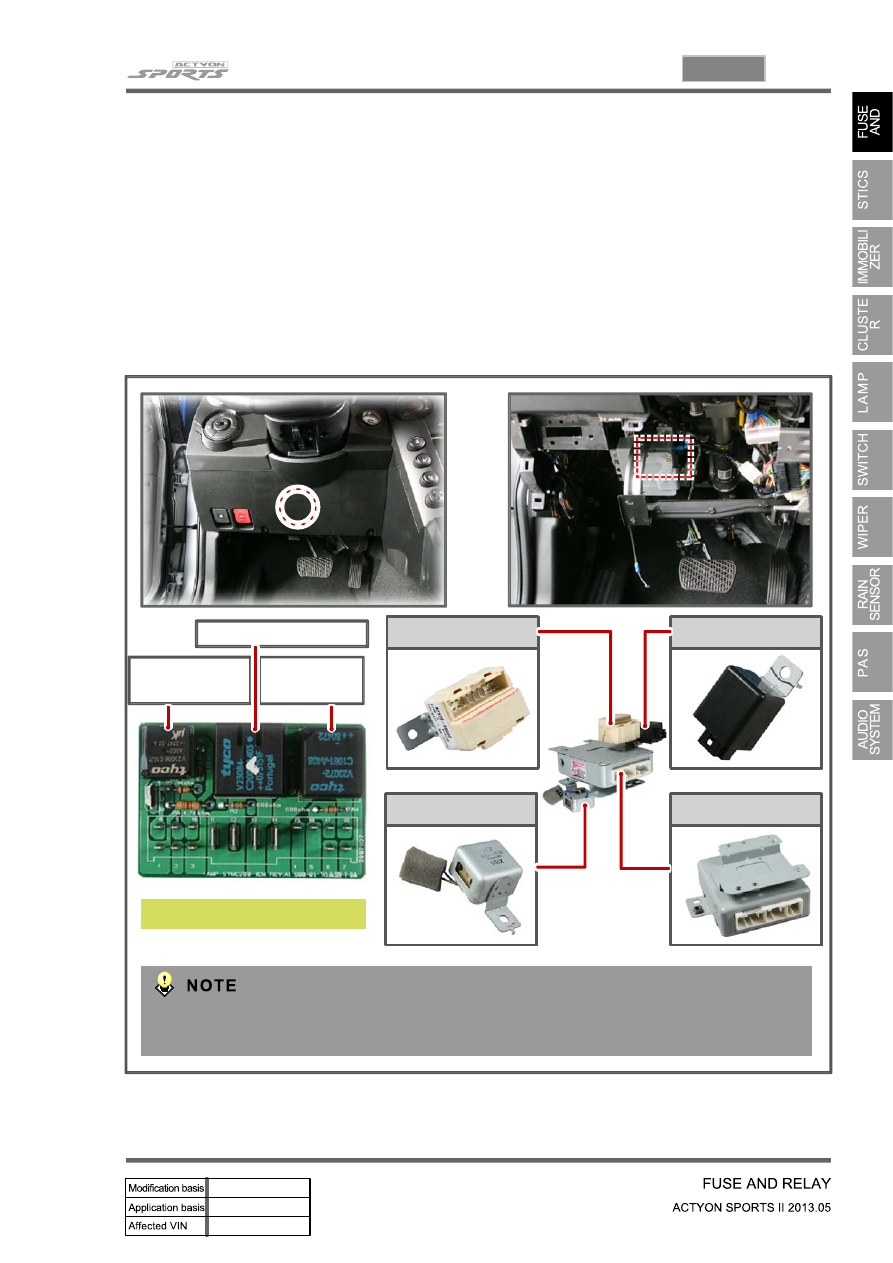

Door lock/

unlock relay

Turn signal lamp relay

Windshield

de-icer relay

Inner view of ICM PCB

PAS buzzer

Chime

ICM box

STICS

The relays in the ICM box cannot be replaced respectively; so if the any of the components on

the PCB are defective, they should be replaced as an assembly.
