Note

Control is also stopped when the clutch pedal is held down for longer than 30

s or the TCS is deactivated.

Set/change desired speed

Read and observe   on page 234 first.

The desired speed can be set or changed using the control lever

» Fig. 284

 on

page 236.
Setting/changing the speed by increments of 10 km/h at a time () - re-

quirements

ACC is enabled.

Increasing/reducing the speed by increments of 1 km/h at a time (/

- requirements

ACC is enabled.
Vehicle control takes place.

Changing the speed by adopting the current speed () - requirements

ACC is enabled.
The vehicle is moving at a speed other than that which is stored.

Note

If during control the speed is increased by pressing the accelerator, control is

temporarily stopped. Upon releasing the accelerator, control is automatically

resumed.

If during control the speed is reduced by applying the brake, control is stop-

ped. Control needs to be restarted in order to resume

» page 236

.

If the vehicle is controlled by a lower speed than the stored speed, then 

the current speed is stored by pressing the button again  and the speed is

reduced in increments of 1 km/h.

Setting the distance

Read and observe   on page 234 first.

The ACC allows you to set five distance steps to the preceding vehicle.
The distance is adjustable in a range of 1 to 3.6 s.

Adjusting the distance in the Infotainment system

In Infotainment in the ACC the Distance: menu item and set the distance

» page 234

Settings in Infotainment.

Adjust the distance with the lever

Set the switch  Adjust in the spring-tensioned position  or 

» Fig. 284

on page 236.

The instrument cluster display shows line

2



» Fig. 282

 on page 234, which in-

dicates the proximity.

Using the switch  on the lever, adjust the line

2

 to the desired dis-

tance.

Note

If the distance is changed in the Infotainment, the change will only come into

effect after a subsequent activation of the ACC.

The distance setting is stored (depending on Infotainment model) in active

user account personalisation

» page 57

.

Special driving conditions

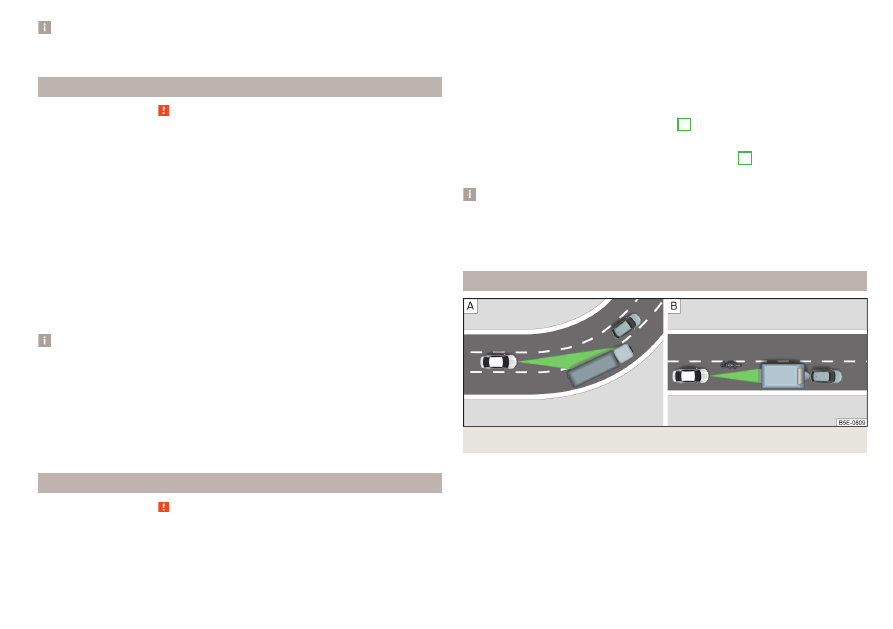

Fig. 285  Cornering / narrow vehicles or vehicles travelling side by side

237

Assist systems

-------------------------------------------------------------------------------------------------------------------------------------------------------------

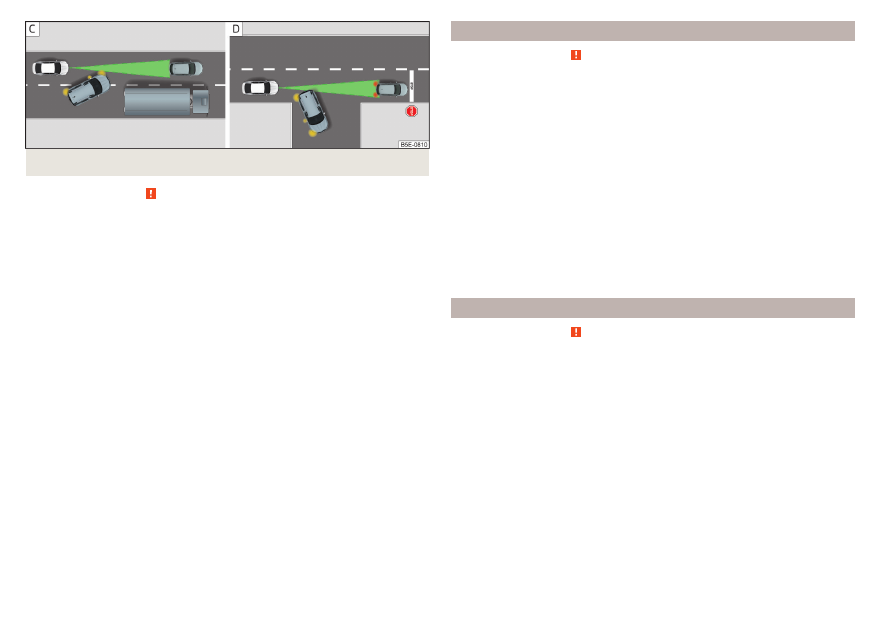

Fig. 286  Lane changes of other vehicles / stationary vehicles

Read and observe   on page 234 first.

The following (and similar) situations require special attention and possibly the

intervention of the driver (braking, accelerating etc.).

When cornering

When driving into or driving out of long corners, it could be that a vehicle is

travelling in the adjacent lane and is scanned by the radar

» Fig. 285

 - . The

host vehicle is then controlled according to this vehicle.

Narrow vehicles or vehicles travelling side by side

A narrow or offset vehicle driving can only be recognized by the ACC if this is

located in the scanning range of the radar

» Fig. 285

 - .

Other vehicles changing lanes

Vehicles that change onto the lane with a small distance

» Fig. 286

 -  may not

be detected by ACC in good time.

Stationary vehicles

The ACC does not detect stationary objects! When a vehicle detected by the

ACC turns or sheers off and there is a stationary vehicle in front of this vehicle,

» Fig. 286

 - the ACC does not respond to the stationary vehicle.

Vehicles with special load or special body parts

Other vehicles with a load or with body parts protruding from the sides, back

or top of the vehicle contour may not be detected by the ACC.

Overtaking and towing

Read and observe   on page 234 first.

When overtaking

When your vehicle is being controlled at a speed that is lower than the set

speed and the turn signal is operated, ACC assesses this situation as meaning

that the driver wishes to overtake. The ACC automatically accelerates the ve-

hicle, thereby reducing the proximity to a vehicle ahead.
If your vehicle changes to the overtaking lane and no vehicle is detected

ahead, ACC accelerates until the set speed is reached and then keeps it con-

stant.
Acceleration can be cancelled at any time by touch on the brake pedal or

pressing the button  on the lever

» Fig. 284

 on page 236.

Towing a trailer

When towing, or if another accessory is connected to the trailer socket, ACC

control is set with a lower rate. The manner of driving should therefore be

adapted to this limitation.

Malfunctions

Read and observe   on page 234 first.

If ACC is not available, the warning light  appears in the display of the instru-

ment cluster and an appropriate message is shown.

Sensor covered / dirty

If the sensor cover or the sensor is dirty or covered, a message appears on the

instrument cluster display stating there is no sensor view. Clean the sensor

cover or remove the obstacles

» Fig. 251

 on page 210.

If there is no sensor view in the winter, the snow on the sensor under the cov-

er could be the reason. The ACC is functional again after the snow melts away

from the sensor.

ACC not available

If the ACC is unavailable, a message concerning the unavailability appears.

Stop the vehicle, switch off the engine and then start it again. If ACC continues

to be unavailable, seek the assistance of a specialist garage.

238

Driving

-------------------------------------------------------------------------------------------------------------------------------------------------------------

ACC fault

With an ACC fault, an error message appears. Seek help from a specialist ga-

rage.

Front Assist

Introduction

The Front Assist (hereinafter referred to as the system) warns you of the dan-

ger of a collision with a vehicle or another obstacle in front of the vehicle, and

tries to avoid a collision or mitigate its consequences by automatically applying

the brakes where necessary.
The area in front of the vehicle is monitored by a radar sensor

» page 210

.

WARNING

Please take note of the general points relating to the use of assistance

systems

» page 210,

   in section Introduction.

The system does not respond vehicles that are crossing or oncoming.

CAUTION

In case of failure of more than one brake light on the vehicle or on the electri-

cally connected trailer, the system becomes unavailable.

Settings in Infotainment

Read and observe   and   on page 239 first.

In the infotainment system, in menu



/  tap on function surface  → Driv-

er assistance.

Front Assist (ambient traffic monitor. sys.) - Set the assistant for distance

monitoring to the vehicles ahead

Active - Activate/deactivate the assistant

Advance warning - Activate/deactivate and set the distance level at which a

warning occurs

Display distance warning - Activate/deactivate distance warnings

Operation

Read and observe   and   on page 239 first.

The system support is provided in the following manner.

Alerts you about a dangerous proximity to the vehicle ahead.

Warns you of an impending collision.

Assists with a brake action triggered by the driver.

If the driver fails to respond to a detected danger, an automatic braking ac-

tion is performed.

The system can work only if the following basic conditions are met.

The system is activated.
TCS is activated

» page 211

.

The vehicle is travelling forwards at a speed of more than approx. 5 km/h.

Note

The system can be impaired or may not be available, for example when driving

in “sharp ”curves or with an ESC engagement

» page 211

.

Distance warning

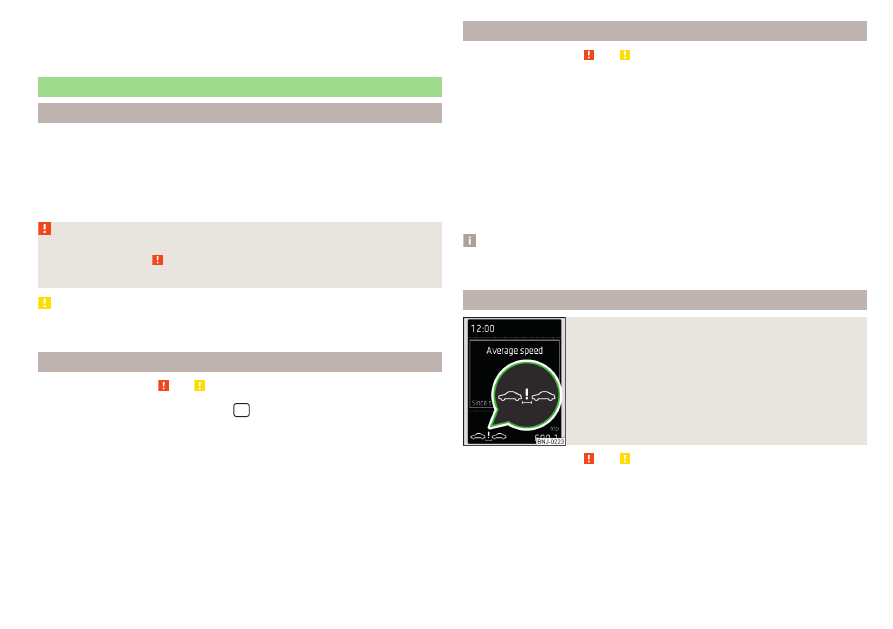

Fig. 287

Display in the instrument cluster: Distance warning

Read and observe   and   on page 239 first.

If a safe distance from the vehicle ahead is fallen short of, the warning light ap-

pears in the display 

» Fig. 287

.

Immediately increase the proximity if the current traffic situation allows

you to do so!
The proximity at which the warning is displayed depends on the current speed.
The warning may occur when driving between about 60 km/h and 210 km/h.

239

Assist systems

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Warning and automatic braking

Fig. 288

Display in the instrument cluster: Advance warning

or emergency braking at low speed

Read and observe   and   on page 239 first.

Emergency braking at low speed

In the event of a risk of collision in a vehicle speed range of approximately

5 km/h to 30 km/h, the warning light appears on the display 

» Fig. 288

 and

the system initiates automatic braking.

Advance warning

If the system detects a risk of collision, the warning light appears on the dis-

play 

» Fig. 288

 and an audible signal is emitted.

The pre-warning display can occur in the following situations.

If there is a risk of collision with a moving obstacle in a speed range of ap-

proximately 30 km/h to 210 km/h.

If there is a risk of collision with a stationary obstacle in a speed range of ap-

proximately 30 km/h to 80 km/h.

When the advance warning is issued, the brake pedal must be pressed or

the moving obstacle avoided!

Immediate warning and automatic braking - a moving obstacle

If the driver does not react to the advance warning when in danger of a colli-

sion with a moving obstacle, the system briefly applies the brake automatically

via an active brake intervention to draw attention to the potential danger of a

collision again.
If the driver does not respond to acute warning, the system begins to auto-

matically brake the vehicle.

Automatic braking - a stationary obstacle

If the driver does not respond to the advance warning of the risk of a collision

with a stationary obstacle in a speed range of approximately 30 km/h to 60

km/h, the system initiates automatic braking.

Information on automatic braking

If automatic brake intervention is triggered by the system, the pressure in the

brake system increases and the brake pedal cannot be operated with the nor-

mal pedal stroke.
The automatic braking interventions can be cancelled by pressing the acceler-

ator pedal or by means of a steering intervention.

Brake assist

If the driver brakes inadequate with an impending collision, the system auto-

matically increases braking force.
The braking assistance only occurs as long as the brake pedal is being firmly

pressed down.

Pedestrian recognition

Read and observe   and   on page 239 first.

The pedestrian recognition can help to prevent accidents with crossing pedes-

trians or to mitigate the consequences of an accident.
The system warns of an imminent collision, prepares the vehicle for an emer-

gency braking, supports during braking or performs an automatic braking.

Emergency braking at low speed

If there is a risk of collision in a vehicle speed range of about 5 km/h to 30

km/h, the system triggers an automatic braking.
With automatic braking, the warning light appears in the display 

» Fig. 288

on page 240.

Advance warning and automatic braking

If the system detects a risk of collision in a vehicle speed range of 30 km / h to

65 km / h, the warning light appears on the display 

» Fig. 288

 on page 240

and an audible signal is emitted.
With a warning the brake pedal must be pressed or the moving obstacle is

to be avoided!

240

Driving

-------------------------------------------------------------------------------------------------------------------------------------------------------------

If the driver does not respond to the advance warning, the system begins to

automatically brake the vehicle.

Disable/enable

Read and observe   and   on page 239 first.

In the instrument cluster display, in the Assist systems menu item.

In Infotainment, in the Front Assist (ambient traffic monitor. sys.) menu, in

the Active

» page 239

Settings in Infotainment menu item.

The function is automatically activated each time the ignition is switched on.
The system should only be disabled in exceptional cases

»

.

WARNING

In the following situations, Front Assist should be switched off for safety

reasons.

When the vehicle is being towed away.

When the vehicle is on a rolling test bench.

If an unfounded warning or a system action was taken.

When on a truck, or a car ferry service or similar.

Malfunctions

Read and observe   and   on page 239 first.

If the system is not available, an appropriate message appears in the display of

the instrument cluster.

Sensor covered / dirty

If the sensor cover or the sensor is dirty or covered, a message appears on the

instrument cluster display stating there is no sensor view. Clean the sensor

cover or remove the obstacles

» Fig. 251

 on page 210.

If there is no sensor view in the winter, the snow on the sensor under the cov-

er could be the reason. The system is functional again after the snow melts

away from the sensor.

System unavailable

If the system is unavailable, a message concerning the unavailability appears.

Stop the vehicle, switch off the engine and then start it again. If the system

still is not available, seek the assistance of a specialist garage.

Select the driving mode (Driving Mode Selection)

Introduction

By selecting the driving mode, the driving behaviour can be adapted to the de-

sired mode of operation.
The following modes EcoComfortNormalSportsIndividual and Offroad are availa-

ble.
TheComfort mode is only available on vehicles with adaptive chassis (DCC) and

the Offroad mode is only available on Octavia Scout vehicles.

WARNING

Please take note of the general points relating to the use of assistance sys-

tems

» page 210,

   in section Introduction.

Adaptive chassis (DCC)

Read and observe   on page 241 first.

The adaptive chassis (hereafter known as DCC) provides the ability to adjust

the shock characteristics for the sporty, normal or comfortable driving when

the corresponding control mode is selected.
The DCC evaluates steering response and road conditions while driving contin-

uously and adjusts the suspension behaviour within the selected driving mode

accordingly.

Mode Eco

Read and observe   on page 241 first.

This mode is suitable for a relaxed style of driving and helps to save fuel.
Selecting this mode primarily affects the function of the following systems.

Drive

Vehicle acceleration is more relaxed than in Normal mode.
The recommended gear is controlled such to achieve the lowest possible fuel

consumption

» page 50

.

241

Assist systems

-------------------------------------------------------------------------------------------------------------------------------------------------------------

If the START-STOP system is deactivated manually

» page 202

, this will be au-

tomatically activated.
The automatic gearbox is set automatically to mode E

» page 206

.

Adaptive Cruise Control (ACC)

Acceleration occurs more relaxed than in Normal

» page 234

mode with distance

control.

Air conditioning (Climatronic)

The air conditioning is controlled so as to save energy. For this reason, for ex-

ample, it may take longer to reach the desired interior temperature in mode

Normal.

Note

The maximum vehicle acceleration (kick down function) is possible also in driv-

ing mode Eco.

Mode Comfort

Read and observe   on page 241 first.

This mode is suitable for driving on roads with poorer surface or for long mo-

torway journeys.

Mode Normal

Read and observe   on page 241 first.

This mode is suitable for a conventional driving.

Mode Sports

Read and observe   on page 241 first.

This mode is suitable for a sporty driving.
Selecting this mode primarily affects the function of the following systems.

DCC

The DCC adjusts the chassis for the sporty driving style.

Steering

The power steering is reduced slightly, i.e., the driver needs to exert more

force for steering .

Drive

The vehicle acceleration is more dynamic than in Normal mode.

Front axle differential lock

The driving force distribution between the front wheels is adapted to the

sporty driving style.

Adaptive Cruise Control (ACC)

The acceleration is quicker than in Normal mode with distance control

» page 234

.

ProActive passenger protection

The first level of protection is deactivated

» page 243

.

Engine noise

The engine noise is noticeable in the interior more intensely than in Normal

mode.

Mode Individual

Read and observe   on page 241 first.

In the mode Individual each system can be set independently

» page 243

Indi-

vidual mode settings.

Mode Offroad

Read and observe   on page 241 first.

The mode Offroad is suitable for driving outside paved roads.
Further information

» page 213

Offroadmode.

242

Driving

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Mode selection and Infotainment display

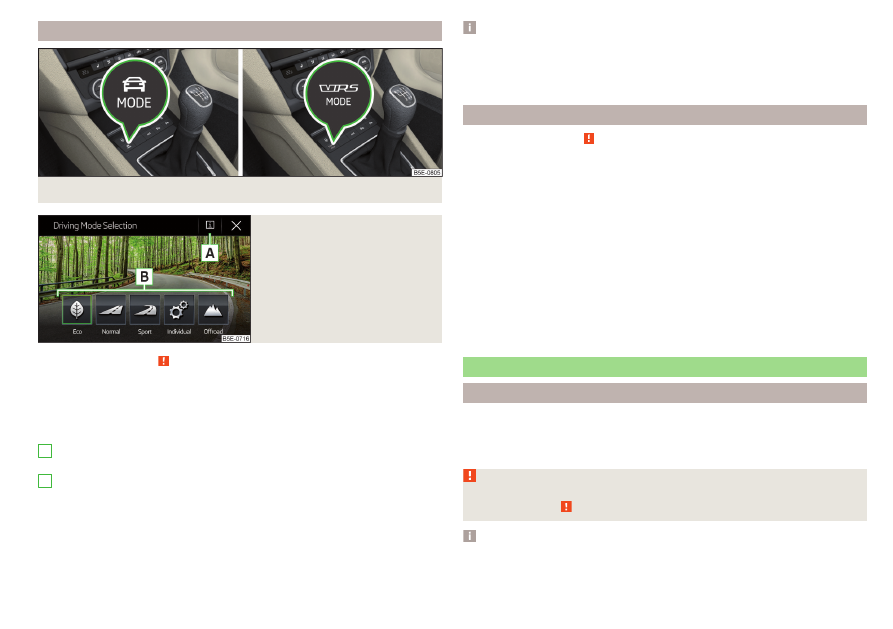

Fig. 289  Button for selecting the driving mode: Version 1/version 2

Fig. 290

Display on Infotainment screen

Read and observe   on page 241 first.

Display of the driving mode menu

Press the buttonand 

» Fig. 289

.

The following function surfaces are displayed on the Infotainment screen

» Fig. 290

.

Information on setting the currently selected mode

Setting the Individual mode
Driving mode menu

The driving mode selection is performed in one of the following ways.

By repeatedly pressing the button  or .

By tapping the function surface on the Infotainment screen

» Fig. 290

,

After switching the ignition off and on, the Normal mode is set.

A

B

Note

The currently selected driving mode is displayed in the infotainment system

in the status bar next to the symbol .

The setting for the individual mode is stored in the active personalisation user

account

» page 57

.

Individual mode settings

Read and observe   on page 241 first.

In the Individual mode, the following menu items can be set.

DCC: - Sets the shock characteristics

Steering: - Set the power steering characteristics

Drive: - Sets the drive characteristics

Front axle differential lock: - Sets the characteristics of the front axle differential

lock

ACC: - sets the vehicle acceleration when adaptive cruise control is activated

Dynamic Cornering light: - Sets the Full LED headlight characteristics

Air conditioning: - Sets the Climatronic characteristics

Engine sound: - Sets the engine noise in the vehicle

Reset mode - Setting for all menu items in Individual mode to Normal

Cancel - Keep the current settings

Reset - cancels all menu items in the Normal mode

Proactive passenger protection (Crew Protect Assist)

Introduction

ProActive passenger protection (following known as system) increases pas-

senger protection in the front seats in situations that could lead to vehicle im-

pact or overturning.

WARNING

Please take note of the general points relating to the use of assistance sys-

tems

» page 210,

   in section Introduction.

Note

The system component service life is monitored electronically. Further infor-

mation

» page 43

 Safety systems.

243

Assist systems

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Operation

Read and observe   on page 243 first.

In critical driving situations (e.g. during emergency braking or a sudden change

in direction), the following steps can be taken separately or combined in order

to reduce the risk of serious injury.

The front passenger's and driver's seatbelts, if worn, are automatically ten-

sioned closely over the body.

Opened electrically powered door windows are closed automatically up to a

gap of about 5 cm from the edge.

The sliding/tilting roof is closed.

Once the critical driving situation has passed, the tension on the seatbelts will

be released again.
The system operates at two levels of protection.

The first level of protection

The system already intervenes in situations that may occur during dynamic

driving. As a result, this primarily helps to keep the driver and the passenger in

the correct seated position.
The first protection level can be deactivated in one of the following ways.

In the infotainment system, in menu



/  tap on function surface  → Driv-

er assistance.

Deactivation of TCS

» page 211

.

By selecting the driving mode Sport

» page 243

.

By selecting the driving mode Offroad

» page 213

.

After switching the ignition off and on, the system is activated in both levels of

protection.

The second level of protection

The system intervenes only if the situation is evaluated as critical, such as

when panic braking at high speeds.
This level of protection cannot be deactivated.

Vehicles with the Front Assist system

Using this information, a system intervention may also occur when there is the

danger of a collision with an obstacle detected in front of the vehicle.

Spurhalteassistent (Lane Assist)

Introduction

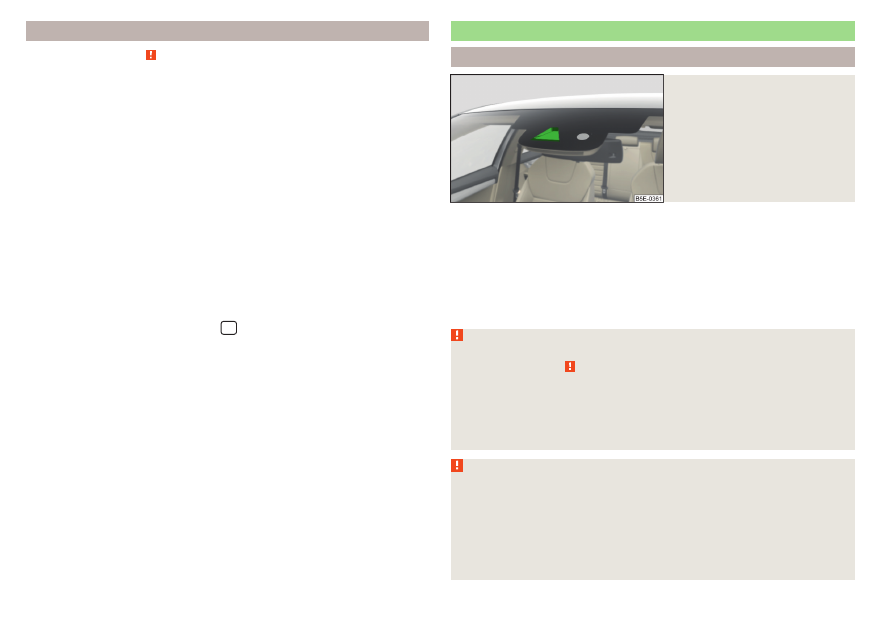

Fig. 291

Sensor for Lane Assist

The lane departure warning (following known as system) helps to keep the ve-

hicle between the boundary lines of a lane.
The system recognises the boundary lines of the lane using a sensor

» Fig. 291

.

When the vehicle approaches a detected line between lanes, the system

makes a light movement of the steering wheel in the opposite direction to the

boundary line. This corrective steering intervention can be manually overridden

at any time.

WARNING

Please take note of the general points relating to the use of assistance

systems

» page 210,

   in section Introduction.

Lane Assist can help you keep the vehicle within the lane. However, it

does not steer the vehicle for you. The driver retains full responsibility for

steering at all times.

Some objects or markings on the road can be recognised as the boundary

lines - an erroneous steering intervention may be the result.

WARNING

The system may not be able to recognise the boundary line, or recognise it

incorrectly, for example, in the following situations.

When visibility is poor, (e.g. fog, heavy rain, thick snowfall).

When driving in “sharp” bends.

The sensor is blinded by the sun or oncoming traffic.

The field of view of the sensor is limited by an obstacle or a preceding ve-

hicle.

244

Driving

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CAUTION

Do not attach any stickers or similar objects in front of the sensor on the wind-

screen to avoid impairing the functions of the system.

Note

The system is designed for driving on motorways and roads with adequate

longitudinal markings.

The system can detect both continuous and broken lines.

Settings in Infotainment

Read and observe   and   on page 244 first.

In the infotainment system, in menu



/  tap on function surface  → Driv-

er assistance.

Lane Assist (lane departure warning sys.) - Settings for Lane Assist

Active - Activate/deactivate the assistant

Adaptive lane guidance - Activate/deactivate adaptive lane guidance

Operation

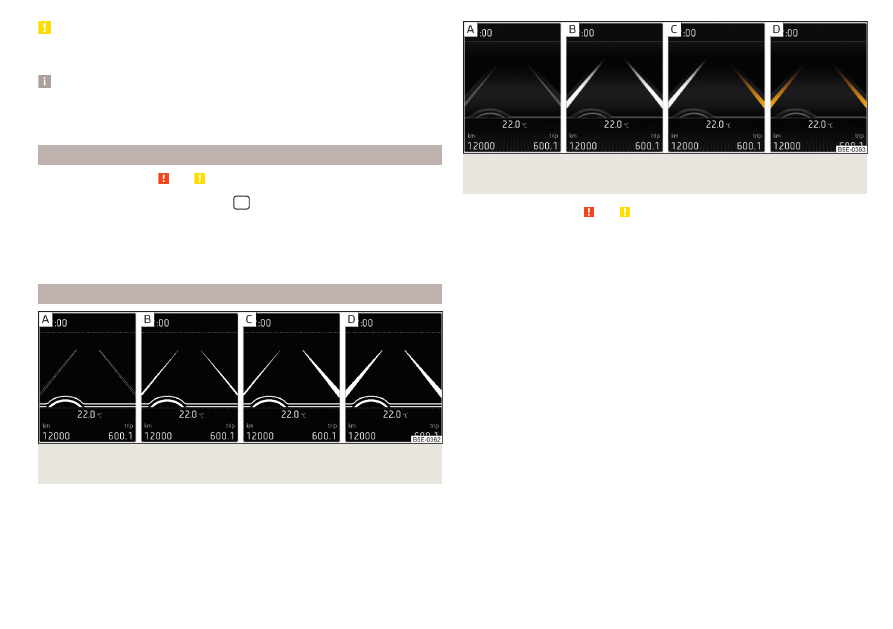

Fig. 292  Monochromatic display of the instrument cluster: Examples of

system indications

Fig. 293  Colour display of the instrument cluster: Examples of system

indications

Read and observe   and   on page 244 first.

System displays

» Fig. 292

 and

» Fig. 293

The system is active, but not ready to intervene.
The system is active and ready to intervene.
The system intervenes when approaching the right-hand boundary lane.
Adaptive tracking takes place.

The system can intervene when the following basic conditions are present.

The system is activated.
The vehicle is travelling at more than around 65 km/h.
The boundary line of at least one side of the lane is detected.
The driver's hands are on the steering wheel.
The lane is more than 2.5 m in width.

If the turn signal is switched on (e.g. when turning), no steering intervention

takes place when the vehicle approaches the boundary line. The system re-

gards the situation as an intended lane change.

Warning lights in the instrument cluster

The system is active, but not ready to intervene.
The system is active and ready to intervene or is currently intervening.

Adaptive lane assist

Adaptive tracking helps to keep the vehicle in the position between the boun-

dary lines selected by the driver, by means of steering intervention.

245

Assist systems

-------------------------------------------------------------------------------------------------------------------------------------------------------------

If the position within the lane is changed, the system quickly adapts and holds

the newly-selected position.

Steering wheel vibrations

In the following situations, it may occasionally be the case that due to the

steering wheel vibrations the syst4em indicates that a driver steering interven-

tion is required.

The system is not able to keep the vehicle by a within the lane due to a steer-

ing intervention.

During an intense system-related steering intervention, the system suddenly

cannot recognize the boundary lines.

WARNING

The system function may be restricted if, for example there is danger due

to ruts on a downhill road or in a crosswind.

Activation / deactivation

Read and observe   and   on page 244 first.

The activation/deactivation of the system can be carried out in one of two

ways.

In the instrument cluster display

» page 55

Assist systems menu item.

In Infotainment

» page 245

Settings in Infotainment.

Adaptive tracking can also be enabled or disabled In Infotainment.
After switching off and switching on the ignition, the system setting is re-

tained.

Note

The system setting is stored (depending on Infotainment type) in the active

user account personalisation

» page 57

.

Malfunctions

Read and observe   and   on page 244 first.

If the system is not available, an appropriate message appears in the display of

the instrument cluster.

Sensor covered / dirty

If the windscreen is dirty, iced or misted up in the sensor area, a message ap-

pears indicating that there is no sensor view. Clean the windscreen or remove

the obstacles from the sensor area.

System unavailable

If the system is unavailable, a message concerning the unavailability appears.

Try to re-activate the machine. If the system still is not available, seek the as-

sistance of a specialist garage.

System fault

In the case of a system fault, an error message appears. Seek help from a spe-

cialist garage.

Request to take over steering

If the system detects that there are no hands are on the steering wheel, this

will not work properly. You will be prompted to take over steering. Place your

hands on the steering wheel.

Traffic sign recognition

Introduction

The traffic sign recognition (following known as system) shows certain traffic

signs (e.g. speed limits) on the display of the instrument cluster and if necessa-

ry warns against excessive speeds.

WARNING

Please take note of the general points relating to the use of assistance

systems

» page 210,

   in section Introduction.

Vertical traffic signs must always take precedence over the traffic signs

shown in the display. The driver is always responsible for correctly assess-

ing the traffic situation.

The speed indications in the traffic signs shown refer to the speed units

that are common in the country. For example, the display  may relate to

km/h or mph depending on the country in question.

246

Driving

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

The traffic signs may not be displayed or may be displayed incorrectly in

the system e.g. in the following situations.

When visibility is poor, (e.g. fog, heavy rain, thick snowfall).

The sensor is blinded by the sun or oncoming traffic.

The field of view of the sensor is limited by an obstacle or a preceding ve-

hicle.

Travelling at high speed.

The traffic signs are covered (e.g. by trees, snow or dirt).

The traffic signs are not standard (round with a red border) or are dam-

aged.

The traffic signs are attached to flashing neon signs.

The traffic signs were changed (the navigation data are out of date).

Note

The system is only available in some countries.

Settings in Infotainment

Read and observe   on page 246 first.

In the infotainment system, in menu



/  tap on function surface  → Driv-

er assistance.

Dynamic Road Sign Display - Settings for the Dynamic Road Sign Display

Show in instrument cluster - Activation/deactivation of the additional traffic

signs in the display of the instrument cluster

Speed warning: - Configures a warning when the speed limit is exceeded

Warning at over - Configuration of the warning timing with the option to ex-

ceed the speed limit in a range from 0 to 20 km/h

Trailer recognition

Show road signs relevant to trailers - Activating / deactivating the display of road

signs relevant to trailers

Use for route calculation - Activation / deactivation taking trailers in account

for route calculation in navigation

Maximum speed for trailer - Set the top speed for towing a trailer

Operation

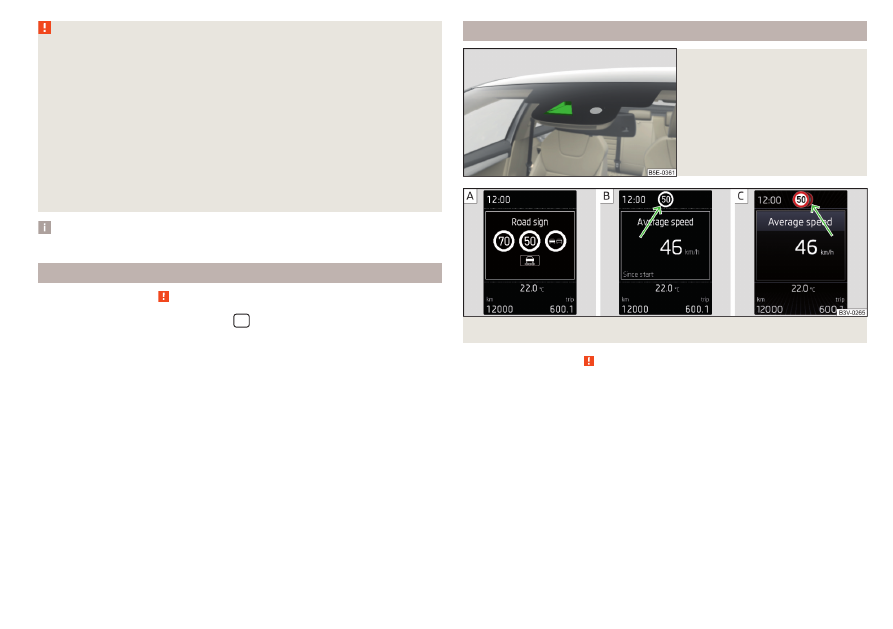

Fig. 294

Sensor for traffic sign recogni-

tion

Fig. 295  Display in the instrument cluster: Display examples

Read and observe   on page 246 first.

Description of displays and displayed traffic signs

Display

» Fig. 295

Display of detected road signs

» page 52

Driving data (Multifunction dis-

play)

Additional display (monochromatic display)

Additional display (colour display)

The system can display the following (vertical) traffic signs where identified.

Speed limit.

Overtaking prohibited.

Additional signs, such as 'when wet' or signs which only apply for a limited time

can also be displayed.

247

Assist systems

-------------------------------------------------------------------------------------------------------------------------------------------------------------

The system displays only traffic signs that are in the “viewing area” of the sen-

sor

» Fig. 294

.

Data from the sensor is supplemented by information from the Infotainment

Navigation. This is the reason why traffic signs with maximum speeds can also

be shown on sections of roads which do not have any traffic signs.

Warning when exceeding the speed limit

The warning when exceeding the permissible speed (based on the detected

traffic sign) can be activated and set in Infotainment

» page 247

.

Mode when towing a trailer

For vehicles with a factory-fitted towing device, in Infotainment it is possible

to enable or disable the relevant traffic signs for trailer operation and the top

speed for towing a trailer

» page 247

Settings in Infotainment.

Note

If, for example, you are on a motorway without speed limits, then a road sign

relating to the end of all limits is shown in the instrument cluster display.

Additional display

Read and observe   on page 246 first.

If the menu item Road sign is currently not shown

» Fig. 295

 on page 247 - ,

the road sign with the speed limit will appear in the upper display area of the

instrument cluster

» Fig. 295

 on page 247 - , .

If several traffic signs are detected simultaneously, in some cases the next

traffic sign will also be displayed in the colour display -

» Fig. 295

 on page 247 -

.

All detected traffic signs can be displayed via the multifunction display in the

menu item Traffic Sign Recognition

» Fig. 295

 on page 247 - .

The additional display can be activated / deactivated in Infotain-

ment

» page 247

.

Note

The setting (activation/deactivation) of the auxiliary display will be saved (de-

pending on Infotainment type) in the active user account personalisation

» page 57

.

Malfunctions and information messages

Read and observe   on page 246 first.

If the system is not available, an appropriate message appears in the display of

the instrument cluster.

Sensor dirty/covered

If a note appears in relation to the cleaning of the windscreen, clean the wind-

screen or remove the obstruction from the sensor area.

System fault

If an error message appears, seek assistance from a specialist garage.

System limitation

The system displays a message about system limitation in the following cases.

The map documents are not up to date.

The vehicle is located in an area for which no map documents are present.

Fatigue detection system

The fatigue detection system (hereinafter simply the system) advises the driv-

er to take a break from driving when driver fatigue can be detected based on

the driver's steering behaviour.
The system evaluates the steering behaviour at speeds of 60-200 km/h.
Conditions under which a break from driving is detected by the system

The vehicle is stopped and the ignition switched off.

The vehicle is stopped, the seat belt removed and the driver's door opened.

The vehicle is stopped for more than 15 minutes.

If none of these conditions are met or if the driving style is not changed, the

system recommends a driving break again after 15 minutes.
The system can be activated/deactivated in menu



/  →  → Driver assis-

tance menu.

Pause recommendation

The icon appears and the following message for a few seconds in the display

of the instrument cluster  and a message about detected fatigue. An audible

signal is also emitted.

248

Driving

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

Please take note of the general points relating to the use of assistance

systems

» page 210,

   in section Introduction.

For the driving ability is always the driver's responsibility. Never drive if

you feel tired.

The system may not detect all cases where a break is needed.

Therefore, take regular, sufficient breaks during long trips.

There will be no system warning during the so-called micro-sleep.

Note

In some situations, the system can evaluate the steering behaviour incorrect-

ly and therefore falsely display a break recommendation.

The system is designed primarily for use on motorways.

Tyre pressure monitoring

Introduction

The tyre pressure monitoring function (following known as system) monitors

the tyre pressure while driving.
If the tyre inflation pressure changes, the warning light

 lights up in the in-

strument cluster and an audible signal sounds

» page 43

.

The system can only function properly if the tyres have the prescribed inflation

pressure and these pressure values are stored in the system.
Always save the tyre pressure values in the system if one of the following

events occurs.

Change of tyre inflation pressure.

Change one or more wheels.

Change in position of a wheel on the vehicle.

The warning light

 in the instrument cluster lights up.

WARNING

Please take note of the general points relating to the use of assistance

systems

» page 210,

   in section Introduction.

Having the correct tyre inflation pressure is always the driver's responsi-

bility. Tyre pressure should be checked regularly

» page 279

.

WARNING (Continued)

The system cannot warn in case of very rapid tyre inflation pressure loss,

e.g. in case of sudden tyre damage.

Before storing the pressures, the tyres must be inflated to the specified

inflation pressure

» page 279

. If the wrong pressure valuesare stored, the

system may not issue any warnings, even if the tyre pressure is too low.

CAUTION

To ensure proper system function, the tyre pressure values must be stored ev-

ery 10,000 km or 1x a year.

Storing the tyre pressure values and Infotainment display

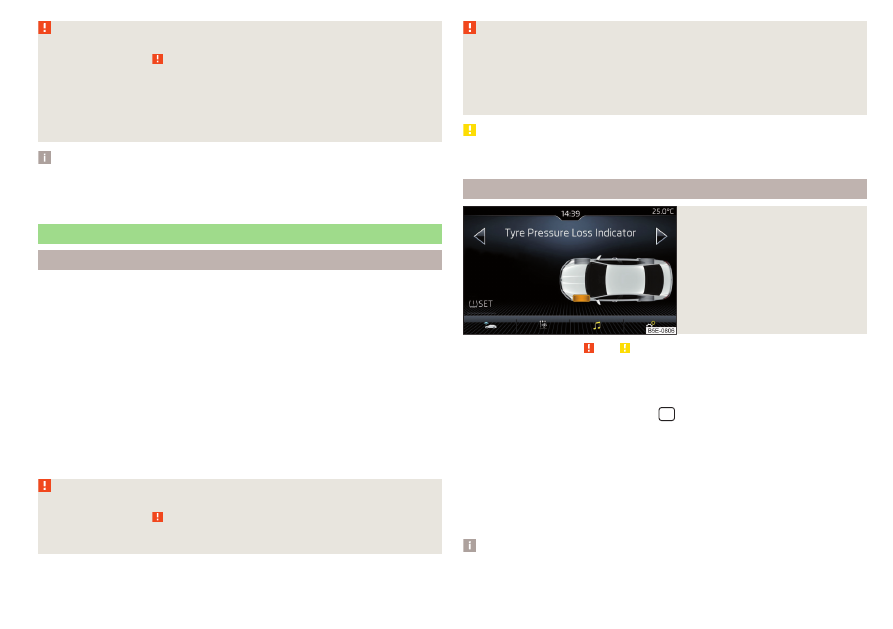

Fig. 296

Button for storage / screen dis-

play example: a tire pressure

change at the front left is shown

Read and observe   and   on page 249 first.

Procedure for storing the tyre pressure values

Inflate all the tyres to the specified pressure.

Turn on the ignition and switch on Infotainment.

In the infotainment system, in menu



/  tap on function surface  Tap →

Vehicle status.

Use the function surfaces   select the Tyre Pressure Loss Indicator menu

item.

Tap the functional surface   interface

» Fig. 296

.

In addition, follow the instructions that appear on the screen.
A message on the screen informs about the storage of the tyre pressure val-

ues.

Note

When the warning light

 appears in the instrument cluster, the affected tyre

can be displayed on the infotainment system

» Fig. 296

.

249

Assist systems

-------------------------------------------------------------------------------------------------------------------------------------------------------------

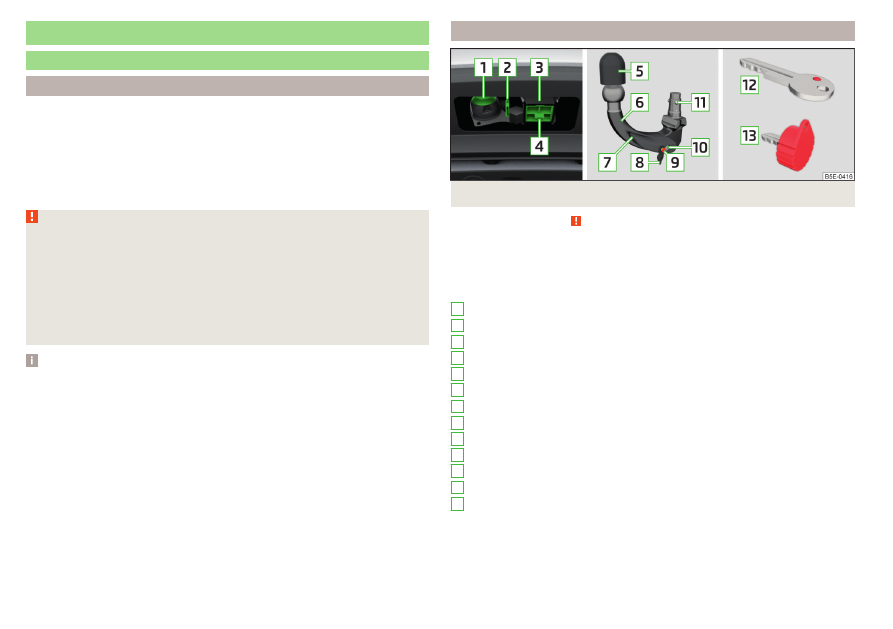

Towing device and trailer

Hitch

Introduction

The maximum trailer load is dependent on the engine and the vehicle equip-

ment. The valid specification for your vehicle can be found in the technical ve-

hicle documentation, (e.g. vehicle approval documentation, the COC docu-

ment) or at a ŠKODA partner.
Other data (e.g. shown on the nameplate of the hitch) on provides information

about the test values of the device .

WARNING

Before each time you make a journey when using the ball rod, check that

it is seated correctly and is secured in the mounting recess.

When the knee-joint bar is not used and properly secured in the receiving

shaft, it is damaged or incomplete, this must not be used - there is a risk of

an accident.

Do not perform any modifications or changes to the towing device.

Keep the mounting recess of the towing device clean at all times. Such

dirt prevents the ball rod from being attached securely!

Note

If the towing device is removed completely, it must be replaced with the origi-

nal reinforcement of the rear bumper which is part of the mount for the tow-

ing eye.

Description

Fig. 297  Carrier for the towing device/tow bar/key versions

Read and observe   on page 250 first.

The tow bar is detachable and is located in the storage compartment for the

spare/emergency wheel.
Towing device carrier, tow bar and key versions (dependent on equipment)

» Fig. 297

13-pin power socket
Safety eye
Mounting recess
Cap
Dust cap
Ball rod
Operating lever
Lock cap
Trigger pin
Lock
Locking ball
Key – Version 1
Key – Version 2

1

2
3
4
5
6
7
8
9

10

11

12
13

250

Driving

-------------------------------------------------------------------------------------------------------------------------------------------------------------

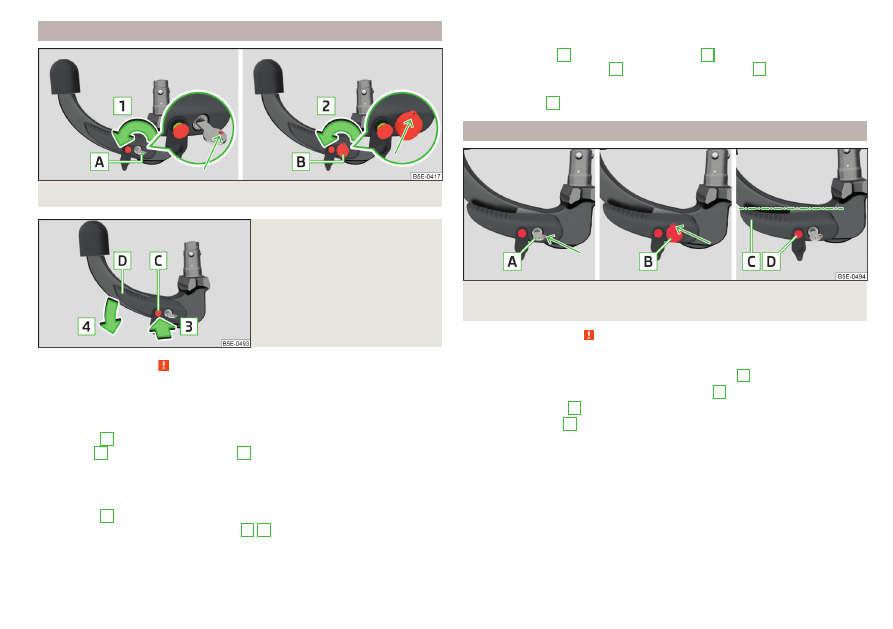

Adjusting the ready position

Fig. 298  1. Step: Key version 1 / key version 2

Fig. 299

2. step: both key versions

Read and observe   on page 250 first.

The tow bar can only be fitted if it is in the ready position.

1. Step - applies to the key version 1

Remove the cap from the lock

Insert key

A

 into the lock so that the green marking is pointing upwards.

Turn key

A

 in the direction of arrow

1

 so that the red marking is pointing

upwards

» Fig. 298

.

1. Step - applies to the key version 2

Remove the cap from the lock

Insert key

B

 into the lock so that the eye of the key is pointing downwards.

Turn the key in the direction of arrow

B



2

 so that the conclusions release

shows up

» Fig. 298

.

2. Step - applies to both key versions

Grip the tow bar below the protective cap.

Push release pin

C

 in the direction of arrow

3

 to the stop, and simultane-

ously push operating lever

D

 in the direction of arrow

4

 to the stop

» Fig. 299

.

Operating lever

D

 remains locked in this position.

Check the setting of the standby position

Fig. 300  Ready position: Key Version 1 / key Version 2 / position of the

lever and the release bolt with two key versions

Read and observe   on page 250 first.

Correctly adjusted standby position

» Fig. 300

Applies to key version 1 - the red marking on key

A

 is pointing upwards.

Applies to key version 2 - the eye of the key

B

 is pointing upwards.

Operating lever

C

 is locked in the lower position.

The trigger pin

D

 can be moved.

In the ready position, the key cannot be removed or turned into a different po-

sition. The ball bar is thus set ready for installation.

251

Towing device and trailer

-------------------------------------------------------------------------------------------------------------------------------------------------------------

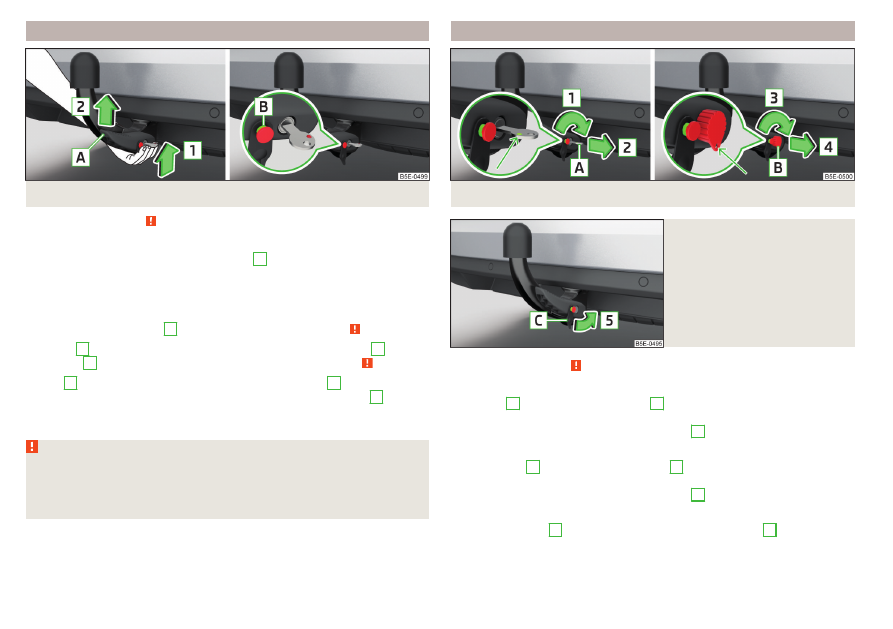

Assembling the bar ball – Step 1

Fig. 301  Insert ball rod / trigger bolt in the extended state

Read and observe   on page 250 first.

Insert ball rod - applies to both key versions

Remove the cover for the mounting recess

4

 in a downwards direc-

tion

» Fig. 297

 on page 250.

Adjust the ball rod to the ready position

» page 251

Adjusting the ready posi-

tion.

Grip the tow bar from underneath

» Fig. 301

 and insert into the mounting

recess in arrow direction

1

 until you hear it click into place

»

.

The lever

A

 automatically turns upwards in the direction of arrow

2

 and the

release pin

B

 pops out (both its red and green parts are visible)

»

.

If lever

A

 does not turn automatically, or if the release pin

B

 does not pop

out, remove the ball rod from the mounting recess by turning lever

A

 down-

wards as far as it can go. Clean the contact surfaces on the ball rod and the

mounting recess.

WARNING

Keep your hands outside the lever's range of motion when attaching the

ball rod – risk of finger injuries!

Never attempt to pull the operating lever violently upwards to turn the

key. Doing so would mean the ball rod is not attached correctly!

Assembling the bar ball – Step 2

Fig. 302  Lock lock: Key version 1 / key version 2

Fig. 303

Place cap on the lock

Read and observe   on page 250 first.

Applies to key version 1

Turn key

A

 in the direction of arrow

1

 so that the green marking is pointing

upwards

» Fig. 302

.

Remove the key in the direction of the arrow

2

.

Applies to key version 2

Turn the key

B

 in the direction of arrow

3

 so that the conclusions release

points down

» Fig. 302

.

Remove the key in the direction of the arrow

4

.

Applies to both key versions

Fit and press cap

C

 onto the lock in the direction of arrow

5



» Fig. 303

.

Check that the ball rod is securely attached

» page 253

Check proper fitting.

252

Driving

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     13      14      15      16     ..
