During charging, the warning light

7



flashes in blue.

ELECTRIC VEHICLE: charging

(10/12)

11

12

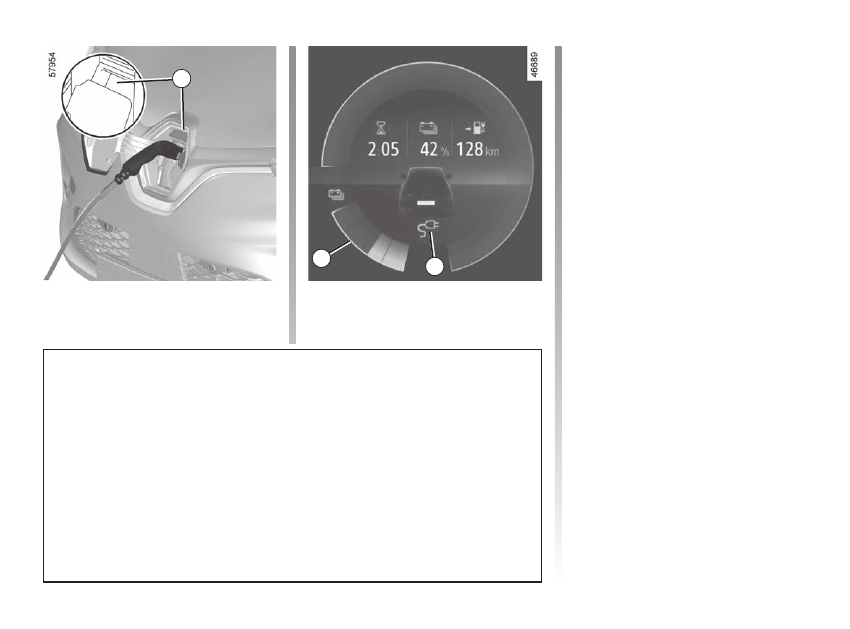

When charging starts, the following

information is displayed on the instru-

ment panel:

–  the energy level on the battery warn-

ing light

11

;

–  the battery refill rate;

–  an estimate of the remaining charg-

ing time (this is not displayed after

about 95% charge);

–  the warning light

12

 indicates that

the vehicle is connected to a power

supply;

–  your vehicle range will vary accord-

ing to the charge level.

The display on the instrument panel

disappears after a few seconds. It reap-

pears on the instrument panel when a

door is opened. Once charging is com-

plete, the warning light

7

 appears con-

tinuously in green. You do not need to

wait until the charge is at reserve levels

to recharge your vehicle.

Operating faults

If the warning light

7

 appears contin-

uously in red, please contact an ap-

proved dealer.

The traction battery charging time depends on the amount of energy remaining

and the power delivered by the charging terminal. The information is displayed on

the instrument panel during charging

 1.82.

Note:

 under certain conditions, the actual charging time may be longer than the

charging time displayed on the instrument panel. This depends on:

–  the quality of the electrical network;

–  the initial charge level;

–  the exterior temperature is too cold;

– ...
In the event of a problem with the charging cable, we recommend that you re-

place it with a cable that is identical to the original. Consult an approved dealer.

7

1.18

ENG_UD82777_8

Véhicule électrique : charge (X10 - Renault)



Note:

immediately after a long charge

of the traction battery, the cable may be

hot. Please use the handles.

–  unplug the charging lead

2

 from the

vehicle;

–  the valve

8

 must be closed;

–  you must close the

10

 charging flap

and press on it in order to lock it;

–  unplug the lead

2

 from the power

supply

1

;

–  place the lead

2

 in its storage bag

and store it in the luggage compart-

ment.

After pressing the charging cord un-

locking button, you have 30 seconds

to unplug it before it locks again.

ELECTRIC VEHICLE: charging

(11/12)

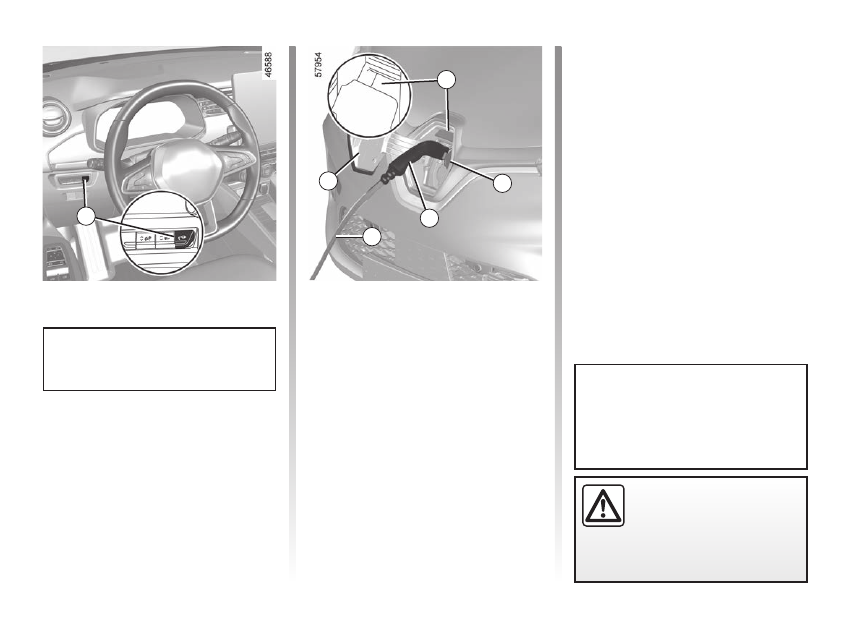

Precautions to take when removing

from the socket

–  Press the switch

6

 or

press and

hold

 on the door unlocking button

on the card in order to release the

vehicle charging lead;

–  grab the handle

9

;

It is imperative to follow the unplug-

ging steps in order.

10

8

9

6

2

To avoid disturbing the

charging monitoring

system, do not install any

antistatic strip to the vehi-

cle.

7

1.19

ENG_UD82777_8

Véhicule électrique : charge (X10 - Renault)



ELECTRIC VEHICLE: charging

(12/12)

13

14

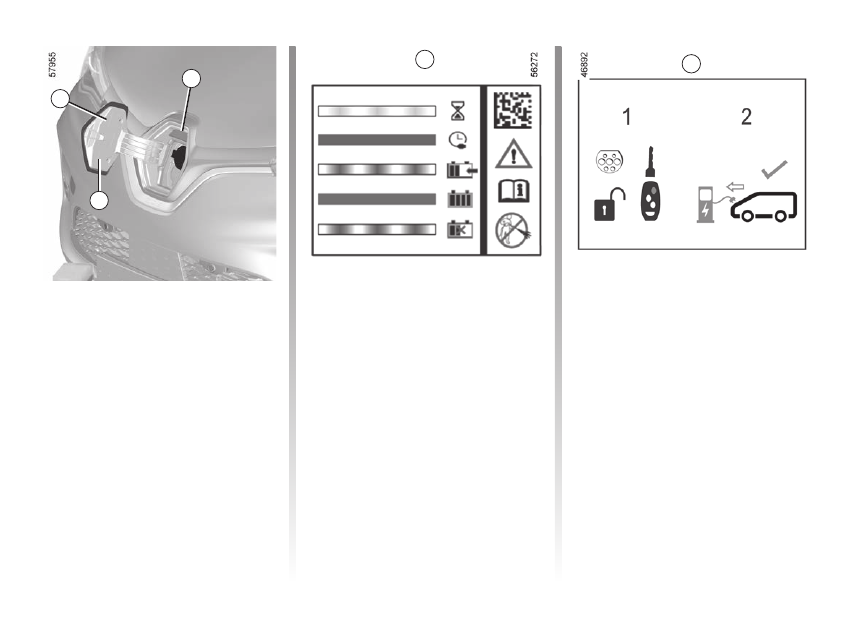

Label 13

The label

13

 located on the charg-

ing flap

10

 displays details on how the

charging operation is indicated by the

status of the warning light

7

:

–  flash in yellow: the lead is plugged

into the vehicle and the system car-

ries out its checks;

–  flashing in blue: charging is in pro-

gress;

– illuminated continuously in blue:

charge programming is activated;

–  illuminated continuously in green:

the vehicle is fully charged;

–  flashing in red: operating fault.

–  connect to a domestic socket, an al-

ternating voltage charging terminal

or a quick charging terminal;

– for any information on charging,

please consult your vehicle user

manual.

Label 14

The label

14

 located on the charging

flap

10

 indicates that it is possible to re-

lease the charging flap from the vehicle

by

pressing and holding

 the door un-

locking button on the card.

13

14

7

The label

13

 located on the right-hand

side reminds you of the following in-

structions:

–  do not wash the charging flap using

a high-pressure water jet;

–  with the vehicle stationary, the valve

and the charging flap can be open;

–  when the vehicle is being driven, the

valve and the charging flap must be

closed;

–  open the flap to connect the charging

lead;

–  close the flap again once discon-

nected;

charging cord .............................................

(up to the end of the DU)

charge programming .................................

(up to the end of the DU)

1.20

ENG_UD70460_4

Véhicule électrique : programmation de la charge (X10 - Renault)



programming

Charging programming

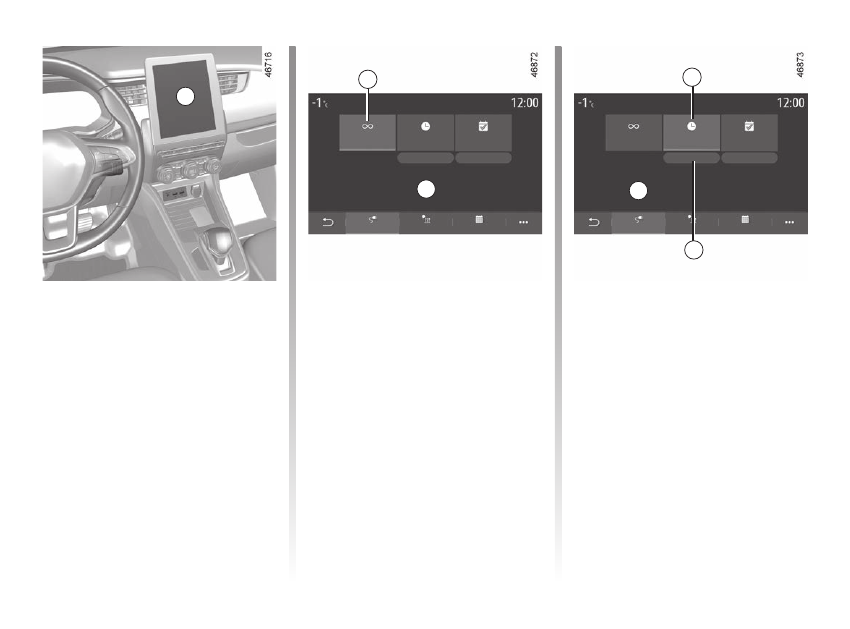

With the vehicle stationary and the

engine running, from the “Settings” on

the multimedia screen

1

, select the

“Vehicle” tab. Use the “EV program-

ming” menu to configure charging for

your vehicle.
When the programming is confirmed,
the indicator light

 lights up on

the instrument panel.

Note

: charging will start if the engine is

shut down and the vehicle is connected

to a power supply and access is author-

ised.

ELECTRIC VEHICLE: programming charging

(1/2)

“Immediate charging” 2

With the vehicle connected to a power

supply, charging starts.
Area

A

 informs you that “Immediate

charging” is activated.

Note:

 you can deactivate this option by

pressing OFF.
Please refer to the multimedia instruc-

tions for further information.

1

“Postponed charging” 3

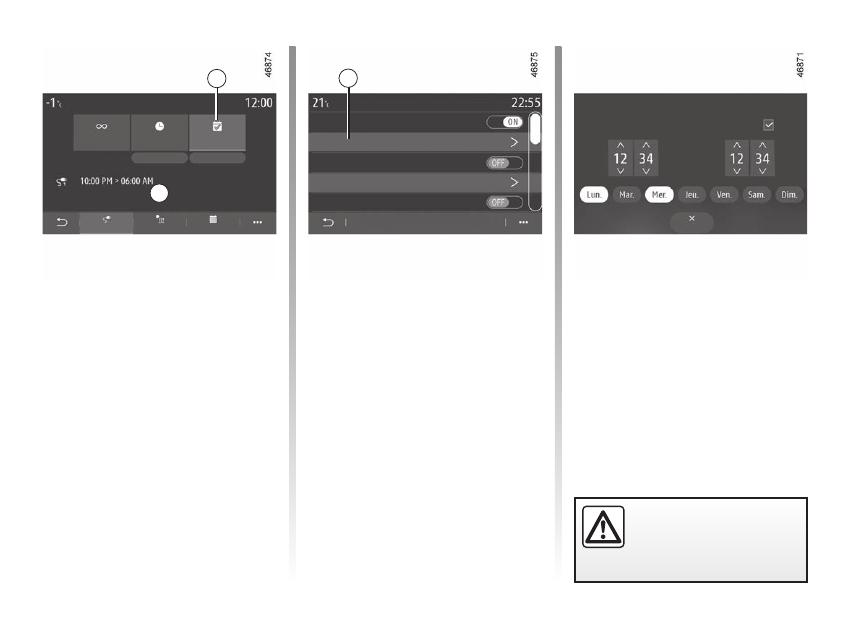

You can programme the start time for

charging.
Press “Edit”

4

 to open the settings to

set the start time for charging.
Set the start time for charging then

press “Close” to confirm.
Area

B

 shows the time programmed for

charging to start.
With the vehicle connected to a power

source and the engine switched off,

charging starts at the scheduled time.

Program

Immediate charge

Charging will begin when the vehicle is plugged in

Postponed charging

Edit

Edit

Climate

Charge

Calendar

Program

2

A

Charging will start at 12:34

Program

Immediate charge Postponed charging

Edit

Edit

Climate

Charge

Calendar

Program

3

B

4

1.21

ENG_UD70460_4

Véhicule électrique : programmation de la charge (X10 - Renault)



Programmed times are displayed in

area

C

.

With the vehicle connected to a power

source and the engine switched off,

charging starts at the scheduled time.

ELECTRIC VEHICLE: programming charging

(2/2)

“Program” 5

You can save several programmed

charging times per week.
Select the programme time

6

 that you

wish to change to access the settings.
You can disable one of your saved pro-

grammes by pressing “OFF".

Set the charging start and end times as

well as the days to which these times

will apply. Press “Close” to confirm.

Note

: if the start and end times are

identical, charging time is 24 hours. You

can’t confirm a charging programme if

you don’t select a day of the week.

For safety reasons, carry

out these operations when

the vehicle is stationary.

Program

Charging programme 1

12:34 PM -> 12:24 AM

 L M M J V S D

10:00 PM -> 06:00 AM

 L M M J V S D

Charging programme 2

Charging programme 3

6

Charging programming

Start at

End at

Close

EV programming

Immediate charge

Postponed charging

Edit

Edit

Climate

Charge

Calendar

Program

5

C

 L M M J V S D

access

vehicle ..................................................

(up to the end of the DU)

card ...........................................................

(up to the end of the DU)

map

use .......................................................

(up to the end of the DU)

tailgate .......................................................

(up to the end of the DU)

central door locking ...................................

(up to the end of the DU)

unlocking the doors ...................................

(up to the end of the DU)

closing the doors .......................................

(up to the end of the DU)

daytime running lights................................

(up to the end of the DU)

tailgate .......................................................

(up to the end of the DU)

doors/tailgate .............................................

(up to the end of the DU)

remote control

card ......................................................

(up to the end of the DU)

remote control

map ......................................................

(up to the end of the DU)

locking the doors .......................................

(up to the end of the DU)

locking/unlocking the opening elements ....

(up to the end of the DU)

1.22

ENG_UD72731_6

Carte : généralités (X10 - Renault)



Hands-free card: general information

HANDS-FREE CARDS: general information

(1/3)

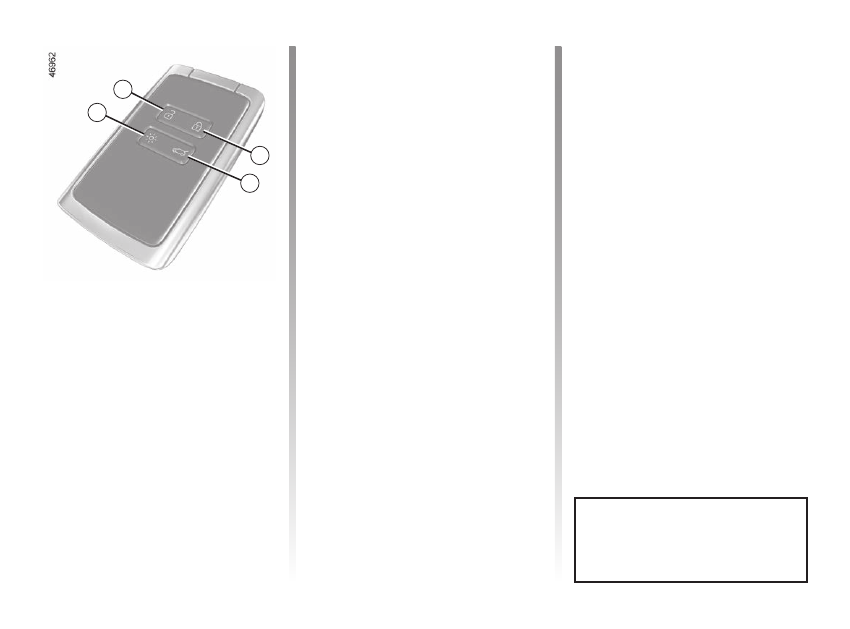

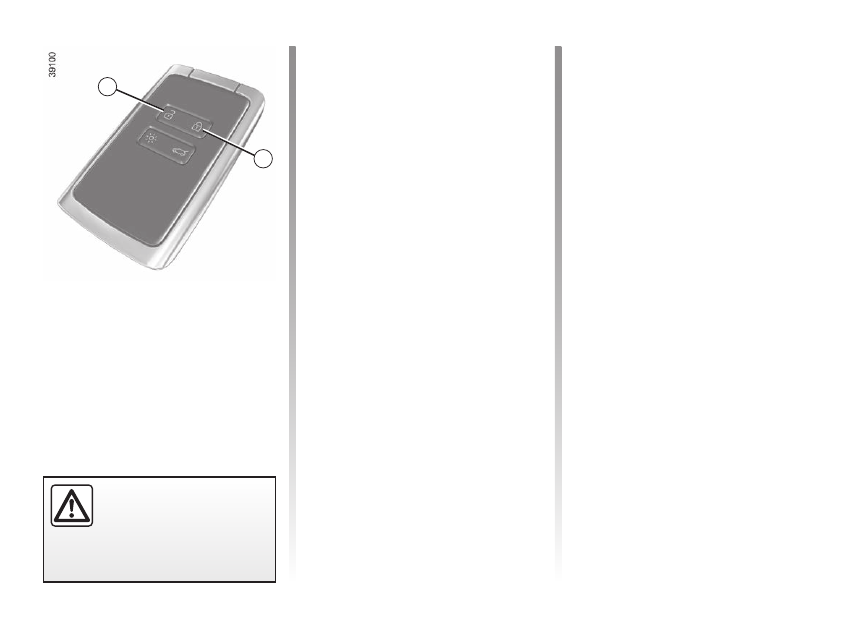

1

  Unlocking the doors and luggage

compartment.

2

  Locks all the opening elements.

3

  Unlocking/locking the boot.

4

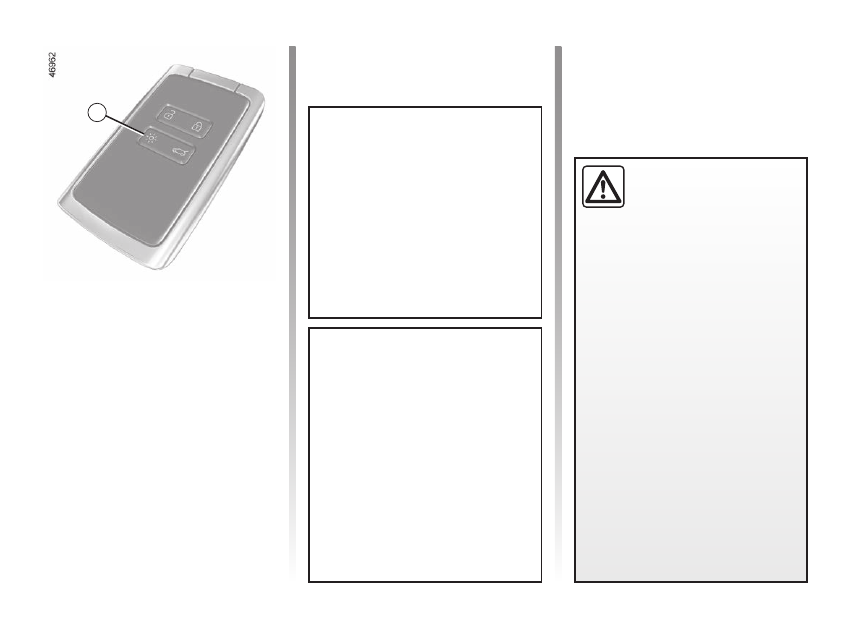

  Switching on the lighting remotely.

The card is used for:

–  locking/unlocking the opening ele-

ments (doors, boot);

–  unlocking the charging cable

 1.8 ;

–  switching on the vehicle lighting re-

motely (refer to the following pages).

Battery life

Make sure that the correct battery type

is being used, and that the battery is in

good condition and inserted correctly.

Its service life is approximately two

years: it should be replaced when the

message “Keycard Battery Low” ap-

pears on the instrument panel

 5.15.

When the battery is flat, you can still

lock/unlock and start your vehicle.

 2.2

 1.33

 5.15.

1

2

3

4

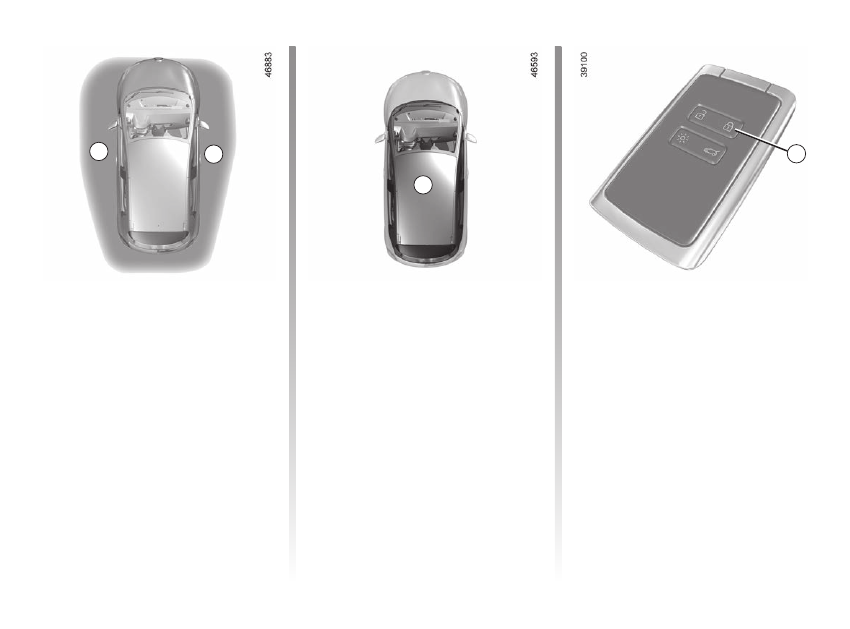

 card operating range

This varies according to the environ-

ment: take care not to accidentally lock

or unlock the vehicle by inadvertently

pressing the buttons on the card.

Note:

 if any opening element (door or

luggage compartment) is open or not

properly shut, locking is unsuccessful

and the hazard warning lights and side

indicator lights do not flash.

lighting

distance lighting ...................................

(current page)

1.23

ENG_UD72731_6

Carte : généralités (X10 - Renault)



HANDS-FREE CARDS: general information

(2/3)

Replacement: need for an

additional card

If you lose your card or require an-

other, you can obtain one from an

authorised dealer.

If a card is replaced, it will be neces-

sary to take the vehicle

and all its

cards

 to an approved Dealer to ini-

tialise the system.

You may use up to four cards per

vehicle.

Advice

Avoid leaving the card in hot, cold or

humid areas.
Do not keep the   card in a place

where it could be bent or dam-

aged accidentally, such as in a back

pocket of a garment.

4

Driver’s responsibility



when parking or stopping

the vehicle

Never leave an animal,

child or adult who is not self-suffi-

cient alone in your vehicle, even for

a short time.
They may pose a risk to themselves

or to others by starting the engine,

activating equipment such as the

electric windows or locking the

doors, for example.
Also, in hot and/or sunny weather,

please remember that the tempera-

ture inside the passenger compart-

ment increases very quickly.

RISK OF DEATH OR SERIOUS

INJURY

.

Interference

Interference by factors in the immediate

vicinity (external installations or the use

of equipment operating on the same

frequency as the remote control) may

affect the operation of the remote con-

trol.

Distance lighting function

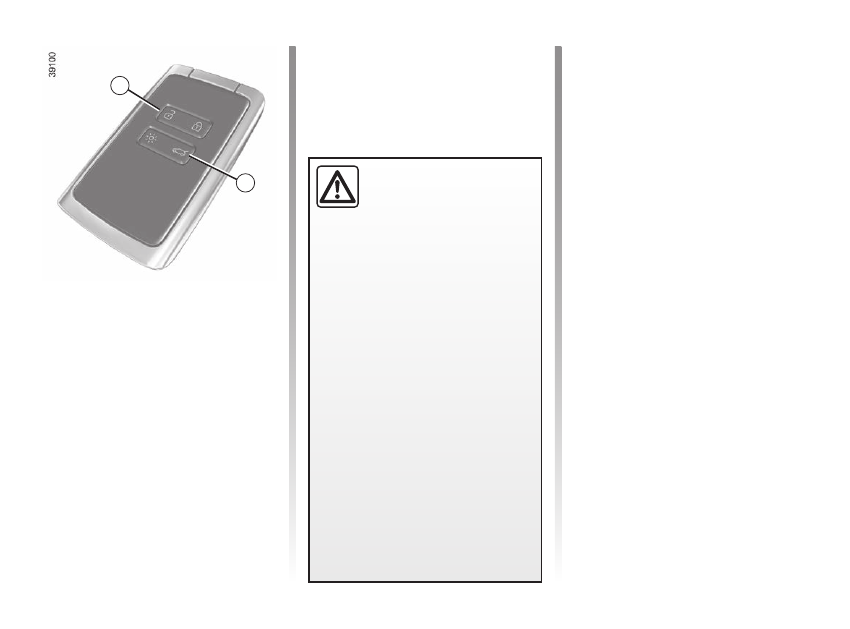

Pressing button

4

 switches on the

dipped beam headlights and the exte-

rior lighting for approximately 20 sec-

onds. This can be used, for example,

to identify the vehicle from a distance

when parked in a car park. Pressing

and holding the

4

 button for approxi-

mately two seconds activates the exte-

rior lighting and a sound is emitted.

Note:

 pressing button

4

 again switches

off the lighting.

1.24

ENG_UD72731_6

Carte : généralités (X10 - Renault)



HANDS-FREE CARDS: general information

(3/3)

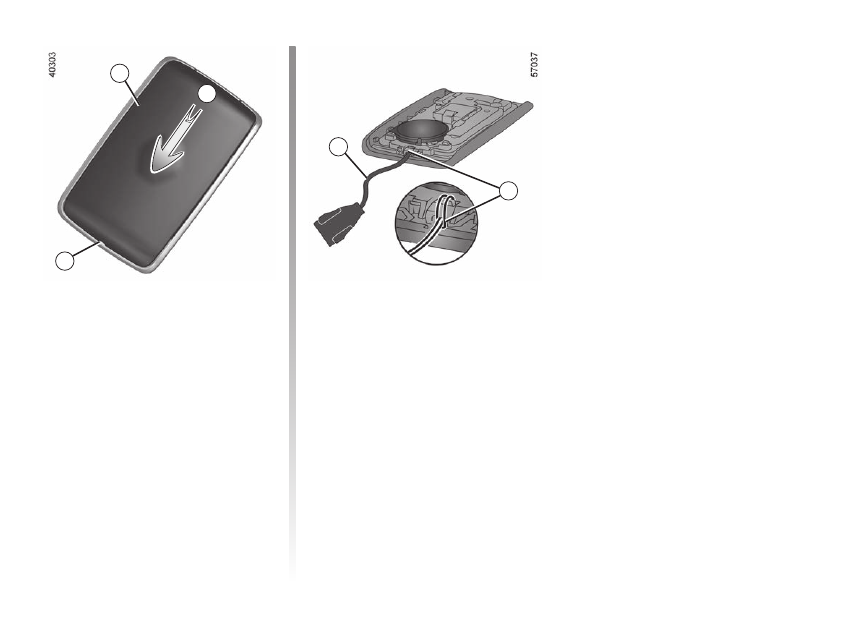

Insert the strap into the

8

 component

and pass the end of the strap through

the buckle.
Position the strap at the

6

 opening and

close the cartridge.
Note: check that the diameter of the

strap cord

7

 will fit the opening

6

.

Fitting a strap 7

Slide the rear casing

5

 downwards

while pressing on zone

A

.

A

5

7

6

8

access

vehicle ..................................................

(up to the end of the DU)

«hands-free» card: use..............................

(up to the end of the DU)

controls

doors/opening elements ......................

(up to the end of the DU)

opening/closing

doors ....................................................

(up to the end of the DU)

opening/closing

luggage compartment ..........................

(up to the end of the DU)

opening/closing

sunroof .................................................

(up to the end of the DU)

doors and tailgate  .....................................

(up to the end of the DU)

doors/tailgate .............................................

(up to the end of the DU)

locking the doors .......................................

(up to the end of the DU)

1.25

ENG_UD71205_5

Carte mains libres : utilisation (X10 - Renault)



There are two ways to unlock/lock the

vehicle:
–  “hands-free”, when approaching and

moving away from the vehicle;

– using the card in remote control

mode.

“HANDS-FREE” CARD: use

(1/5)

Do not store the card anywhere it

may come into contact with other

electronic equipment (computer,

phone etc.) as this could hinder its

operation.

Deactivating/activating the

“hands-free” mode

Depending on the vehicle, you can de-

activate/activate unlocking when ap-

proaching and locking when moving

away from the vehicle.
You can also disable/activate the sound

signal that is emitted upon locking when

moving away from the vehicle

 1.94.

Driver’s responsibility



when parking or stopping

the vehicle

Never leave an animal,

child or adult who is not self-suffi-

cient alone in your vehicle, even for

a short time.
They may pose a risk to themselves

or to others by starting the engine,

activating equipment such as the

electric windows or locking the

doors, for example.
Also, in hot and/or sunny weather,

please remember that the tempera-

ture inside the passenger compart-

ment increases very quickly.

RISK OF DEATH OR SERIOUS

INJURY

.

Never leave your vehicle

with the card inside.

1.26

ENG_UD71205_5

Carte mains libres : utilisation (X10 - Renault)



“HANDS-FREE” CARD: use

(2/5)

1

2

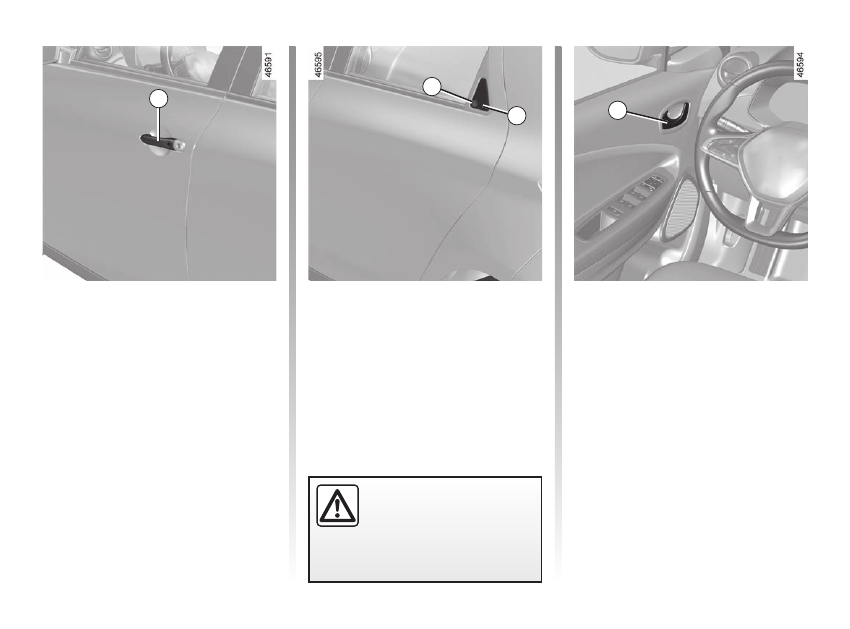

Unlocking in “hands-free”

mode, when approaching

and moving away from the

vehicle

With the card in access zone

1

, the ve-

hicle will unlock.
The hazard lights and side repeaters

flash once

 to indicate that the doors

have unlocked and, on some vehicles,

the door mirrors fold out automatically.

Remote “Hands-free” locking

With the card on you, doors and lug-

gage compartment door closed, move

away from the vehicle: it will lock auto-

matically once you have left the access

zone

1

.

Note:

 the distance at which the vehicle

locks depends on the surroundings.
The hazard lights

flash twice

 then

remain illuminated

 for about four sec-

onds, a beep sounds to indicate that

the doors have locked and, on some

vehicles, the door mirrors fold in auto-

matically.

Depending on the equipment level, the

door mirrors fold in automatically to

confirm locking.
If the card has been within the detection

area

1

 for approximately 15 minutes,

remote locking is disabled. To lock the

vehicle, press button

3

 on the card.

The vehicle cannot be remotely locked

if the card is within the area

2

.

1

3

1.27

ENG_UD71205_5

Carte mains libres : utilisation (X10 - Renault)



“Hands-free” unlocking using

button 4

With the card in area

and the vehi-

cle locked, press button

4

 to unlock the

entire vehicle.
Unlocking is indicated by

one flash

 of

the hazard warning lights and the indi-

cator lights.

“HANDS-FREE” CARD: use

(3/5)

Special features of the

unlocking system

Under certain circumstances, approach

unlocking is deactivated:
–  after eight days of no use of the vehi-

cle;

–  if the card remains close to the

1



area of the vehicle for approximately

five minutes

after the vehicle has

been locked

;

–  after several passes in the vicinity of

the

1

 area of the vehicle and

without

the door being unlocked

.

Press button

4

 or the remote control to

unlock the vehicle and reactivate the

mode.

6

4

map

hands-free ............................................

(up to the end of the DU)

map

use .......................................................

(up to the end of the DU)

1.28

ENG_UD71205_5

Carte mains libres : utilisation (X10 - Renault)



Using the card as a remote

control

Unlocking with the card

Press button

5

.

Unlocking is indicated by

one flash

 of

the hazard warning lights and the indi-

cator lights.

Locking using the card

With the doors and boot closed, press

button

3

: the vehicle locks.

The hazard warning lights

flash twice



to indicate that the vehicle is locked

and, depending on the vehicle, the door

mirrors automatically fold in.
Pressing the

3

 button twice locks the

vehicle and enables the closure of the

front and rear windows (depending on

the vehicle).

Note:

–  the maximum distance at which the

vehicle locks depends on the sur-

roundings;

–  if a door or the boot is open or not

properly shut, locking is not carried

out. A beep sounds but the hazard

warning lights and side repeaters do

not flash.

The card buttons are deactivated

when the engine is running.

5

“HANDS-FREE” CARD: use

(4/5)

If,

while the engine is running,

 a door

is opened and closed, and the card is

no longer in the zone

2

, the message

“Keycard Not Detected” indicates that

the card is not inside the vehicle. This

will, for example, prevent you from driv-

ing away after dropping off a passenger

who has kept the card on them.
The warning disappears when the card

is detected again.

2

3

1.29

ENG_UD71205_5

Carte mains libres : utilisation (X10 - Renault)



“HANDS-FREE” CARD: use

(5/5)

6

Driver’s responsibility

when parking or stopping

the vehicle

Never leave an animal,

child or adult who is not self-suffi-

cient alone in your vehicle, even for

a short time.
They may pose a risk to themselves

or to others by starting the engine,

activating equipment such as the

electric windows or locking the

doors, for example.
Also, in hot and/or sunny weather,

please remember that the tempera-

ture inside the passenger compart-

ment increases very quickly.

RISK OF DEATH OR SERIOUS

INJURY

.

Locking/unlocking only the

boot

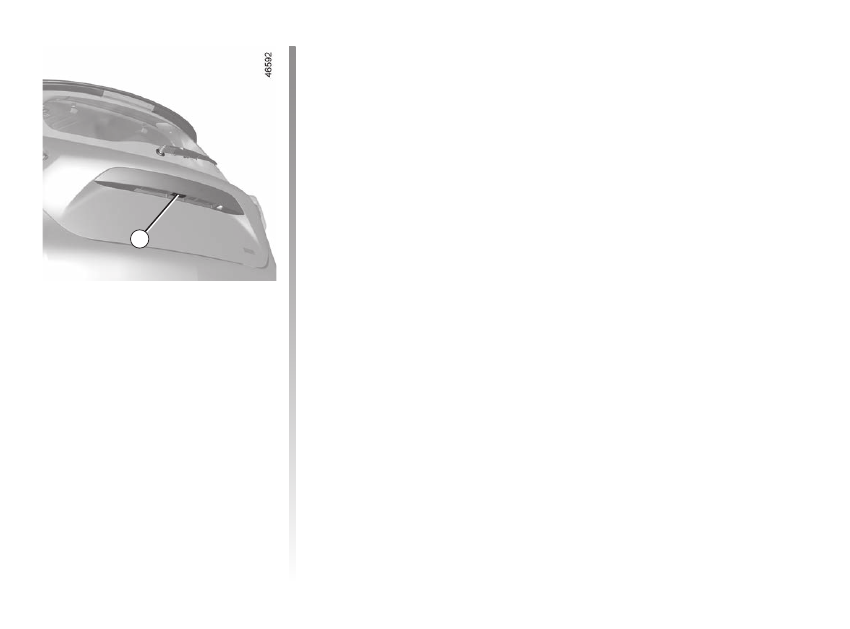

Press the button

6

 to lock/unlock the

boot only.

Unlocking the charging cord

Press button

5

 to unlock the charging

cable from the vehicle.

5

access

vehicle ..................................................

(up to the end of the DU)

map

deadlocking ..........................................

(current page)

map

locking/unlocking the opening ele-

ments ...................................................

(current page)

card: use ....................................................

(up to the end of the DU)

central door locking ...................................

(up to the end of the DU)

doors/tailgate .............................................

(up to the end of the DU)

child safety.................................................

(current page)

deadlocking the doors ...............................

(current page)

locking the doors .......................................

(up to the end of the DU)

locking/unlocking the opening elements

doors ....................................................

(current page)

1.30

ENG_UD79424_4

Carte : super condamnation (X10 - Renault)



If the vehicle is equipped with a dead-

locking function, this allows you to lock

the opening elements and to prevent

the doors from being unlocked using

the interior handles (for example, by

breaking the window and then trying to

open the door from the inside).

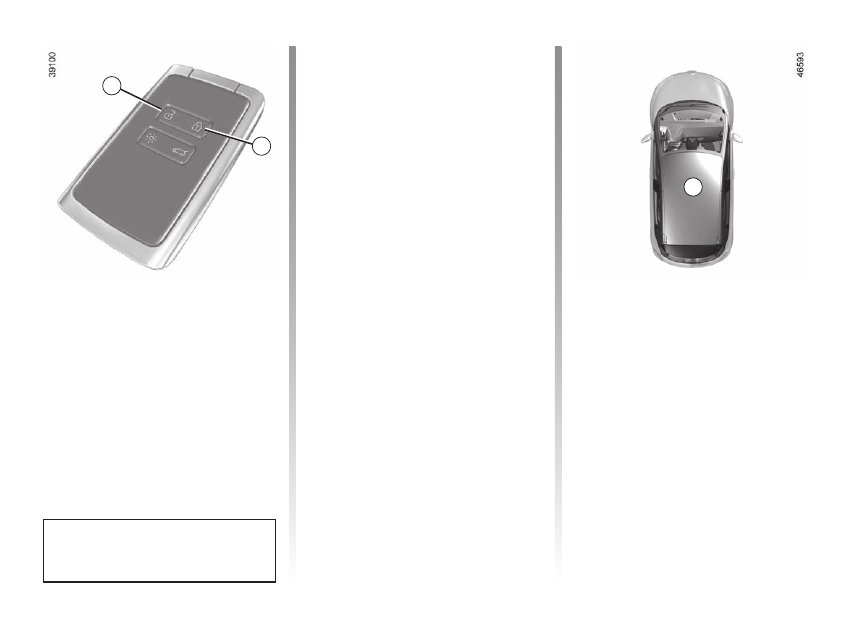

To deactivate deadlocking

Unlock the vehicle using button

1

 on

the card.
The hazard warning lights

flash once



to indicate that the doors have been un-

locked.

Never use deadlocking if

someone is still inside the

vehicle.

To activate deadlocking

Press button

2

 twice in quick succes-

sion.
Locking is confirmed by

two slow

flashes

 and

three quick flashes

 of the

hazard warning lights and side indica-

tor lights.
Depending on the vehicle, the door mir-

rors fold in automatically when the vehi-

cle is locked

 1.107.

CARD: deadlocking

1

2

access

vehicle ..................................................

(up to the end of the DU)

warning buzzer ..........................................

(up to the end of the DU)

card ...........................................................

(up to the end of the DU)

children ......................................................

(up to the end of the DU)

closing the doors .......................................

(up to the end of the DU)

opening the doors ......................................

(up to the end of the DU)

opening/closing

doors and tailgate ................................

(up to the end of the DU)

doors..........................................................

(up to the end of the DU)

doors/tailgate .............................................

(up to the end of the DU)

locking the doors .......................................

(up to the end of the DU)

locking/unlocking the opening elements ....

(up to the end of the DU)

1.31

ENG_UD82787_3

Ouverture et fermeture des portes (X10 - Renault)



Opening and closing the doors

OPENING AND CLOSING THE DOORS

(1/2)

Opening the doors from the

outside

Front doors

With the doors unlocked, pull handle

1

.

Opening from the inside

Pull handle

4

.

Lights-on reminder buzzer

A warning beep sounds when the driv-

er’s door is opened to warn you that the

lights are still on.

1

As a safety precaution,



the doors should only be

opened or closed when the

vehicle is stationary.

Rear doors

With the doors unlocked:
– press on recess

2

 to move the

handle

3

;

–  slide your hand into the handle

3

 and

pull towards you.

3

2

4

of warning sound

light reminder alarm .............................

(up to the end of the DU)

of warning sound

door/luggage compartment open

reminder alarm .....................................

(up to the end of the DU)

child safety.................................................

(current page)

1.32

ENG_UD82787_3

Ouverture et fermeture des portes (X10 - Renault)



OPENING AND CLOSING THE DOORS

(2/2)

Driver’s responsibility

when parking or stopping

the vehicle

Never leave an animal,

child or adult who is not self-suffi-

cient alone on your vehicle, even for

a short time.

They may pose a risk to themselves

or to others by starting the engine,

activating equipment such as the

electric windows or by locking the

doors.

Also, in hot and/or sunny weather,

please remember that the tempera-

ture inside the passenger compart-

ment increases very quickly.

RISK OF DEATH OR SERIOUS

INJURY.

Special note

Once the engine has been switched off,

the lights and accessories (radio, etc.)

will continue to operate until the driver’s

door is opened.

Child safety

To make it impossible for the rear doors

to be opened from the inside, move the

lever

6

 and check from the inside that

the doors are securely locked.

Door/tailgate open buzzer

When stationary, the warning light

 shows when a door, the boot or

the charging flap is open or not closed

properly. The warning light

5

 indicates

that the door or the boot is open or not

properly closed.
When the vehicle reaches a speed of

approximately 12 mph (20 km/h), the
warning lights

 and

5

 are accom-

panied by a message indicating that the

opening element is open or not properly

closed.

5

6















Content      ..      1      2      3      ..
