1.1

ENG_UD82509_11

Sommaire 1 (HJB - Renault)



Section 1: Getting to know your Vehicle

Key, radio frequency remote control: general information, use, deadlocking  . . . . . . . . . . . . . . . . . .  1.2

Card: general information, use, deadlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  1.6

Opening and closing the doors  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  1.14

Locking, unlocking the opening elements  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  1.16

Automatic locking when driving  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  1.20

Seat belts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  1.23

Additional methods of restraint  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  1.28

in addition to the front seat belts   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.28

to the rear seat belts   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.34

side . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.35

Child safety: general information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  1.37

choosing a child seat mounting  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.40

Fitting a child seat, general information  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.43

Child seats: attachment by seat belt or by Isofix system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  1.45

Deactivating, activating the front passenger airbag  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.51

Driving position  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  1.54

Instrument panel  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  1.58

Displays and indicators   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.64

Trip computer  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.71

Vehicle settings personalisation menu  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.83

Clock and outdoor temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  1.86

Steering wheel, Power-assisted steering   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  1.88

Rear view mirrors   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  1.90

Headrests - Seats  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  1.92

Exterior lighting and signals. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  1.93

Audible and visual signals  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  1.99

Headlight beam adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  1.100

Washers, wipers   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  1.101

Fuel tank (filling with fuel)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  1.108

Reagent tank  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  1.113

keys ...........................................................

(up to the end of the DU)

central door locking ...................................

(up to the end of the DU)

remote control door locking unit ................

(up to the end of the DU)

radio frequency remote control/key

use .......................................................

(up to the end of the DU)

tailgate .......................................................

(up to the end of the DU)

daytime running lights................................

(up to the end of the DU)

access

vehicle ..................................................

(up to the end of the DU)

doors and tailgate ......................................

(up to the end of the DU)

child safety.................................................

(up to the end of the DU)

1.2

ENG_UD61854_2

Clé, télécommandes à radiofréquence : généralités (HJB - Renault)



Key, radio frequency remote control: general information, use, deadlocking

KEY, RADIO FREQUENCY REMOTE CONTROL: general information

(1/2)

The key must not be used for any

function other than those described

in the handbook (removing the cap

from a bottle, etc.).

Advice

Avoid leaving the remote control in

hot, cold or humid areas.

Driver’s responsibility

when parking or stopping

the vehicle

Never leave an animal,

child or adult who is not self-suffi-

cient alone on your vehicle, even for

a short time.
They may pose a risk to themselves

or to others by starting the engine,

activating equipment such as the

electric windows or locking the

doors.
Also, in hot and/or sunny weather,

please remember that the tempera-

ture inside the passenger compart-

ment increases very quickly.

RISK OF DEATH OR SERIOUS

INJURY.

4

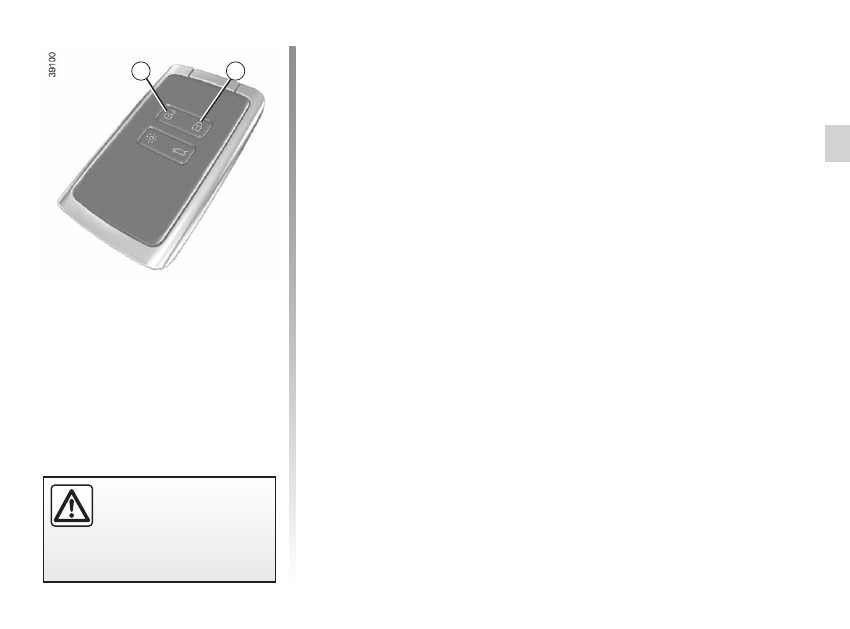

1

2

3

5

1

2

3

5

1

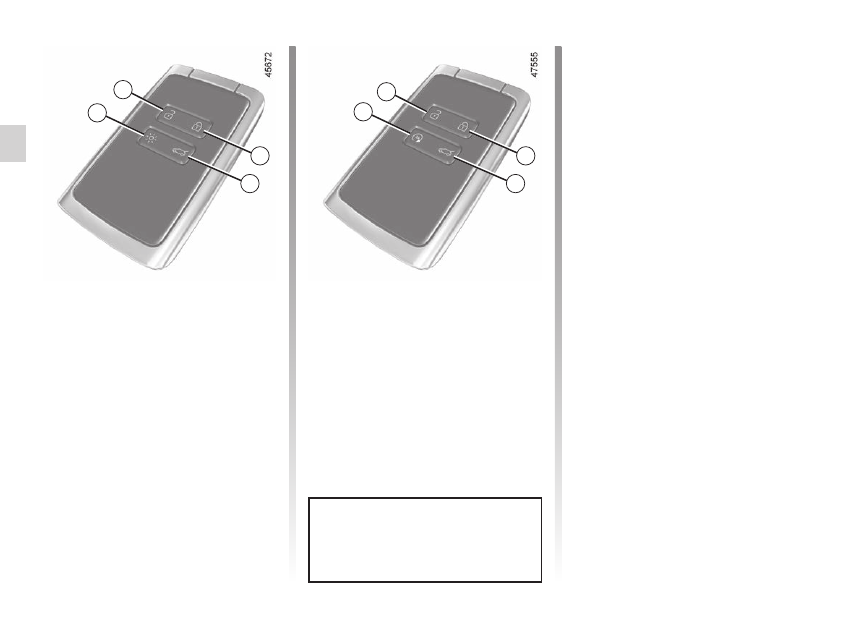

  Locks all the opening elements.

2

  Unlocks all the opening elements.

3

  Driver’s door and ignition key.

5

  Locking/unlocking the boot only.

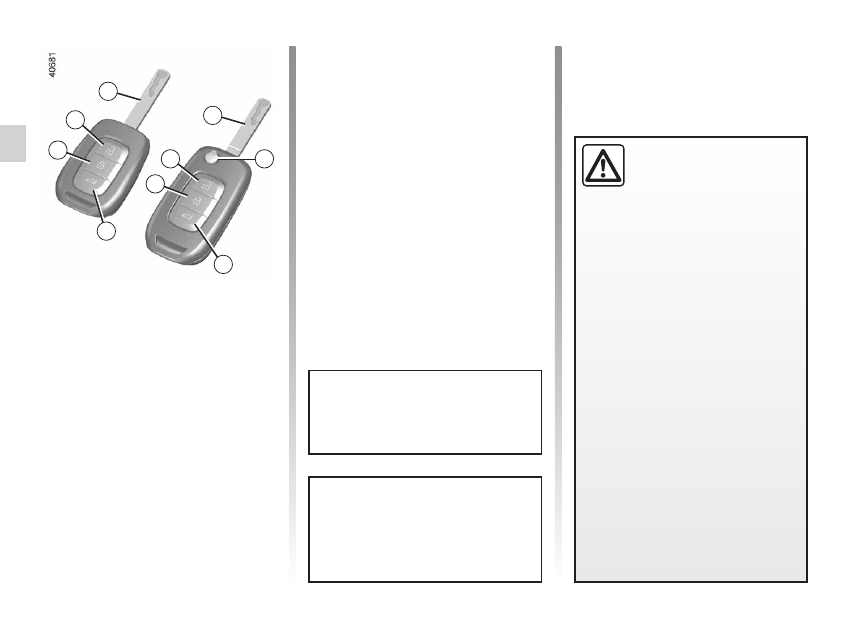

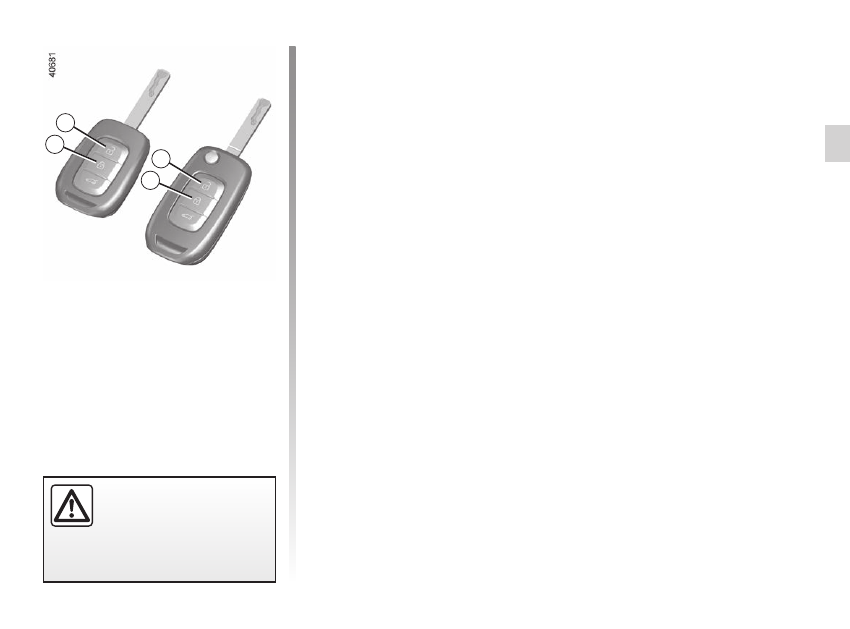

Remote control with switchblade

key:



4

  Locking/unlocking using the switch-

blade key. To release the insert from

its housing, press button

4

, it comes

out automatically. Press button

4

 and

guide the insert back into its housing.

operating faults ..........................................

(current page)

1.3

ENG_UD61854_2

Clé, télécommandes à radiofréquence : généralités (HJB - Renault)



KEY, RADIO FREQUENCY REMOTE CONTROL: general information

(2/2)

Radio frequency remote

control operating range

This varies according to the surround-

ings: take care not to lock or unlock the

doors by inadvertently pressing the but-

tons on the remote control.

Note:

 if a door or the boot is open or not

properly shut, locking is not carried out.

A beep sounds and the hazard warning

lights and side repeaters do not flash.

Interference

Interference by factors in the immediate

vicinity (external installations or the use

of equipment operating on the same

frequency as the remote control) may

affect the operation of the remote con-

trol.

Replacement and additional keys

or remote controls.

You must only contact an approved

dealer:
–  If you need to replace a key it will

be necessary to take the vehicle

and all of its keys to an approved

Dealer in order to initialise the

system.

– Depending on the vehicle, you

have the option of using up to

four remote controls.

Remote control unit failure

Make sure that the correct battery

type is being used, and that the

battery is in good condition and in-

serted correctly. These batteries

have a service life of approximately

two years.

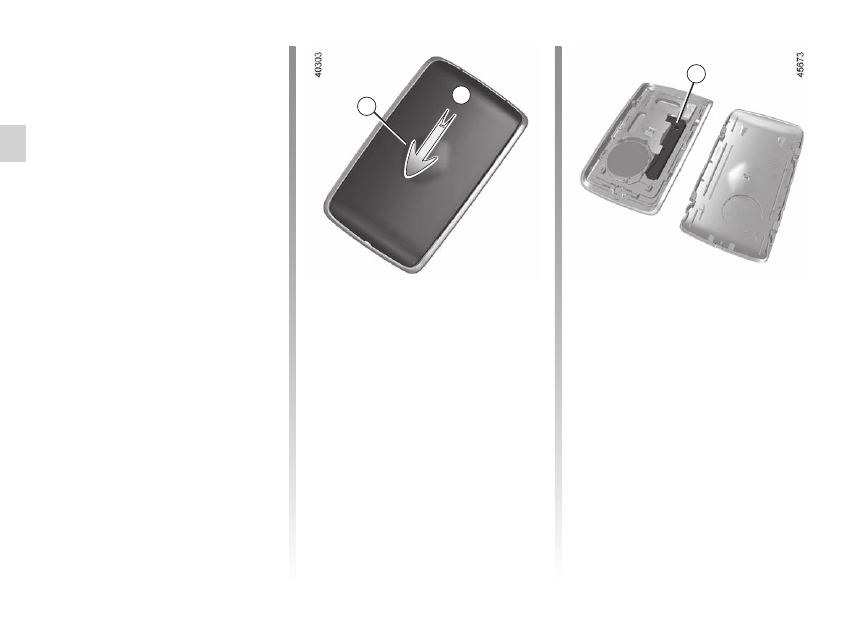

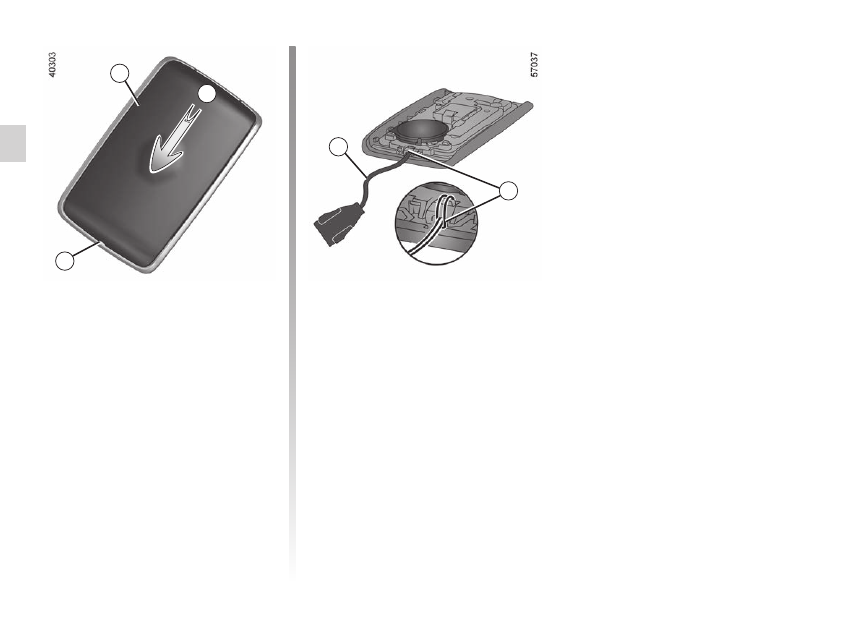

How to change the battery

 5.22.

access

vehicle ..................................................

(up to the end of the DU)

keys ...........................................................

(up to the end of the DU)

radio frequency remote control/key

use .......................................................

(up to the end of the DU)

controls

doors/opening elements.......................

(up to the end of the DU)

opening/closing

luggage compartment ..........................

(up to the end of the DU)

opening/closing

sunroof .................................................

(up to the end of the DU)

doors/tailgate .............................................

(up to the end of the DU)

remote control door locking unit ................

(up to the end of the DU)

fuel filler cap ..............................................

(up to the end of the DU)

locking the doors .......................................

(up to the end of the DU)

1.4

ENG_UD64362_3

Clé, télécommandes à radiofréquence : utilisation (HJB - Renault)



RADIO FREQUENCY REMOTE CONTROL: use

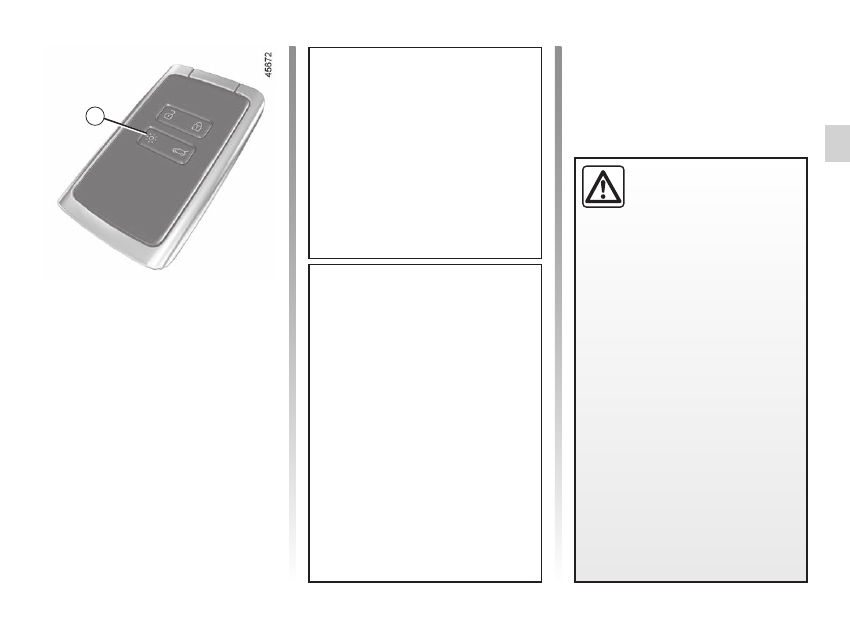

Locking/unlocking only the

boot

Press the button

3

 to lock/unlock the

boot only.

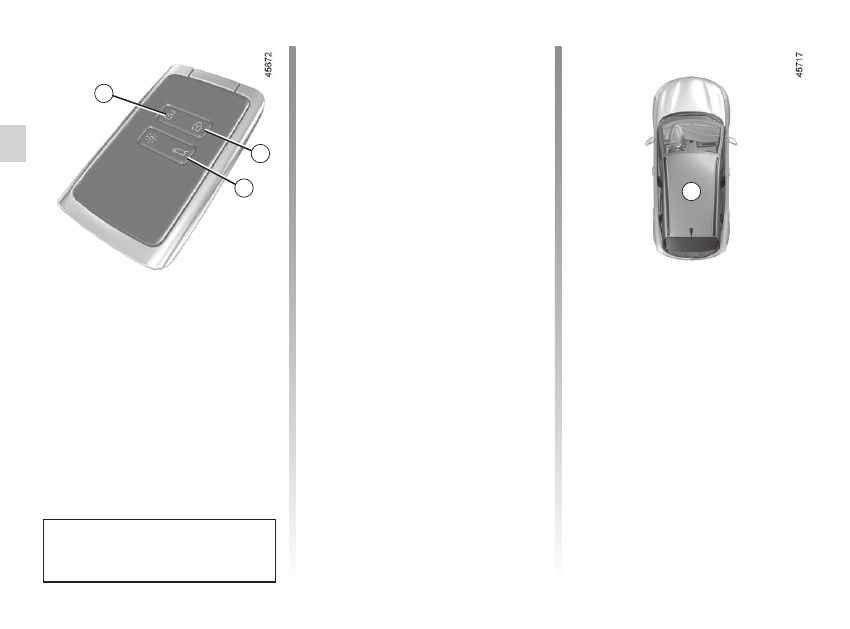

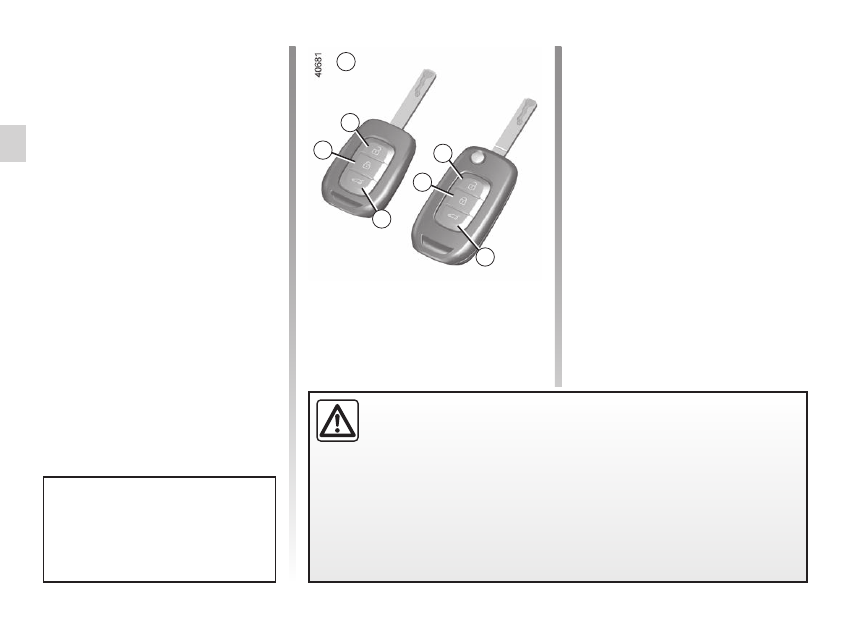

The remote control

A

 can be used to

lock or unlock the doors and boot. It is

powered by a battery which can be re-

placed.

 5.22.

Locking the doors

Press locking button

1

.

The hazard lights and side repeaters

flash twice

 to indicate that the doors

have

locked

 and, on some vehicles,

the door mirrors fold in automatically.

Pressing the

1

 button twice locks the

vehicle and enables the closure of the

front, rear windows and sunroof (de-

pending on the vehicle).

Note:

 if a door or the boot is open or not

properly shut, locking is not carried out.

A beep sounds and the hazard warning

lights and side repeaters do not flash.

A

Unlocking the doors

Pressing button

2

 unlocks the doors

and tailgate.
The hazard lights and side repeaters

flash once

 to indicate that the doors

have

unlocked

 and, on some vehicles,

the door mirrors fold out automatically.

Note:

 with the ignition on and the

engine running

 2.3, buttons on the

remote control are not activated.

Driver’s responsibility when parking or stopping the vehicle

Never leave an animal, child or adult who is not self-sufficient alone on

your vehicle, even for a short time.

They may pose a risk to themselves or to others by starting the engine,

activating equipment such as the electric windows or locking the doors.

Also, in hot and/or sunny weather, please remember that the temperature inside

the passenger compartment increases very quickly.

RISK OF DEATH OR SERIOUS INJURY.

1

2

3

1

2

3

Depending on the vehicle, the door

mirrors fold in/out automatically

when the vehicle is locked/unlocked

 1.90

access

vehicle ..................................................

(up to the end of the DU)

keys ...........................................................

(up to the end of the DU)

key/remote control

deadlocking ..........................................

(up to the end of the DU)

central door locking ...................................

(up to the end of the DU)

deadlocking the doors ...............................

(up to the end of the DU)

remote control

deadlocking ..........................................

(up to the end of the DU)

locking/unlocking the opening elements ....

(up to the end of the DU)

1.5

ENG_UD80735_3

Télécommande à radio fréquence : super condamnation (HJB - Renault)



RADIO FREQUENCY REMOTE CONTROL UNIT: deadlocking

Never use deadlocking if

someone is still inside the

vehicle.

1

2

1

2

To activate deadlocking

Press button

1

 twice in quick succes-

sion.
Locking is confirmed by

two slow

flashes

 and

three quick flashes

 of the

hazard warning lights and side indica-

tor lights.
Depending on the vehicle, the door mir-

rors fold in automatically when the vehi-

cle is locked

 1.90.

To deactivate deadlocking

Press the

2

 button.

The hazard warning lights

flash once



to indicate that the doors have been un-

locked.

access

vehicle ..................................................

(up to the end of the DU)

card ...........................................................

(up to the end of the DU)

card: use ....................................................

(up to the end of the DU)

emergency key ..........................................

(up to the end of the DU)

tailgate .......................................................

(up to the end of the DU)

central door locking ...................................

(up to the end of the DU)

unlocking the doors ...................................

(up to the end of the DU)

closing the doors .......................................

(up to the end of the DU)

daytime running lights................................

(up to the end of the DU)

tailgate .......................................................

(up to the end of the DU)

doors/tailgate .............................................

(up to the end of the DU)

remote control

card ......................................................

(up to the end of the DU)

remote control

map ......................................................

(up to the end of the DU)

locking the doors .......................................

(up to the end of the DU)

locking/unlocking the opening elements

map ......................................................

(up to the end of the DU)

1.6

ENG_UD73752_4

Carte : généralités (HJB - Renault)



Card: general information, use, deadlocking

CARD: general information

(1/3)

The card is used for:

–  locking/unlocking the doors and tail-

gate (doors, tailgate) and the fuel

filler flap (see the following pages);

–  switching on the vehicle lighting re-

motely (refer to the following pages);

–  automatic remote closing of the elec-

tric windows

 3.20;

–  starting the engine

 2.6.

Battery life

Make sure that the correct battery type

is being used, and that the battery is in

good condition and inserted correctly.

Its service life is approximately two

years: it should be replaced when the

message “Keycard Battery Low” ap-

pears on the instrument panel

 5.24.

Remote engine start-up

(depending on vehicle)
Press button

5

 to activate the remote

engine start-up.

 2.6.

 card operating range

This varies according to the environ-

ment: take care not to accidentally lock

or unlock the vehicle by inadvertently

pressing the buttons on the card.

Note:

 if a door or the boot is open or not

properly shut, locking is not carried out.

A beep sounds and the hazard warning

lights and side repeaters do not flash.

When the battery is flat, you can still

lock/unlock and start your vehicle.

 1.16,

 2.6.

1

2

3

4

Unlocking the doors and tailgate.

Locking all doors and tailgate.

3

  Locking/unlocking the boot only.

4

  Switching-on the lighting remotely,

  or, depending on the vehicle,

5

  Remote engine start-up.

1

5

2

3

child safety.................................................

(current page)

1.7

ENG_UD73752_4

Carte : généralités (HJB - Renault)



CARD: general information

(2/3)

Advice

Avoid leaving the card in hot, cold or

humid areas.
Do not keep the card in a place

where it could be bent or dam-

aged accidentally, such as in a back

pocket of a garment.

Replacement: need for an

additional card

If you lose your card or require an-

other, you can obtain one from an

authorised dealer.
If a card is replaced, it will be neces-

sary to take the vehicle

and all its

cards

 to an approved Dealer to ini-

tialise the system.
You may use up to four cards per

vehicle.

Distance lighting function

Pressing button

4

 switches on the

dipped beam headlights and the exte-

rior lighting for approximately 20 sec-

onds. This can be used, for example,

to identify the vehicle from a distance

when parked in a car park.
Pressing and holding the

4

 button for

approximately two seconds activates

the exterior lighting and a sound is

emitted.

Note:

 pressing button

4

 again switches

off the lighting.

4

Driver’s responsibility

when parking or stopping

the vehicle

Never leave an animal,

child or adult who is not self-suffi-

cient alone in your vehicle, even for

a short time.
They may pose a risk to themselves

or to others by starting the engine,

activating equipment such as the

electric windows or locking the

doors, for example.
Also, in hot and/or sunny weather,

please remember that the tempera-

ture inside the passenger compart-

ment increases very quickly.

RISK OF DEATH OR SERIOUS

INJURY

.

Interference

Interference by factors in the immediate

vicinity (external installations or the use

of equipment operating on the same

frequency as the card) may disrupt its

operation.

1.8

ENG_UD73752_4

Carte : généralités (HJB - Renault)



CARD: general information

(3/3)

Insert the strap into the

8

 component

and pass the end of the strap through

the buckle.
Position the strap at the

6

 opening and

close the cartridge.

Note:

 check that the diameter of the

7



strap cord fits the

6

 opening.

Fitting a strap 7

Slide the rear casing

5

 downwards

while pressing on zone

A

.

A

5

7

6

8

access

vehicle ..................................................

(up to the end of the DU)

card ...........................................................

(up to the end of the DU)

map

hands-free ............................................

(up to the end of the DU)

card: use ....................................................

(up to the end of the DU)

central door locking ...................................

(up to the end of the DU)

unlocking the doors ...................................

(up to the end of the DU)

closing the doors .......................................

(up to the end of the DU)

doors and tailgate  .....................................

(up to the end of the DU)

doors/tailgate .............................................

(up to the end of the DU)

child safety.................................................

(current page)

remote control ...........................................

(up to the end of the DU)

locking the doors .......................................

(up to the end of the DU)

1.9

ENG_UD73753_5

Carte en mode mains libres : utilisation (HJB - Renault)



Depending on the vehicle, there are two

to three ways to unlock/lock the vehicle:
–  “hands-free”, when approaching and

moving away from the vehicle;

–  “hands-free”, using the

2

 button on

the

1

 handle of one of the front doors;

– using the card in remote control

mode.

“HANDS-FREE” CARD: use

(1/4)

Do not store the card anywhere it

may come into contact with other

electronic equipment (computer,

phone etc.) as this could hinder its

operation.

Driver’s responsibility



when parking or stopping

the vehicle

Never leave an animal,

child or adult who is not self-suffi-

cient alone in your vehicle, even for

a short time.
They may pose a risk to themselves

or to others by starting the engine,

activating equipment such as the

electric windows or locking the

doors, for example.
Also, in hot and/or sunny weather,

please remember that the tempera-

ture inside the passenger compart-

ment increases very quickly.

RISK OF DEATH OR SERIOUS

INJURY

.

2

Deactivating/activating the

«hands-free» mode

Depending on the vehicle, you can de-

activate/activate:
– unlocking when approaching and

locking when moving away from the

vehicle;

–  locking and unlocking by pressing on

the buttons on the door handle.

You can also disable/activate the sound

signal that is emitted upon locking when

moving away from the vehicle

 1.83.

1

Never leave your vehicle

with the card inside.

1.10

ENG_UD73753_5

Carte en mode mains libres : utilisation (HJB - Renault)



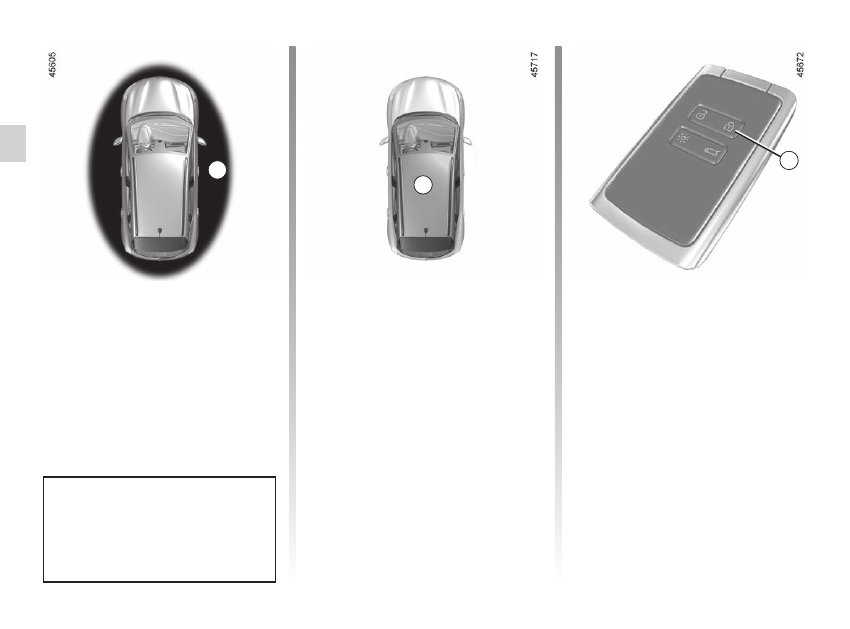

“HANDS-FREE” CARD: use

(2/4)

If the card has been within the detec-

tion area

3

 for approximately 15 min-

utes, remote locking is disabled. To lock

the vehicle, press the

5

 button on the

card or, depending on the vehicle, the

2



button on the handle

1

.

The vehicle cannot be remotely locked

if the card is within the area

4

.

Hands-free locking when

moving away from the

vehicle

With the card on you, doors and lug-

gage compartment door closed, move

away from the vehicle: it will lock auto-

matically once you have left the access

zone

3

.

Note:

 the distance at which the vehicle

locks depends on the surroundings.
To indicate that the vehicle has been

locked, the hazard warning lights

flash twice

 and then

light up

 for ap-

proximately four seconds, and a beep

sounds in confirmation.

3

4

5

Hands-free unlocking, when

approaching the vehicle;

With the card in access zone

3

, the ve-

hicle will unlock. Unlocking is indicated

by

one flash

 of the hazard warning

lights and the indicator lights.

Depending on the vehicle, the door

mirrors fold in/out automatically

when the vehicle is locked/unlocked

 1.90.

1.11

ENG_UD73753_5

Carte en mode mains libres : utilisation (HJB - Renault)



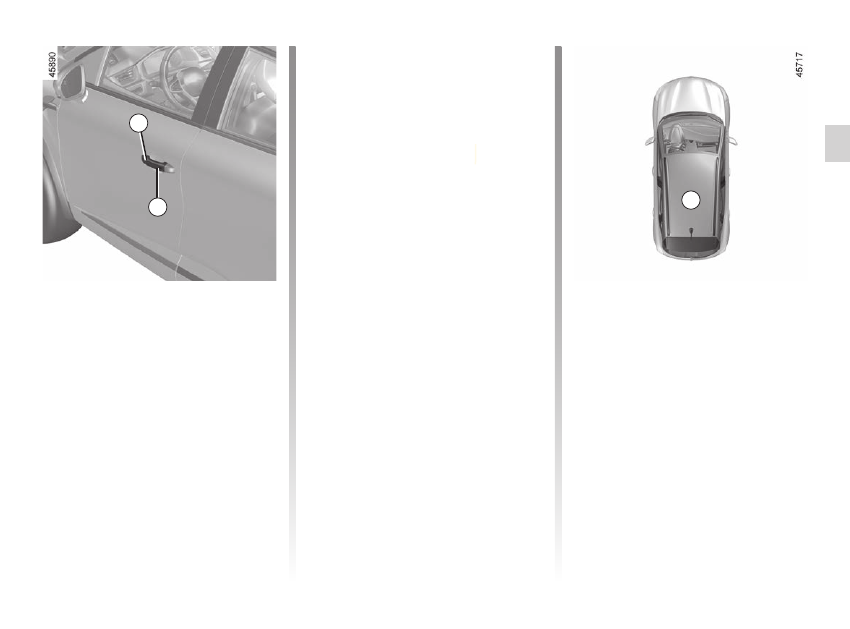

“Hands-free” unlocking/

locking using button 2

(depending on the vehicle)
With the card in zone

3

 and the vehi-

cle locked, press the button

2

 on the

handle

1

 of one of the two front doors:

the vehicle unlocks. Press the button

2



also unlocks all the doors and the tail-

gate.

The hazard lights and side repeaters

flash once

 to indicate that the doors

have unlocked and, on some vehicles,

the door mirrors fold out automatically.

Pressing the

2

 button again locks the

vehicle.

“HANDS-FREE” CARD: use

(3/4)

The hazard warning lights

flash twice



to indicate that the vehicle is locked

and, depending on the vehicle, the door

mirrors automatically fold in.

Special features of the

unlocking system

Under certain circumstances, approach

unlocking is deactivated:
–  after eight days of no use of the vehi-

cle;

– if the card remains close to the

3



area of the vehicle for approximately

five minutes

after the vehicle has

been locked

;

–  after several passes in the vicinity of

the

3

 area of the vehicle and

without

the door being unlocked

.

Use the remote control card or, depend-

ing on the vehicle, press the

2

 button on

the door handle

1

 to unlock the vehicle

and reactivate hands-free mode.

Special features relating to

“hands-free” locking

After locking in “hands-free” mode, you

have to wait approximately three sec-

onds to be able to unlock the vehicle

again. During these three seconds, the

door handles can be tried to make sure

that the vehicle is locked properly.

Note:

 if a door or the boot is open or not

properly shut, locking is not carried out.

A beep sounds and the hazard warning

lights and side repeaters do not flash.

4

1

2

1.12

ENG_UD73753_5

Carte en mode mains libres : utilisation (HJB - Renault)



Locking using the card

With the doors and boot closed, press

button

5

: the vehicle locks.

The hazard warning lights

flash twice



to indicate that the vehicle is locked

and, depending on the vehicle, the door

mirrors automatically fold in.
Pressing the

5

 button twice locks the

vehicle and enables the closure of the

front and rear windows (depending on

the vehicle).

Note:

–  the maximum distance at which the

vehicle locks depends on the sur-

roundings;

–  if a door or the boot is open or not

properly shut, locking is not carried

out. A beep sounds and the hazard

warning lights and side repeaters do

not flash.

The card buttons are deactivated

when the engine is running.

Using the card as a remote

control

Unlocking with the card

Press button

7

.

The hazard lights and side repeaters

flash once

 to indicate that the doors

have unlocked and, on some vehicles,

the door mirrors fold out automatically.

“HANDS-FREE” CARD: use

(4/4)

If,

while the engine is running,

 a door

is opened and closed, and the card is

no longer in the zone

4

, the message

“Keycard Not Detected” indicates that

the card is not inside the vehicle. This

will, for example, prevent you from driv-

ing away after dropping off a passenger

who has kept the card on them.
The warning disappears when the card

is detected again.

Locking/unlocking only the

boot

Press the button

6

 to lock/unlock the

boot only.

4

5

6

7

child safety.................................................

(current page)

deadlocking the doors ...............................

(current page)

1.13

ENG_UD79841_3

Carte "mains libres" : supercondamnation (HJB - Renault)



“HANDS-FREE” CARD: DEADLOCKING

To activate deadlocking

Press button

2

 twice in quick succes-

sion.
Locking is confirmed by

two slow

flashes

 and

three quick flashes

 of the

hazard warning lights and side indica-

tor lights.
Depending on the vehicle, the door mir-

rors fold in automatically when the vehi-

cle is locked

 1.90.

To deactivate deadlocking

Press the

1

 button.

The hazard warning lights

flash once



to indicate that the doors have been un-

locked.

Never use deadlocking if

someone is still inside the

vehicle.

2

If the vehicle is equipped with a dead-

locking function, this allows you to lock

the opening elements and to prevent

the doors from being unlocked using

the interior handles (for example, by

breaking the window and then trying to

open the door from the inside).

1

locking the doors .......................................

(up to the end of the DU)

closing the doors .......................................

(up to the end of the DU)

opening the doors ......................................

(up to the end of the DU)

doors..........................................................

(up to the end of the DU)

1.14

ENG_UD56566_1

Ouverture et fermeture des portes (HJB - Renault)



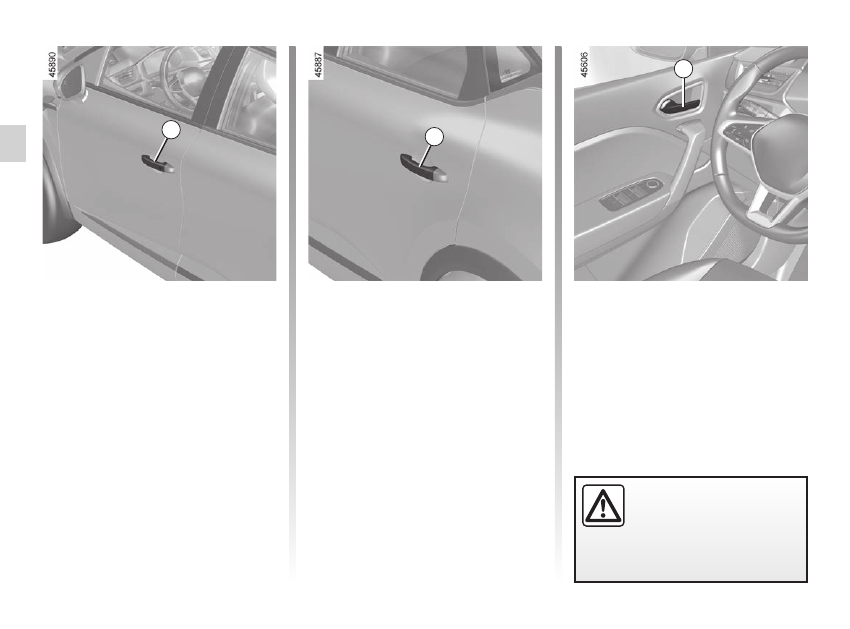

Opening and closing the doors

Opening from the inside

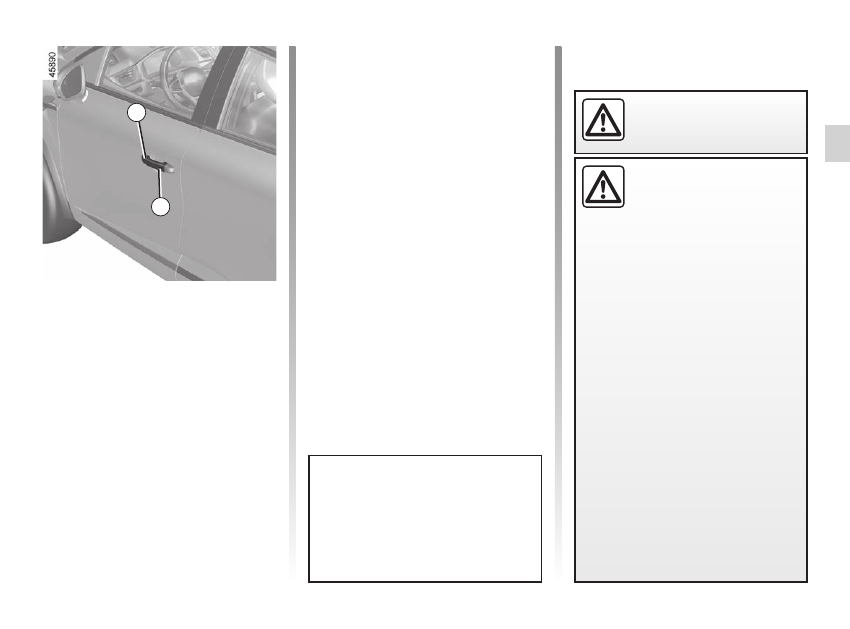

Pull handle

3

.

Depending on the vehicle, it may be

necessary to pull handle

3

 twice: the

first time to unlock the door, the second

time to open it.

Opening the doors from the

outside

Front doors

With the doors unlocked or the card on

you, hold the

1

 handle and pull towards

you.

OPENING AND CLOSING THE DOORS

(1/2)

1

3

As a safety precaution,



the doors should only be

opened or closed when the

vehicle is stationary.

Rear doors

With the doors unlocked or the card on

you, hold the

2

 handle and pull towards

you.

2

child safety.................................................

(current page)

children (safety) .........................................

(current page)

tailgate .......................................................

(current page)

tailgate .......................................................

(current page)

child safety.................................................

(current page)

1.15

ENG_UD56566_1

Ouverture et fermeture des portes (HJB - Renault)



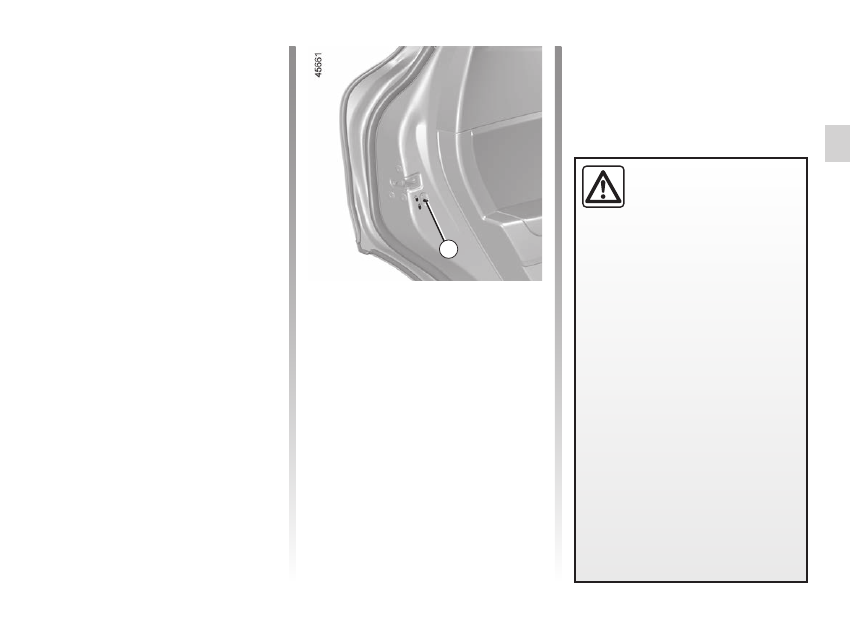

Child safety

Move lever

4

 and check from the inside

that the doors are securely locked, to

prevent the rear doors being opened

from the inside.

OPENING AND CLOSING THE DOORS

(2/2)

Driver’s responsibility

when parking or stopping

the vehicle

Never leave an animal,

child or adult who is not self-suffi-

cient alone on your vehicle, even for

a short time.

They may pose a risk to themselves

or to others by starting the engine,

activating equipment such as the

electric windows or locking the

doors.

Also, in hot and/or sunny weather,

please remember that the tempera-

ture inside the passenger compart-

ment increases very quickly.

RISK OF DEATH OR SERIOUS

INJURY.

Lights-on reminder buzzer

If you have switched off the ignition

and left the lights switched on, a re-

minder buzzer will sound when a door

is opened.

Door/tailgate open buzzer

When the vehicle is stationary, the

2



warning light appears on the instrument

panel accompanied by a warning light

indicating which of the opening ele-

ments (door(s), luggage compartment)

are open or incorrectly closed.
Once the vehicle reaches a speed

of approximately 6 mph (10 km/h), a

warning light indicates if the door(s) or

luggage compartment are open or not

properly closed, along with the mes-

sage “Tailgate open” or “WARNING:

Door Open” and a beep will sound for

around 40 seconds or until the door/

luggage compartment is closed.

4

central door locking ...................................

(up to the end of the DU)

unlocking the doors ...................................

(up to the end of the DU)

closing the doors .......................................

(up to the end of the DU)

opening the doors ......................................

(up to the end of the DU)

doors/tailgate .............................................

(up to the end of the DU)

locking the doors .......................................

(up to the end of the DU)

1.16

ENG_UD74934_3

Verrouillage / Déverrouillage des portes (HJB - Renault)



Locking, unlocking the opening elements

LOCKING, UNLOCKING THE DOORS

(1/4)

If the remote control or,

depending on the vehicle, the

card does not work

In some cases

, the radio frequency

remote control or the card may not

work:

–  card or radio frequency remote con-

trol battery worn or run flat, vehicle

battery flat etc;

–  use of appliances operating on the

same frequency as the card (mobile

phone, etc.);

–  vehicle located in a high electromag-

netic radiation zone.

It is then possible:

–  to use the radio frequency remote

control or the emergency key inte-

grated in the card (depending on the

vehicle) to unlock the driver’s door;

–  to use the interior door locking/un-

locking control (refer to the following

pages).

The card’s built-in key

The

2

 integrated key can be used to

lock or unlock the driver’s door when

the card is not working.

Access with key 2

Slide the rear casing

1

 downwards

while pressing on zone

A

.

1

A

2

1.17

ENG_UD74934_3

Verrouillage / Déverrouillage des portes (HJB - Renault)



LOCKING, UNLOCKING THE DOORS

(2/4)

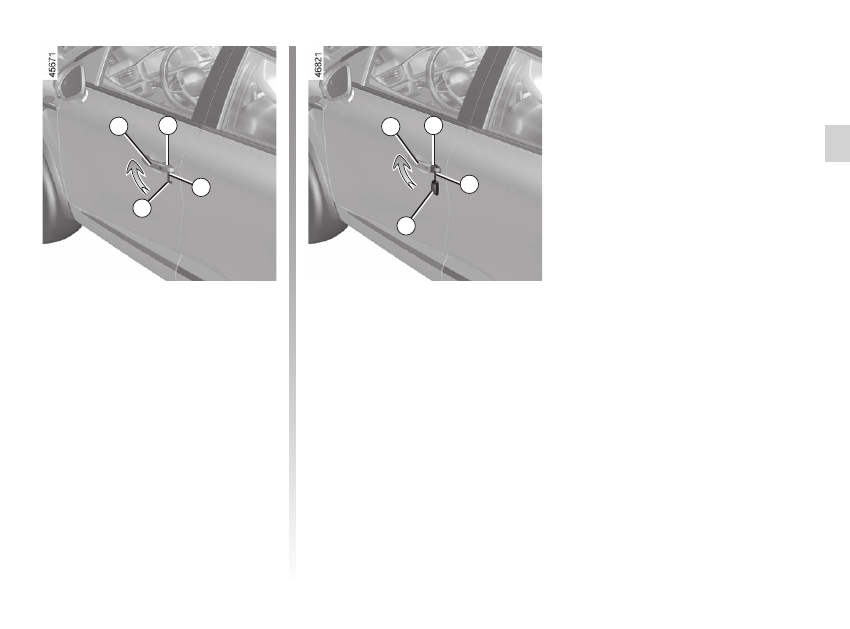

Using the key integrated in

the card

–  Pull handle

3

;

–  press the cover

B

 on the driver’s

door down;

–  insert the end of the key

2

 in the

notch

4

 at the bottom of the cover

B

;

– rotate it upwards to remove the

cover

B

;

–  insert the key

2

 into the lock of the

driver’s door, lock or unlock.

Once you are inside the vehicle, put the

key back in its casing in the card.

Vehicles with key/remote

control

Using the key

–  Pull handle

3

;

–  press the cover

B

 on the driver’s

door down;

–  insert the end of the key

5

 in the

notch

4

 at the bottom of the cover

B

;

– rotate it upwards to remove the

cover

B

;

–  insert the key

5

 into the lock of the

driver’s door, lock or unlock.

B

4

2

B

4

5

3

3

tailgate .......................................................

(current page)

tailgate .......................................................

(current page)

1.18

ENG_UD74934_3

Verrouillage / Déverrouillage des portes (HJB - Renault)



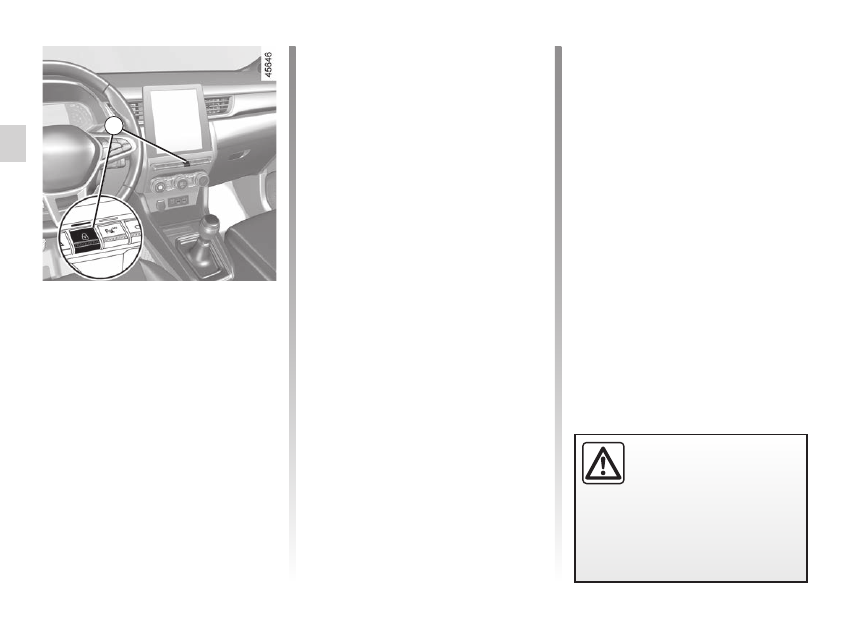

Interior locking/unlocking

door control

Switch

6

 controls the doors, the boot

and the fuel filler flap simultaneously.
If a door or the tailgate is open or not

closed properly, the doors and tailgate

lock/unlock quickly.
If transporting an object with the tail-

gate open, you can still lock the doors:

with the engine stopped, press and

hold switch

6

 to lock the other doors.

LOCKING, UNLOCKING THE DOORS

(3/4)

Locking the doors manually

Turn screw

5

 with the door open (using

the end of the key) and close the door.
This means that the doors are then

locked from the outside.
The doors may then only be opened

from the inside or by using the key in

the driver’s door.

6

5

1.19

ENG_UD74934_3

Verrouillage / Déverrouillage des portes (HJB - Renault)



Locking the opening

elements without the card or

the key

For example, in the event of a dis-

charged battery or the card or key tem-

porarily not working etc.

With the engine switched off and a

door or tailgate open,

 press and hold

the

6

 switch for more than five seconds.

When the door is closed, all the doors

and the tailgate will be locked.

Note:

 unlocking the vehicle from the

outside is only possible with the card in

the vehicle’s access zone or using the

key.

Never leave your vehicle

with the key or card inside.

Door and tailgate status

indicator

When the ignition is on,

 the

6

 switch

warning light indicates the locking

status of the opening elements:
–  indicator light on, the doors and tail-

gate are locked;

–  indicator light off, the doors and tail-

gate are unlocked.

When you lock the doors, the indicator

light remains lit and then goes out.

LOCKING, UNLOCKING THE DOORS

(4/4)

Driver’s responsibility

If you decide to keep the

doors locked when you are

driving, remember that it

may be more difficult for those as-

sisting you to gain access to the

passenger compartment in the



event of an emergency.

central door locking ...................................

(up to the end of the DU)

doors/tailgate .............................................

(up to the end of the DU)

locking the doors .......................................

(up to the end of the DU)

RENAULT ANTI-INTRUDER DEVICE

(RAID) ........................................................

(current page)

closing the doors .......................................

(current page)

operating faults ..........................................

(current page)

opening the doors ......................................

(current page)

unlocking the doors ...................................

(current page)

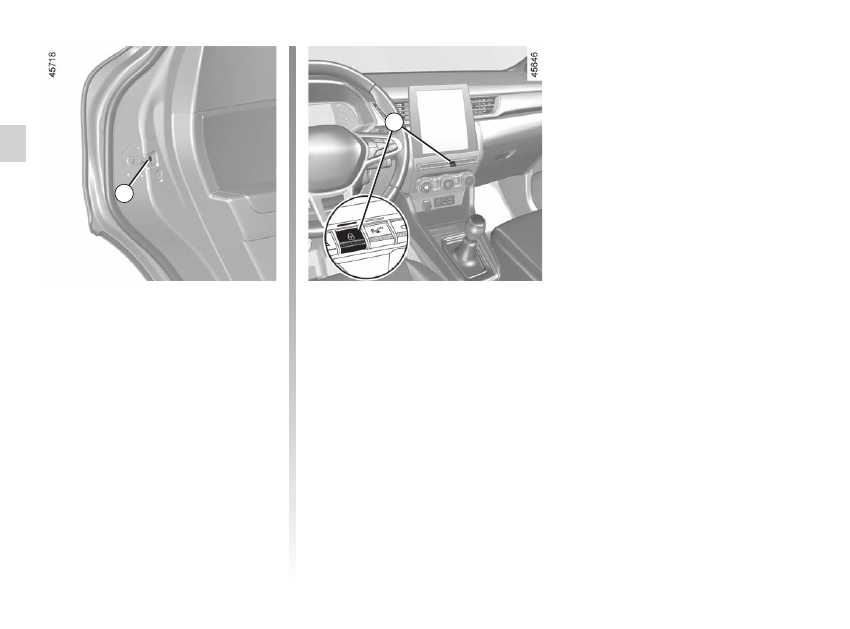

1.20

ENG_UD56568_1

Condamnation automatique des ouvrants en roulage (HJB - Renault)



Operating principle

After the vehicle is started, the system

automatically locks the doors when you

are driving at approximately 6 mph  (10

km/h) and over.
The door can be unlocked:

–  by pressing the central door unlock-

ing switch

1

;

–  at a standstill, by opening a front

door from inside the vehicle.

NB:

 if a door is opened or closed, it

will automatically lock again when the

vehicle reaches a speed of 6 mph (10

km/h).

Activating/deactivating the

function

To activate:

 with the vehicle station-

ary and the engine running, press the

1



switch until a beep sounds.

To deactivate:

 with the vehicle station-

ary and the engine running, press the

switch

1

 until you hear two beeps.

The function can also be activated and

deactivated via the multimedia screen

(depending on the vehicle).

 1.83.

Automatic locking when driving

AUTOMATIC LOCKING WHEN DRIVING

Driver’s responsibility

If you decide to keep the

doors locked when you are

driving, remember that it

may be more difficult for those as-

sisting you to gain access to the

passenger compartment in the

event of an emergency.

1

Operating faults

If you experience an operating fault

(no central locking, the indicator light

1



does not light up when trying to lock the

doors and luggage compartment etc.),

make sure that central locking has not

been deactivated by mistake and check

that the doors and luggage compart-

ment are properly closed. If they are

properly closed, contact an approved

dealer.

armrest

front ......................................................

(current page)

file ..............................................................

(current page)

adjusting your driving position ...................

(up to the end of the DU)

front seat adjustment

electric controls ....................................

(current page)

front seat adjustment .................................

(up to the end of the DU)

seats

front seat with electric controls ............

(current page)

front seats

adjustment ...........................................

(up to the end of the DU)

1.21

ENG_UD73754_2

Sièges avant (HJB - Renault)



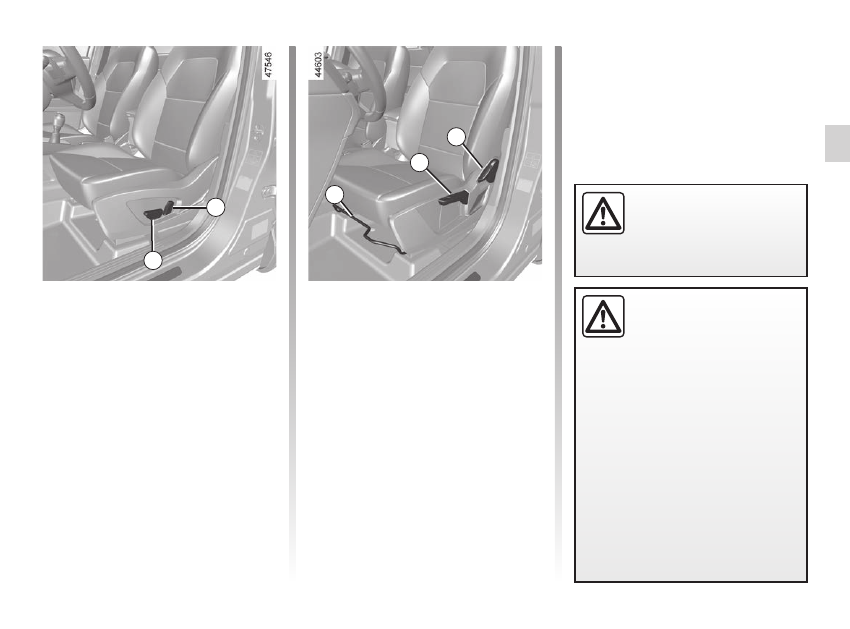

Adjusting the seatback

To tilt the seatback

Activate the

2

 switch forwards or back-

wards, or depending on the vehicle, lift

the

5

 handle and tilt the seatback to the

desired position. Release the handle at

the desired position and make sure that

it is locked.

Adjusting the seat position

To move the seat forwards or back

Move the

1

 switch forwards or back-

wards or, depending on the vehicle,

lift and hold the

3

 handle to unlock the

seat. Release the handle once the seat

is in the correct position and ensure

that the seat is locked.

To raise or lower the seat base

Move the

1

 switch up or down or, de-

pending on the vehicle, move the

4



lever as many times as necessary up-

wards or downwards to the desired po-

sition.

FRONT SEATS

(1/2)

4

3

For safety reasons, carry

out any adjustments



when the vehicle is not

being driven.

We would advise you not to recline

the seatbacks too far to ensure that

the effectiveness of the seat belts is

not reduced.
Nothing should be placed on the

floor (area in front of driver) as such

objects may slide under the pedal

during braking manoeuvres, thus

obstructing its use.

5

1

2

After making adjustments,

make sure that the seat-

backs are correctly locked

in place.

operating faults ..........................................

(current page)

heated seats ..............................................

(current page)

1.22

ENG_UD73754_2

Sièges avant (HJB - Renault)



FRONT SEATS

(2/2)

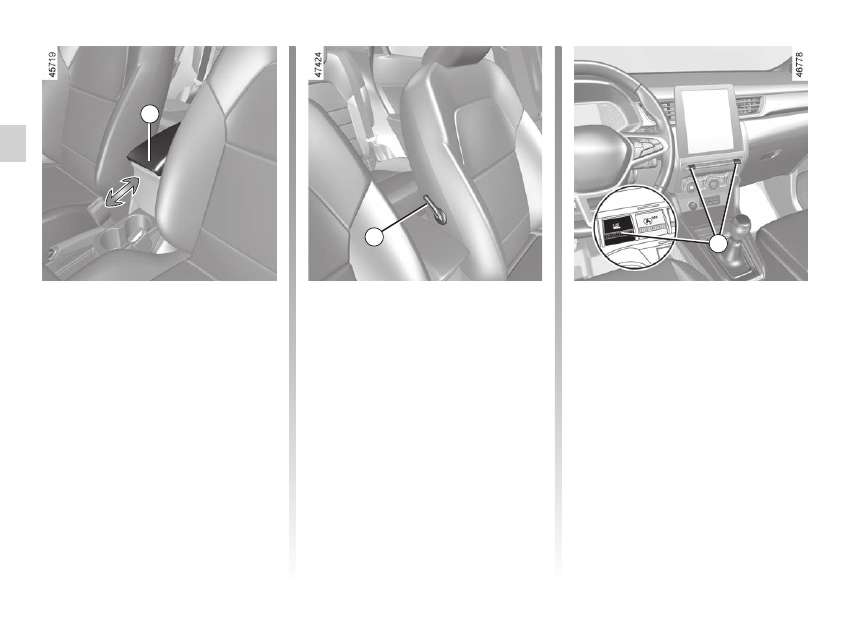

Heated seats

With the ignition on:
–  Pressing the switch

8

 on the required

seat for the first time activates the

heating system on high. Both inte-

grated switch warning lights come

on;

–  pressing the switch for the second

time changes the heating to low. One

integrated warning light comes on;

–  pressing for the third time turns the

heating off.

Operating faults

When an operating fault is detected,

the warning light of the

8

 switch for the

seat concerned switches-off after ap-

proximately five seconds.
Consult an approved dealer.

8

Central armrest 6

(depending on the vehicle)
To adjust the position of the central arm-

rest

6

, slide it forwards or backwards.

To adjust the seat’s lumbar

position

Lower handle

7

 to increase the support

and lift it to decrease it.

7

6

seat belts ...................................................

(up to the end of the DU)

driving position

settings.................................................

(up to the end of the DU)

adjusting your driving position ...................

(up to the end of the DU)

front seats

adjustment ...........................................

(current page)

1.23

ENG_UD80650_5

Ceintures de sécurité (HJB - Renault)



Always wear your seat belt when trav-

elling in your vehicle. You must also

comply with the legislation of the par-

ticular country you are in.

Before starting, first adjust your driv-

ing position, then ask all occupants

to adjust their seat belts to ensure

optimum protection.

Seat belts

SEAT BELTS

(1/5)

Incorrectly adjusted or

twisted seat belts may

cause injuries in the event

of an accident.

Use one seat belt per person,

whether child or adult.
Even pregnant women should wear

a seat belt. In this case, ensure that

the lap belt is not exerting too much

pressure on the abdomen, but do

not allow any slack.

Adjusting your driving

position

–  Sit well back in your seat

(having

first removed your coat or jacket).

This is essential to ensure your back

is positioned correctly;

– adjust the distance between the

seat and the pedals.

 Your seat

should be as far back as possible

while still allowing you to fully de-

press the pedals. The seatback

should be adjusted so that your arms

are slightly bent when you hold the

steering wheel;

–  adjust the position of your head-

rest.

 For maximum safety, your head

must be as close as possible to the

headrest;

–  adjust the height of the seat.

 This

adjustment allows you to select the

seat position which offers you the

best possible view;





adjust the position of the steering

wheel.

Make sure that the rear bench seat

is locked in position correctly so that

the rear seat belts will operate cor-

rectly.

 3.35.

locking .......................................................

(up to the end of the DU)

1.24

ENG_UD80650_5

Ceintures de sécurité (HJB - Renault)



SEAT BELTS

(2/5)

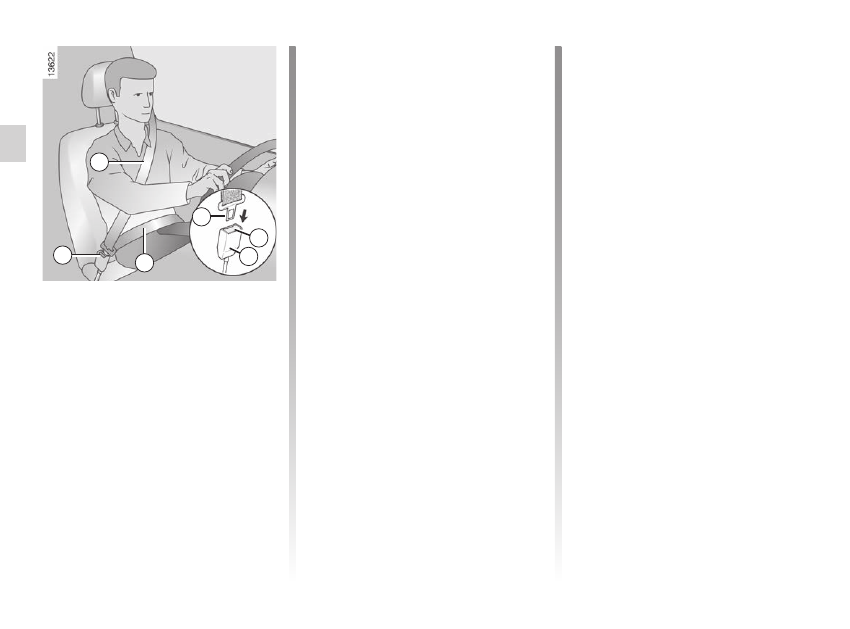

Locking

Unwind the belt

slowly and smoothly



and ensure that buckle

3

 locks into

catch

5

 (check that it is locked by pull-

ing on buckle

3

).

If the belt jams, allow it to return slightly

before attempting to unwind it again.
If your seat belt is completely jammed,

pull slowly, but firmly, so that just over

3 cm unwinds. Allow it to return slightly

before attempting to unwind it again.
If there is still a problem, contact an ap-

proved dealer.

Unlocking

Press button

4

 and the seat belt will be

rewound by the inertia reel. Guide the

belt.

1

5

3

4

5

2

Adjusting the seat belts

For correct adjustment and positioning

of the seat belts at all seats:
–  adjust the seats (seat position and

seatback angle if available);

–  sit with your back firmly against the

seatback;

–  move the shoulder strap

1

 as close

as possible to the base of the neck

without it actually resting against it

(if necessary, adjust the height of the

seat belt if available) and make sure

that the chest strap 1 is in contact

with the shoulder;

–  position the lap belt

2

 so that it lies

flat on the thighs and against the

pelvis.

The belt should be worn so that it is

as close as possible to your body, i.e.:

avoid wearing heavy clothing or keep-

ing bulky objects under the belts, etc.

1.25

ENG_UD80650_5

Ceintures de sécurité (HJB - Renault)



ß

Driver’s seat belt reminder

and, depending on the vehi-

cle, front passenger seat belt re-

minder

This appears on the central display

when the ignition is switched on and

if the driver’s and/or front passenger’s

seat belt(s) (if the passenger seat is

occupied) is not fastened. Depending

on the vehicle, if the seat is occupied

and one of these seat belts is not fas-

tened or becomes unfastened while

the vehicle is moving at a speed over

approximately 12 mph (20 km/h), the

 warning light flashes and a beep

sounds for approximately 120 seconds.

Note:

 an object placed on the passen-

ger seat may activate the warning light

in some cases, depending on the ve-

hicle.

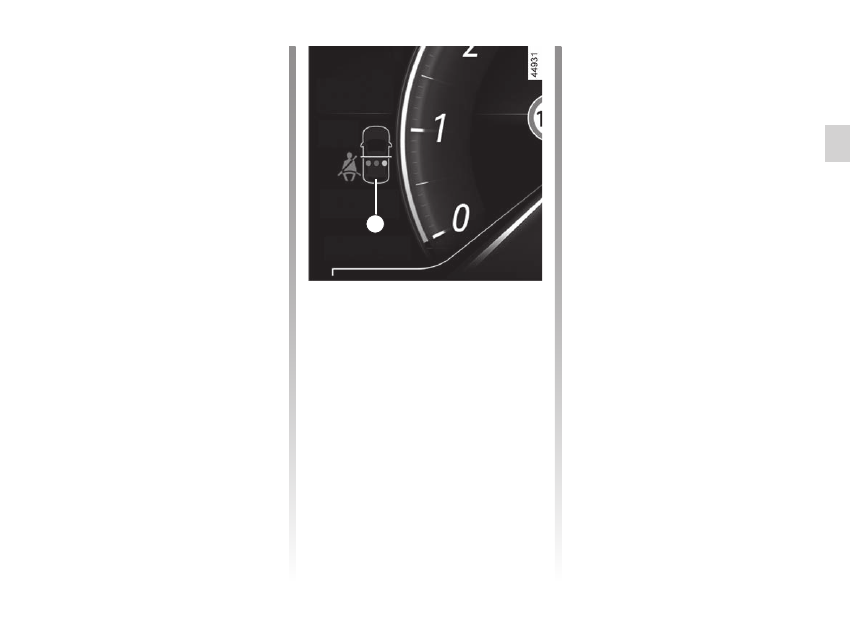

Rear seat belt reminder (depending

on the vehicle)

The

6

 graphic is displayed on the in-

strument panel when the ignition is

switched on. This informs the driver of

the fastening status of each of the rear

seat belts every time:

–  the ignition is switched on;

–  a door is opened;

– fastening or unfastening of a rear

seat belt.

6

It is accompanied by the

6

 symbol which

appears for approximately 60 seconds

each time one of the rear seat belts is

fastened or unfastened.
When the vehicle speed reaches or ex-

ceeds 12 mph (20 km/h), if one of the

rear seat belts is or becomes unfas-

tened during the journey:

– the

 warning light flashes on

the central display;

and
– a beep is emitted for 30 to 120 sec-

onds (depending on the version);

and
– the

6

 symbol is displayed for at least

approximately 60 seconds and



the symbol for the seat concerned

changes to red.

Always make sure that the rear pas-

sengers are properly fastened and that

the number of fastened seat belts in-

dicated corresponds to the number of

rear seats occupied.

Note:

 in some cases the alerts may be

activated if an object is placed on one

of the rear seats, depending on the ve-

hicle.

playback of

6



 graphic:

–  indicator green: seatbelt fastened;

–  indicator in red: the seat is occupied

and the seat belt is not fastened;

–  indicator grey: seat not occupied.
Depending on the vehicle, the



warning light on the central display also

appears when the ignition is switched

on, if a rear seat is occupied and the

seat belt is not fastened. When the ve-

hicle speed is less than approximately
12 mph (20 km/h), the

 warning

light on the central display appears

when a rear seat belt is unfastened.

SEAT BELTS

(3/5)

rear seats...................................................

(current page)

1.26

ENG_UD80650_5

Ceintures de sécurité (HJB - Renault)



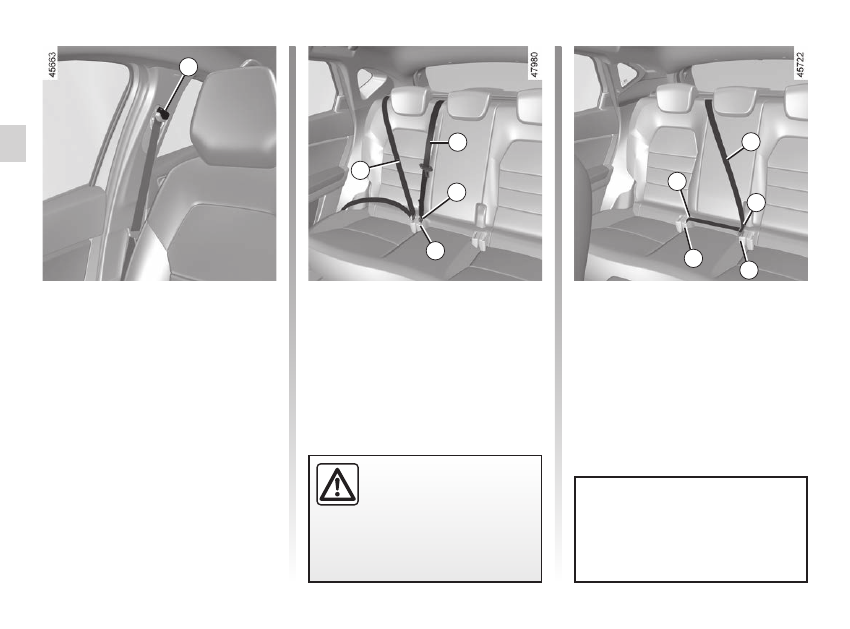

Rear side seat belts 8

The belts are locked, unlocked and

adjusted in the same way as the front

belts.

SEAT BELTS

(4/5)

Check that the rear seat

belts are positioned and

operating correctly each

time the rear bench seat is

moved.

Adjusting the height of the

front seat belts

Use button

7

 to adjust the seat belt

height so that the shoulder strap is worn

as shown previously. Press the button

7



and raise or lower the seat belt. Make

sure that the seat belt is locked in posi-

tion correctly after you have adjusted it.

8

7

Rear centre seat belt

Slowly unwind belt

9

.

Click buckle

10

 into black catch

11

.

Fasten the tongue

12

 in the red

buckle

13

.

11

10

12

13

9

9

10

11

Ensure that you always leave the

tongue

10

 fastened in the buckle

11



even if no passenger is present in

the centre seat.

1.27

ENG_UD80650_5

Ceintures de sécurité (HJB - Renault)



SEAT BELTS

(5/5)

–  No modification may be made to the component parts of the originally fitted restraint system: seat belts, seats and

their mountings. For special operations (e.g. fitting child seats), contact an authorised dealer.

– Do not use devices which allow any slack in the belts (e.g. clothes pegs, clips, etc.): a seat belt which is worn too

loosely may cause injury in the event of an accident.

–  Never wear the shoulder strap under your arm or behind your back.
–  Never use the same belt for more than one person and never hold a baby or child on your lap with your seat belt around

them.

–  The belt should never be twisted.
–  Following an accident, have the seat belts checked and replaced if necessary. Always replace your seat belts as soon as

they show any signs of wear.

–  When the rear bench seat is being put back, make sure that the seat belts and buckles are correctly positioned so that they

can be used properly.

–  Make sure that the buckle is inserted into the appropriate catch.
–  Ensure that no objects are placed in the area around the seat belt catch as they could prevent it from being properly secured.
–  Make sure the seat belt catch is properly positioned (it should not be hidden away, crushed or flattened by people or ob-

jects).

The following information applies to the vehicle’s front and rear seat belts.

air bag........................................................

(up to the end of the DU)

seat belts ...................................................

(up to the end of the DU)

air bag........................................................

(up to the end of the DU)

additional methods of restraint

to the front seat belts ...........................

(up to the end of the DU)

pretensioners .............................................

(up to the end of the DU)

seat belt pretensioners

front seat belt .......................................

(up to the end of the DU)

methods of restraint in addition to the seat

belts ...........................................................

(up to the end of the DU)

1.28

ENG_UD64363_2

Dispositifs complémentaires à la ceinture avant (HJB - Renault)



Additional methods of restraint

in addition to the front seat belts

METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS

(1/6)

1

–  Have the entire restraint

system checked following

an accident.

– No operation whatso-

ever is permitted on any part

of the system (pretensioners,

airbags, computers, wiring) and

the system components must not

be reused on any other vehicle,

even if identical.

–  Only qualified personnel from our

Network may work on the airbags;

otherwise the system may trigger

accidentally and cause injury.

–  The electric trigger system may

only be tested by a specially

trained technician using special

equipment.

–  When the vehicle is scrapped,

contact an approved dealer for

disposal of the pretensioner and

airbags gas generators.

Depending on the vehicle, they will con-

sist of:

–  seat belt inertia reel pretension-

ers;

–  central seat belt pretensioners;
–  chest-level load limiters;
– airbags



driver and passenger

front.

These systems are designed to act in-

dependently or together when the vehi-

cle is subjected to a frontal impact.
Depending on the severity of the

impact, the system can trigger:
–  seat belt locking;
–  the seat belt inertia reel pretensioner

(which engages to correct seat belt

slack);

–  lap seat belt pretensioners to hold

the occupant in their seat;

–  the front airbag.

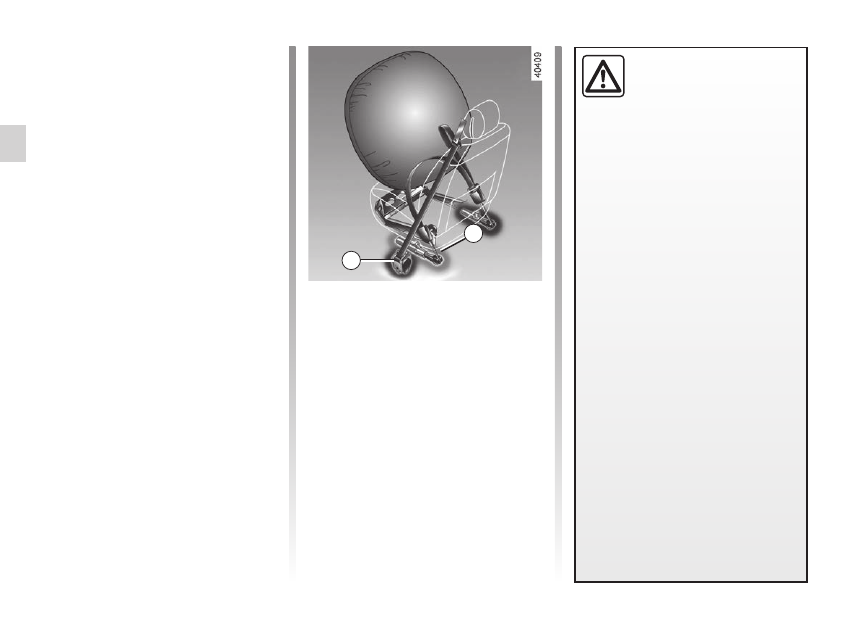

Pretensioners

The pretensioners hold the seat belt

against the body, holding the occupant

more securely against the seat, thus in-

creasing the seat belt’s efficiency.
In the event of a severe frontal impact

and if the ignition is switched on, the

system may engage the following de-

pending on the force of the impact:
– the seat belt inertia reel preten-

sioner

1

 which instantly retracts the

seat belt;

–  the lap seat belt inertia reel preten-

sioner

2

 on the front seats.

2

1.29

ENG_UD64363_2

Dispositifs complémentaires à la ceinture avant (HJB - Renault)



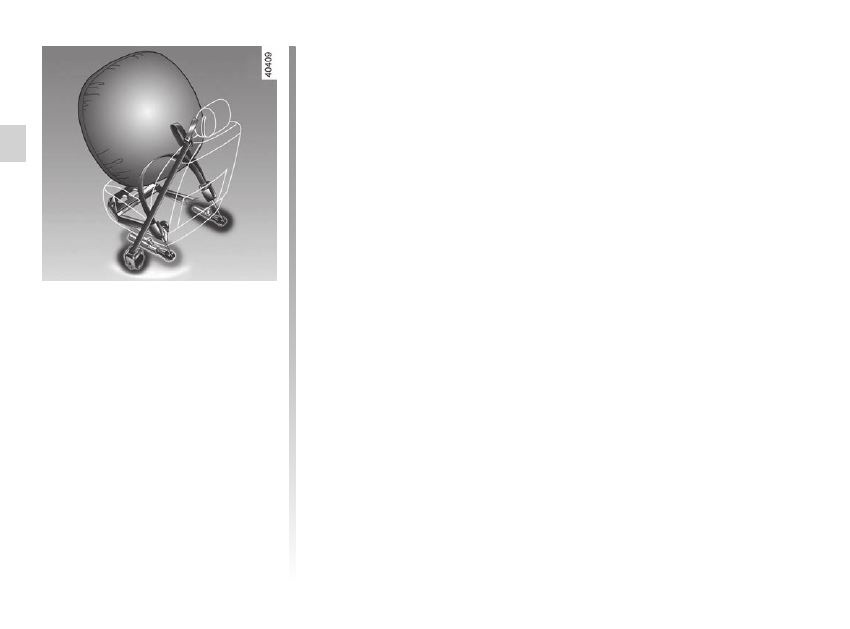

Load limiter

Above a certain severity of impact, this

mechanism is used to limit the force of

the belt against the body so that it is at

an acceptable level.

driver and passenger front

Airbags

Fitted to the driver and passenger

sides.
A symbol on the lower section of the

windscreen indicates if this equipment

is present (depending on the vehicle).
Each airbag system consists of:
–  an airbag and gas generator fitted on

the steering wheel for the driver and

in the dashboard for the passenger;

–  an electronic unit for system monitor-

ing which controls the gas generator

electrical trigger system;

–  remote sensors;

–  a single warning light

å

 on the

instrument panel.

METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS

(2/6)

The airbag system uses py-

rotechnic principles. This

explains why, when the



airbag inflates, it will gener-

ate heat, produce smoke (this does

not mean that a fire is about to start)

and make a banging noise. In a situ-

ation where an airbag is required, it

will inflate immediately and this may

cause some minor, superficial graz-

ing to the skin or other problems.

operating faults ..........................................

(current page)

1.30

ENG_UD64363_2

Dispositifs complémentaires à la ceinture avant (HJB - Renault)



METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS

(3/6)

Operation

This system is only operational when

the ignition is switched on.
In a severe frontal impact, the airbags

inflate rapidly, cushioning the impact

of the driver's head and chest against

the steering wheel and of the front pas-

senger against the dashboard. The air

bags then deflate immediately so that

the passengers are not in any way hin-

dered from leaving the vehicle.

Operating faults

å

  This warning light comes on

when the engine is started and then

goes out after approximately three sec-

onds.
If it does not come on when the ignition

is switched on or if it stays on, there is a

fault in the system.
Contact your approved Dealer as soon

as possible.
Your protection will be reduced until this

fault is rectified.

1.31

ENG_UD64363_2

Dispositifs complémentaires à la ceinture avant (HJB - Renault)



METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS

(4/6)

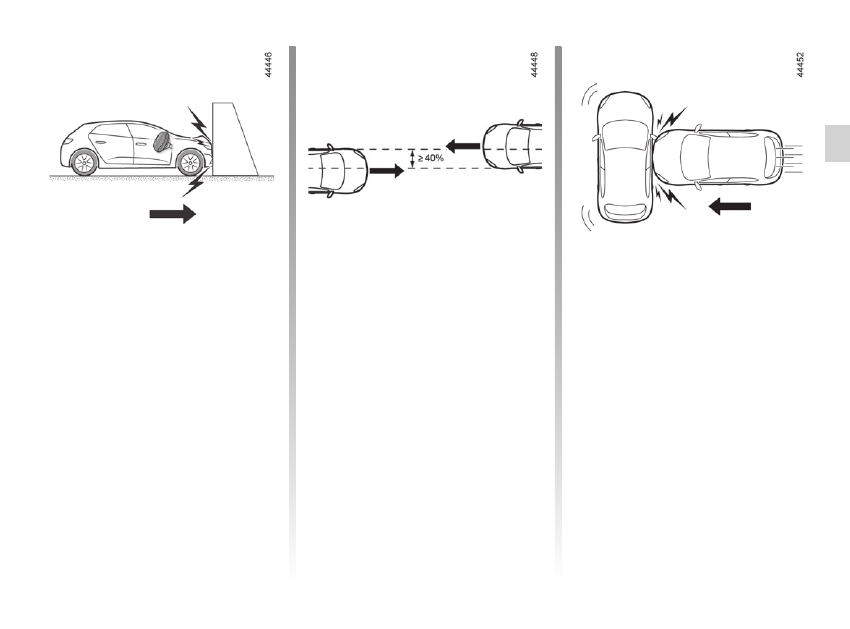

The following conditions will trigger

the pretensioners or



airbags.

In a frontal impact

 against a rigid

(non-deformable) surface at an impact

speed equal to or greater than

16 mph

(25 km/h)

.

In a frontal impact

 with another vehi-

cle of an equivalent or higher category,

with an impact area equal to or greater

than 40%, where the speed of both ve-

hicles is equal to or greater than

25 mph

(40 km/h)

.

In a side impact

 with another vehicle

of an equivalent or higher category, at

an impact speed equal to or greater

than

31 mph (50 km/h)

.

1.32

ENG_UD64363_2

Dispositifs complémentaires à la ceinture avant (HJB - Renault)



METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS

(5/6)

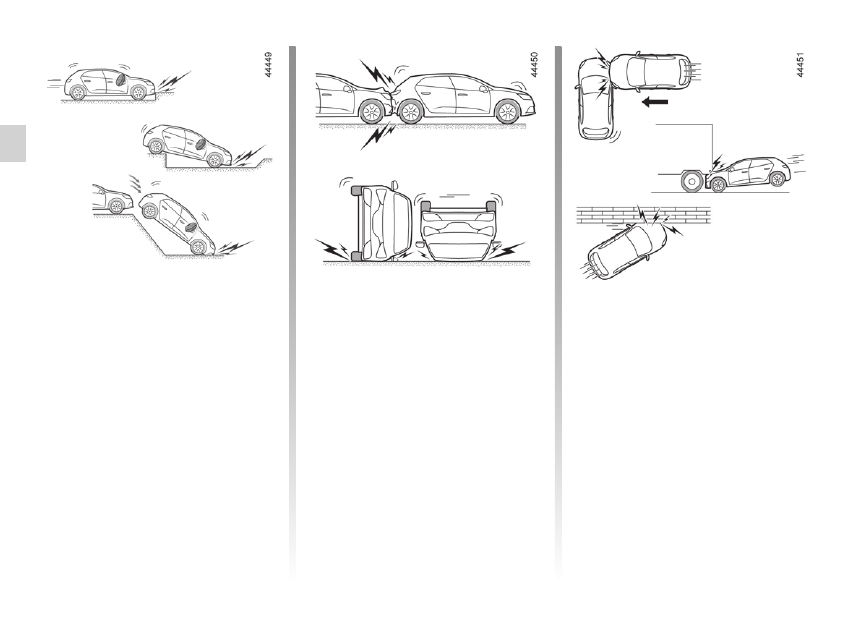

In the following examples, the pre-

tensioners or the



airbags



could op-

erate:

–  impact under vehicle such as pave-

ment;

– potholes;
–  drop or hard landing;
– stones;
– ...

In the following examples, there is a

risk that pretensioners or

airbags



may

not be triggered:

–  rear impact, however severe;
–  the vehicle overturning;

–  side impact to the front or rear of the

vehicle;

–  frontal impact, under the tail of a

lorry;

–  frontal impact against an obstacle

with a sharp angle;

– ...

















Content      ..      1       2         ..



//////////////////////////////////////////
