Dispositifs complémentaires à la ceinture avant (HJB - Renault)



METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS

(6/6)

Warnings concerning the driver’s airbag

– Do not modify the steering wheel or the steering wheel boss.
– Do not cover the steering wheel boss under any circumstances.

–  Do not attach any objects (badge, logo, clock, telephone holder, etc.) to the steering wheel boss.
–  The steering wheel must not be removed (except by qualified personnel from our Network).
–  Do not sit too close to the steering wheel when driving: sit with your arms slightly bent (see “Adjusting your driving position”

 1.23). This will allow sufficient space for the airbag to deploy correctly and be fully effective.

Warnings concerning the passenger airbag

–  Do not attach or glue any objects (badge, logo, clock, telephone holder, etc.) to the dashboard on or near the

airbag

.

–  Do not place anything between the dashboard and the passenger (pet, umbrella, walking stick, parcels, etc.).
–  The passenger must not put his or her feet on the dashboard or seat as there is a risk that serious injuries may occur. In

general, parts of the body should be kept away from the dashboard (knees, hands, head, etc.).

–  The devices in addition to the front passenger seat belt should be reactivated as soon as a child seat is removed, to ensure

the protection of the passenger in the event of an impact.

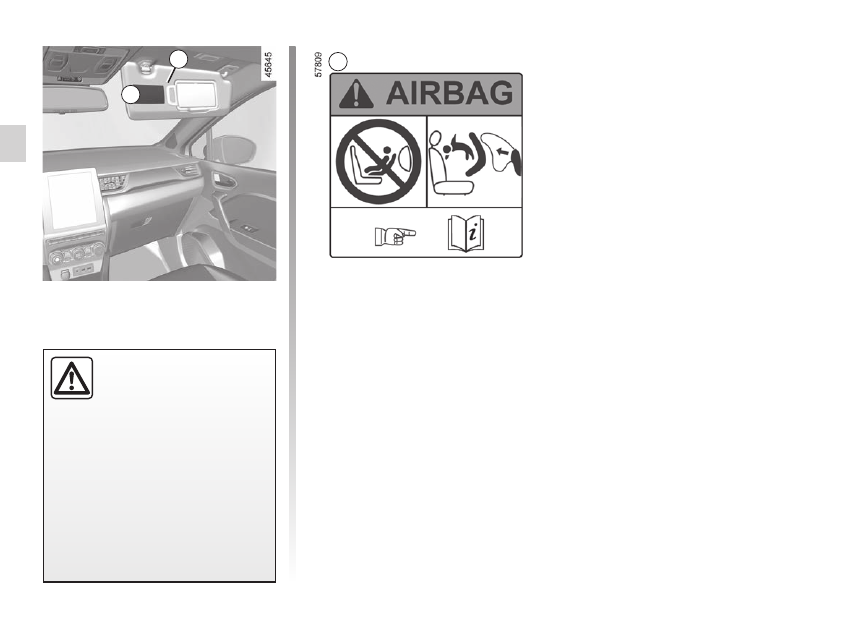

A REAR-FACING CHILD SEAT MUST NOT BE FITTED TO THE FRONT PASSENGER SEAT UNLESS THE

RESTRAINT SYSTEMS IN ADDITION TO THE FRONT PASSENGER SEATBELT ARE DEACTIVATED



 1.51.

All of the warnings below are given so that the airbag



is not obstructed in any way when it is inflated and also to prevent

the risk of serious injuries caused by items which may be dislodged when it inflates.

additional methods of restraint

to the rear seat belts ............................

(up to the end of the DU)

methods of restraint in addition to the seat

belts ...........................................................

(up to the end of the DU)

air bag........................................................

(up to the end of the DU)

side protection devices ..............................

(current page)

seat belt pretensioners ..............................

(current page)

1.34

ENG_UD56573_1

Dispositifs complémentaires aux ceintures arrière latérales (HJB - Renault)



to the rear seat belts

METHODS OF RESTRAINT IN ADDITION TO THE REAR SEAT BELTS

Depending on the vehicle, they will con-

sist of:

–  side seat belt inertia reel preten-

sioners

;

–  chest force limiters.

These systems are designed to act in-

dependently or together when the vehi-

cle is subjected to a frontal impact.
Depending on the severity of the

impact, the system can trigger:
–  seat belt locking;
–  the seat belt inertia reel pretensioner

(which engages to correct seat belt

slack).

Force limiter

Above a certain severity of impact, this

mechanism is used to limit the force of

the belt against the body so that it is at

an acceptable level.

1

Side seat belt pretensioners

The pretensioners hold the seat belt

against the body, holding the occupant

more securely against the seat, thus in-

creasing the seat belt’s efficiency.
With the ignition on, following a signif-

icant frontal impact and depending on

the severity of the impact, the system

may trigger the seat belt inertia reel

pretensioner

1

, which instantly retracts

the seat belt.

–  Have the entire restraint

system checked following

an accident.

– No operation whatso-

ever is permitted on any part

of the system (pretensioners,

airbags, computers, wiring) and

the system components must not

be reused on any other vehicle,

even if identical.

–  Only qualified personnel from our

Network may work on the airbags;

otherwise the system may trigger

accidentally and cause injury.

–  The electric trigger system may

only be tested by a specially

trained technician using special

equipment.

–  When the vehicle is scrapped,

contact an approved dealer for

disposal of the pretensioner and

airbags gas generators.

additional methods of restraint

side protection .....................................

(current page)

methods of restraint in addition to the seat

belts ...........................................................

(up to the end of the DU)

air bag........................................................

(up to the end of the DU)

air bag........................................................

(up to the end of the DU)

side protection devices ..............................

(up to the end of the DU)

1.35

ENG_UD56574_1

Dispositifs de protection latérale (HJB - Renault)



Side Airbag

This airbag may be fitted to each of the

front seats and is activated at the sides

of the seats (door side) to protect the

occupants in the event of a severe side

impact.

Curtain Airbag

This is an airbag fitted (depending on

the vehicle) along the upper sides of

the vehicle – they inflate along the front

and rear door side windows to protect

the passengers in the event of a severe

side impact.

side

SIDE PROTECTION DEVICES

Warning relating to the side



airbag

–

Fitting seat covers:

 seats equipped with an airbag require covers spe-

cifically designed for your vehicle. Contact an approved dealer to find

out if these covers are available. The use of any covers other than those

designed for your vehicle (including those designed for another vehicle) may

affect the operation of the airbag and reduce your protection.

–  Do not place any accessories, objects or even pets between the seatback, the

door and the internal fittings. Do not cover the seatback with any items such as

clothes or accessories. This may prevent the air bag from operating correctly

or cause injury when the airbag is deployed.

–  No work or modification whatsoever may be carried out on the seat or internal

fittings, except by qualified personnel from an approved Dealer.

–  This airbag operates through slits in the front seatbacks (door side): never

insert any objects in these slits.

additional methods of restraint ..................

(up to the end of the DU)

methods of restraint in addition to the seat

belts ...........................................................

(up to the end of the DU)

air bag........................................................

(up to the end of the DU)

air bag........................................................

(up to the end of the DU)

seat belts ...................................................

(up to the end of the DU)

1.36

ENG_UD56575_1

Dispositifs de retenue complémentaires (HJB - Renault)



ADDITIONAL METHODS OF RESTRAINT

The airbag is designed to complement the action of the seat belt. Both the airbag and the seat belt are integral parts

of the same protection system. It is therefore essential to wear seat belts at all times. If seat belts are not worn, the oc-

cupants are exposed to the risk of serious injury in the event of an accident. It may also increase the risk of minor su-

perficial injuries occurring when the airbag is deployed, although such minor injuries are always possible with airbags.

If the vehicle should overturn or in the event of a rear impact, however severe, the pretensioners and airbags are not always

triggered. Impacts to the underside of the vehicle, e.g. from pavements, potholes or stones, can all trigger these systems.
–  No work or modification

whatsoever

 may be carried out on any part of the airbag system (airbags, pretensioners, computer,

wiring harness, etc.), except by qualified Network personnel.

–  To ensure that the system is in good working order and to avoid accidental triggering of the system which may cause injury,

only qualified Network personnel may work on the airbag system.

–  As a safety precaution, have the airbag system checked if your vehicle has been involved in an accident, or is stolen or

broken into.

–  When selling or lending the vehicle, inform the user of these points and hand over this handbook with the vehicle.
–  When scrapping your vehicle, contact your approved Dealer for disposal of the gas generator(s).

All of the warnings below are given so that the airbag



is not obstructed in any way when it is inflated and also to prevent

the risk of serious injuries caused by items which may be dislodged when it inflates.

child restraint/seat .....................................

(up to the end of the DU)

children ......................................................

(up to the end of the DU)

LPG ...........................................................

(current page)

child restraint/seat .....................................

(up to the end of the DU)

child safety.................................................

(up to the end of the DU)

child seats..................................................

(up to the end of the DU)

child restraint/seat .....................................

(up to the end of the DU)

transporting children ..................................

(up to the end of the DU)

1.37

ENG_UD80652_5

Sécurité enfants : généralités (HJB - Renault)



Child safety: general information

CHILD SAFETY: General information

(1/2)

Carrying children

Please ensure that you comply with the

legislation of your country.
Children, and adults, must be correctly

seated and strapped in for all journeys.

The children being carried in your vehi-

cle are your responsibility.
A child is not a miniature adult. Children

are at risk of specific injuries as their

muscles and bones have not yet fin-

ished growing. The seat belt alone

would not provide suitable protection.

Use an approved child seat and ensure

you use it correctly.

A collision at 31 mph

(50  km/ h)  is  the  same

as falling a distance of

10 metres.

Transporting a child without



a restraint is the equivalent of allow-

ing him or her to play on a fourth-

floor balcony without railings.
Never travel with a child held in your

arms.
In the event of an accident, you will

not be able to keep hold of the child,

even if you yourself are wearing a

seat belt.
If your vehicle has been involved in

a road accident, replace the child

seat and have the seat belts and

ISOFIX anchorage points checked.

To prevent the doors being

opened, use the “Child lock”

feature.

 1.14.

Driver’s responsibility

when parking or stopping

the vehicle

Never leave an animal,

child or adult who is not self-suffi-

cient alone on your vehicle, even for

a short time.
They may pose a risk to themselves

or to others by starting the engine,

activating equipment such as the

electric windows or by locking the

doors.
Also, in hot and/or sunny weather,

please remember that the tempera-

ture inside the passenger compart-

ment increases very quickly.

RISK OF DEATH OR SERIOUS

INJURY.

1.38

ENG_UD80652_5

Sécurité enfants : généralités (HJB - Renault)



Before fitting a child seat, read the

manual and respect its instructions. If

you experience any difficulties during

installation, contact the manufacturer

of the equipment. Keep the instructions

with the seat.

CHILD SAFETY: General information

(2/2)

Using a child seat

The level of protection offered by the

child seat depends on its ability to re-

strain your child and on its installation.

Incorrect installation compromises the

protection it offers the child in the event

of harsh braking or an impact.
Before purchasing a child seat, check

that it complies with the regulations for

the country you are in and that it can

be fitted in your vehicle. Consult an ap-

proved dealer to find out which seats

are recommended for your vehicle.
The regulations on transporting chil-

dren are specific to each country. The

use of a child seat during transport de-

pends on the age and/or the size and/

or weight of the child.
For children who do not need to be

transported in a child seat, make sure

that the seat belt is correctly adjusted

and fastened.
In all cases, you must comply with the

regulations of the particular country you

are in.

Set a good example by always fas-

tening your seat belt and teaching

your child:
–  to strap themselves in correctly;
–  to always get in and out of the car

at the kerb, away from busy traf-

fic.

Do not use a second-hand child

seat or one without an instruction

manual.
Check that there are no objects in

the vicinity of the child seat which

could impede its operation.

Never leave a child unat-

tended in the vehicle.
Check that your child is

always strapped in and that

the belt or safety harness used is

correctly set and adjusted. Avoid

wearing bulky clothing which could

cause the belts to slacken

 1.23.

Never let your child put their head or

arms out of the window.
Check that the child is in the correct

position for the entire journey, espe-

cially if asleep.

1.39

ENG_UD71464_2

Sécurité enfants : choix du siège enfant (HJB - Renault)



CHILD SAFETY: choosing a child seat

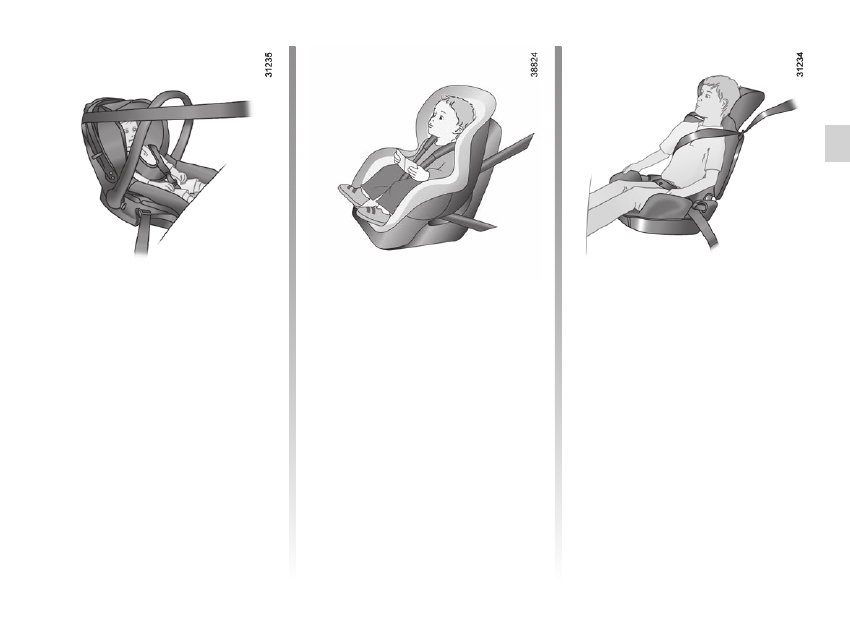

Rear-facing child seats

A baby’s head is, proportionally, heavier

than that of an adult and its neck is very

fragile. Transport the child in this po-

sition for as long as possible (until the

age of 2 at the very least). It supports

both the head and the neck.
Choose a bucket type seat for best side

protection and change it as soon as the

child’s head is higher than the shell.

Forward-facing child seats

Up to 18 kg or 4 years, the child may

travel on a forward-facing seat. Choose

a seat according the child’s size: their

head and abdomen are the areas which

must be most protected. A forward-fac-

ing child seat which is firmly attached to

the vehicle will reduce the risk of impact

to the head. Ensure your child travels in

a forward-facing seat with a harness for

as long as their size permits.
Choose a bucket type seat for optimum

side protection.

Booster cushions

From 15 kg or 4 years, the child can

travel using a booster seat, which will

enable the seat belt to be adapted

to suit his/her size and shape. The

booster seat cushion must be fitted with

guides to position the seat belt on the

child’s thighs rather than the stomach.

It is recommended that you use a seat-

back fitted with a belt strap guide which

can be adjusted in terms of height to

position the seat belt in the centre of the

shoulder. It must never rest on the neck

or on the arm.
Choose a bucket type seat for optimum

side protection.

child restraint/seat .....................................

(up to the end of the DU)

child restraint/seat .....................................

(up to the end of the DU)

child restraint/seat .....................................

(up to the end of the DU)

child safety.................................................

(up to the end of the DU)

child seats..................................................

(up to the end of the DU)

transporting children ..................................

(up to the end of the DU)

Isofix ..........................................................

(up to the end of the DU)

seat belts ...................................................

(up to the end of the DU)

1.40

ENG_UD56578_1

Sécurité enfants : choix de la fixation du siège enfant (HJB - Renault)



Attachment via the seat belt

The seat belt must be adjusted to

ensure that it is effective in the event of

harsh braking or an impact.
Ensure that the strap paths indicated

by the child seat manufacturer are re-

spected.
Always check that the seat belt is cor-

rectly fastened by pulling it up, then

pulling it out fully whilst pressing on the

child seat.
Check that the seat is correctly held by

moving it from side to side and back

to front: the seat should remain firmly

fixed.
Check that the child seat has not been

installed at an angle and that it is not

resting against a window.

choosing a child seat mounting

CHILD SAFETY: choosing a child seat mounting

(1/3)

There are two ways of attaching child

seats: via the seat belt or using the

ISOFIX system.

Do not use the child seat

if it may unfasten the seat

belt restraining it: the base

of the seat must not rest on

the buckle and/or catch of the seat

belt.

The seat belt must never

be twisted or the tension

relieved. Never pass the

shoulder strap under the

arm or behind the back.

Check that the seat belt has not

been damaged by sharp edges.

If the seat belt does not operate nor-

mally, it will not protect the child.

Consult an approved dealer. Do not

use this seat until the seat belt has

been repaired.

1.41

ENG_UD56578_1

Sécurité enfants : choix de la fixation du siège enfant (HJB - Renault)



Attach the child seat with the ISOFIX

locks, if these are provided. The ISOFIX

system allows quick, easy, safe fitting.
The ISOFIX system consists of 2 rings

and, in some cases, a third ring.

Before using an ISOFIX child seat that you purchased for another vehi-

cle, check that its installation is authorised. Consult the list of vehicles

which can be fitted with the seat from the equipment manufacturer.

CHILD SAFETY: choosing a child seat mounting

(2/3)

Attachment using the ISOFIX

system

Approved child seats ISOFIX are stand-

ardised in accordance with current reg-

ulations if any of the four cases below

applies:

–  ISOFIXuniversal 3-point forward-fac-

ing seat;

–  ISOFIXsemi-universal 2-point seat;

– specific;

–  i-Size which has either:

  –   a strap which attaches to the third

ring of the seat concerned;

  –   or a strut that rests on the vehi-

cle floor, compatible with the ap-

proved seat i-Size, the role of

which is to prevent the child seat

from moving in the event of a col-

lision.

In the latter three cases check that your

child seat can be installed by consulting

the list of compatible vehicles.

No modifications may be

made to the component

parts of the restraint system

(seat belts, ISOFIX and

seats and their mountings) originally

fitted.

The ISOFIX anchorage



points have been exclu-

sively designed for child

seats with the ISOFIX



system. Never fit a different type of

child seat, seat belt or other objects

to these anchorage points.

Check that nothing is obstructing

the anchorage points.

If your vehicle has been involved in

a road accident, have the ISOFIX

anchorage points checked and re-

place your child seat.

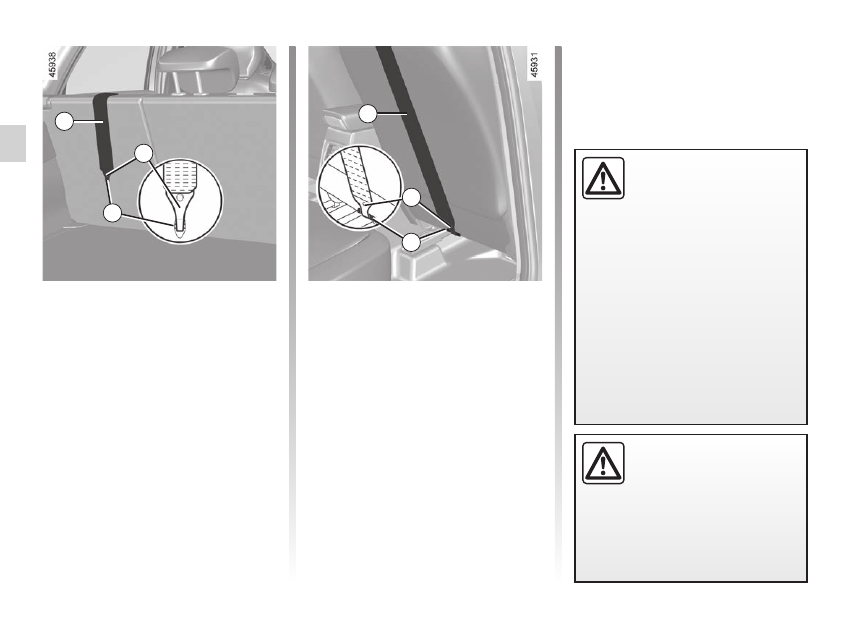

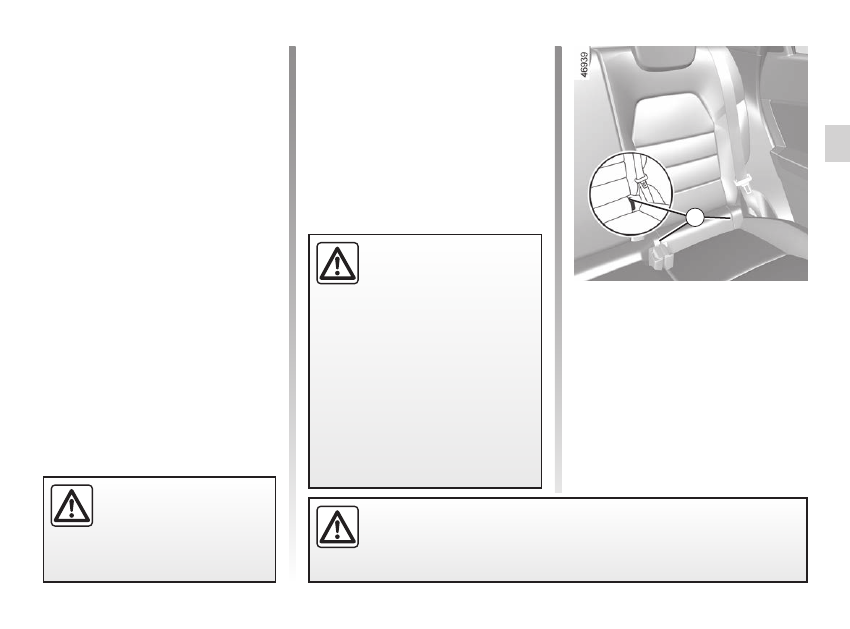

The two rings are located behind the

zip fasteners

1

 between the seat back

and seat base and are identified by a

 marking.

1

rear bench seat..........................................

(current page)

rear seat ....................................................

(current page)

1.42

ENG_UD56578_1

Sécurité enfants : choix de la fixation du siège enfant (HJB - Renault)



CHILD SAFETY: choosing a child seat mounting

(3/3)

2

Check that the seatback

of the forward-facing child

seat is in contact with the

back of the vehicle seat.

In this case, the child seat may not

always rest on the base of the vehi-

cle seat.

The ISOFIX anchorage



points have been exclu-

sively designed for child

seats with the ISOFIX



system. Never fit a different type of

child seat, seat belt or other objects

to these anchorage points.

Check that nothing is obstructing

the anchorage points.

If your vehicle has been involved in

a road accident, have the ISOFIX

anchorage points checked and re-

place your child seat.

3

2

Attachment using the ISOFIX

system (continued)

The third ring

4

 is used to attach the

upper strap

2

 on some child seats.

Rear seats

The upper strap

2

 should be positioned

between the seatback and the rear

parcel shelf. To do so, remove the rear

parcel shelf

 3.38.

Attach the

3

 hook on one of the

4

 rings

marked with the

 symbol.

Front passenger seat

Attach the

3

 hook of the upper strap

2

 to

the ring

4

 marked with the

 symbol.

All seats

Pull the upper strap

2

 so that the back

of the child seat comes into contact with

the back of the vehicle seat.

4

4

3

air bag........................................................

(current page)

child restraint/seat .....................................

(up to the end of the DU)

children ......................................................

(up to the end of the DU)

child restraint/seat .....................................

(up to the end of the DU)

child safety.................................................

(up to the end of the DU)

child seats..................................................

(up to the end of the DU)

child restraint/seat .....................................

(up to the end of the DU)

transporting children ..................................

(up to the end of the DU)

1.43

ENG_UD80654_4

Sécurité enfants : installation du siège enfant, généralité (HJB - Renault)



Fitting a child seat, general information

CHILD SAFETY: fitting a child seat, general information

(1/2)

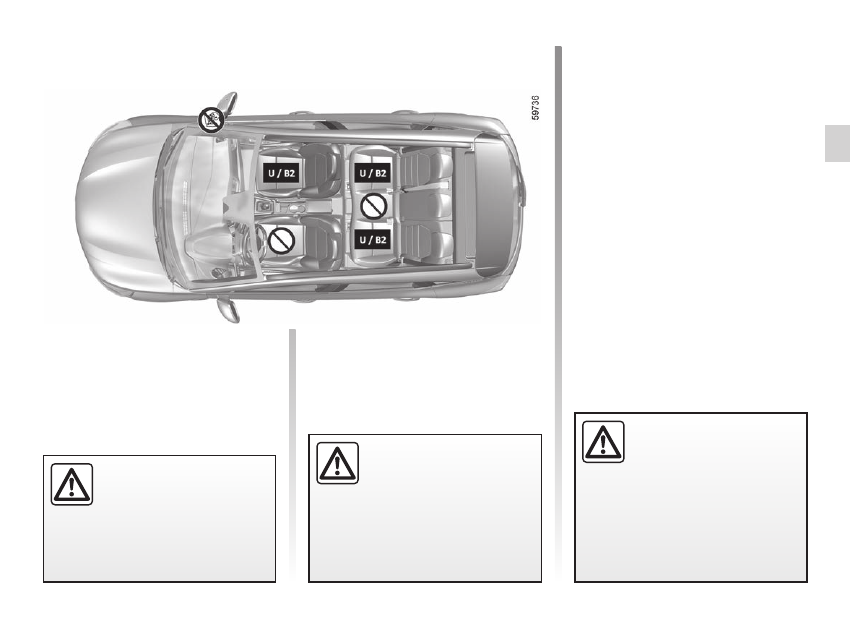

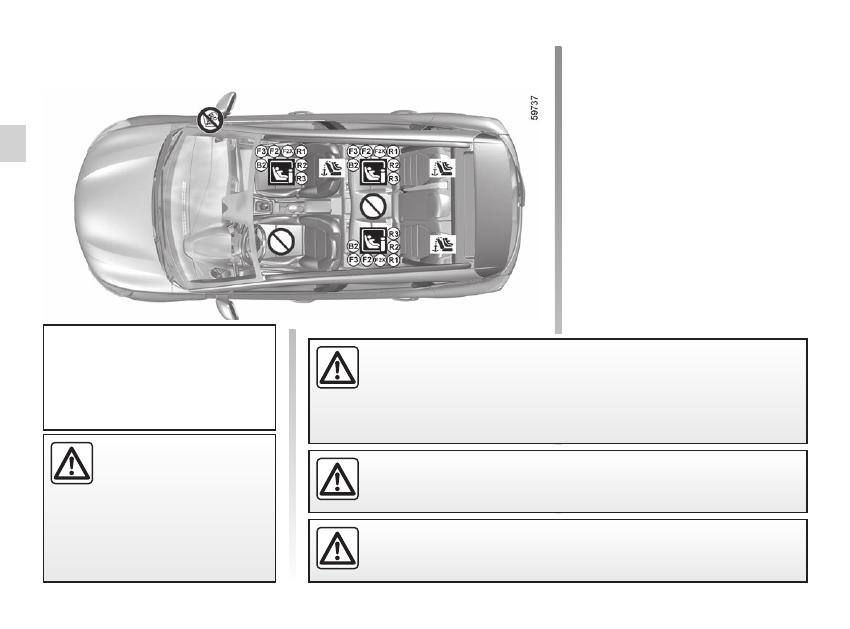

Some seats are not suitable for fitting

child seats. The diagram on the follow-

ing page shows you how to attach a

child seat.

Fit the child seat in a rear

seat wherever possible.
Make sure the child seat or

the child’s feet do not pre-

vent the front seat from locking cor-

rectly

 1.21.

Check that when installing the child

seat in the vehicle it is not at risk of

coming loose from its base.
If you have to remove the headrest,

check that it is correctly stored so

that it does not come loose under

harsh braking or impact.
Always attach the child seat to the

vehicle even if it is not in use so that

it does not come loose under harsh

braking or impact.

RISK OF DEATH OR

SERIOUS INJURY:

 before

fitting a rear-facing child

seat in this seat, make sure

that the front passenger airbag has

been deactivated.

 1.51.

The types of child seat indicated may

not be available. Before using a differ-

ent child seat, check with the manufac-

turer that it can be fitted.

In the front seat

The laws concerning children travel-

ling in the front passenger seat differ in

every country. Consult the legislation in

force and follow the indications on the

diagram on the following page.
Before fitting a child seat in this seat (if

authorised):
–  lower the seat belt as far as possible;
–  move the seat as far back as possi-

ble;

– gently tilt the seatback away from

vertical (approximately 25°);

–  on equipped vehicles, raise the seat

base as far as possible.

Always fully raise the seat headrest so

that it does not interfere with the child

seat

 1.92.

After installing the child seat, when this

is possible, you can move the vehi-

cle seat forward if necessary (so as to

leave enough space in the rear seats

for passengers or other child seats).

For a rear-facing child seat, do not let

it touch the dashboard or move it to the

furthest forward position.
Do not change other settings after in-

stalling the child seat.

rear bench seat..........................................

(current page)

Isofix ..........................................................

(current page)

rear parcel shelf .........................................

(current page)

1.44

ENG_UD80654_4

Sécurité enfants : installation du siège enfant, généralité (HJB - Renault)



Always remove the headrest from the

rear seat on which the child seat is

positioned.

 3.34. If necessary, posi-

tion the rear seat as far back as pos-

sible. This must be done before fitting

the child seat. Check that the child seat

is resting against the back of the rear

seat.

In the rear side seat

A carrycot can be installed across the

vehicle and will take up at least two

seats. Position the child with his or her

feet nearest the door.
Move the front seat as far forward as

possible to install a rear-facing child

seat, then move back the seat in front

as far as it will go, although without al-

lowing it to come into contact with the

child seat.
For the safety of the child in the for-

ward-facing position:

– move the relevant seat backwards

as far as possible;

– move the seat in front of the child

forwards, and set the position of the

seatback to avoid contact between

the seat and the child’s legs.

CHILD SAFETY: fitting a child seat, general information

(2/2)

Ensure that the child seat

or the child’s feet do not

prevent the front seat from

locking correctly

 3.35 or

 1.21.

Fit the child seat in a rear

seat wherever possible.
To install an ISOFIX seat in

this seat, unbuckle the seat

belt by hand before engaging the

bolts.

Fitting a seat ISOFIX in

the rear-left seat means

the middle seat cannot be

used. The central seat belt

will no longer be either accessible or

useable.

A child seat with floor sup-

ports must never be in-

stalled on the rear centre

seat.

RISK OF DEATH OR SERIOUS

INJURY

.

Installing a booster seat

(group 2 or 3)

Check the operation (rolling

up) of the seat belt

 1.23.

Adjust the seat belt by positioning:
–  the shoulder strap on the child’s

shoulder without touching the

neck;

–  the lap belt so that it lies flat on

the thighs and against the pelvis.

If necessary, adjust the position of

the vehicle seat.

air bag

activating the front passenger air bags

(current page)

air bag........................................................

(up to the end of the DU)

seat belts ...................................................

(up to the end of the DU)

child restraint/seat .....................................

(up to the end of the DU)

children ......................................................

(up to the end of the DU)

child restraint/seat .....................................

(up to the end of the DU)

child safety.................................................

(up to the end of the DU)

child seats..................................................

(up to the end of the DU)

child restraint/seat .....................................

(up to the end of the DU)

transporting children ..................................

(up to the end of the DU)

1.45

ENG_UD80656_2

sieges enfant : installation par ceinture de securité (HJB - Renault)



Child seats: attachment by seat belt or by Isofix system

CHILD SEATS: attachment by seat belt

(1/3)

³

  Check the status of the airbag

before fitting a child seat or allowing a

passenger to use the seat.

²

Seat not suitable for fitting

child seats.

Child seat attached using the belt

¬

  Seat which allows a child seat

with “Universal” approval to be attached

by a seat belt.

B2

: Seat enabling a child seat with “B2“

approval to be attached by seat belt.

Using a child safety system

which is not approved for

this vehicle will not correctly

protect the baby or child.

They risk serious or even fatal injury.

RISK OF DEATH OR

SERIOUS INJURY:

 before

fitting a rear-facing child

seat in this seat, make sure

that the front passenger airbag has

been deactivated.

 1.51.

Fitting diagram

Check that your child is

always strapped in and that

the belt or safety harness

used is correctly set and ad-

justed

 1.23.

If necessary, adjust the seat position

accordingly.

1.46

ENG_UD80656_2

sieges enfant : installation par ceinture de securité (HJB - Renault)



CHILD SEATS: attachment by seat belt

(2/3)

Five-seater version

Type of child seat

Weight of the child

Front passenger seat

Rear side

seats

Rear centre

seat

With



airbag



disabled

With



airbag



activated

Carrycot fitted across

the vehicle

Group 0

< 10 kg

X

X

U (2)

X

Rear-facing shell seat

Groups 0 or 0 +

< 10 kg and < 13 kg

U (1) (5)

X

U (3)

X

Shell seat/rear-facing

seat

Groups 0+ and 1

< 13 kg and 9 to 18 kg

U (1) (5)

X

U (3)

X

Forward-facing seat

Group 1

9 to 18 kg

X

U (5)

U (4)

X

Booster seat

Groups 2 and 3

15 to 25 kg and 22 to

36 kg

X

U B2 (5)

U B2 (4)

X

The table below summarises the information already shown on the diagram on the previous page, to ensure the regula-

tions in force are respected.

(1) RISK OF DEATH OR SERIOUS INJURY:

 before fitting a rear-facing child seat in this seat, make sure that the front

passenger airbag has been deactivated.

 1.51.

1.47

ENG_UD80656_2

sieges enfant : installation par ceinture de securité (HJB - Renault)



CHILD SEATS: attachment by seat belt

(3/3)

X

  =  Seat not suitable for fitting child seats of this type.

=  Seat which allows a child seat with “Universal” approval to be installed using a seat belt; check that it can be fitted.

B2

 =  Booster seats in groups 2 and 3 (15 to 25 kg and 22 to 36 kg).

(2)

  A carrycot can be installed across the vehicle and will take up at least two seats. Position the child with his or her feet nearest

the door.

(3)

  If necessary, position the vehicle seat as far back as possible. In order to install a rear-facing child seat, move the front seat

as far forward as possible, then move the front seat back as far as it will go, without allowing it to come into contact with the

child seat.

(4)

  In all situations, remove the rear headrest of the seat on which the child seat is positioned. This must be done before fitting the

child seat.

 3.34. Move the seat in front of the child forwards, move the seatback forward to avoid contact between the seat

and the child’s legs.

(5)

  Raise the seat to the maximum and position it as far back as possible, tilting the seatback slightly (approximately 25°).

air bag

activating the front passenger air bags

(current page)

air bag........................................................

(current page)

seat belts ...................................................

(up to the end of the DU)

child restraint/seat .....................................

(up to the end of the DU)

children ......................................................

(up to the end of the DU)

Isofix ..........................................................

(up to the end of the DU)

child restraint/seat .....................................

(up to the end of the DU)

child safety.................................................

(up to the end of the DU)

child seats..................................................

(up to the end of the DU)

child restraint/seat .....................................

(up to the end of the DU)

transporting children ..................................

(up to the end of the DU)

1.48

ENG_UD82516_5

sieges enfant : fixation par système isofix (HJB - Renault)



CHILD SEATS: fitted using the ISOFIX SYSTEM

(1/3)

The table below summarises the information already shown in the diagram on the following pages, to ensure the appli-

cable regulations are respected.

Type of child seat

Weight of

the child

Seat size



ISOFIX

Front passenger seat

Rear side

seats

Rear centre

seat

Without



airbag



or with



airbag



deactivated

With



airbag



activated

Carrycot fitted across

the vehicle

Group 0

< 10 kg

L1 [F]

L2 [G]

X

X

X

X

Rear-facing shell seat

Groups 0 or 0 +

< 13 kg

R1 [E]

IL (1) (4)

X

IL (2)

X

Shell seat/rear-facing

seat

Groups 0+ and 1

< 13 kg and 9 to

18 kg

R3 [C]
R2 [D]

IL (1) (4)

X

IL (2)

X

Forward-facing seat

Group 1

9 to 18 kg

F3 [A]
F2 [B]

F2X [B1]

X

IUF - IL (1)

IUF - IL (2) (3)

X

Booster seat

Groups 2 and 3

15 to 25 kg and

22 to 36 kg

B2

X

IUF - IL (1)

IUF - IL (2) (3)

X

Seat



i-Size

i-U (1) (4)

i-UF (1)

i-U (2) (3)

X

airbag

front passenger airbag deactivation .....

(current page)

air bag........................................................

(current page)

1.49

ENG_UD82516_5

sieges enfant : fixation par système isofix (HJB - Renault)



CHILD SEATS: fitted using the ISOFIX SYSTEM

(2/3)

X

  =  Seat not suitable for fitting child seats of this type.

IUF/IL

 =   On equipped vehicles, seat which allows an approved “Universal/semi-universal” or “vehicle specific” child seat to be at-

tached using the ISOFIX system; check that it can be fitted.

i-U

 =   Suitable for “universal” front-facing and rear-facing i-Size restraint devices.

i-UF

 =   Suitable only for “universal” front-facing and rear-facing i-Size restraint devices.

(1)

  Raise the seat to the maximum and position it as far back as possible, tilting the seatback slightly (approximately 25°).

(2)

  If necessary, position the vehicle seat as far back as possible. In order to install a rear-facing child seat, move the front seat

as far forward as possible, then move the front seat back as far as it will go, without allowing it to come into contact with the

child seat.

(3)

  In all situations, remove the rear headrest of the seat on which the child seat is positioned. This must be done before fitting the

child seat.

 3.34. Move the seat in front of the child forwards, move the seatback forward to avoid contact between the seat

and the child’s legs.

The size of the ISOFIX child seat is indicated by a letter:
–  F3, F2, F2X [A, B, B1]: for front-facing seats of group 1 (from 9 to 18 kg);
–  R3, R2 [C, D]: rear-facing shell seats or seats of group 0+ (below 13 kg) or of group 1 (from 9 to 18 kg);
–  R1 [E]: rear-facing shell seats of group 0 (below 10 kg) or 0+ (below 13 kg);
–  L1, L2 [F, G]: carrycots of group 0 (below 10 kg);
–  [[B2]]: boosters in groups 2 and 3 (15 to 25 kg and 22 to 36 kg).

(4) RISK OF DEATH OR SERIOUS INJURY:

 before fitting a rear-facing child seat in this seat, make sure that the front

passenger airbag has been deactivated.

 1.51

1.50

ENG_UD82516_5

sieges enfant : fixation par système isofix (HJB - Renault)



CHILD SEATS: fitted using the ISOFIX SYSTEM

(3/3)

Using a child safety system

which is not approved for

this vehicle will not correctly

protect the baby or child.

They risk serious or even fatal injury.

Fitting diagram

RISK OF DEATH OR SERIOUS INJURY:

before fitting a rear facing child seat on the front passenger seat, check

that the airbag has been deactivated

 1.51

²

Seat which does not allow a

child seat to be fitted.

Child seat fitted using the



ISOFIX



mounting

Seat which allows an ISOFIX

child seat to be fitted.

±

The rear seats are fitted with

an anchorage point which



allows a forward-facing child seat with

ISOFIX universal approval to be at-

tached. The anchoring points are lo-

cated on the passenger seatback for

the front seat and on the bench seat-

back for the rear seats.

For the front passenger seat, the

use of a child seat with a floor sup-

port is recommended to avoid trig-

gering the seat belt warning signal.

Check that your child is always strapped in and that the belt or safety har-

ness used is correctly set and adjusted

 1.23. If necessary, adjust the

seat position accordingly.

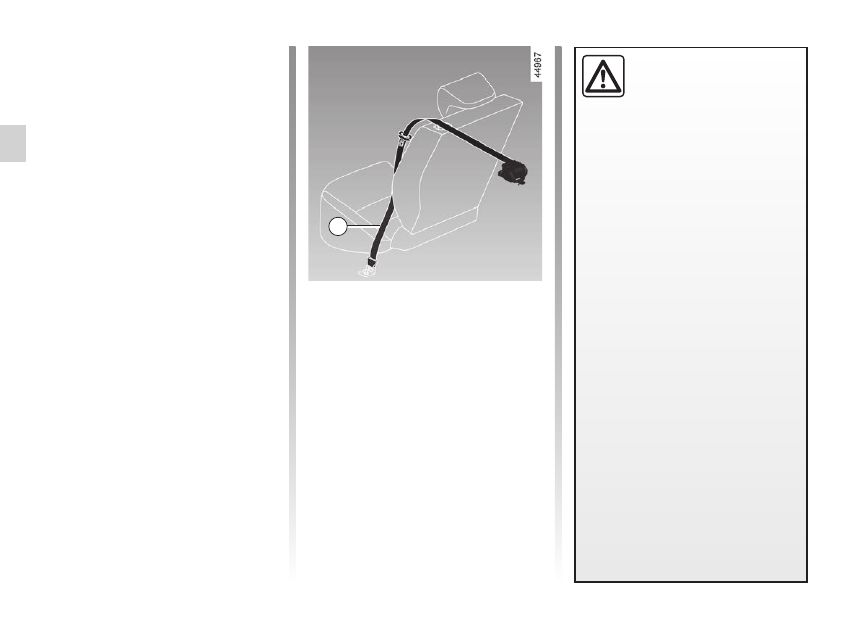

Fit the child seat in a rear seat wherever possible.

To install an ISOFIX seat in this seat, unbuckle the seat belt by hand

before engaging the bolts.

Fitting a seat ISOFIX in the rear-left seat means the middle seat cannot

be used. The central seat belt will no longer be either accessible or useable.

air bag

activating the front passenger air bags

(up to the end of the DU)

airbag

front passenger airbag deactivation .....

(up to the end of the DU)

air bag........................................................

(up to the end of the DU)

children ......................................................

(up to the end of the DU)

child safety.................................................

(up to the end of the DU)

1.51

ENG_UD77141_4

Sécurité enfants : désactivation/activation airbag passager avant (HJB - Renault)



Deactivating, activating the front passenger airbag

CHILD SAFETY: deactivating, activating AIRBAG front passenger

(1/3)

Deactivating the front

passenger airbag

Before installing a child seat on the

front passenger seat:
–  check that the child seat can be in-

stalled on this seat;

– it is essential

to deactivate

 the

airbagfor a rear-facing child seat.

1

2

DANGER

Since operation of the front

passenger airbag is not

compatible with the po-

sition of a rear-facing child seat,

NEVER

 fit a rear-facing child re-

straint system in a seat protected

by an ACTIVATED front

AIRBAG

.

This can lead to the

DEATH

 of the

CHILD

 or

SERIOUS INJURY

.

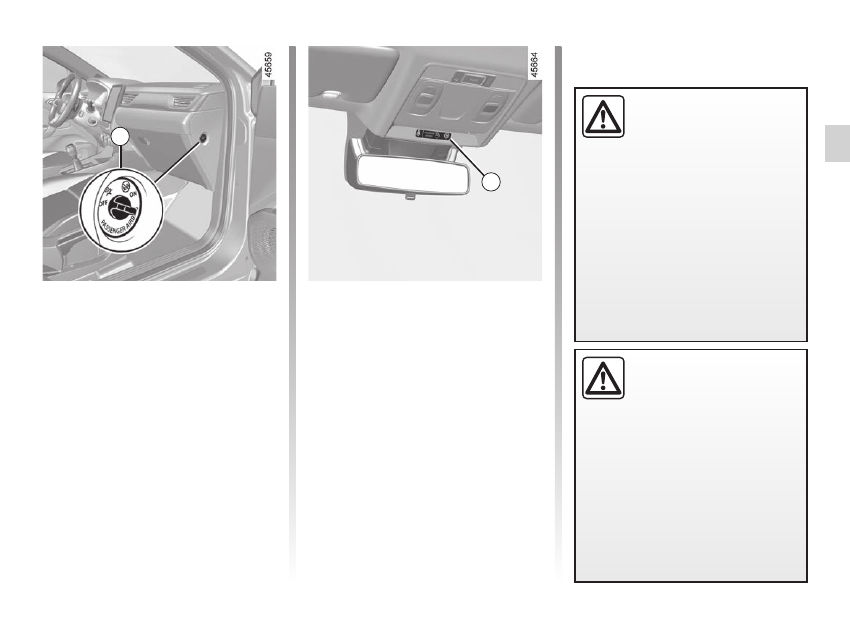

To deactivate the airbag: with the

vehicle stationary and the ignition

switched off,

 push and turn lock

1

 to

the

OFF

 position.

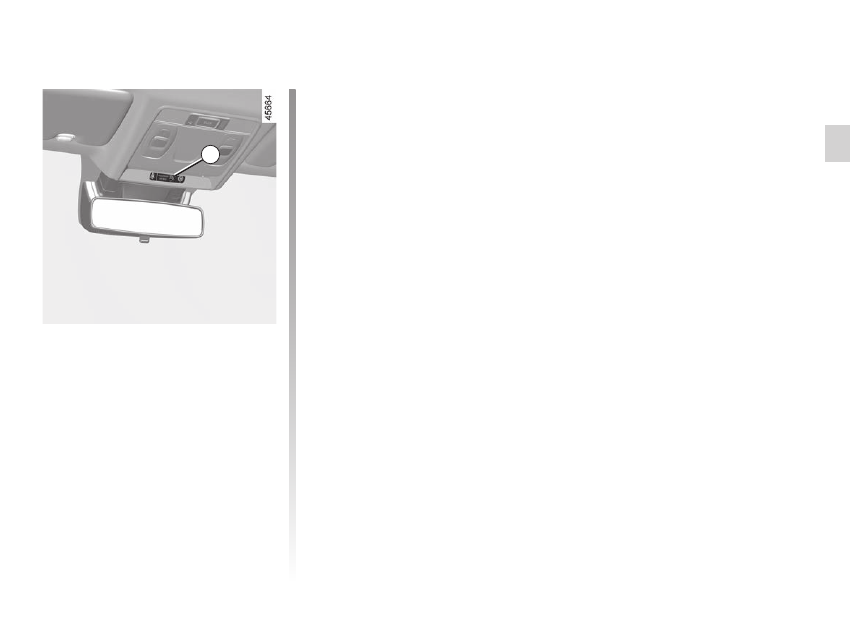

When the ignition is switched on, it is

essential

 to check that the warning

light

¹

 is illuminated on the dis-

play

2

.

This light remains permanently lit to

let you know that you can fit a child

seat.

The passenger airbag may

only be activated or deacti-

vated when the

vehicle is

stationary

with the igni-

tion off.

If it is interfered with when the ve-

hicle is being driven, indicator lights

å

 and

©

 will come on.

Switch the ignition off then on again

to reset the airbag in accordance

with the lock position.

1.52

ENG_UD77141_4

Sécurité enfants : désactivation/activation airbag passager avant (HJB - Renault)



3

DANGER

Since operation of the front

passenger airbag is not

compatible with the po-

sition of a rear-facing child seat,

NEVER

 fit a rear-facing child re-

straint system in a seat protected

by an ACTIVATED front

AIRBAG

.

This can lead to the

DEATH

 of the

CHILD

 or

SERIOUS INJURY

.

The markings on the dashboard and

labels

A

 on each side of the passen-

ger sun visor

3

 (example: label shown

above) remind you of these instruc-

tions.

A

A

CHILD SAFETY: deactivating, activating AIRBAG front passenger

(2/3)

operating faults ..........................................

(current page)

1.53

ENG_UD77141_4

Sécurité enfants : désactivation/activation airbag passager avant (HJB - Renault)



CHILD SAFETY: deactivating, activating AIRBAG front passenger

(3/3)

Activating the front

passenger airbag

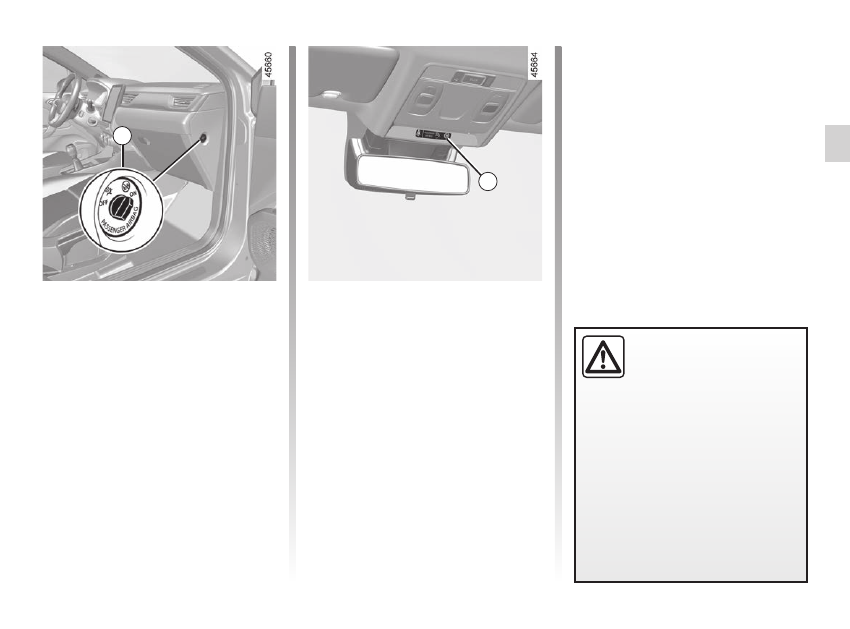

You should reactivate the airbag as

soon as you remove the child seat from

the front passenger seat to ensure the

protection of the front passenger in the

event of an impact.

The passenger airbag may

only be activated or deacti-

vated when the

vehicle is

stationary with the igni-

tion off

.

If it is interfered with when the ve-

hicle is being driven, indicator lights

å

 and

©

 will come on.

Switch the ignition off then on again

to reset the airbag in accordance

with the lock position.

1

2

Operating faults

It is forbidden to fit a rear-facing child

seat to the front passenger seat if the

airbag activation/deactivation system is

faulty.
Allowing any other passenger to sit in

that seat is not recommended.
Contact your approved dealer as soon

as possible.

To restart the airbag: vehicle



stopped

ignition switched off,

 press

and turn the lock to

1

 position

ON

.

When the ignition is switched on, you

must

 check that the

¹

 warning

light is off and that the warning light

 lights up on the display

2

 after

each start-up for around 1 minute.
The front passenger airbag is activated.

controls ......................................................

(up to the end of the DU)

dashboard..................................................

(up to the end of the DU)

driver’s position .........................................

(up to the end of the DU)

1.54

ENG_UD77143_4

Poste de conduite direction à gauche (HJB - Renault)



Driving position

DRIVING POSITION: LEFT-HAND DRIVE

(1/2)

1

2

3

9

1

14

21

25

19

10

8

5

6

4

7

22

18

7

15

17

18

23

20

13

11

16

24

12

26

27

28

1.55

ENG_UD77143_4

Poste de conduite direction à gauche (HJB - Renault)



DRIVING POSITION: LEFT-HAND DRIVE

(2/2)



1

  Side air vents.



2

  Stalk for:

–  direction indicator lights;

–  exterior lights;

–  rear fog lights.



3

  Instrument panel.



4

  Driver airbag and horn location.



5

  Controls for:

–   on-board computer information

read-out and vehicle settings

customisation menu,

–  remote radio and navigation

system.



6

  Steering column stalk for wind-

screen and rear screen wash/

wiper.



7

  Centre air vents.



8

  Multimedia screen.



9

  Heating or air conditioning con-

trols.



10

  Passenger airbag location.



11

  Glove compartment

The equipment fitted, described below, DEPENDS ON THE VERSION AND COUNTRY.



12

  Controls for:

–   front seat heating;

–  activation/deactivation of the

Stop and Start function;

–   activation/deactivation,  depend-

ing on the vehicle, of the ECO or

MULTI-SENSE  mode;

–  hazard warning lights;

–   electric door locking;

–  activation/deactivation of the

parking distance control;

–   activating/deactivating the 360°

camera;

– ...



13

  USB sockets.



14

  Storage compartment.



15

 Gearstick.



16

  Parking position button on the au-

tomatic gearbox.



17

  Controls for:

–   activating/deactivating the elec-

tronic parking brake;

–  activation/deactivation of the

function autohold.



18

  “Hands-free” card holder.



19

 Handbrake.



20

  Charging zone/telephone storage.



21

  Accessories socket.



22

  Engine start/stop button.



23

 Control for adjusting steering



wheel height and reach.



24

  Automatic gearbox paddles



25

  Bonnet release control.



26

  Main switch and controls for the

Cruise control/speed limiter, adap-

tive cruise control and “Lane



Centring” functions.



27

  LPG control.



28

  Controls for:

–

lighting rheostat for control



instru- ments;

–   headlight beam height remote

adjustment;

–  activation/deactivation of the

steering wheel heating;

–   activation/deactivation of Lane

Keeping Assist/Lane Departure

Warning;

–   heated  windscreen.

controls ......................................................

(up to the end of the DU)

dashboard..................................................

(up to the end of the DU)

driver’s position .........................................

(up to the end of the DU)

1.56

ENG_UD77145_4

Poste de conduite direction à droite (HJB - Renault)



DRIVING POSITION: RIGHT-HAND DRIVE

(1/2)

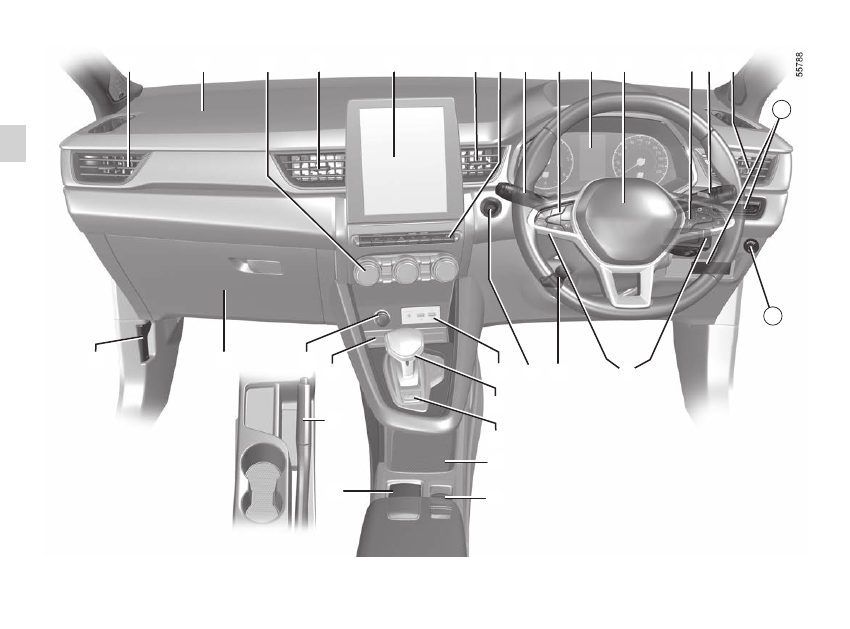

1

3

7

11 12

2

26

27

9

5

6

8

4

17

19

4

25

28

10

23

24

21

18

20

15

1

22

16

14

13

1.57

ENG_UD77145_4

Poste de conduite direction à droite (HJB - Renault)



DRIVING POSITION: RIGHT-HAND DRIVE

(2/2)

The equipment fitted, described below, DEPENDS ON THE VERSION AND COUNTRY.



1

  Side air vents.



2

  Passenger airbag location.



3

  Heating or air conditioning con-

trols.



4

  Centre air vents.



5

  Multimedia screen.



6

  Controls for:

–   front seat heating;

–  activation/deactivation of the

Stop and Start function;

–   activation/deactivation,  depend-

ing on the vehicle, of the ECO or

MULTI-SENSE  mode;

–  hazard warning lights;

–   electric door locking;

–  activation/deactivation of the

parking distance control;

–   activating/deactivating the 360°

camera;

–   ...



7

 Stalk:

–  direction indicator lights;

–  exterior lights;

–  rear fog lights.



8

  Main switch and controls for the

Cruise control/speed limiter, adap-

tive cruise control and “Lane



Centring” functions.



9

  Instrument panel.



10

  Driver airbag and horn location.



11

  Controls for:

–   on-board computer information

read-out and vehicle settings

customisation menu,

–  remote radio and navigation

system.



12

  Steering column stalk for wind-

screen and rear screen wash/

wiper.



13

  Controls for:

–

lighting rheostat for control



instru- ments;

–  headlight beam height remote

adjustment;

–  activation/deactivation of the

steering wheel heating;

–   activation/deactivation of Lane

Keeping Assist/Lane Departure

Warning;

–  heated windscreen



14

  LPG control.



15

  Automatic gearbox paddles.



16

 Control for adjusting steering

wheel height and reach.



17

  Engine start/stop button.



18

  USB sockets.



19

 Gearstick.



20

  Parking position button on the au-

tomatic gearbox.



21

  Charging zone/telephone storage



22

  Controls for:

–   activating/deactivating the elec-

tronic parking brake;

–  activation/deactivation of the

function autohold.



23

  “Hands-free” card holder.



24

 Handbrake.



25

  Storage compartment.



26

  Accessories socket.



27

 Glovebox.



28

  Bonnet release control.

display .......................................................

(up to the end of the DU)

operating faults ..........................................

(up to the end of the DU)

control instruments ....................................

(up to the end of the DU)

indicators:

instrument panel ..................................

(up to the end of the DU)

fuel level ....................................................

(up to the end of the DU)

trip computer and warning system.............

(up to the end of the DU)

driver’s position .........................................

(up to the end of the DU)

instrument panel ........................................

(up to the end of the DU)

warning lights.............................................

(up to the end of the DU)

1.58

ENG_UD80761_8

Témoins lumineux (HJB - Renault)



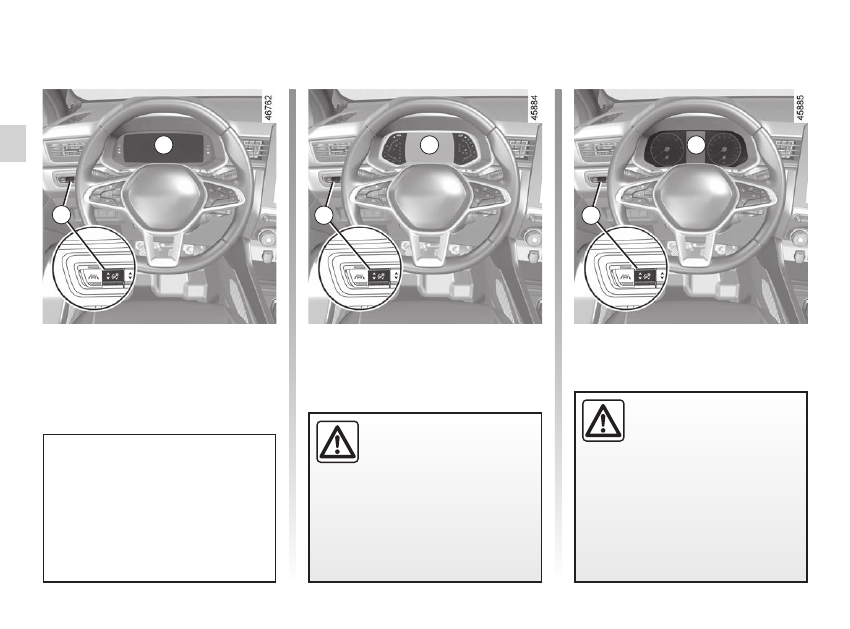

Instrument panel



A

B



or



C



:

 it illumi-

nates when the ignition is switched on.

Press or lift the

1

 switch as many times

as required to adjust the intensity.

In some cases, the appearance of a

warning light is accompanied by a mes-

sage on the instrument panel.

Instrument panel

WARNING LIGHTS

(1/6)

A

The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY.

B

A

Warning light

©

 means you

should drive

very carefully to an

authorised dealer as soon as

possible

. If you fail to follow this

recommendation, you risk damag-

ing your vehicle.

B

If no lights or sounds are ap-

parent, this indicates a fault

in the instrument panel. This

indicates that it is essential

to stop immediately (as soon as traf-

fic conditions allow). Ensure that the

vehicle is correctly immobilised and

contact an approved Dealer.

For your safety, the warning

light

®

  requires you to

stop immediately as soon

as traffic conditions allow.

Switch off the engine and do not re-

start it. Call an approved Dealer.

1

1

1

C

air bag........................................................

(current page)

battery........................................................

(current page)

lights:

fog lights...............................................

(current page)

lights:

dipped beam headlights .......................

(current page)

lights:

direction indicators ...............................

(current page)

lights:

main beam headlights ..........................

(current page)

1.59

ENG_UD80761_8

Témoins lumineux (HJB - Renault)



WARNING LIGHTS

(2/6)

The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY.

å

Indicator lightairbag

It lights up when the ignition or

the engine is switched on and goes off

after a few seconds.
If it does not come on when the igni-

tion is switched on, or comes on when

the engine is running, there is a fault in

the system.
Contact your approved Dealer as soon

as possible.

®

STOP light

This lights up when the igni-

tion or engine is switched on and goes

out as soon as the engine is running. It

comes on with other warning lights and/

or messages, and is accompanied by

a beep.
It requires you to stop immediately, for

your own safety, as soon as traffic con-

ditions allow. Switch off the engine and

do not restart it.
Contact an approved Dealer.

š

Side light warning light

á

Main beam headlight tell-

tale

k

Dipped beam headlight tell-

tale

Rear fog lights tell-tale

Automatic main beam head-

light indicator light



 1.93

Left-hand direction indicator

tell-tale

˜



Right-hand direction indica-

tor tell-tale light

D

Brake circuit fault warning

light

It lights up when the ignition or the

engine is switched on and goes off after

a few seconds.
If it comes on during braking and is ac-

companied by the

®

 warning light

and a beep, it indicates that the fluid

level in the circuit is low or that there is

a braking system fault.
Stop as soon as traffic conditions allow

and consult an approved dealer.

Ú

Battery charge warning light

It lights up when the ignition or

the engine is switched on and goes off

after a few seconds.
If it comes on on the road, accompa-

nied by the

®

 warning light and a

beep, this indicates an overload or dis-

charge in the electrical circuit.
Stop as soon as traffic conditions allow

and contact an approved Dealer.

ABS ...........................................................

(current page)

traction control ...........................................

(current page)

changing gear ............................................

(current page)

ESC: electronic stability control .................

(current page)

electronic parking brake ............................

(current page)

engine oil level ...........................................

(current page)

doors..........................................................

(current page)

1.60

ENG_UD80761_8

Témoins lumineux (HJB - Renault)



WARNING LIGHTS

(3/6)

À

Oil pressure warning light

It lights up when the ignition or

the engine is switched on and goes off

after a few seconds.
If it comes on on the road, accompa-

nied by the

®

 warning light and

a beep, stop immediately and cut the

ignition.
Check the oil level. If the level is normal,

the warning light is related to something

else.
Call an approved Dealer.

U

Variable power-assisted



steering warning light

It lights up when the ignition or the

engine is switched on and goes off after

a few seconds.
If it comes on while driving, alongside

the warning light

®

, this means

there is a system fault.

Contact an authorised dealer.

“AUTOHOLD” system warn-

ing



 2.29

The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY.

©

Warning light

This lights up when the igni-

tion or engine is switched on and goes

out as soon as the engine is running.

It can light up in conjunction with other

warning lights and/or messages on the

instrument panel. It means you should

drive very care- fully

 to an approved

Dealer as soon as possible. If you fail

to follow this recommendation, you risk

damaging your vehicle.

Warning light

If it appears in red during driv-

ing and is accompanied by the

®



indicator light, you must, for your safety,

stop as soon as traffic conditions allow.

Switch off the engine and do not restart

it. Call an approved Dealer. If it appears

in yellow during driving and is accom-

panied by the

©

 warning light, visit

an approved dealer as soon as possi-

ble.

Meanwhile, drive with care

.

If you fail to follow this recommenda-

tion, you risk damaging your vehicle.

}

Handbrake “on” and elec-

tronic parking brake warn-

ing light



 2.24

 2.25



Gear change indicators

This lights up to advise

you to change to a higher gear (arrow

pointing upwards) or lower gear (arrow

pointing downwards)

 2.30.

Warning light for the elec-

tronic stability program



(ESC) and traction control system

It lights up when the ignition or the

engine is switched on and goes off after

a few seconds.
There are several reasons for the warn-

ing light to appear:

 2.46.

Warning light for non-availa-

bility of the electronic stabil-

ity program (ESC) and traction con-

trol system

Door status warning light

tyre pressure loss warning.........................

(current page)

range with fuel ...........................................

(current page)

ECO driving ...............................................

(current page)

energy

«ECO» mode .......................................

(current page)

filter

particle filter..........................................

(current page)

«ECO» mode function ...............................

(current page)

engine coolant ...........................................

(current page)

fuel level ....................................................

(current page)

additional tank filling ..................................

(current page)

1.61

ENG_UD80761_8

Témoins lumineux (HJB - Renault)



WARNING LIGHTS

(4/6)

The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY.

x

Anti-lock braking warning

light

It lights up when the ignition or the

engine is switched on and goes off after

a few seconds.

If it lights up when you are driving, it in-

dicates a fault in the anti-lock braking

system.
Braking will then be as normal, without

the ABS. Contact an approved Dealer

as soon as possible.

Particle filter system warn-

ing light



 2.16

 2.18

Warning light for reagent

level and faults in the ex-

haust gas reduction system



 1.113

Tyre under-inflation warning

light

It lights up when the ignition or the

engine is switched on and goes off after

a few seconds

 2.40.

É

Preheating warning light



(Diesel version)



This should come on when the igni-

tion is switched on. It indicates that the

heater plugs are in operation.
It goes out when preheating is com-

plete. The engine can be started.

Ä

Toxic Fume Filter System

Warning Light

On vehicles that are equipped, this light

comes on when the engine is started

and, depending on the vehicle, when

the ignition is switched off while the

engine is in the standby phase

 2.12

then it goes out.

– If it lights up continuously, consult

your approved dealer as soon as

possible;

–  If it flashes, reduce the engine speed

until the light stops flashing. Contact

your approved Dealer as soon as

possible

 2.38.

L

Low fuel level warning light

It lights up orange when the ig-

nition or the engine is switched on and

goes off after a few seconds.

If the light becomes orange while driv-

ing and a beep sounds, fill up with fuel

as soon as possible. There is only ap-

proximately 31 miles (50 km) worth of

fuel left.

Mode warning light



ECO

It comes on when ECO mode

is active

 2.30.

Freewheel indicator light

 2.30

driving aids ................................................

(current page)

lane departure warning ..............................

(current page)

overspeed warning ....................................

(current page)

emergency brake assist.............................

(current page)

emergency active braking..........................

(current page)

emergency braking ....................................

(current page)

speed limiter ..............................................

(current page)

engine standby ..........................................

(current page)

cruise control .............................................

(current page)

cruise control-speed limiter........................

(current page)

assisted parking.........................................

(current page)

1.62

ENG_UD80761_8

Témoins lumineux (HJB - Renault)



WARNING LIGHTS

(5/6)

Ð

Speed limiter warning light



 2.94

Ï

Cruise control warning light



 2.98

Adaptive cruise control



warning light



Stop and Go



 2.103

Engine standby warning



light



 2.12

Unavailability of engine



standby warning light



 2.12

Ó

Brake pedal warning light

This lights up when the brake

pedal should be depressed

 2.152.

The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY.

Assisted parking brake fault

light



 2.147

Overspeed warning light



 1.64

Lane departure system



warning light



 2.51

Lane Keeping Assist system

warning light



 2.56





(Depending on vehicle)

Indicator of failure or

unavailability of active emergency

braking



 2.82



“Hands off steering wheel”

detection warning light



 2.56

Ô

Coolant temperature warn-

ing light

This lights up blue when you switch on

the ignition or start the engine.
If it turns red, stop and let the engine

idle for a minute or two.
The temperature should lower and the

warning light should return to a blue

colour. If not, stop the engine. Let the

engine cool down before checking the

coolant.

Contact an approved Dealer.

air bag........................................................

(current page)

seat belts ...................................................

(current page)

1.63

ENG_UD80761_8

Témoins lumineux (HJB - Renault)



WARNING LIGHTS

(6/6)

The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY.

On display D

Passenger

Airbag



ON





 1.51

¹

Passenger

Airbag







OFF



 1.51

ß

Seat belt reminder warning

lights



 1.23

D

display .......................................................

(up to the end of the DU)

overspeed buzzer ......................................

(current page)

control instruments ....................................

(up to the end of the DU)

range with fuel ...........................................

(current page)

indicators:

instrument panel ..................................

(up to the end of the DU)

fuel level ....................................................

(current page)

fuel level ....................................................

(current page)

trip computer and warning system.............

(current page)

instrument panel ........................................

(up to the end of the DU)

warning lights.............................................

(up to the end of the DU)

1.64

ENG_UD82505_4

Afficheurs et indicateurs (HJB - Renault)



DISPLAYS AND INDICATORS

(1/7)

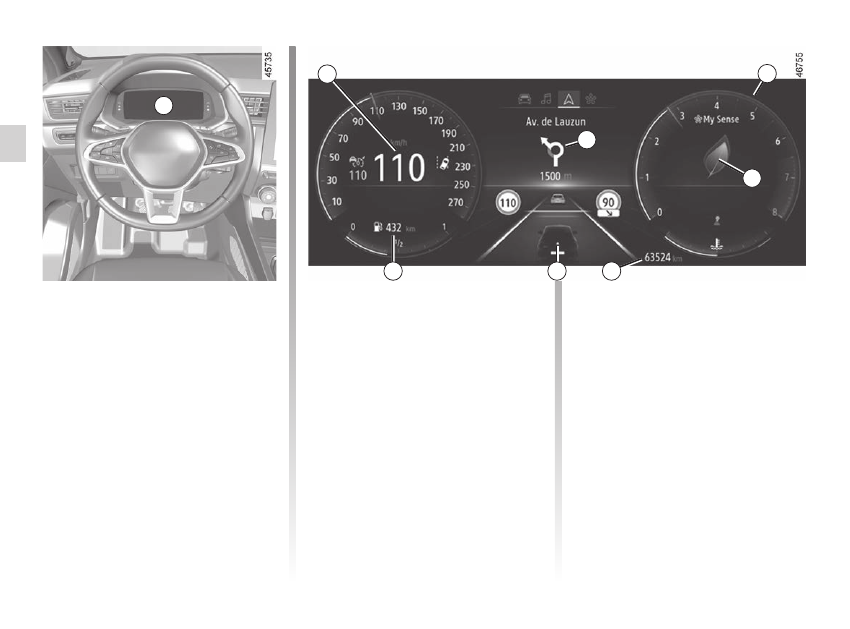

Instrument panel A

It lights up when the ignition is switched

on. In some cases, the appearance of a

warning light is accompanied by a mes-

sage.

Depending on the vehicle, you can cus-

tomise your instrument panel with the

content and colours of your choice.

For vehicles fitted with a multimedia

screen, refer to the multimedia instruc-

tions.

For vehicles not fitted with a multimedia

screen

 1.83.

Speedometer 1

Rev counter 2

(graduations x 1000)

Depending on the selected customisa-

tion, it may not be displayed.

Overspeed buzzer

Depending on the vehicle and coun-
try, the

 warning light is dis-

played and a beep sounds. This beep

sounds as soon as the vehicle is trav-

elling at over 75 mph (120 km/h). This

warning light remains lit for as long as

the vehicle is travelling at over 74 mph

(120 km/h).

Driving style indicator 3



2.30

A

Total mileage recorder 4



1.75

Trip computer 5



1.71

Estimated mileage with remaining

fuel 6

The value is displayed after driving

400 metres.

 1.75.

Trip computer and multimedia

information 7

Depending on the vehicle, you can dis-

play information from the multimedia

screen (compass, telephone, naviga-

tion, etc.) or information from the trip

computer.

Please refer to the multimedia instruc-

tions for more information.

1

2

5

4

7

6

3















Content      ..      1      2      3      ..
