TOWING, BREAKDOWN (3/3)
2
3
5
4
Access to the towing point
Only use the front towing point 5.
Remove:
This towing point may only be used for
towing: never use it for lifting the vehi-
- the bolts 4;
cle directly or indirectly.
- the plastic clips 3;
- the clips 2 located under the front
bumper. Lift up the bonnet.
Do not remove the key from
the ignition when the vehi-
Take care not to allow anything to
cle is being towed.
hit the 12 volt battery during towing.
5.16
OPERATING FAULTS (1/3)
The following advice will enable you to carry out quick, temporary repairs. For safety reasons you should always contact
an approved dealer as soon as possible.
FAULTS
POSSIBLE CAUSES
WHAT TO DO
Impossible to charge the
No electrical current in domes-
Check your installation (circuit breaker, programmer,
traction battery.
tic sockets or poor connection of
etc.).
cable to domestic socket.
Check the connections (power socket, etc.). Please
refer to the information on “Electric vehicle: charging”
in Section 1.
The outdoor temperature is ex-
Recharge your vehicle in a more suitable environ-
tremely low.
ment. Please refer to the information on “Electric ve-
hicle: charging” in Section 1.
The cord is defective.
Please see an authorised dealer to replace it.
The steering column remains
Steering wheel locked.
Move the steering wheel while pressing the engine
locked.
start button (refer to Section 2 “Starting the engine”).
Vibrations.
Tyres incorrectly inflated or dam-
Check the tyre pressures. If this is not the problem,
aged.
have them checked by an approved Dealer.
The engine performance is
The outdoor temperature is ex-
Opt for a calmer driving style.
limited.
tremely high.
The traction battery reserve has
Recharge the traction battery as soon as possible.
been reached.
Please refer to the information on “Electric vehicle:
charging” in Section 1.
The vehicle will not start.
The charging flap is open or not
Check that the charging flap is correctly locked. In
properly closed.
other cases, contact an authorised dealer as soon as
possible.
5.17
OPERATING FAULTS (2/3)
Electrical equipment
POSSIBLE CAUSES
ACTION REQUIRED
The wipers do not work.
Wiper blade stuck.
Free the blade before using the wipers.
Broken windscreen wiper fuse.
Consult an approved dealer.
Motor fault.
Consult an approved dealer.
The wiper does not stop.
Faulty electrical controls.
Consult an approved dealer.
Direction indicators flashing more Blown bulb.
Replace the bulb.
quickly.
The indicators are On one side only:
- blown bulb,
Replace the bulb.
not working.
- faulty earth connection.
On both sides:
- fuse blown,
Replace it.
– faulty flasher unit.
Needs replacing: please see an authorised
dealer.
5.18
OPERATING FAULTS (3/3)
Electrical equipment
POSSIBLE CAUSES
ACTION REQUIRED
The headlights
Only one:
- blown bulb,
Replace the bulb.
are not working.
- disconnected wire or incorrectly- Check and reconnect the wire or the connector.
positioned connector,
- faulty earth connection.
See above.
Both:
- if the circuit is fused.
Check and replace if necessary.
The headlights do not switch off.
Faulty electrical controls.
Consult an approved dealer.
Traces of condensation in the lights. This is not a fault. The presence of
traces of condensation in lights is a
natural phenomenon linked to vari-
ations in temperature.
These traces soon disappear when
the lights are switched on.
5.19
5.20
Section 6: Technical specifications
Vehicle identification plates
6.2
Engine identification plate
6.3
Engine specification
6.3
Weights
6.4
Dimensions
6.5
Replacement parts and repairs
6.6
Service sheets
6.7
Anticorrosion check
6.13
6.1

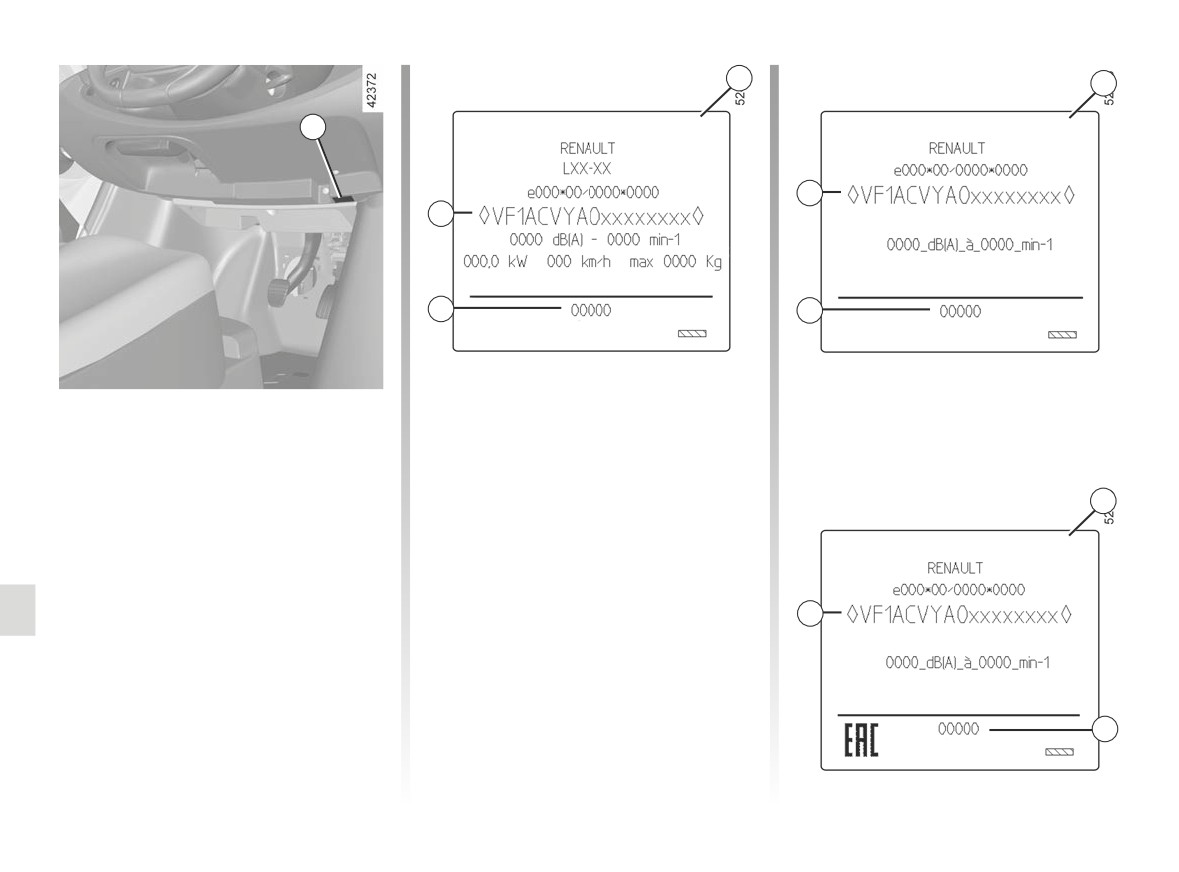

VEHICLE IDENTIFICATION PLATES
A
B
A
1
1
2
2
The information shown on the ve-
hicle identification plate should be
quoted on all correspondence or
orders.
Constructor plate A, B or C
C
1
Vehicle type and chassis number.
2
Paint reference.
1
2
6.2

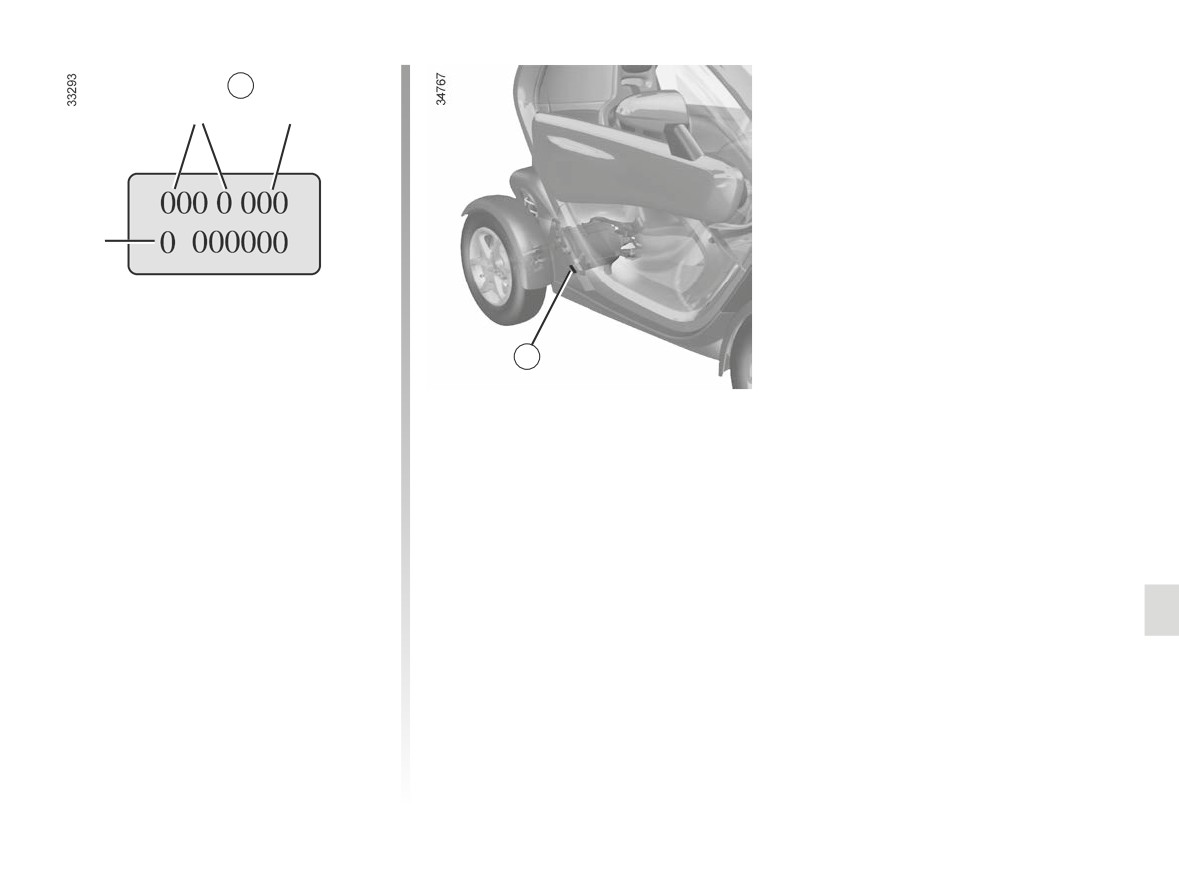

ENGINE IDENTIFICATION PLATE/ENGINE SPECIFICATION
A
1
2
3
A
Please quote the information on the
Engine specification
engine plate or label A in all corre-
Engine type 1: 3CG
spondence or orders.
(Location varies depending on engine)
1
Engine type.
2
Engine suffix.
3
Engine number.
6.3
WEIGHTS (in kg)
Vehicle type
Twizy 45
Twizy
Gross Vehicle Weight (GVW)
680
Trailer weight
prohibited
Maximum permissible load on roof
prohibited
6.4
DIMENSIONS (in metres)
0,313
1,686
0,339
1,193 → 1,237
2,337
1,454*
1,188 → 1,232
1,381 → 1,396
* Unladen
6.5
REPLACEMENT PARTS AND REPAIRS
Original parts are based on strict specifications and are subject to highly-specialised tests. Therefore, they are of at least the same
level of quality as the parts fitted originally.
If you always fit genuine replacement parts to your vehicle, you will ensure that it performs well. Furthermore, repairs carried out
within the manufacturer’s Network using original parts are guaranteed according to the conditions set out on the reverse of the
repair order.
