VEHICLE RANGE: recommendations (1/2)
In real usage, the range of an electric
vehicle may vary depending on several
factors over which you have partial con-
trol, which may make a considerable
difference to the vehicle range.
These factors are:
- speed and driving style;
- type of road;
- heating level;
- tyres;
- use of electrical accessories;
- vehicle loading.
Furthermore, activating ECO mode en-
ables the vehicle to automatically take
charge of all energy consumers (engine
power etc.) to reduce their consumption
A “sporty” driving style reduces your
-
adapt your driving style to avoid ex-
to the fullest possible extent ➥ 2.17.
vehicle range: opt for a “lighter” driving
cessive energy consumption;
style.
-
favour power recovery: anticipate
Advice:
traffic changes by lifting your foot off
Speed and driving style
the accelerator pedal or by braking
- drive at a constant speed;
High speeds will reduce your vehicle’s
gradually.
range.
- keep an eye on the tools available
to you to view the road conditions
Road type
(charge meter, current consumption,
journey record, etc.) ➥ 2.17 ;
Do not try to maintain the same speed
up a hill, accelerate no more than you
would on the level. Keep your foot in
the same position on the accelerator
pedal.
2.20

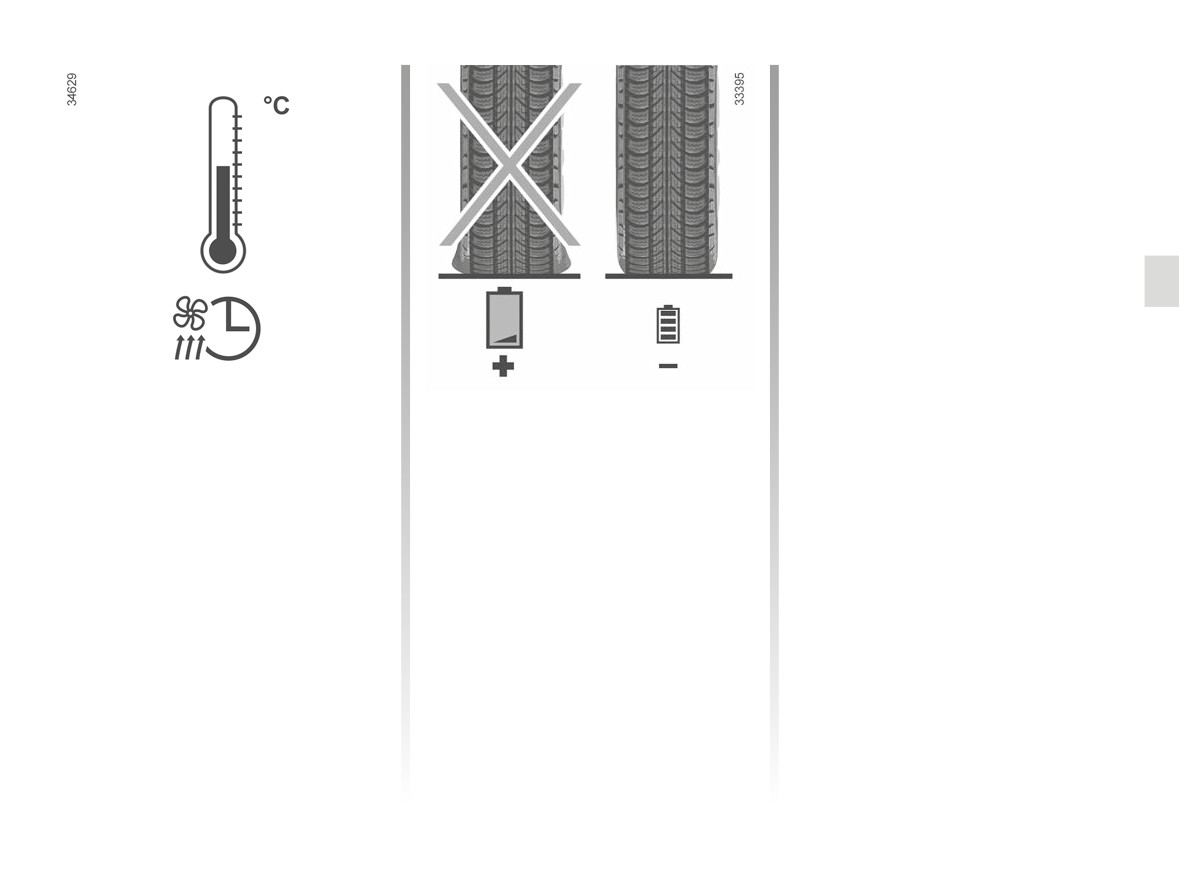

VEHICLE RANGE: recommendations (2/2)
Vehicle loading
Avoid pointlessly overloading your ve-
hicle.
Heating levels
Tyres
The use of heating or air-conditioning
An under-inflated tyre increases energy
reduces vehicle range.
consumption. Comply with the speci-
To maintain your vehicle range, you are
fied tyre pressures for your vehicle.
recommended to select “programming”
When driving, use tyres made by the
mode before using the vehicle ➥ 3.17.
same manufacturer, with the same di-
mensions, type and structure as the
original tyres. The use of non-regula-
tion tyres significantly reduces vehicle
range ➥ 4.7.
2.21
TYRE PRESSURE MONITOR (1/5)
Resetting the standard level
for the tyre pressures
This should be done:
1
- when the standard tyre pressure
needs to be changed to adapt to
usage conditions (empty, carrying a
load, motorway driving, etc.);
- after swapping a wheel (however
this practice is not recommended);
- after changing a wheel.
It should always be done after checking
the tyre pressure of all four tyres when
cold.
If the vehicle is equipped with the func-
Tyre pressures must correspond to the
tion, this system monitors the tyre pres-
current usage of the vehicle (empty,
sure.
carrying a load, motorway driving, etc.).
Operating principle
Each wheel has a sensor in the inflation
valve which periodically measures the
tyre pressure.
The system displays the current pres-
sures on the instrument panel 1 and
alerts the driver in the event of insuffi-
cient pressure.
If the vehicle is equipped with a nav-
igation system, the resetting proce-
dure may also be carried out using
the multimedia screen: please see
the equipment instructions.
2.22
TYRE PRESSURE MONITOR (2/5)
The flashing tyres symbol indicates
that the request to reset the reference
tyre pressure value has been acknowl-
edged.
1
Reset can take several minutes of driv-
3
ing.
If the reset is followed by short journeys,
the display of step 3 in the table on the
following page may remain displayed
after several successive restarts.
Note: the reference tyre pressure
2
cannot be less than that recommended
and indicated on the edge of the door.
Resetting procedure via the
Resetting procedure via the
instrument panel 1
multimedia screen 3
Ignition on, vehicle stopped:
Please refer to the multimedia instruc-
tions for further information.
- repeatedly press the switch upwards/
downwards 2 as many times as nec-
essary to reach the “Tyre pressure”
tab;
- press downwards and hold (around
3 seconds) the 2 switch to start the
reset.
For your safety, the warning
light
®
requires you
to stop immediately as soon
as traffic conditions allow.
2.23
TYRE PRESSURE MONITOR (3/5)
The table below shows the possible messages related to the tyre resetting procedure.
Steps
Displays
Readings
With the ignition on and the vehicle stationary, to start resetting the pressure of all four
1
tyres, press downwards and hold the 2 switch.
The “---” quote marks in front of each wheel will flash to indicate that the system has reg-
2
istered the tyre pressure reset for all four wheels.
The “---” quote marks in front of each wheel will remain lit. This system resets the tyre
pressure of all four tyres. You can now drive. The message may remain displayed during
3
short journeys.
Note: during the reset, tyre pressure monitoring remains in operation.
The pressure value of the four tyres is displayed: the resetting procedure is complete and
4
successful.
2.24
TYRE PRESSURE MONITOR (4/5)
Readjustment of tyre
Replacing wheels/tyres
pressures
Contact an Approved Dealer to replace
The pressure of the four tyres must
the tyres and to find out about acces-
be set when cold (refer to the label lo-
sories compatible with the system that
1
cated on the edge of the driver’s door).
are available from your dealer network:
If the tyre pressures cannot be checked
using any other accessory could affect
when the tyres are cold, the recom-
the correct operation of the system.
mended pressures should be increased
by 0.2 to 0.3 bar (3 PSI).
Never deflate a hot tyre.
Tyre repair product and
inflation kit
As the valves are specifically designed,
only use equipment approved by the
network. Please see the section on
➥ 5.2.
This function is an addi-
tional driving aid.
Tyre pressure faults
Changing a wheel
The function does not take
The table on the following page lists
The system may take sev-
the place of the driver. It
the warning messages which appear
eral minutes depending on
cannot, therefore, under any cir-
on the instrument panel 1 when the
use for the new wheel po-
cumstances replace the vigilance
system detects a tyre pressure fault.
sitions and pressures to be recog-
or the responsibility of the driver.
nised; check the tyre pressures after
Check the tyre pressures once a
all operations.
month.
2.25
TYRE PRESSURE MONITOR (5/5)
The information on the instrument panel signals any potential tyre pressure faults (e.g. deflated or punctured tyre). For
your safety, the warning light® requires you to stop immediately as soon as traffic conditions allow.
Indicator
Messages
Displays
Readings
lights
(depending on
the vehicle)
The wheel and associated pressure value are dis-
played in yellow.
Adjust Tyre Pressure
This indicates that tyre under-inflation has been de-
tected. Check and adjust the pressure of the four
tyres then reset the system.
The wheel and associated pressure value are dis-
played in red.
This indicates that the tyre concerned is punctured
Puncture
or severely underinflated. Adjust the pressure of the
+®
four tyres while cold and reset the system if the tyre
is deflated. Replace the tyre (or have it replaced) if
it is punctured.
A wheel is no longer displayed.
This indicates that at least one wheel is not fitted with
Check Tyre Pressure Sensors
a sensor or that the sensor is faulty. Consult an ap-
proved dealer.
This indicates that the system has not been able to
determine the pressure of each tyre. This may be
Tyre Detection Failure
caused by the use of a sensor not recommended by
an approved dealer. The tyre pressure sensor moni-
toring system remains in operation.
2.26
DRIVER CORRECTION DEVICES, AIDS (1/5)
Depending on the vehicle, they com-
ABS (anti-lock braking
prise:
system)
– the ABS
(anti-lock braking
Under heavy braking, the ABS prevents
system);
the wheels from locking, allowing the
- the electronic stability program
stopping distance to be managed and
ESC with understeer control and
keeping control of the vehicle.
traction control;
Under these circumstances, the vehi-
cle can be steered to avoid an obstacle
- emergency braking assistance
whilst braking. In addition, this system
with (depending on the vehicle)
can increase stopping distances, par-
braking anticipation;
ticularly on roads with low surface grip
- hill start assist;
(wet ground etc.).
You will feel a pulsation through the
- regenerative braking system.
These functions are an ad-
brake pedal each time the system is
Other driving assistance systems are
ditional aid in the event of
activated. The ABS does not in any way
detailed on the following pages.
critical driving conditions,
improve the vehicle’s physical perform-
enabling the vehicle behav-
ance relating to the road surface and
iour to be adapted to suit the driving
roadholding. It is still essential to follow
conditions.
the rules of good driving practice (such
as driving at a safe distance from the
However, the functions do not take
vehicle in front etc.).
the place of the driver. They do
not increase the vehicle’s limits
and should not encourage you
to drive more quickly. Therefore,
they can under no circumstances
replace the vigilance or responsibil-
ity of the driver when manoeuvring
the vehicle (the driver must always
In an emergency, apply firm and
be ready for sudden incidents which
continuous pressure to the brake
may occur when driving).
pedal. There is no need to pump
it repeatedly. The ABS will modu-
late the force applied in the braking
system.
2.27
DRIVER CORRECTION DEVICES, AIDS (2/5)
Operating faults
Electronic stability program
Understeer control
ESC with understeer control
This system optimises the action of the
-
and x
are lit on the in-
and traction control
ESC in the case of pronounced under-
strument panel accompanied, de-
steer (loss of front axle road holding).
pending on the vehicle, by the mes-
Electronic stability control ESC
sages “Check ABS”, “WARNING:
Traction control
This system helps you to keep control
Check Braking System” and “Check
of the vehicle in critical driving condi-
This system helps to limit wheelspin of
ESC”: the ABS, the ESC and the
tions (avoiding an obstacle, loss of grip
the drive wheels and to control the ve-
emergency brake assist are deacti-
on a bend, etc.).
hicle when pulling away accelerating or
vated. Braking is always enabled;
decelerating.
Operating principle
- x
, D
,
and
®
Operating principle
lit on the instrument panel accom-
A sensor in the steering wheel detects
Using the wheel sensors, the system
panied by the message “WARNING:
the direction selected by the driver.
measures and compares the speed of
Braking System”: this indicates a
Other sensors throughout the vehicle
the drive wheels at all times and slows
fault with the braking system.
measure the actual direction.
down their over-rotation. If a wheel is
In both cases, please consult an
starting to slip, the system brakes au-
The system compares driver input to
Authorised Dealer.
tomatically until the drive supplied be-
the actual trajectory of the vehicle and
comes compatible with the level of grip
corrects the trajectory if necessary by
under the wheel again.
controlling the braking of certain wheels
and/or engine power. In the event that
the system is engaged, indicator light
flashes on the instrument panel.
Your braking systems
are partially operational.
However, it is dangerous
to brake suddenly and
it is essential to stop immediately,
as soon as traffic conditions allow.
Contact an approved dealer.
2.28
DRIVER CORRECTION DEVICES, AIDS (3/5)
Operating faults
Brake lights come on
Operating faults
When the system detects an operat-
Depending on the vehicle, these may
When the system detects an operating
ing fault the message “Check ESC” and
flash in the event of sudden decelera-
fault the message “WARNING: Check
tion.
Braking System” appears on the instru-
appear
on the instrument panel. In this case,
Braking anticipation
ing light.
the ESC and traction control system
Depending on the vehicle, when you
Consult an approved dealer.
are deactivated.
rapidly release the accelerator, the
Consult an approved dealer.
system anticipates the braking ma-
noeuvre in order to reduce stopping
distances.
Emergency brake assist
This system supplements the ABS
Special cases
and helps reduce vehicle stopping dis-
These functions are an ad-
When using the cruise control:
tances.
ditional aid in the event of
-
if you use the accelerator, when you
critical driving conditions,
Operating principle
release it, the system may be trig-
enabling the vehicle behav-
gered;
The system is for detecting an emer-
iour to be adapted to suit the driving
gency braking situation. In this case,
-
if you do not use the accelerator, the
conditions.
the braking system immediately devel-
system will not be triggered.
These functions do not take the
ops maximum power and may trigger
place of the driver. They do not
ABS regulation.
increase the vehicle’s limits and
ABS braking is maintained as long as
should not encourage you to
the brake pedal is applied.
drive more quickly. Therefore,
they can under no circumstances
replace the vigilance or responsibil-
ity of the driver when manoeuvring
the vehicle (the driver must always
be ready for sudden incidents which
may occur when driving).
2.29
DRIVER CORRECTION DEVICES, AIDS (4/5)
Hill start assistance
Depending on the gradient of the in-
cline, this system assists the driver
when starting on a hill. It prevents the
vehicle from rolling backwards by au-
The hill start assistance
tomatically applying the brakes when
system cannot completely
the driver lifts his/her foot off the brake
prevent the vehicle from
pedal to depress the accelerator pedal.
rolling backwards in all sit-
System operation
uations (extremely steep gradients,
etc.).
It only operates when the gear lever is
in a position other than N and the ve-
In all cases, the driver may depress
hicle is completely stationary (brake
the brake pedal to prevent the vehi-
pedal depressed).
cle from rolling backwards.
The system holds the vehicle for ap-
The hill start assistance function
proximately 2 seconds. The brakes are
should not be used for prolonged
then gradually released (the vehicle will
stops: use the brake pedal.
move according to the slope).
This function is not designed to im-
mobilise the vehicle permanently.
If necessary, use the brake pedal to
stop the vehicle.
The driver must remain particularly
vigilant when driving on slippery or
low-grip surfaces.
Risk of serious injury.
2.30
DRIVER CORRECTION DEVICES, AIDS (5/5)
Regenerative braking system
Operating faults
When braking, the regenerative brak-
-
lit on the instrument panel
ing system can convert the energy pro-
accompanied by the message
duced by the vehicle deceleration into
“WARNING: Check Braking System
electric energy.
“: braking assistance is still oper-
ational.
This will recharge the 400 V traction
battery and provide greater vehicle
Under these conditions, the feel of
range.
applying the brake pedal may be dif-
ferent.
You are recommended to apply
strong continuous pressure to the
pedal.
Please see an authorised dealer.
-
®
lit on the instrument panel
accompanied by the message
“WARNING: Braking System”: this
indicates a fault with the braking
system.
Please call an authorised dealer.
The
®
warning light
requires you to stop imme-
diately, for your own safety,
as soon as traffic conditions
allow. Switch off the engine and
do not restart it. Call an approved
Dealer.
2.31
LANE DEPARTURE WARNING (1/5)
Location of the camera 1
1
Make sure the windscreen is not ob-
scured (dirt, mud, snow, condensation
etc.).
Using information from the camera 1,
the function warns the driver if they
cross a (continuous or broken) line
without activating the direction indica-
tor lights.
This function is an addi-
tional driving aid. This func-
tion is not under any cir-
cumstances intended to
replace the due care and attention
of the driver, who should at all times
be in control of the vehicle.
The lane departure warning func-
tion does not correct the vehi-
cle’s trajectory.
2.32
LANE DEPARTURE WARNING (2/5)
To deactivate the function, press the 3
switch or deselect
“Lane departure
warning” in the “Lane keeping system
“ menu.
2
Warning light
goes out on the in-
strument panel.
If the lane departure warning was the
only side function selected, the switch
warning light 3 goes out and the mes-
sage “”Lane keeping system deacti-
vated “ is displayed.
3
If the “ Lane crossing prevention “ func-
tion is activated, deselecting the lane
departure warning will not affect system
operation.
Activation/deactivation
Press the 3 switch to activate the func-
tion.
Before activating the function, from
the “Vehicle” mode on the multimedia
The message “Lane keeping system
screen 2, press the “Driving assistance”
activated” and the
” warning
menu then the “Lane keeping system”
light are displayed on the instrument
menu and select “Lane departure warn-
panel and the 3 switch warning light il-
ing”.
luminates.
If no side function is selected in the
“Lane keeping system” menu, when
the 3 switch is pressed the message
“Lane keeping system not configured”
is displayed on the instrument panel.
Each time the vehicle is started,
the function continues the mode
saved the last time the engine was
stopped.
2.33
LANE DEPARTURE WARNING (3/5)
The function triggers an alert if a line
is crossed without the direction indica-
tors being activated.
The function alerts the driver:
- by a vibration in the steering wheel;
and
4
warning light and 4 the in-
- the
dicator for the crossed line turn red.
Operation
When the function is activated, the
warning light and the left and
right lines 4 are displayed in grey on the
instrument panel.
The function is set to notify the
driver if:
- the speed is between 40 mph (65
km/h) and 93 mph (150 km/h) (or 99
mph (160 km/h) depending on the
vehicle);
and
- the
warning light and left/right
line indicators 4 are coloured white.
2.34
LANE DEPARTURE WARNING (4/5)
Temporarily not available
Conditions for non-activation
The system will cease to be available if:
of the system
The system cannot be activated when:
- very fast lane departure;
– driving continuously on a line;
- reverse gear is engaged;
2
- four seconds approximately after
- the field of vision of the camera is ob-
changing lanes;
structed;
- tight bends;
- the û
warning light is displayed.
- impaired visibility;
The
warning light and the left/
- activation of one of the direction indi-
right line indicators turn to grey on the
cator lights;
instrument panel.
- strong acceleration;
- the lane width changes;
Adjustment
-
“Lane departure anticipation”: adjust
- the active emergency braking
To access the multimedia screen func-
the line detection sensitivity level. To
system is triggered.
tion settings 2, refer to the multimedia
do this select:
When the function is not available, the
instructions:
- “Late”: line detected when cross-
warning light and the left/right in-
- “Alert vibration”: adjust the steering
ing;
dicators turn to grey on the instrument
wheel vibration level;
- “Standard”: line detected on ap-
panel.
proach;
- “Early”: line detected nearby.
Please refer to the multimedia instruc-
tions for further information.
2.35
LANE DEPARTURE WARNING (5/5)
Operating faults
This function is an additional driving aid. This function is not under any
In the event of a malfunction, the left
circumstances intended to replace the due care and attention of the
and right line indicators (and, depend-
driver, who should at all times be in control of the vehicle.
ing on display style, the
warning
System servicing/repairs
light) stay grey on the instrument panel.
- In the event of an impact, the camera alignment may be changed, and its op-
In some cases, they are accompanied
eration may consequently be affected. Deactivate the function, then consult an
by the “Driving assist unavailable” mes-
authorised dealer.
- Any work in the area where the camera is located (repairs, replacements,
sage or the
warning light on
windscreen modifications etc.) must be carried out by a qualified professional.
the instrument panel and the “Check
Only an authorised dealer is qualified to service the system.
Driving assist” or “Check Front camera”
message.
In the event of system disturbance
Consult an approved dealer.
Some conditions can disturb or damage the operation of the system, such as:
- windscreen obscured (by dirt, ice, snow, condensation etc.);
- a complex environment (tunnel etc.);
- poor weather conditions (snow, rain, hail, black ice etc.) ;
- poor visibility (night, fog etc.);
- the road markings are irregular or difficult to distinguish (e.g. partially erased,
excessive spacing, distorted road surface, etc.) ;
- being dazzled (glaring sun, lights of vehicles travelling in the opposite direction
etc.);
- the road is narrow, winding or undulating (tight bends etc.);
- closely following a vehicle travelling in the same lane.
Risk of false alarms or absence of warnings
2.36
LANE DEPARTURE PREVENTION (1/6)
Location of the camera 1
1
Make sure the windscreen is not ob-
scured (dirt, mud, snow, condensation
etc.).
Using information from the camera 1,
the function triggers a corrective action
on the vehicle steering system if a con-
tinuous or broken line is crossed with-
out the direction indicator lights having
been activated.
This function is an addi-
tional driving aid. This func-
tion is not under any circum-
stances intended to replace
the due care and attention of the
driver, who should at all times be
You can retake control of the ve-
in control of the vehicle.
hicle at any time by operating the
steering wheel.
2.37
LANE DEPARTURE PREVENTION (2/6)
If no side function is selected in the
“Lane keeping system” menu, when
the 3 switch is pressed the message
“Lane keeping system not configured”
is displayed on the instrument panel.
2
The 3 switch warning light remains
switched off.
To deactivate the function, press the 3
switch or deselect “Lane crossing pre-
vention” in the “Lane keeping system”
menu.
3
Warning light
goes out on the in-
strument panel.
The 3 switch warning light goes out and
Activation/deactivation
Press the 3 switch to activate the func-
the message “Lane keeping system
tion.
deactivated” is displayed on the in-
Before activating the function, from
strument panel when the 3 switch is
the “Vehicle” mode on the multimedia
The message “Lane keeping system
pressed or when all of the side func-
screen 2, press the “Driving assistance”
activated” and the
” warning
tions are deselected in the “Lane keep-
menu then the “Lane keeping system”
light are displayed on the instrument
ing system” menu.
menu and select “Lane crossing pre-
panel and the 3 switch warning light il-
vention”.
luminates.
When lane departure prevention is acti-
vated, it incorporates the function “Lane
departure warning”, even if it is not se-
lected on the multimedia screen
➥ 2.32.
Each time the vehicle is started,
the function continues the mode
saved the last time the engine was
stopped.
2.38
LANE DEPARTURE PREVENTION (3/6)
In these cases:
Special cases
- the function triggers an action on the
When using the function:
vehicle’s steering system to correct
-
If the system can no longer detect
the vehicle trajectory;
any action by the driver on the steer-
– the warning light
and the indi-
ing wheel, the
warning light
cator 4 on the side of the breached
appears in orange on the instrument
4
line turns to yellow on the instrument
panel, accompanied by the message
panel.
“Keep control” and an audible warn-
ing.
Note: on bends, the function allows for
slightly cutting the bend.
The audible warning is emitted along
with the warning light and message
If the corrective action on the steer-
until the driver takes control;
ing system is not sufficient, the
-
if the system is active for too long, a
warning light and the indicator 4 on the
warning sound is emitted, the 4 indi-
Operation
side of the breached line turn to red on
cator light on the side of the line con-
When the function is activated, the
the instrument panel, accompanied by
a vibration on the steering wheel.
cerned flashes and the
warn-
warning light and the left and
ing light shows orange until control is
right lines 4 are displayed in grey on the
taken of the vehicle again.
instrument panel.
The function is set to operate when
the vehicle speed is between approxi-
mately 40 mph (65 km/h) and 93 mph
(150 km/h) or 99 mph (160 km/h), de-
pending on the vehicle, and the
warning light and the left-hand or right-
hand line indicators 4 appear in white.
The function reacts when the vehi-
cle crosses a line without the indicator
lights having been activated.
You can interrupt the trajectory cor-
rection at any time by moving the
steering wheel.
2.39
LANE DEPARTURE PREVENTION (4/6)
Temporarily not available
Conditions for non-activation
The system will cease to be available if:
of the system
The system cannot be activated when:
- very fast lane departure;
- driving continuously on a line;
- reverse gear is engaged;
- four seconds approximately after
- the field of vision of the camera is ob-
changing lanes;
structed;
- tight bends;
- the û
warning light is displayed.
- impaired visibility;
The
warning light and the left/
- activation of one of the direction indi-
right line warning lights are displayed in
cator lights;
grey on the instrument panel.
- strong acceleration;
- emergency braking;
- the lane width changes;
- the active emergency braking
system is triggered.
If the function is unavailable, the
warning light and the left/right correc-
tion warning lights 3 appear in grey on
the instrument panel.
2.40















Content      ..     6      7      8      9     ..
