Renault Megane (2022 year). Manual in english - page 19





OPERATING FAULTS (6/8)
On the road
POSSIBLE CAUSES
WHAT TO DO
Steering becomes heavy.
Assistance overheating.
Drive carefully at reduced speed, be aware
of the level of force in the steering wheel
Fault with the electric assistance
needed to turn the wheels. Consult an ap-
motor.
proved dealer
Fault in the assistance system.
The engine is overheating. The cool-
Engine cooling fan not working.
Stop the vehicle, switch off the engine and
ant temperature indicator is in the
contact an approved dealer.
warning zone and warning light
®
comes on.
Coolant leaks.
Check the coolant reservoir: it should con-
tain fluid. If there is no coolant, consult an
approved dealer as soon as possible.
Coolant boiling in the coolant reser-
Mechanical fault: damaged cylinder
Stop the engine.
voir.
head gasket.
Contact an approved dealer.
Radiator: If there is a significant lack of coolant, remember that it must never be topped up using cold coolant while
the engine is very warm. After any procedure on the vehicle which has involved even partial draining of the cooling
system, it must be refilled with a new mixture prepared in the correct proportions. Reminder: only products approved
by our Technical Department may be used for this purpose.
5.46
OPERATING FAULTS (7/8)
Electrical equipment
POSSIBLE CAUSES
WHAT TO DO
The wipers do not work.
Wiper blades stuck.
Free the blades before using the wipers.
Faulty electrical circuit.
Consult an approved dealer.
Fuse damaged.
Replace the fuse or have it replaced
➥ 5.28.
The wiper does not stop.
Faulty electrical controls.
Consult an approved dealer.
Direction indicators flashing more
Blown bulb.
➥ 5.16 or ➥ 5.18.
quickly.
The direction indicators do not work.
Faulty electrical circuit or control.
Consult an approved dealer.
Fuse damaged.
Replace the fuse or have it replaced
➥ 5.28.
The lights do not come on or go off.
Faulty electrical circuit or control.
Consult an approved dealer.
Fuse damaged.
Replace the fuse or have it replaced
➥ 5.28.
5.47
OPERATING FAULTS (8/8)
Electrical equipment
POSSIBLE CAUSES
WHAT TO DO
Traces of condensation in the lights
Traces of condensation may be a nat-
and headlights.
ural phenomenon caused by varia-
tions in temperature and humidity.
In this case, the traces will disappear
slowly once the lights are switched
on.
The front seat belt reminder light
An object is stuck between the floor
Remove all objects from underneath the
comes on when the seat belts are
and the seat and is disrupting the op-
front seats.
fastened.
eration of the sensor.
5.48
Section 6: Technical specifications
Vehicle identification plates
6.2
Technical Information for the emergency services
6.3
Engine identification
6.4
Dimensions
6.6
Engine specifications
6.9
Weights
6.12
Towing weights
6.12
Replacement parts and repairs
6.13
Service sheets
6.14
Anticorrosion check
6.20
6.1
VEHICLE IDENTIFICATION PLATES
A
1
2
3
A
4
5
10
6
9
7
8
The information shown on the ve-
4
MMAC (Maximum permissible
hicle identification plate should be
all-up weight).
quoted on all correspondence or
5
MTR (Gross train weight: vehicle
orders.
fully loaded, with trailer).
6
MMTA (Maximum Permissible
The presence and location of the in-
Weight) front axle.
formation depends on the vehicle.
7
MMTA rear axle.
8
Reserved for related or additional
Vehicle identification plate A
entries.
1
Manufacturer name.
9
Not used.
2
EC design number or approval
10
Paint reference (colour code).
number.
B
3
Identification number.
Depending on the vehicle, this
information is also given on
markingB.
6.2

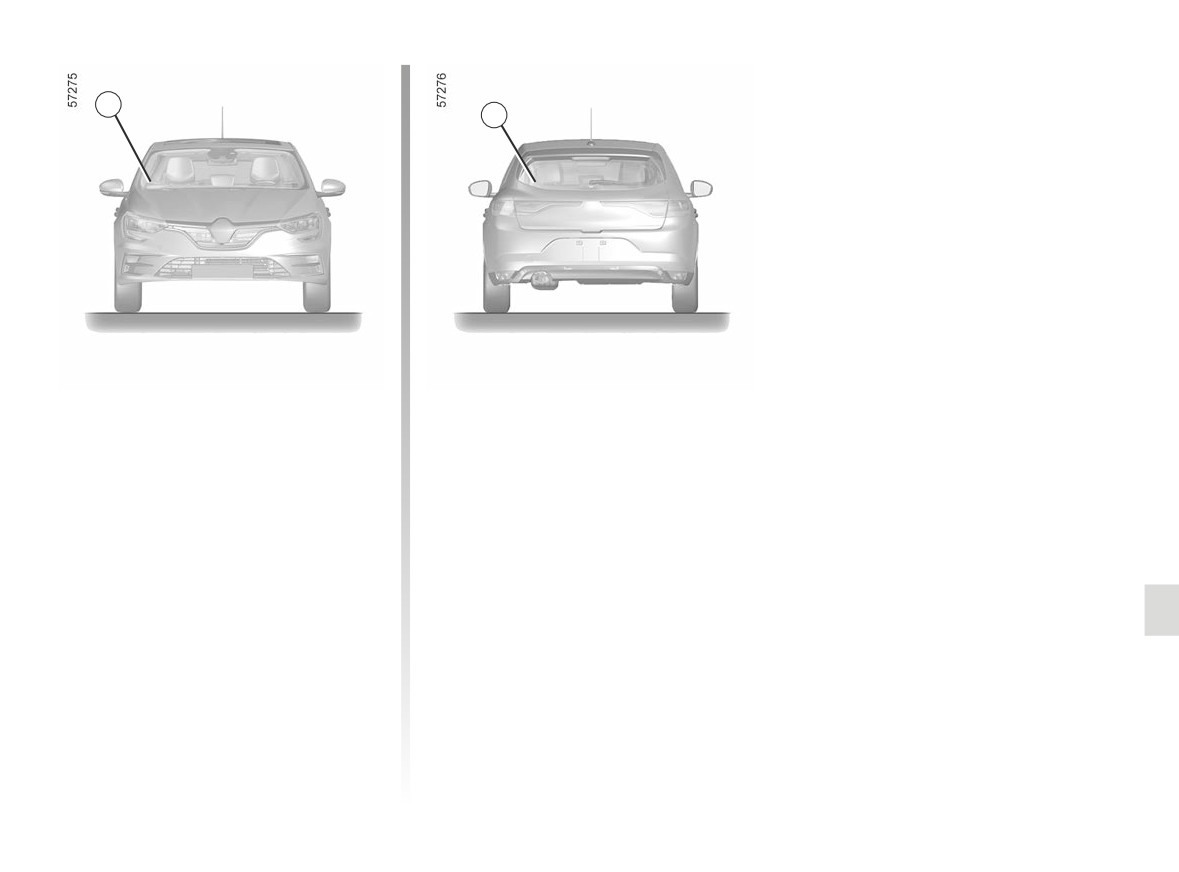

TECHNICAL INFORMATION FOR THE EMERGENCY SERVICES
A
A
The QR Code on the A label allows
emergency workers using a tablet or
smartphone to immediately access the
technical information useful for working
on the vehicle in the event of an acci-
dent.
Ensure that the A label is always visible
and present on the windscreen as well
as the rear screen.
Any modification or damage would
prevent access to the information.
6.3

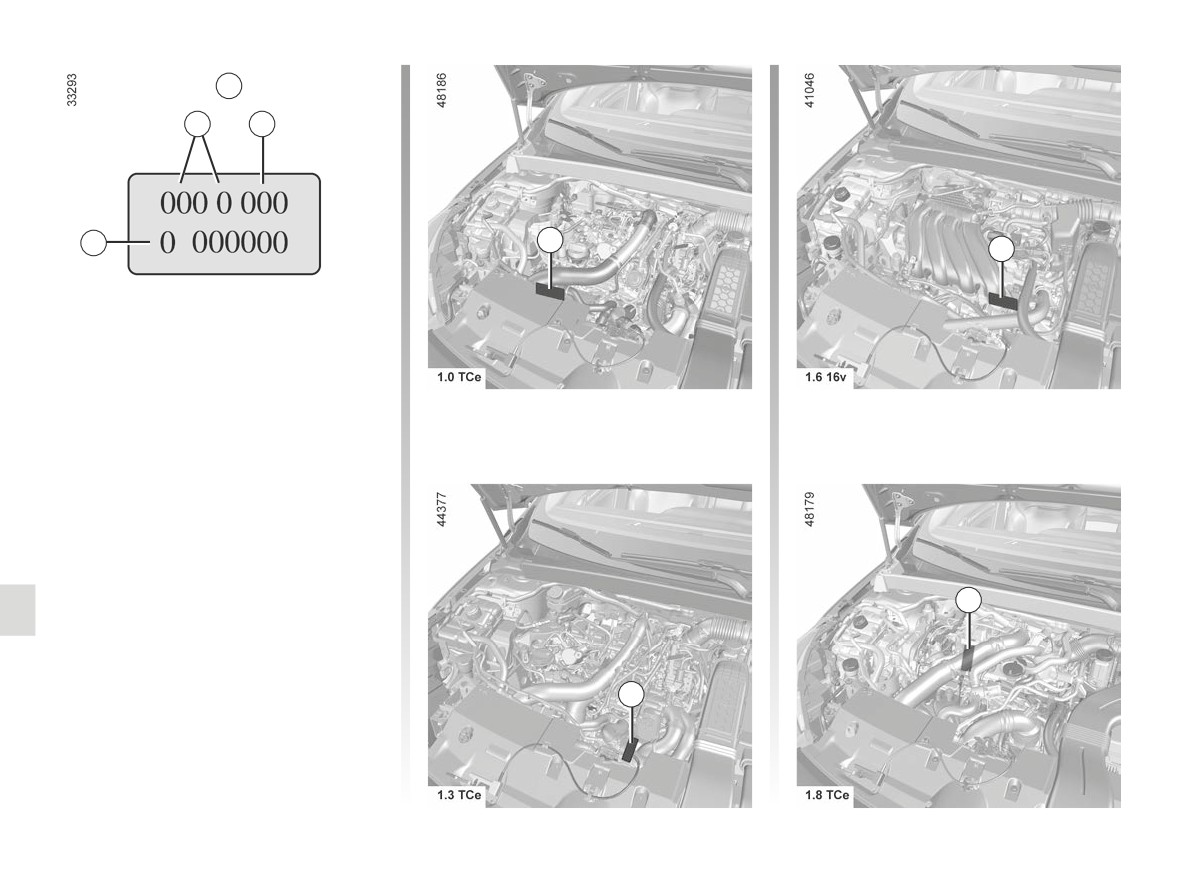

ENGINE IDENTIFICATION (1/2)
A
1
2
3
A
A
Please quote the engine identifica-
tion information in area A in all cor-
respondence or orders.
(Location varies depending on engine)
1
Engine type.
2
Engine suffix.
3
Engine serial number.
A
A
6.4

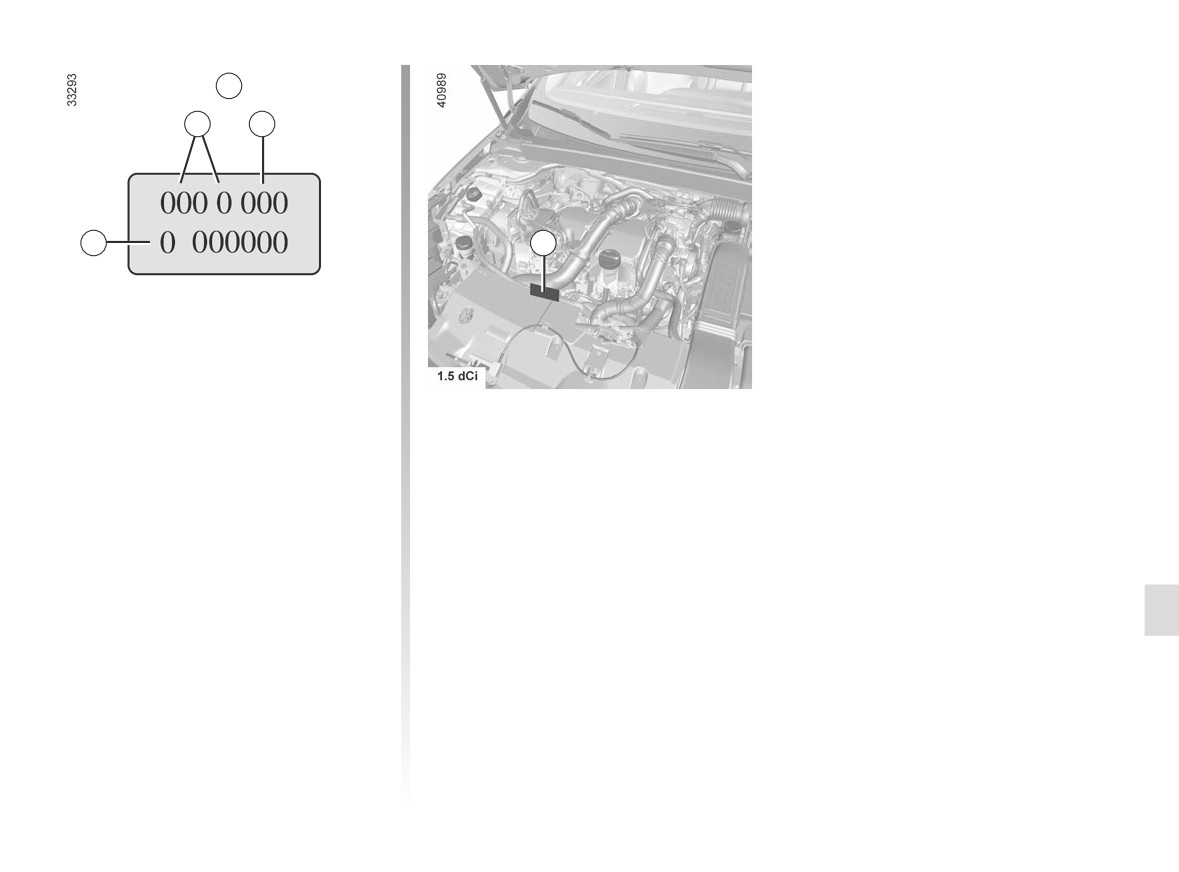

ENGINE IDENTIFICATION (2/2)
A
1
2
3
A
Please quote the engine identifica-
tion information in area A in all cor-
respondence or orders.
(Location varies depending on engine)
1
Engine type.
2
Engine suffix.
3
Engine serial number.
6.5
DIMENSIONS (in metres) (1/3)
Five-door version
0,921
2,670
0,768
1,574 to 1,596
4,359
1,446*
1,565 to 1,599
2,058
* Unladen
6.6
DIMENSIONS (in metres) (2/3)
Estate versions
0,921
2,712
0,993
1,574 to 1,596
4,626
1,449*
1,565 to 1,599
2,058
* Unladen
6.7
DIMENSIONS (in metres) (3/3)
Four-door version
0,921
2,711
0,998
1,577 to 1,583
4,630
1,443*
1,583 to 1,587
2,058
* Unladen
6.8
ENGINE SPECIFICATIONS (1/3)
Versions
1.0 TCe
1.3 TCe
1.6 16V
1.8 TCe
1.5 dCi
Engine type
H5D Turbo
H5H Turbo
H4M
M5P Turbo
K9K
(see engine plate)
Cubic capacity (cc)
999
1333
1598
1798
1461
Type of fuel
Petrol
Diesel
Octane rating
You must use unleaded petrol with the octane rating stated on the
The label located in the fuel filler
label inside the fuel filler flap. ➥ 1.116.
flap indicates the authorised
fuels.
6.9
ENGINE SPECIFICATIONS (2/3)
Versions
1.0 TCe
1.3 TCe
1.6 16V
1.8 TCe
1.5 dCi
Engine type
H5D Turbo
H5H Turbo
H4M
M5P Turbo
K9K
(see engine plate)
Cubic capacity (cc)
999
1333
1598
1798
1461
Fuel types that meet
Unleaded petrol compliant with stand-
Diesel fuel compliant with
European standards
ard EN 228 contains up to 5% ethanol in
standard EN 590 contains up
and are compatible
volume.
to 7% fatty acid methyl ester
with the engines of ve-
in volume.
hicles sold in Europe
(in any other case,
contact an Approved
Dealer).
Unleaded petrol compliant with standard
Diesel fuel compliant with
EN 228 contains up to 10% ethanol in
standard EN 16734 contains
volume.
up to 10% fatty acid methyl
ester in volume.
Diesel fuel compliant with
standard EN 15940 contains
up to 7% acid methyl ester in
volume.
6.10
ENGINE SPECIFICATIONS (3/3)
Versions
1.0 TCe
1.3 TCe
1.6 16V
1.8 TCe
1.5 dCi
Engine type
H5D Turbo
H5H Turbo
H4M
M5P Turbo
K9K
(see engine plate)
Cubic capacity (cc)
999
1333
1598
1798
1461
Spark plugs
Only use the spark plugs specified for your vehicle’s engine.
The type should be marked on a label affixed inside the engine
compartment. If it is not then contact an approved Dealer.
Fitting spark plugs which are not to specification may damage the
engine.
6.11
WEIGHTS (in kg)
The weights indicated are for a basic vehicle without options: they may vary depending on your vehicle’s equipment.
Consult an approved Dealer.
Five door
Estate
Four-door
Maximum permissible all-up weight (MMAC)
Maximum permissible all-up weight (MMTA)
Weights indicated on the vehicle identification plate ➥ 6.2
Gross Train Weight (MTR)
Braked Trailer Weight*
found by calculating: MTR - MMAC
Unbraked Trailer Weight*
635
660
655
Permissible nose weight*
75
75
75
Maximum permissible load on roof
80 kg (including the carrying device)
* Towing weight (Towing a caravan, boat, etc.)
Towing is prohibited when the MTR - MMAC calculation is equal to zero, or when the MTR is equal to zero (or is not listed) on the
identification plate.
- It is important to respect local towing regulations in force, specifically those set out in the Highway Code. Contact an approved
Dealer for any modifications to towing equipment.
- When towing, under no circumstances may the total train weight (vehicle + trailer) be exceeded. However the following is
permitted:
- rear axle MMTA exceeded by no more than 15%,
- maximum MMAC exceeded by no more than 10% or 100 kg (whichever is reached first).
In either case, the maximum speed of the towing assembly must not exceed 60 mph (100 km/h) and the tyre pressure must be
increased by 0.2 bar (3 PSI).
- The engine output and climbing capability are reduced with altitude. We recommend that the maximum load be reduced by
10% at an altitude of 1,000 metres and by an additional 10% for each 1,000 metres thereafter.
6.12
REPLACEMENT PARTS AND REPAIRS
Original parts are based on strict specifications and are subject to highly-specialised tests. Therefore, they are of at least the same
level of quality as the parts fitted originally.
If you always fit genuine replacement parts to your vehicle, you will ensure that it performs well. Furthermore, repairs carried out
within the manufacturer’s Network using original parts are guaranteed according to the conditions set out on the reverse of the
repair order.
6.13
