Renault Megane (2022 year). Manual in english - page 2





FRONT SEATS WITH MANUAL CONTROL (1/3)
2
1
3
5
4
Settings
To tilt the seatback
Lift handle 3 and tilt the seatback to the
To move the seat forwards or back
desired position. Release the handle at
Lift handle 1 to release. Release the
the desired position and make sure that
For safety reasons, carry
handle at the desired position and
it is locked.
out any adjustments while
make sure that it is locked.
the vehicle is stationary.
To adjust the seat’s lumbar position
We would advise you not
To raise or lower the seat base
Depending on the vehicle:
to recline the seatbacks too far to
Move lever 2 as many times as neces-
ensure that the effectiveness of the
- move the switch 4 forwards, back-
sary upwards or downwards.
seat belts is not reduced.
wards, up or down;
Nothing should be placed on the
or
floor (area in front of driver) as such
- lower the handle 5 to increase the
objects may slide under the pedal
support and lift it to decrease it.
during braking manoeuvres, thus
obstructing its use.
1.21
FRONT SEATS WITH MANUAL CONTROL (2/3)
When using the passenger seat in table
position, you must not use the two rear
seats immediately behind it.
6
3
After making adjustments,
make sure that the seat-
backs are correctly locked
in place.
Table function
Depending on the vehicle, the passen-
ger seatback may be folded down onto
When the front seatback is
the seat base to create a table.
in the table position, you
- Lower the headrest;
must deactivate the front
- move the seat back;
passenger airbag ➥ 1.58.
- lift the lever 3 and tilt the seatback
forwards as far as possible;
Risk of serious injury caused by
- pull the handle 6 and fully lower the
items resting on the seatback table
seatback.
which may be dislodged when the
airbagairbag is deployed.
The label (on the dashboard) and
the markings (on the windscreen)
remind you of these instructions.
For your safety, attach any
For safety reasons, carry
transported objects when
out any adjustments when
the seat is in the table po-
the vehicle is not being
sition.
driven.
1.22
FRONT SEATS WITH MANUAL CONTROL (3/3)
6
7
Repositioning the seat
Heated seats
Make sure that nothing prevents the
With the ignition on:
seat from moving.
- pressing the switch 7 on the required
- Pull the handle 6 and raise the seat-
seat for the first time activates the
back, ensuring that it locks firmly in
heating system at maximum power.
place.
Both integrated switch warning lights
- Reposition the seat base.
come on;
- a second press decreases the heat-
ing to minimum power. One inte-
grated warning light comes on;
- pressing for the third time turns the
heating off.
1.23
DRIVER’S SEAT WITH ELECTRIC CONTROLS (1/2)
4
2
1
3
On vehicles that are equipped, the
Adjusting the seat position
switch 1 can be used to access the
To move the seat forwards or back
“Seats” menu on the multimedia screen
Move switch 4 forwards or backwards.
(see following pages).
To raise or lower the seat base
Move the back of switch 4 up or down.
Adjusting the seatback
To tilt the seat base
To tilt the seatback, move the top of
(depending on the vehicle)
switch 2 forwards or backwards.
Move the front of switch 4 upwards or
downwards.
Adjusting the lumbar support
on the driver’s seat
Move the switch 3 forwards, back-
wards, up or down.
1.24
DRIVER’S SEAT WITH ELECTRIC CONTROLS (2/2)
5
For safety reasons, carry
Heated seats
out any adjustments when
the vehicle is not being
With the ignition on:
driven.
- Pressing the switch 5 on the required
We would advise you not to recline
seat for the first time activates the
the seatbacks too far to ensure that
heating system on high. Both switch
the effectiveness of the seat belts is
indicator lights are illuminated;
not reduced.
- pressing the switch for the second
No object should be placed on the
time changes the heating to low.
floor
(in front of the driver). such
Only one indicator light is illumi-
objects may slide under the pedals
nated;
during sudden braking manoeuvres
- pressing for the third time turns the
and obstruct their use.
heating off.
1.25
FRONT SEATS: Functions (1/3)
Browse the “Driver” menu to:
- select the massage type
(Tonic,
Massage
Relaxing or Lumbar);
ON
- adjust the intensity (+ or -);
Tonic
Relaxing Lumbar
- adjust the speed (+ or -);
Intensity
- reset the settings selected on the
Speed
dropdown menu 2;
1
- activate/deactivate the massage
seat (ON or OFF).
Note: the mode selected in the MULTI-
SENSE menu may affect the configura-
2
tion of the massage ➥ 3.2.
A number of seat functions are avail-
Massage
able from the multifunction screen, de-
You can activate the driver’s seat mas-
pending on the vehicle.
sage function.
On equipped vehicles, the switch 1 pro-
Refer to the multimedia instructions for
vides direct access to the “Seats” menu
information on accessing the settings.
on the multimedia screen.
Refer to the multimedia instructions for
more information.
1.26
FRONT SEATS: Functions (2/3)
Easy driver access
Press ON or OFF to activate or deacti-
vate this function.
When this function is activated, the seat
automatically moves back when the
driver leaves the vehicle, and returns
to its position when the start button is
pressed.
Visual feedback
Easy access driver
Easy passenger access
Courtesy for passenger
Settings
Refer to the multimedia instructions for
information on accessing the settings.
You can activate or deactivate the fol-
lowing elements:
- easy driver access;
- visual feedback of current move-
ment.
1.27
FRONT SEATS: Functions (3/3)
Position
It is possible to store the driving posi-
tion of the driver seat.
The driving position includes the set-
tings for the seat base and seatback.
The driving position can be stored and
Save
Recall
recalled by pressing the buttons:
Visual feedback
- hands-free card detected;
- when the driver’s door is opened.
3
Easy access driver
Easy passenger access
4
Courtesy for passenger
5
Storing your driving position
Recalling the driving position
Adjust the driver’s seat using
Refer to the multimedia instructions for
switches 3, 4 and 5 (refer to previous
information on recalling the driving po-
page).
sition.
Refer to the multimedia instructions for
Note: recall of the stored driving po-
information on accessing the stored
sition is interrupted if one of the seat
driving position.
adjustment buttons is pressed during
recall.
The position of the driver is then stored.
When driving, it is not possible to
recall a driving position.
For safety reasons, carry
out any adjustments when
the vehicle is stationary.
1.28
SEAT BELTS (1/5)
Always wear your seat belt when trav-
Before starting, first adjust your driv-
elling in your vehicle. You must also
ing position, then ask all occupants
comply with the legislation of the par-
to adjust their seat belts to ensure
ticular country you are in.
optimum protection.
Adjusting your driving
position
1
-
Sit well back in your seat (having
removed your coat or jacket etc.).
This is essential to ensure your back
Make sure that the rear bench seat
is positioned correctly;
is locked in position correctly so that
-
adjust the distance between the
the rear seat belts will operate cor-
seat and the pedals. Your seat
rectly. ➥ 3.44.
should be as far back as possible
2
while still allowing you to depress
the clutch pedal fully. The seatback
Adjusting the seat belts
should be adjusted so that your arms
Incorrectly adjusted or
are slightly bent when you hold the
Sit with your back firmly against the
twisted seat belts may
steering wheel;
seatback.
cause injuries in the event
-
adjust the position of your head-
Shoulder strap 1 should be as close as
of an accident.
rest. For maximum safety, your head
possible to the base of the neck but not
must be as close as possible to the
on it.
Use one seat belt per person,
headrest;
whether child or adult.
Lap belt 2 should be worn flat over the
-
adjust the height of the seat. This
thighs and against the pelvis.
Even pregnant women should wear
adjustment allows you to select the
a seat belt. In this case, ensure that
seat position which offers you the
The belt should be worn so that it is
the lap belt is not exerting too much
best possible view ;
as close as possible to your body, i.e.:
pressure on the abdomen, but do
-
adjust the position of the steering
avoid wearing heavy clothing or keep-
not allow any slack.
wheel.
ing bulky objects under the belts, etc.
1.29
SEAT BELTS (2/5)
Driver’s seat belt reminder
ß
and, depending on the vehi-
cle, front passenger seat belt re-
minder
This appears on the central display
when the ignition is switched on and if
the driver’s or front passenger’s seat
1
belt (as long as the passenger seat is
occupied) is not fastened. Depending
on the vehicle, if the seat is occupied
and one of these seat belts is not fas-
3
tened or becomes unfastened while
4
the vehicle is moving at a speed over
5
5
approximately 12 mph (20 km/h), the
ß
warning light flashes and a beep
Locking
sounds for approximately 120 seconds.
Unwind the belt slowly and smoothly
Note: an object placed on the passen-
and ensure that buckle 3 locks into
ger seat base may activate the warning
catch 5 (check that it is locked by pull-
light in some cases.
ing on buckle 3).
If the belt jams, allow it to return slightly
Unlocking
before attempting to unwind it again.
Press button 4 and the seat belt will be
If your seat belt is completely jammed,
rewound by the inertia reel. Guide the
pull slowly, but firmly, so that just over
belt.
3 cm unwinds. Allow it to return slightly
before attempting to unwind it again.
If there is still a problem, contact an ap-
proved dealer.
1.30
SEAT BELTS (3/5)
When the vehicle speed is below ap-
proximately
12 mph (20 km/h), the
graphic 6 appears during approximately
60 seconds every time one of the rear
seat belts is fastened or unfastened.
If one of the rear seat belts is unfas-
tened during the journey, the ß
warning light flashes on the central
display and a beep sounds for around
30 seconds when the vehicle speed
reaches or exceeds 12 mph (20 km/h).
6
In addition, the graphic 6 is displayed
for at least 60 seconds and the indica-
tor for the seat concerned changes to a
red symbol.
Rear seat belt reminder (depending
Always make sure that the rear pas-
on vehicle)
sengers are properly fastened and that
The 6 graphic is displayed on the in-
the number of fastened seat belts in-
strument panel when the ignition is
dicated corresponds to the number of
switched on. This informs the driver of
rear seats occupied.
the fastening status of each of the rear
seat belts every time:
- the ignition is switched on;
- opening a door;
- fastening or unfastening of a rear
seat belt.
Understanding the graphic 6:
- indicator green: seatbelt fastened;
– indicator red: seatbelt unfastened.
1.31
SEAT BELTS (4/5)
7
8
8
Adjusting the height of the
Rear seat belts 8
front seat belts
The belts are locked, unlocked and
Use button 7 to adjust the seat belt
adjusted in the same way as the front
height so that the shoulder strap is
belts.
worn as shown previously. Press the 7
control and raise or lower the seat belt.
Make sure that the seat belt is locked
in position correctly after you have ad-
justed it.
Check that the rear seat
belts are positioned and
operating correctly each
time the rear bench seat is
moved.
1.32
SEAT BELTS (5/5)
The following information applies to the vehicle’s front and rear seat belts.
- No modification may be made to the component parts of the originally fitted restraint system: seat belts, seats and
their mountings. For special operations (e.g. fitting child seats), contact an authorised dealer.
- Do not use devices which allow any slack in the belts (e.g. clothes pegs, clips, etc.): a seat belt which is worn too
loosely may cause injury in the event of an accident.
-
Never wear the shoulder strap under your arm or behind your back.
Never use the same belt for more than one person and never hold a baby or child on your lap with your seat belt around
them.
- The belt should never be twisted.
Following an accident, have the seat belts checked and replaced if necessary. Always replace your seat belts as soon as
they show any signs of wear.
-
When positioning the rear bench seat, make sure that the seat belts and buckles are correctly positioned so that they can
be used properly.
-
Make sure that the buckle is inserted into the appropriate catch.
Ensure that no objects are placed in the area around the seat belt catch as they could prevent it from being properly se-
cured.
-
Make sure the seat belt catch is properly positioned (it should not be hidden away, crushed or flattened by people or ob-
jects).
1.33
METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS (1/6)
Depending on the vehicle, they are
- Have the entire restraint
composed of:
system checked following
- seat belt inertia reel pretension-
an accident.
ers;
- No operation whatso-
- central seat belt pretensioners;
ever is permitted on any part
- chest-level load limiter;
of the system
(pretensioners,
- airbags driver and passenger
airbags, computers, wiring) and
front.
the system components must not
be reused on any other vehicle,
These systems are designed to act in-
even if identical.
dependently or together when the vehi-
cle is subjected to a frontal impact.
-
Only qualified personnel from our
Network may work on the airbags;
2
Depending on the severity of the
1
otherwise the system may trigger
impact, the system can trigger:
accidentally and cause injury.
-
seat belt locking;
Pretensioners
-
The electric trigger system may
the seat belt inertia reel pretensioner
only be tested by a specially
The pretensioners hold the seat belt
(which engages to correct seat belt
trained technician using special
against the body, holding the occupant
slack);
equipment.
more securely against the seat, thus in-
-
the lap belt pretensioners to hold the
-
When the vehicle is scrapped,
creasing the seat belt’s efficiency.
occupant in his seat;
contact an approved dealer for
In the event of a severe frontal impact
disposal of the pretensioner and
-
the front airbag.
and if the ignition is switched on, the
airbags gas generators.
system may engage the following de-
pending on the force of the impact:
- the seat belt inertia reel preten-
sioner 1 which instantly retracts the
seat belt;
- the lap seat belt inertia reel preten-
sioner 2 on the front seats.
1.34
METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS (2/6)
Load limiter
driver and passenger front
Above a certain severity of impact, this
Airbags
mechanism is used to limit the force of
Fitted to the driver and passenger
the belt against the body so that it is at
sides.
an acceptable level.
The presence of this equipment is indi-
A
cated by the word “airbag" on the steer-
ing wheel, dashboard (in the area of the
airbag A) and, depending on the vehi-
cle, a label on the lower section of the
windscreen.
Each airbag system consists of:
-
an airbag and gas generator fitted on
the steering wheel for the driver and
in the dashboard for the passenger;
-
an electronic unit for system monitor-
ing which controls the gas generator
electrical trigger system;
-
remote sensors;
a single warning light å
on the
The airbag system uses py-
instrument panel.
rotechnic principles. This
explains why, when the
airbag inflates, it will gener-
ate heat, produce smoke (this does
not mean that a fire is about to start)
and make a banging noise. In a situ-
ation where an airbag is required, it
will inflate immediately and this may
cause some minor, superficial graz-
ing to the skin or other problems.
1.35
METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS (3/6)
Operating faults
å
This warning light comes on
when the engine is started and then
goes out after approximately three sec-
onds.
If it does not come on when the ignition
is switched on or if it stays on, there is a
fault in the system.
Contact your approved Dealer as soon
as possible.
Your protection will be reduced until this
fault is rectified.

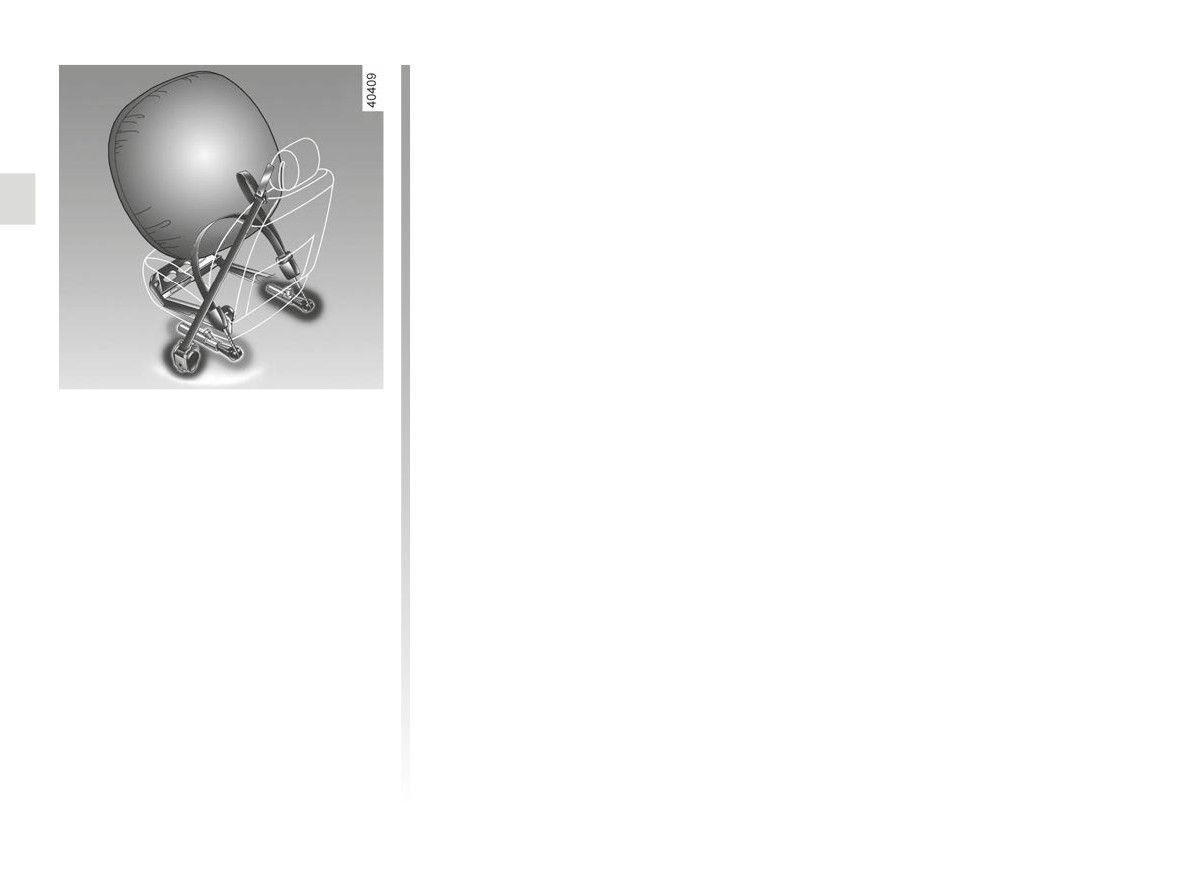

Operation
This system is only operational when
the ignition is switched on.
In a severe frontal impact, the airbags
inflate rapidly, cushioning the impact
of the driver's head and chest against
the steering wheel and of the front pas-
senger against the dashboard. The air
bags then deflate immediately so that
the passengers are not in any way hin-
dered from leaving the vehicle.
1.36
METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS (4/6)

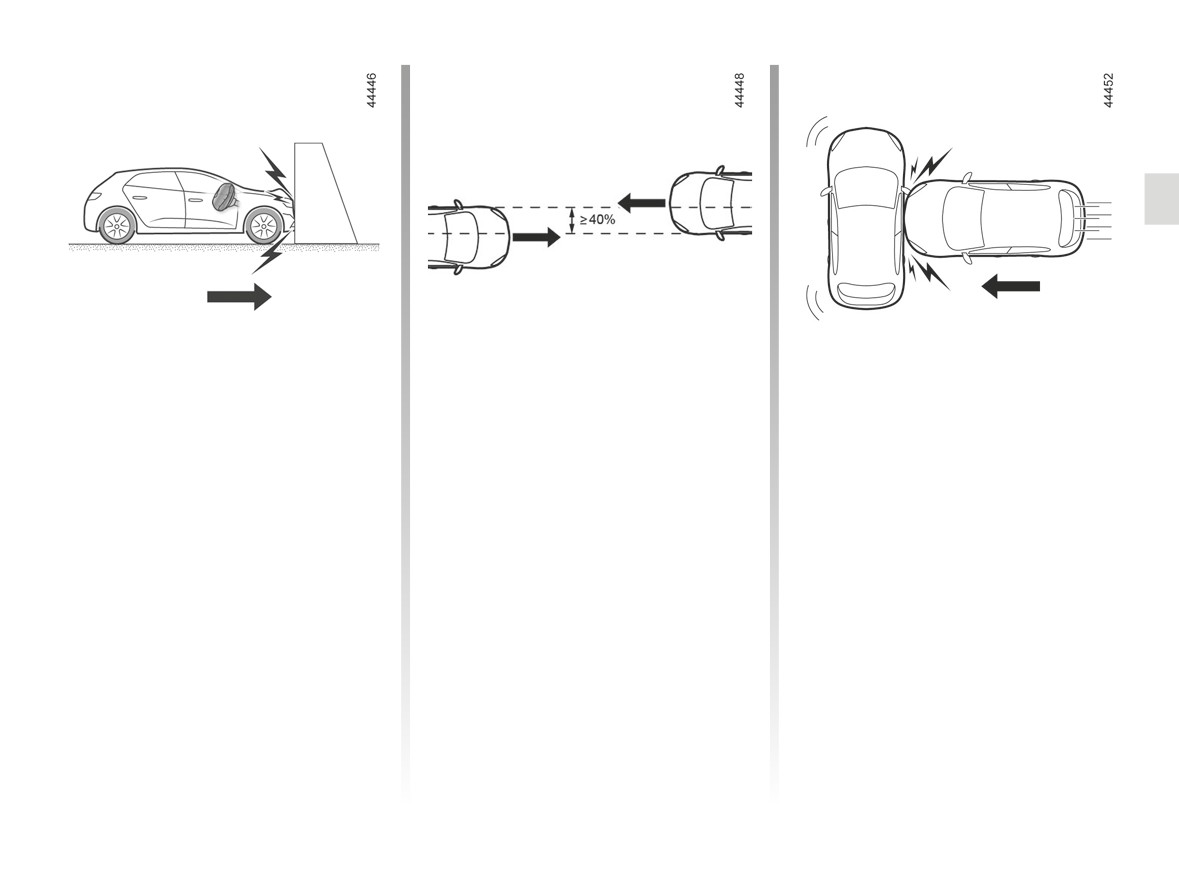

The following cases trigger the pre-
In a frontal impact with another vehi-
In a side impact with another vehicle
tensioners or airbags.
cle of an equivalent or higher category,
of an equivalent or higher category, at
with an impact area equal to or greater
an impact speed equal to or greater
In a frontal impact against a rigid
than 40%, where the speed of both ve-
than 31 mph (50 km/h).
(non-deformable) surface at an impact
hicles is equal to or greater than
speed equal to or greater than 16 mph
25 mph (40 km/h).
(25 km/h).
1.37
METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS (5/6)

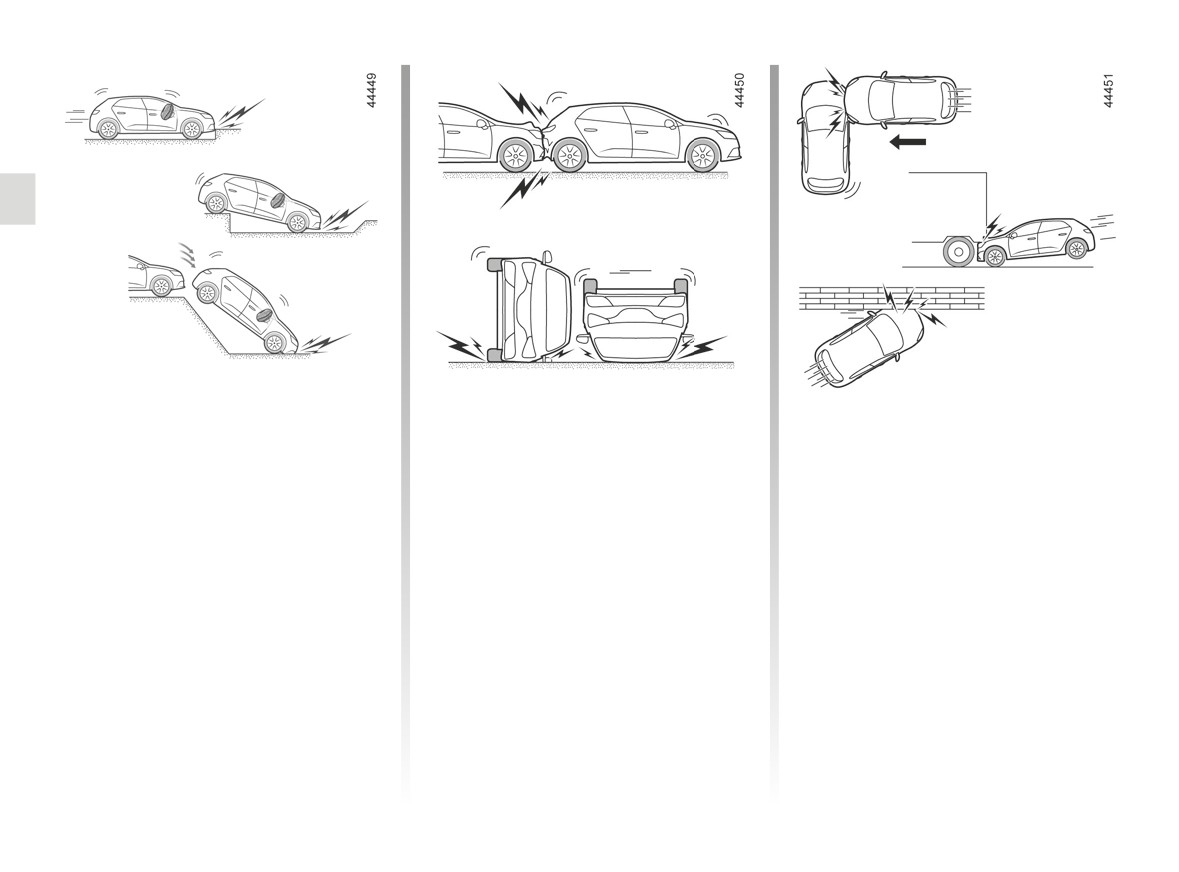

In the following examples, the pre-
In the following examples, there is a
- side impact to the front or rear of the
tensioners or the airbags could op-
risk that pretensioners orairbags may
vehicle;
erate:
not be triggered:
- frontal impact, under the tail of a
- impact under vehicle such as pave-
- rear impact, however severe;
lorry;
ment;
- the vehicle overturning;
- frontal impact against an obstacle
- potholes;
with a sharp angle;
– ...
- drop or hard landing;
- ...
- stones;
– ...
1.38
METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS (6/6)
All of the warnings below are given so that the airbag is not obstructed in any way when it is inflated and also to prevent
the risk of serious injuries caused by items which may be dislodged when it inflates.
Warnings concerning the driver’s airbag
- Do not modify the steering wheel or the steering wheel boss.
- Do not cover the steering wheel boss under any circumstances.
- Do not attach any objects (badge, logo, clock, telephone holder, etc.) to the steering wheel boss.
- The steering wheel must not be removed (except by qualified personnel from our Network).
- Do not sit too close to the steering wheel when driving: sit with your arms slightly bent (see “Adjusting your driving position”
➥ 1.29). This will allow sufficient space for the air bag to deploy correctly and to be fully effective.
Warnings concerning the passenger airbag
- Do not attach or glue any objects (badge, logo, clock, telephone holder, etc.) to the dashboard on or near the airbag.
- Do not place anything between the dashboard and the passenger (pet, umbrella, walking stick, parcels, etc.).
- The passenger must not put his or her feet on the dashboard or seat as there is a risk that serious injuries may be sustained.
In general, parts of the body should be kept away from the dashboard (knees, hands, head, etc.)
- The devices in addition to the front passenger seat belt should be reactivated as soon as a child seat is removed, to ensure
the protection of the passenger in the event of an impact.
A REAR-FACING CHILD SEAT MUST NOT BE FITTED TO THE FRONT PASSENGER SEAT UNLESS THE
RESTRAINT SYSTEMS IN ADDITION TO THE FRONT PASSENGER SEATBELT ARE DEACTIVATED ➥ 1.58.
1.39
METHODS OF RESTRAINT IN ADDITION TO THE REAR SEAT BELTS
Force limiter
Above a certain severity of impact, this
mechanism is used to limit the force of
the belt against the body so that it is at
an acceptable level.
- Have the entire restraint
system checked following
an accident.
- No operation whatsoever
is permitted on any part of the
system (air bags, electronic con-
trol units, wiring) and the system
components must not be reused
on any other vehicle, even if iden-
tical.
- Only qualified personnel from
our Network may work on the air
bags; otherwise the system may
trigger accidentally and cause
injury.
1.40
SIDE PROTECTION DEVICES
Side air bags
These air bags are fitted to the front
seats and are activated at the sides of
the seats (door side) to protect the oc-
cupants in the event of a severe side
impact.
Curtain air bags
These are airbags fitted along the sides
of the vehicle in the ceiling which trigger
along the front and rear door side win-
dows to protect the passengers in case
of a severe side impact.
Warning concerning the side air bag
- Fitting seat covers: seats equipped with an air bag require covers
specifically designed for your vehicle. Contact an approved Dealer to find
out if these covers are available. The use of any covers other than those
designed for your vehicle (including those designed for another vehicle) may
affect the operation of the air bags and reduce your protection.
- Do not place any accessories, objects or even pets between the seatback, the
door and the internal fittings. Do not cover the seatback with any items such as
clothes or accessories. This may prevent the air bag from operating correctly
or cause injury when the air bag is deployed.
Depending on the vehicle, a mark-
- No work or modification whatsoever may be carried out on the seat or internal
ing on the windscreen informs you
fittings, except by qualified personnel from an approved dealer.
of the presence of additional means
of restraint (airbags, pretensioners,
etc.) in the passenger compartment.
1.41















Content      ..      1      2      3      ..
