Renault Kangoo Z.E. (2022 year). Manual in english - page 5





AUDIBLE AND VISUAL SIGNALS
1
1
0
3
2
Horn
There is an intermediate position in
Hazard warning lights
which the switch may be held when
é
Press one of points 2.
Pressing switch 3 illuminates
changing lanes.
all four direction indicators and the
You can also briefly place stalk 1 in the
side-mounted indicator lights simul-
Direction indicators
intermediate position, causing the indi-
taneously. It must only be used in an
Move stalk 1 parallel to the steering
cator light to flash three times.
emergency to warn other drivers that
wheel and in the direction you are going
When the stalk is released, it automati-
you have had to stop in an area where
to turn.
cally returns to 0.
stopping is prohibited or unexpected, or
that you are obliged to drive under spe-
When driving on the motorway, the
cial conditions.
steering wheel is not often turned
Headlight flasher
enough to return the stalk automatically
to 0.
Pull stalk 1 towards you to flash the
headlights.
1.88
EXTERNAL LIGHTING AND SIGNALS (1/3)
Dipped beam
Main beam headlights
k
á
headlights
1
2
With stalk 1 in dipped beam headlights
Manual operation
position, move the stalk towards you.
Turn the end of stalk 1 until the symbol
The indicator light on the instrument
is opposite mark 2. This indicator light
panel then lights up.
on the instrument panel comes on.
To return to the dipped beam head-
Automatic operation
light position, pull the stalk towards you
(depending on vehicle)
again.
3
When the engine is started, the dipped
beam headlights switch on or off auto-
matically depending on the brightness
of the light outside, without any action
on stalk 1.
Side lights
This function can be deactivated or re-
u
activated.
Turn the end of stalk 1 until the
- To switch it on: with the ignition on
symbol is opposite mark 2.
and the vehicle stationary, press and
The instrument panel will light up.
hold button 3 for at least four sec-
onds. Depending on the vehicle, the
message “lights ON” appears on the
Before driving at night:
instrument panel.
check the electrical equip-
ment is operating correctly
- To deactivate: with the ignition on
and adjust your headlights
and the vehicle stationary, press and
(if your vehicle is not carrying its
hold button 3 for at least four sec-
normal load). As a general precau-
onds. Depending on the vehicle, the
tion, check that the lights are not
message “lights OFF” appears on
obscured (by dirt, mud, snow or ob-
the instrument panel.
jects being transported).
1.89
EXTERNAL LIGHTING AND SIGNALS (2/3)
“See-me-home lighting”
Lights-on reminder buzzer
function
A warning beep sounds when the driv-
(depending on vehicle)
1
2
er’s door is opened to warn you that the
This function (useful, for example, when
lights are still on.
opening a gate, garage, etc.) enables
you to switch the dipped headlights on
momentarily.
With the ignition off and the headlights
off, pull stalk 1 towards you: the dipped
beam headlights come on for approxi-
mately sixty seconds.
This action may be carried out no more
than four times for a maximum lighting
period of four minutes.
To switch off the lights before they
Switching off the lights
switch off automatically, turn the end of
e
There are two possibilities:
stalk 1 then bring it back to position 0,
or switch on the ignition.
- manually, move stalk 1 to its original
position;
- automatically, the lights are switched
off when the engine is stopped, the
driver’s door is opened or, depend-
ing on the vehicle, when the vehicle
is locked. In this case, the next time
the engine is started the lights will be
switched back on according to the
position of the ring 2.
1.90
EXTERNAL LIGHTING AND SIGNALS (3/3)
Rear fog light
The front fog lights and the
1
4
side lights or dipped beam headlights
must be on.
Turn ring 5 on stalk 1 until the symbol
is opposite mark 4, then release it. This
indicator light on the instrument panel
comes on.
To avoid inconveniencing other road
users, remember to switch off the rear
fog light when it is no longer needed.
5
Turning off the fog lights
Turn ring 5 again to position mark 4 op-
Front fog lights
posite the symbol for the light you wish
g
(depending on vehicle)
to switch off.
The side lights or dipped beam head-
Switching off the exterior lights or the
lights must be on.
ignition switches off the front and rear
Turn ring 5 on stalk 1 until the symbol
fog lights.
is opposite mark 4, then release it. This
indicator light on the instrument panel
comes on.
1.91
HEADLIGHT BEAM ADJUSTMENT (1/2)
1
A
B
100 m
50 m
Control knob 1 is used to adjust the
A Poor adjustment: the lights are set
height of the headlight beams accord-
too high and could dazzle other
ing to the load.
drivers. Turn the control knob
downwards to lower the beam.
Turn control knob
1 downwards to
lower the headlights and upwards to
B Good adjustment: the beam’s
raise them.
maximum range is between 50
Unladen, control knob 1 should be at 0.
and 100 metres.
When the vehicle is partially or com-
pletely laden, the headlight beam
should be set to light the road at be-
tween 50 and 100 metres. Then use
positions 1 to 4 on the control knob.
1.92
HEADLIGHT BEAM ADJUSTMENT (2/2)
B
When driving on the left in a left-
hand drive vehicle (or vice versa),
you must adjust your lights tempo-
1
rarily during your stay.
Temporary adjustment
Open the bonnet and identify the mark-
ing B next to one of the front headlight
projectors.
For each headlight, using a screw-
driver, turn the screw 1 by a quarter
turn towards the - symbol to lower the
beams.
Return to the starting point once your
trip is over: turn the screw 1 by a quar-
ter turn towards the + symbol to raise
the beams.
1.93
FRONT WINDSCREEN WASHER, WIPER (1/2)
Automatic wiper function
(depending on vehicle)
With the engine running, move stalk 1.
1
A Park
A
B Automatic wiper function
When this position is selected, the
B
system detects the presence of
water on the windscreen and trig-
C
gers wiping at a suitable wiping
D
speed. The triggering threshold
2
and the time between sweeps can
be adjusted by turning ring 2.
NB: in foggy weather or during
Windscreen wiper
Special note
snowfalls, the wiping is not automati-
cally triggered and remains under
With the ignition on, move stalk 1 paral-
When the vehicle is being driven, the
the driver’s control.
lel to the steering wheel:
wiping speed slows down whenever
the vehicle stops. For example, fast
C Normal wiping speed
A Park
wiping speed will slow to normal wiping
speed. As soon as the vehicle moves
D Fast wiping speed
B Intermittent wiping
off, wiping will return to the speed origi-
The wipers will pause for several
nally selected.
seconds between sweeps. It is
If stalk 1 is operated, it overrides and
possible to change the time be-
cancels the automatic function.
tween sweeps by turning ring 2.
C Normal wiping speed
If for any reason the wipers are
D Fast wiping speed
jammed (e.g. frozen to windscreen
by ice etc.), the system will auto-
matically cut the power supply to
the wipers.
1.94
FRONT WINDSCREEN WASHER, WIPER (2/2)
1
Efficiency of a wiper blade
Check the condition of the wiper
blades. How long they last depends
on you:
- it must remain clean: clean the
blade and the screen regularly
with soapy water;
- do not use it when the screen is
dry;
- free it from the screen when it has
not been used for a long time.
Windscreen wiper
In freezing or snowy weather, ensure
Replace wiper blades as soon as
With the ignition on, pull stalk 1 to-
they are not stuck to the windscreen
their performance starts to diminish:
wards you.
(including the central area located
Approximately every year (refer to
behind the interior rear-view mirror)
the information on “Wiper blades” in
A brief pull will trigger a single sweep
before starting the wipers (risk of
section 5).
of the wipers, in addition to the wind-
screen washer.
motor overheating).
A longer pull will trigger three sweeps
Precautions for using the
of the wipers followed, a few seconds
wipers
later, by a fourth, in addition to the wind-
- In freezing or snowy weather,
screen washer.
Before any action on the
clear the screen before starting
windscreen
(washing the
the wipers (risk of motor over-
vehicle, de-icing, cleaning
heating);
the windscreen, etc.) return
- ensure that no objects are ob-
stalk 1 to position A (off).
structing the travel of the blade.
Risk of injury and/or damage.
1.95
REAR WINDSCREEN WASHER, WIPER
Rear screen wash/wipe
p
(depending on vehicle)
Turn the end of stalk 1 to position the
1
symbol opposite mark 2.
Efficiency of a wiper blade
When the stalk is released, it returns to
Check the condition of the wiper
the rear screen wiper position.
blades. How long they last depends
on you:
- it must remain clean: clean the
blade and the screen regularly
2
with soapy water;
- do not use it when the screen is
dry;
- free it from the screen when it has
not been used for a long time.
Speed-dependent rear
Replace wiper blades as soon as
Y
screen wiper with
their performance starts to diminish:
timer
Approximately every year (refer to
(depending on vehicle)
the information on “Wiper blades” in
section 5).
Turn the end of stalk 1 to position the
Do not use the wiper arm to open or
symbol opposite mark 2.
close the tailgate.
Wiping frequency varies with speed.
Precautions for using the
wipers
Special note
- In freezing or snowy weather,
Before any action involving
If the windscreen wipers are opera-
clear the screen before starting
the rear screen (washing
tional when you select reverse gear, the
the wipers (risk of motor over-
the vehicle, de-icing, clean-
rear screen is wiped intermittently.
heating);
ing etc.) return stalk 1 to the
- ensure that no objects are ob-
stop position.
structing the travel of the blade.
Risk of injury and/or damage.
1.96
ADDITIONAL HEATING TANK
Fuel grade
Diesel filling
- Insert the nozzle so that the valve
Use a high-grade diesel that com-
is open and fully insert the nozzle
plies with the legislation in force in each
before engaging it in order to fill the
A
country and which must conform to
tank (risk of splash-back).
the specifications given on the label on
- Keep the nozzle in this position
cover A.
throughout the entire filling opera-
Fuel odours and smoke may be present
tion.
after a long period without using the ad-
When the pump cuts out automatically
ditional heating.
at the end of the filling procedure, a
B
maximum of two further filling attempts
C
may be made so as to leave sufficient
room for expansion.
Useful capacity of fuel tank: 13 litres
Persistent smell of
approx.
fuel
Fuel filler cap: this is of a
To open the fuel filler flap, place your
special type.
finger into recess C.
If you notice a persistent
smell of fuel you should:
If you have to replace it,
Use the ignition key to open cap B.
make sure it is identical
- stop the vehicle as soon as traf-
to the original cap. Contact an ap-
fic conditions allow and switch off
proved Dealer.
the ignition;
Never place the cap near a source
- switch on the hazard warning
of heat or flame.
lights and ask your passengers
Do not wash the filler area with a
to leave the vehicle and to keep
high-pressure washer.
away from traffic;
- contact an approved Dealer.
Do not operate the addi-
tional heating when the ve-
hicle fuel tank is being filled.
1.97
Section 2: Driving
(Advice on use relating to fuel economy and the environment)
Starting, stopping the engine
2.2
Gear control
2.4
Handbrake
2.6
Driving advice, ECO-driving
2.7
Vehicle range: advice
2.9
Environment
2.11
Tyre pressure loss warning
2.12
Driver correction devices and aids
2.16
Speed limiter
2.19
Cruise control
2.22
Parking distance control
2.26
Reversing camera
2.28
2.1
STARTING, STOPPING THE ENGINE (1/2)
“On” position M
The ignition is switched on:
Start position D
Starting the engine
- Move lever 1 to position P only ;
1
- turn the key to position D and then
release it.
Warning light may flash on the ins-
trument panel, along with a beep. As
soon as light stops flashing and
the beep stops, the vehicle is ready to
drive.
“Stop and steering lock”
position St
To unlock: turn the key and the steering
wheel slightly.
To lock: remove the key and turn the
steering wheel until the steering column
locks.
“Accessories” position A
The vehicle can only be started if
When the ignition is switched off, any
the charging cord is unplugged from
accessories (radio, etc.) will continue to
the vehicle.
function.
The vehicle can only be started if
the selector lever is at P. Please see
the information on “Gear control” in
Section 2.
2.2
STARTING, STOPPING THE ENGINE (2/2)
Stopping the engine
With the engine running, turn the key
back to the “Stop” position St. Warning
light goes out.
Driver’s responsibility
when parking or stopping
the vehicle
Never leave an animal,
child or adult who is not self-suffi-
cient alone in your vehicle, even for
a short time.
They may pose a risk to themselves
or to others by starting the engine,
activating equipment such as the
electric windows or locking the
doors, for example.
Also, in hot and/or sunny weather,
please remember that the tempera-
ture inside the passenger compart-
ment increases very quickly.
Never switch off the igni-
RISK OF DEATH OR SERIOUS
tion before the vehicle has
INJURY.
come to a complete stop.
Switching off the engine di-
sables the assistance equipment:
brakes, power-assisted steering,
etc., and the passive safety devices
such as airbagsand pretensioners.
2.3
GEAR CONTROL (1/3)
Driving
Put lever 1 into position D.
A
Hill start
For hill starts, especially after a maxi-
1
mum traction battery charge and for the
first few miles, we recommend using
the handbrake.
While driving, press the accelerator
3
pedal to achieve the desired speed.
2
Reverse
Put lever 1 into position R.
The reversing lights will come on as
Operates in a similar manner to an au-
Operation
soon as reverse gear is selected (with
tomatic gearbox.
the ignition on).
Keeping your foot on the brake pedal
and with the selector lever 1 in position
Selector lever 1
P, turn the ignition.
Start the motor.
The display A on instrument panel indi-
To move out of position P, you must de-
cates the gear lever position as 3.
press the brake pedal before pressing
P : Park
unlocking button 2.
With your foot on the brake pedal
R : Reverse
(warning light c in display A goes
N : Neutral
out), move the lever out of position P.
D : Forward
Only engage D or R when the vehi-
cle is stopped, with your foot on the
The vehicle can only start if the gear
brake and the accelerator pedal re-
selector is in position P.
leased.
The vehicle can only be started if
the charging cord is unplugged from
the vehicle.
2.4
GEAR CONTROL (2/3)
Parking the vehicle
When the vehicle is stationary, move
the lever to P position while keeping
your foot on the brake pedal: the control
is in neutral and the drive wheels are
mechanically locked by the driveshaft.
Apply the handbrake.
In the event an impact to
the underside of the vehicle
(e.g.: striking a post, raised
kerb or other street furni-
ture), this may result in damage to
the vehicle (e.g.: twisted axle), the
electrical circuit or the traction bat-
tery.
Do not touch the circuit elements or
any fluids or liquids.
To prevent any risk of accident,
have your vehicle checked by an
authorised dealer.
Risk of serious injury or electric
shock and risk to life.
P position must only be engaged
when the vehicle is stationary.
2.5
GEAR CONTROL (3/3)/HANDBRAKE
Handbrake
To release:
Pull the lever
5 up slightly, press
4
button 6 and then lower the lever to the
floor.
To apply:
Pull upwards, check that the vehicle is
properly immobilised.
6
5
When activated, in the event that the
lever is stuck in P, depress the brake
paddle. It is possible to free the lever
manually. To do this, unclip the cover
Make sure that the hand-
at the base of the lever and simultane-
brake is properly released
ously press at location 4 and on the un-
when driving (red indicator
locking button 6 on the lever.
light off), otherwise over-
heating, or even damage, may
occur.
When stationary and de-
pending on the slope and/or
vehicle load, it may be nec-
essary to pull up the hand-
brake at least two extra notches and
engage position P.
2.6
DRIVING ADVICE, ECO-DRIVING (1/2)
The vehicle range depends on vehicle
usage conditions, equipment fitted and
the user’s driving style. To optimise the
energy consumption, please refer to
the following advice.
Depending on the vehicle, you will be
provided with functions which enable
you to lower the energy consumption:
2
- ECO mode, activated by the ECO
button;
1
- charge meter.
ECO mode
The ECO function optimises vehicle
range by limiting engine performance.
Activating the function
ECO mode is reactivated when you
It acts upon certain power consuming
take pressure off the accelerator pedal.
systems in the vehicle (heating, air con-
Press switch 1.
ditioning, power-assisted steering etc.)
Warning light 2 will come on the instru-
Disabling the function
and on certain driving actions (acceler-
ment panel and the integrated warning
ation, cruise control, deceleration etc.).
Press switch 1.
light on the switch will light up.
Warning light
2 and the integrated
While driving, it is possible to exit the
warning light on the switch will go out.
ECO mode temporarily in order to im-
prove engine performance.
To do this, press the accelerator pedal
firmly and fully.
The cruise control switches to
standby each time the ECO mode
is activated or deactivated. Please
refer to the information on “Cruise
control/speed limiter: cruise control
function” in Section 2.
2.7
DRIVING ADVICE, ECO-DRIVING (2/2)
0
B
A
C
A
B
C
Charge meter
Energy recovery features
“Recommended consumption”
(on the instrument panel)
The motor generates a more significant
usage zone B
engine brake than a conventional vehi-
The charge meter gives the driver a
The traction battery supplies the elec-
cle.
real-time view of the vehicle’s energy
trical energy required for the motor to
After a maximum charge for the traction
recovery or consumption.
move the vehicle.
battery and during the first few miles
when driving the vehicle, the engine
“Energy recovery” usage zone A
“Consumption not recommended”
brake is temporarily reduced. Please
usage zone C
When driving, if you lift your foot off the
adapt your driving style accordingly.
accelerator pedal or apply the brake,
Indicates high energy consumption.
the motor generates electrical current
“Neutral” 0 usage zone
during deceleration, and this energy is
Indicates nil consumption.
used to slow down the vehicle and re-
charge the traction battery.
2.8
VEHICLE RANGE: recommendations (1/2)
In real usage, the range of an electric
vehicle may vary depending on several
factors over which you have partial con-
trol, which may make a considerable
difference to the vehicle range. These
factors are:
- speed and driving style;
- type of road;
- heating level;
- tyres;
- vehicle loading.
Furthermore, activating ECO mode
enables the vehicle to automatically
take charge of all energy consumers
(engine power, etc.) in order to reduce
their consumption to the fullest possible
Advice:
Road type
extent. Please refer to the information
on “ECO-driving” in Section 2.
- drive at a constant speed;
Do not try to maintain the same speed
- adapt your driving style to avoid ex-
up a hill; accelerate no more than you
cessive energy consumption. Please
would on the level. Keep your foot in
Speed and driving style
refer to the “Charge meter” informa-
the same position on the accelerator
High speeds will reduce your vehicle’s
pedal.
tion in Section 2;
range.
- in order to recover energy, anticipate
A “sporty” driving style reduces your
traffic changes and lift your foot off
vehicle range: opt for a “lighter” driving
the accelerator pedal in advance.
style.
Please refer to the “Charge meter”
information in Section 2;
- use ECO mode by default (see the
paragraph on "ECO mode function"
in Section 2).
2.9

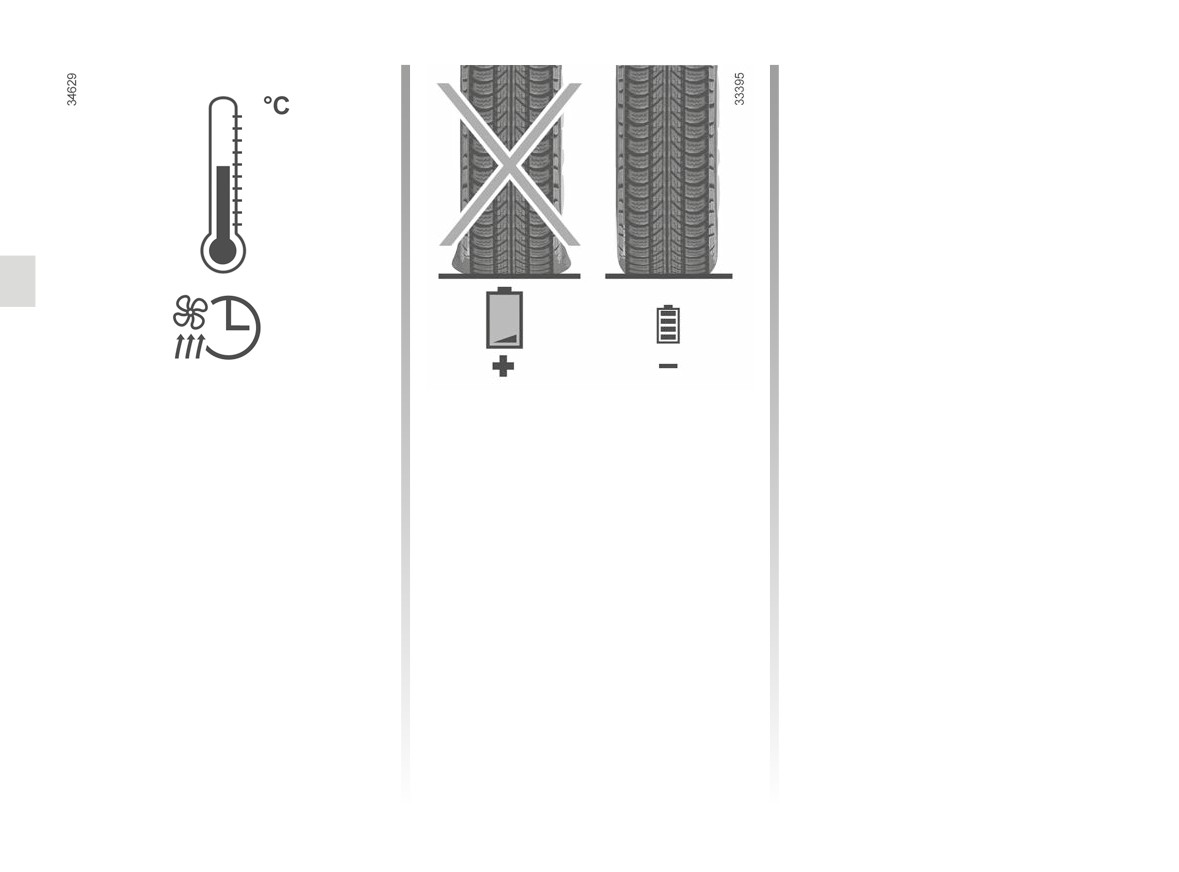

VEHICLE RANGE: recommendations (2/2)
Vehicle loading
Avoid pointlessly overloading your ve-
hicle.
Heating levels
Tyres
The use of heating or air conditioning
An under-inflated tyre increases energy
reduces vehicle range.
consumption. Comply with the speci-
Before using the vehicle, opt for “air
fied tyre pressures for your vehicle.
conditioning programming” mode to
When driving, use tyres made by the
maintain vehicle range (please refer to
same manufacturer, with the same di-
the information on “Heating, air condi-
mensions, type and structure as the
tioning programming” in Section 3).
original tyres. The use of non-regula-
When driving, minimise the use of heat-
tion tyres significantly reduces vehicle
ing and air conditioning and opt for
range.
using the additional heating (please
Please see the information on “Tyre
refer to the information on “Additional
pressure” in Section 4.
heating” in Section 3).
2.10
ENVIRONMENT
Your vehicle has been designed with
Please make your own
Recycling
respect for the environment in mind for
contribution towards
Your vehicle is 85% recyclable and
its entire service life: during production,
protecting the environment
95% recoverable.
use and at the end of its life.
too
To achieve these objectives, many of
- Worn parts replaced in the course
the vehicle components have been de-
Manufacture
of routine vehicle maintenance (bat-
signed to enable them to be recycled.
Your vehicle has been manufactured at
tery, air filter, batteries, etc.) must be
The materials and structures have
a factory which complies with a policy
disposed of through specialist organ-
been carefully designed to allow these
to reduce the environmental impact
isations.
components to be easily removed and
on the surrounding areas (reduction of
reprocessed by specialist companies.
- At the end of the vehicle’s service
water and energy consumption, visual
life, it should be sent to approved
In order to preserve raw material re-
and noise pollution, atmospheric emis-
centres to ensure that it is recycled.
sources, this vehicle incorporates nu-
sions and waste water; sorting and re-
merous parts made from recycled plas-
using waste).
- In all cases, comply with local legis-
tics or renewable materials (vegetable
lation.
or animal-derived materials such as
cotton or wool).
2.11
TYRE PRESSURE LOSS WARNING (1/4)
Resetting the standard level
for the tyre pressures
This should be done:
1
- when the standard tyre pressure
needs to be changed to adapt to
usage conditions (empty, carrying a
load, motorway driving, etc.);
- after swapping a wheel (however
this practice is not recommended);
- after changing a wheel.
It should always be done after checking
the tyre pressure of all four tyres when
cold.
Tyre pressures must correspond to the
current usage of the vehicle (empty,
When fitted to the vehicle, this system
carrying a load, motorway driving, etc.).
notifies the driver if one or more tyres
lose pressure.
Operating principle
This function is an addi-
Each wheel (except for the emergency
tional driving aid.
spare wheel) has a sensor in the infla-
However, the function does
tion valve which periodically measures
not take the place of the
the tyre pressure while driving.
driver. It cannot, therefore, under
any circumstances replace the vig-
Warning light
1 comes on to
ilance or the responsibility of the
alert the driver in the event of insuffi-
driver.
cient pressure (deflated wheel, punctu-
Check the tyre pressures, including
red tyre, etc.).
the emergency spare wheel, once a
month.
2.12















Content      ..     3      4      5      6     ..
