ELECTRONIC PARKING BRAKE (3/4)
- open the driver’s door;
- manually release the electronic park-
1
ing brake (please see the previously
described information on “Manually
releasing the electronic parking
brake”).
3
2
4
Brief stop
To park the vehicle without applying the
electronic parking brake (if there is a
To apply the electronic parking brake
risk of freezing, for example):
manually (when stopping at a red light,
- engage any gear or the P position:
If the message “WARNING:
or stopping when the engine is running,
the drive wheels will be mechanically
Electric System” or “Check
etc.): pull and release the switch 4. The
locked by the driveshaft;
battery” appears, manually
brake is released as soon as the vehi-
activate the electronic park-
cle is started up again.
- switch off the engine by pressing the
ing brake by pulling switch 4 (or po-
engine start/stop button 1 or by turn-
sition the gear lever in P for auto-
ing the ignition key 2;
Special cases
matic gearboxes) before stopping
- release the driver’s seat belt;
the engine.
To park on a slope or while towing a
trailer, for example, pull switch 4 for
Risk of loss of immobilisation of
a few seconds to gain the maximum
the vehicle.
braking.
Call an approved Dealer.
2.25
ELECTRONIC PARKING BRAKE (4/4)
Versions with an automatic
Operating faults
gearbox
-
For safety reasons, automatic release
light illuminates on the instrument
is deactivated when the driver’s door
panel accompanied by the “Check
is open or not shut properly and the
Parking Brake” message and, in
engine is running (in order to prevent
some cases, the }
warning
the vehicle from moving without the
light.
driver). The “Release Parking Brake
Contact your approved Dealer
Manually” message appears on the
straight away.
instrument panel when the driver de-
If no lights or sounds are ap-
presses the accelerator.
-
If there is an assisted parking brake
parent, this indicates a fault
fault, the warning light
®
in the instrument panel. This
comes on, along with the message
indicates that it is essential
“WARNING: Braking System”, a
to stop immediately (as soon as traf-
beep and, in some cases, the warn-
fic conditions allow). Ensure that the
vehicle is correctly immobilised and
If the message
“braking
ing light }
contact an approved Dealer.
system fault” is displayed,
This means that you must stop as
you must immobilise the ve-
soon as traffic conditions allow.
hicle by selecting first gear
(mechanical gearboxes), position
P (automatic gearboxes) or by pull-
ing the switch 4 for approximately
Never leave your vehicle
10 seconds. If the slope requires it,
without moving the selec-
chock the vehicle.
tor lever to position P and
Risk of loss of immobilisation of
switching off the engine.
the vehicle.
This is because when the vehicle is
stationary with the engine running
Contact an authorised dealer.
and a gear engaged, the vehicle
may begin to move if you acceler-
ate.
There is a risk of accidents.
2.26
“AUTOHOLD" FUNCTION
Vehicle stopped (e.g. at a red light, an
Conditions for interrupting the
intersection, a traffic jam, etc.), the func-
braking force
tion ensures braking force even when
The following conditions must be met:
the driver releases the brake pedal.
- the driver accelerates sufficiently
The braking force is released as soon
with a gear engaged;
as the driver accelerates sufficiently
or
with a gear engaged.
- the driver disables the function.
1
Activation
Warning light
goes out on the in-
Press switch 2.
strument panel.
The 1 switch warning light 2 illuminates
to confirm that the function is activated.
2
Deactivation
Upon each start-up, the function
Press the brake pedal and 2 switch si-
Conditions for maintaining the
continues the mode set at the time
multaneously.
braking force
the engine was last switched off.
The 1 switch warning light 2 disappears
to confirm that the function is deacti-
The following conditions must be met:
vated.
- the seat belt for the driver is fas-
The electronic parking
If the braking force is maintained, the
tened;
brake can be used to im-
parking brake is applied automatically
and
mobilise the vehicle. Before
when:
- the electronic parking brake is re-
leaving the vehicle, check
- the driver exits the vehicle;
leased;
that the electronic parking brake is
or
and
fully applied.
- the vehicle is immobilised for more
- the vehicle is not stationary on a very
The indicator light on switch 2 and
than approximately three minutes.
steep slope.
the warning light }
on the in-
The maintained braking force is con-
strument panel illuminate to show
that the parking brake is applied
firmed by the
warning light on
and switch off when the doors are
the instrument panel.
locked. Depending on the vehicle, a
sticker is located on the upper sec-
tion of the windscreen to remind you
of this.
2.27
DRIVING ADVICE, ECO DRIVING (1/8)
Fuel consumption is accredited in ac-
Depending on the vehicle, you will have
cordance with a standard regulatory
various functions which enable you to
method. Identical for all manufactur-
lower your fuel consumption:
ers, this enables vehicles to be com-
- the rev counter;
pared with one another. Consumption
in real time depends on vehicle usage
- gear change indicator;
conditions, the equipment fitted and the
- the driving style indicator;
user’s driving style. To optimise fuel
- the journey record and eco-driving
consumption, please refer to the follow-
advice via the multimedia screen;
ing advice.
- Eco acceleration indicator;
- ECO mode;
- the Stop and Start function ➥ 2.10.
If fitted on the vehicle, the navigation
system provides additional information.
2.28
DRIVING ADVICE, ECO DRIVING (2/8)
A
B
C
1
1
1

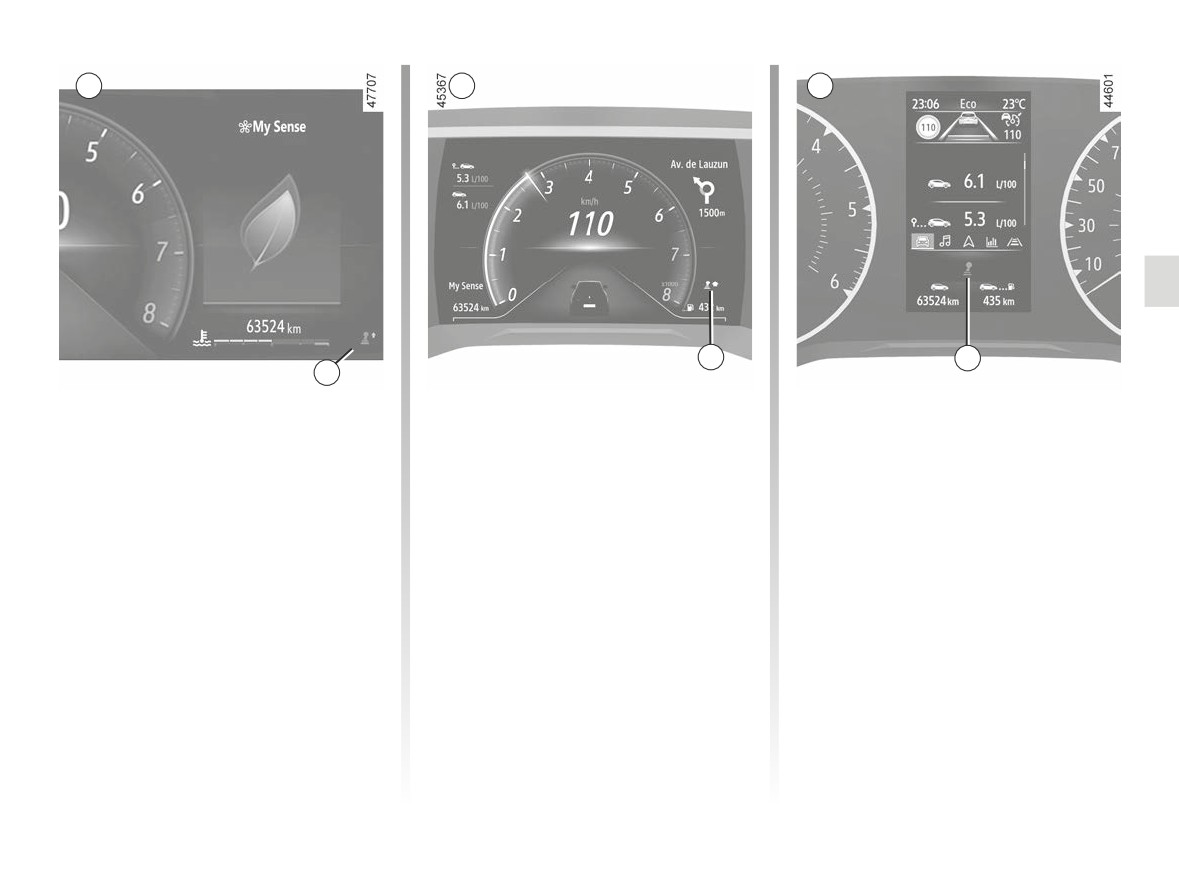

On the instrument panel A, B
Gear change indicator 1
or C
Depending on the vehicle, to obtain op-
timum consumption levels, a warning
Depending on the vehicle, the informa-
light on the instrument panel lets you
tion display can be organised and cus-
know the best time to move up or down
tomised based on the instrument panel
a gear:
customisation style selected from the
multimedia screen.
shift up a gear;
downshift a gear.
If you regularly follow this indicator, you
will reduce your vehicle’s fuel consump-
tion.
2.29
DRIVING ADVICE, ECO DRIVING (3/8)
A
B
2
C
2
2

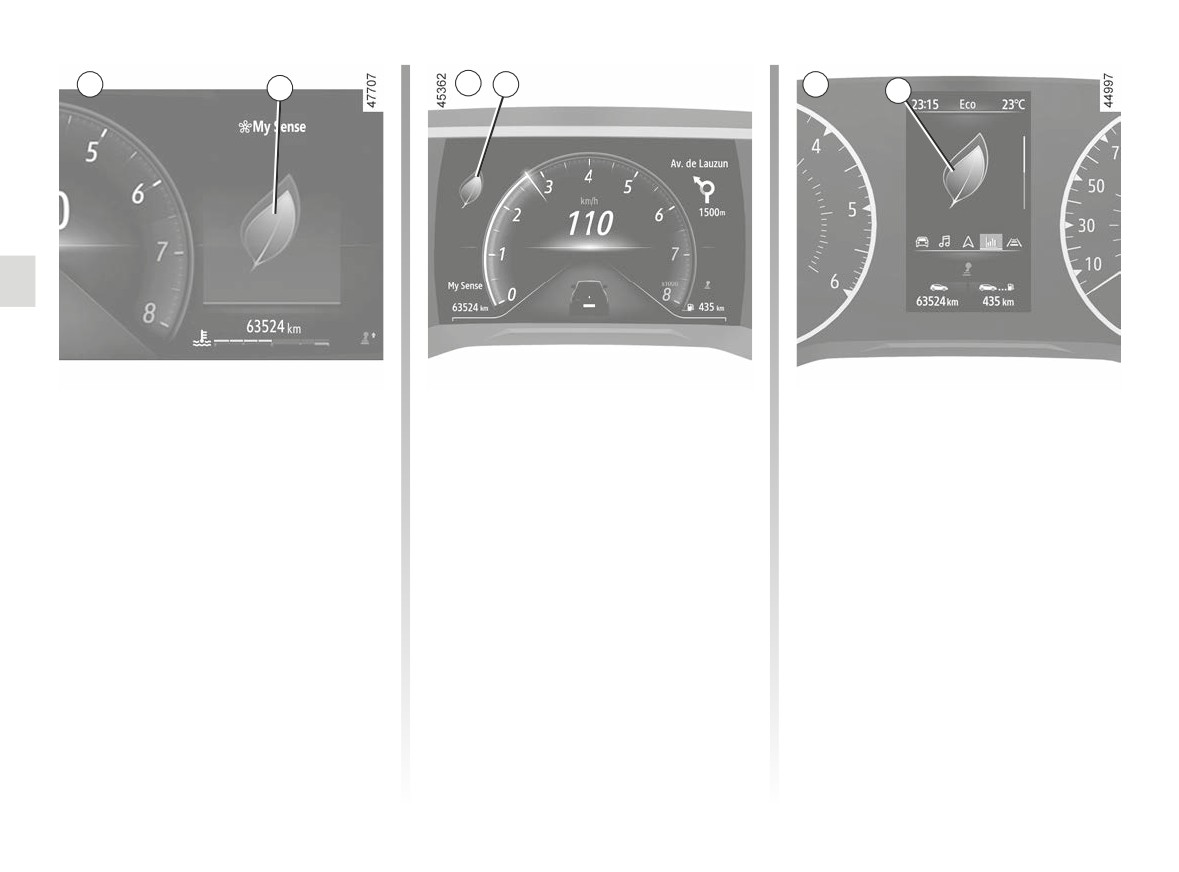

Driving style indicator 2
Informs you about the driving style
adopted in real time. This is shown by
indicator light 2.
The more petals displayed on 2, the
more your driving is flexible and eco-
nomical.
If you regularly monitor this indicator,
you will reduce your vehicle’s fuel con-
sumption.
Please refer to the multimedia instruc-
tions for further information.
2.30
DRIVING ADVICE, ECO DRIVING (4/8)
3
3
3

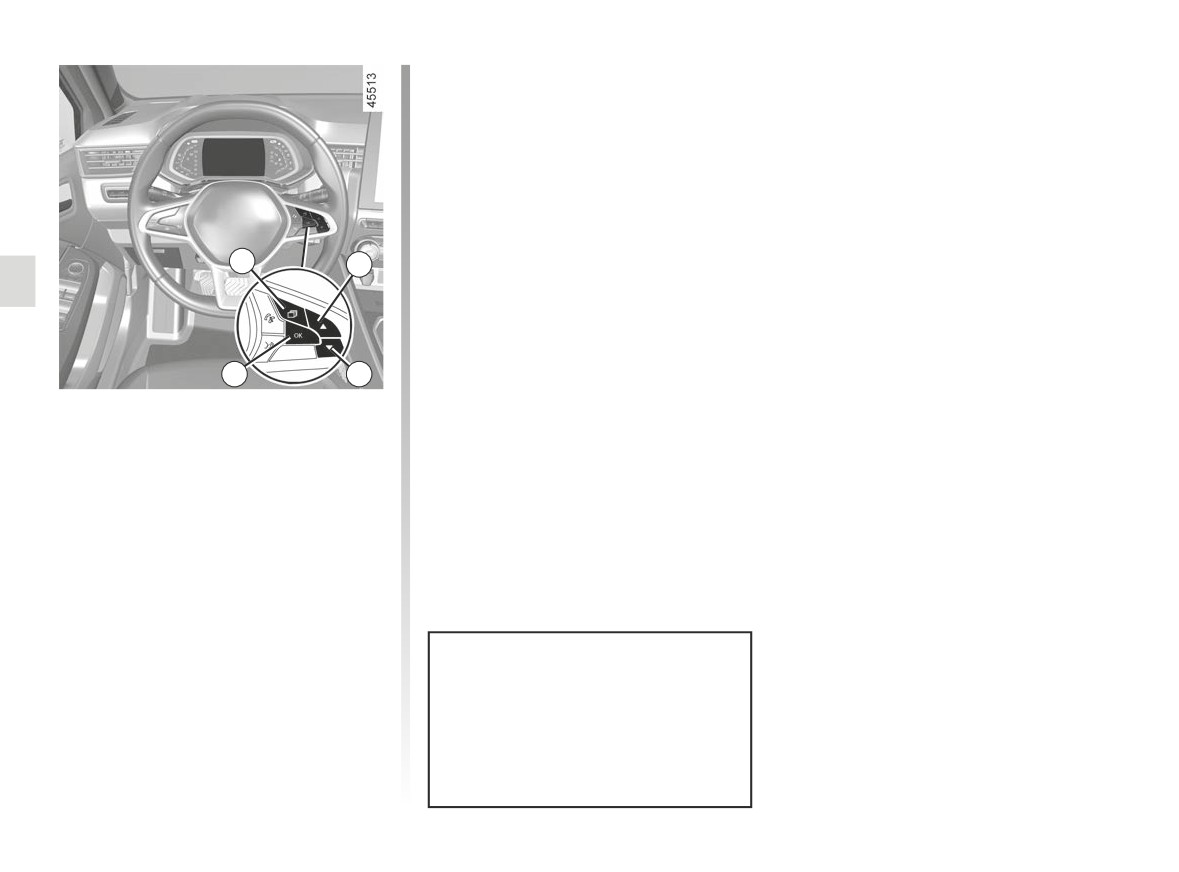

Acceleration indicator Eco 3
This informs you in real time whether
you are accelerating moderately or
strongly.
This is shown by the 3 warning light:
- green: acceleration is moderate and
correct;
- white: acceleration is too high;
- grey: acceleration is high.
Note: it is not possible to simulta-
neously display the driving style indica-
tor 2 and the Eco acceleration indica-
tor 3.
2.31
DRIVING ADVICE, ECO DRIVING (5/8)
An overall rating from 0 to 100 is dis-
4
played to let you assess your eco driv-
ing performance. The higher the rating,
the lower the fuel consumption.
Eco advice is given to help improve
your performance.
With your favourite journeys saved,
you can compare your performance
between trips and the performance of
other vehicle users.
Please refer to the multimedia instruc-
tions for further information.

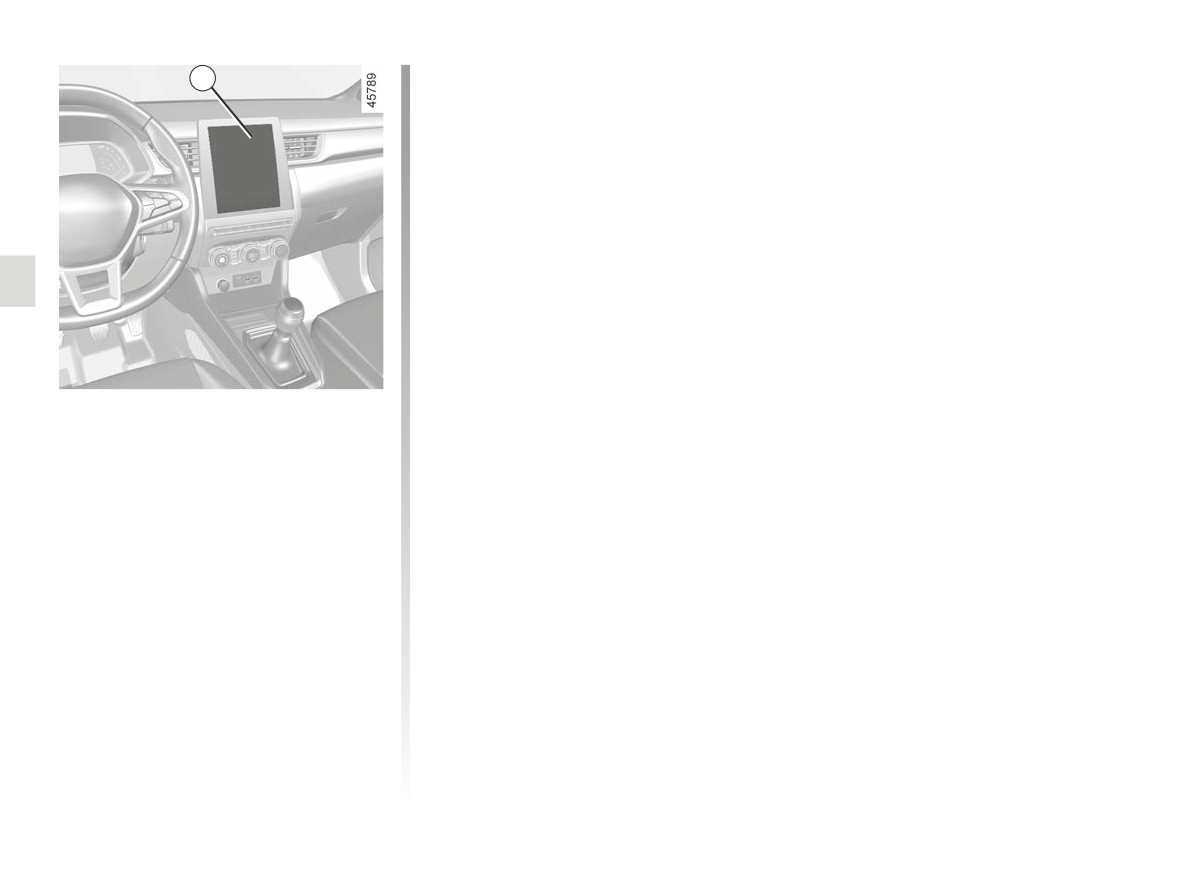

On the multimedia screen
Journey record
Once the engine is switched off, you
will see “Journey record” displayed on
the multimedia screen 4, enabling you
to view information on your last journey.
This indicates:
- the general score;
- score evolution;
- distance without fuel consumption.
2.32
DRIVING ADVICE, ECO DRIVING (6/8)

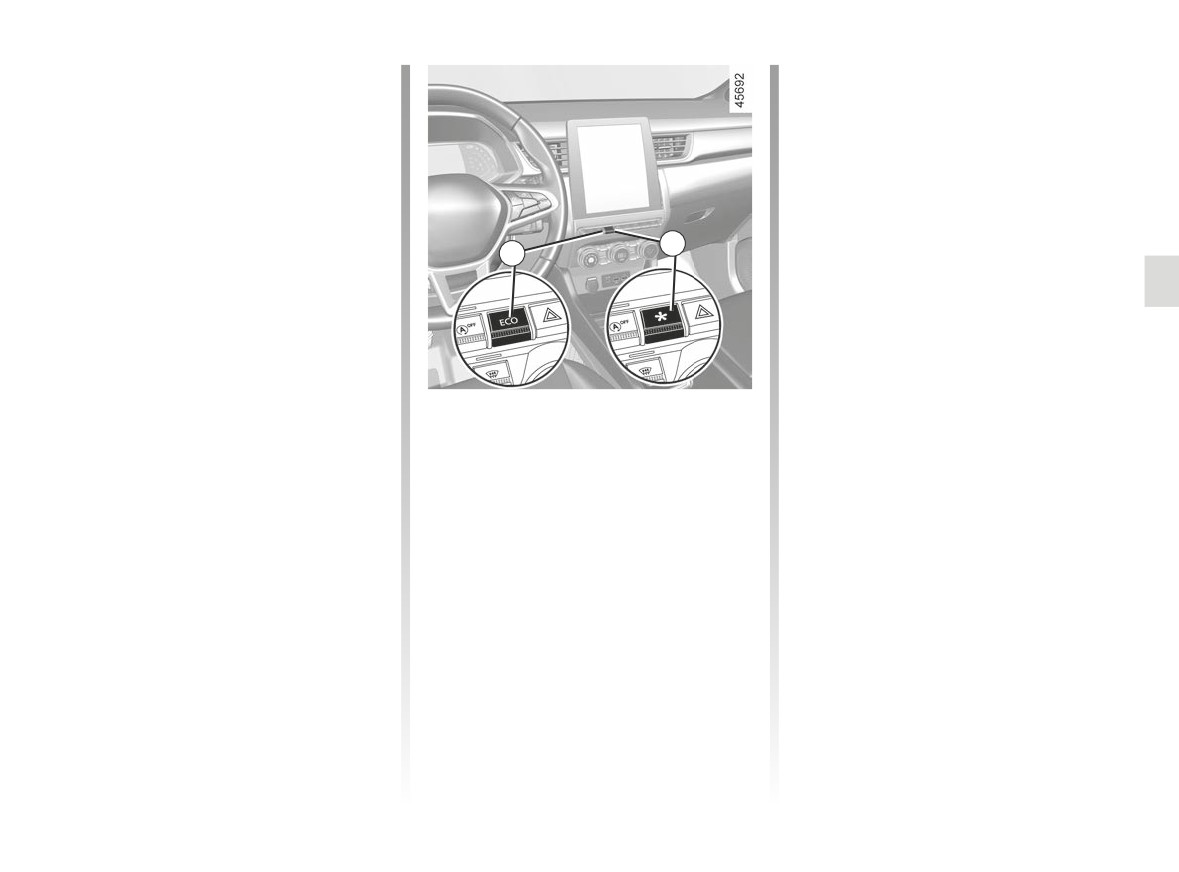

ECO mode
ECO mode is a function which opti-
The warning light
comes on on
mises fuel consumption. This acts on
the instrument panel to confirm activa-
certain driving actions (acceleration,
tion.
shifting gears, cruise control, decelera-
While driving, it is possible to leave the
tion etc.).
ECO mode temporarily in order to im-
Limiting acceleration enables low fuel
prove engine performance.
consumption in urban and surrounding
6
To do this, press the accelerator pedal
areas.
5
firmly and fully.
ECO mode is reactivated when you
take pressure off the accelerator pedal.
Disabling the function
Depending on the vehicle, the function
Activating the function
can be deactivated either:
Depending on the vehicle, the function
- by pressing the 5 switch. ➥ 3.2;
can be activated either:
- by pressing switch 6.
- by pressing the 5 switch. ➥ 3.2;
The warning light
goes out on
- by pressing switch 6;
the instrument panel to confirm deac-
tivation.
- from the multimedia screen (refer to
the multimedia instructions).
2.33
DRIVING ADVICE, ECO DRIVING (7/8)

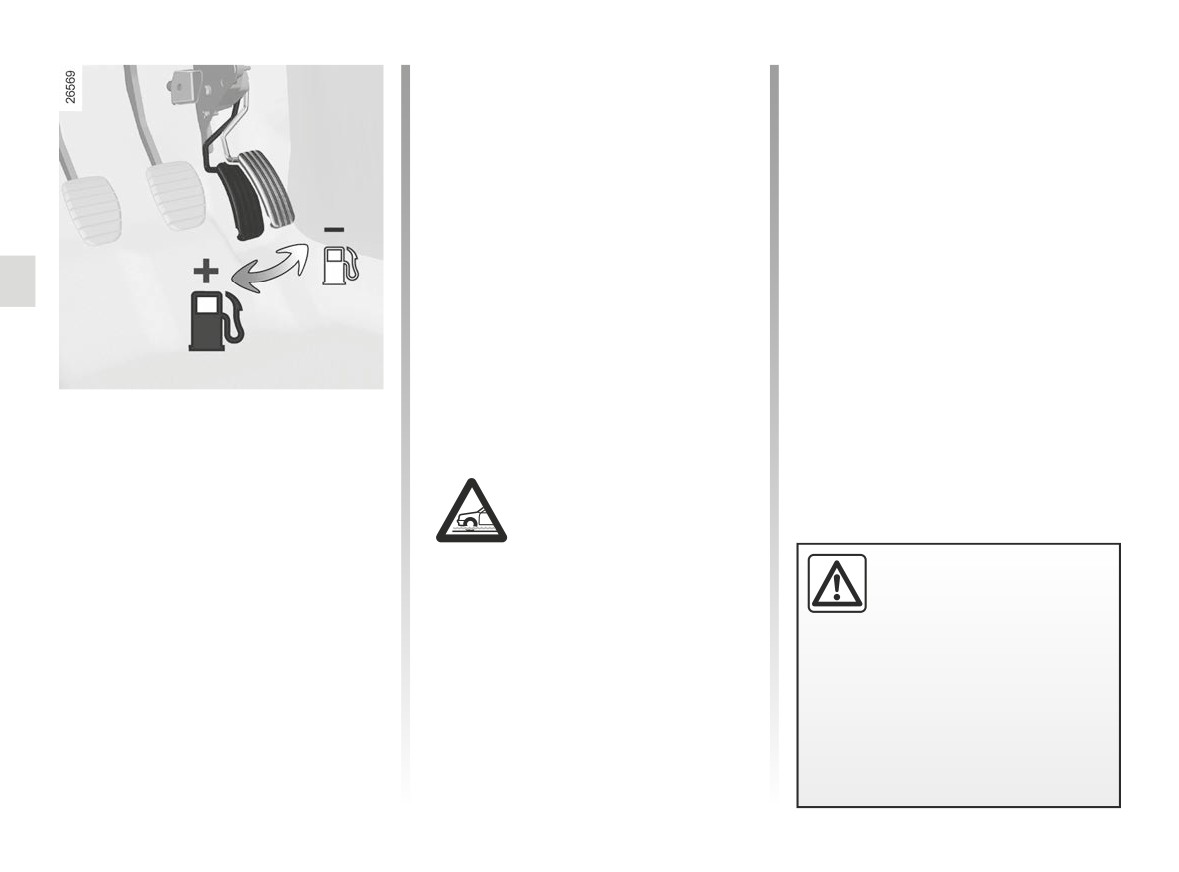

- Do not over rev the engine in the in-
termediate gears. You should always
use the highest gear possible.
- Avoid sudden acceleration.
- Brake as little as possible. If you an-
ticipate an obstacle or bend in ad-
vance, you may then simply release
the accelerator pedal.
- Do not try to maintain the same
speed up a hill, accelerate no more
than you would on the level. Keep
your foot in the same position on the
accelerator pedal.
- Double declutching and accelerating
before switching off are unnecessary
Driving advice and ECO
in modern vehicles.
driving
- Bad weather, flooded roads:
Behaviour
Do not drive through
- Drive carefully for the first few miles
floods if the water is
until the engine reaches its normal
above the lower edge of
operating temperature, rather than
the wheel rims.
let it warm up while the vehicle is sta-
Obstructions to the driver
tionary.
On the driver’s side, only
use mats suitable for the
- Speed is expensive.
vehicle, attached with the
- Dynamic driving with a lot of frequent
pre-fitted components, and check
acceleration and braking is expen-
the fitting regularly. Do not lay one
sive on fuel in comparison to the time
mat on top of another.
saved.
There is a risk of wedging the
pedals.
2.34
DRIVING ADVICE, ECO DRIVING (8/8)
- In vehicles fitted with air condi-
tioning, it is normal to observe an
increase in fuel consumption (espe-
cially in urban conditions) when it is
used. For vehicles fitted with manual
air conditioning, switch off the system
when it is not required.
Advice for reducing consumption
and therefore helping to preserve
the environment:
If the vehicle has been parked in the
sun, open the doors for a few mo-
ments to let the hot air escape before
starting the engine.
- Do not leave an empty roof rack
Tyres
Advice on use
fitted to the vehicle.
- It is better to fit a trailer for bulky ob-

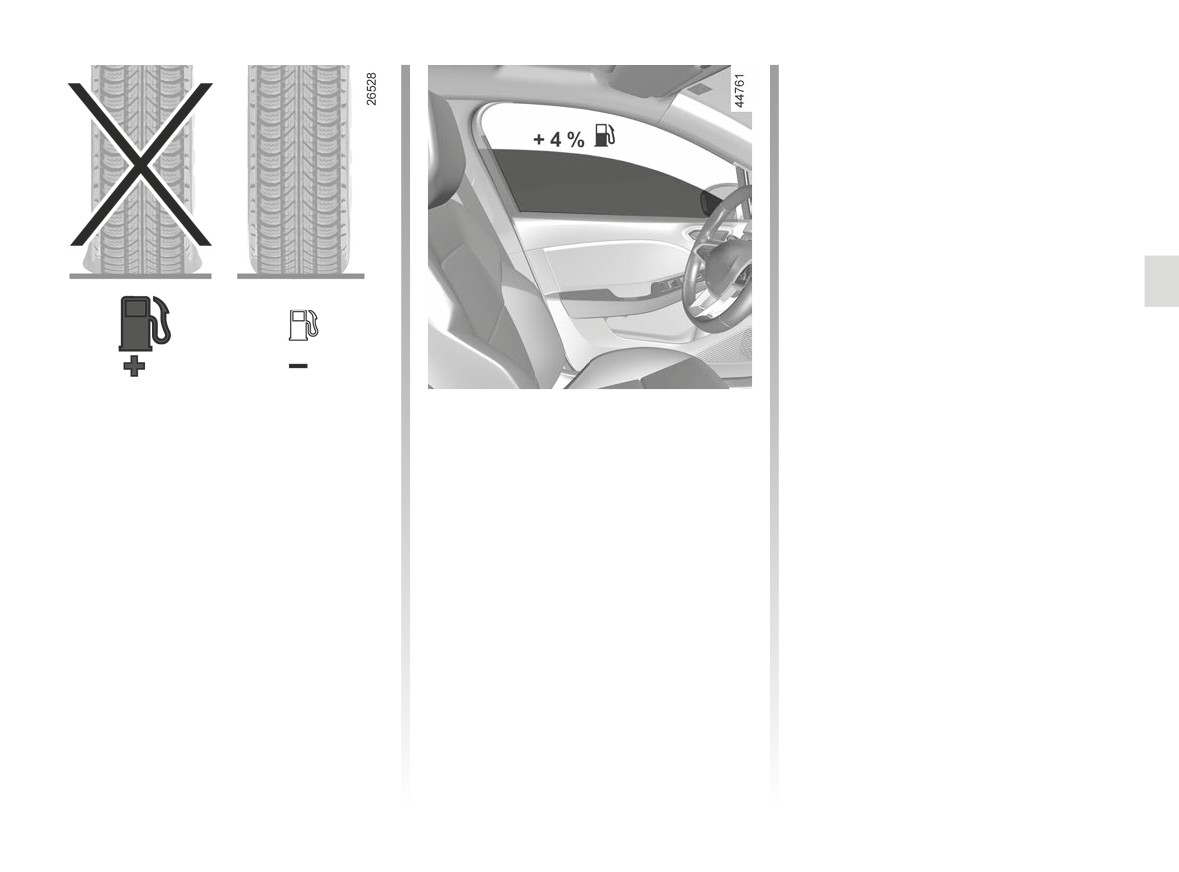

– An underinflated tyre increases fuel
- Favour the ECO mode.
jects.
consumption.
- Electricity is fuel; switch off all the
- When towing a caravan, fit a wind
– To optimise fuel consumption, set the
electrical components which are
deflector and adjust it carefully.
highest speed tyre pressure or the
not really needed. However (safety
- Avoid using the car for door-to-door
recommended pressure indicated on
first), keep your lights on when the
calls (short journeys with long waits
the edge of the driver’s door. ➥ 4.11.
visibility is bad (“see and be seen”).
in between) because the engine
– The use of non-recommended tyres
- Use the air vents. Driving with the
never reaches its normal operating
can increase fuel consumption.
windows open at 60 mph (100 km/h)
temperature.
will increase fuel consumption by
4%.
- Never fill the fuel tank right to the
brim to avoid overflow.
2.35
MAINTENANCE AND ANTIPOLLUTION ADVICE
Your vehicle complies with criteria for
In addition, replacing engine, fuel
- Air filter, fuel filter: a choked ele-
recycling and recovering vehicles at the
supply system and exhaust compo-
ment will reduce efficiency. It must
end of their service life, which entered
nents with parts other than those origi-
be replaced.
into force in 2015.
nally recommended by the manufac-
turer may alter your vehicle so that it
Some parts of your vehicle have there-
Exhaust gas monitoring
no longer complies with anti-pollution
fore been designed to facilitate future
regulations.
system
recycling.
Have your vehicle adjusted and
The exhaust gas monitoring system will
These parts are easy to remove so
checked by an authorised dealer, in ac-
detect any operating faults in the vehi-
that they can be recovered and repro-
cordance with the instructions given in
cle’s antipollution system.
cessed by recycling companies.
your maintenance schedule: they will
If this system malfunctions, toxic sub-
By virtue of its design, moderate fuel
have all the equipment necessary for
stances may be released into the at-
consumption and initial settings, your
ensuring that your vehicle is maintained
mosphere or damage may occur.
vehicle also conforms to current an-
to its original standard.
This warning light on the in-
tipollution regulations. The manufac-
Ä
strument panel will indicate if
turer is actively striving to reduce pol-
there are any faults in the system:
lutant exhaust gas emissions and to
Engine adjustments
This lights up when the ignition is
save energy. But the fuel consumption
- Spark plugs: for optimum condi-
switched on and goes out when the
of your vehicle and the level of pollutant
tions of use, output and performance
engine is started.
exhaust gas emissions are also your
the specifications laid down by our
- If it lights up continuously, consult an
responsibility. Ensure that it is main-
Design Department must be strictly
approved Dealer as soon as possi-
tained and used correctly.
applied.
ble;
If the spark plugs have to be changed,
- if it flashes, reduce the engine speed
use the make, type and gap specified
until the light stops flashing. Contact
Maintenance
for your vehicle’s engine. Contact an
an authorised dealer as soon as pos-
It is important to remember that fail-
authorised dealer for this.
sible.
ure to respect antipollution regulations
- Ignition and idle speed: no adjust-
➥ 1.119
could lead to legal action being taken
ment is needed.
against the vehicle owner.
2.36
ENVIRONMENT
Your vehicle has been designed with
Emissions
- At the end of the vehicle’s service
respect for the environment in mind for
life, it should be sent to approved
Your vehicle has been designed to emit
its entire service life: during production,
centres to ensure that it is recycled.
fewer greenhouse gases (CO2) while in
use and at the end of its life.
use, and therefore to consume less fuel
- In all cases, comply with local legis-
(eg. 140 g/km, equivalent to 5.3 l/100
lation.
Manufacture
km for a diesel vehicle).
Your vehicle has been manufactured at
Our vehicles are also equipped with a
Recycling
a factory which complies with a policy
particle filter system including a cata-
Your vehicle is 85% recyclable and
to reduce the environmental impact
lytic converter, an oxygen sensor and
95% recoverable.
on the surrounding areas (reduction of
an active carbon filter (the latter pre-
water and energy consumption, visual
vents vapour from the fuel tank being
To achieve these objectives, many of
and noise pollution, atmospheric emis-
released into the open air).
the vehicle components have been de-
sions and waste water; sorting and re-
signed to enable them to be recycled.
For certain diesel vehicles, this system
using waste).
The materials and structures have
also has a particle filter to reduce the
been carefully designed to allow these
volume of soot particles emitted.
components to be easily removed and
reprocessed by specialist companies.
Please make your own
In order to preserve raw material re-
contribution towards
sources, this vehicle incorporates nu-
protecting the environment
merous parts made from recycled plas-
tics or renewable materials (vegetable
too
or animal-derived materials such as
- Worn parts replaced in the course of
cotton or wool).
routine vehicle maintenance (vehi-
cle battery, oil filter, air filter, batter-
ies, etc.) and oil containers (empty or
filled with used oil) must be disposed
of through specialist organisations.
2.37
TYRE PRESSURE LOSS WARNING (1/6)
1
2
1

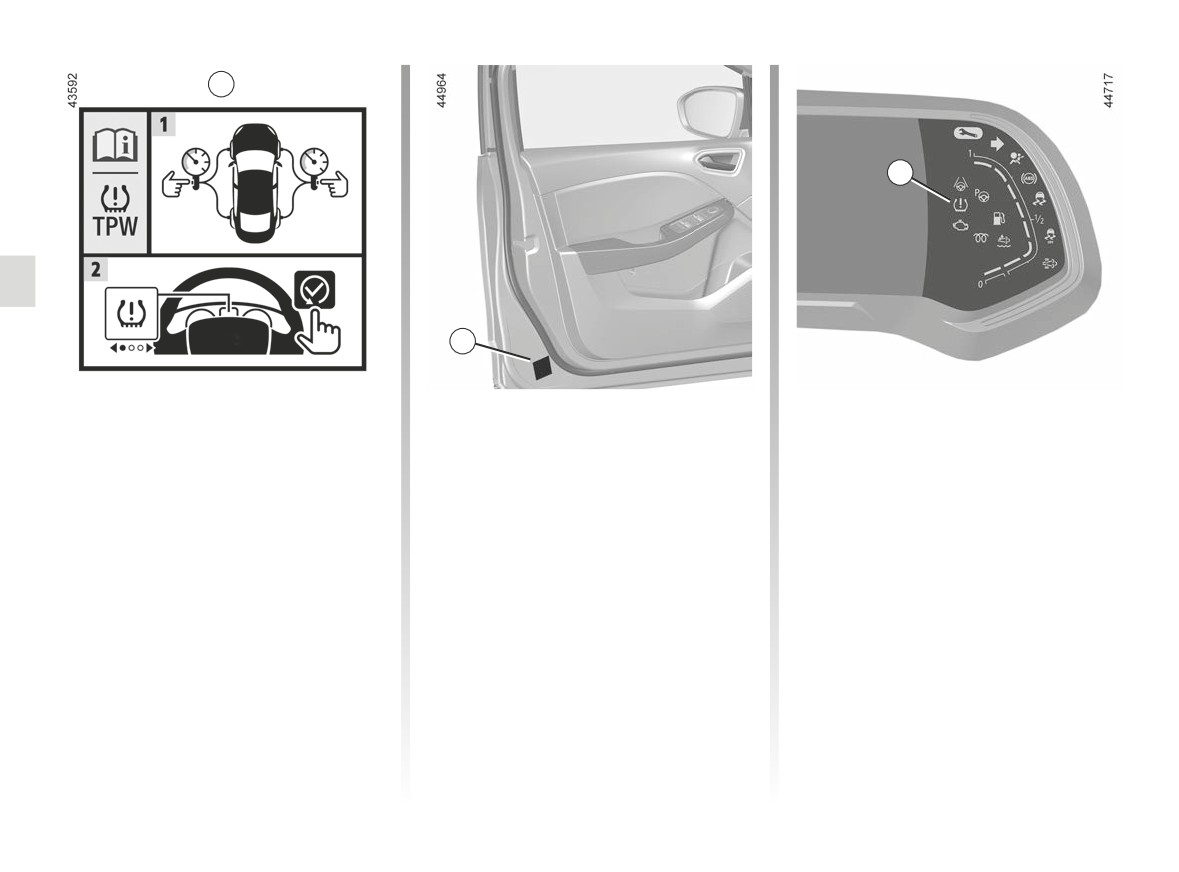

When fitted to the vehicle, this system
Operating principle
notifies the driver if one or more tyres
This system detects a loss of pressure
lose pressure.
in one of the tyres by measuring the
The system can be identified by the 1
wheel speed while driving.
label in the vehicle.
The warning light
2 comes on on
the dashboard to alert the driver in the
event of insufficient pressure (tyre de-
flated, punctured etc.).
2.38
TYRE PRESSURE LOSS WARNING (2/6)
Operating conditions
-
significant change in load or distribu-
Resetting the standard level
tion of load on one side of the vehi-
The system must be reinitialised with
for the tyre pressures
cle;
tyre pressure equal to that shown on
This should be done:
-
sporty driving with strong accelera-
the tyre inflation pressure label. ➥ 4.11.
tion;
- after each re-inflation or resetting of
If not, the system may not provide a
-
driving on snowy or slippery surface;
tyre pressure;
correct warning in the event of signifi-
driving with snow chains;
cant tyre pressure loss.
- after changing a wheel;
fitting a single new tyre;
Resetting should always be carried
-
use of tyres not approved by the net-
– after changing wheels around.
out after checking the tyre pressure
work.
Tyre pressures must correspond to the
of all four tyres when cold.
current usage of the vehicle (empty,
In the following situations, the system
carrying a load, motorway driving, etc.).
risk coming into action late or not func-
tioning correctly:
- system not reset after reinflation or
any operation on the wheels;
- incorrectly reset system: tyre pres-
sures different from the recom-
mended pressures;
This function is an addi-
tional driving aid.
The function does not take
the place of the driver. It
cannot, therefore, under any cir-
cumstances replace the vigilance
or the responsibility of the driver.
Check the tyre pressures, including
the emergency spare wheel, once a
The sudden loss of pressure in a
month.
tyre (burst tyre, etc.) cannot be de-
tected by the system.
2.39
TYRE PRESSURE LOSS WARNING (3/6)
Hold down the
5 switch until the
“Operation completed” message ap-
pears. You can now drive.
6
3
5
4
Resetting procedure
Ignition on, vehicle stopped:
- repeatedly tap the 6 switch as many
times as necessary to reach the “ve-
hicle” tab
;
- briefly press the 3 or 4 switch to
reach the “Tyre pressure init. long
press” page;
- press and hold the 5 OK switch to
launch the reset.
If the vehicle is equipped with a nav-
igation system, the resetting proce-
dure may also be carried out using
the multimedia screen: please see
the equipment instructions.
2.40
TYRE PRESSURE LOSS WARNING (4/6)
The table below shows the possible messages related to the tyre resetting procedure.
Steps
Messages
Readings
Tyre pressure init. at stop
The message is displayed during driving. If you want to reset the pressure of the
four tyres, stop the vehicle.
1
Tyre pressure init. long press
To reset the pressure of the four tyres, with the vehicle stopped, press and hold
the 5 OK switch to launch resetting until the “If pressure OK [hold on]” message
is displayed.
2
If pressure OK [hold on]
The message flashes to indicate that the system has registered the resetting
procedure. If all four tyres have been correctly adjusted to match the tyre pres-
sure values recommended on the tyre pressure label ➥ 4.11, press and hold
switch 5 OK until the message “Operation completed” appears.
3
Operation completed
The resetting procedure has been completed successfully. You can now drive.
2.41
TYRE PRESSURE LOSS WARNING (5/6)
Readjustment of tyre
After each change of wheel/tyre, read-
just the tyre pressure and launch the
7
pressures
reset of the tyre pressure reference
The pressure of the four tyres must
value.
be set when cold (refer to the label lo-
cated on the edge of the driver’s door).
Emergency spare wheel
If tyre pressures cannot be checked
when the tyres are cold, the recom-
If fitted on the vehicle, readjust the tyre
mended pressures should be increased
pressure and launch the resetting of the
by 0.2 to 0.3 bar (3 PSI).
tyre pressure reference value.
Never deflate a hot tyre.
After each reinflation or readjustment of
Tyre repair product and
the tyre pressure, launch the resetting
inflation kit
of the tyre pressure reference value.
Only use equipment approved by the
network. Otherwise the system may
Replacing wheels/tyres
come into action late or not function
Tyre pressure faults
Only use equipment approved by the
correctly. ➥ 5.4. After using the tyre
The table on the following page lists
network. Otherwise the system may
inflation kit, readjust the tyre pressure
the warning messages which appear
come into action late or not function
and launch the resetting of the tyre
on the instrument panel 7 when the
correctly. ➥ 5.11.
pressure reference value.
system detects a tyre pressure fault.
2.42
TYRE PRESSURE LOSS WARNING (6/6)
The information on the instrument panel signals any potential tyre pressure faults (e.g. deflated or punctured tyre).
Indicator
Messages
Readings
lights
This indicates that tyre under-inflation or puncture has been detected.
Inflate tyres and init.
Check and adjust the pressure of the four tyres when cold and reset the
system.
This indicates that the reset has been unsuccessful. Check and readjust
Check tyre press and init.
the tyre pressure before re-launching the resetting procedure.
This indicates that the last system reset was carried out over 6 months
Check tyre press and init.
ago or over approximately 6,214 miles (10,000 km). Check and readjust
the tyre pressure before re-launching another resetting procedure.
Check TPW
This indicates a fault in the system. Consult an approved dealer.
This indicates that an emergency spare wheel different in size to the other
four wheels has been fitted to the vehicle. The system remains unavail-
TPW not available
able until a wheel identical in size to the other wheels has been fitted and
the resetting procedure has been carried out.
2.43
DRIVING CORRECTION DEVICES AND AIDS (1/5)
Depending on the vehicle, this is com-
Anti-lock braking system
posed of:
(ABS)
– anti-lock braking system (ABS);
Under heavy braking, the ABS prevents
- electronic stability program (ESC)
the wheels from locking, allowing the
with understeer control and trac-
stopping distance to be managed and
tion control;
keeping control of the vehicle.
- emergency brake assist;
Under these circumstances, the vehi-
- hill start assistance.
cle can be steered to avoid an obstacle
Other driving assistance systems are
whilst braking. In addition, this system
detailed on the following pages.
can increase stopping distances, par-
ticularly on roads with low surface grip
(wet ground etc.).
You will feel a pulsation through the
These functions are an ad-
brake pedal each time the system is
ditional aid in the event of
activated. The ABS does not in any
critical driving conditions,
way improve the vehicle's physical per-
enabling the vehicle behav-
formance relating to the road surface
iour to be adapted to suit the driving
and road-holding. It is still essential to
conditions.
follow the rules of good driving practice
(such as driving at a safe distance from
These functions do not take the
the vehicle in front etc.).
place of the driver. They do not
increase the vehicle’s limits and
should not encourage you to
drive more quickly. Therefore,
they can under no circumstances
replace the vigilance or responsibil-
ity of the driver when manoeuvring
the vehicle (the driver must always
In an emergency, apply firm and
be ready for sudden incidents which
continuous pressure to the brake
may occur when driving).
pedal. There is no need to pump
it repeatedly. The ABS will modu-
late the force applied in the braking
system.
2.44
DRIVING CORRECTION DEVICES AND AIDS (2/5)
Operating faults:
-
and x
lit up on the in-
strument panel accompanied
by the messages
“Check ABS”,
“WARNING: Check Braking System”
and “Check ESC”: this indicates that
the ABS, the ESC and the emer-
gency brake assist are disabled.
Braking is always enabled;
- x
, D
,
and
®
lit on the instrument panel accom-
panied by the message “WARNING:
Braking System”: this indicates a
fault with the braking system.
In both cases, please consult an
Authorised Dealer.
Your braking systems
are partially operational.
However, it is dangerous
to brake suddenly and it
is essential to stop immediately, as
soon as traffic conditions allow. Call
an approved Dealer.
2.45















Content      ..     6      7      8      9     ..
