CHILD SAFETY
Large children
run the lap/shoulder belt over your abdominal area.
Contact your doctor for specific recommendations.
WARNING
WARNING
INJURED PERSONS
Infants and children need special protection.
Never allow children to stand or kneel on any
RENAULT recommends that injured persons use
The vehicle’s seat belts may not fit them prop-
seats.
seat belts. Contact your doctor for specific recom-
erly. The shoulder belt may come too close to
mendations.
Never allow children in the luggage areas
the face or neck. The lap belt may not fit over
while the vehicle is moving. A child could be
their small hipbones. In an accident, an im-
CENTRE MARK ON SEAT BELTS
seriously injured in an accident or sudden
properly fitted seat belt could cause serious
stop.
(where fitted)
or fatal injury.
Children who are too large for a child restraint sys-
Selecting correct set of seat belts
Always use an appropriate child restraint sys-
tem should be seated and restrained by the seat
tem.
belts that are provided.
Children need adults to help protect them. They
If the child’s seating position has a shoulder belt
need to be properly restrained. The proper restraint
that fits close to the face or neck, the use of a
depends on the child’s size.
booster seat (commercially available) may help
overcome this. The booster seat should raise the
Infants and small children
child so that the shoulder belt is properly positioned
across the top, middle portion of the shoulder and
the lap belt is low on the hips. The booster seat
should also fit the vehicle seat. Once the child has
grown so that the shoulder belt is no longer on or
SSS0703Z
near the face or neck of the child, use the shoulder
belt without the booster seat. In addition, there are
The centre seat belt buckle (and/or tongue, where
many types of child restraint systems available for
fitted) is identified by the
<CENTER> mark. The
larger children that should be used for maximum
centre seat belt tongue can be fastened only into
protection.
the centre seat belt buckle.
SSS0099Z
PREGNANT WOMEN
RENAULT recommends that pregnant women use
RENAULT recommends that infants and small chil-
seat belts. The seat belt should be worn snug, and
dren be seated in a child restraint system. You
always position the lap belt as low as possible
should choose a child restraint system that fits your
around the hips, not the waist. Place the shoulder
vehicle and the child, and always follow the manu-
belt over your shoulder and across your chest. Never
facturer’s instructions for installation and use.
Safety — seats, seat belts and supplemental restraint system
1-11
THREE-POINT TYPE SEAT BELTS
If the seat belt cannot be pulled from its fully
Shoulder belt height adjustment (for
retracted position, firmly pull the belt and
front seats)
Fastening seat belts
release it. Then smoothly pull the belt out of
the retractor.
SSS0351AZ
SSS0292Z
SSS0467Z
WARNING
WARNING

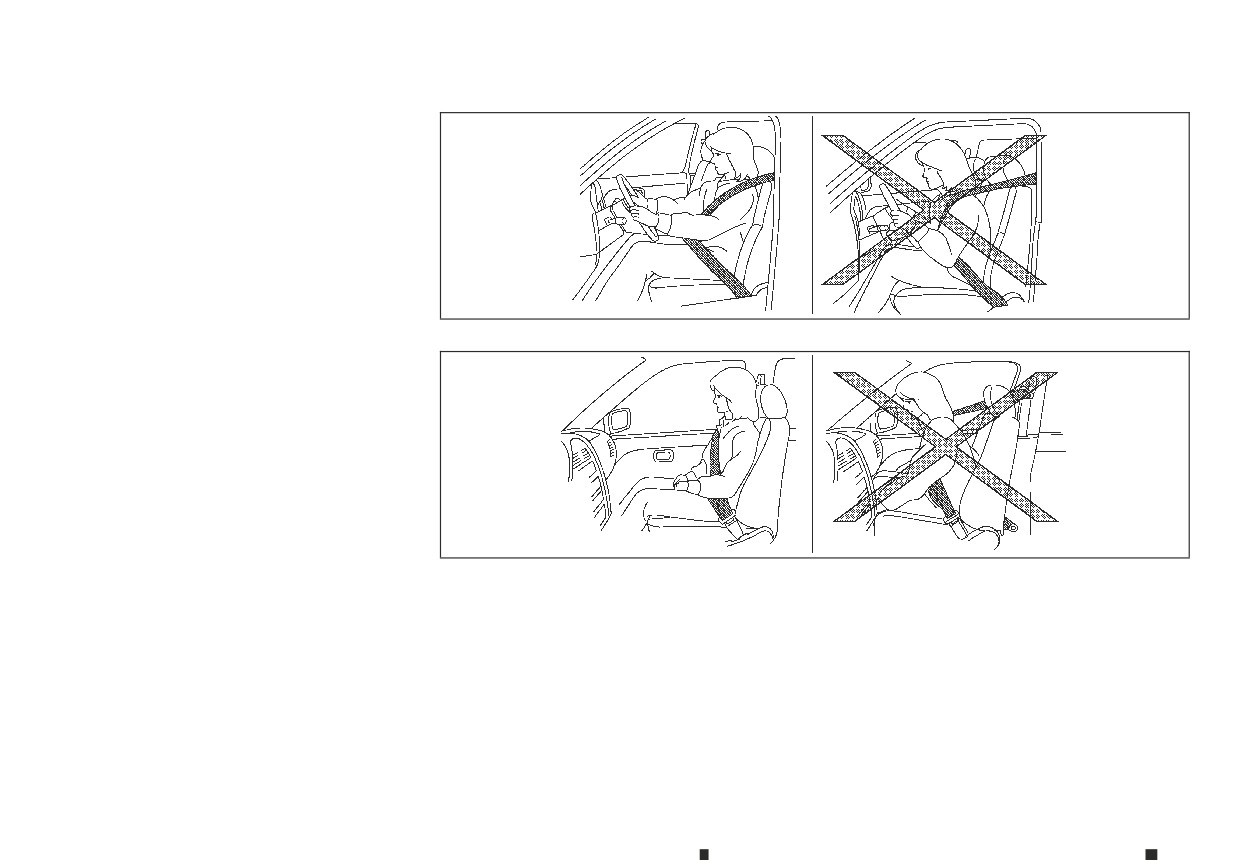

3. Position the lap belt portion low and snug on the
The shoulder belt anchor height should be ad-
The seatback should not be in a reclined position
hips as shown.
justed to the position best for you. Failure to
any more than needed for comfort. Seat belts are
do so may reduce the effectiveness of the en-
most effective when the passenger sits well back
4. Pull the shoulder belt portion toward the retrac-
tire restraint system and increase the chance
and straight up in the seat.
tor to take up extra slack. Be sure the shoulder
or severity of injury in an accident.
belt is routed over your shoulder and is snug
1. Adjust the seat. (See “Manual seat adjustment
across your chest.
The shoulder belt should rest on the middle of
(where fitted)” earlier in this section.)
the shoulder. It must not rest against the neck.
2. Slowly pull the seat belt out of the retractor and
Be sure that the seat belt is not twisted in any
insert the tongue into the buckle until you hear
way.
and feel the latch engage.
Be sure that the shoulder belt anchor is se-
The retractor is designed to lock during a
cured by trying to move the shoulder belt an-
sudden stop or on impact. A slow pulling
chor up and down after adjustment.
motion permits the seat belt to move, and
allows you some freedom of movement in
the seat.
1-12
Safety — seats, seat belts and supplemental restraint system
To adjust, pull on the release button and move
TWO-POINT TYPE SEAT BELTS
the shoulder belt anchor to the proper position,
(where fitted)
so that the belt passes over the centre of the shoul-
der. The belt should be away from your face and
Fastening seat belts
neck, but not falling off your shoulder. Release the
button to lock the shoulder belt anchor into posi-
WARNING
tion.
Every person who drives or rides in this vehicle
Unfastening seat belts
should use a seat belt at all times.
Push the button on the buckle. The seat belt auto-
matically retracts.
SSS0541Z
Checking seat belt operation
Seat belt retractors are designed to lock seat belt
2.
Adjust the seat belt length. To shorten, hold the
movement:
tongue and pull the upper belt as illustrated.
To lengthen, hold the tongue and pull the under
When the seat belt is pulled quickly from the re-
tractor.
belt as illustrated.
When the vehicle slows down rapidly.
To increase your confidence in the seat belts, check
SSS0448Z
the operation by grasping the shoulder belt and
pulling forward quickly. The retractor should lock
1. Insert the tongue into the buckle with the
and restrict further belt movement. If the retractor
<CENTER> mark (where fitted) until you hear and
does not lock during this check, contact an ap-
feel the latch engage.
proved dealer or qualified workshop immediately.
SSS0450Z
3. Position the lap belt portion low and snug on the
hips as shown.
Unfastening seat belts
Push the button on the buckle.
Safety — seats, seat belts and supplemental restraint system
1-13
CHILD RESTRAINTS
SEAT BELT MAINTENANCE
PRECAUTIONS ON CHILD
Infants and small children should always be
placed in an appropriate child restraint sys-
Periodically check that the seat belt and all the
RESTRAINT USAGE
tem while riding in the vehicle. Failure to use a
metal components, such as buckles, tongues, re-
child restraint system can result in serious in-
tractors, flexible wires and anchors, work properly. If
jury or death.
loose parts, deterioration, cuts or other damage on
the seat belt webbing is found, the entire seat belt
Child restraint systems specially designed for
assembly should be replaced.
infants and small children are available from
several manufacturers. When selecting any
If dirt builds up in the shoulder belt guide of the seat
child restraint systems, place your child in the
belt anchors, the seat belts may retract slowly. Wipe
child restraint system and check the various
the shoulder belt guide with a clean, dry cloth.
adjustments to be sure that the child restraint
To clean the seat belt webbing, apply a mild soap
system is compatible with your child. Always
solution or any solution recommended for cleaning
follow the manufacturer’s instructions for in-
SSS0099Z
upholstery or carpet. Then wipe with a cloth and
stallation and use.
allow the seat belts to dry in the shade. Do not allow
RENAULT recommends that the child restraint
the seat belts to retract until they are completely
WARNING
system be installed in the rear seat (Double
dry.
Infants and small children should never be
Cab model). According to accident statistics,
carried on your lap. It is not possible for even
children are safer when properly restrained in
the strongest adult to resist the forces of a se-
the rear seat rather than in the front seat.
vere accident. The child could be crushed be-
Follow all of the child restraint system manu-
tween the adult and parts of the vehicle. Also,
facturer’s instructions for installation and use.
it is dangerous to put a seat belt around a child
When purchasing a child restraint system, be
being carried on the occupant’s lap.
sure to select one which will fit your child and
Infants and children need special protection.
vehicle. It may not be possible to properly in-
The vehicle’s seat belts may not fit them prop-
stall some types of child restraint systems in
erly. The shoulder belt may come too close to
your vehicle.
the face or neck. The lap belt may not fit over
The direction of the child restraint, either
their small hip bones. In an accident, an im-
front-facing or rear-facing, depends on the
properly fitting seat belt could cause serious
type of the child restraint and the size of the
or fatal injury.
child. Refer to the child restraint manufactur-
er's instructions for details.
1-14
Safety — seats, seat belts and supplemental restraint system
For a front-facing child restraint system, check
If the restraint is not secure, tighten the belt as
CAUTION
to make sure the shoulder belt does not fit
necessary, or install the restraint in another
Remember that a child restraint system left in a
close to child’s face or neck. If you must install
seat and test it again.
closed vehicle can become very hot. Check the
a front-facing child restraint system in the
Check the child restraint system in your ve-
seating surface and buckles before placing your
front seat, see “Installation on front passen-
hicle to be sure that it is compatible with the
child in a child restraint system.
ger’s seat” later in this section.
vehicle’s seat belt system.
UNIVERSAL CHILD RESTRAINTS FOR

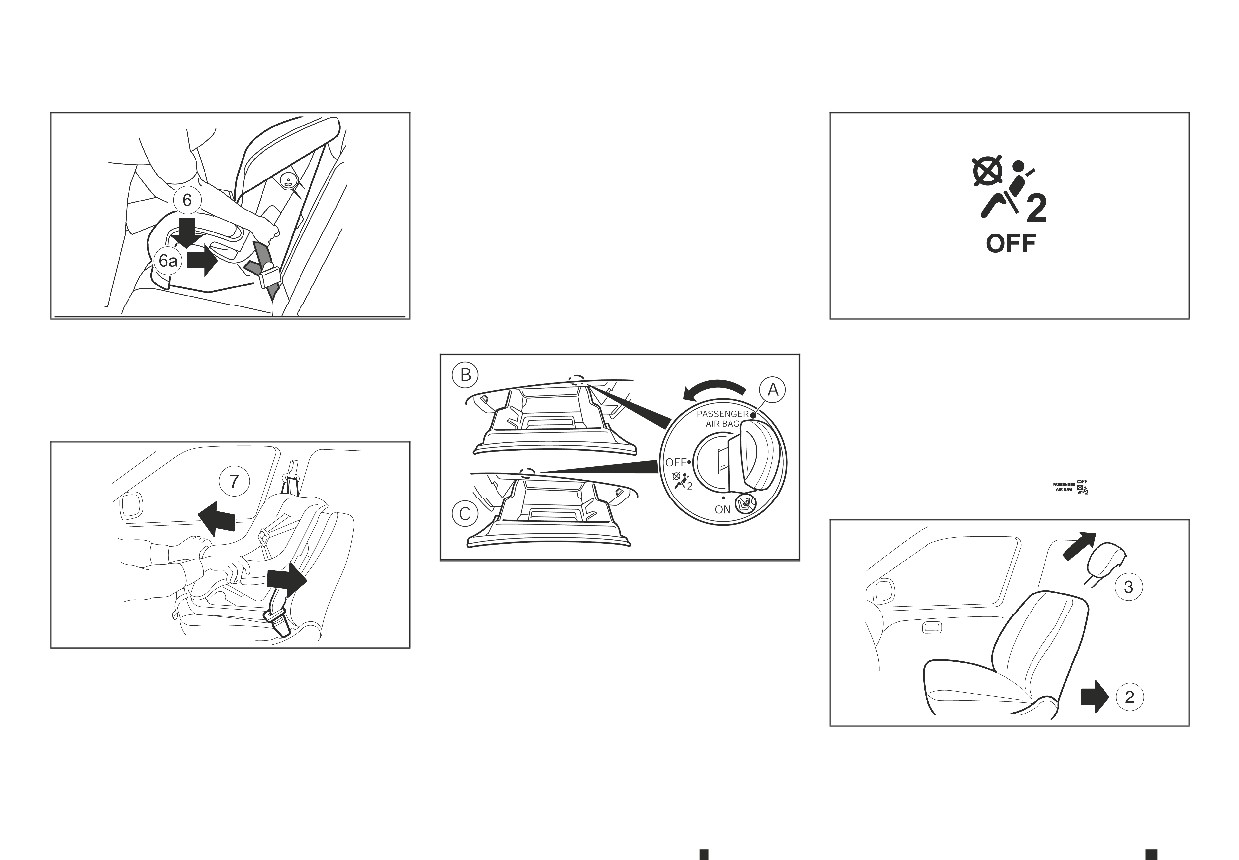

Never install a rear-facing child restraint sys-
If a child restraint system is not anchored
tem on the front passenger's seat when the
FRONT SEAT AND REAR SEATS (for
properly, the risk of a child being injured in a
front passenger's air bag is active. Supple-
Europe)
collision or a sudden stop greatly increases.
mental front-impact air bags inflate with
Improper use of a child restraint system can
NOTE
great force. A rear-facing child restraint sys-
increase the risk or severity of injury for both
tem could be struck by the supplemental
Child restraints approved to UN Regulation No. 44
the child and other occupants in the vehicle.
front-impact air bags in an accident and could
or No. 129 are clearly marked with the categories
seriously injure or kill your child.
Always use an appropriate child restraint sys-
such as Universal, Semi-universal or ISOFIX.
tem. An improperly installed child restraint
Do not install a child restraint in the jump seats
When selecting any child restraint, keep the follow-
system could lead to serious injury or death in
(where fitted for King Cab model). These seats
ing points in mind:
an accident.
are not suitable for child restraint installation.
Choose a child restraint that complies with the
When the child restraint system is not in use,
Adjustable seatbacks should be positioned to
latest European safety standard, UN Regulation
keep it secured with the ISOFIX and i-Size child
fit a child restraint system, but as upright as
No. 44 or No. 129.
restraint system or a seat belt to prevent it
possible. see “Installation on rear outboard
from being thrown around in case of a sudden
Place your child in the child restraint and check
seats” later in this section and “Child restraint
stop or accident.
the various adjustments to be sure the child re-
installation using three-point type seat belt”
straint is compatible with your child. Always fol-
later in this section.
RENAULT recommends that infants and small chil-
low all of the recommended procedures.
dren be seated in a child restraint system. You
If the seat belt in the position where a child
should choose a child restraint system that fits your
Check the child restraint in your vehicle to be
restraint system is installed requires a locking
sure it is compatible with vehicle's retention sys-
vehicle and always follow the manufacturer’s in-
clip and if it is not used, injuries could result
tem.
structions for installation and use. In addition, there
from a child restraint system tipping over dur-
ing normal vehicle braking or cornering.
are many types of child restraint systems available
Refer to the tables later in this section for a list of
for larger children that should be used for maximum
the recommended fitment positions of child re-
After attaching a child restraint system, test it
protection.
straints for your vehicle.
before you place the child in it. Tilt it from side
to side. Try to tug it forward and check if it is
held securely in place. The child restraint sys-
tem should not move more than 25 mm (1 in).
Safety — seats, seat belts and supplemental restraint system
1-15
Mass group of child restraint
Mass group
Child's weight
Group 0
up to 10 kg
Group 0+
up to 13 kg
Group I
9 to 18 kg
Group II
15 to 25 kg
Group III
22 to 36 kg
Examples of child seat types:
JVR0373XZ
Child safety seat categories II and III
JVR0371XZ
Child safety seat categories 0 and 0+
JVR0372XZ
Child safety seat categories 0+ and I
1-16
Safety — seats, seat belts and supplemental restraint system
Child restraint installation using the vehicle's seat belt
The following restriction is applied when using child restraints varying by infants weight and installation position.
Seating position
Mass group
Front passenger seat
Front passenger seat
Second row outer seat
Second row centre seat *4
(Air bag ON)
(Air bag OFF)
0
<10 kg
X
L*3
U/L*2
U*2
0+
<13 kg
X
L*3
U/L*2
U*2
I
9 - 18 kg
X
L*1,*3
U/L*1,*2
U*1,*2
II
15 - 25 kg
X
L*1,*3
U/L*1,*2
U*1,*2
III
22 - 36 kg
X
L*1,*3
U/L*1,*2
U*1,*2
U:
Suitable for “Universal” category child restraint systems, forward and rearward facing, approved for use in this mass group.
UF:
Suitable for “Universal” category child restraint systems, forward facing only, approved for use in this mass group.
L:
Suitable for particular child restraint systems of the “Specific for the vehicle”, “Restricted”, or “Semi-universal” categories, approved for use in this mass group.
X:
Seat position not suitable for children in this mass group.
*1:
Move the head restraint to the uppermost position or, if necessary, remove it in case of any interference with the child restraint. Do not remove head restraint
when using a booster cushion only.
*2:
Adjust the front seat(s) slide position sufficiently forward and/or the seat height adjustment (if available) to the uppermost position to ensure there is no
contact between child seat and back of front seat.
*3:
Move the front passenger seat as far rearward as possible.
*4:
Suitable only for “Universal” category of child restraints. Do not install child restraints with support leg.
Safety — seats, seat belts and supplemental restraint system
1-17
Child restraint installation using ISOFIX
The following restriction is applied when using child restraints varying by infant's weight and installation position.
Seating position
Mass group
Front passenger seat
Front passenger seat
Second row outer seat
Second row centre seat
(Air bag ON)
(Air bag OFF)
F
ISO/L1
X
X
X
X
Carry-cot
G
ISO/L2
X
X
X
X
0+ (<10 kg)
E
ISO/R1
X
X
IL*2
X
E
ISO/R1
X
X
IL*2
X
0+ (<13 kg)
D
ISO/R2
X
X
IL*2
X
C
ISO/R3
X
X
IL*2
X
D
ISO/R2
X
X
IL*2
X
C
ISO/R3
X
X
IL*2
X
I (9 - 18 kg)
B
ISO/F2
X
X
IUF/IL*1,*2
X
B1
ISO/F2X
X
X
IUF/IL*1,*2
X
A
ISO/F3
X
X
IUF/IL*1,*2
X
II (15 - 25 kg)
X
X
IL*1,*2
X
III (22 - 36 kg)
X
X
IL*1,*2
X
X:
Not suitable for installation of ISOFIX child restraint systems (CRS) in these seating positions.
IUF:
Suitable for ISOFIX forward facing CRS of universal category approved for use in this mass group.
IL:
Suitable for particular ISOFIX child restraint systems of the “Specific for the vehicle”, “Restricted”, or “Semi-universal” categories, approved for this type of
vehicle.
*1:
Move the head restraint to the uppermost position or, if necessary, remove it in case of any interference with the child restraint. Do not remove head restraint
when using a booster cushion only.
*2:
Adjust the front seat(s) slide position sufficiently forward and/or the seat height adjustment (if available) to the uppermost position to ensure there is no
contact between child restraint and back of front seat.
1-18
Safety — seats, seat belts and supplemental restraint system
Child restraint installation using i-Size ISOFIX
The following restriction is applied when using child restraints varying by infant's weight and installation position.
Seating position
Front passenger seat
Front passenger seat
Second row outer seat
Second row centre seat
(Air bag ON)
(Air bag OFF)
i-Size child restraint systems
X
X
i-U *1,*2
X
X:
Seating position not suitable for installation of i-Size “universal” child restraint systems.
i-U:
Suitable for i-Size “universal” child restraint systems, forward and rearward facing.
*1:
Move the head restraint to the uppermost position or, if necessary, remove it in case of any interference with the child restraint. Do not remove head restraint
when using a booster cushion only.
*2:
Adjust the front seat(s) slide position sufficiently forward and/or the seat height adjustment (if available) to the uppermost position to ensure there is no
contact between child restraint and back of front seat.
Safety — seats, seat belts and supplemental restraint system
1-19
ISOFIX AND I-SIZE CHILD RESTRAINT
The ISOFIX anchor points are provided to install
ISOFIX and i-Size child restraints in the second row
SYSTEM (for second row seats)
outboard seating positions only. Do not attempt to
Your vehicle is equipped with special anchor points
install a child restraint in the centre seating posi-
that are used with ISOFIX and i-Size child restraint
tion using the ISOFIX anchors.
systems.
The ISOFIX anchors are located at the rear of the
ISOFIX LOWER ANCHOR POINT
seat cushion near the seatback. The i-Size symbols
LOCATIONS (Type A) (where fitted)
adjacent to the zips clearly identify the locations of
the ISOFIX anchors.
NPA1526

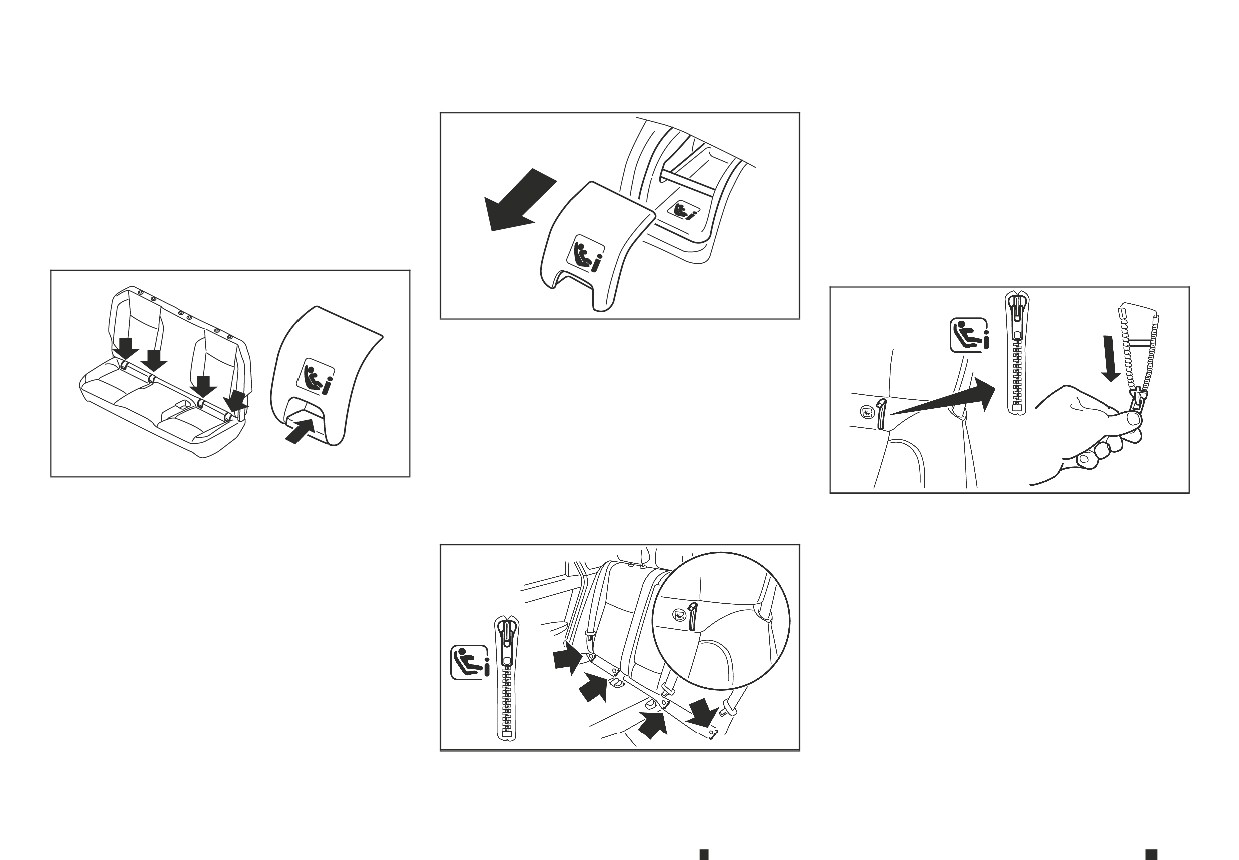

i-Size ISOFIX cover removal
To access an ISOFIX anchor point insert your finger
into the cover and pull the cover off.
CAUTION
Store the loose ISOFIX covers to avoid losing and
damaging them. For example, in the console box
NPA1524
(see “Storage” in the “2. Instruments and controls”
section).
NPA1538
i-Size ISOFIX anchor point locations (Type A)
i-Size ISOFIX cover unzipped
The ISOFIX anchor points are provided to install
ISOFIX LOWER ANCHOR POINT
ISOFIX and i-Size child restraints in the second row
LOCATIONS (Type B) (where fitted)
To access an ISOFIX anchor point unzip the cover.
outboard seating positions only. Do not attempt to
CAUTION
install a child restraint in the centre seating posi-
Always close the zips when not in use to avoid
tion using the ISOFIX anchors.
objects falling into the ISOFIX cavity.
The ISOFIX anchors are located at the rear of the
seat cushion near the seatback. The ISOFIX anchor
points are located under the covers, labelled as
shown,
NPA1537
i-Size ISOFIX anchor point locations (Type B)
1-20
Safety — seats, seat belts and supplemental restraint system
ISOFIX child restraint anchor
CHILD RESTRAINT ANCHORAGE
The anchor point is a strap loop located on the top
attachments
of the second row centre seatback. There are
(where fitted)
two similar straps at the back of the 2nd row outer
Your vehicle is designed to accommodate a child
seats that are intended only as guide loops.
restraint system on the rear seat. When installing a
If the child restraint manufacturer recommends
child restraint system, carefully read and follow the
that the top tether strap be attached, attach and
instructions in this manual and those supplied with
tighten the top tether strap to the top tether an-
the child restraint system.
chor (loop). Refer to the child restraint instructions
and the following steps.
WARNING
Child restraint anchorages are designed to with-
stand only those loads imposed by correctly fit-
SSS0644Z
ted child restraints. Under no circumstances are
Anchor attachment
they to be used for adult seat belts, harnesses or
for attaching other items or equipment to the ve-
ISOFIX and i-Size child restraints include two rigid
hicle. Doing so could damage the child restraint
attachments that can be connected to two anchors
anchorages. The child restraint will not be prop-
located in the seat. With this system, you do not
erly installed using the damaged anchorage, and
have to use a vehicle seat belt to secure the child
a child could be seriously injured or killed in a col-
restraint. Check your child restraint for a label stat-
lision.
JVR0422XZ
ing that it is compatible with the ISOFIX or i-Size
child restraints. This information may also be in the

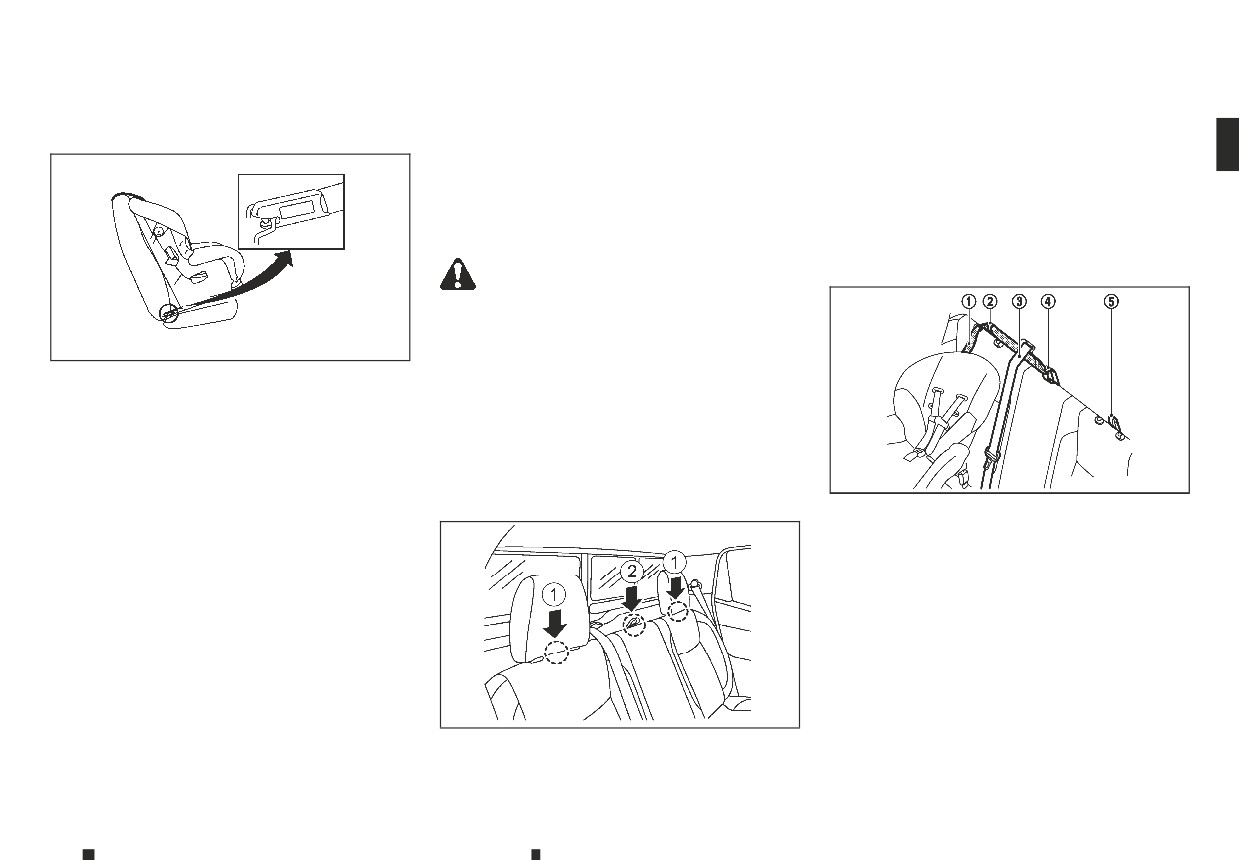

ISOFIX Top Tether anchor location
On the rear right outboard seating position
instructions provided by the child restraint manu-
1.
On the rear right outboard seating position:
facturer.
1) Remove the head restraint of the rear right
ISOFIX and i-Size child restraints generally require
outboard seat.
the use of a top tether strap or other anti-rotation
2) Route the top tether strap through the
devices such as support legs. When installing ISOFIX
right top tether guide (loop) and under the
or i-Size child restraints, carefully read and follow
centre shoulder belt.
the instructions in this manual and those supplied
with the child restraints. (See “Child restraint an-
3) Attach the top tether strap to the top tether
chorage (where fitted)” later in this section.)
anchor (loop) at the rear centre seating po-
sition.
NIC2805
Safety — seats, seat belts and supplemental restraint system
1-21
2. On the rear left outboard seating position:
CHILD RESTRAINT INSTALLATION
the damaged anchorage, and a child could be
seriously injured or killed in a collision.
1) Remove the head restraint of the rear left out-
USING ISOFIX
board seat.

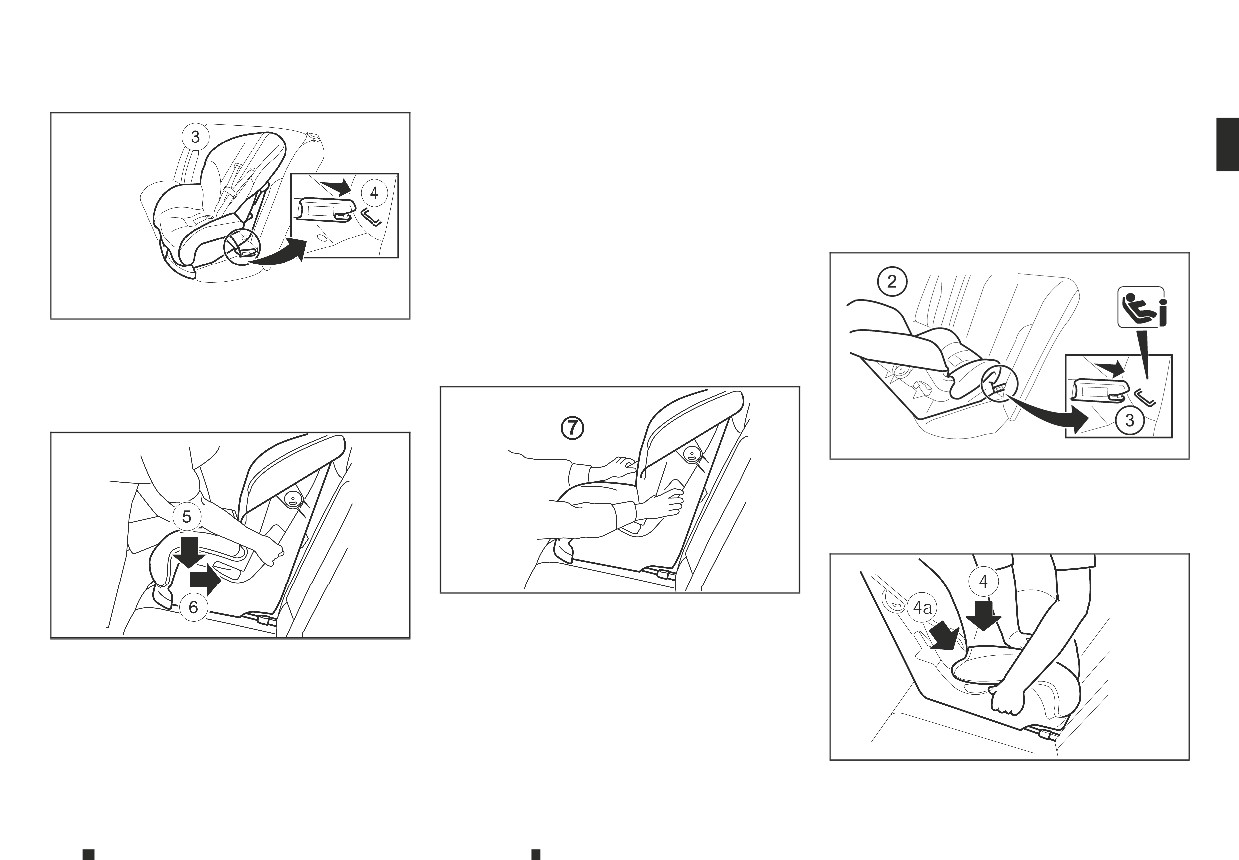

Installation on rear outboard seats
2) Route the top tether strap through the left
WARNING
Front-facing child restraints:
top tether guide (loop).
Attach ISOFIX and i-Size child restraints only
Be sure to follow the child restraint manufacturer's
3) Attach the top tether strap to the top
at the specified locations. For the ISOFIX lower
instructions for the proper use of your child
tether anchor (loop) at the rear centre seat-
anchor locations, see “ISOFIX lower anchor
restraint. Follow these steps to install a front-facing
ing position.
point locations (Type A) (where fitted)” earlier
child restraint on the second row outboard seats
3. On the rear left and right seat simultaneous
in this section. If a child restraint is not secured
using ISOFIX:
properly, your child could be seriously injured
use:
or killed in an accident.
1) Follow steps 1 to 3 for each individual seat
fitment but do not tighten the straps until
Do not install child restraints that require the
use of a top tether strap to seating positions
both seats are anchored.
that do not have a top tether anchor.
2) Then tighten each seat in turn taking care to
Do not secure a child restraint in the centre
ensure equal tension.
rear seating position using the ISOFIX lower
Tighten the top tether according to the child re-
anchors. The child restraint will not be secured
straint manufacturer's instructions.
properly.
CAUTION
Inspect the lower anchors by inserting your
NPA1406
After installing the required child restraint sys-
fingers into the lower anchor area and feeling
Steps 1, and 2
tem please ensure all portions of anchor straps
to make sure there are no obstructions over
are securely tensioned.
the ISOFIX anchors, such as seat belt webbing
1.
Position the child restraint on the seat.
or seat cushion material. The child restraint
When the top tether strap is properly tightened, the
2.

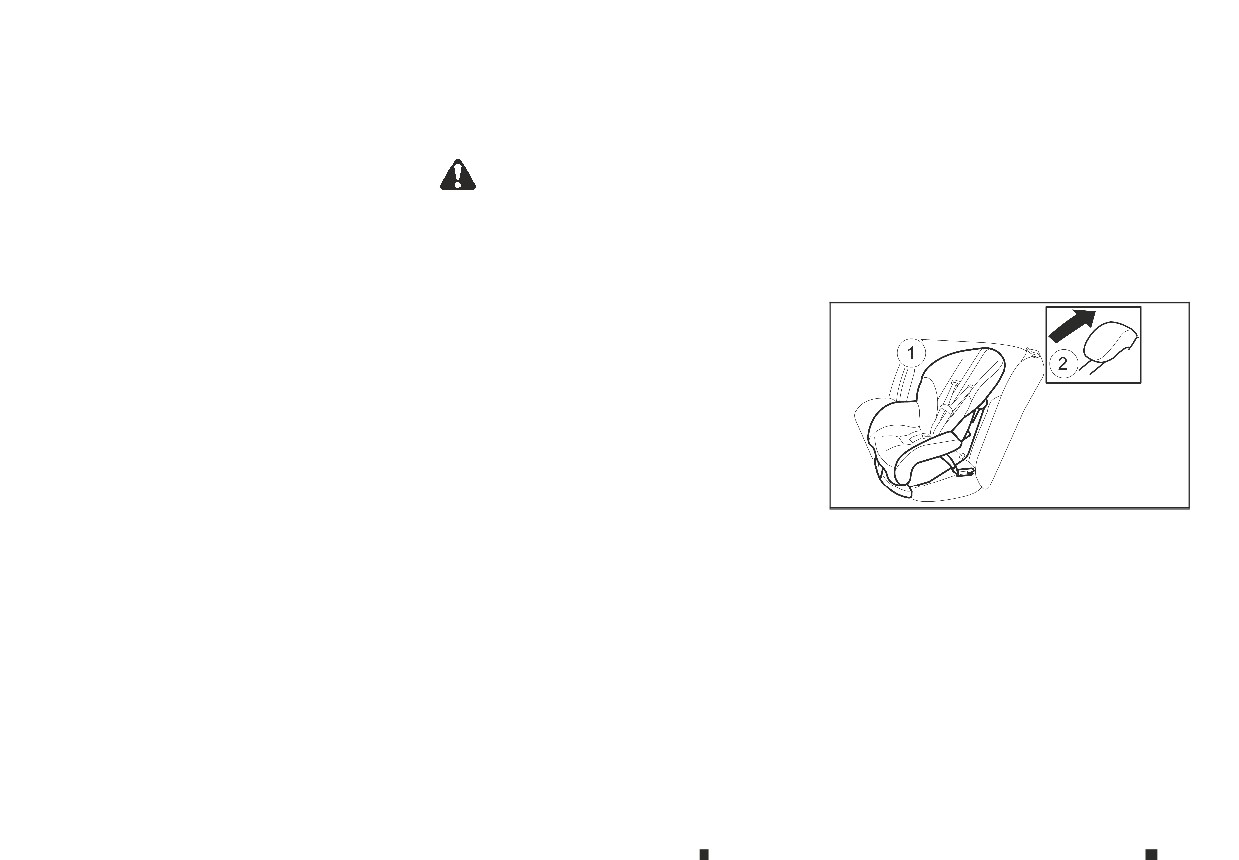

Remove the head restraint to obtain the cor-
will not be secured properly if the ISOFIX an-
top tether anchor (loop) may bend. This is normal
rect child restraint fit.
chors are obstructed.
and will not damage the vehicle.
Once removed, store the head restraint in a se-
Child restraint anchorages are designed to
cure place.
withstand only those loads imposed by cor-
Be sure to reinstall the head restraint when-
rectly fitted child restraints. Under no circum-
ever the child restraint is removed (see “Head
stance are they to be used for adult seat belts,
restraints” earlier in this section).
harnesses or for attaching other items or
equipment to the vehicle. Doing so could dam-
age the child restraint anchorages. The child
restraint will not be properly installed using
1-22
Safety — seats, seat belts and supplemental restraint system

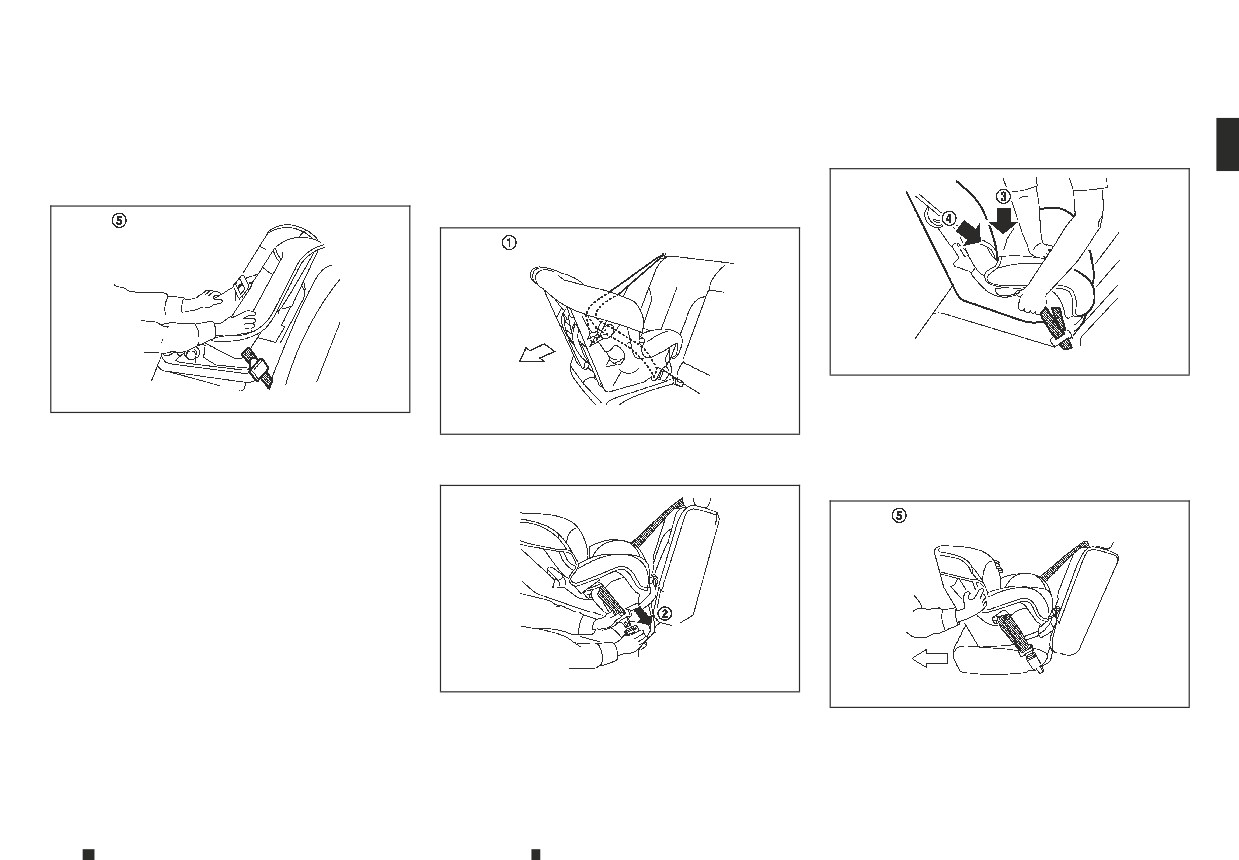

restraint with your knee to compress the vehicle
Rear-facing child restraints:
seat cushion and seatback. Adjustable seatbacks
Be sure to follow the child restraint manufacturer's
should be positioned to ensure full contact be-
instructions for the proper use of your child
tween child restraint and seatback.
restraint. Follow these steps to install a rear-facing
6.
If the child restraint is equipped with a top tether
child restraint on the second row outboard seats
strap, route the top tether strap and secure the
using ISOFIX:
tether strap to the tether anchor point. (See
1.
Remove the head restraint on the seat.
“Child restraint anchorage (where fitted)” earlier
in this section.)
If the child restraint is equipped with other anti-
NIC2807
rotation devices such as support legs, use them
Steps 3, and 4
instead of (or together with) the top tether strap
3.
Check that the back of the child restraint is
following the child restraint manufacturer's in-
placed firmly against the vehicle seatback.
structions.
4.
Secure the child restraint anchor attachments
to the ISOFIX lower anchors.
NPA1525
Step 2, and 3
2.
Position the child restraint on the seat.
3.
Secure the child restraint anchor attachments to
the ISOFIX lower anchors.
NIC2413
Step 7
NIC2808
7.
Test the child restraint before you place the child
Step 5
in it. Push the child restraint from side to side
and tug it forward to make sure that it is held
5.

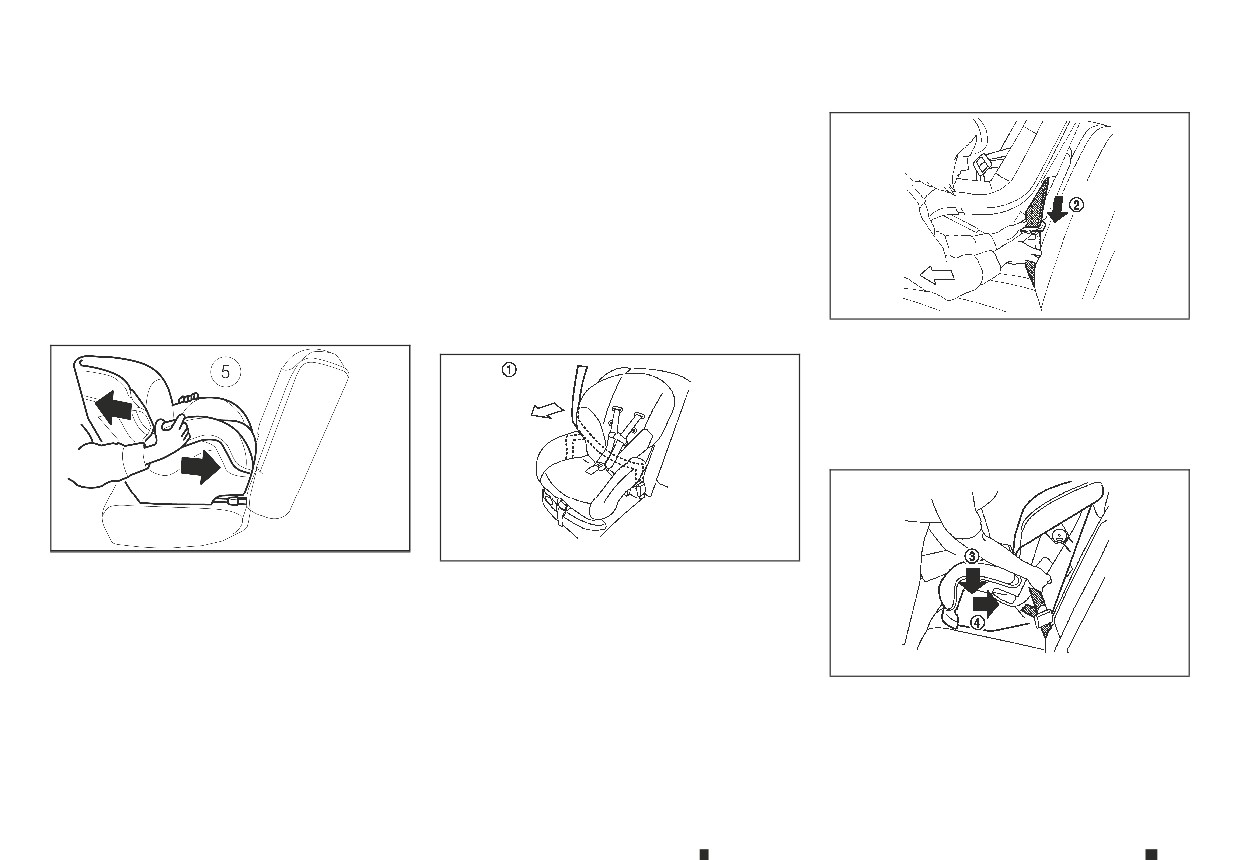

Shorten the rigid attachment to have the child
securely in place.
restraint firmly tightened; press downward
and rearward firmly in the centre of the child
8.
Check to make sure that the child restraint is
properly secured prior to each use. If the child
restraint is loose, repeat steps 1 through 7.
NPA1409
Step 4
Safety — seats, seat belts and supplemental restraint system
1-23
4.
Shorten the rigid attachment to have the child
CHILD RESTRAINT INSTALLATION
restraint firmly tightened. To compress the ve-
USING THREE-POINT TYPE SEAT
hicle seat cushion and seatback, firmly press
BELT
4a in the centre of the
child restraint with your hand.
Installation on rear seats (Double Cab
If there is any contact between the child restraint
models)
and the front seat, slide the front seat forward
Front-facing child restraint:
until contact no longer occurs.
Be sure to follow the manufacturer’s instructions
If the child restraint is equipped with other anti-
for the proper use of your child restraint. Follow
rotation devices such as support legs, use them
these steps to install a front-facing child restraint
following the child restraint manufacturer's in-
SSS0493AZ
on the rear seats using three-point type seat belt
structions.
Front-facing: Step 2
without automatic locking mode:
2.
Route the seat belt tongue through the child re-
straint and insert it into the buckle until you
hear and feel the latch engage.
3.
To prevent slack in the seat belt webbing, it is
necessary to secure the seat belt in place with
locking devices attached to the child restraint.
NPA1410
SSS0758AZ
Step 5
Front-facing: Step 1
5. Test the child restraint before you place the child
1. Position the child restraint on the seat. If any
in it. Push the child restraint from side to side
contact occurs between the child restraint and
and tug it forward to make sure that it is held
the front seat, slide the front seat forward until
securely in place.
contact no longer occurs.
6. Check to make sure that the child restraint is
SSS0647AZ
Remove the head restraint to obtain the correct
properly secured prior to each use. If the child
Front-facing: Step 4
child restraint fit.
restraint is loose, repeat steps 1 through 5.
Once removed, store the head restraint in a se-
cure location.
1-24
Safety — seats, seat belts and supplemental restraint system
4. Remove any additional slack from the seat belt;
Rear-facing child restraint:
3. To prevent slack in the seat belt webbing, it is
press downward and rearward firmly in the
Be sure to follow the manufacturer’s instructions
necessary to secure the seat belt in place with
centre of the child restraint with your knee to
for the proper use of your child restraint. Follow
locking devices attached to the child restraint.
compress the vehicle seat cushion and seatback
these steps to install a rear-facing child restraint on
while pulling up on the seat belt.
the rear seats using three-point type seat belt with-
out automatic locking mode:
SSS0639AZ
Rear-facing: Step 4
SSS0638AZ
4. Remove any additional slack from the seat belt;
Front-facing: Step 5
SSS0759AZ
press downward and rearward firmly in the
Rear-facing: Step 1
5. Test the child restraint before you place the child
centre of the child restraint with your hand to
in it. Push the child restraint from side to side
compress the vehicle seat cushion and seatback
1. Position the child restraint on the seat.
and tug it forward to make sure that it is held
while pulling up on the seat belt.
securely in place.
6. Check to make sure that the child restraint is
properly secured prior to each use. If the child
restraint is loose, repeat steps 3 through 5.
SSS0654AZ
Rear-facing: Step 2
SSS0658AZ
Rear-facing: Step 5
2. Route the seat belt tongue through the child re-
straint and insert it into the buckle until you
hear and feel the latch engage.
Safety — seats, seat belts and supplemental restraint system
1-25
5. Test the child restraint before you place the child
in it. Push the child restraint from side to side
and tug it forward to make sure that it is held
securely in place.
6. Check to make sure that the child restraint is
properly secured prior to each use. If the child
restraint is loose, repeat steps 3 through 5.
SSS0300AZ
Installation on front passenger’s seat
WARNING
Never install a rear-facing child restraint on
the front passenger’s seat when the front pas-
senger’s air bag is available. Supplemental
front-impact air bags inflate with great force.
A rear-facing child restraint could be struck by
the supplemental front-impact air bags in an
accident and could seriously injure or kill your
child.
Never install a child restraint with a top tether
strap on the front seat.
RENAULT recommends that a child restraint be
installed on the rear seat (Double Cab mod-
els). However, if you must install a child re-
straint on the front passenger’s seat, move the
passenger’s seat to the rearmost position.
Child restraints for infants must be used in the
rear-facing direction and therefore must not
be used on the front passenger’s seat when
the front passenger’s air bag is available.
1-26
Safety — seats, seat belts and supplemental restraint system
Front-facing child restraint:
2. Move the seat to the rearmost position.
Be sure to follow the child restraint manufacturer’s
3. Remove the head restraint when a forward
instructions for the proper use of your child
facing child restraint is to be fitted.
restraint. Follow these steps to install a front-facing
Store the head restraint in a safe place.
child restraint on the front passenger’s seat using
three-point type seat belt without automatic lock-
Be sure to reinstall the head restraint when-
ing mode:
ever the child restraint is removed (see “Head
restraints” earlier in this section).
If you must install a front-facing child restraint sys-
tem on the front seat, follow these steps:
NPA1412

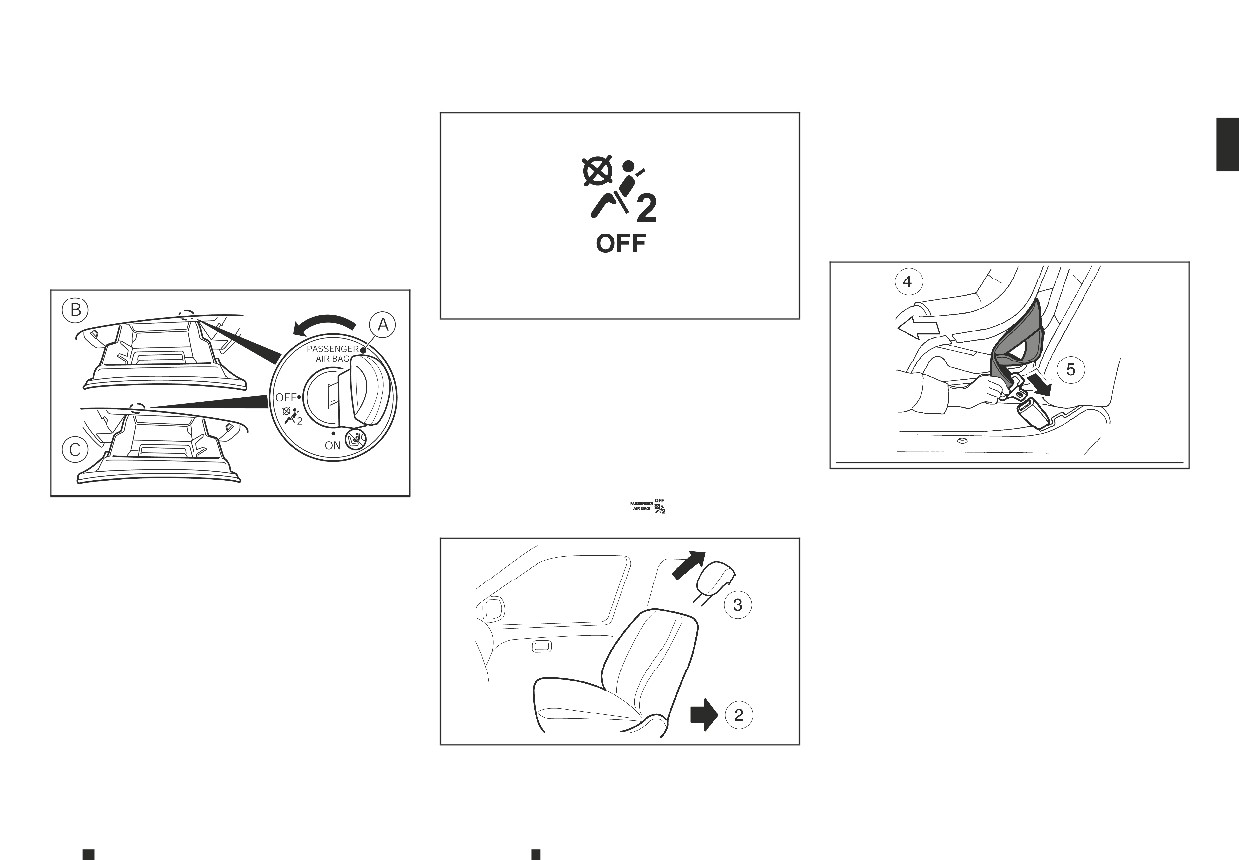

1. Turn off the front passenger air bag by inserting
the emergency/mechanical key into the front
passenger air bag switch
A and turning it to the
OFF position, see “Mechanical key” in the “3. Pre-
driving checks and adjustments” section and
“Front passenger air bag status light (where
NIC2429
fitted)” later in this section. Place the ignition
Front-facing: Step 4 and 5
NPA1411
switch in the ON position and make sure that the
front air bag status light
on the centre con-
4. Position the child restraint in the seat.
sole illuminates.
A Air bag switch
5. Route the seat belt tongue through the child re-
straint and insert it into the buckle until you
B Left Hand Drive models
hear and feel the latch engage.
C Right Hand Drive models
To prevent slack in the seat belt webbing, it is
The front passenger air bag can be turned off with
necessary to secure the seat belt in place with
the front passenger air bag switch
A located inside
locking devices attached to the child restraint.
the glove box.
NIC2428
Steps 2 and 3
Safety — seats, seat belts and supplemental restraint system
1-27
8. Check to make sure that the child restraint is
properly secured prior to each use. If the child
restraint is loose, repeat steps 1 through 7.
Rear-facing child restraint:
Be sure to follow the child restraint manufacturer’s
instructions for the proper use of your child
restraint. Follow these steps to install a front-facing
child restraint on the front passenger’s seat using
three-point type seat belt without automatic lock-
ing mode:
NIC2430
NPA1412
If you must install a rear-facing child restraint sys-
Step 6
tem on the front seat, follow these steps:
6.
Remove any additional slack from the seat belt;
1.
Turn off the front passenger air bag by inserting
6a firmly in the
the emergency/mechanical key into the front
centre of the child restraint with your knee to com-
passenger air bag switch
A ,see “Mechanicalkey”
press the vehicle seat cushion and seatback while
in the “3. Pre-driving checks and adjustments”
pulling up on the seat belt.
section and “Front passenger air bag status light
(where fitted)” later in this section. Place the igni-
tion switch in the ON position and make sure that
the front air bag status light
on the centre
console illuminates.
NPA1411
A Air bag switch
B Left Hand Drive models
NIC2431
C Right Hand Drive models
Step 7
The front passenger air bag can be turned off with
7. Test the child restraint before you place the child
the front passenger air bag switch
A located inside
in it. Push the child restraint from side to side
the glove box.
NIC2428
and tug it forward to make sure that it is held
Steps 2 and 3
securely in place.
2. Move the seat to the rearmost position.
1-28
Safety — seats, seat belts and supplemental restraint system
SUPPLEMENTAL RESTRAINT
SYSTEM (SRS) (where fitted)
3.
Adjust the head restraint to its highest position
6.
Test the child restraint before you place the child
PRECAUTIONS ON SUPPLEMENTAL
. Remove it if it interferes with the child restraint
in it. Push the child restraint from side to side and
RESTRAINT SYSTEM (SRS)
installation. In such situations, securely store the
tug it forward to make sure that it is held se-
head restraint so that it does not become a dan-
curely in place.
This Supplemental Restraint System (SRS) section
gerous projectile during a sudden stop or in an
contains important information concerning the
accident.
driver's and passenger's supplemental front-
impact air bags, supplemental driver's knee air bag
4.
Position the child restraint system in the font
(where fitted), supplemental side-impact air bags
passenger seat.
(where fitted), supplemental curtain side-impact air
Always follow the child seat manufacturer’s in-
bags (where fitted) and pre-tensioner seat belts
structions for installation and use.
(where fitted).
Supplemental front-impact air bag
system
This system can help cushion the impact force to
the head and chest area of the driver and/or front
passenger in certain frontal collisions. The supple-
mental front-impact air bag is designed to inflate
on the front where the vehicle is impacted.
Supplemental driver's knee air bag
system (where fitted)
SSS0513Z
This system can help cushion the impact force to
the knee area of the driver in certain frontal colli-
5.
Route the seat belt tongue through the child re-
sions. The supplemental driver's knee air bag is de-
straint system and insert it into the buckle until
signed to inflate on the front where the vehicle is
you hear and feel the latch engage. To prevent
impacted.
slack in the lap belt, secure the shoulder belt in

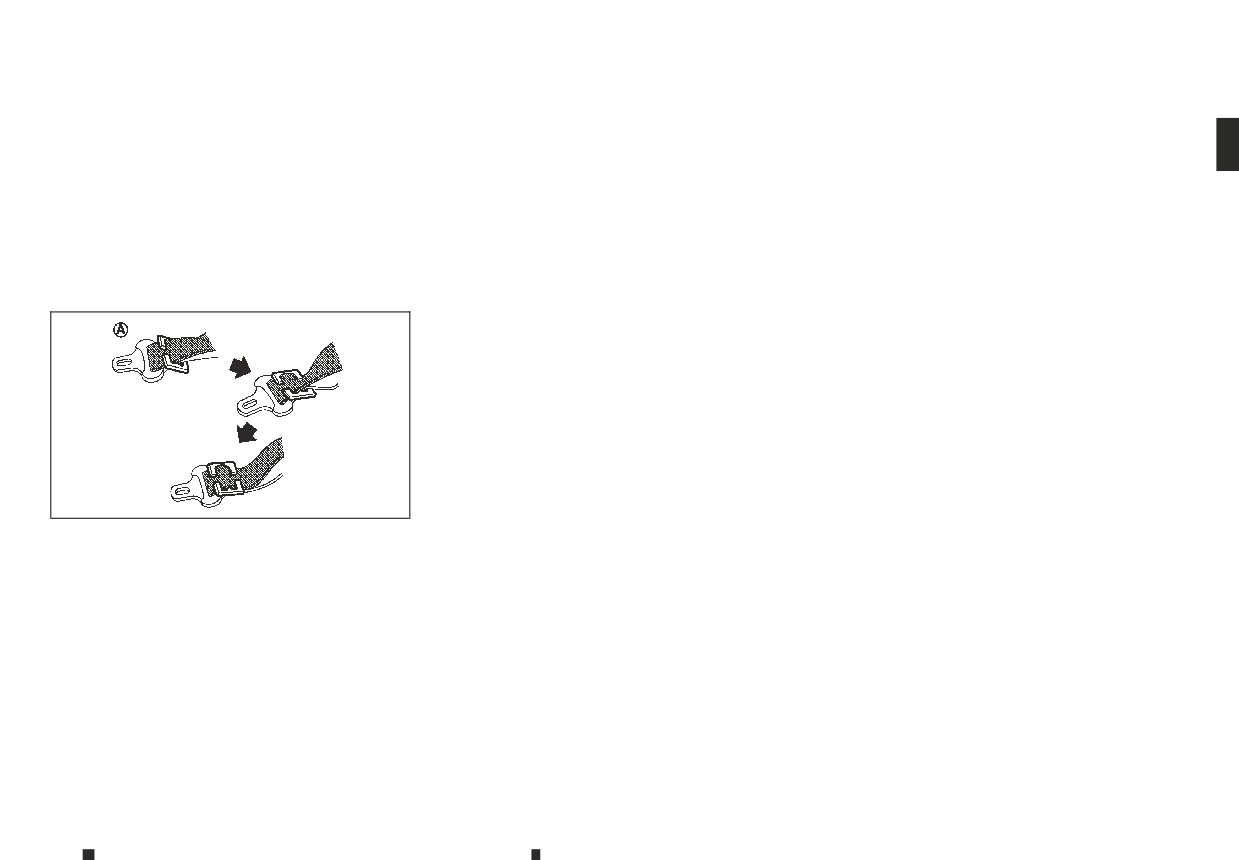

place with a locking clip
A . Use a locking clip at-
Supplemental side-impact air bag
tached to the child restraint system, or one which
system (where fitted)
is equivalent in dimensions and strength.
This system can help cushion the impact force to
Be sure to follow the child restraint system
the chest and pelvis area of the driver and front
manufacturer’s instructions for belt routing.
passenger in certain side-impact collisions. The
supplemental side-impact air bag is designed to in-
flate on the side where the vehicle is impacted.
Safety — seats, seat belts and supplemental restraint system
1-29
Supplemental curtain side-impact air
bag system (where fitted)
This system can help cushion the impact force to
the head of the driver and passengers in front seat-
ing positions and rear outboard seating positions
(where fitted) in certain side-impact collisions. The
supplemental curtain side-impact air bag is
designed to inflate on the side where the vehicle is
impacted.
The SRS is designed to supplement the accident
SSS0131AZ
protection provided by the driver’s and passenger’s
seat belts and is not designed to substitute for
them. The SRS can help save lives and reduce seri-
ous injuries. However, inflating air bags may cause
abrasions or other injuries. Air bags do not provide
protection to the lower body. Seat belts should al-
ways be correctly worn and the occupants should
always be seated a suitable distance away from the
steering wheel, instrument panel and door finish-
ers. (See “Seat belts” earlier in this section.) The air
bags inflate quickly in order to help protect the oc-
cupants. The force of the air bags inflating can in-
crease the risk of injury if the occupants are too
SSS0132AZ
close to, or are against, the air bag modules during
inflation. The air bags will deflate quickly after de-
ployment.
The SRS operates only when the ignition switch is
in the ON position.
When the ignition switch is in the ON position, the
SRS air bag warning light illuminates for about 7
seconds and then turns off. This indicates that the
SRS is operational. (See “Warning lights, indicator
lights and audible reminders” in the “2. Instru-
ments and controls” section.)
1-30
Safety — seats, seat belts and supplemental restraint system
WARNING
The supplemental front air bags ordinarily will
not inflate in the event of a side impact, rear
impact, rollover, or lower severity frontal colli-
sion. Always wear your seat belts to help re-
duce the risk or severity of injury in various
kinds of accidents.
The seat belts and the supplemental front-im-
pact air bags are most effective when you are
sitting well back and upright in the seat. The
SSS0006Z
SSS0008Z
front-impact air bags inflate with great force.
If you and your passengers are unrestrained,
leaning forward, sitting sideways, or out of po-
sition in any way, you and your passengers are
at greater risk of injury or death in an acci-
dent. You and your passengers may also re-
ceive serious or fatal injuries from the supple-
mental front-impact air bag if you are up
against it when it inflates. Always sit back
against the seatback and as far away as prac-
tical from the steering wheel or instrument
panel. Always use the seat belts.
SSS0007Z
SSS0009Z

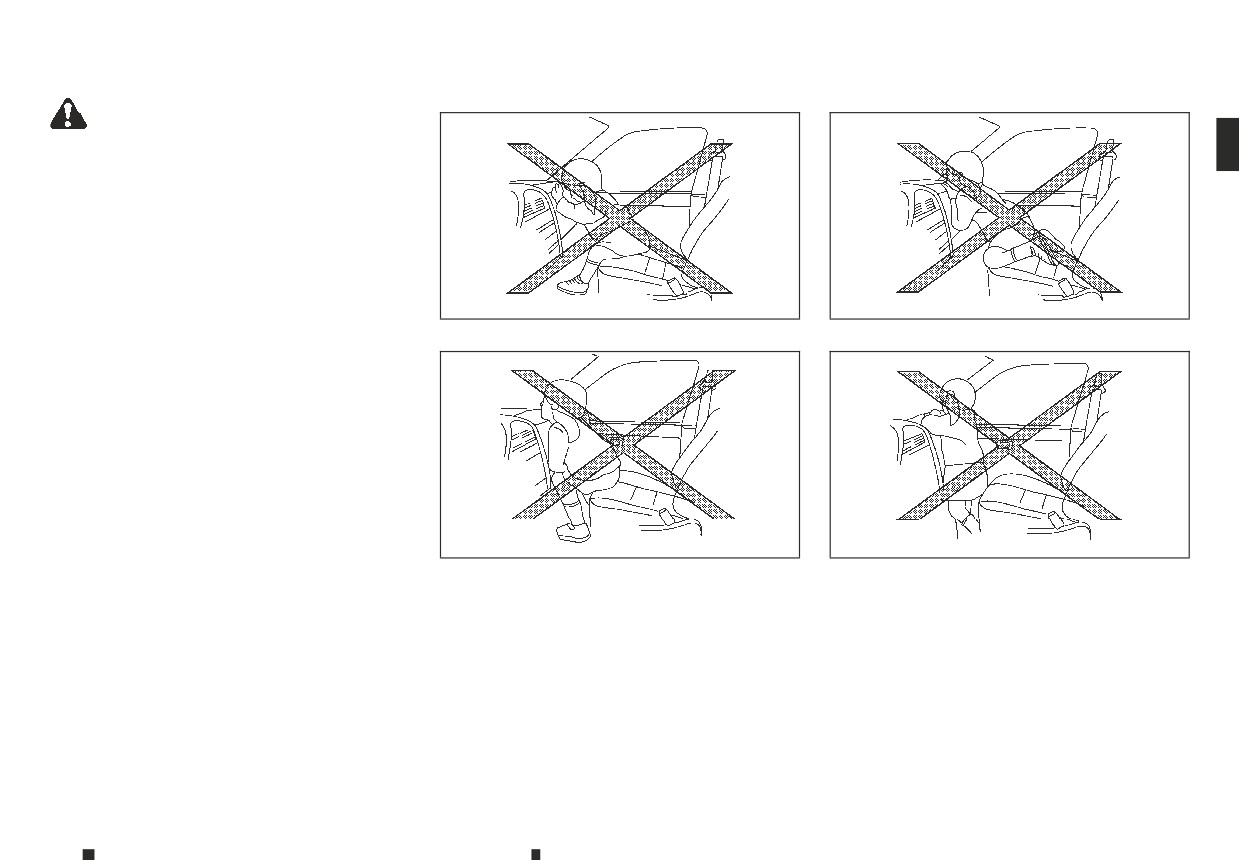

Keep hands on the outside of the steering
wheel. Placing them inside the steering wheel
rim could increase the risk of injury if the
supplemental front air bag inflates.
Safety — seats, seat belts and supplemental restraint system
1-31















Content      ..      1      2      3      ..
