air bag

activating the front passenger air bags ............(current page)

1.34

ENG_UD19963_7

Sécurité enfants : désactivation/activation airbag passager avant (B90 - L90 Ph2 - F90 Ph2 - R90 Ph2 - Dacia)

ENG_NU_817-9_B90_Dacia_1

CHILD SAFETY: deactivating/activating the front passenger air bag

(3/3)

Operating faults

It is forbidden to fit a rear-facing child

seat to the front passenger seat if the

air bag activation/deactivation system

is faulty.
Allowing any other passenger to sit in

that seat is not recommended.
Contact your approved dealer as soon

as possible.

Activation of the front

passenger air bag

(depending on vehicle)
You  should  reactivate  the  air  bag  as

soon as you remove the child seat from

the front passenger seat to ensure the

protection  of  your  front  passenger  in

the event of an impact.

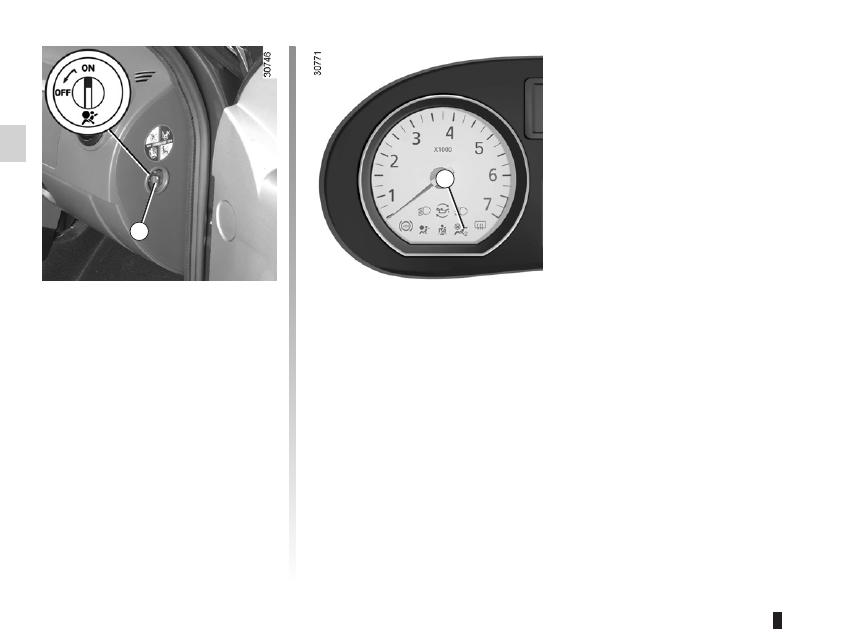

To reactivate the air bag: with the ve-

hicle stopped and the ignition off, press

and turn button 1 to the ON position.
With the ignition on, it is

essential to

check that warning light 2

]

, is off.

1

2

rear view mirrors ...................................(up to the end of the DU)

1.35

ENG_UD20448_5

Rétroviseurs (B90 - Dacia)

ENG_NU_817-9_B90_Dacia_1

Rear view mirrors

REAR VIEW MIRRORS

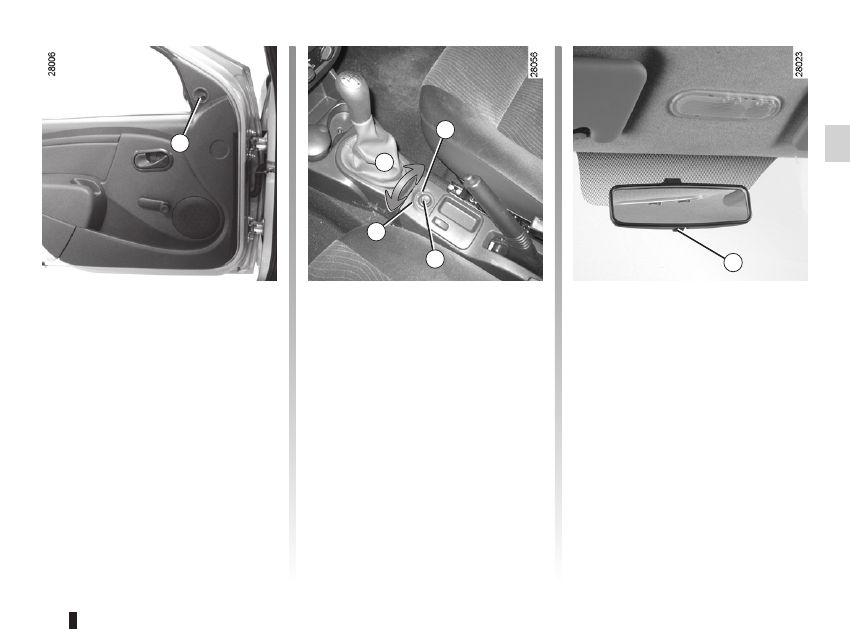

Interior rear view mirror

Its position can be adjusted. When driv-

ing at night, to avoid being dazzled by

the  headlights  of  the  vehicle  behind,

depress the little lever located behind

the rear view mirror 3.

1

2

B

A

0

3

Door mirrors with manual

adjustment

To adjust the mirror, move lever 1.

Foldable door mirrors

Fold the door mirror manually against

the door window.

Door mirrors with electrical

adjustment:

With the ignition on, move button 2:

–  position A  to  adjust  the  left-hand

door mirror;

–  position B  to  adjust  the  right-hand

door mirror;

0 is the neutral centre position.

Heated door mirrors

The  mirror  is  de-iced  when  the  rear

screen  is  de-iced/demisted;  refer  to

the  information  on  the  “Heated  rear

screen”.

controls .................................................(up to the end of the DU)

driver’s position ....................................(up to the end of the DU)

dashboard.............................................(up to the end of the DU)

1.36

ENG_UD25096_5

Poste de conduite direction à gauche (B90 - L90 Ph2 - F90 Ph2 - R90 Ph2 - Dacia)

ENG_NU_817-9_B90_Dacia_1

Driving position

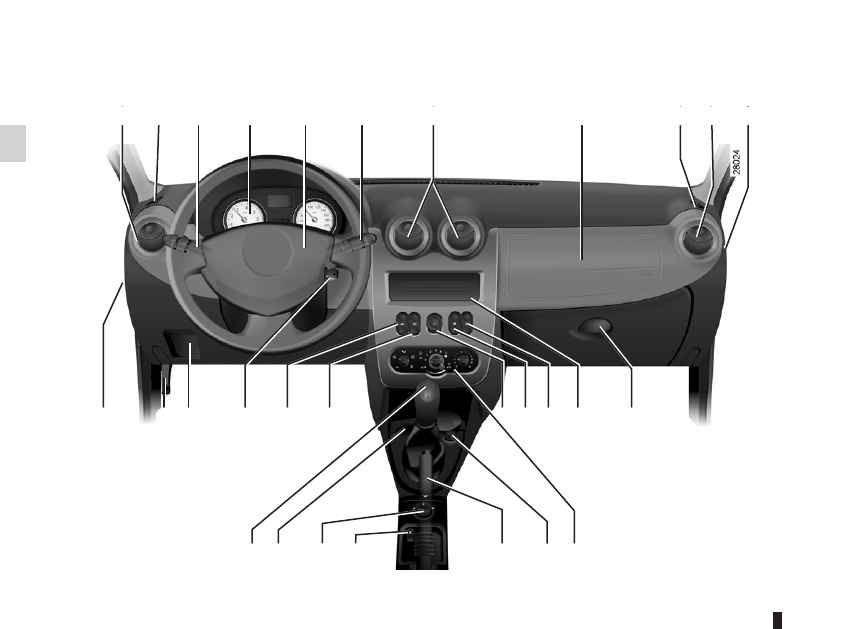

DRIVER’S POSITION, LEFT-HAND DRIVE

(1/2)

The presence of the equipment DEPENDS ON THE VEHICLE VERSION AND COUNTRY.

2

6

5

1

7

8

3

4

10 11

9

12

13

14

15

16

17

18

19

21 20

22

23

24

25

26

27

29

28

rear screen

demisting .........................................................(current page)

1.37

ENG_UD25096_5

Poste de conduite direction à gauche (B90 - L90 Ph2 - F90 Ph2 - R90 Ph2 - Dacia)

ENG_NU_817-9_B90_Dacia_1

DRIVER’S POSITION, LEFT-HAND DRIVE

(2/2)

The presence of the equipment DEPENDS ON THE VEHICLE VERSION AND COUNTRY.

  1  Side air vent.

  2  Demister outlet.

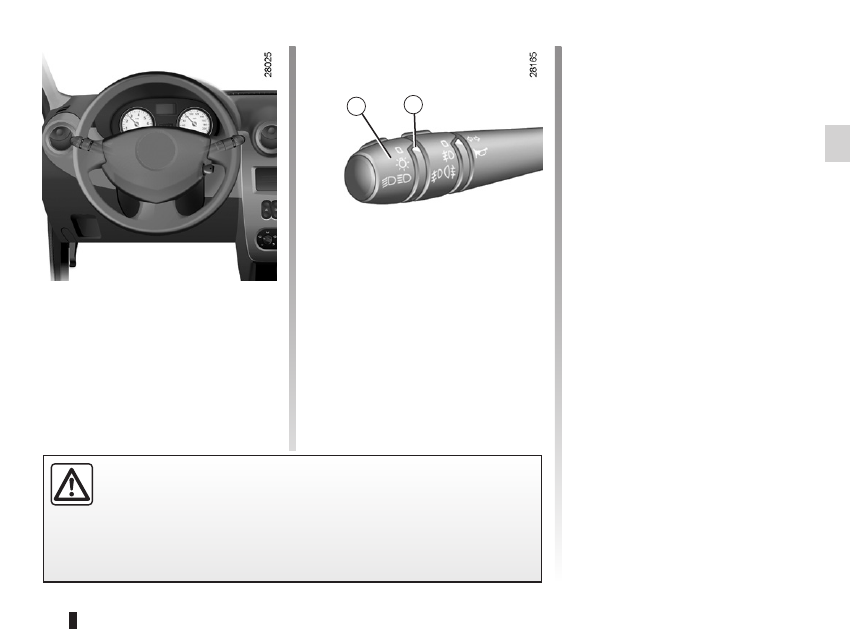

  3  Stalk for:

–  direction indicator lights,

–  exterior lights,

–  front fog lights,

–  rear fog lights,

–  horn.

  4  Instrument panel.

  5  Location for driver’s air bag.

  6  Steering  column  stalk  for  wind-

screen and rear screen wash/wipe.

On-board computer information re-

adout control.

  7  Centre air vents.

  8  Location for passenger air bag or

storage compartment.

  9  Demister outlet.

 10  Side air vent.

 11  Passenger air bag activation/deac-

tivation switch.

 12  Glove box.

 13  Location for radio or storage com-

partment.

 14  Electric window control.

 15  Central door locking switch.

 16  Hazard warning lights switch.

 17  Heating and ventilation controls.

 18  Cigar lighter.

 19  Handbrake.

 20  Rear window electric locking con-

trol.

 21  Electric door mirror control.

 22  Location for ashtray or cup holder.

 23  Gear lever.

 24  Heated rear screen control.

 25  Electric window control.

 26  Ignition switch.

 27  Headlight beam height adjustment

control.

 28  Bonnet release.

 29  Fuse flap.

controls .................................................(up to the end of the DU)

driver’s position ....................................(up to the end of the DU)

dashboard.............................................(up to the end of the DU)

1.38

ENG_UD18230_3

Poste de conduite direction à droite (B90 - Dacia)

ENG_NU_817-9_B90_Dacia_1

The presence of the equipment DEPENDS ON THE VEHICLE VERSION AND COUNTRY.

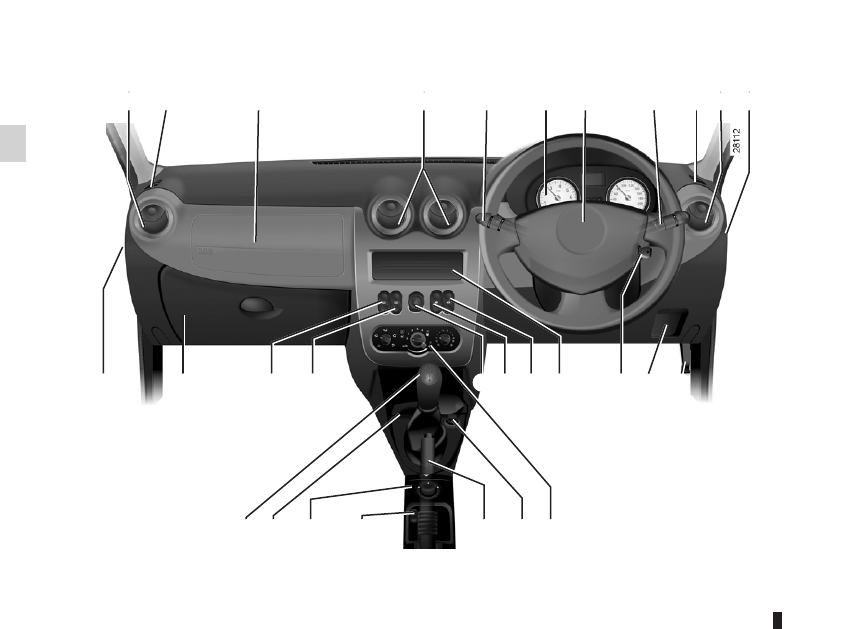

DRIVER’S POSITION, RIGHT-HAND DRIVE

(1/2)

1

4

2

3

5

6

7

8

9 10 11

14

12

13

15

16

17

18

26

27

28

29

19

20

21

22

23

24

25

1.39

ENG_UD18230_3

Poste de conduite direction à droite (B90 - Dacia)

ENG_NU_817-9_B90_Dacia_1

  1  Side air vent.

  2  Demister outlet.

  3  Storage  compartment  or  location

for passenger air bag.

  4  Centre air vents.

  5  Stalk for:

–  direction indicator lights,

–  exterior lights,

–  front fog lights,

–  rear fog lights.

  6  Instrument panel.

  7  Location  for  driver’s  air  bag  (de-

pending on vehicle).

  8  Windscreen wiper/washer stalk.

On-board computer information re-

adout control.

  9  Demister outlet.

 22  Rear window electric locking con-

trol

 23  Electric door mirror control.

 24  Location for ashtray or cup holder.

 25  Gear lever.

 26  Heated rear screen control.

 27  Electric window control.

 28  Glove box.

 29  Passenger air bag activation/deac-

tivation switch.

DRIVER’S POSITION, RIGHT-HAND DRIVE

(2/2)

The presence of the equipment DEPENDS ON THE VEHICLE VERSION AND COUNTRY.

 10  Side air vent.

 11  Fuse box.

 12  Bonnet release.

 13  Headlight beam height adjustment

control.

 14  Ignition switch.

 15  Location for radio or storage com-

partment.

 16  Electric window control.

 17  Central locking switch.

 18  Hazard warning lights switch.

 19  Heating and ventilation controls.

 20  Cigar lighter.

 21  Handbrake.

control instruments ...............................(up to the end of the DU)

instrument panel ...................................(up to the end of the DU)

warning lights........................................(up to the end of the DU)

1.40

ENG_UD19003_9

Tableau de bord : témoins lumineux (B90 - L90 Ph2 - F90 Ph2 - R90 Ph2 - Dacia)

ENG_NU_817-9_B90_Dacia_1

x

Anti-lock  braking  warning

light

This light comes on when the ignition is

switched on and goes out within three

seconds.  If  it  lights  up  when  you  are

driving, it indicates a fault in the anti-

lock braking system. Braking will then

be as normal, without the ABS system:

contact an approved dealer urgently.

]

Front passenger air bag de-

activation warning light.

Refer  to  the  information  on  “Child

Safety” in Section 1.

ç

Seat belt reminder light
This warning light goes out to

let you know that the seat belt has been

correctly fastened.

Warning lights

m

Dipped beam headlight tell-

tale light

o

Main beam headlight tell-tale

light



#

Engine  oil  change  warning

light

This lights up on the instrument panel

when an oil change is required.

Change the oil or have it changed as

soon as possible.
Only the distance travelled between two

oil changes is taken into account; the

time interval between two oil changes

is not.

The  oil  should  always  be  changed

when the first threshold is reached, i.e.

either the distance travelled or the inter-

val specified in your vehicle’s mainte-

nance document. This means you may

have to change the oil before the warn-

ing light comes on.

Refer  to  the  information  on  the  “Oil

change” in Section 4.

WARNING LIGHTS

(1/3)

The presence and operation of the warning lights DEPEND ON THE EQUIPMENT AND COUNTRY.

A

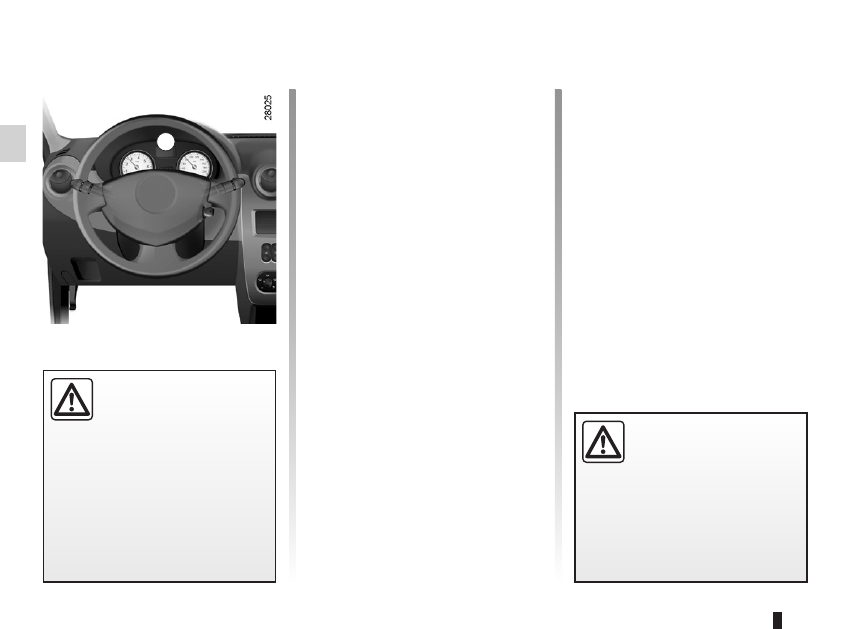

If no lights or sounds are ap-

parent, this indicates a fault

in the instrument panel. This

indicates that it is essential

to stop immediately (as soon as traf-

fic conditions allow). Ensure that the

vehicle is correctly immobilised and

contact an approved Dealer.

Instrument panel A

The

û

 warning light re-

quires you to stop immedi-

ately,  for  your  own  safety,

as soon as traffic conditions allow.

Switch off the engine and do not re-

start it. Contact an approved Dealer.

1.41

ENG_UD19003_9

Tableau de bord : témoins lumineux (B90 - L90 Ph2 - F90 Ph2 - R90 Ph2 - Dacia)

ENG_NU_817-9_B90_Dacia_1

WARNING LIGHTS

(2/3)

ê

Engine  immobiliser  system

warning light

This light performs several functions.
Refer to the information on the “Engine

immobiliser” in Section 1.

6

Electronic  fault  or  preheat-

ing warning light
Preheating warning light

This light should come on when the ig-

nition key is in position

M; it indicates

that the heater plugs are in operation.
It  goes  out  when  preheating  is  com-

plete and the engine can be started.

Electronic fault warning light
If it remains lit or comes on when you

are driving, it indicates an electrical or

electronic  fault.  Contact  an  approved

dealer as soon as possible

V

Rear  screen  de-icing/de-

misting indicator light

Ú

Battery charge warning light
It should go out as soon as the

engine starts.
If it comes on when you are driving, it

indicates that the circuit is overcharging

or has discharged. Stop and contact an

approved Dealer.

Ä

Toxic  Fume  Filter  System

Warning Light

On equipped vehicles, the light comes

on when the ignition is switched on then

goes out.
–  If it comes on continuously, consult

an approved dealer as soon as pos-

sible.

–  If it flashes, reduce the engine speed

until the light stops flashing. Contact

an approved dealer as soon as pos-

sible.

Refer  to  the  information  on

“Antipollution, fuel economy and driv-

ing” in Section 2.

The presence and operation of the warning lights DEPEND ON THE EQUIPMENT AND COUNTRY.

Ô

Coolant  temperature  warn-

ing light

This  goes  out  as  soon  as  the  engine

starts.  If  it  comes  on  when  driving,  it

indicates  an  increase  in  the  coolant

temperature.  Stop  and  let  the  engine

idle for a minute or two; the tempera-

ture should fall. If it does not fall, stop

the engine and allow it to cool before

checking the coolant level. If the level is

normal, there is another cause. Consult

an approved dealer.

À

Oil pressure warning light
It should go out as soon as the

engine starts; if it comes on when you

are driving, stop at once and switch off

the ignition. Check the oil level.
If the level is normal, the indicator light

is being lit by something else. Contact

an approved Dealer.

d

Direction indicator tell-tale

light

rear screen

demisting .........................................................(current page)

1.42

ENG_UD19003_9

Tableau de bord : témoins lumineux (B90 - L90 Ph2 - F90 Ph2 - R90 Ph2 - Dacia)

ENG_NU_817-9_B90_Dacia_1

WARNING LIGHTS

(3/3)

The presence and operation of the warning lights DEPEND ON THE EQUIPMENT AND COUNTRY.

D

Handbrake on and brake cir-

cuit incident warning light

If it lights up, check that the hand brake

is fully released. If not, it indicates that

the fluid level is low in one of the cir-

cuits. It may be dangerous to continue

driving, contact an approved dealer.

f

Rear fog light tell-tale



g

Front fog light tell-tale

Å

Door status warning light

û

STOP light

This lights up when the ignition

is switched on and goes out as soon as

the engine is started.

L

Low fuel level warning light
It comes on when the engine

is started then goes out after three sec-

onds. If it stays on, fill up with fuel as

soon as possible.

î

LPG mode indicator
Refer to the document for the

LPG  system  for  vehicles  which  are

equipped with it.

å

Air bag warning light
This lights up when the ignition

is switched on and goes out after a few

seconds.
If it does not light up when the ignition

is switched on, or lights up when the

engine is running, there is a fault in the

system.
Refer  to  the  information  on  “Systems

in  addition  to  the  front  seat  belts”  in

Section 1.
Contact an approved dealer as soon as

possible.

^

Water  in  the  diesel  filter

warning light

If it remains lit or comes on while driv-

ing, it indicates that water is present in

the  diesel  filter.  Contact  an  approved

dealer as soon as possible.

A

Instrument panel A

The

û

 warning light re-

quires you to stop immedi-

ately,  for  your  own  safety,

as soon as traffic conditions allow.

Switch off the engine and do not re-

start it. Contact an approved Dealer.

overspeed buzzer ..................................................(current page)

control instruments ...............................(up to the end of the DU)

instrument panel ...................................(up to the end of the DU)

warning lights........................................(up to the end of the DU)

1.43

ENG_UD19017_6

Tableau de bord : afficheur et indicateurs (B90 - Dacia)

ENG_NU_817-9_B90_Dacia_1

Displays and indicators

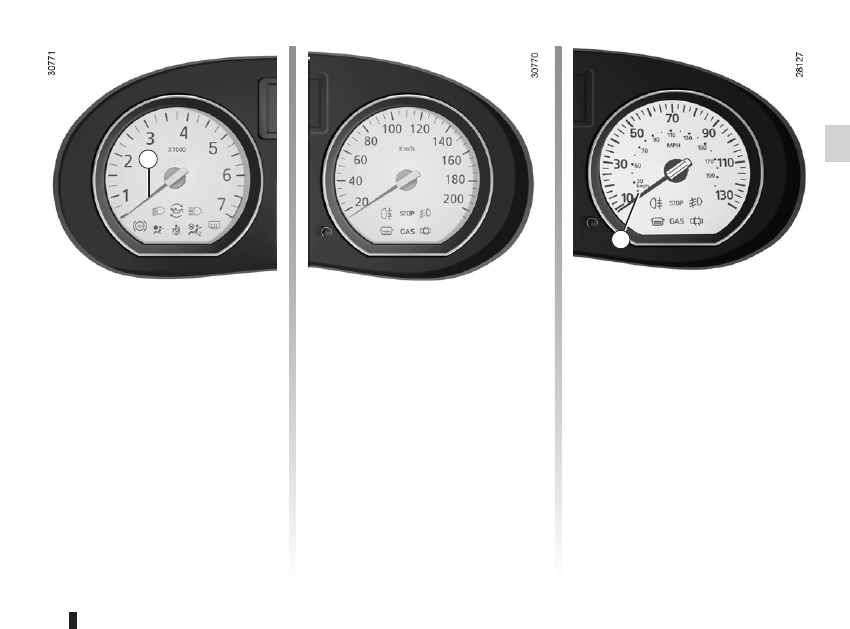

Rev counter 1 (rpm × 1 000)

Speedometer 2 (km or miles

per hour)

Overspeed buzzer

Depending  on  the  vehicle,  a  buzzer

sounds for approximately 10 seconds

every 30 seconds, as long as the ve-

hicle is travelling in excess of 72 mph

(120 km/h).

Speedometer 2 Dual speed

scale (miles per hour and km

per hour)

(depending on vehicle)

2

DISPLAYS AND INDICATORS

(1/2)

1

fuel level ................................................................(current page)

1.44

ENG_UD19017_6

Tableau de bord : afficheur et indicateurs (B90 - Dacia)

ENG_NU_817-9_B90_Dacia_1

DISPLAYS AND INDICATORS

(2/2)

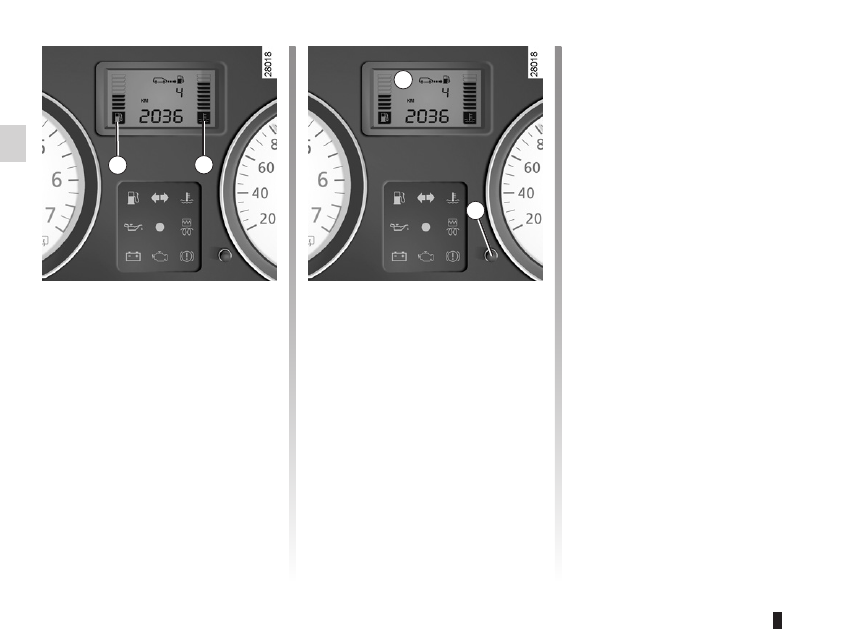

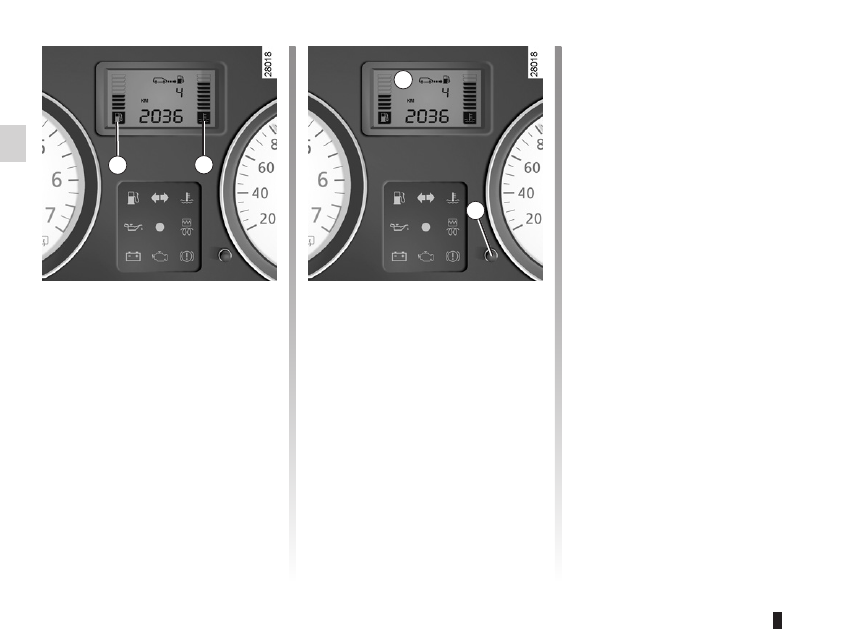

Fuel gauge 3

The  number  of  squares  lit  shows  the

fuel level. When it is at minimum, the

squares  disappear  and  the  low  fuel

level warning light comes on.

Coolant temperature

indicator 4

The number of squares lit depends on

the engine coolant temperature. There

is  no  warning  unless  the  last  three

squares light up.

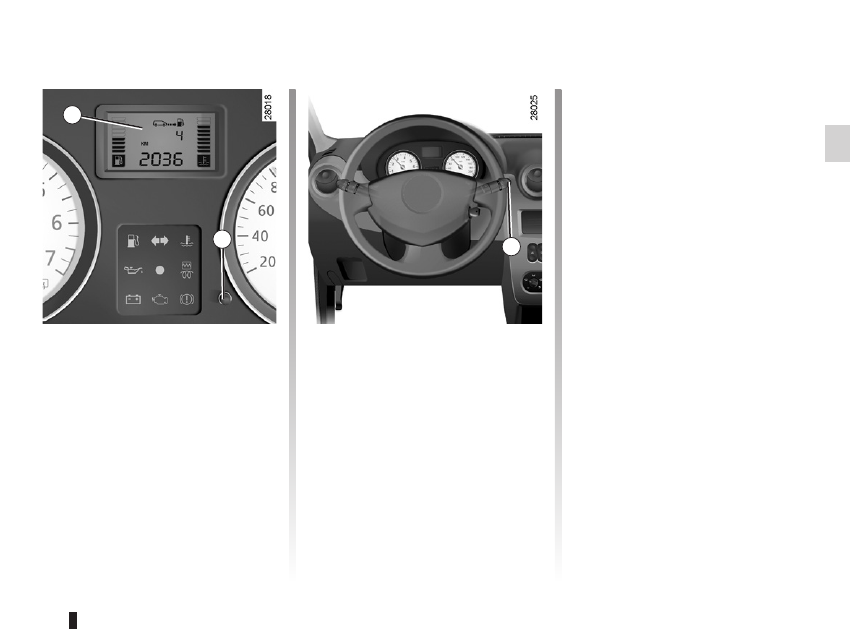

Multifunction display A

Total  mileage  recorder,  distance  trav-

elled trip mileometer, clock.
OR

Trip computer and warning

system

Refer  to  the  information  on  the  “Trip

computer  and  warning  system”  in

Section 1.

Multifunction key 5

–

Display selection
By pressing the button you can shift

from the total mileage recorder, trip

mileometer and time or vice-versa.

–

Resetting  the  trip  mileage  re-

corder
Once the trip mileage display is se-

lected, press and hold the button.

–

Resetting the clock
Refer  to  the  information  on  the

“Clock” in Section 1.

4

3

A

5

control instruments ...............................(up to the end of the DU)

trip computer and warning system........(up to the end of the DU)

warning lights........................................(up to the end of the DU)

1.45

ENG_UD20446_9

Ordinateur de bord (B90 - L90 Ph2 - F90 Ph2 - R90 Ph2 - Dacia)

ENG_NU_817-9_B90_Dacia_1

Trip computer and warning system

TRIP COMPUTER AND WARNING SYSTEM (1/4)

Display 1

General reset and trip

mileage recorder reset key 2

To reset the trip mileage recorder, the

display must show the Trip mileometer

function.
Press and hold button 2.

Display selection key 3

Keep  pressing  key 3  briefly  to  scroll

through the following information (de-

pending on the vehicle) in sequence:
a) total mileage recorder,

b) trip mileage recorder,

c) fuel used,

d) average consumption,

e) estimated range,

f) distance travelled,

g) average speed.

Refer  to  the  table  on  the  following

pages showing display examples.

1

2

3

The information displayed DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY.

1.46

ENG_UD20446_9

Ordinateur de bord (B90 - L90 Ph2 - F90 Ph2 - R90 Ph2 - Dacia)

ENG_NU_817-9_B90_Dacia_1

Interpreting some of the

values displayed after

resetting

The values showing average fuel con-

sumption,  range  and  average  speed

will  become  more  stable  and  reliable

the further you travel after pressing the

reset button.
For the first few miles after pressing the

reset key you will notice that the range

increases  as  you  travel.  This  range

takes into account the average fuel con-

sumption since the last time the reset

button was pressed. Therefore, the fuel

consumption may decrease when:

–   the vehicle stops accelerating;
–   the  engine  reaches  its  operat-

ing  temperature  (if  the  engine

was cold when the reset key was

pressed);

–   driving from an urban area onto

the open road;

   Therefore, if the average fuel con-

sumption  decreases,  the  range

will increase.

–  You may also notice that the aver-

age  fuel  consumption  increases

when  the  vehicle  is  stationary  and

the engine idling.
This is normal, since the computer

takes  account  of  fuel  used  during

idling.

Manually resetting the journey param-

eters: with the display showing one of

the journey parameters, press button 2

until the display is reset.
Automatically resetting the journey pa-

rameters: the reset is automatic when

the capacity of one of the memories is

exceeded.

TRIP COMPUTER AND WARNING SYSTEM (2/4)

The information displayed DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY.

1.47

ENG_UD20446_9

Ordinateur de bord (B90 - L90 Ph2 - F90 Ph2 - R90 Ph2 - Dacia)

ENG_NU_817-9_B90_Dacia_1

TRIP COMPUTER AND WARNING SYSTEM (3/4)

The information displayed DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY.

Examples of display selec-

tions  by  repeatedly  press-

ing 3

Interpreting the display

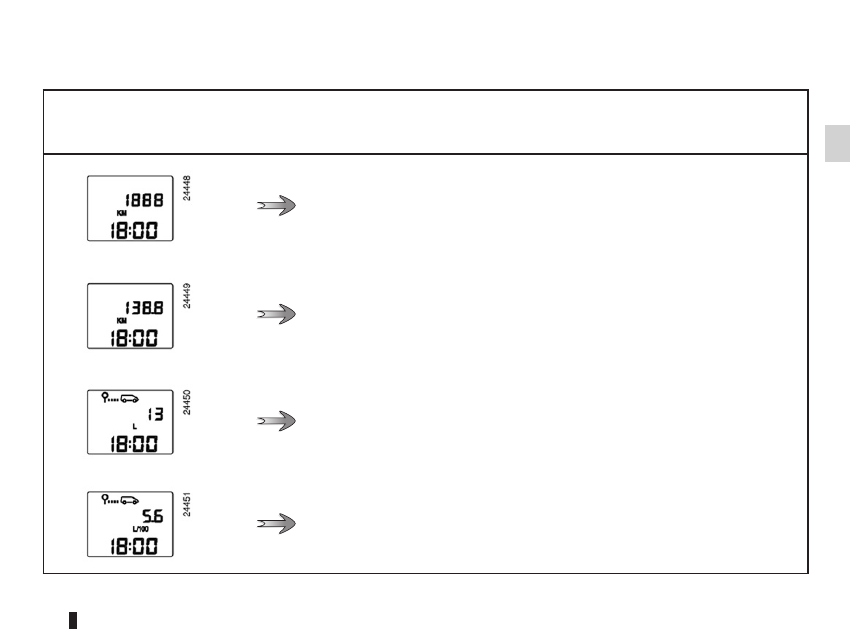

a) Total mileage recorder.

b) Trip mileage recorder.

c) Fuel used since the last time the reset button was pressed.

d) Average fuel consumption since the last time the reset button was pressed.

This value is displayed after driving 400 metres and takes into account the

distance travelled and the fuel used since the last time the reset button was

pressed.

1.48

ENG_UD20446_9

Ordinateur de bord (B90 - L90 Ph2 - F90 Ph2 - R90 Ph2 - Dacia)

ENG_NU_817-9_B90_Dacia_1

TRIP COMPUTER AND WARNING SYSTEM (4/4)

The information displayed DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY.

Examples of display

selections by repeatedly

pressing 3

Interpreting the display

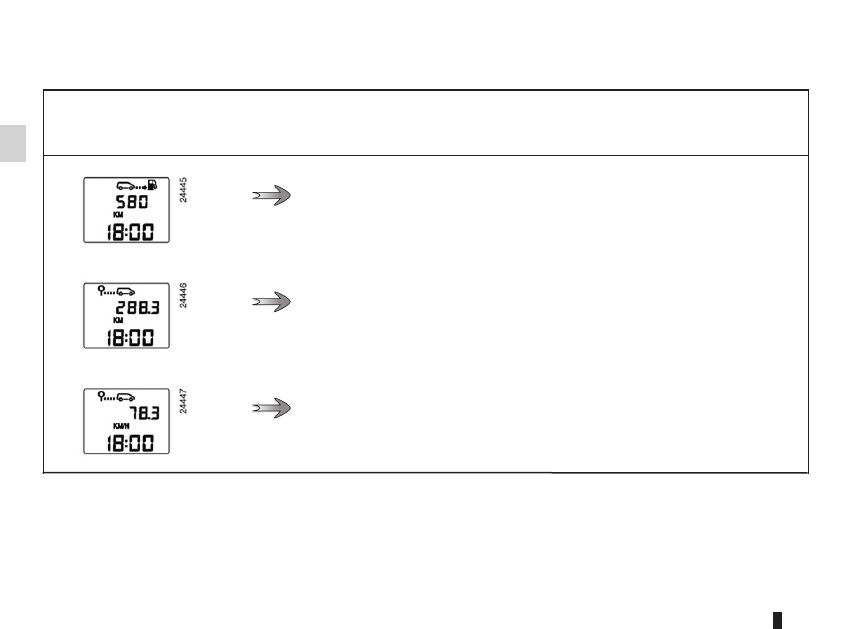

e) Estimated range with remaining fuel

 This range takes into account the average fuel consumption since the last time

the reset button was pressed.

The value is displayed after driving around 400 metres.

f) Distance travelled since the last reset.

g) Average speed since the last reset.

The value is displayed after driving around 400 metres.

lighting:

exterior ............................................(up to the end of the DU)

lights:

dipped beam headlights ...................................(current page)

lights:

side lights .........................................................(current page)

lights:

main beam headlights ......................................(current page)

lights .....................................................(up to the end of the DU)

signals and lights ..................................(up to the end of the DU)

control instruments ...............................(up to the end of the DU)

1.49

ENG_UD18233_5

Éclairages et signalisations extérieures (B90 - L90 Ph2 - F90 Ph2 - R90 Ph2 - Dacia)

ENG_NU_817-9_B90_Dacia_1

Exterior lighting and signals

EXTERIOR LIGHTING AND SIGNALS

(1/2)

u

Side lights

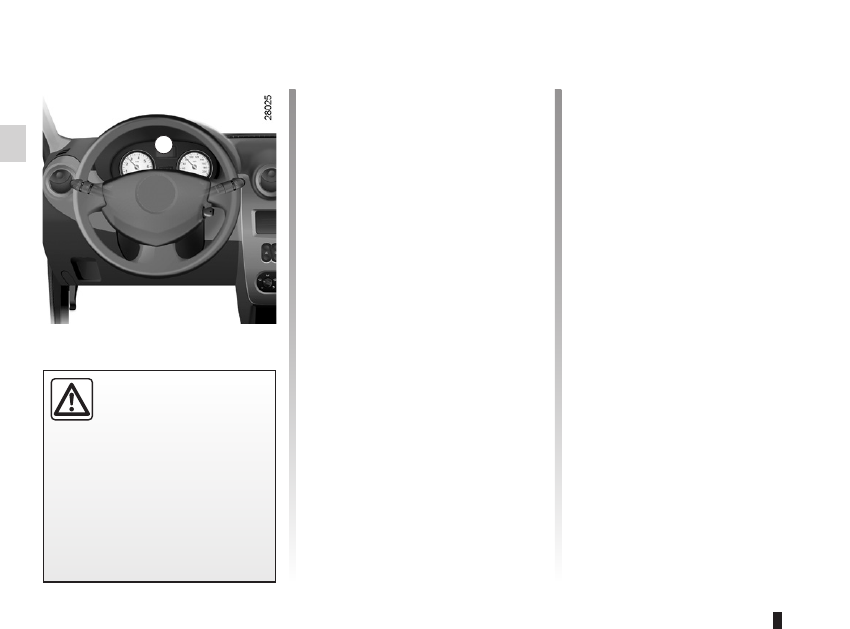

Turn the end of stalk 1 until the

symbol is opposite mark 2.

k

Dipped beam

headlights

Turn the end of stalk 1 until the symbol

is opposite mark 2.
An  indicator  light  on  the  instrument

panel will come on.

á

Main beam headlights

With  stalk 1  in  dipped  beam

headlights position, move the stalk to-

wards you.
When the main beam headlights are lit,

an indicator light lights up on the instru-

ment panel.
To return to the dipped beam headlight

position, pull the switch stalk towards

you.

e

Switching off the lights

Return the end of stalk 1 to its

initial position.

Lights-on reminder buzzer

A  warning  buzzer  will  sound  when  a

front  door  is  opened  and  the  lights

are left on after the ignition has been

switched  off  (to  prevent  discharge  of

the battery).

Before driving at night, check that the electrical equipment is operating

correctly and adjust the headlight beams (if your vehicle is not carrying

its normal load).
Check that the lights are not obscured (by dirt, mud, snow or objects

which could cover them).

1

2















Content   ..  1  2  3  4   ..
