5.18

TYRES

(1/3)

Maintaining the tyres

The tyres must be in good condition

and the tread form must have sufficient

depth; tyres approved by our Technical

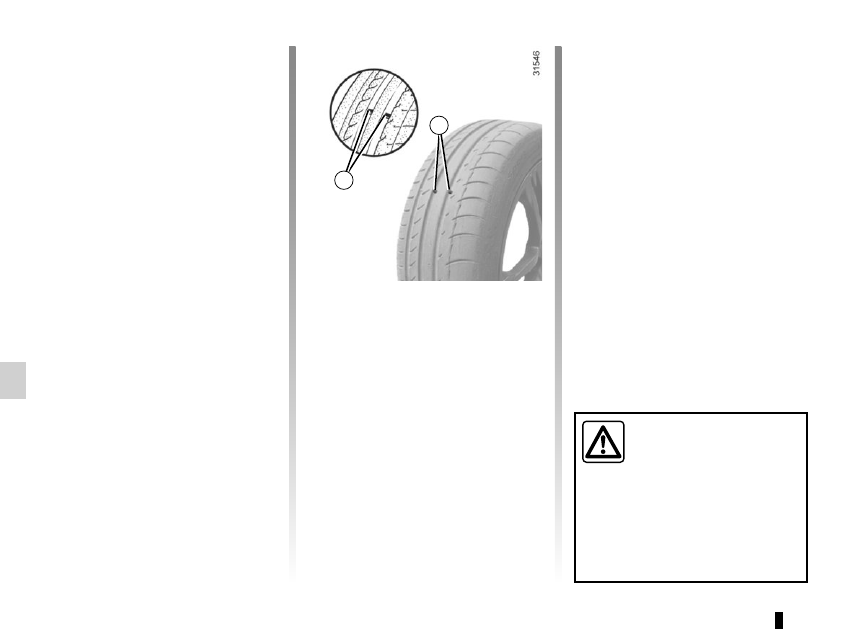

Department have tread wear indica-

tors 1 which are indicators moulded

into the tread at several points.

The tyres are the only contact between

the vehicle and the road, so it is essen-

tial to keep them in good condition.
You must make sure that your tyres

conform to local road traffic regulations.

When the tyre tread has been worn to

the level of the wear indicators, they

become visible 2: it is then necessary

to replace your tyres because the tread

rubber is no more than 1.6 mm deep,

resulting in poor roadholding on wet

roads.
An overloaded vehicle, long journeys

by motorway, particularly in very hot

weather, or continual driving on poorly

surfaced minor roads will lead to more

rapid tyre wear and affect safety.

Incidents which occur when

driving, such as striking the

kerb, may damage the tyres

and wheel rims, and could

also lead to misalignment of the

front or rear axle geometry. In this

case, have the condition of these

checked by an approved dealer.

5.19

TYRES

(2/3)

Tyre pressures

Adhere to the tyre pressures (including

the emergency spare wheel). The tyre

pressures should be checked at least

once a month and additionally before

any long journey (refer to the label af-

fixed to the edge of the driver’s door).

Incorrect tyre pressures

lead to abnormal tyre wear

and unusually hot running.

These are factors which

may seriously affect safety and lead

to:
– poor road holding,
– risk of bursting or tread separa-

tion.

The pressure depends on the load

and the speed of use. Adjust the

pressure according to the condi-

tions of use (refer to the label affixed

to the edge of the driver’s door).

Please be aware that a

poorly tightened or miss-

ing valve cap can make the

tyres less airtight and lead

to pressure loss.
Always use valve caps identical to

those fitted originally and tighten

them fully.

Pressures should be checked when the

tyres are cold; ignore higher pressures

which may be reached in hot weather

or following a fast journey.
If tyre pressures cannot be checked

when the tyres are cold, the normal

pressures must be increased by 0.2 to

0.3 bar (or 3 PSI).
Never deflate a hot tyre.

Dual wheel versions
To inflate the outer wheel, it is recom-

mended that the inflation tube is passed

between the two wheels.

Vehicle fitted with a tyre pressure

loss warning system
If underinflated (puncture, low pres-

sure, etc.), the warning light



the instrument panel comes on, see

“Tyre pressure loss warning system” in

Section 2.

Changing wheels around

This practice is not recommended.

Emergency spare wheel

Refer to the information on the

“Emergency spare wheel” and

“Changing a wheel” in Section 5.

5.20

Note: be aware that these tyres may

sometimes have:

– a direction of travel ;

– a maximum speed index which may

be lower than the maximum speed of

your vehicle.

Studded tyres
This type of equipment may only be

used for a limited period and as laid

down by local legislation.
It is necessary to observe the speed

specified by current legislation.

These tyres must, as a minimum, be

fitted to the two wheels on the front

axle for front wheel drive versions and

all the rear wheels for rear wheel drive

versions.

TYRES

(3/3)

Chains may only be fitted to tyres of the same size as those originally

fitted to your vehicle.
Only certain chains can be fitted to tyres. Consult an approved Dealer.

Use in winter

Chains

Chains must not be fitted to tyres

which are larger than those originally

fitted to the vehicle.

Front wheel drive versions

For safety reasons, fitting snow

chains to the rear axle is strictly for-

bidden.

Rear wheel drive versions

For safety reasons, only fit chains

on the rear axle.

Note: for rear wheel drive, dual wheel

versions, fit chains on the outer rear

wheels.

Snow or winter tyres

We would recommend that these be

fitted to all four wheels to ensure that

your vehicle retains maximum grip.

In all cases, we would recommend

that you contact an approved Dealer

who will be able to advise you on

the choice of equipment which is

most suitable for your vehicle.

Fitting new tyres

For your safety, please re-

spect the speed limit.
When they need to be re-

placed, only tyres of the

same make, size, type and profile

should be used on a single axle.
They must: either have a load ca-

pacity and speed rating at least

equal to those of the original

tyres, or conform to those recom-

mended by an authorised dealer.
Failure to heed these instructions

could endanger your safety and

affect your vehicle’s roadworthi-

ness.
Risk of loss of control of the ve-

hicle.

5.21

Direction indicators

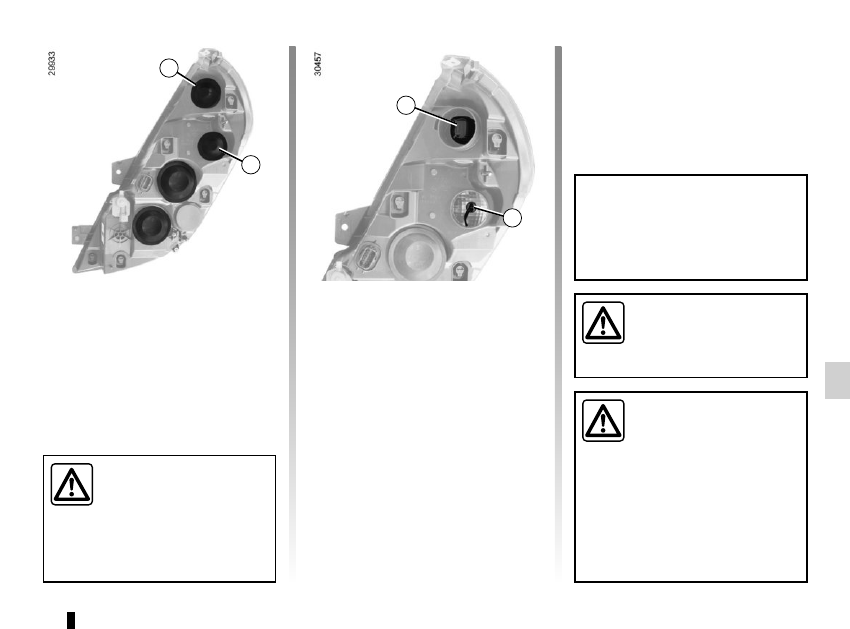

Remove cover A and turn bulb holder 1

a quarter turn.
To refit the bulb holder, position it cor-

rectly, as determined by the foolproof-

ing device.
Bulb type: PY21W.
Note: once the bulb has been replaced,

ensure the cover is refitted correctly.

HEADLIGHTS: changing bulbs

(1/2)

Front side lights

Remove cover B and pull bulb holder 2.
Bulb type: W5W.
Note: once the bulb has been replaced,

ensure the cover is refitted correctly.

The bulbs are under pres-

sure and can break when

replaced.
Risk of injury.

To comply with current legislation,

or as a precaution, you can obtain

an emergency kit from an approved

dealer containing a set of spare

bulbs and fuses.

Please note when work-

ing close to the engine that

it may be hot. In addition,

the engine cooling fan may

start at any moment. The



warning light in the engine compart-

ment reminds you of this.
Risk of injury.

Before performing any

action in the engine com-

partment, the ignition must

be switched off (please see

the information on “Starting, stop-

ping the engine” in Section 2).

5.22

Cornering lights

(depending on the vehicle)

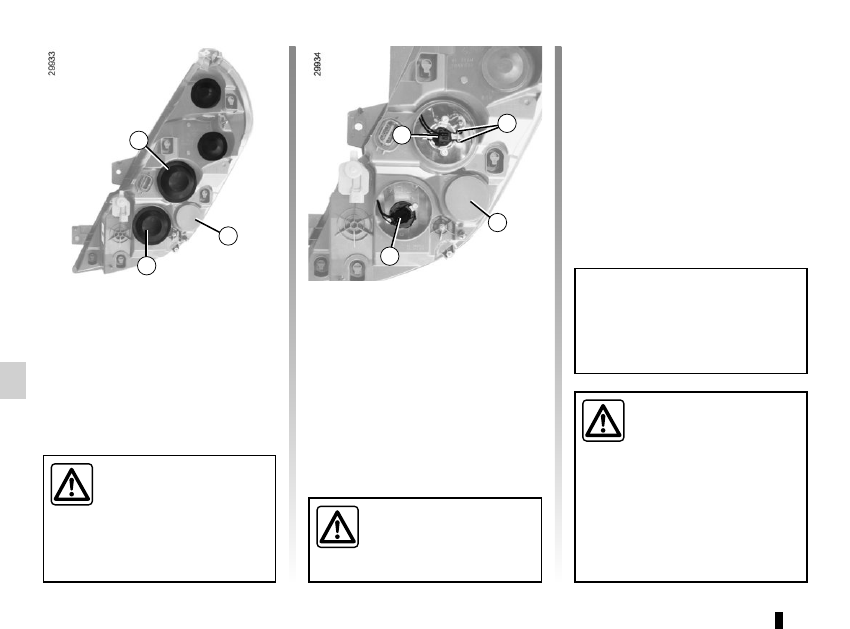

Remove cover D and turn bulb holder 5

a quarter turn.
Bulb type: H7.
Note: once the bulb has been replaced,

ensure the cover is refitted correctly.

Dipped beam headlights

Remove cover E and turn bulb holder 6

a quarter turn.

Bulb type: H7LL.

Do not touch the bulb glass. Hold it

by its base.
Note: once the bulb has been replaced,

ensure the cover is refitted correctly.

Main beam headlights

Remove cover C.
Unclip the springs 4 and remove the

bulb holder 3.
Bulb type: H1.
Note: once the bulb has been replaced,

ensure the cover is refitted correctly.

The bulbs are under pres-

sure and can break when

replaced.
Risk of injury.

To comply with current legislation,

or as a precaution, you can obtain

an emergency kit from an approved

dealer containing a set of spare

bulbs and fuses.

HEADLIGHTS: changing bulbs

(2/2)

Please note when work-

ing close to the engine that

it may be hot. In addition,

the engine cooling fan may

start at any moment. The



warning light in the engine compart-

ment reminds you of this.
Risk of injury.

Before performing any

action in the engine com-

partment, the ignition must

be switched off (please see

the information on “Starting, stop-

ping the engine” in Section 2).

5.23

HEADLIGHTS: front fog lights

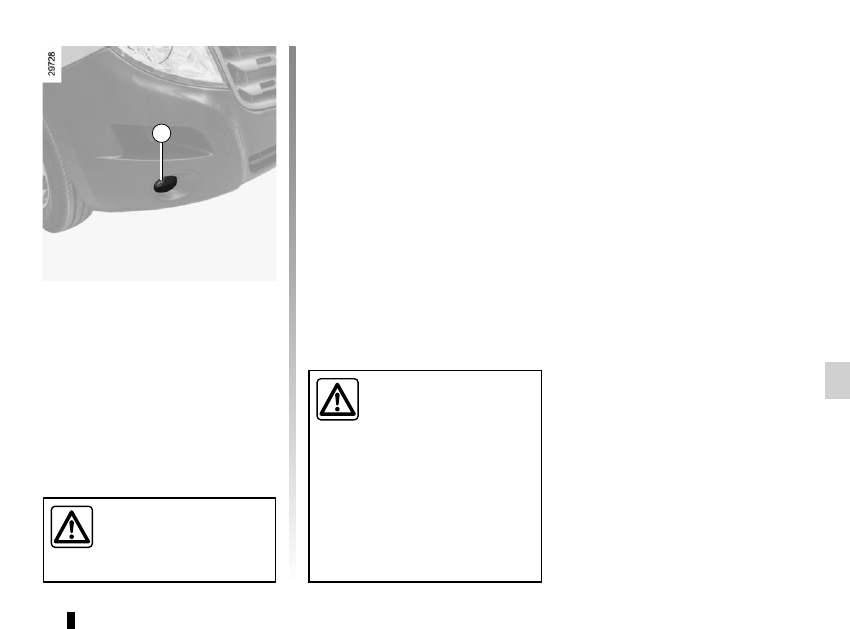

Fog lights 1

Consult an approved dealer.

Any operation on (or modi-

fication to) the electrical

system must be performed

by an approved dealer

since an incorrect connection might

damage the electrical equipment

(harness, components and in partic-

ular the alternator). In addition, your

Dealer has all the parts required for

fitting these units.

The bulbs are under pres-

sure and can break when

replaced.
Risk of injury.

5.24

SIDE LIGHTS: changing bulbs

Side indicator lights

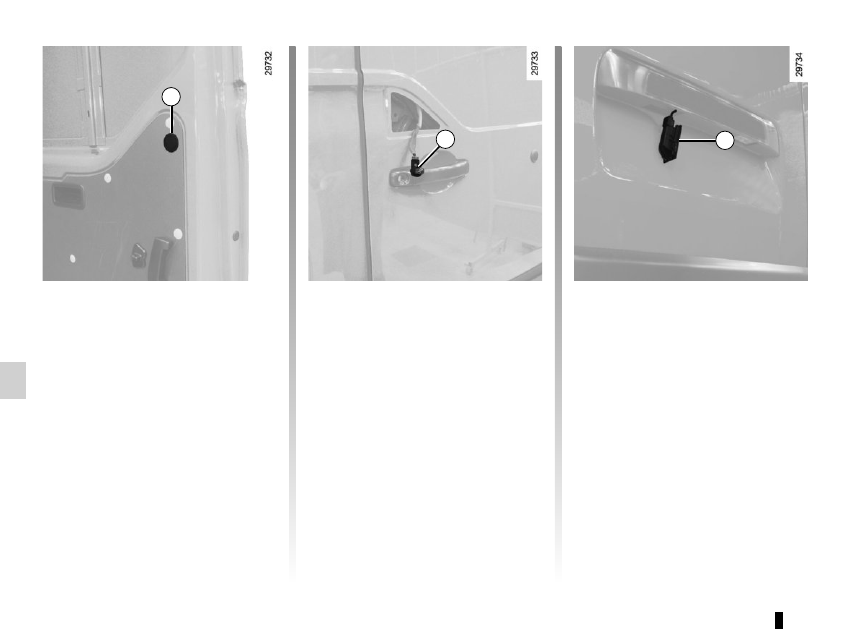

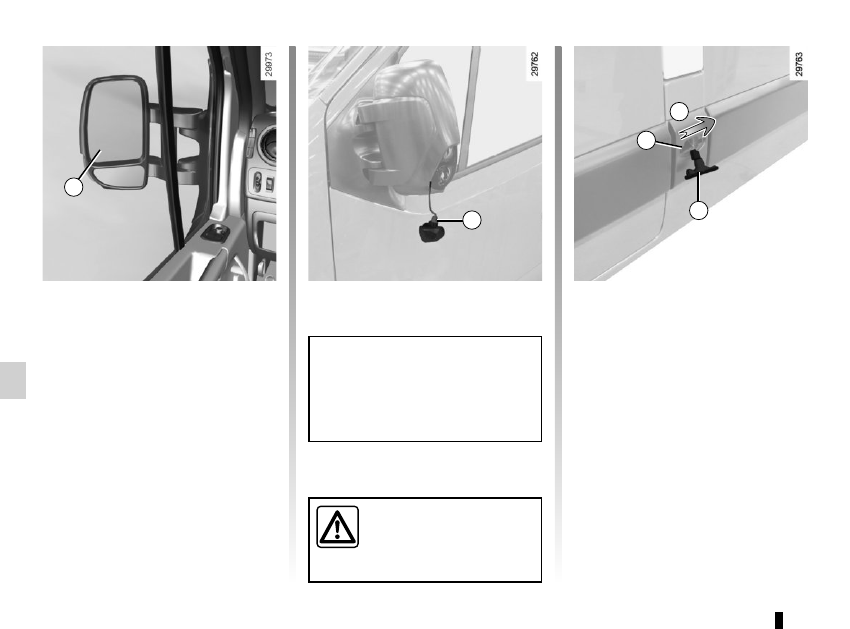

Move mirror 1 to access the bolt.
Undo the bolt using a Torx screwdriver.
Take out the indicator light and replace

bulb 2.
Bulb type, depending on vehicle:

WY5W or P21W.

Clearance lights

Push light 3 (movement A) and press

at B to release the light.
Turn the bulb holder a quarter of a turn

and replace the bulb.
Bulb type: W5W.

To comply with current legislation,

or as a precaution, you can obtain

an emergency kit from an approved

dealer containing a set of spare

bulbs and fuses.

The bulbs are under pres-

sure and can break when

replaced.
Risk of injury.

5.25

REAR LIGHTS: changing bulbs

(1/2)

Rear lights

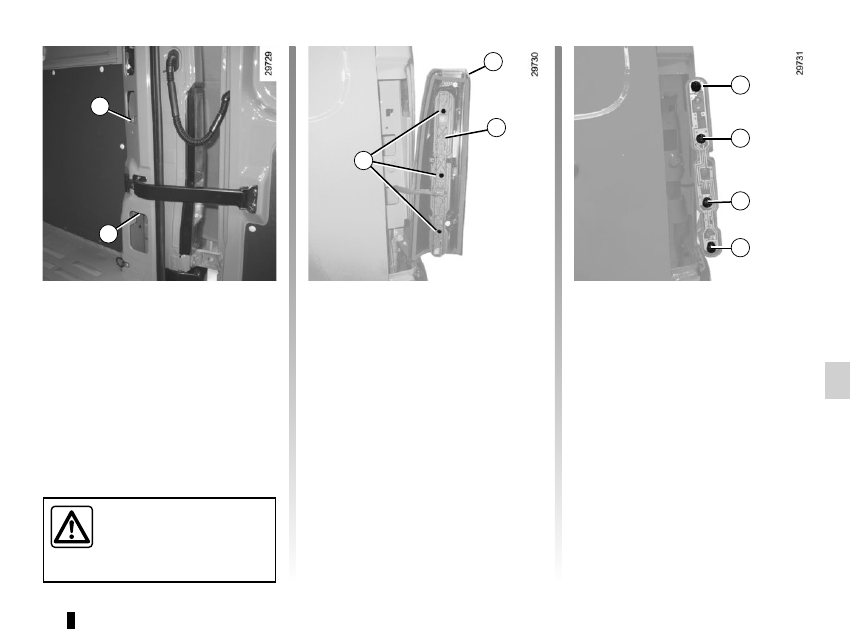

Depending on the vehicle, remove

the protective grilles. Unscrew the two

nuts 1 and pull rear light unit A.

Unscrew the bolt 2 using a flat-blade

screwdriver or similar to remove the

bulb holder 3.

4 Side lights and brake lights

Pear-shaped, bayonet type P21/5W

bulb with two filaments.

5 Indicator

Orange pear-shaped, bayonet type

PY21W bulb.

6 Reversing light

Pear-shaped, bayonet type bulb

P21W.

7 Fog light

Pear-shaped, bayonet type bulb

P21W.

The bulbs are under pres-

sure and can break when

replaced.
Risk of injury.

5.26

REAR LIGHTS: changing bulbs

(2/2)

High-level brake light

Remove cover 8.
Unscrew the nut.

Remove the unit, from outside the vehi-

cle, to gain access to bulb 9.
Bulb type: W16W.

Number plate lights

Unclip light 10 (using a flat-blade

screwdriver or similar).
Remove the light cover to gain access

to the bulb.
Bulb type: W5W.

5.27

INTERIOR LIGHTING: changing bulbs

Courtesy light

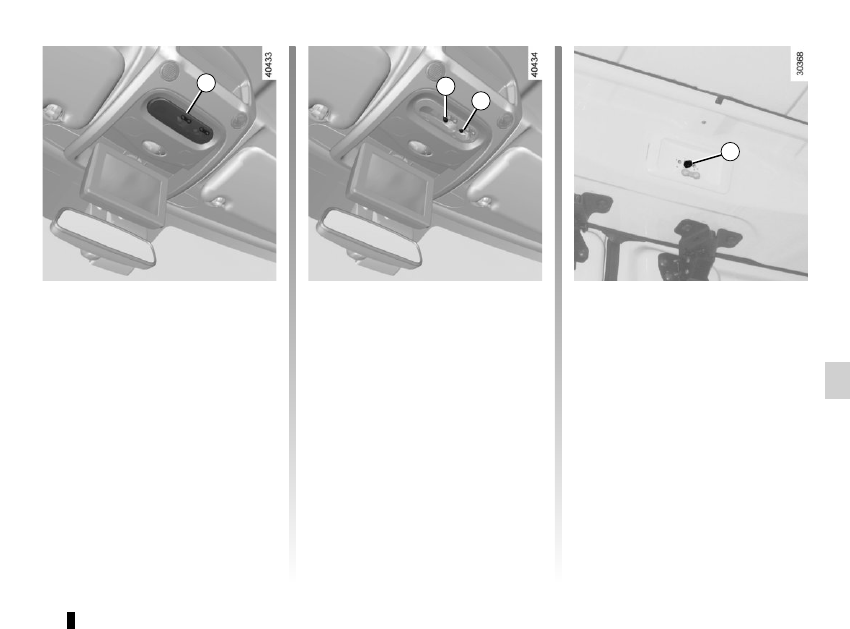

Unclip the ceiling light diffuser 1 using a

flat blade screwdriver or similar.
Pull the bulb to remove it from its hous-

ing.

Bulb type: W6W
Replace the bulb and refit the lens.

Rear lights

Unclip the ceiling light diffuser using a

flat blade screwdriver or similar.
Pull the bulb to remove it from its hous-

ing.

Type of bulb 4 : W6W
Replace the bulb and refit the lens.

Special features for vehicles fitted

with a reading lamp

Type of bulb 2: festoon 10W

Type of reading lamp 3: W5W

5.28

FUSES

(1/5)

If any electrical component does not

work, check the condition of the fuses.

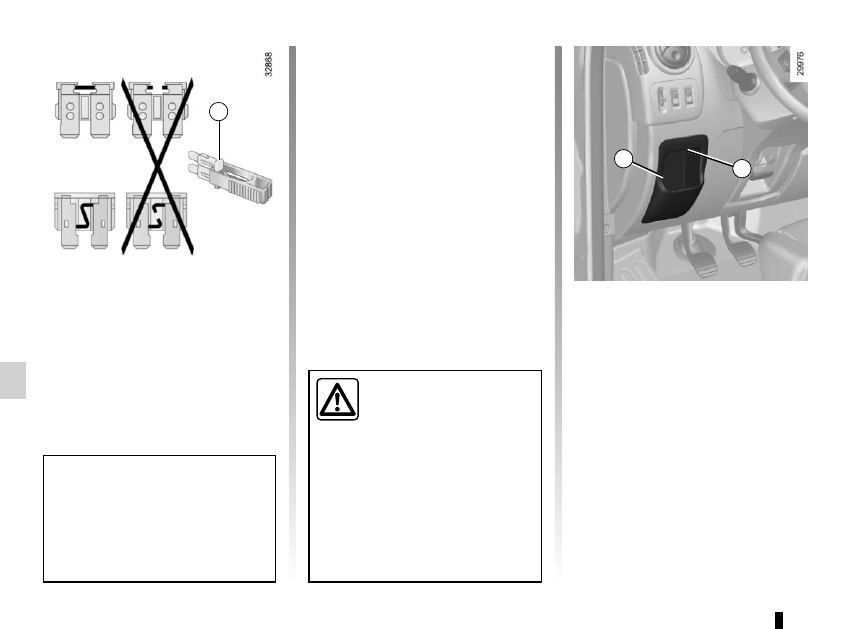

Remove the fuse using tweezers 1, lo-

cated at the back of flap A.

To remove the fuse from the tweezers,

slide the fuse to the side.

It is not advisable to use the free fuse

locations.

To comply with legislation, or as a

precaution, you can obtain an emer-

gency kit containing a set of spare

bulbs and fuses from an approved

dealer.

Your vehicle is equipped with two fuse

boxes: in the passenger compartment

and in the engine compartment.

Fuses in the passenger

compartment

Unclip flap A using notch B to help you.
To identify the fuses, refer to the fuse

allocation label (see the next page for

details), located on the rear of flap A.

Check the fuse in question

and replace it, if neces-

sary, by a fuse of the same

rating.

If a fuse is fitted where the rating is

too high, it may cause the electrical

circuit to overheat (risk of fire) in the

event of an item of equipment using

an excessive amount of current.

5.29

FUSES

(2/5)

Allocation of fuses (DEPENDING ON THE EQUIPMENT LEVEL)

Numbers

Allocation

Numbers

Allocation

Numbers

Allocation

Radio, heated seats, multi-

function display, sockets for

audio and alarm connec-

tions.

Brake lights, interior lighting.



Cornering lights.

Passenger compartment

ECU.



Hands-free access.

Accessories sockets.

Brake lights.

Tachograph.

Cigar lighter.

‚

Electric windows, heating

and air conditioning system

and passenger compart-

ment ECU.

Heating and air conditioning

system fan.

Instrument panel.

Left-hand heated rear

screen.



Additional adaptations.

Central door control.

Right-hand heated rear

screen.

Electric windows and pas-

senger compartment ECU.

Passenger compartment

ECU, direction indicator

lights and rear fog lights.

Windscreen washer.

Engine immobiliser.

Diagnostic socket.

Heated seats.

ABS/ESC

5.30

Fuses in the engine

compartment

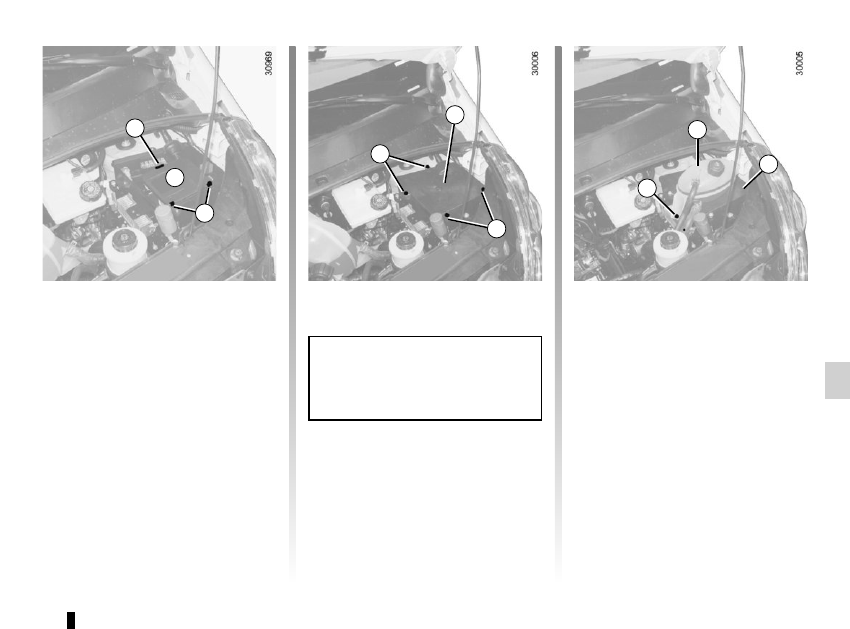

Removing fuse box C
Remove screw 2 and remove coolant

reservoir 3.

Unscrew the four screws 4.

Turn unit 5 over to access the fuses in

the engine compartment.
To identify the fuses, refer to the fuse

allocation label (see the next page for

details), located on unit 5.

FUSES

(3/5)

No operations should be

carried out on the cooling

circuit when the engine is

hot.

Risk of burns.

Check that no water or dust enters

unit 5 when it is being removed/re-

fitted.

Deactivate the Stop and

Start function for any opera-

tion performed in the engine

compartment.

Please note when work-

ing close to the engine that

it may be hot. The engine

cooling fan may also start

at any moment. The



warning

light in the engine compartment re-

minds you of this.
Risk of injury.

5.31

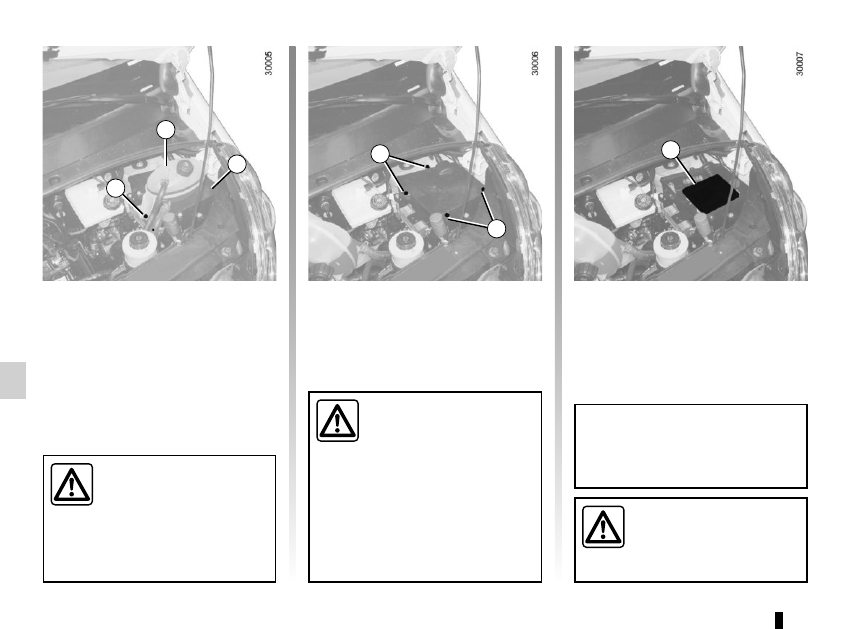

Position coolant reservoir 3, then screw

bolt 2.

Refitting fuse box C

Clip the mountings 7, then clip mount-

ing 6.

Screw the four screws 4 to ensure that

unit 5 is completely sealed.

FUSES

(4/5)

Check that no water or dust enters

unit 5 when it is being removed/re-

fitted.

5.32

FUSES

(5/5)

Symbol

Allocation

Symbol

Allocation

Right-hand side light.

Right-hand main beam

headlight.

Left-hand side light.

ABS

Right-hand dipped beam

headlight.

Windscreen wiper.

Left-hand dipped beam

headlight.

Heating and air condition-

ing system.

Fog light

De-icing.

Left-hand main beam

headlight.

Allocation of fuses (DEPENDING ON THE EQUIPMENT LEVEL)

5.33

Connecting a battery charger

The battery charger must be com-

patible with a battery with nominal

voltage of 12 volts.
Do not disconnect the battery when the

engine is running. Follow the instruc-

tions given by the manufacturer of

the battery charger you are using.
When many accessories are fitted to

the vehicle, have them connected to

the + after ignition feed.

BATTERY: troubleshooting

(1/2)

To avoid all risk of sparks:

– Ensure that any consumers (cour-

tesy lights, etc.) are switched off

before disconnecting or reconnect-

ing the battery;

– when charging, stop the charger

before connecting or disconnecting

the battery;

– to avoid creating a short circuit be-

tween the terminals, do not place

metal objects on the battery;

– always wait at least one minute after

the engine has been switched off

before disconnecting a battery;

– make sure that you reconnect the

battery terminals after refitting.

Special procedures may be

required to charge some

batteries. Contact your ap-

proved dealer.

Avoid all risk of sparks which may

cause an immediate explosion, and

charge the battery in a well venti-

lated area. Risk of serious injury.

Handle the battery with care

as it contains sulphuric acid,

which must not come into

contact with eyes or skin. If

it does, wash the affected area with

plenty of cold water. If necessary,

consult a doctor.
Ensure that naked flames, red hot

objects and sparks do not come into

contact with the battery as there is a

risk of explosion.
Please note when working close to

the engine that it may be hot. In ad-

dition, the engine cooling fan may

start at any moment. The



warning light in the engine compart-

ment reminds you of this.
Risk of injury.

Content .. 13 14 15 16 ..
