3.18

Note: for vehicles fitted with a naviga-

tion system, you can use the multifunc-

tion screen to deactivate/activate the

courtesy lights which come on when

the doors or boot are opened. To do

this, please refer to “Vehicle settings

customisation menu” in Section 1.

Map reading lights

Press switch 1 to get:
– permanent lighting;
–  immediate switching off.

When the doors or boot are un-

locked and opened, the reading and

footwell lights come on temporarily.

INTERIOR LIGHTING

(1/2)

With the doors properly shut, lock-

ing or starting the engine makes the

interior lights and the courtesy lights

go out.

1

1

3.19

Glove box light

Light  2 comes on when the cover is

opened.

2

3

Boot lights

Light  3 comes on when the luggage

compartment is opened.

INTERIOR LIGHTING

(2/2)

3.20

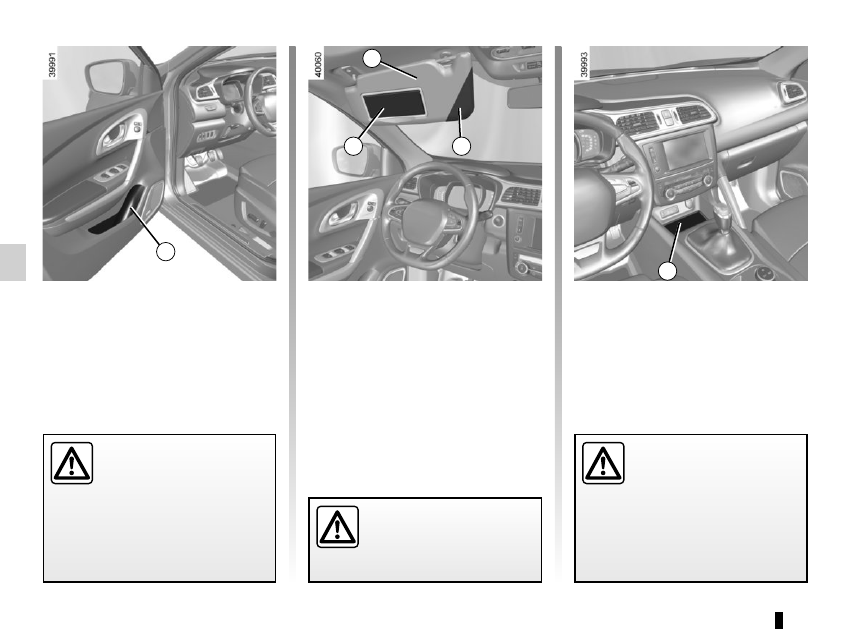

Front sun visor

Lower sun visor 2.

Sun visor storage 3

This can be used for storing motorway

tickets, cards, etc.

Courtesy mirrors

Lift the cover 4.

Nothing should be placed

on the floor area in front of

the driver as such objects

may slide under the pedal

during braking manoeuvres, thus

obstructing its use.

Front door storage pockets 1

They can hold a 0.5-litre bottle.

PASSENGER COMPARTMENT STORAGE, FITTINGS

(1/5)

1

Ensure that no hard, heavy

or pointed objects are

placed in the “open” storage

compartments in such a

way that they may fall onto passen-

gers during sudden turning, braking

or in the event of an accident.

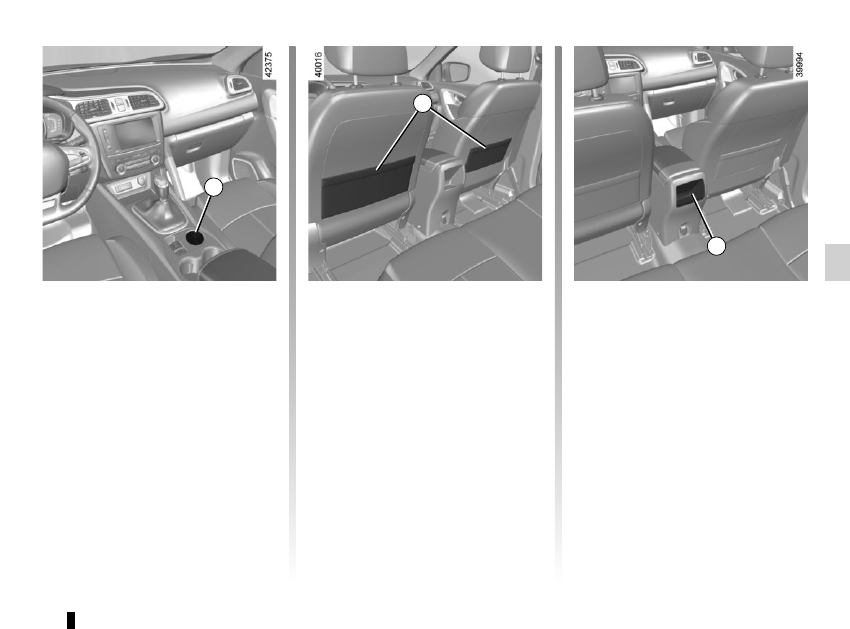

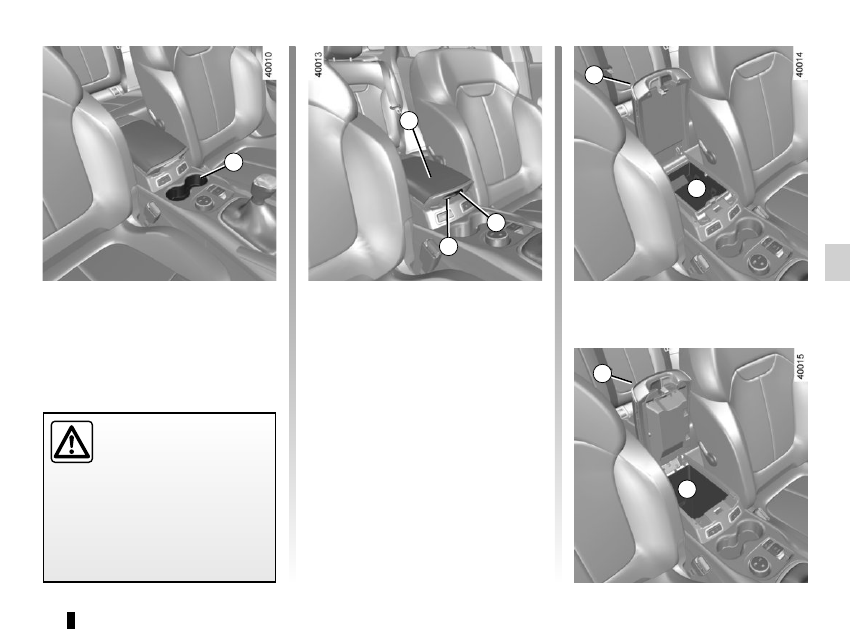

Centre console storage

compartment 5

5

When driving, ensure the

courtesy mirror cover is

closed. Risk of injury.

3

4

2

3.21

Cup holders 6

This can be used for storing a mobile

ashtray, cup holder, etc.
This storage compartment has a re-

movable carpet for easy cleaning.

When turning corners,

accelerating or braking,

ensure that the recepta-

cle being held by the cup

holder is not dislodged.
There is a risk of injury if hot liquid

escapes.

PASSENGER COMPARTMENT STORAGE, FITTINGS

(2/5)

6

Storage compartment under

the front central armrest A

(depending on the vehicle)
Lift the control 8 and raise the arm-

rest 7.

Front centre armrest storage

compartment B

Lift the control 9 and raise the arm-

rest 7.

A

9

8

7

B

7

7

3.22

PASSENGER COMPARTMENT STORAGE, FITTINGS

(3/5)

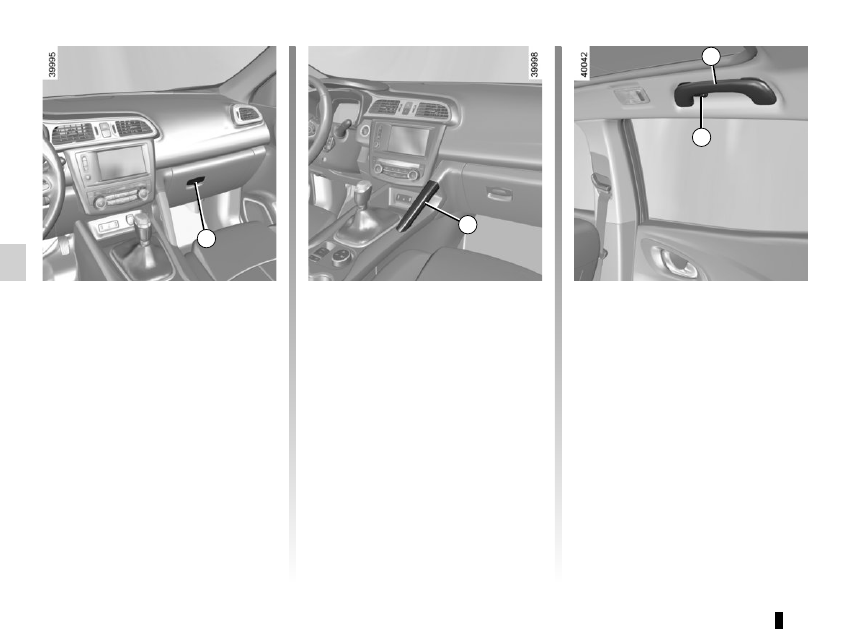

Glovebox

To open the glovebox, lift the catch 10.

10

11

Grab handle 11

This offers support and can be held

when the vehicle is being driven.
Do not use it for getting into or out of

the vehicle.

12

11

Clothes hooks 12

3.23

PASSENGER COMPARTMENT STORAGE, FITTINGS

(4/5)

Rear centre console storage

compartments 15

14

Front seat storage pockets 14

15

Storage 13

13

3.24

PASSENGER COMPARTMENT STORAGE, FITTINGS

(5/5)

17

Ensure that no hard, heavy

or pointed objects are

placed in the “open” storage

compartments in such a

way that they may fall onto passen-

gers during sudden turning, braking

or in the event of an accident.

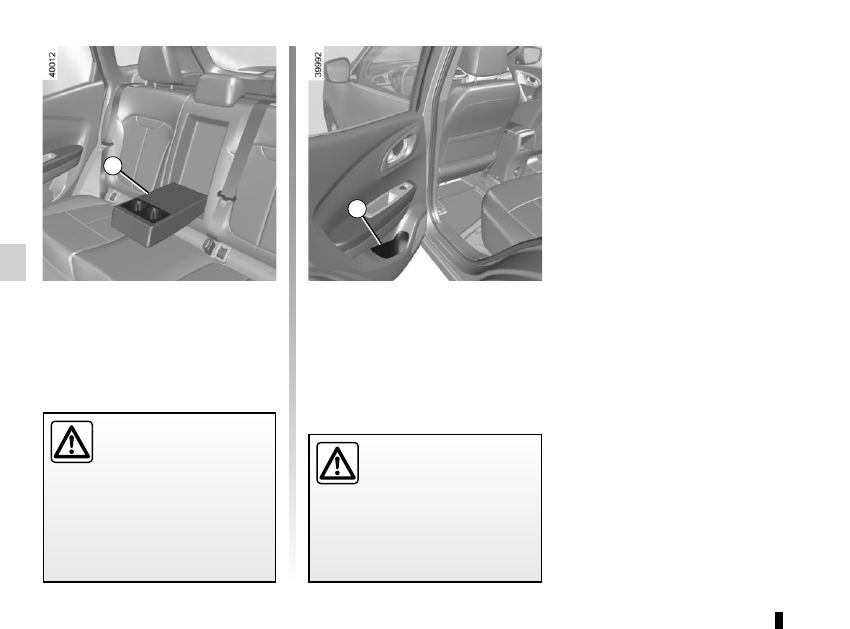

Rear armrest with cup holder

Pull down the armrest 16.

16

Rear door storage

compartment 17

When turning corners,

accelerating or braking,

ensure that the recepta-

cle being held by the cup

holder is not dislodged.
There is a risk of injury if hot liquid

escapes.

3.25

Ashtray 1

To open, lift the cover. To empty, pull the

ashtray towards you and it will be re-

leased from its housing.

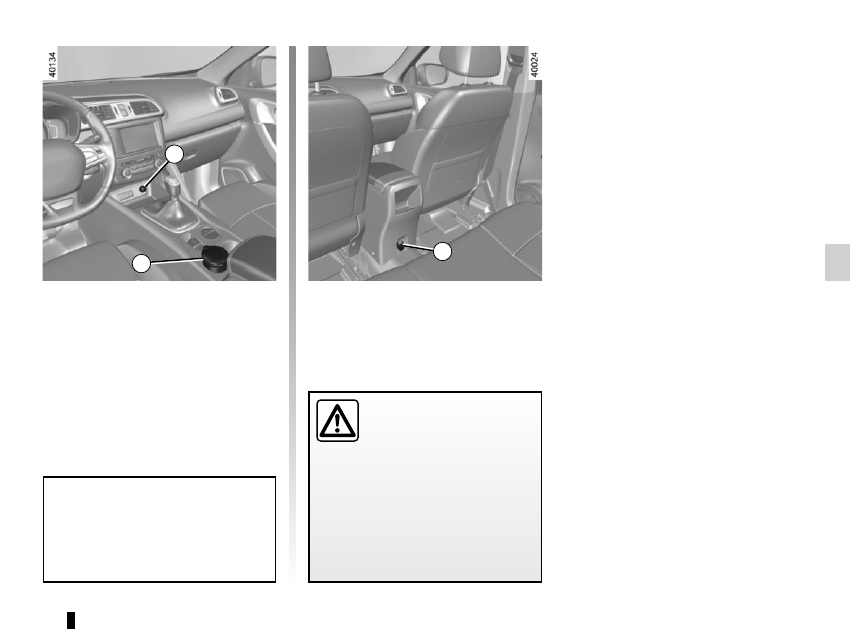

Accessories sockets 2

They are provided for connecting ac-

cessories approved by our Technical

Department.

ASHTRAY, CIGARETTE LIGHTER, ACCESSORIES SOCKET

If your vehicle is not fitted with a

cigar lighter and an ashtray, these

can be obtained from an approved

Dealer.

2

1

2

Connect accessories with

a maximum power of

120 watts (12 V) only.

When several accessory

sockets are used at the same time,

the total power of the connected

accessories must not exceed

180 watts.

Fire hazard.

3.26

The headrest is a safety

component; check that it is

fitted and in the correct po-

sition. The top of the head-

rest should be as close as possible

to the top of the head.

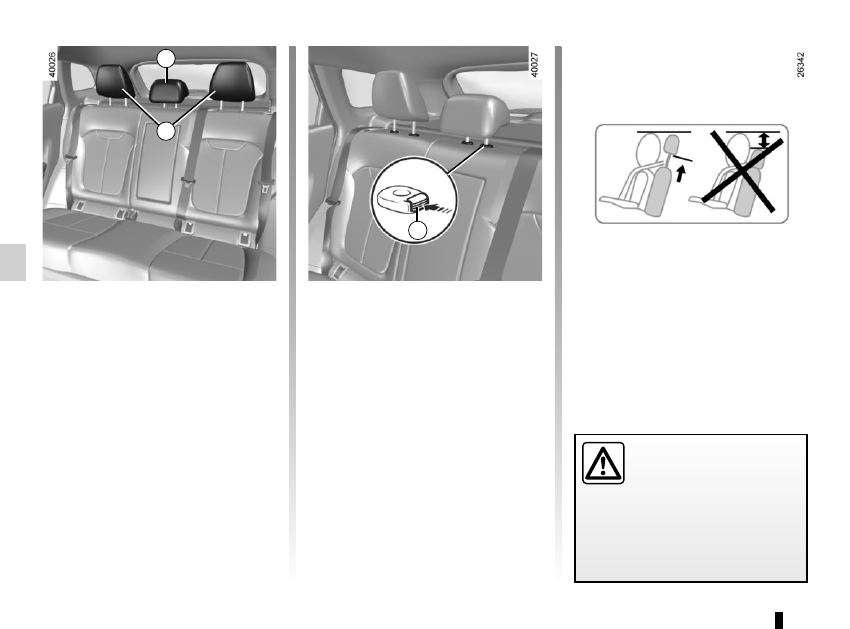

Centre seat headrest  storage

position

Press the button A and lower the cen-

tral headrest 1 completely.
When the headrest is set at the

lowest position, this is for storage

only. It should not be in this position

when a seat is occupied.

To remove a headrest

Raise the headrest as far as it will go,

then press button A and remove the

headrest.

The headrests 2 on the rear side seats

cannot be adjusted.

Position for using the central

headrest

Raise the central headrest 1 as far

as possible to use it in the high posi-

tion. Check that the bonnet is correctly

locked.

REAR HEAD RESTS

A

To refit a headrest

Insert the rods in the holes, press the

button A and lower the headrest. Check

that it is correctly locked in place.

1

2

3.27

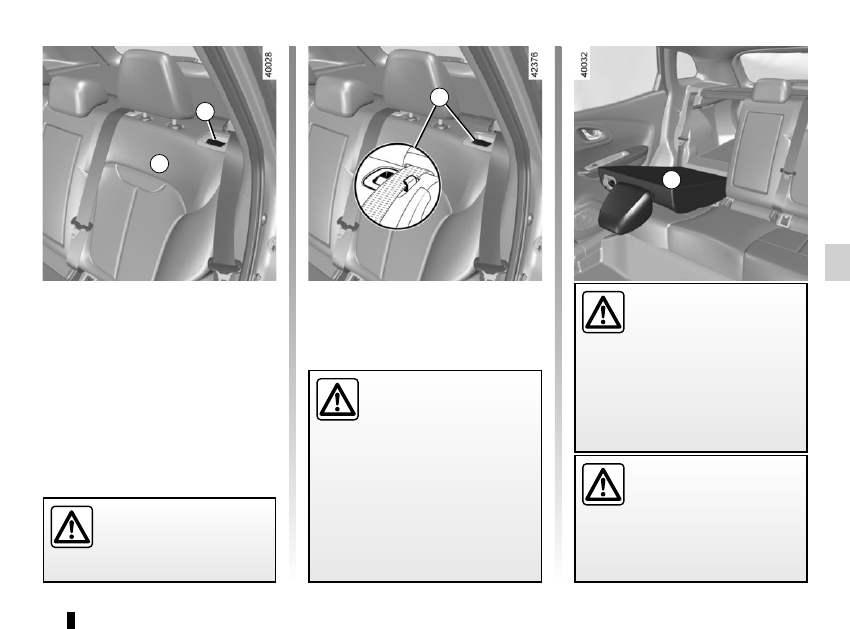

To manually fold down the

seatbacks

Ensure that the front seats are far

enough forward.
Lower the headrests fully.
Depending on the vehicle, put the seat

belt in the belt guide 2 to avoid damag-

ing it before folding down the seatback.

Pull the control 1 and lower the seat-

back A.

To replace the seatback, proceed in

the reverse order to removal.

Refit the seatback and click it back into

place.

REAR BENCH SEAT

(1/2)

For safety reasons, carry

out any adjustments when

the vehicle is not being

driven.

When moving the rear

seats, ensure that nothing

obstructs the anchorage

points (passenger’s arm or

leg, a pet, gravel, cloth, toys, etc.).

A

1

The configuration of the

two-seat bench with the

small seatback B pulled

down, does not allow the

central seat to be used as it would

be impossible to buckle the seat belt

(belt buckles inaccessible).

When refitting the seat-

back, make sure it is cor-

rectly locked in place.

If seat covers are fitted

make sure these do not prevent the

seatback latch from locking in.

Make sure that the seat belts are

positioned correctly.

Reposition the headrests.

B

2

3.28

To automatically fold down

the seatbacks (flat position)

From the boot, pulling the control 3 en-

ables you to automatically unlock the

rear bench seatbacks to get a flat floor.

Conditions of use
– Vehicle stationary;

–  boot lid open;

–  rear seat belts unlocked.

Operating fault
If all user conditions have been ful-

filled and the folding action still fails to

operate, please contact an authorised

dealer.

REAR BENCH SEAT

(2/2)

3

When moving the rear

seats, ensure that nothing

obstructs the anchorage

points (passenger’s arm or

leg, a pet, gravel, cloth, toys, etc.).

Use restriction

It is forbidden to drive with a seatback

or a front seat folded down when there

is a passenger occupying a rear seat.

For safety reasons, carry

out any adjustments when

the vehicle is not being

driven.

3.29

Opening the doors manually

from the inside

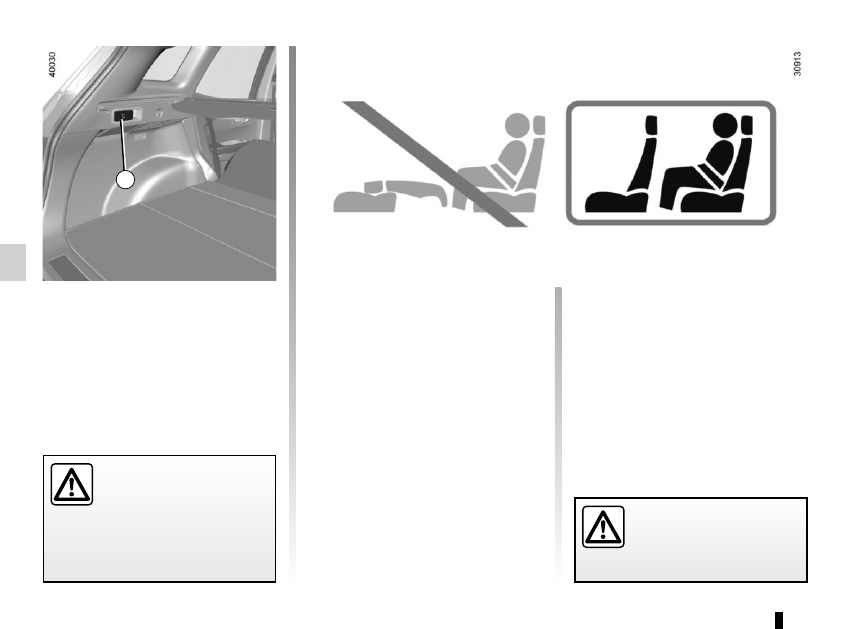

If it is impossible to unlock the tailgate,

it can be done manually from inside:
–  access the luggage compartment by

tilting the rear bench seatback(s),

–  insert a pencil or similar object in

recess 3 and slide the unit as shown

in the illustration;

–  push the tailgate to open it.

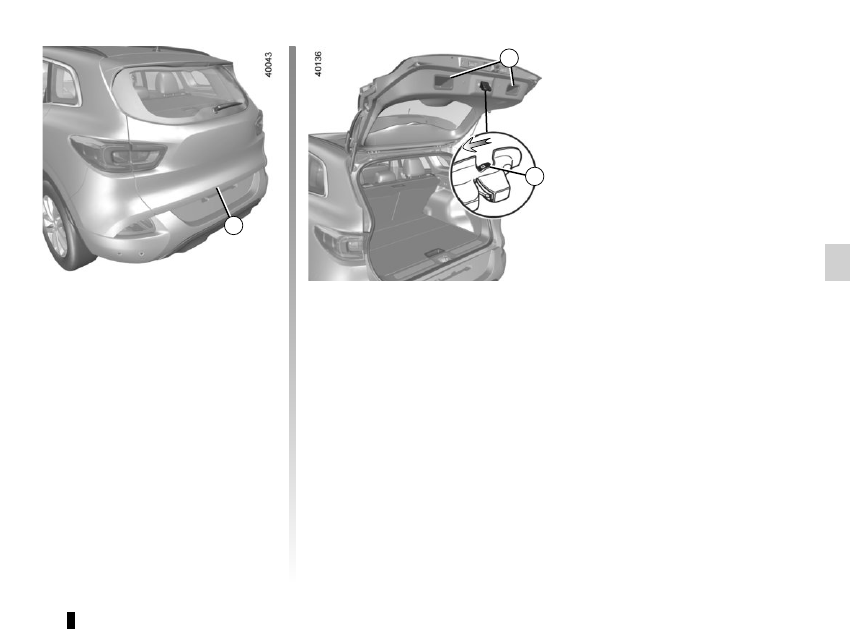

BOOT

To open

Press button 1 and lift the tailgate.

To close

Lower the tailgate using the handles 2

inside the tailgate to help you.

1

3

2

3.30

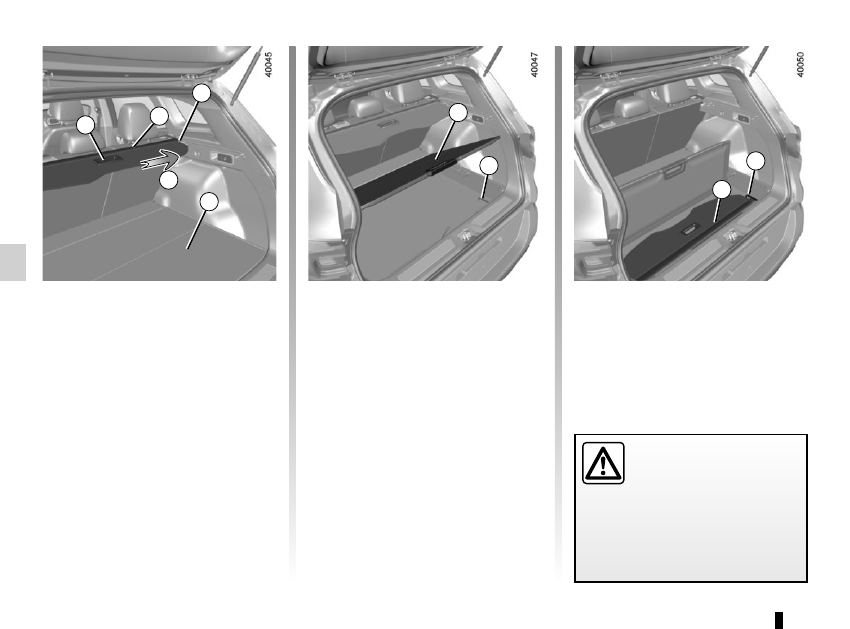

Refitting the luggage

compartment cover

Position the side 3 of the luggage com-

partment cover in its housing, press the

side  3 and position the opposite side

into its housing.

Luggage compartment cover

storage

Version without emergency spare

wheel

Lift the false floor 4, then position the

luggage cover roller 2. Attach it using

the elastic cords 5 on each side of the

boot.

To remove the flexible

section of the luggage cover

Pull then lift the handle 1 gently.
Guide the luggage cover onto the

roller 2.

Removing the luggage cover

Press the side 3 of the luggage cover 2

(movement  A), release the opposite

side from its housing then lift, remove

the whole cover.

LUGGAGE COMPARTMENT COVER

3

4

5

2

Do not place any heavy or

solid objects on the luggage

cover. These may pose a

risk to the vehicle occu-

pants if the driver has to brake sud-

denly or if the vehicle is involved in

an accident.

1

2

5

4

A

3.31

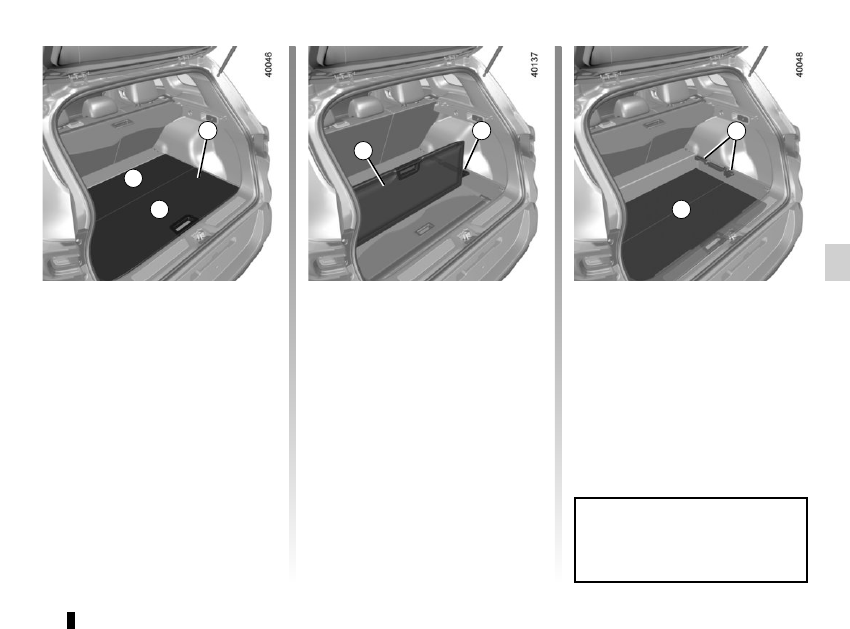

Storage position
This allows for more space to store

things in the boot.
– Remove part B then part A of the

mobile floor1;

– place part A in the luggage com-

partment under the supports 3 then

part B.

BOOT FITTINGS

(1/2)

A

Mobile floor 1

(depending on the vehicle)
It is made up of two independent and

interchangeable parts, A and B. The

smooth side is easy to clean.

Flat position
It allows you to have a flat floor by fold-

ing down the back of the rear bench

seat.
The mobile floor is positioned on sup-

ports 3.

Maximum load allowed on the

mobile floor when flat: 50 kg evenly

distributed.

Intermediate position
This enables you to compartmentalise

the boot into two separate spaces.
–  Remove the part B of the mobile

floor;

–  place it in the boot using the runners

provided 2.

1

1

B

1

2

3

3.32

BOOT FITTINGS

(2/2)

Bag hooks 4

Maximum weight per hook: 5 kg.

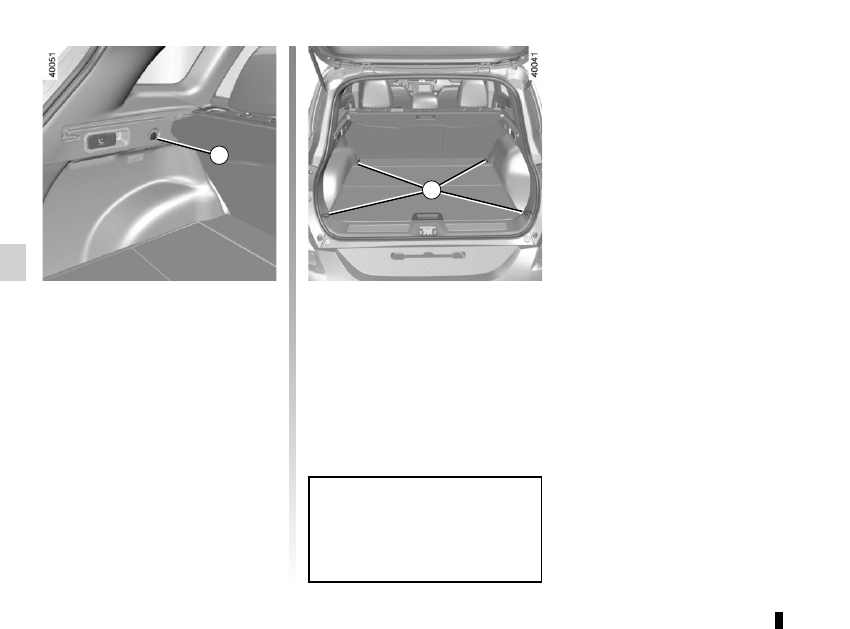

Anchorage points

Attachment points 5

If your vehicle is not equipped with

anchorage points, you can get them

from an authorised dealer.

4

5

3.33

Always position the heavi-

est items directly on the

floor. Use the lashing

points 1 on the boot floor, if

these are fitted to the vehicle. The

luggage should be loaded in such a

way that no items will be thrown for-

ward and strike the occupants if the

driver has to brake suddenly. Fasten

the rear seat belts, even if the seats

are not occupied.

TRANSPORTING OBJECTS IN THE LUGGAGE COMPARTMENT

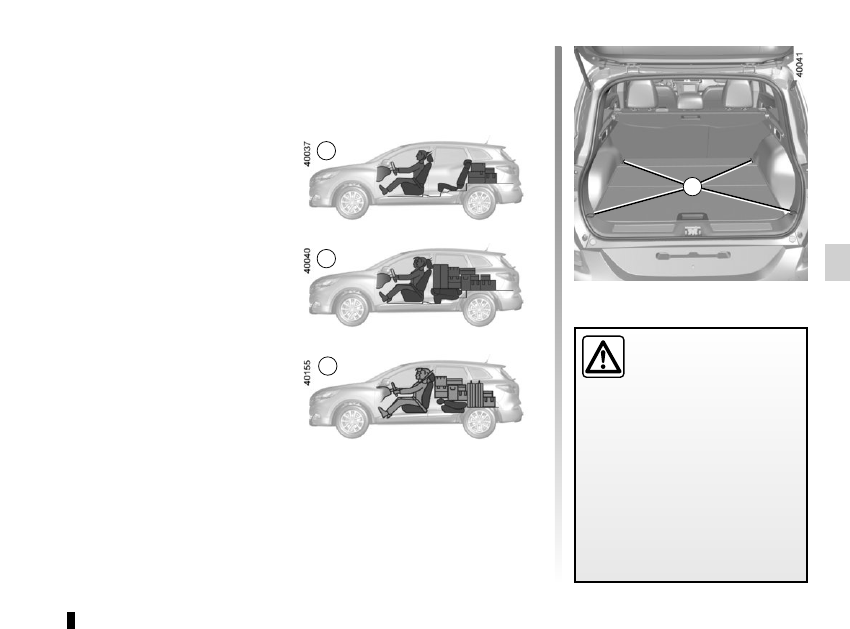

Always position the objects transported

so that the largest surface is against:

–  The rear bench seatback for normal

loads (example A).

– The front seatbacks with the rear

seatbacks folded down, the mobile

floor in the flat-floor position (exam-

ple B).

– The front seatbacks with the rear

seatbacks folded down, the mobile

floor in the stored-away position, as is

the case for maximum loads (exam-

ple C).

If you have to place objects on the folded

seatback, it is necessary that you lower

the headrests before folding the seat-

back so that it can be folded as flat as

possible against the seat.

B

A

1

C
