CRUISE CONTROL-SPEED LIMITER: cruise control function

(4/4)

Switching off the function

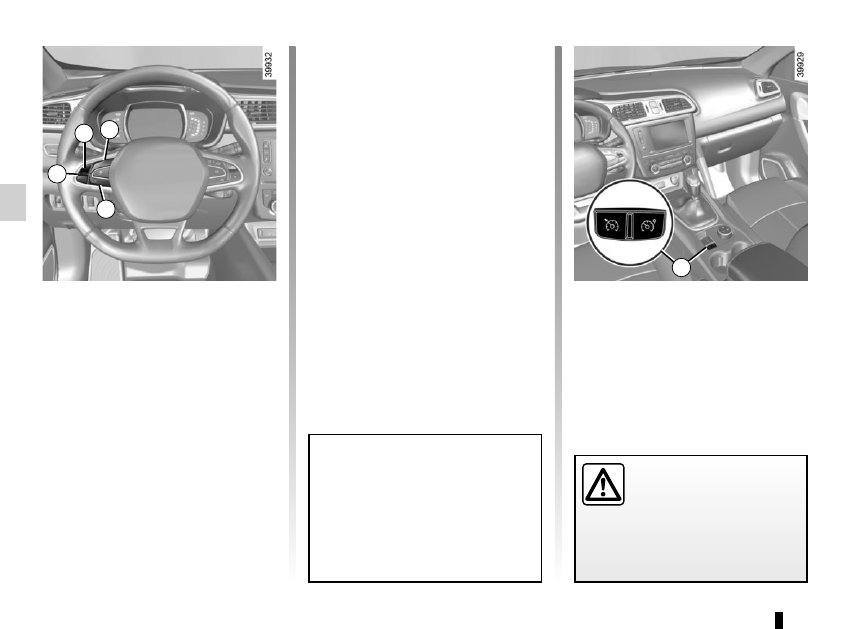

The cruise control function is deacti-

vated if you press switch 1: in this case

a speed is no longer stored. The green

 warning light and message on the

instrument panel goes out to confirm

that the function is deactivated.

Returning to the cruising speed
If a speed is stored, it can be recalled,

once you are sure that the road con-

ditions are suitable (traffic, road sur-

face, weather conditions, etc.). Press

switch  3 (R) if the vehicle speed is

above 20 mph (30 km/h).

When the stored speed is recalled,

activation of the cruise control is con-

firmed by the illumination of the cruis-

ing speed in green, along with the mes-

sage “Check cruise control”.
NB: if the speed previously stored is

much higher than the current speed,

the vehicle will accelerate more rapidly

to reach this threshold.

When the cruise control function

is put on standby, pressing the

switch  2 on side a (+) reactivates

the cruise control function with-

out taking into account the stored

speed: it is the speed at which the

vehicle is moving that is taken into

account.

Putting the function on

standby

The function is set to standby if you:

–  use the switch 4 (O);

–  the brake pedal;

–  depress the clutch pedal or the shift

into neutral if the vehicle has an au-

tomatic gearbox.

In these three cases, the cruising

speed remains stored and the mes-

sage “Memorised” accompanied by this

speed appears on the instrument panel.

Standby is confirmed by the display of

the cruising speed in grey and the mes-

sage “Memorised”.

Putting the cruise control

on standby or switching it

off does not cause a rapid

reduction in speed: you

must brake by depressing the brake

pedal.

2

a 3

4

1

2.61

PARKING DISTANCE CONTROL

(1/5)

Operating principle

Ultrasonic sensors in the rear bumper

measure the distance between the ve-

hicle and an obstacle.
This measurement is indicated by

beeps which become more frequent the

closer you come to the obstacle, until

they become a continuous beep when

the vehicle is approximately 20 to

30 centimetres from the obstacle.
The system detects obstacles to the

front, the rear and the sides of the ve-

hicle.
The parking distance control system

is only activated when the vehicle is

driven at a speed below approximately

6 mph (10 km/h).
The parking distance control system

does not take into account towing and

load carrying systems etc.

This function is an addi-

tional aid that indicates the

distance between the vehi-

cle and an obstacle whilst

reversing, using sound signals.
Under no circumstances should it

replace the driver’s care or respon-

sibility whilst reversing.
The driver should always be ready

for sudden incidents while driv-

ing: always ensure that there are

no small, narrow moving obstacles

(such as a child, animal, pushchair,

bicycle, stone, post, etc.) in the blind

spot when manoeuvring.

Special features

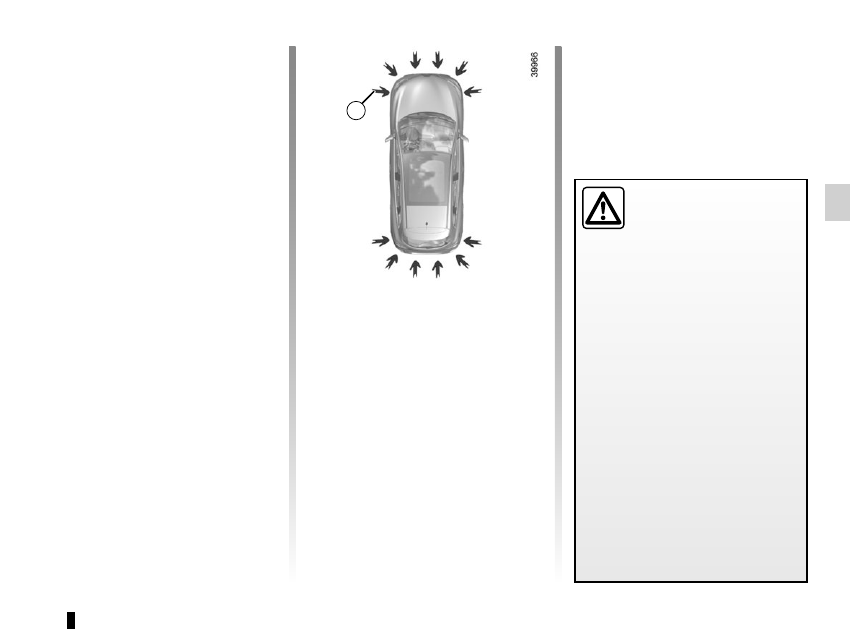

Ensure that the ultrasonic sensors indi-

cated by arrows 1 are not obscured (by

dirt, mud, snow, etc.).

1

2.62

Operation

Most objects located less near the

front, rear and sides of the vehicle are

detected.
Depending on the distance of the ob-

stacle, the frequency of the beep will

be higher while approaching it, and

will become a continuous beep around

20 cm away for obstacles to the sides,

and around 30 cm for obstacles to the

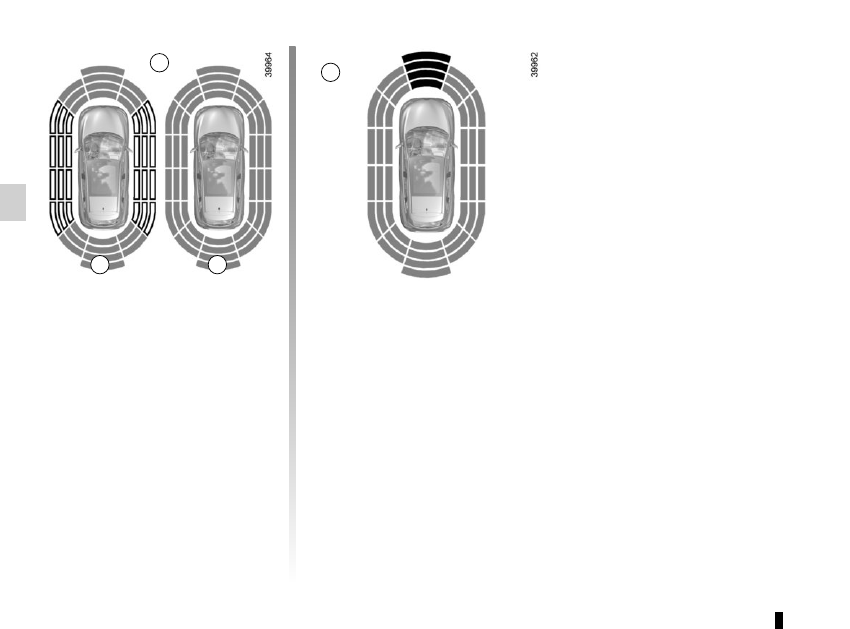

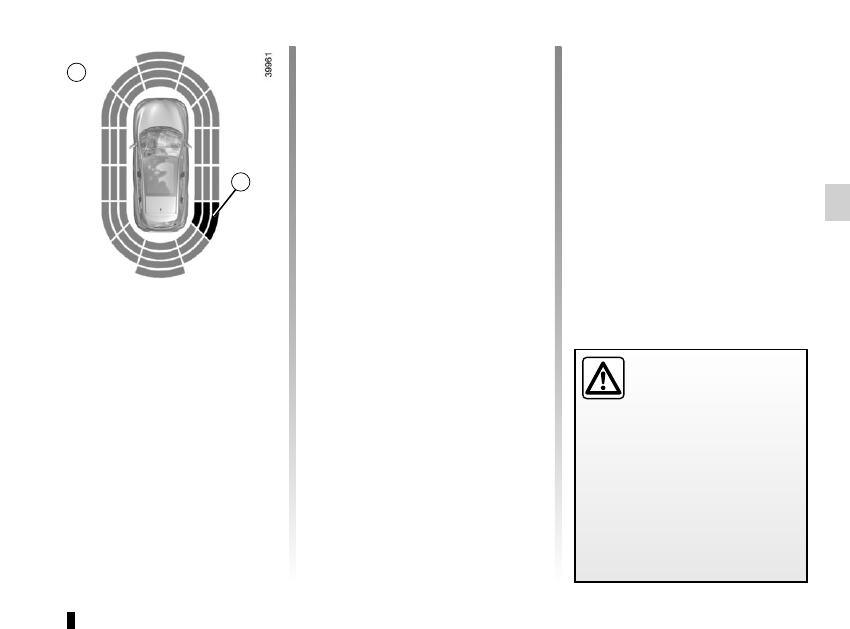

front or rear. Green, orange and red

zones will be displayed on the dis-

play C.

PARKING DISTANCE CONTROL

(2/5)

C

A

B

2

Note: the display 2 shows the vehicle

surroundings and emits beeps.
It is necessary to travel a few metres

before the side detection is activated.
If all areas have a grey background, the

whole area around the vehicle is being

monitored:
–  A: analysis of the vehicle surround-

ings in progress;

–  B: analysis of the vehicle surround-

ings carried out

2.63

An impact to the under-

side of the vehicle while

manoeuvring (e.g. strik-

ing a post, raised kerb or

other street furniture) may result in

damage to the vehicle (e.g. defor-

mation of an axle).
To avoid any risk of accident, have

your vehicle checked by an ap-

proved Dealer.

Detection of obstacles to the side
Depending on the direction of the

wheels, the system determines the tra-

jectory of the vehicle and notifies the

driver of any risk or otherwise of a col-

lision with an obstacle 3 to the side of

the vehicle.

PARKING DISTANCE CONTROL

(3/5)

If a side obstacle is detected:
–  the beeps become faster and then

sound continuously as the obstacle

gets nearer. Green, orange and red

zones will be displayed on the dis-

play D;

–  if there is no risk of collision, no beep

will sound when approaching the ob-

stacle. Green, orange and red zones

will be displayed interspersed on the

display D.

Note: in the event of a change in tra-

jectory during a manoeuvre, the risk of

collision with an obstacles may be sig-

nalled late.

3

D

2.64

System sound

Enables the system sound to be se-

lected from a choice of 3.

Deactivating the system sound

Activate or deactivate the parking dis-

tance control sound.
Note: If you deactivate the sound, you

will no longer be notified with beeps

when approaching an obstacle.

Deactivating the system

 Activate or deactivate parking distance

control.

Vehicles not fitted with a navigation

system
Vehicle stationary:

–  press and hold the switch 5  OK to

access the settings menu;

–  repeatedly press the control 6 up or

down until you reach the “Driving as-

sistance” menu;

–  press the switch 5 OK;

–  repeatedly press the control 6 up or

down until you reach the “Parking

distance control settings” menu;

PARKING DISTANCE CONTROL

(4/5)

When the vehicle is being driven at

a speed below approximately 6 mph

(10 km/h), certain noises (motorcy-

cle, lorry, pneumatic drill, etc.) may

trigger the beeping sound of the

parking distance control.

4

Adjustment

You can adjust certain settings from the

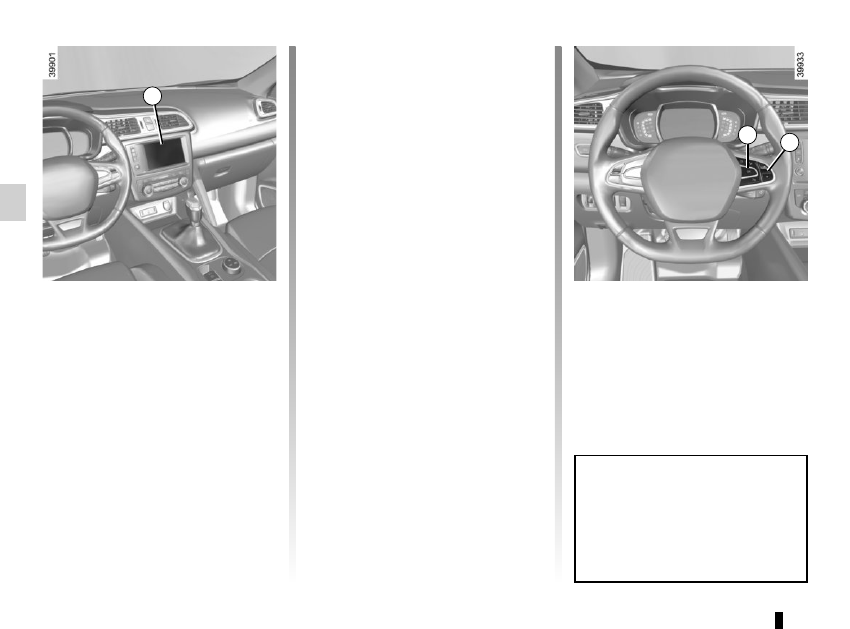

multifunction screen 4. Please see the

equipment instructions for further infor-

mation.

Vehicles fitted with a navigation

system
Select “Vehicle”, “PARKING ASSIST”,

“Obstacle detection”.

Parking distance control audio

volume
Adjust the volume of the parking dis-

tance control by pressing + or -.

–  press the switch 5 OK;

–  using the control 6, select the set-

tings to be changed;

–  press the switch 5 OK.

5

6

2.65

Automatic deactivation of the

parking distance control

The system deactivates:
–  when the vehicle speed is above ap-

proximately 6 mph (10 km/h);

–  depending on the model, when the

vehicle is stationary for more than

approximately 5 seconds and an ob-

stacle is detected (such as when in a

traffic jam, etc.);

–  when the vehicle is in neutral for

manual gearboxes, or in position N

or P for automatic gearboxes.

PARKING DISTANCE CONTROL

(5/5)

Operating faults

When the system detects an operating

fault, a beep sounds for approximately

3 seconds each time reverse gear is se-

lected and is accompanied by the mes-

sage “Check parking sensor” shown on

the instrument panel. Please consult an

authorised dealer.

2.66

REVERSING CAMERA

(1/2)

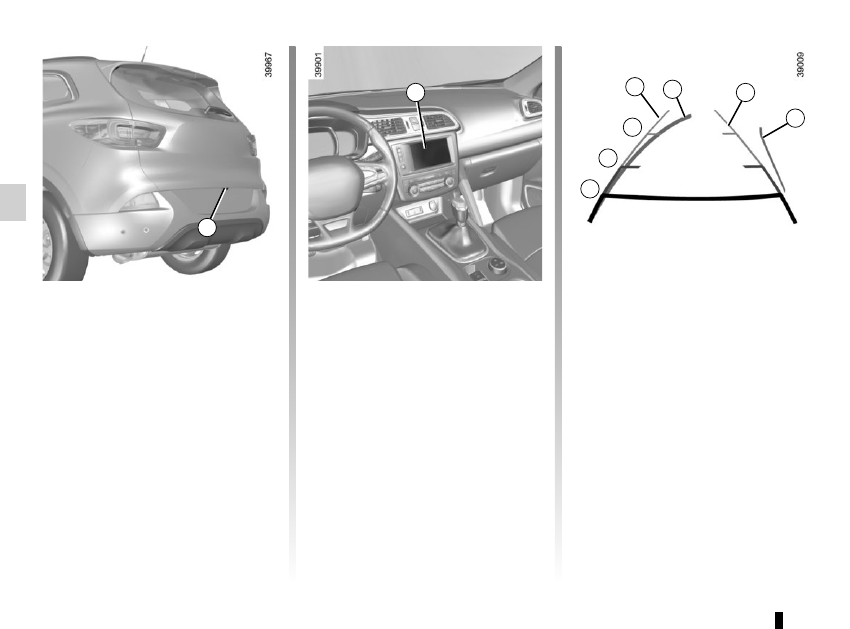

4 moving guide line:
This is shown in blue on the multifunc-

tion screen 2. It indicates the vehicle

trajectory according to the position of

the steering wheel.

Special feature

Make sure that the camera is not ob-

scured (by dirt, mud, snow, condensa-

tion etc.).

Operation

Moving into reverse gear, the camera 1

located on the tailgate provides a view

of the area behind the vehicle on the

multimedia screen 2, accompanied by

one or two moving or fixed guide lines 4

and 3.
This system is initially used with the aid

of several gauges (mobile for trajectory

and fixed for distance). When the red

zone is reached, use the bumper image

to stop accurately.

Fixed gauge 3
The fixed clearance gauge comprises

coloured markers AB and C, indicat-

ing the distance behind the vehicle:
–  A (red) approximately 30 centime-

tres from the vehicle;

–  B (yellow) approximately 70 centi-

metres from the vehicle;

–  C (green) approximately 150 centi-

metres from the vehicle.

This gauge remains fixed and indicates

the vehicle trajectory if the wheels are

in line with the vehicle.

1

4

C

B

A

3

2

3

4

2.67

This function is an additional

aid. It cannot, therefore,

under any circumstances

replace the vigilance or the

responsibility of the driver.
The driver should always be ready

for sudden incidents while driv-

ing: always ensure that there are

no small, narrow moving obstacles

(such as a child, animal, pushchair,

bicycle, stone, post, etc.) in the blind

spot when manoeuvring.

The screen shows a reverse mirror

image.
The frames are a representation

projected onto flat ground; this in-

formation must not be taken into

account when superimposed on a

vertical object or an object on the

ground.
Objects which appear on the edge

of the screen may be deformed.
In very bright light (snow, vehicle in

sunshine etc.), the camera vision

may be adversely affected.
If the boot is open or poorly closed,

the message “Boot open” appears

and the camera display disappears.

You can also adjust the camera image

settings (brightness, contrast, etc.)

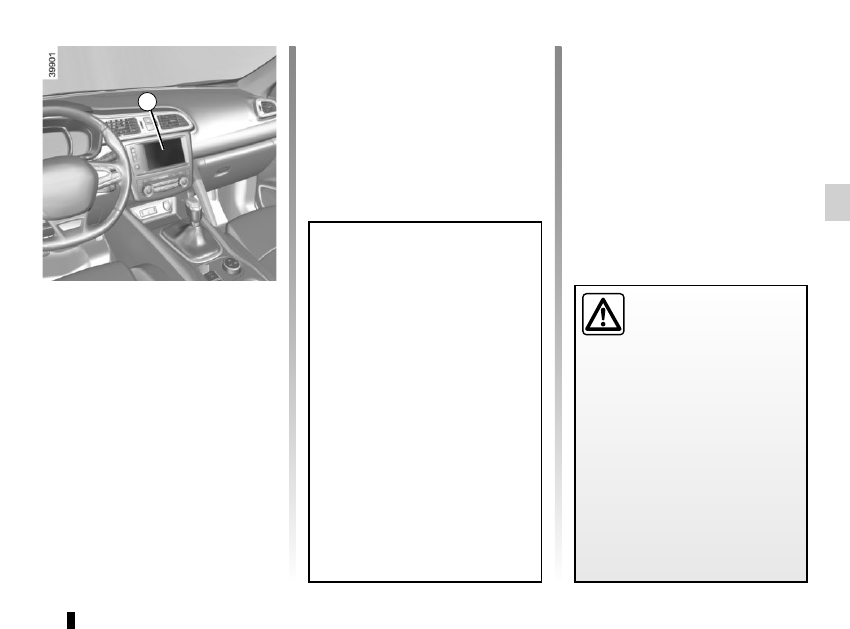

Activating, deactivating the

reversing camera

From the multifunction screen 2, select

“Vehicle”, “Settings”, “Parking as-

sistance”, then “Rear view camera”.

Activate or deactivate the reversing

camera and confirm your choice.

REVERSING CAMERA

(2/2)

2

2.68

ASSISTED PARKING

(1/4)

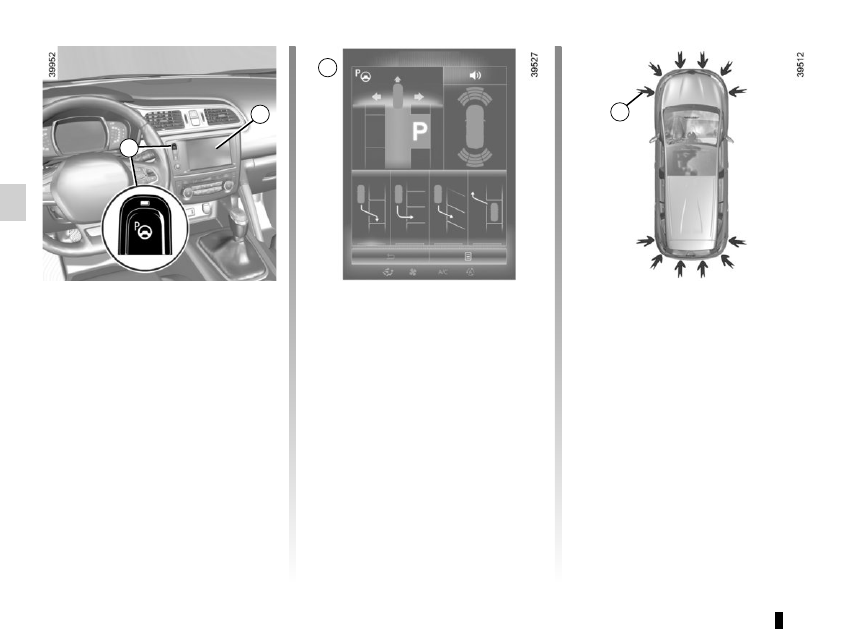

This function assists with parking ma-

noeuvres.
Take your hands off the steering wheel.

You only control the pedals and the

gear lever.
You can retake control at any time by

operating the steering wheel.

Switching on

With the vehicle at a standstill or driving

at less than approximately 18.6 mph

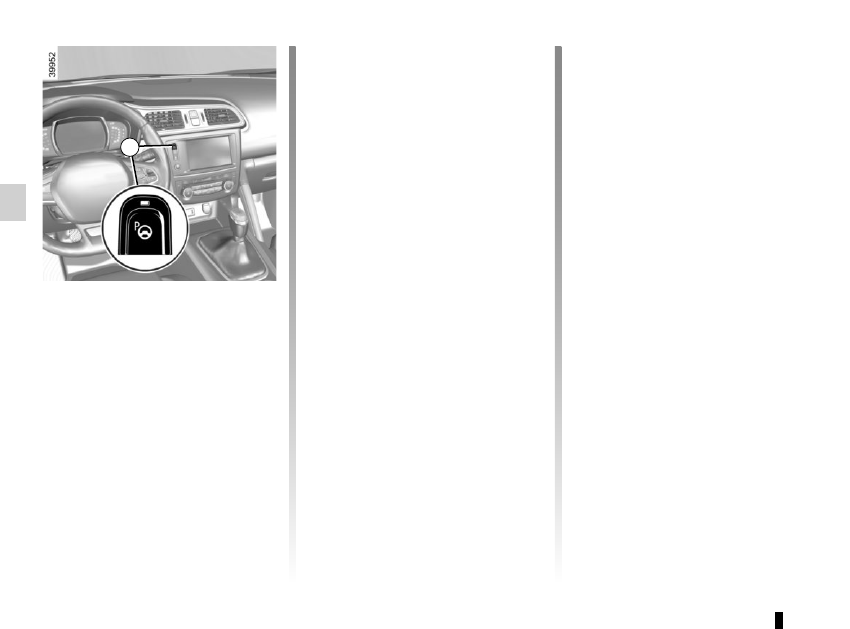

(30 km/h), press switch 1. The warn-

ing light integrated on switch 1 lights up

and the 2 screen appears on the multi-

function screen.

2

Special features

Ensure that the ultrasonic sensors indi-

cated by arrows 3 are not obscured (by

dirt, mud, snow, etc.).

3

2

1

2.69

Choice of manoeuvre

The system can perform four types of

manoeuvres:
– parallel parking;
– perpendicular parking;
– angle parking;
– moving out of a parallel parking

space.

From the multifunction screen, select

the manoeuvre to be performed.
Note: When starting the vehicle, or

after successfully completed parallel

parking using the system, the default

manoeuvre proposed by the system is

assistance in exiting a parallel parking

space. In other cases, the default ma-

noeuvre can be set from the multifunc-

tion screen.

ASSISTED PARKING

(2/4)

Operation

Parking
As long as the vehicle speed is less

than 20 mph (30 km/h), the system

looks for available parking spaces on

both sides of the vehicle.
Once a space has been found, it is dis-

played on the multifunction screen, indi-

cated by a small letter “P”. Drive slowly,

with the indicators activated on the side

of the space, until the message “Stop”

is displayed, alongside a beep.
The space is then indicated on the mul-

tifunction screen by a capital “P”.
–  Stop the vehicle;
–  select reverse gear.

Warning light

 lights up on the in-

strument panel, along with a beep.
–  release the steering wheel;
–  follow the system instructions pro-

vided on the multifunction screen.

Your speed should not exceed around 4

mph (7 km/h).

Once the warning light

 on the

instrument panel goes off and a beep

sounds, the manoeuvre has been com-

pleted.

2.70

ASSISTED PARKING

(3/4)

Your speed should not exceed around

4 mph (7 km/h).

Once in position to exit the space, the

system will notify you of the end of the

manoeuvre.

Once the warning light

 on the

instrument panel goes off and a beep

sounds, the manoeuvre has been com-

pleted.

Suspending the manoeuvre

The manoeuvre is suspended in the fol-

lowing circumstances:

–  you take control of the wheel;

–  a door or the boot is opened;

–  the vehicle is at a standstill for too

long;

–  an obstacle in the direction of move-

ment prevents the manoeuvre from

being completed;

–  the engine will stop.

Once the warning light

 on the

instrument panel goes off and a beep

sounds, the manoeuvre has been sus-

pended. Then to resume the manoeu-

vre, press and hold the system activa-

tion switch.

In this case, the reason for suspending

the manoeuvre will be displayed on the

multifunction screen.
Make sure:

–  you have released the steering wheel

and;

–  that all doors and the boot are closed,

and;

–  that no obstacles are in the way of

the direction of movement, and;

–  that the engine is started.

Cancelling the manoeuvre

The manoeuvre can be stopped in the

following cases:

– by pressing the system activation

switch;

– the vehicle speed has exceeded

4 mph (7 km/h);

–  You have performed more than ten

forwards/backwards movements in

one manoeuvre;

–  the parking distance control sensors

are dirty or blocked;

–  the vehicle wheels have skidded.

Once the warning light

 on the

instrument panel goes off and a beep

sounds, the manoeuvre has been

ended.

Exiting a parallel parking space
–  Select “exit parallel parking space”

mode;

–  activate the direction indicator on the

side you wish to go out of;

– press and hold switch 1 (around

2 seconds).

Warning light

 lights up on the in-

strument panel, along with a beep.

–  release the steering wheel;

– go forwards and backwards using

the parking distance control system

alerts.

1

2.71

ASSISTED PARKING

(4/4)

This function is an additional driving aid. However, this function is not under any circumstances intended to replace the

due care and attention of the driver, who should at all times be in control of the vehicle.
Make sure that the manoeuvre complies with the applicable traffic regulations at your location.

–  The driver should always look out for sudden hazards during driving: always ensure that there are no moving obstacles

(such as a child, animal, pram, bicycle, etc.) or small, narrow objects such as stones or posts in your path when manoeu-

vring.

–  The system cannot detect objects located in the sensor blind spots.
–  When manoeuvring, the steering wheel may turn quickly: do not put your hands inside, and make sure that nothing is caught

inside.

–  Always visually check that the parking space proposed by the system is still available and contains no obstacles.
–  The system should be deactivated when towing a trailer.

2.72

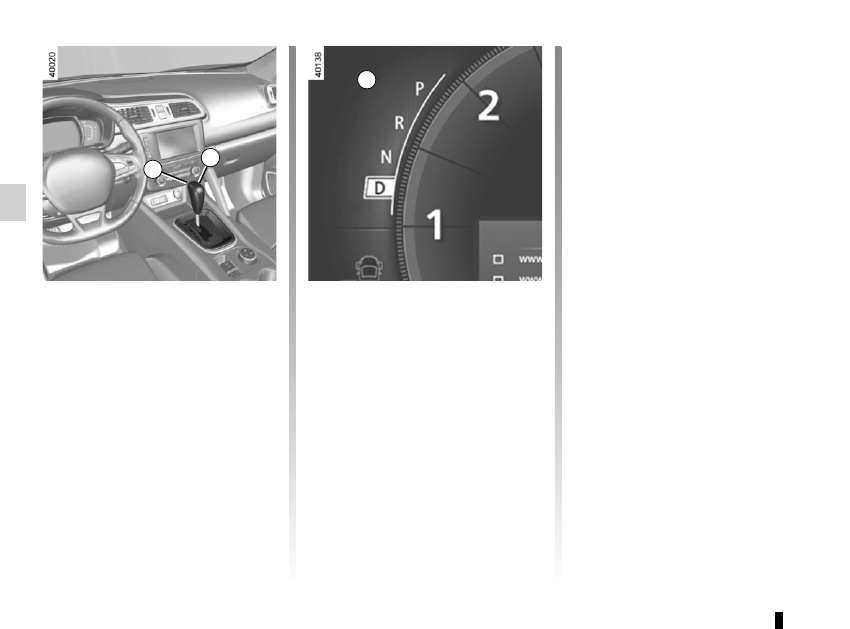

AUTOMATIC TRANSMISSION

(1/3)

Operation

With the selection lever 1 in position P

switch on the ignition.
To move out of position P, you must de-

press the brake pedal before pressing

the unlocking button 2.
With your foot on the brake pedal

(warning light

Ó

 on the display 3

goes out), move the lever out of posi-

tion P.
Only engage D or R when the vehi-

cle is stopped, with your foot on the

brake and the accelerator pedal re-

leased.

Selector lever 1

P: park
R: reverse
N: Neutral
D: automatic mode
M: manual mode
Note: Press the button 2 to go from po-

sition D or N to R or P.
3:  displays the gear engaged in manual

mode.

1

2

Driving in automatic mode

Move lever 1 to position D.
In most road conditions you will en-

counter, you will not need to touch your

lever again: the gears will change au-

tomatically at the right time and at the

most suitable engine speed because

the automatic system takes into ac-

count the vehicle load and road contour

and adjusts itself to the particular driv-

ing style you have chosen.

Economical driving
When driving, always leave the lever

in position D, keeping the accelerator

pedal lightly depressed to ensure auto-

matic gear changes at a lower engine

speed.

Accelerating and overtaking
Depress the accelerator pedal firmly

and fully (so that it goes beyond the

kickdown point).
This will enable you to change down

to the optimum gear within the

engine range.

3

2.73

AUTOMATIC TRANSMISSION

(2/3)

Special cases

In certain driving conditions (for exam-

ple, engine protection, operation of the

Electronic Stability Programme: the au-

tomatic system may change gear auto-

matically.

Likewise, to prevent incorrect manoeu-

vres, a gear change may be refused by

the automatic system: in this case the

gear display flashes for a few seconds

as a warning.

Special circumstances

–  If the bends and road surface do

not allow you to stay in automatic

mode (e.g. in the mountains), we

recommend that you change to

manual mode. This will prevent the

automatic gearbox from changing

gear repeatedly when climbing, and

permit engine braking on long de-

scents.

–  In cold weather, start the engine

and wait a few seconds before

moving the selector lever from posi-

tion P or N and engaging it in D or R

to prevent the engine stalling.

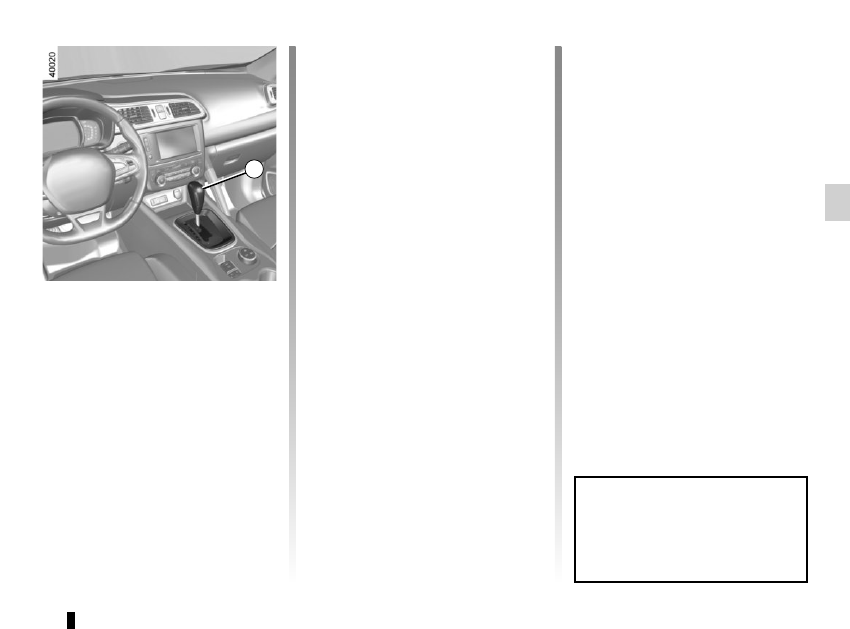

Driving in manual mode

With the selection lever 1 in position D

move the lever to the left.
Shifting the lever repeatedly allows you

to change gears manually:

–  to move down through the gears,

push the lever forwards;

–  to move up through the gears, push

the lever backwards.

The gear selected is displayed on the

instrument panel.

1

When facing uphill, to remain

stopped, do not keep your foot on

the accelerator.
Risk of overheating the automatic

gearbox.

2.74

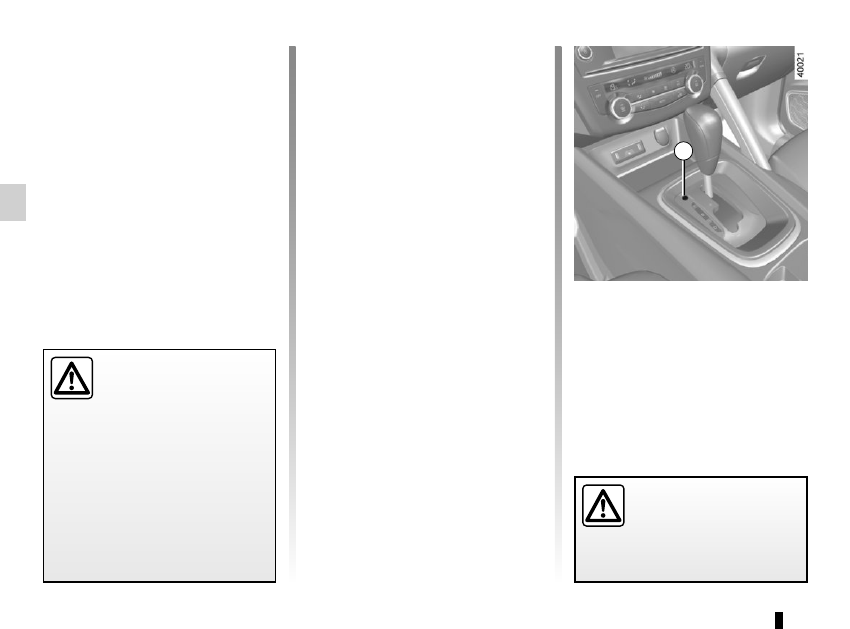

AUTOMATIC TRANSMISSION

(3/3)

Parking the vehicle

When the vehicle is stopped, move the

lever to position P while keeping your

foot on the brake pedal: the gearbox is

in neutral and the drive wheels are me-

chanically locked by the driveshaft.
Apply the handbrake or, depending

on the vehicle, ensure that the elec-

tronic parking brake is applied.

When setting off, if the lever is locked

in position P even though you are

pressing the brake pedal, the lever can

be released manually. To do this, insert

a tool (with a hard rod) into the slot 4 to

unlock the lever.
Contact an authorised dealer as soon

as possible.

Maintenance period

Refer to the maintenance document

for your vehicle or consult an Approved

Dealer to check whether the automatic

gearbox requires scheduled mainte-

nance.
If it does not need to be serviced, there

is no need to top up the oil.

Operating faults

–  when driving, if the message

“Check auto gearbox” appears on

the instrument panel, it indicates a

failure.
Contact your approved Dealer as

soon as possible;

–  when driving, if the message

“Gearbox overheating” appears on

the instrument panel, stop as soon

as possible to let the gearbox cool

down and wait for the message to

disappear;

–  If a vehicle with an automatic

gearbox breaks down, refer to the

information on “Towing” in Section 5.

4

For safety reasons, do not

switch off the ignition before

the vehicle has come to a

complete standstill.

An impact to the under-

side of the vehicle while

manoeuvring (e.g.: strik-

ing a post, raised kerb or

other street furniture) may result in

damage to the vehicle (e.g.: defor-

mation of an axle).
To avoid any risk of accident, have

your vehicle checked by an ap-

proved Dealer.

3.1

Section 3: Your comfort

Air vents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.2

Manual air conditioning/heating system  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.4

Automatic climate control  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.7

Air conditioning: information and advice on use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  3.13

Outside air quality and deodorisation functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   3.15

Electric windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   3.16

Fixed glass roof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   3.17

Interior lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   3.18

Passenger compartment storage/fittings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   3.20

Ashtray/cigarette lighter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   3.25

Sliding rear bench seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   3.27

Luggage compartment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   3.29

Luggage cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   3.30

Luggage compartment storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   3.31

Transporting objects in the luggage compartment  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   3.33

Transporting objects: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   3.34

equipment  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.34

Luggage net. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   3.35

Roof bars . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   3.37

Spoiler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   3.38

Multimedia equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   3.39















Content   ..  9  10  11  12   ..
