CONTROLS - SIGNALLING

LIGHTS CONTROL SWITCH

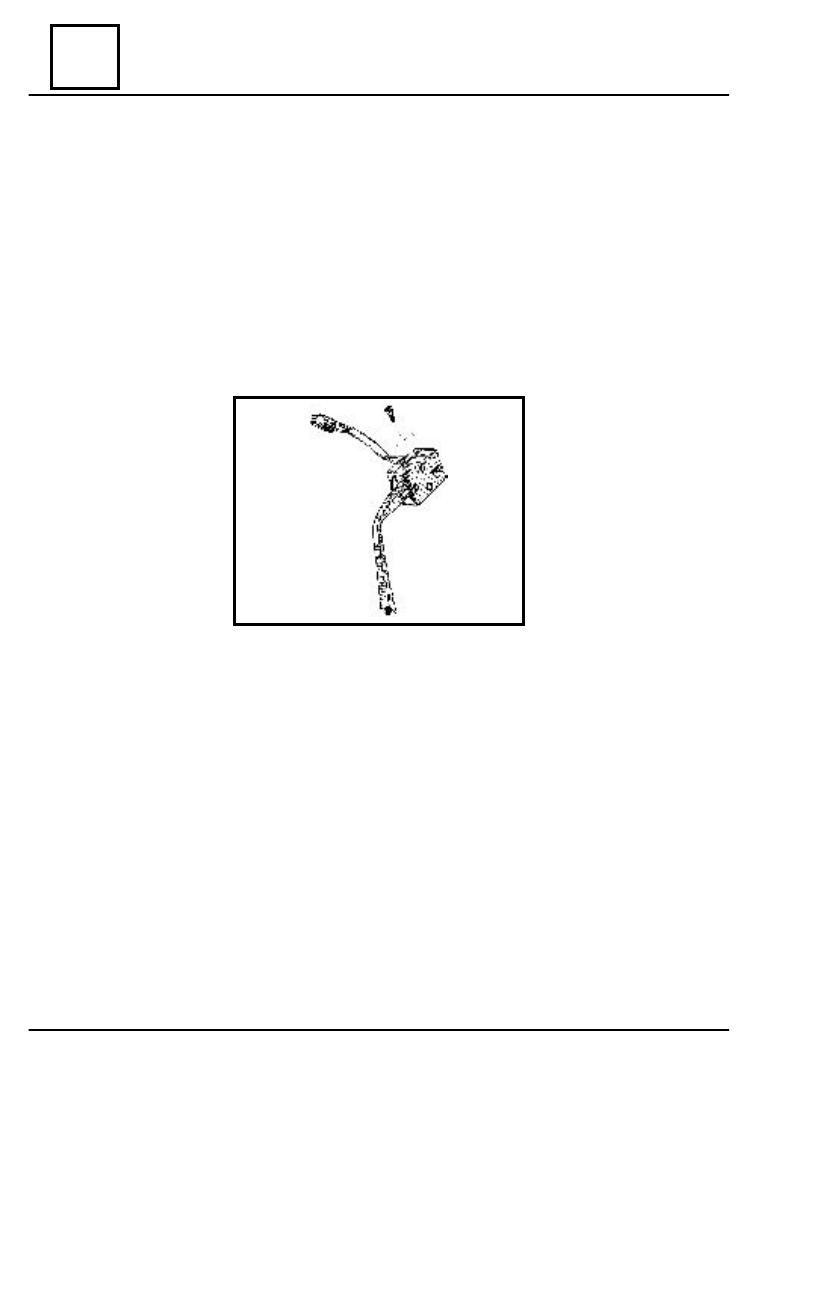

The DACIA vehicles are provided with a lights control switch  shown in the bellow

drawing.

NOTE: The lights control switch may not be repaired.

.

D

ISMO UNTING

Disconnect the battery.
Dismount the lower half housing of the steering wheel.
Cut the plastic ring that attach the wiring on the steering wheel column.
Disconnect:

- the switch connector to the front wiring;
- the wires attached by the nut.

Unscrew the attachment screw of the light control switch off the steering wheel column
Disconnect the switch.

R

EMO UNTING

Tighten the attachment screw.
Connect:

- the wire attached by nuts;
- the switch connector to the front wiring.

Position and tie the wire bundle with a new plastic ring.
Connect the battery.
Check the operating mode of the light control switch.
Mount the lower half casing.

84 - 3

UNDER WHEEL CONTROL MODULE

CONTROLS - SIGNALLING

84

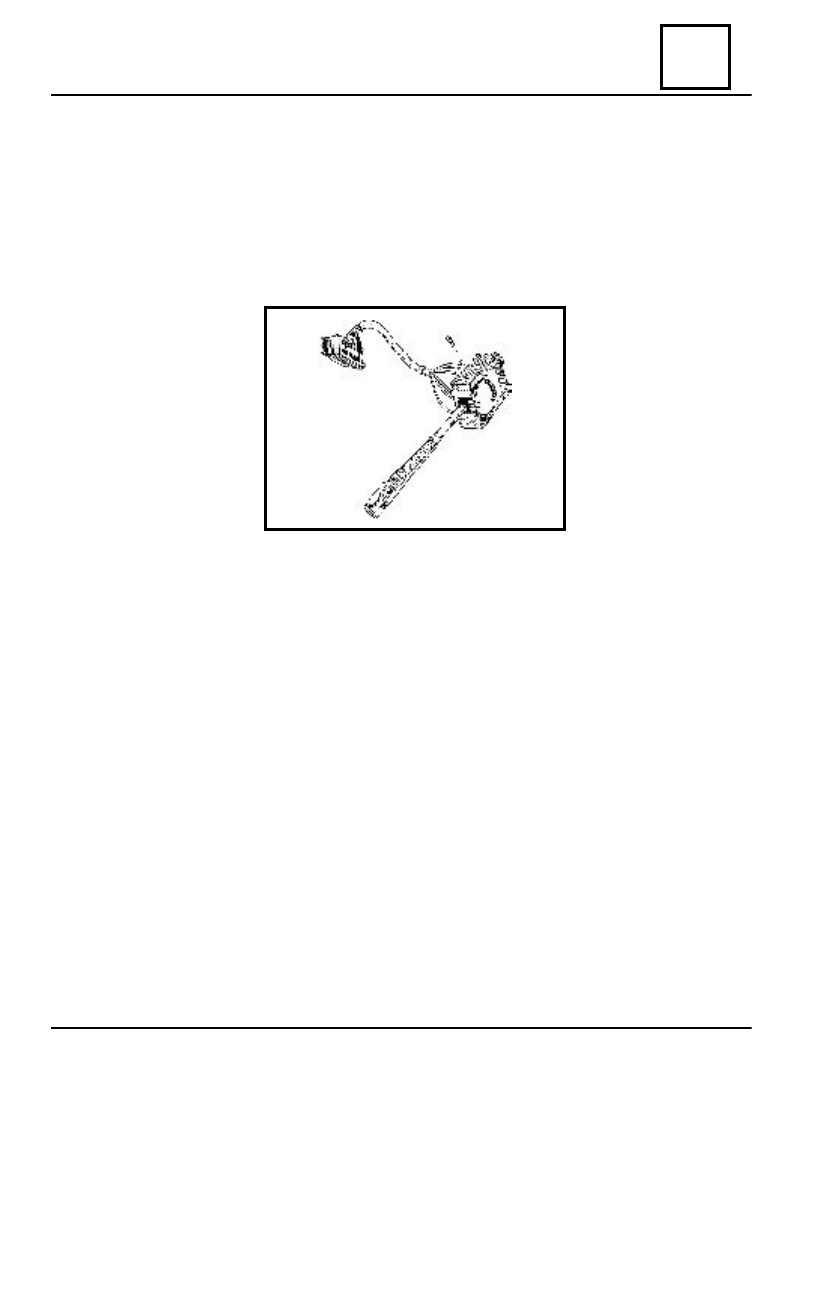

TURN SIGNALING SWITCH

D

ISMO UNTING

Disconnect the battery.
Dismount the lower housing of the steering wheel.
Cut the plastic ring.
Disconnect the connecting coupling to the front wiring.
Unscrew the connecting screws of the signaling switch off the steering wheel column.
Remove the switch.

R

EMO UNTING

Mount the switch.
Tighten the switch attachment screws.
Connect the connecting coupling to the front wiring.
Position and tie the wire bundle with a new plastic ring.
Connect the battery.
Check the operation of the signaling switch.
Mount the lower half casing of the steering wheel.

84 - 4

UNDER WHEEL CONTROL MODULE

84

CONTROLS - SIGNALLING

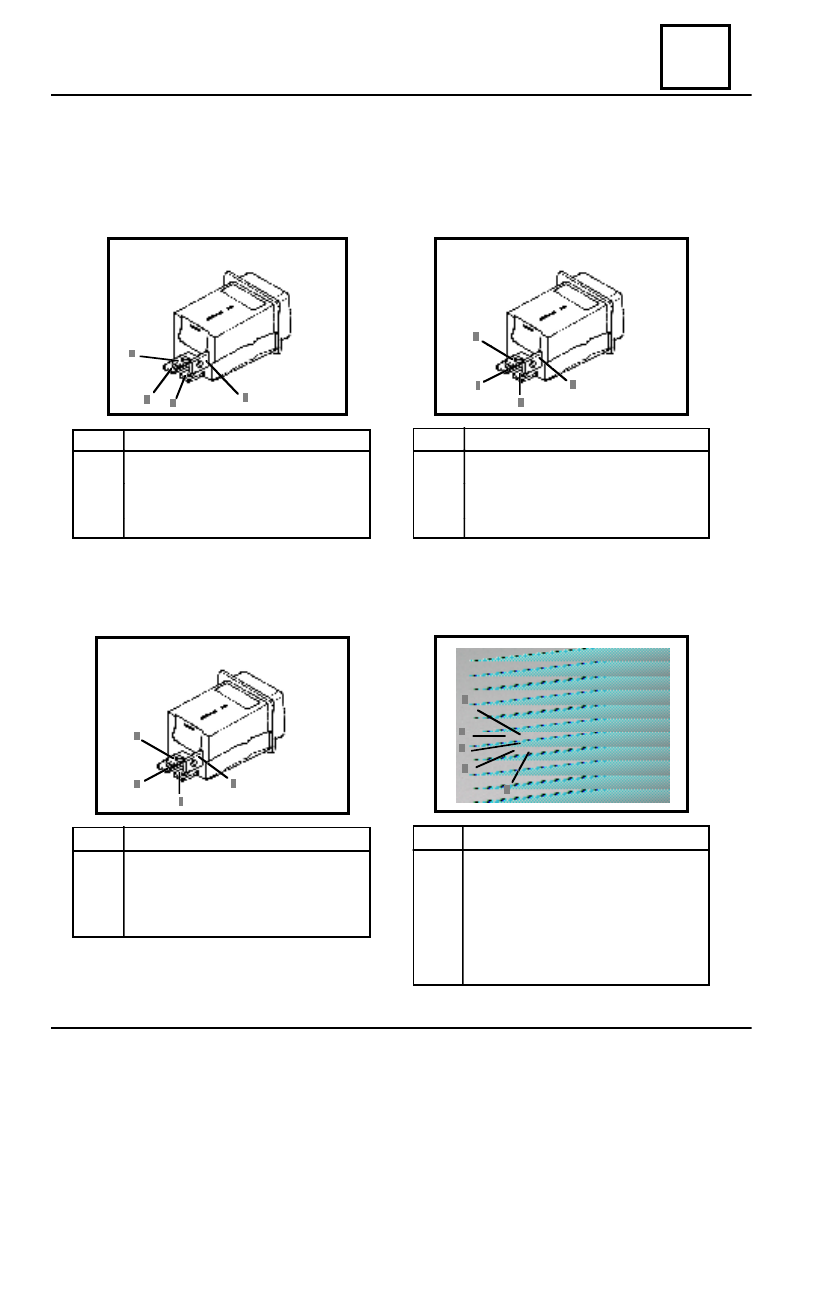

SWITCHES DASHBOARD

    Pos.                       Destination




1

Supply + accessories

     2

4x4 coupling command

     4

+

Position lights

     5

Mass

4X4 SWITCH

FOG LAMPS SWITCH

    Pos.                       Destination




  1

+

Position lights

     2

Fog lamps command relay

     4

+

Position lights

     5

Mass

FOG LIGHTS SWITCH

    Pos.                       Destination




  1

High - beams

/

Road lights

     2

Fog lamps command

     4

+

Position lights

     5

Mass

    Pos.                       Destination




  1

Windscreen wipers pump control

     2

Windscreen wipers timer command

     3

Mass

     4

Windscreen wiper small speed
command

     5

Supply + battery

TEMPORISATEUR ESSUIE-GLACES

PARE-BRISE

for vehicles made after 02.04.2003

84 - 5

CONTROLS - SIGNALLING

84

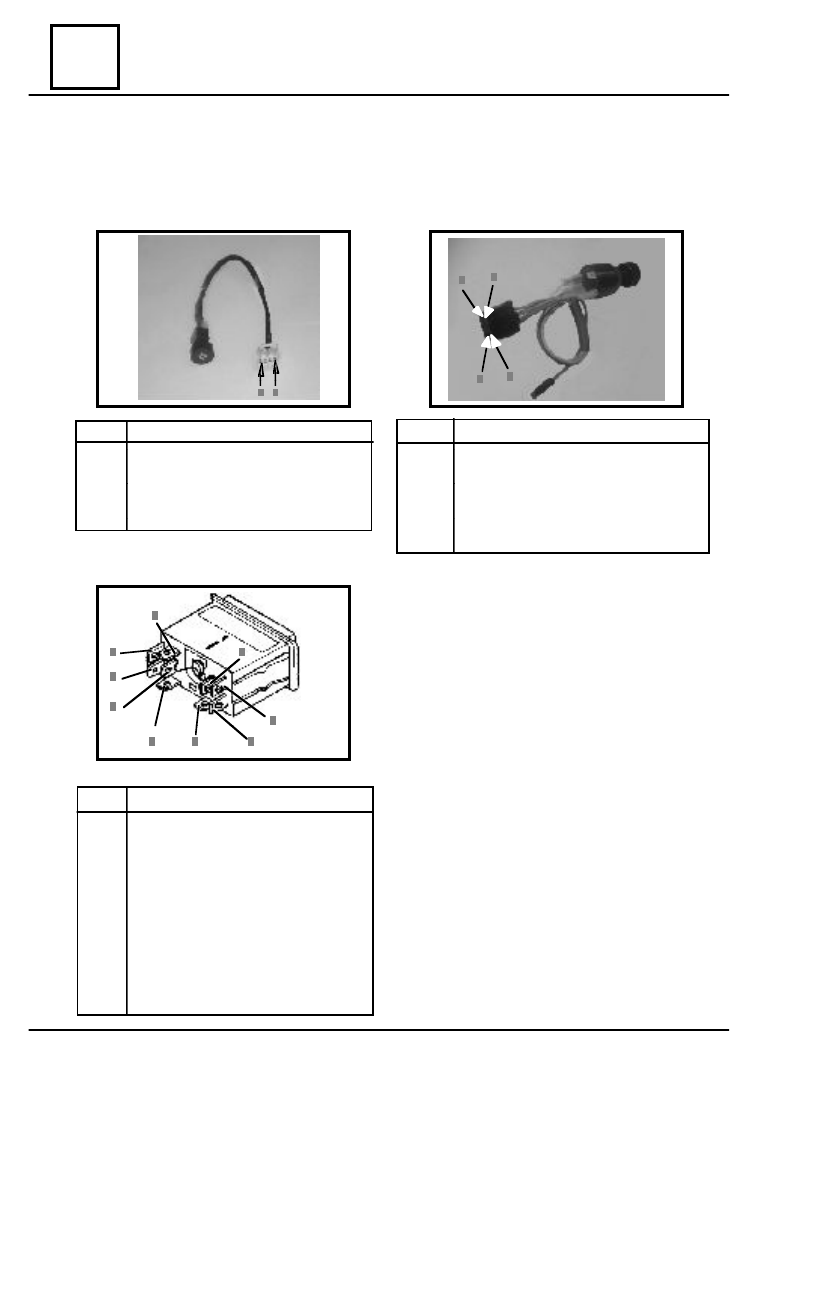

SWITCHES DASHBOARD

DAMAGE SWITCH

    Pos                       Destination

1

Command + signaling

2

Left signalisation

3

Right signalisation

4

Damage witness

5

+ Position lights

6

Mass

7

Supply + signalisation relay

8

Supply + after contact

9

Supply + permanent

    Pos.                       Destination




  1

Mass

     2

+ Position lights

     3

AC command

     4

Supply + accessories

    Pos.                       Destination

2

GMV climat control speed 3

3

GMV climat control speed 1

4

GMV climat control speed 4

5

GMV climat control speed 2

6

Supply + accessories

HEATING SWITCH

CA SWITCH

for vehicles made after 02.04.2003
