INSTRUMENT PANEL

83

83 - 12

FUEL LEVEL INDICATOR NOT OPERATING

Place at mass  the connection wire to the

probe.

The indicator does not work;

Replace the probe.

The indicator does not work.

Check the indicator supply and

mass.

Not correct. Repair the mass wiring or

probe supply.

Iff correct. Place at mass the

connection wire  to  the probe.

 Indicator does not work.
 Repair the wiring between the probe and indicator.

DIAGNOSTIC

83

INSTRUMENT PANEL

83 - 13

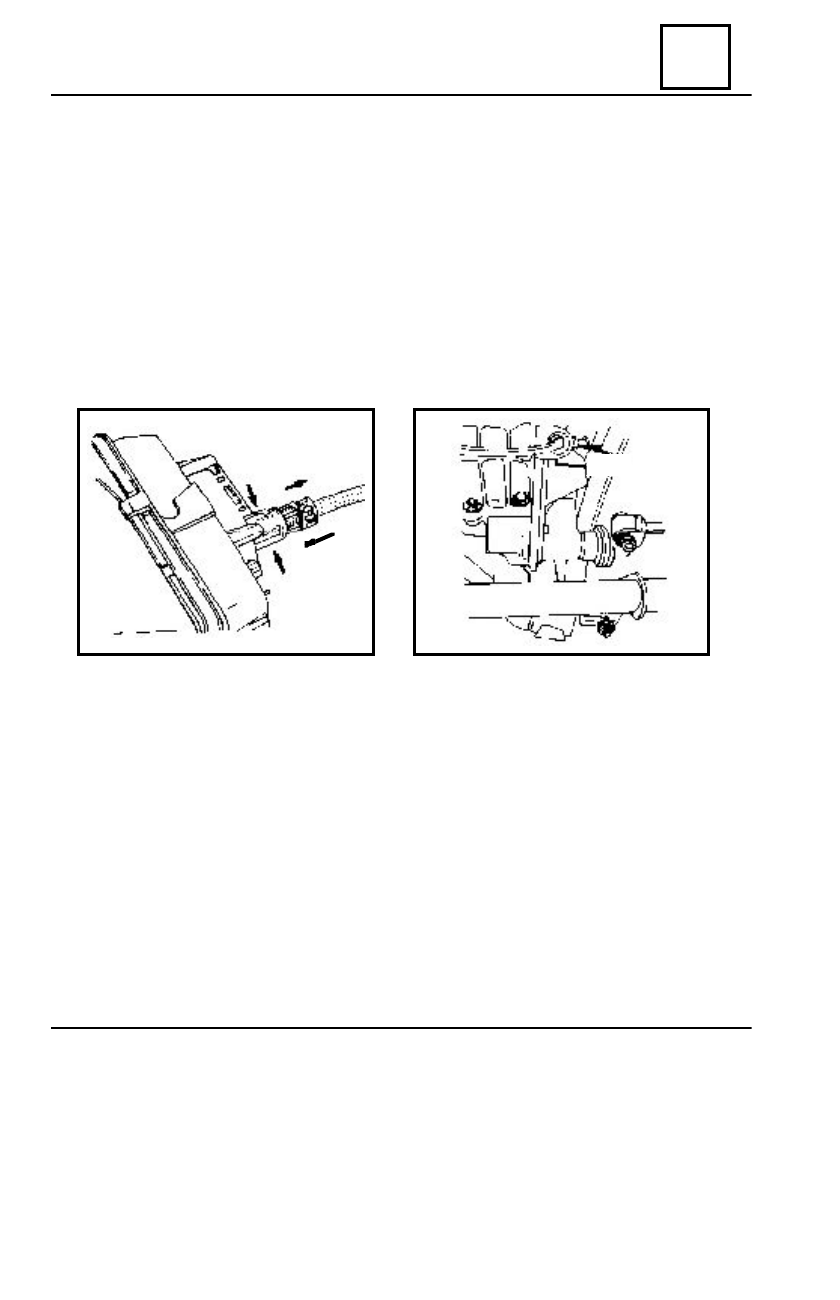

Dismounting of the speedometer cable does not imply the dismounting of the instrument panel

from the dashboard.

   DISMOUNTING

Push in the direction of  A and B arrows, then pull in the C direction.
Loosen the attachment  screw E at the gearbox and pull the cable.
Detach the cable from the attachment clips on the longitudinal girder.

REMOUNTING

Center the speedometer cable in the instrument panel socket, then push in the direction of D

arrow, until a “click” is heard, confirming the coupling.

Center the cable in the speedometer endless screw, tighten the screw and lock it with the

locking nut.

Position it in the attachment clips of the longitudinal girder, observing the curve. (R min = 150 mm).

FLEXIBLE CABLE

A

B

C

D

E

INSTRUMENT PANEL

83

83 - 14

NOTE:

The oil pressure switch may not be repaired. It is placed on the left side of the engine

block.

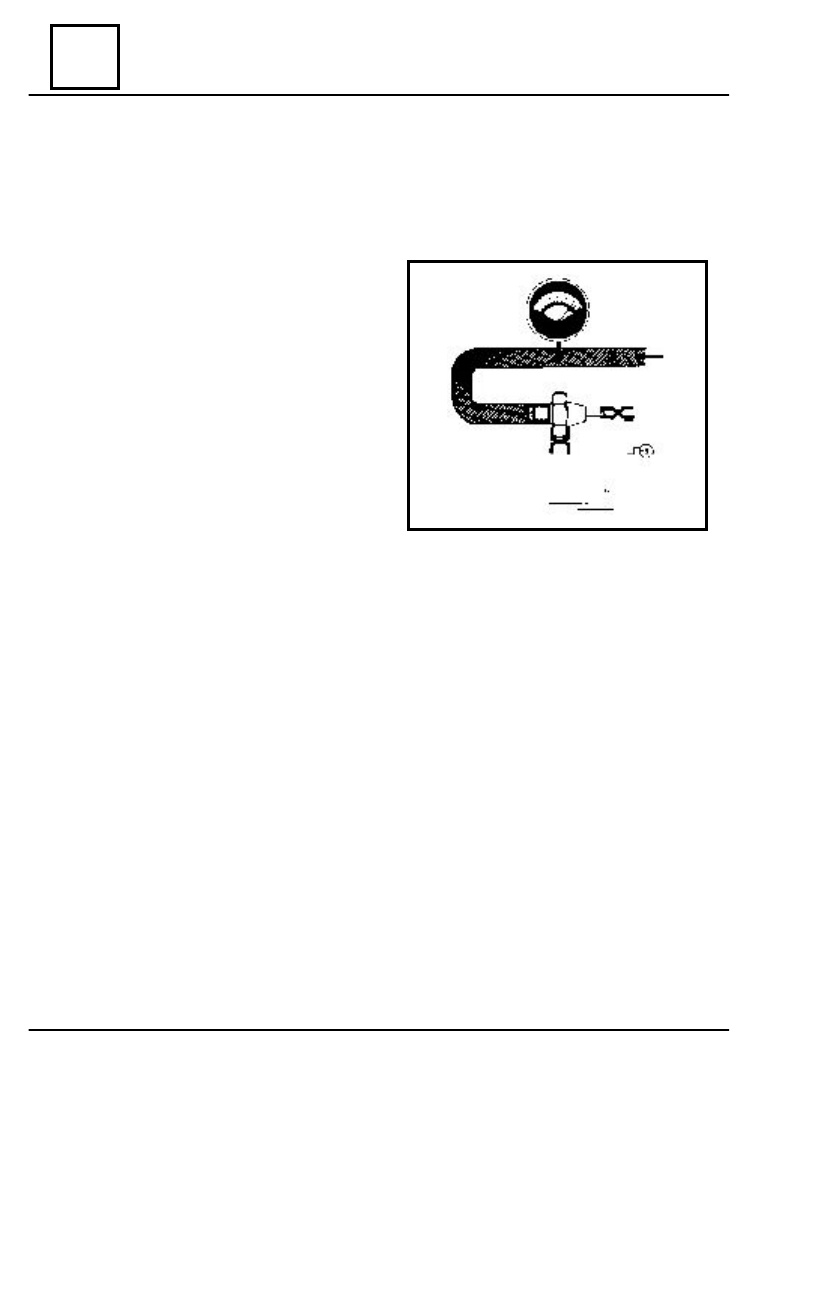

To check the oil pressure switch, the

following items are required:

- a compressed air source;
- a 0 – 1 bars manometer;
- a control lamp.

  Make an assembly according to the
diagram. When the air is off, the control lamp
should be lighted. If the lamp does not light,
replace the oil pressure  switch.
  When the air is open and  the pressure is
over 0,35 +/- 0,08 bars, the control lamp
should go off.

If the lamp does not go off at all, or does

not go off at the required pressure, replace
the oil pressure switch.

OIL PRESSURE SWITCH CHECKING

83

INSTRUMENT PANEL

83 - 15

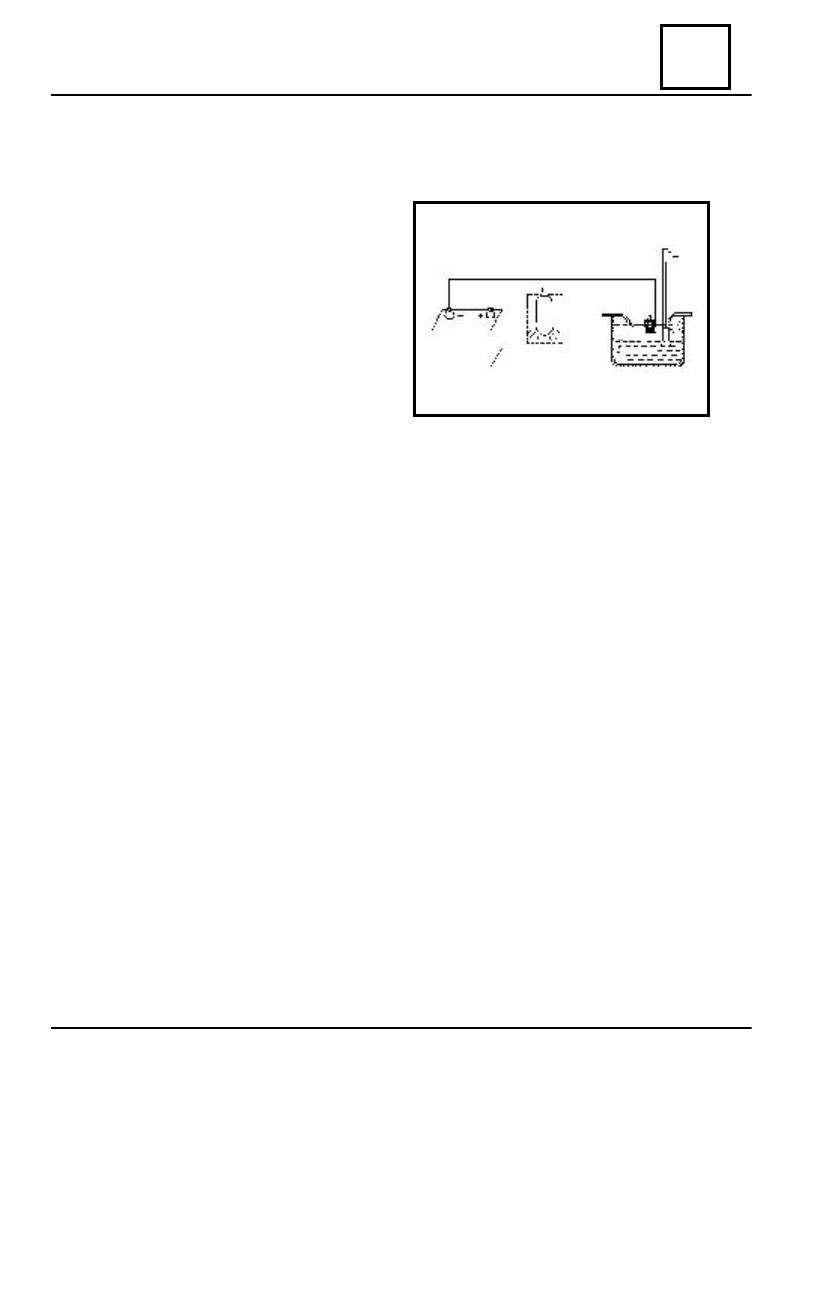

 THERMOCOUPLE CHECKING

NOTE: The thermocouple  may not be repaired. It is located on closing plate of the

cylinder head.

In order to check the thermocouple, there

are necessary : a vessel with cooling liquid(
antifreeze +  distilled water ), a
0 – 200 ° C

 thermometer, a control lamp, a

heat source.

Make an assembly according to the

diagram.

When the temperature of the fluid is low,

the control lamp should be off. If the lamp is
on, replace the thermocouple.

Warm up the fluid in the vessel. When the fluid temperature reaches the temperature required

for the thermocouple contact  ( 180 ° C) the control lamp should be lighted.If the lamp does not
light up, replace the thermocouple.

The coupling temperature is marked on the thermocouple body.
