Dacia Pick-Up 1304/1305/1307. Manual - part 127

76

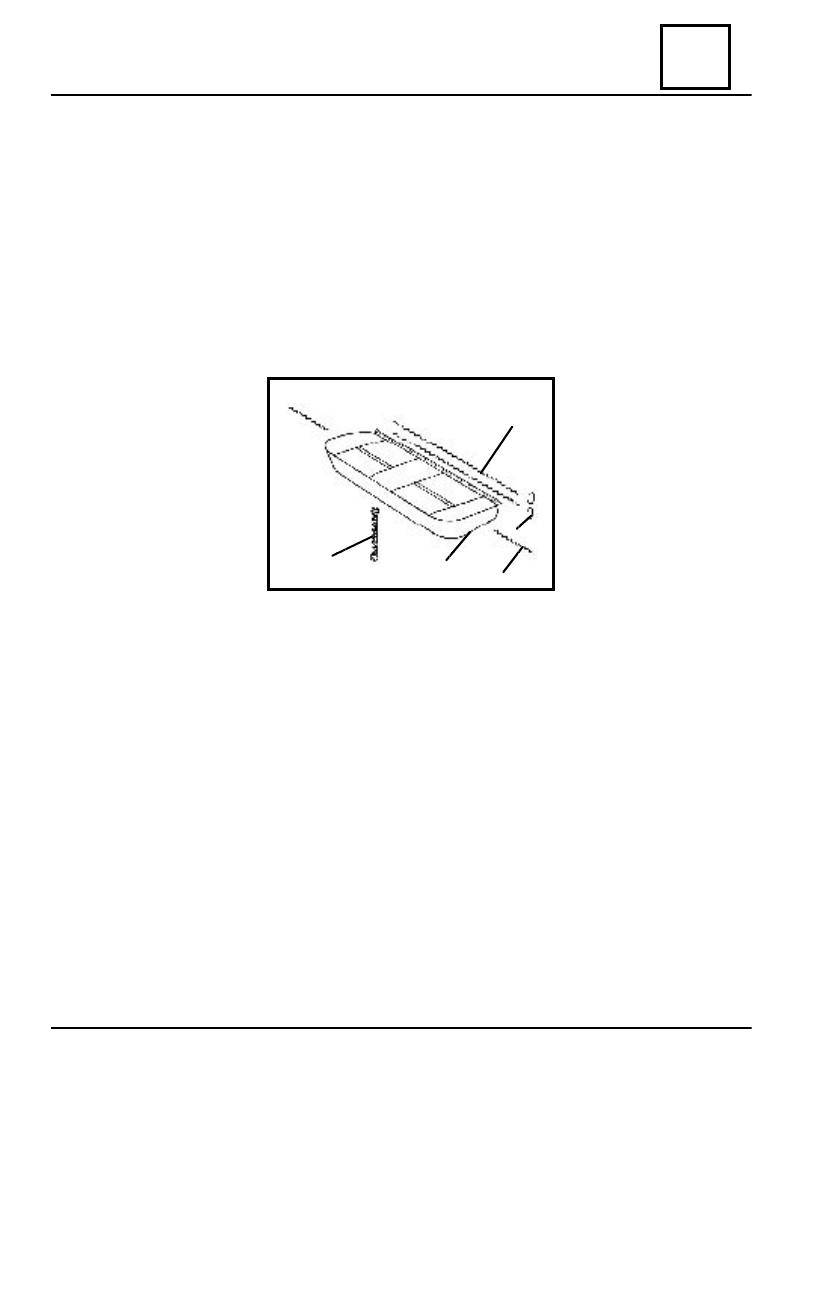

REAR SEAT FRAMES AND RUNNERS

D

ISMO UNTING

The rear bench seat (4) is dismounted by rocking it in the supports



(3).

Remove the upholstery from the seat clothing.

R

EMOUNTING

Perform the dismounting operations in the reverse order .

76 - 2

3

4

2

1

REAR BENCH SEAT ARMATURE

77

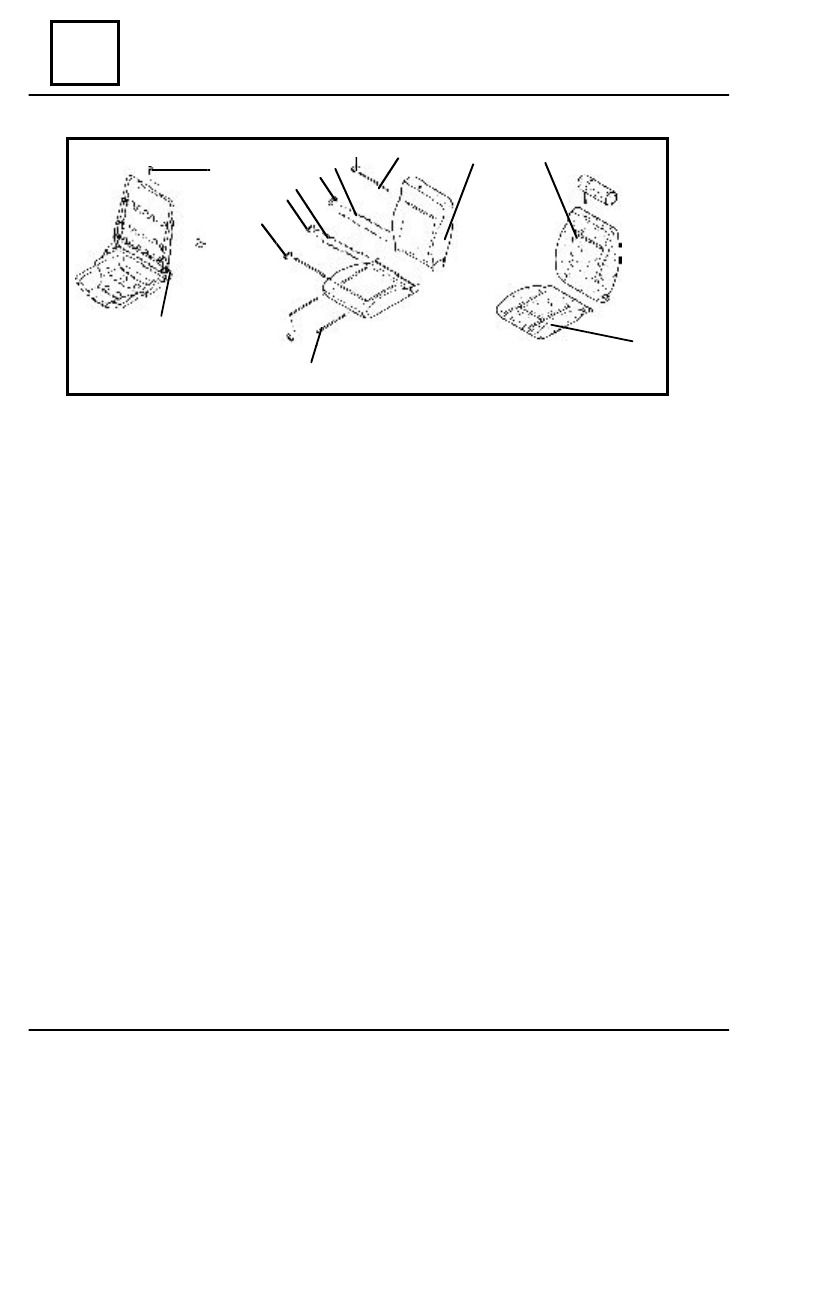

FRONT SEAT TRIM

D

ISMO UNTING

Take out the rods (3) from the seat upholstery (7) attachment clips (4) on the clothing

(14).

Take out the rods (6) from the attachment clips (5) with the front seat armature.

77 - 1

R

EMOUNTING

Perform the dismounting operations in  the reverse order.

13

14

2

1

4

5

6

7

8 9

10

11

12

3

 SEATS UPHOLSTERY

77

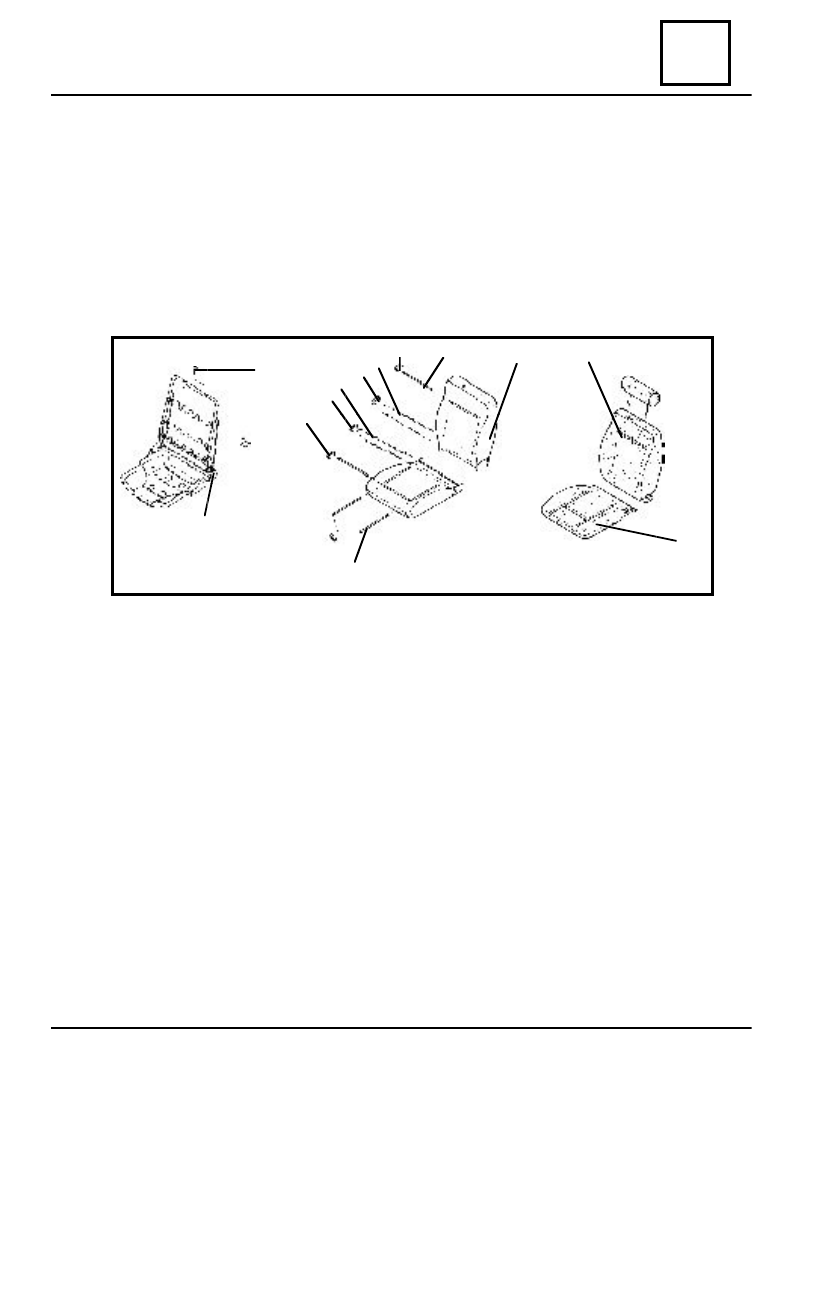

FRONT SEAT TRIM

77 - 2

D

ISMO UNTING

Dismount the back rest control button (2) releasing the screw, the washer, the plate and

the counter plate.

Remove the sleeves for the headrest from the pipes (1) welded on the front seat armature.
Take out the rods (9) from the clips (8).
Take out at the second criss cross arch level the rod (11) from the attachment clips

(10) of the back rest upholstery (12) on the clothing (13) and remove the back rest upholstery.

R

EMOUNTING

Perform the dismounting operations in the reverse order.

13

14

2

1

4

5

6 7

8 9

10

11

12

3

BACK REST UPHOLSTERY

78

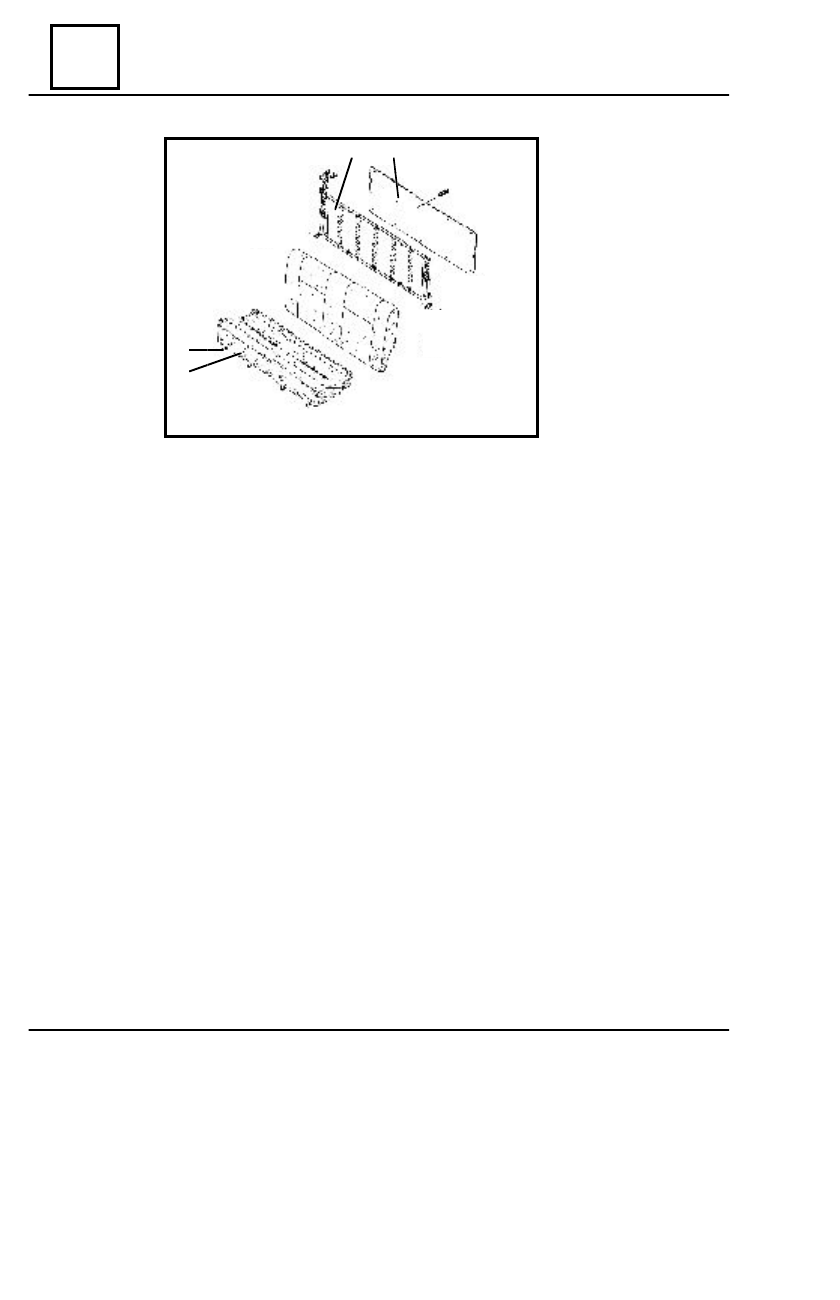

REAR SEAT TRIM

D

ISMO UNTING

Take out the rods (1) from the attachment clips (2) of the seat upholstery (4) with the

seat clothing.

Dismount the rods  (3) from the chains (5) , consequently the attachment clips from the

bench seat armature rod.

Remove the upholstery from the seat clothing.

78 - 1

R

EMOUNTING

Perform the dismounting operations in the reverse order.

4

1

5

3

2

SEATS UPHOLSTERY
