Dacia Pick-Up 1304/1305/1307. Manual - part 125

INTERNAL BODY TRIM

71

71 - 6

REPLACEMENT OF THE CEILING COVERING

DISMOUNTING

Dismount :

- the front and rear doors weather-strips;
- the front windshield and the cabin separating glass;
- the side lamps, sun visors and turn handles ;
- the ceiling covering from the front doors upper frames, rear doors upper frames

( Dacia Double Cab, windshield fixing frame and the cabin rear glass in the contact areas
with the ceiling covering.

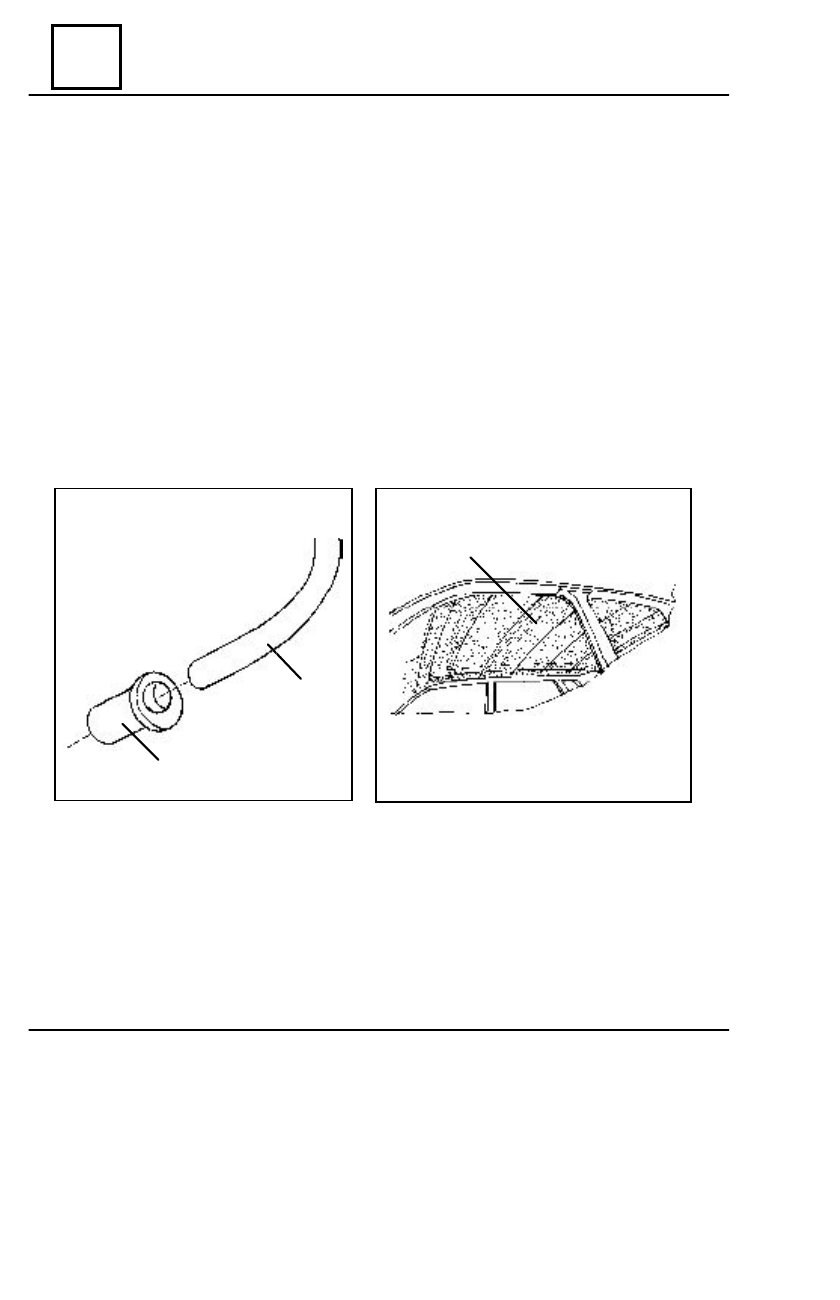

Remove the rods  (1) assembled with the plastic bushings (2) ( arch ends ) from the side

taps.

Release the covering (3) by unstuck it and remove the rods from the corresponding

sleeves.

REMOUNTING

Perform the dismounting operations in the reverse order, by consecutive mounting of

the rods, positioning and stacking of the ceiling covering edges on the windshield fixing
frame, on the front and rear ( Dacia Double Cab ) upper frames and creating the access for
the side lamps.

2

1

3

CEILING COVERING

71

INTERNAL BODY TRIM

71 - 7

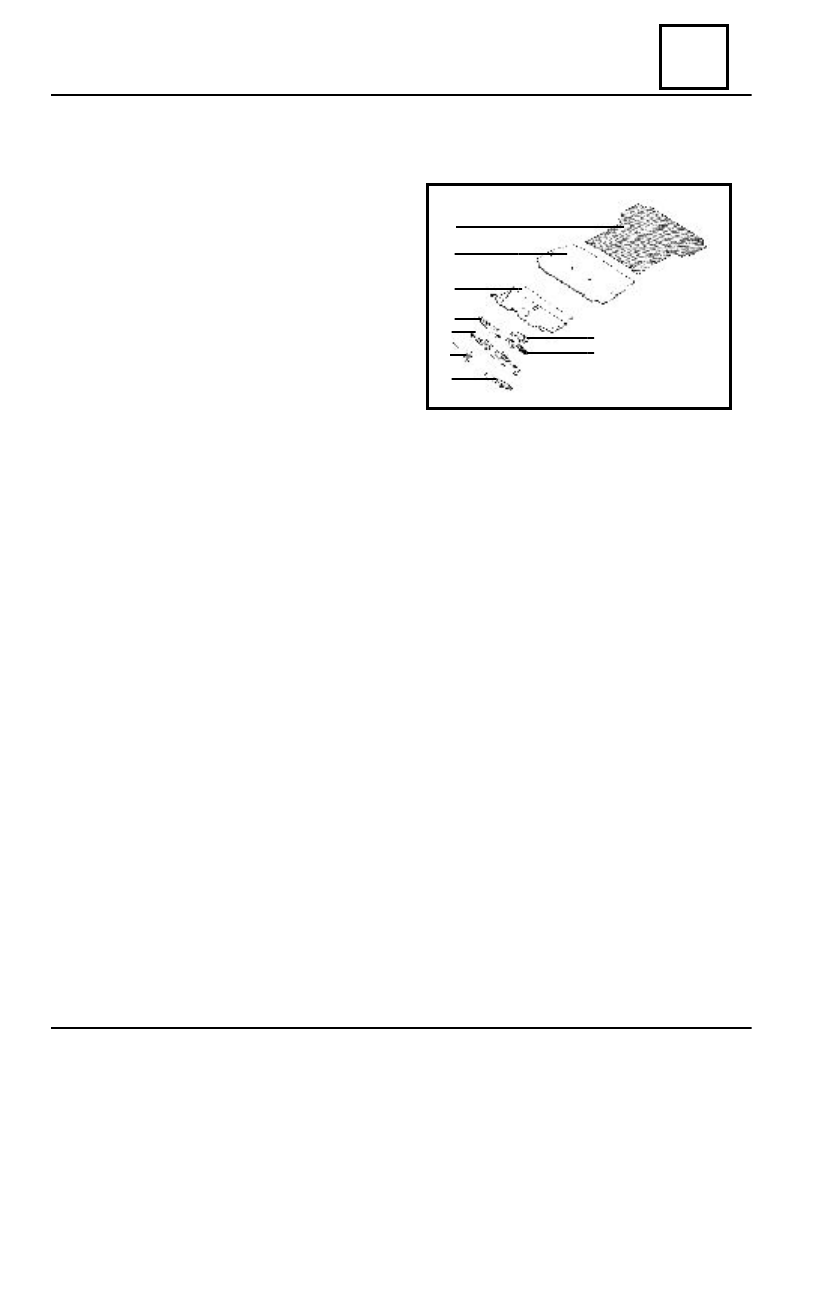

FLOOR NOISE ABSORBENT MATS

D

ISMO UNTING

Dismount by hand the floor mat  (1 ) the

under bench mat  (2) and the molded mat
(3).

Remove (unstuck): front cross member

noise absorbents (4),(8),the cowl panel noise
absorbent  (5), the front wheel  noise
absorbents (6) ,(7) and the gearbox casing
noise absorbent (9).

R

EMO UNTING

Perform the dismounting  operations

in the reverse order, the stacking  of the
elements no. 3,4,5,6,7,8,9 being done with
adhesive.

1

2

3

4
5

6

7

8

9

72

SIDE OPENING ELEMENTS TRIM

72  - 1

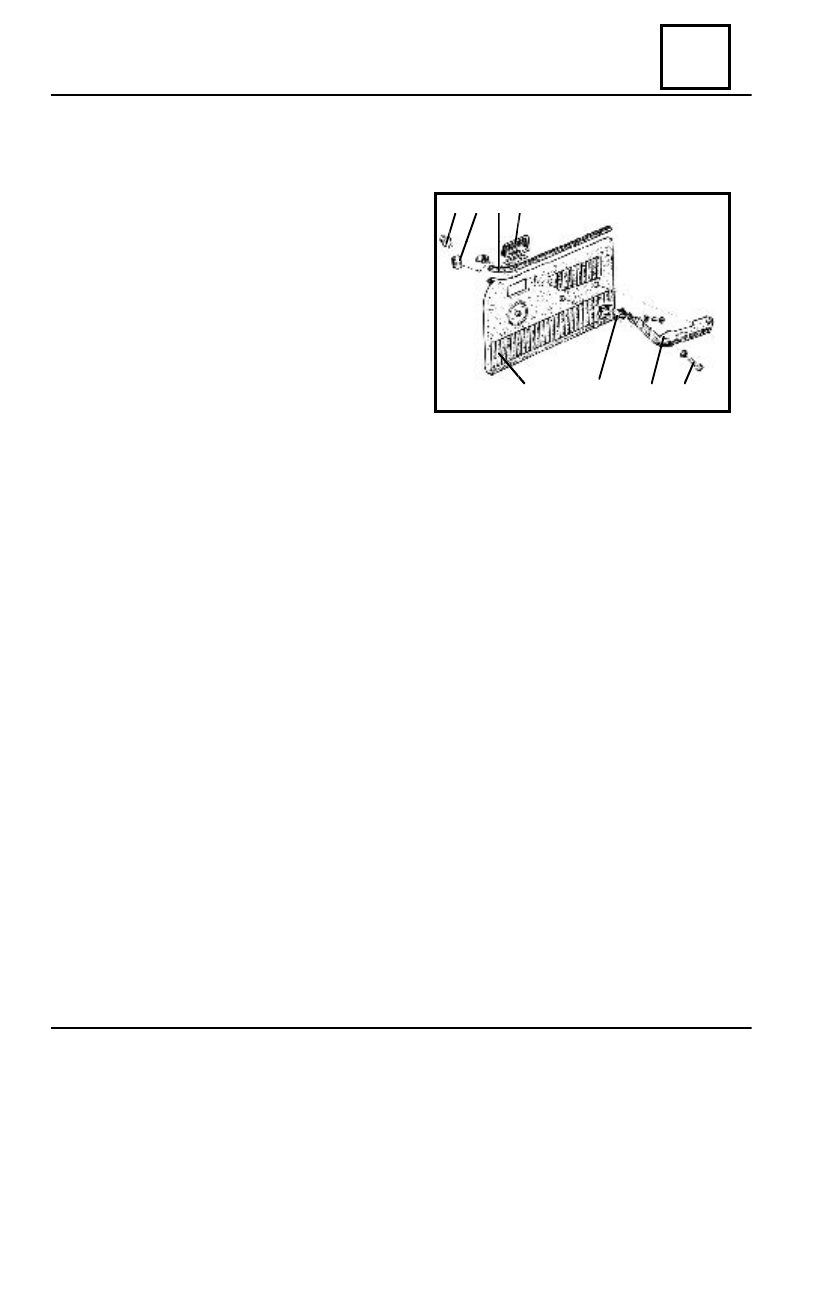

Dismount:

- the arm rest connection (3);
- the arm rest (2) from the screws (1);
- the window regulator handle;
- the distance control cover (8) by

dismounting the attachment screw;

- the inner wiper (5) from the clips (6);
- the store box (9).

Detach the front door panel from its clips.
Pull toward exterior to enable the panel

releasing from the attachment done by clips
(7).

D

ISMO UNTING

R

EMO UNTING

Perform the dismounting operations in the reverse order.

7 6

5 8

4

3

2

1

FRONT DOOR PANEL

SIDE OPENING ELEMENTS TRIM

72

72  - 2

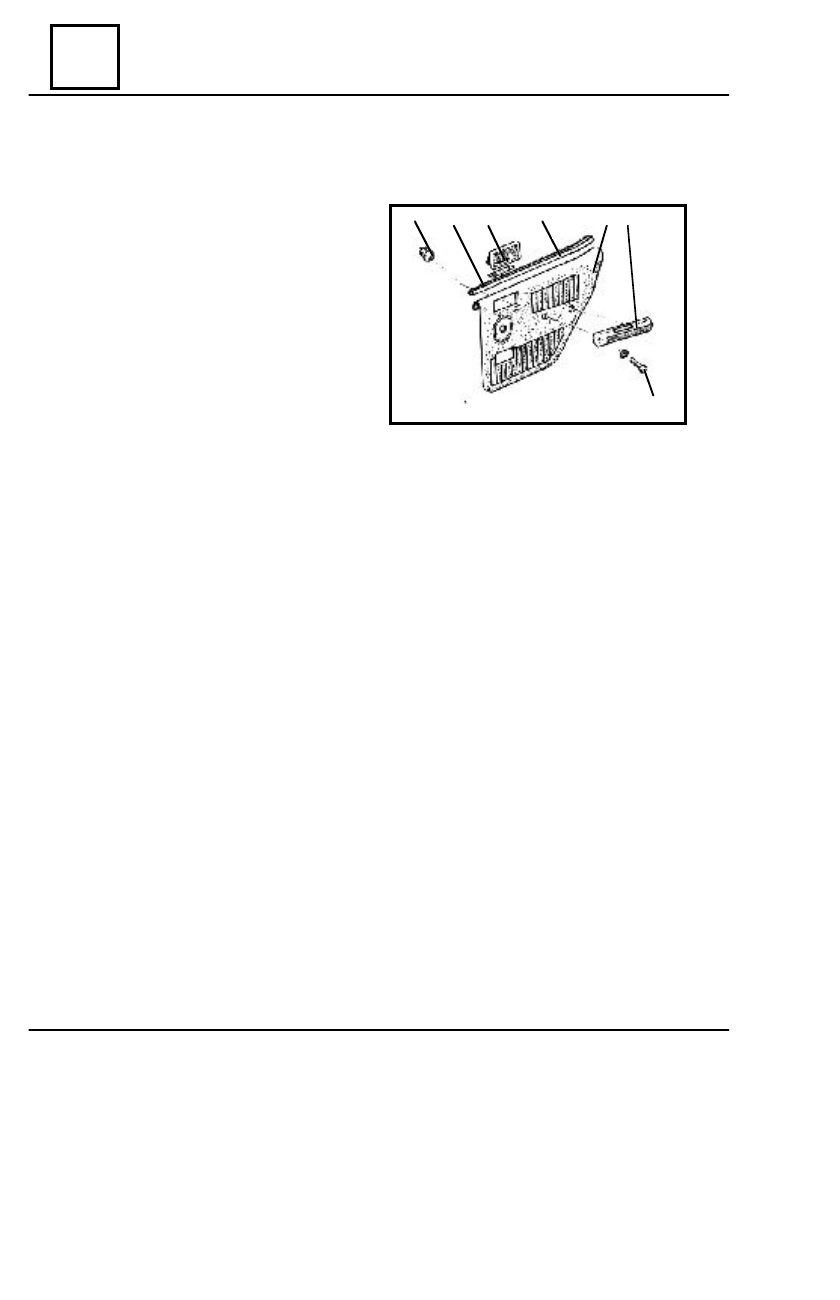

DACIA 1307 REAR DOOR PANEL

 D

ISMO UNTING

Dismount:

- the arm rest (2) from the screws (1);
- the window regulator handle;
- the distance control cover (5) by

dismounting the attachment screw;

- the inner wiper (4) from the clips (6);
- the store box (9).

Detach the rear door panel from its clips.
Pull toward exterior to enable the panel re-

leasing from  the  attachment done by clips (7).

R

EMOUNTING

Perform the dismounting operations in  the reverse order.

1

7

6

5

4

3 2
