LOWER INTERNAL ACCESSORIES

57

57 - 2

- fog headlamps switch,
- windscreen wiper timer,
- radio-cassettes player.

Disconnect the following wires:

- lighter lighting,
- climate control lighting,
- ashtray lighting,
- documents compartment lighting.

    Dismount the followings: diagnostic socket and the three hoses from the climate con-
trol unit, observing the corresponding positions.

   Extract the dashboard from cockpit.

Dismount the followings:

- the instrument panel,
- the hazard switch (7),
- the climate control unit
- the documents compartment (6) ( see page 57 –3 ),
- the radio-cassettes player and its support (4),
- the coupling bar (13) attached on the dashboard by means of the screw (14),
- the electronic clock,
- the lighter (2),
- the ashtray (3),
- the windscreen wiper timer (15),
- the fog headlamps switch (16),
- the 4 X 4 switch (1),
- the fog lamps switch,
- the blower switch.

REMOUNTING

Perform the dismounting operations in the reverse order.
Check the operation of the board instrument and switches.

DASHBOARD

57

LOWER INTERNAL ACCESSORIES

57 - 3

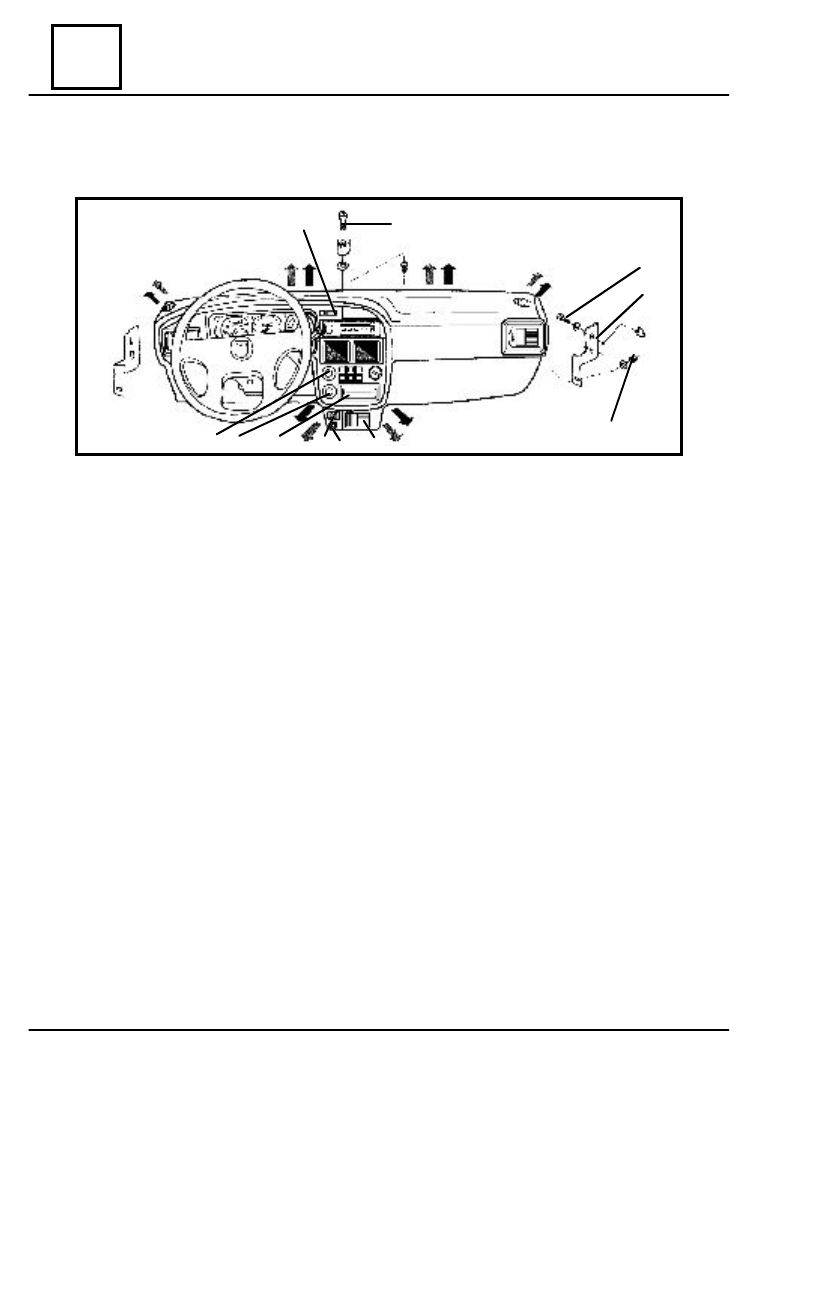

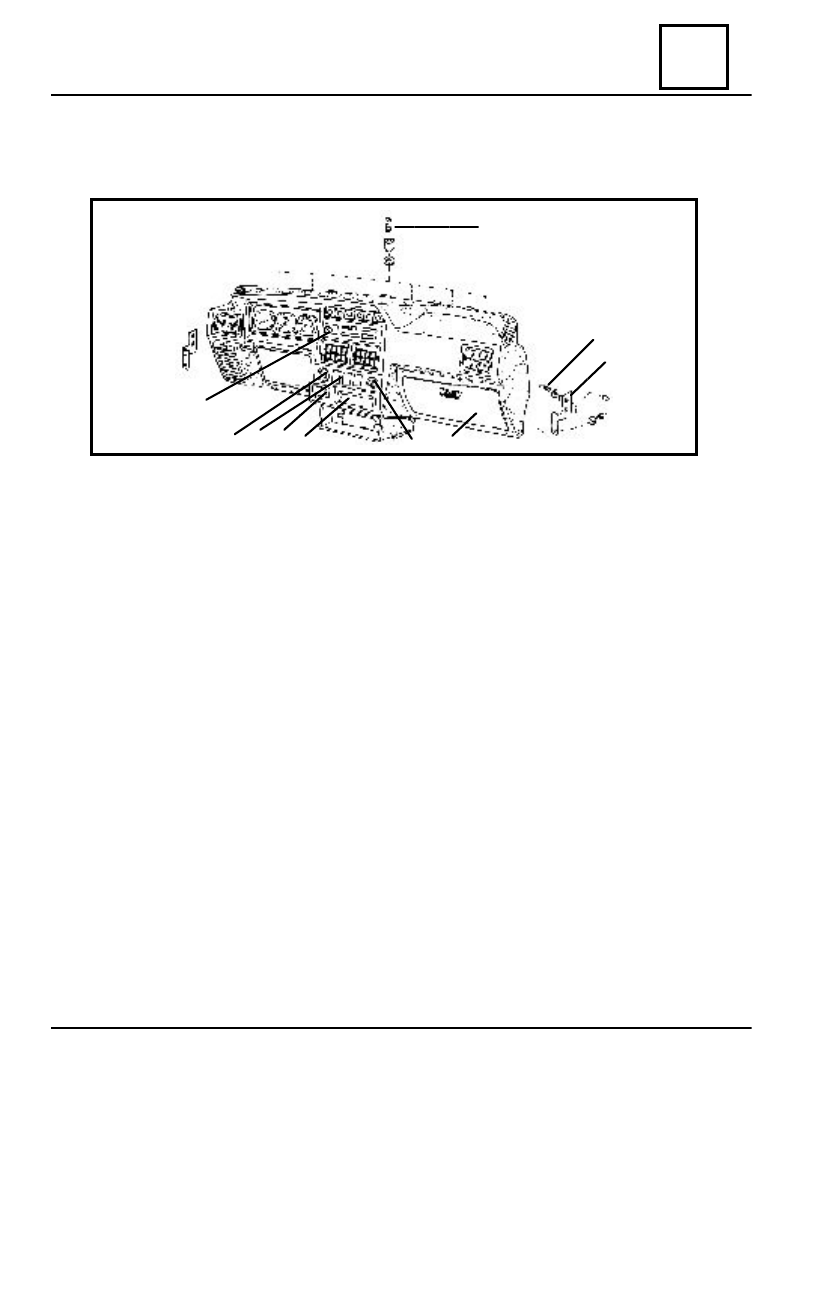

DASHBOARD

In order the dismount the dashboard, perform the following operation :
 Dismount:

- the steering wheel and the upper-lower steering wheel half cases;
- the ash try (5);
- wiper timer by dismounting the control knob (2), disconnecting the wiper timer

wires and the attachment nuts on dashboard;

- valve control cable on the control lever;
- upper flaps control cable from the climate maintenance block to the control lever;
- glove box  (7) and disconnecting of the two wires of instrument board supply on

glove box lighting lamp;

- lower flaps control cable from the climate maintenance block;
- speedometer cable from the instrument board;
- the attachment screws (11) dashboard on the windscreen lower cross;
- the attached nuts (8) dash board on the lateral support (9);
- the attachment screws (10) dash board on the left/right pillar;
- three front wire connection boxes from the dashboard with RPM;

Disconnect the lighting wire of the cigarette lighter (4).
Disconnect and dismount the hazard warning switch (3).
Disconnect and dismounting G.M.V. climate maintaining switch (1).
Dismount headlamps adjustment switch (6).
Remove the dashboard and take out from vehicle interior.

R

EMO UNTING

Perform the dismounting operations in the reverse order.
Check the operation of the board instruments and of the contact switches.

D

ISMO UNTING

11

10

 9

6

7

5

4

3

2

1

DASHBOARD TYPE DACIA 1325

LOWER INTERNAL ACCESSORIES

57

57 - 4

DASHBOARD

In order the dismount the dashboard, perform the following operation :
Dismount :

- the steering wheel and the upper-lower steering wheel half cases;
- the ash try (5);
- wiper timer by dismounting the control knob (2), disconnecting the wiper timer

wires and the attachment nuts on dashboard;

- valve control cable on the control lever;
- upper flaps control cable from the climate maintenance block to the control lever;
- glove box (7) and disconnecting of the two wires of instrument board supply on

glove box lighting lamp;

- lower flaps control cable from the climate maintenance block;
- speedometer cable from the instrument board;
- the attachment screws (11) dashboard on the windscreen lower cross;
- the attached nuts (8) dashboard on the lateral support (9);
- the attachment screws (10) dashboard on the left/right pillar;
- three front wire connection boxes from the dashboard with RPM;

Disconnect the lighting wire of the cigarette lighter (4);
Disconnect and dismount the hazard warning switch (3);
Dismount:

-

 headlamps adjustment switch (6);

-

 the selector speed knob (12) and the attachment nut screen AC controls;

-

 blower (13) by detaching the clips;

- AC knob control (1).

Remove the dashboard and take out from the vehicle interior.

R

EMO UNTING

Perform the dismounting operations in the reverse order.
Check the operation of the board instruments and of the contact switches.

D

ISMO UNTING

2

4

5

12 1

13

11

3

10

9

8

DASHBOARD TYPE DACIA 1325

57

LOWER INTERNAL ACCESSORIES

57 - 5

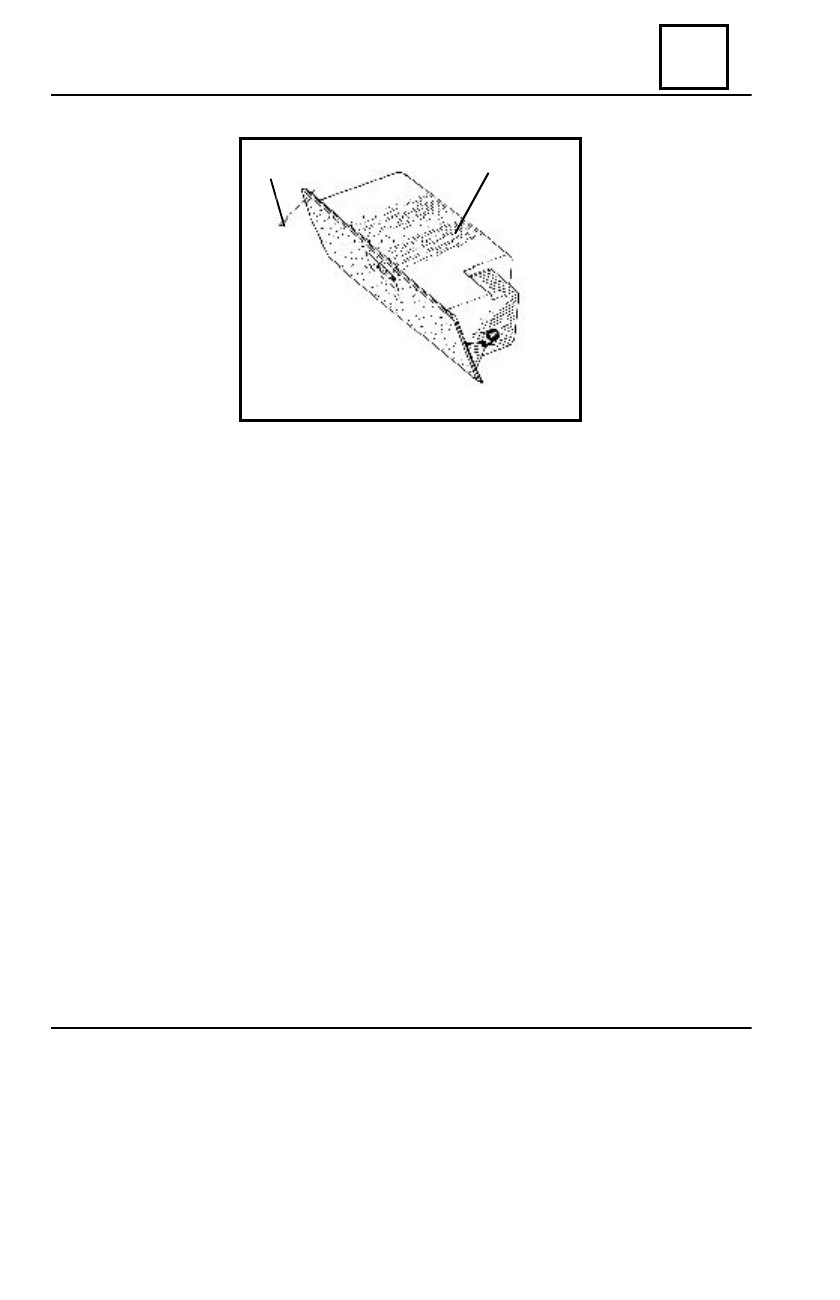

DOCUMENTS COMPARTMENT

DISMOUNTING

Disconnect the battery.
Dismount the diagnostic socket.
Dismount the documents compartment attachment screws (2) on the dashboard.
Disconnect the documents compartment lighting wires.
Extract the documents compartment from the dashboard.

REMOUNTING

Perform the dismounting operations in the reverse order.

1

2
