REAR UPPER STRUCTURE

44

D

ISMO UNTING

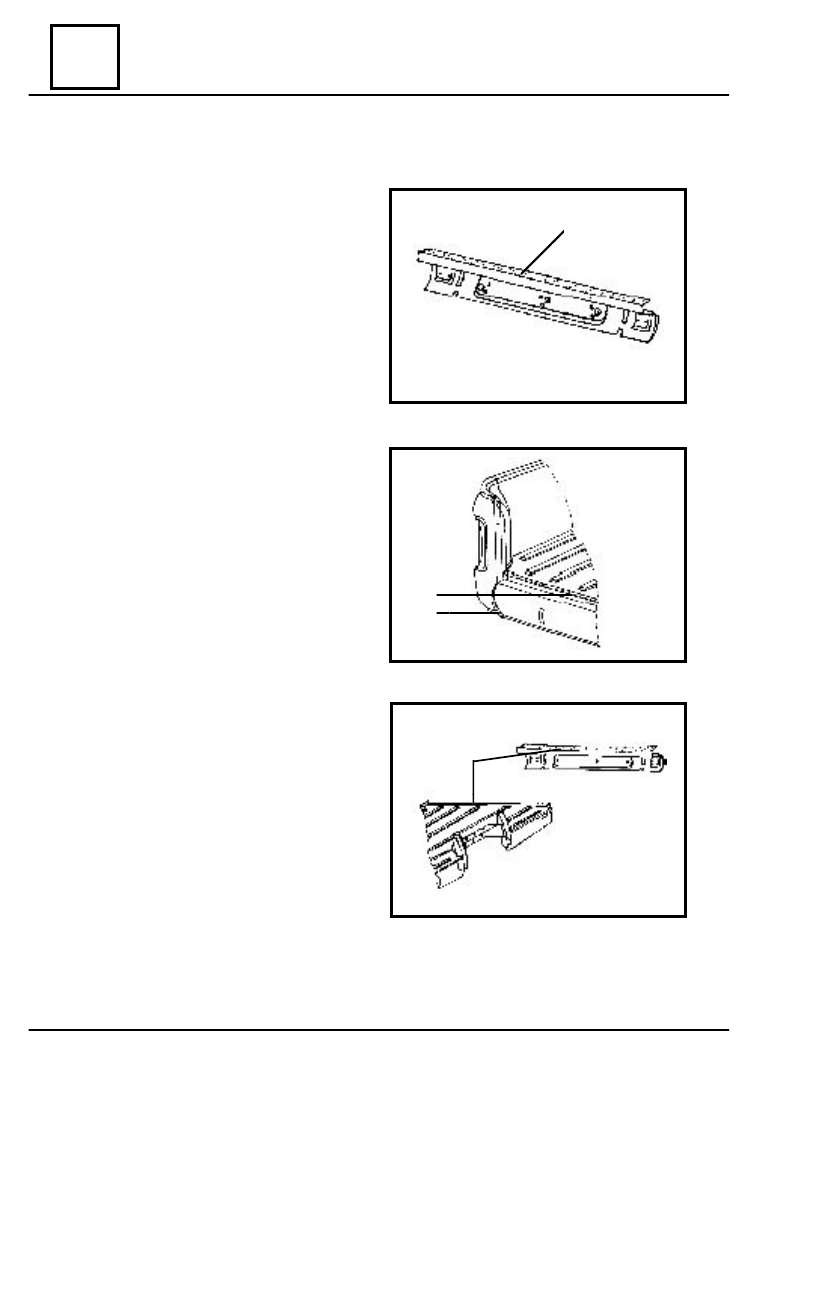

Dismount the elements  which are in contact

with the rear plate.

Detach the welding points of the rear

plate (1) which are in connection with:

- platform floor rear edge in area (2);
- corner plate edge in the area (3).

Straighten the areas resulted from

dismounting.

Grind the areas  resulted from dismounting.

R

EMO UNTNG

Position and center the new element.
Check the correct positioning of the rear

plate.

Apply a secured stripping in the joint area

(4) of the rear plate with the rear extreme crossbar.

Weld the rear plate (1) following the

outliners (2) and (3).

Protect the welding with a corrosion

preventive product.

REAR PLATE

44  - 4

1

2

3

4

45

TOP OF BODY

  45 - 1

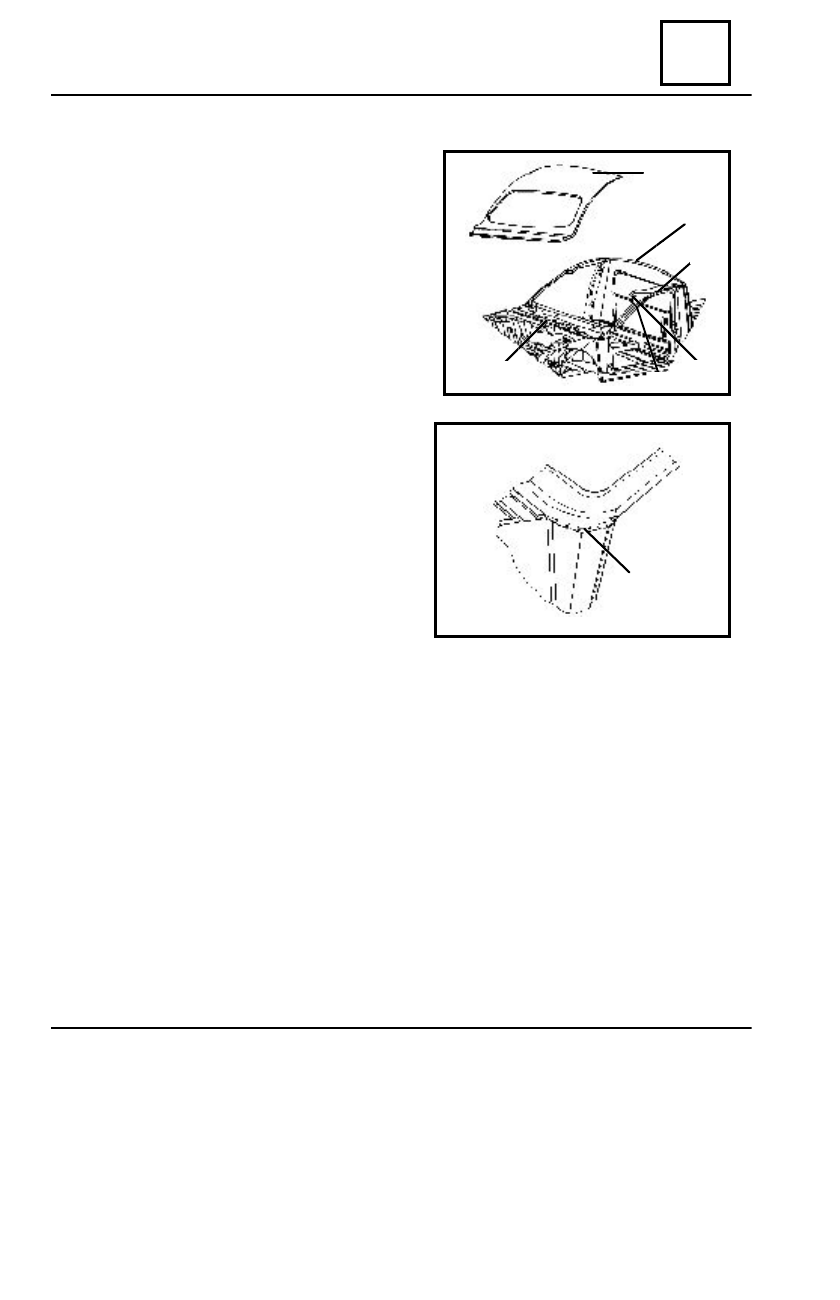

ROOF

D

ISMO UNTING

Dismount the elements which are in contact

with the roof ( doors, front wings, windscreen,
cabin glass, roof sealing of the ceiling and win-
dows gaskets).

Detach the welding points of roof (1) which

are in connection with :

- windscreen lower cross-bar in (2) area;
- front pillar in (3) area;
- front safety belt (front side ) in the (4)

area;

- windscreen pillar lining in the (5) area;
- front safety belt (rear side ) in the (6)

area.

Upper border of the separating wall in the

(7) area.

R

EMO UNTING

Position and center the new element.
Check the correct positioning of the roof.
Weld the roof (1) following the  assembling

outliners 2,3,4,5,6, 7.

Mount in the reverse order the elements,

which are in connection with the roof.

3

1

7

6

5

4

2

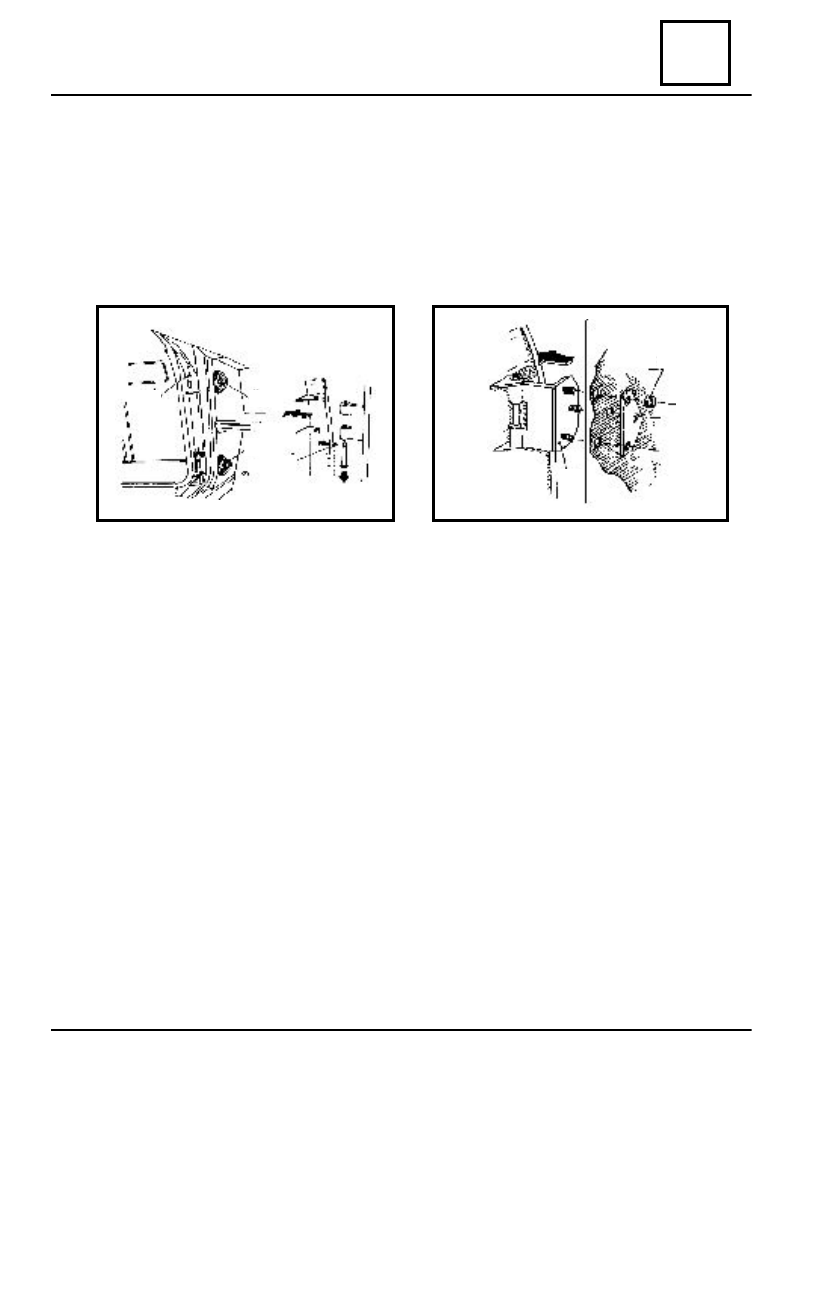

FRONT DOOR

D

ISMO UNTING

 Front door dismounting may be performed in two different ways:

a) by removing the clips (1) and pushing out the hinge pins.
b) by removing the attachment screws (2) on the front pillar.

 47 - 1

R

EMO UNTING

Perform the dismounting operations in the reverse order.

ADJUSTMENT

a) Horizontally, adjustment bush C are to be used.
b) Vertically, the front pillar holes are to be used.

1

2

2

1

2

C

 LATERAL OPENING

47

SIDE OPENING ELEMENTS

47

D

ISMO UNTING

Dismount the front door and the elements which are in contact with this.

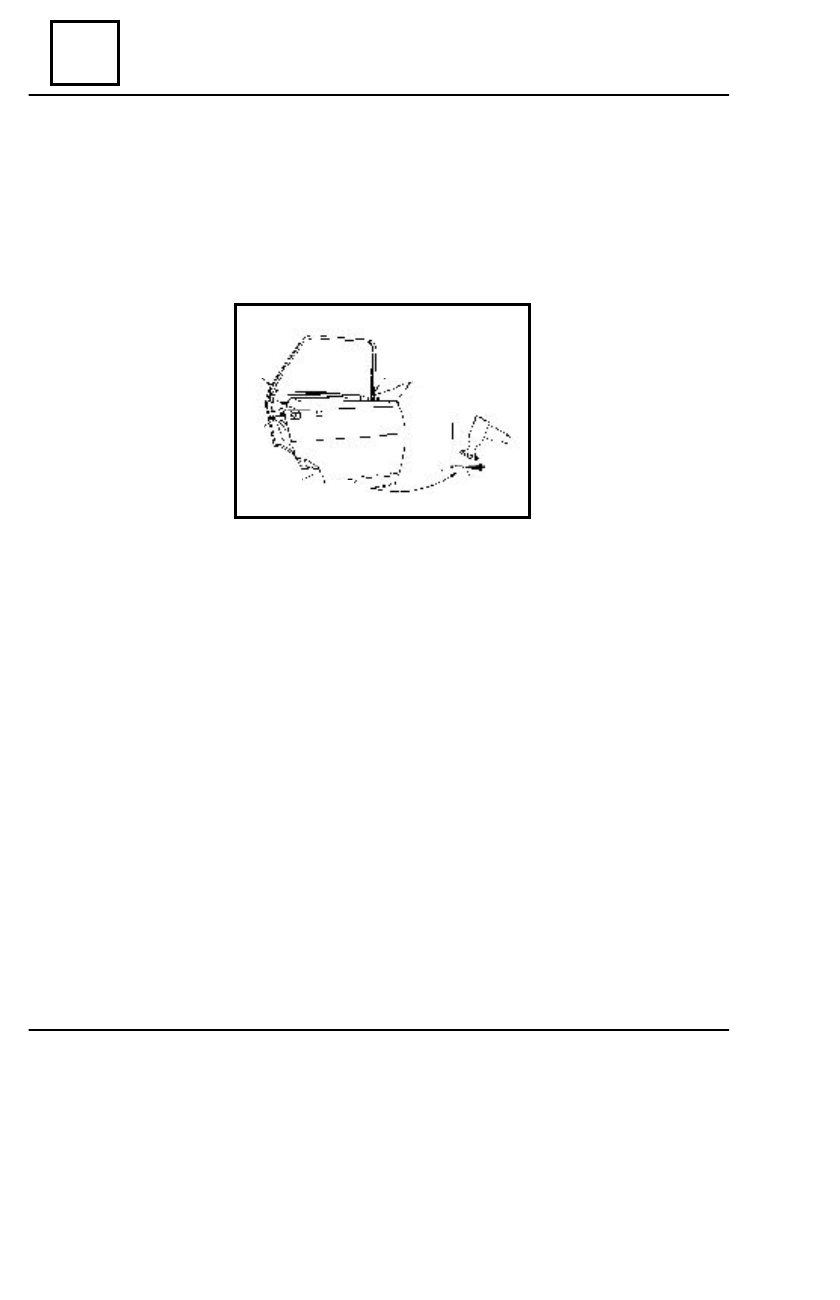

Cut the outside panel of the door following the outliner (1).
Unscrew the screws (2) from the joint of outside panel-glass frame.
Adjust, if necessary, the extensor (3).

FRONT DOOR OUTSIDE PANEL

R

EMO UNTING

Apply a strip of zinc on the caisson.
Apply a sealant material layer in the area (4).
Position the new outside plate and weld in the (2) area.
Fit the outside panel on the door caisson by folding in the area (5).
Remount the elements which are in connection with the front door.

 47 - 2

2

5

4

1

3
