Dacia Pick-Up 1304/1305/1307. Manual - part 106

UPPER FRONT STRUCTURE

42

  42 - 6

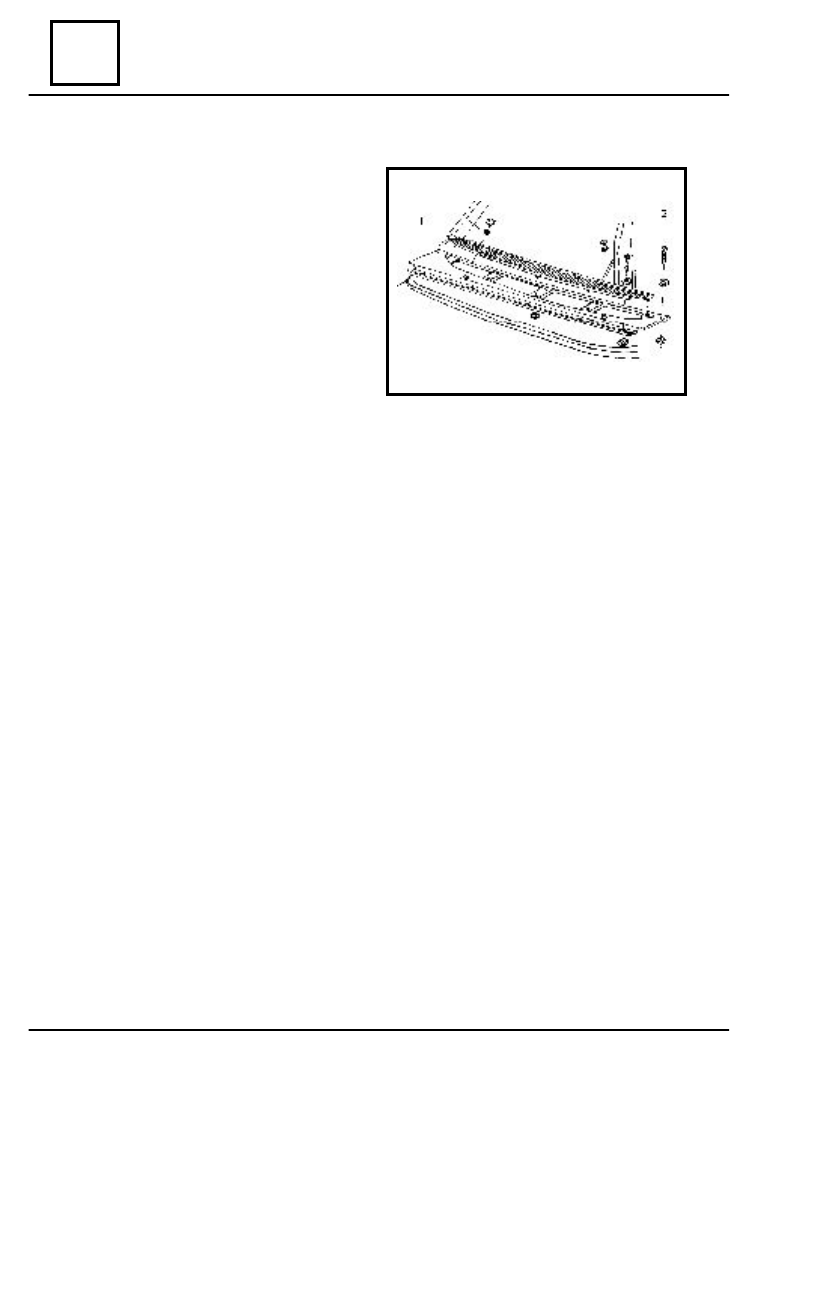

AERATION GRILL

D

ISMO UNTING

Dismount the two nozzles (1) of the wind-

screen washer.

Dismount the attachment screws (2) of the

aeration grill.

Take out the clips (3)  from the front grill

grippers taking care to prevent their distortion
or damaging.

R

EMO UNTING

The  mounting shall be done by performing

the dismounting operations in reverse order.

D

ISMO UNTING

 Dismount the elements which are in

contact with the front pillar lining.

Detach the welding points of  the front

pillar lining (1)  which are in connection
with:

- front pillar in the area (4) and (5);
- floor closing plate in the area (8);
- windscreen lower cross bar in the

area (9);

- front wing lining upper edge in the

area (10);

- climate control box end in the area

(11);

- iron plate in the area (12).

Straighten the areas resulted by

dismounting.

Grind the areas resulted by dismounting.

R

EMO UNTING

Position and  center the new element.
Check the correct positioning of the

front pillar lining.

Weld the front pillar lining (1) following

the assembling outliners 4,5,8,9,10,11,12.

Protect the new element with a corrosion

preventing and noise absorbent product.

43 - 1

43

UPPER SIDE STRUCTURE

FRONT PILLAR LINING

7

11

10

8

3

4

12

UPPER SIDE STRUCTURE

43

43 - 2

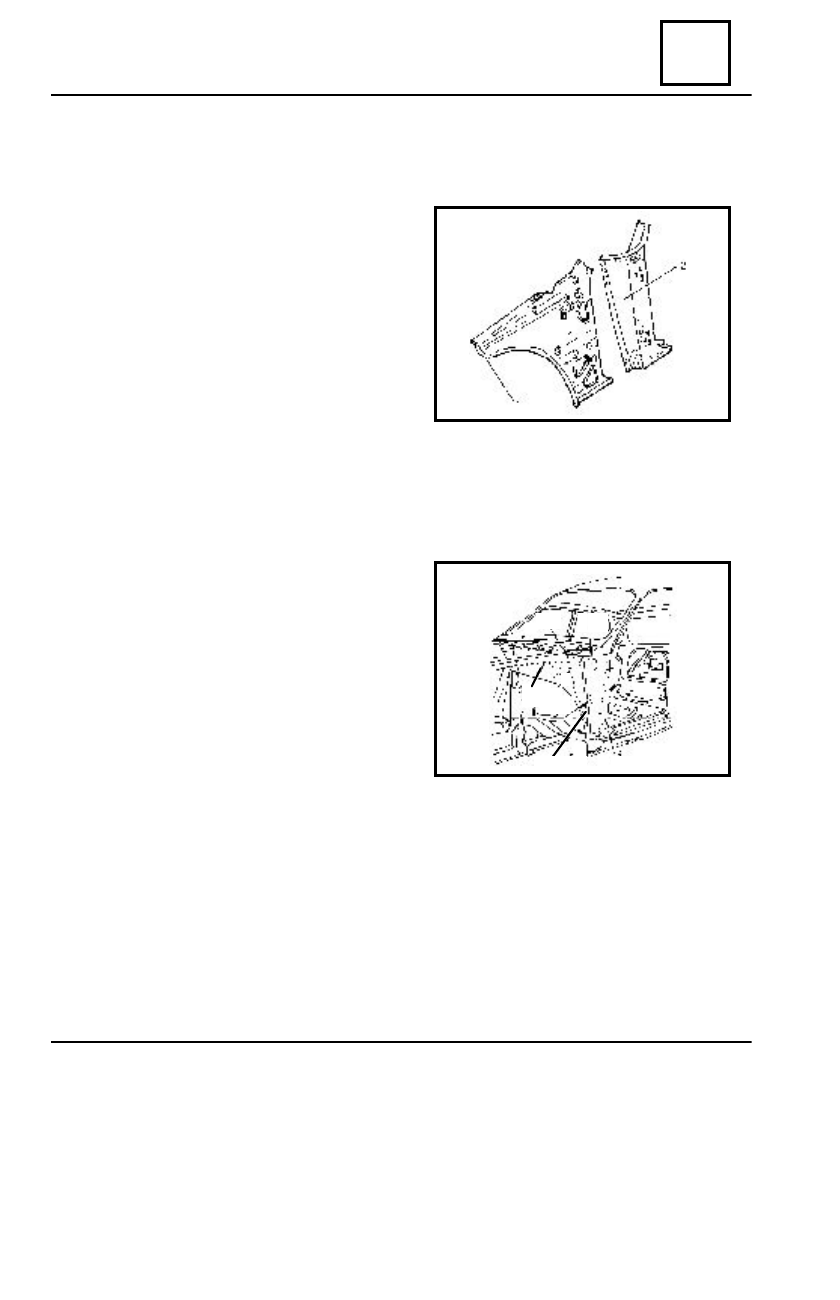

FRONT PILLAR

D

ISMO UNTING

Dismount the elements which are in contact with

the front pillar .

Detach the welding points of  the front pillar  (2)

which are in connection with :

- lateral frame in the areas  (3);
- front pillar lining in area (4) and (5);
- upper spacer and the lower windscreen

lining in the areas (6), and (7).

Straighten the areas resulted by dismounting.
Grind the areas resulted by dismounting.

R

EMO UNTING

Position and center the new element .
Check the correct positioning of the front pillar.
Weld the front pillar (2) following the assembling

outliners 3, 4,5,6,7.

Protect the new element  with a corrosion preventing

and noise absorbent product

9

6

5

43

UPPER SIDE STRUCTURE

43 -3

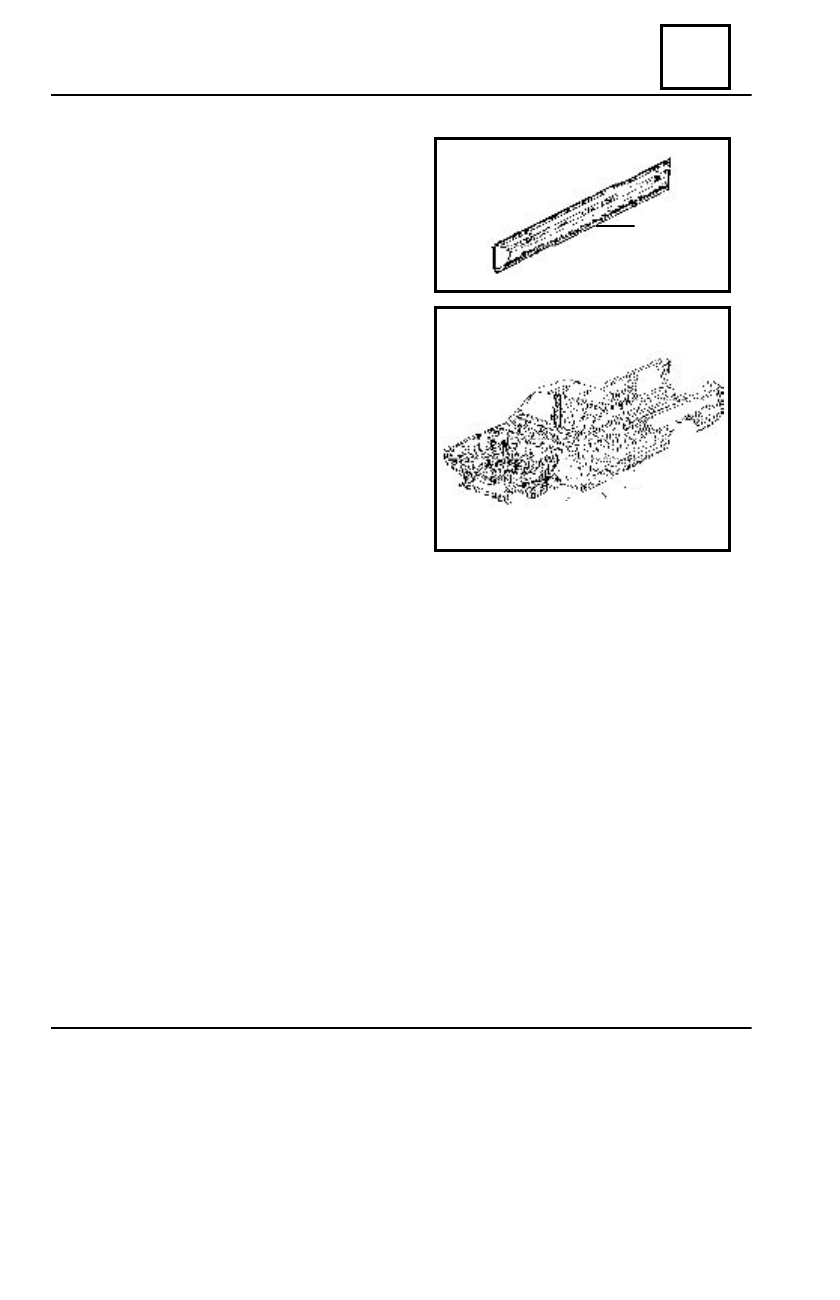

FRONT LOWER PANEL

D

ISMO UNTING

Dismount the elements which are in contact with

the front lower panel .

Detach the welding points of  the front lower panel

(1)  which are in connection with :

- floor closing plate in the area  (2);
- front pillar in the (3) area;
- in  the length of the area (4) with floor closing

plate;

- side panel in the area (5);
- central pillar in the area (6).

Straighten the areas resulted by dismounting.
Grind the areas resulted by dismounting.

R

EMO UNTING

Position and  center the new element .
Check the correct positioning of the front lower

panel .

Weld the front lower panel  (1) following the

assembling outliners 2, 3, 4,5,6.

Straighten with the autogenous welding the (3) area

with the front pillar, the (6) area with the central pillar
and the (5) area with side panel.

Leave open the water evacuation holes from the

front lower panel.

1

2

3

4

5

6
