Dacia Pick-Up 1304/1305/1307. Manual - part 102

40

GENERAL

40 - 15

BODY CHECKING / STRAIGHTENING BENCH

TYPE CELETTE

To straighten the vehicle body, CELETTE bench is provided with a traction arm of 10

tons, Caiman type, 250 mm stroke of the hydraulic cylinder, with rapid anchorage on any
side of the mobile bench ( fig. 2 ) stands is.

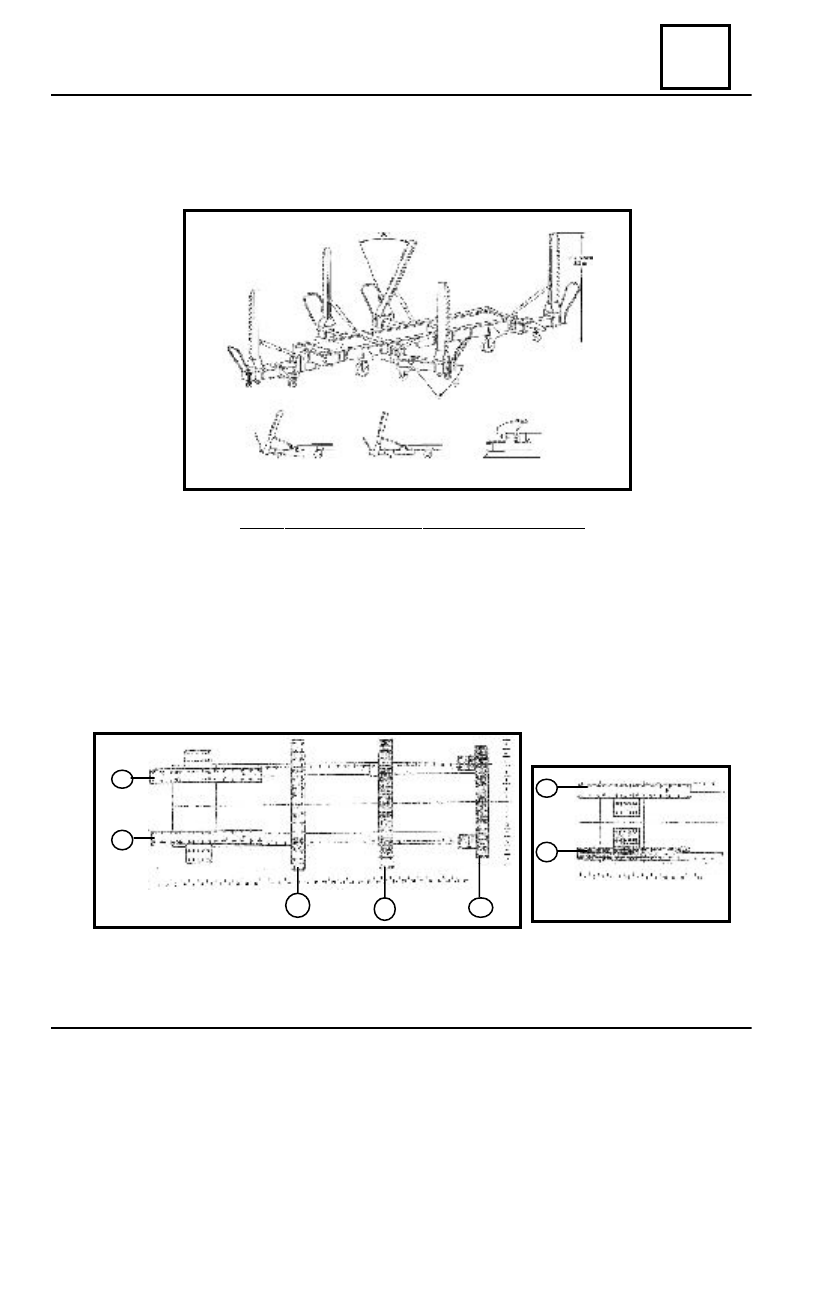

2. CROSS BAR MODULAR SET CAR 502 )

CELETTE bench has in its composition, five modular cross bars ( fig.3 ), as follows:

- two front cross bars  A and B  ( T shaped ) there are always ready in the same
position  (towards  front of bench) – fig. 4.
- two straight cross bars C1 and C2 and one D cross bar ( U-shaped ) which may be

placed in different positions subject to vehicle type.

The marked figures  ( 14……36 ) are engraved on the mobile bench, every mounting

being supplied with a drawing indicating the exact position of the modular  cross bars
subject to vehicle type.

(  fig.3 )

( fig.4 )

( fig.2)

one....

two...

and tree !

A

B

C

2

C

1

D

A

B

40

GENERAL

40 - 16

BODY CHECKING / STRAIGHTENING BENCH

TYPE CELETTE

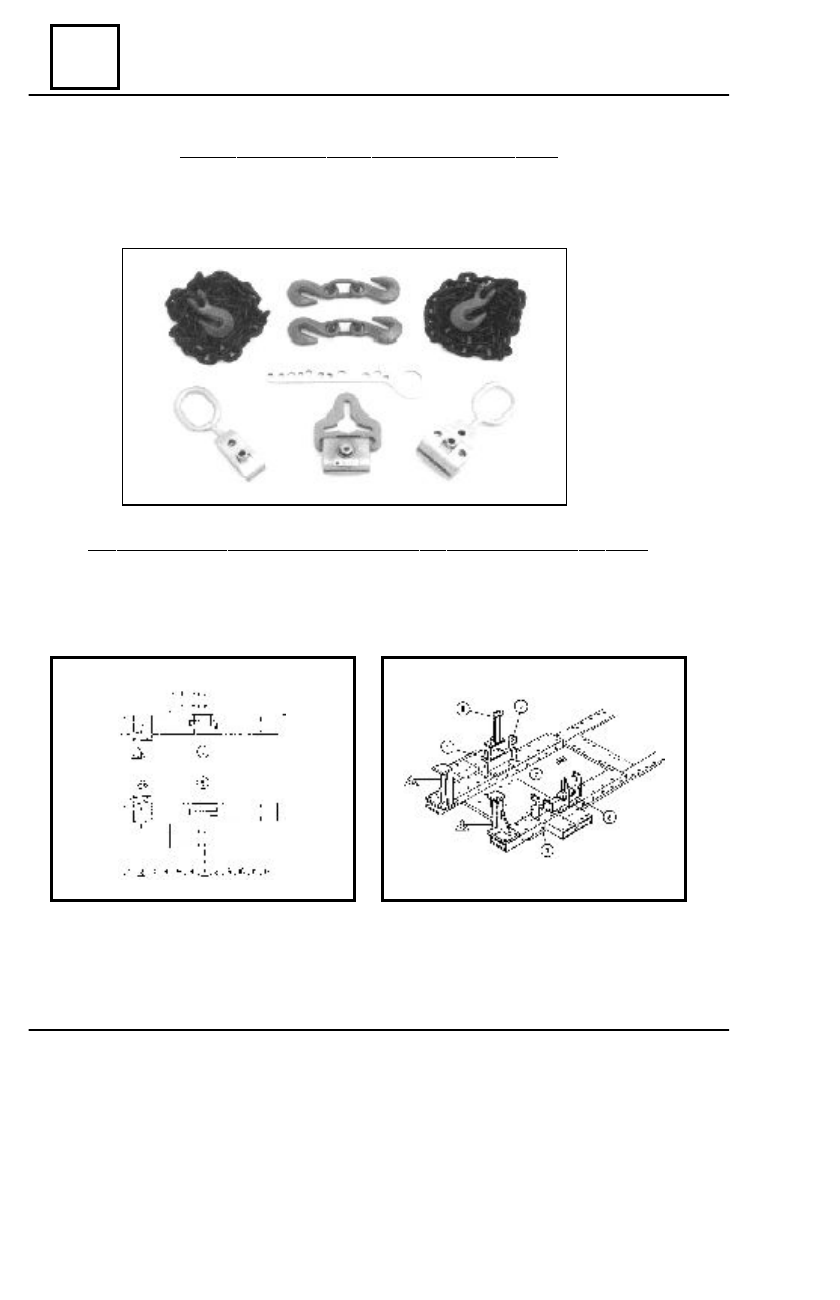

3. TRACTION ACCESSORIES SET( CAR 504 )

CELETTE bench is equipped with a traction accessories set CAR 504, which allow the

operator to achieve different anchoring when a body strengthening is performed (fig. 5).

4. SET OF SPECIFIC SUPPORTS FOR  DACIA 1304, 1307 ( CAR 506 )

The mounting of the specific supports for DACIA vehicles 1304,1307 shall be performed

according with the mounting diagram which is supplied with this KIT (fig. 6,7,8,9,10,11).This
is a compact mounting system.

( fig. 6 )

( fig. 7)

Dacia 1304,1307

Dacia 1304,1307

( fig. 5)

40

GENERAL

40 - 17

BODY CHECKING / STRENGTHENING  BENCH

TYPE CELETTE

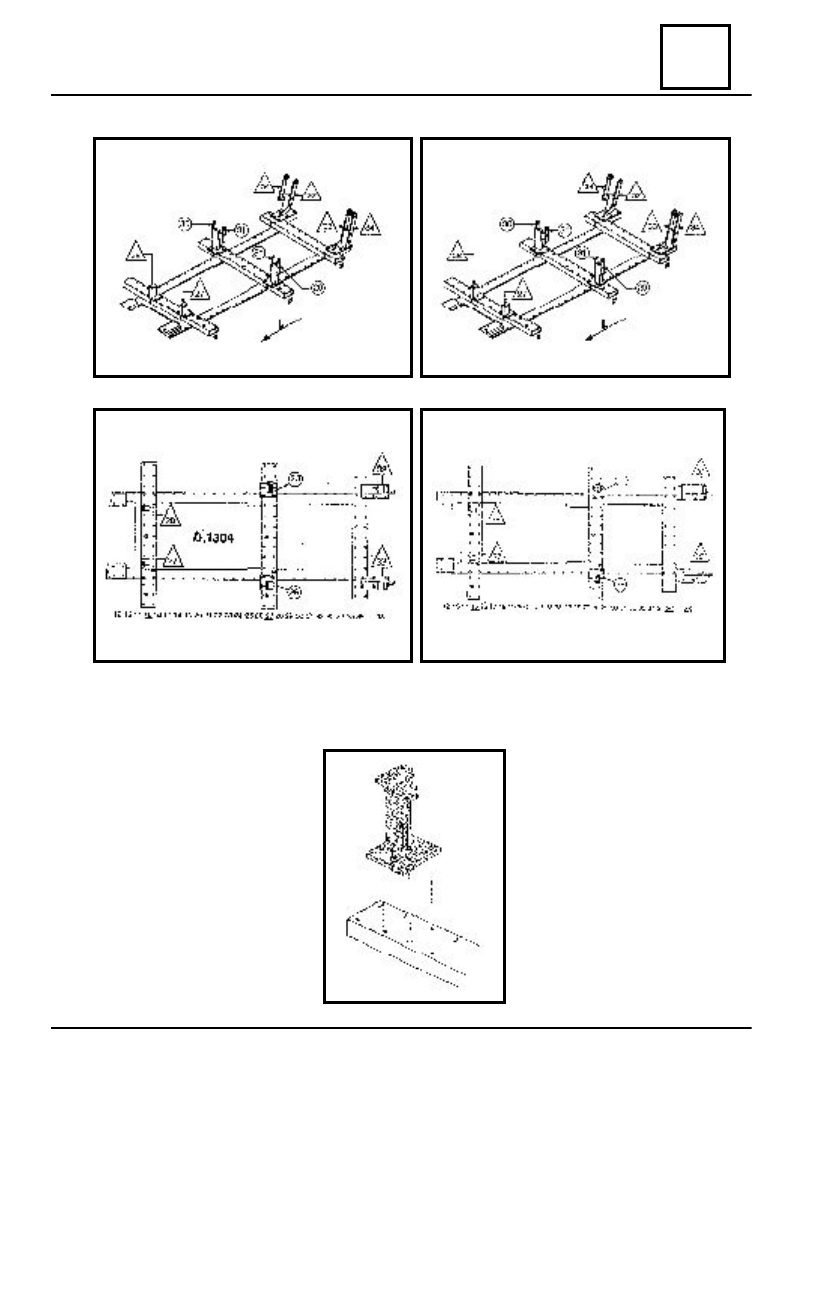

( fig. 8 )

( fig. 10 )

Dacia 1304

Dacia 1307

Dacia 1304

Dacia 1307

( fig. 9 )

( fig. 11 )

Each support is identified by a plate showing the CELETTE specific item number, the

mounting direction and its orientation on the bench. (fig. 12,13)

( fig. 12 )

40

GENERAL

40 - 18

BODY CHECKING / STRAIGHTENING BENCH

TYPE CELETTE

( fig. 13 )

Caption:

3

- with or without dismounted mechanic elements.

- with dismounted mechanic elements

1

REFERENCE POINTS ON VEHICLE  ( DACIA 1304, 1307 )

Front longitudinal girder extremity supports fixing

Supports (1) and (2) are used in front

straightening, front mechanic elements
dismounted.

They enable the positioning of the front

longitudinal girders extremity ( fig. 14 ).

( fig. 14 )

( fig. 15 )

Front suspension lower arm supports fixing

Supports (3) , (4), (5) and (6) are used in

front st raightening. They enable the
positioning and centering of the front longi-
tudinal girders ( fig. 15 ) and consequently
the vehicle front alignment on the bench.



  attachment on the bench right

side(orientation direction towards front)



attachment on bench left side

  (orientation direction towards front)

 reference number (specific CELETTE)
support identification in view of
mounting on the bench.

4

5

6

3
