Peugeot Partner VU (2007 year). Instruction - part 6

Driving

Exceeding the programmed

speed

Pressing the accelerator pedal in or-

der to exceed the programmed speed

will have no effect unless you press

the pedal

ﬁrmly beyond the point of

resistance.

The limiter is deactivated temporarily

and the programmed speed which is

still displayed ﬂashes.

To return to the limiter function, re-

duce your speed to the programmed

speed or below.

Flashing of the speed

The speed ﬂashes:

- following forcing of the accelerator

point of resistance,

- when the limiter cannot prevent an

increase in the vehicle speed due

to the proﬁle of the road or on a

steep descent,

- in the event of sharp acceleration.

In any event, the speed lim-

iter cannot replace the need

to observe speed limits, nor

can it replace the need for

vigilance and responsibility

on the part of the driver.

Always pay attention to the proﬁle of

the road and take care on sharp ac-

celeration.

To prevent the mat from becoming

trapped under the pedals:

- ensure that the mat is positioned

correctly,

- never ﬁt one mat on top of another.

Switching the function off


Place dial in position

0 or switch

off the ignition to switch the sys-

tem off. The last programmed

speed remains in the memory.

Operating fault

In the event of a limiter malfunction,

a message is displayed on the multi-

function display accompanied by an

audible signal.

The programmed speed is cleared

and the dashes ﬂash for a few sec-

onds.

Contact a PEUGEOT dealer to have

the system checked.

80 - Driving

AUDIBLE REAR PARKING

ASSISTANCE

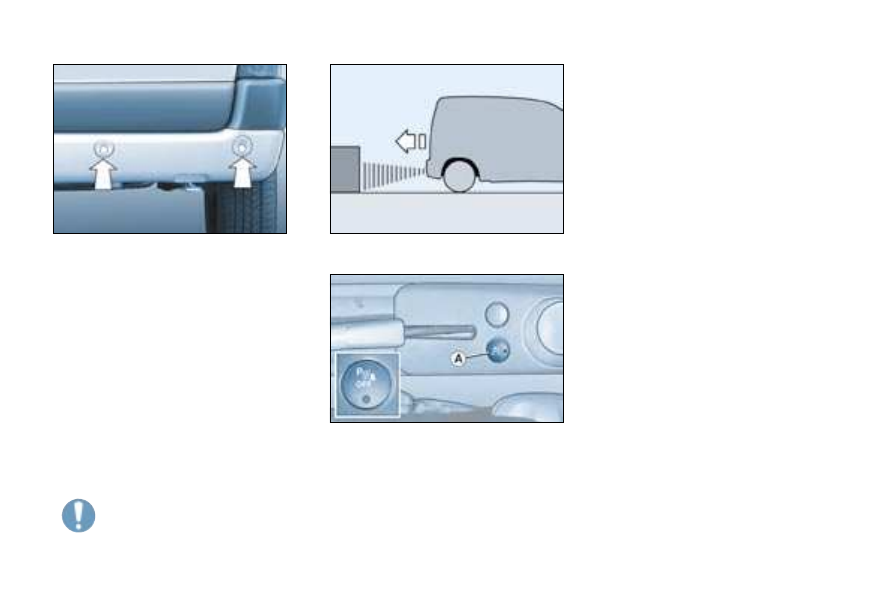

This system consists of four detec-

tors, located in the rear bumper, and

a special speaker which emits an au-

dible signal.

This detects any obstacle (person,

vehicle, tree, gate, etc.) behind the

vehicle. Nevertheless, it cannot de-

tect obstacles located just below the

bumper.

An object, such as a stake, a roadworks

cone or any other similar object may be

detected at the beginning of the ma-

noeuvre, but may no longer be detected

when the vehicle comes close to it.

Detection zone

Detection

The system is activated as soon as

reverse gear is engaged.

The proximity detection is emitted by

a buzzer which becomes increasingly

rapid then by a continuous sound as

the vehicle approaches the obstacle.

When the distance between the rear

of the vehicle and the obstacle is less

than thirty centimetres, the audible

signal becomes continuous.

On completion of the manoeuvre,

when you exit reverse gear, the sys-

tem becomes inactive.

Temporary deactivation

During the manoeuvre, press button

A to deactivate the system temporar-

ily (child asleep in the rear...).

Prolonged deactivation

With the ignition on, press button

for more than four seconds to deacti-

vate the system permanently. The in-

dicator light on the button is switched

off, accompanied by an audible sig-

nal. The system becomes active

again after the ignition has been

switched off.

Note: this function must be deacti-

vated when towing a trailer or when

a bicycle carrier is ﬁtted (vehicle ﬁt-

ted with a towbar or bicycle carrier

recommended by PEUGEOT).

Operating fault

If there is an operating fault, the in-

dicator light ﬂashes, accompanied

by an audible signal which will be a

short bleep followed by a long bleep,

when changing to reverse gear.

Reactivation

Press button

A again to reactivate

the system. The indicator light on the

button is switched on, accompanied

by an audible signal.

In bad or wintry weather, en-

sure that the sensors are not

covered with mud, frost or

snow.

Driving

FRONT AIR BAGS

These are folded in the centre of the

steering wheel for the driver and in

the fascia for the front passenger.

They are deployed simultaneously,

except in cases where the passenger

air bag is disarmed.

AIR BAGS

The air bags have

been designed

to maximise the safety of the occu-

pants in the event of serious colli-

sions. They work in conjunction with

the pretensioning seat belts.

The electronic detectors register and

analyse any abrupt deceleration of

the vehicle: if the triggering thresh-

old is reached, the air bags inﬂate in-

stantly and protect the occupants of

the vehicle.

Immediately after the impact, the air

bags deﬂate rapidly so that they do

not hinder the visibility of the occu-

pants nor their exit if necessary from

the vehicle.

The air bags are not deployed in the

case of minor collisions, for which the

seat belt is sufﬁcient to ensure maxi-

mum protection. The seriousness of

a collision depends on the nature of

the obstacle and the speed of the ve-

hicle at the moment of impact.

Air bags only operate when the ig-

nition is switched on.

Note: the gas escaping from the air

bags can be a minor irritant.

If this warning light comes

on on the instrument panel,

accompanied by an audible

signal, contact a PEUGEOT

dealer to have the system

checked.

Front air bag fault

Disarming the passenger air

bag*

To ensure the safety of your child,

it is essential to disarm the pas-

senger air bag when you install a

rear-facing child seat on the front

passenger seat.

Otherwise, the child would risk be-

ing killed or seriously injured if the

air bag were to inﬂate.


With the ignition switched off,

insert the key into the passenger

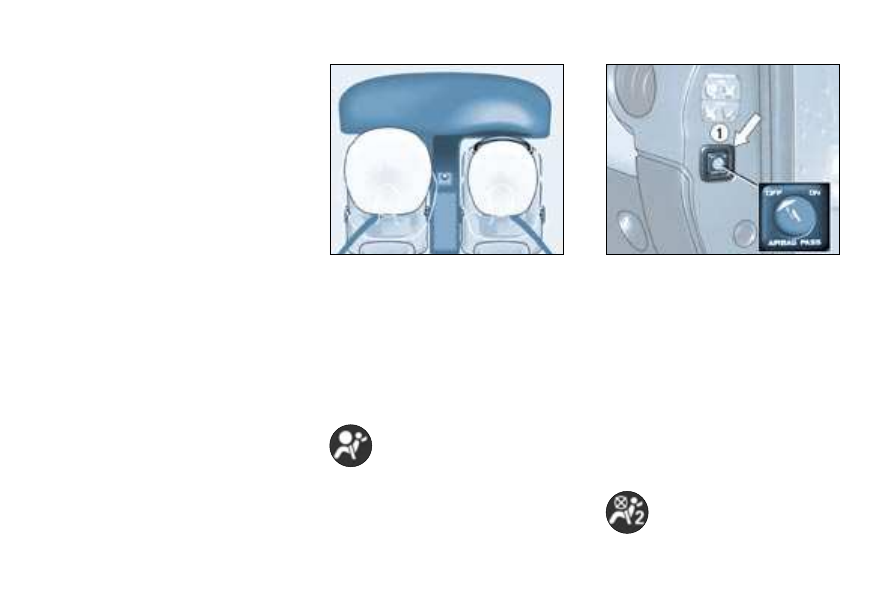

air bag disarming switch

1, turn

it to the

"OFF" position, then re-

move the key keeping the slot in

this position.

The air bag warning light on

the instrument panel is lit

throughout the period of dis-

arming.

* According to country.

82 - Driving

In the

"OFF" position, the passen-

ger air bag will not be triggered in the

event of an impact.

As soon as the child seat is removed,

turn the air bag slot to the

"ON" po-

sition to re-activate the air bag and

thus ensure the safety of your pas-

senger in the event of an impact.

SIDE AIR BAGS*

These are incorporated into the

frame of the front seat backs, on the

door side.

They are deployed independently

of each other depending on which

side the collision occurs, in collisions

which could cause injury to the chest,

the abdomen or the head.

If this warning light comes on,

accompanied by an audible

signal, contact a PEUGEOT

dealer to have the system

checked.

This is conﬁrmed by an indi-

cator light, accompanied by

a message on the multifunc-

tion display.

With the ignition on (2nd notch), il-

lumination of this warning light ac-

companied by a message on the

multifunction display, indicates that

the passenger air bag is disarmed

(switch in the

"OFF" position).

If the two air bag warning

lights are lit continuously, do

not install a rear-facing child

seat. Contact a PEUGEOT

dealer.

Air bag fault

Disarming check

For the front and side* air

bags to be fully effective,

observe the following

safety rules:
• Wear a correctly adjusted

seat belt.

• Sit in a normal upright position.
• Do not leave anything between the

occupants and the air bags (child,

animal, object...).

This could hamper the operation

of the air bags or injure the occu-

pants.

• All work on the air bag systems is

strictly prohibited unless it is car-

ried out by qualiﬁed personnel of

the PEUGEOT network.

• After an accident or if the vehicle

has been stolen or broken into,

have the air bag systems checked.

Front air bags

• Do not drive holding the steering

wheel by its spokes or resting your

hands on the centre part of the

wheel.

• Passengers must not place their

feet on the fascia.

• Smoke as little as possible; deploy-

ment of the air bags can cause

burns or the risk of injury from a

cigarette or pipe.

• Never remove or pierce the steer-

ing wheel or hit it violently.

Side air bags*

• Only put approved covers on the

front seats. Contact your PEUGEOT

dealer.

• Do not ﬁx or glue anything to the

front seat backs. This could cause

injury to the chest or arms when the

side air bag inﬂates.

• Do not sit with the upper part of the

body any nearer to the door than

necessary.

* According to country.

82 - Driving

In the

"OFF" position, the passen-

ger air bag will not be triggered in the

event of an impact.

As soon as the child seat is removed,

turn the air bag slot to the

"ON" po-

sition to re-activate the air bag and

thus ensure the safety of your pas-

senger in the event of an impact.

SIDE AIR BAGS*

These are incorporated into the

frame of the front seat backs, on the

door side.

They are deployed independently

of each other depending on which

side the collision occurs, in collisions

which could cause injury to the chest,

the abdomen or the head.

If this warning light comes on,

accompanied by an audible

signal, contact a PEUGEOT

dealer to have the system

checked.

This is conﬁrmed by an indi-

cator light, accompanied by

a message on the multifunc-

tion display.

With the ignition on (2nd notch), il-

lumination of this warning light ac-

companied by a message on the

multifunction display, indicates that

the passenger air bag is disarmed

(switch in the

"OFF" position).

If the two air bag warning

lights are lit continuously, do

not install a rear-facing child

seat. Contact a PEUGEOT

dealer.

Air bag fault

Disarming check

For the front and side* air

bags to be fully effective,

observe the following

safety rules:
• Wear a correctly adjusted

seat belt.

• Sit in a normal upright position.
• Do not leave anything between the

occupants and the air bags (child,

animal, object...).

This could hamper the operation

of the air bags or injure the occu-

pants.

• All work on the air bag systems is

strictly prohibited unless it is car-

ried out by qualiﬁed personnel of

the PEUGEOT network.

• After an accident or if the vehicle

has been stolen or broken into,

have the air bag systems checked.

Front air bags

• Do not drive holding the steering

wheel by its spokes or resting your

hands on the centre part of the

wheel.

• Passengers must not place their

feet on the fascia.

• Smoke as little as possible; deploy-

ment of the air bags can cause

burns or the risk of injury from a

cigarette or pipe.

• Never remove or pierce the steer-

ing wheel or hit it violently.

Side air bags*

• Only put approved covers on the

front seats. Contact your PEUGEOT

dealer.

• Do not ﬁx or glue anything to the

front seat backs. This could cause

injury to the chest or arms when the

side air bag inﬂates.

• Do not sit with the upper part of the

body any nearer to the door than

necessary.

* According to country.

Practical information -

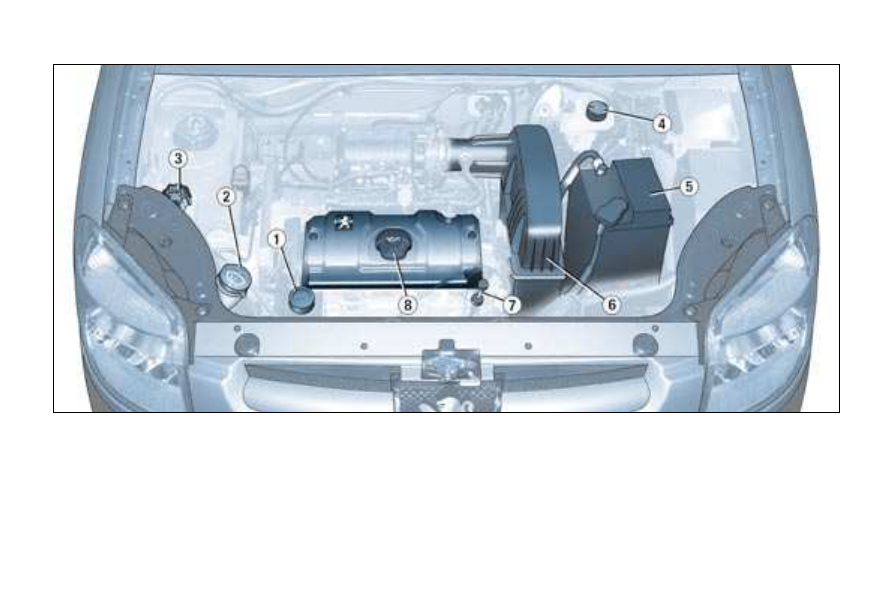

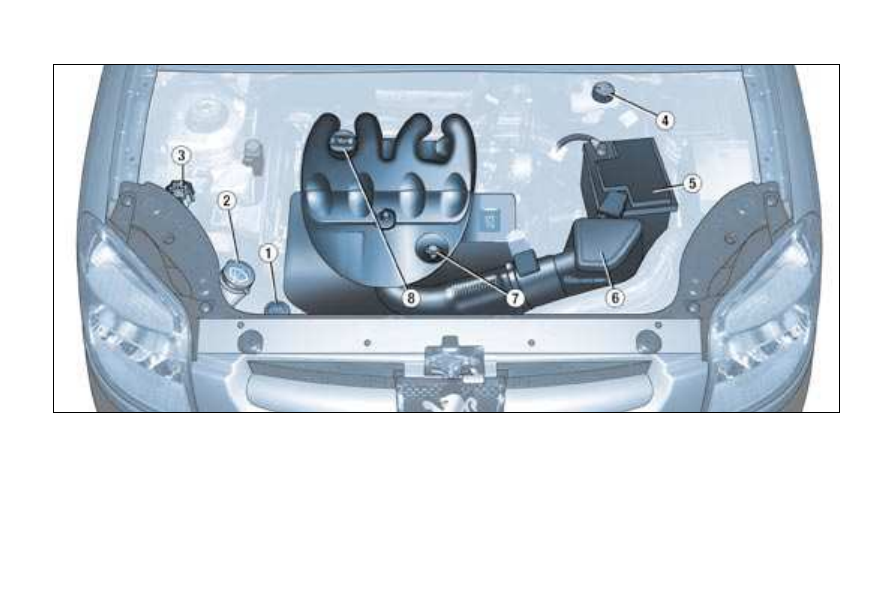

1. Power steering reservoir

2. Windscreen and headlamp*

wash reservoir

3. Coolant reservoir

4. Brake ﬂuid reservoir

5. Battery

6. Air ﬁlter

7. Dipstick

8. Engine oil reservoir

1.4 LITRE PETROL ENGINE

* According to country.

Practical information

84 -

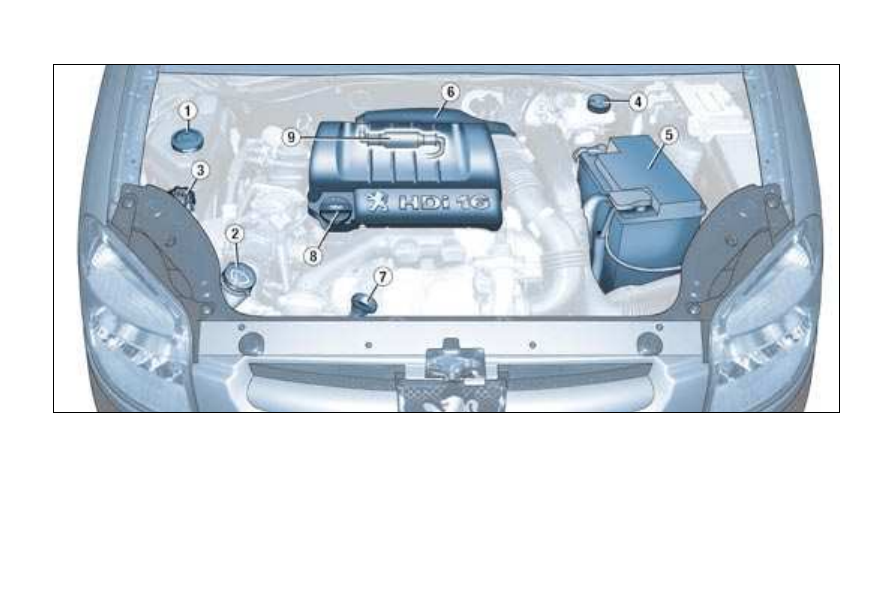

1. Power steering reservoir

2. Windscreen and headlamp*

wash reservoir

3. Coolant reservoir

4. Brake ﬂuid reservoir

5. Battery

6. Air ﬁlter

7. Dipstick

8. Engine oil reservoir

1.9 LITRE DIESEL ENGINE

* According to country.

Practical information -

1. Power steering reservoir.

2. Windscreen/headlamp* wash

reservoir.

3. Coolant reservoir.

4. Brake ﬂuid reservoir.

5. Battery.

6. Air ﬁlter.

7. Dipstick.

8. Engine oil reservoir.

9. Priming pump.

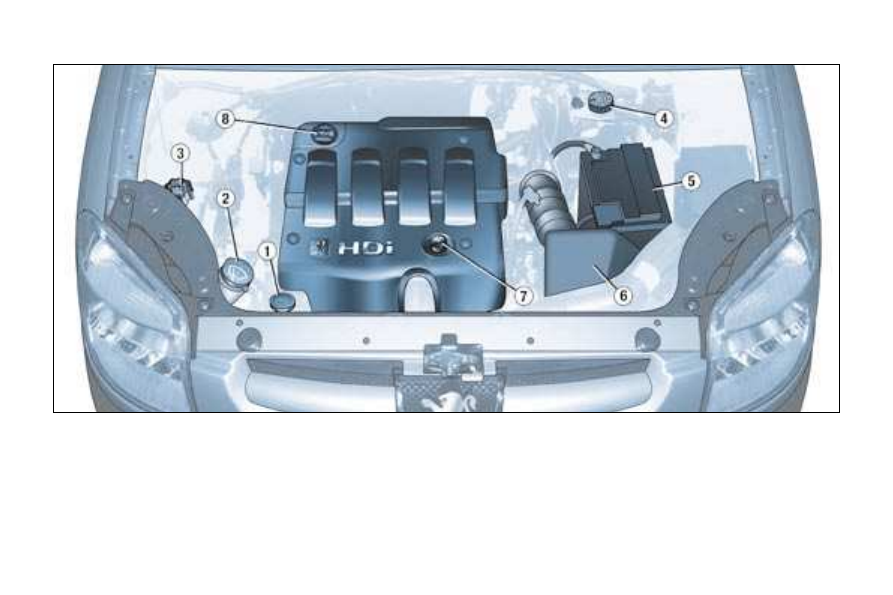

1.6 LITRE TURBO DIESEL HDI ENGINE

* According to country.

Practical information

86 -

1. Power steering reservoir

2. Windscreen and headlamp*

wash reservoir

3. Coolant reservoir

4. Brake ﬂuid reservoir

5. Battery

6. Air ﬁlter

7. Dipstick

8. Engine oil reservoir

2 LITRE TURBO DIESEL HDI ENGINE

* According to country.

Practical information

88 -

CHECKING THE LEVELS

Oil level

Check the level regularly and top up

between changes. The maximum

consumption is 0.5 l per 600 miles

(1 000 km).

Check the level with the vehicle level,

engine cold, using the oil level gauge

on the instrument panel or the dip-

stick.

Dipstick

Oil change

According to the information given in

the servicing booklet.

Note: avoid used oil coming into pro-

longed contact with the skin. Emp-

ty the used oil into the containers

intended for this purpose in the

PEUGEOT network.

Viscosity selection

In all cases, the oil selected must

meet the manufacturer’s require-

ments.

Note: the coolant does not need to

be changed.

On vehicles ﬁtted with a particle

emission ﬁlter, the fan may operate

after the engine has been switched

off, even when the engine is cold.

* According to country.

There are two marks

on the dipstick:

A = maximum

Never ﬁll past this

mark.

B = minimum

To maintain the reli-

ability of engines and

emission control sys-

tems, the use of ad-

ditives in engine oil is

prohibited.

Brake fluid change:

- must be carried out according to the

manufacturer’s servicing schedule.

- use ﬂuids recommended by the

manufacturer, which fulﬁl DOT4

standards.

Note: brake ﬂuid is harmful to health

and very corrosive. Avoid all contact

with the skin.

Cooling system

Use the ﬂuid recommended by the

manufacturer.

When the engine is warm, the tem-

perature of the coolant is controlled

by the engine fan. As this fan can op-

erate with the ignition key removed

and because the cooling system is

pressurised, wait for at least one hour

after the engine has stopped before

carrying out any work.

Slacken the cap by two turns to re-

lease the pressure to prevent any

risk of scalding. When the pressure

has dropped, remove the cap and

top up the level.

Used oil

Do not dispose of used oil, brake ﬂu-

id or coolant into drains or onto the

ground.

Power steering reservoir

Open the reservoir, with the engine

at ambient temperature. The level

should always be above the MIN.

mark and close to the MAX. mark.

Windscreen and headlamp*

wash level

For best quality cleaning and for your

safety, we would advise that you use

products recommended by PEUGEOT.

Practical information -

CHECKS

Battery

At the start of winter, have your bat-

tery checked by a PEUGEOT dealer.

Oil filter

Change the ﬁlter regularly, in accord-

ance with the servicing schedule.

Only use products recom-

mended by PEUGEOT or

products of equivalent qual-

ity and speciﬁcations.

To ensure best performance

from components as important as the

power steering and the braking sys-

tem, PEUGEOT selects and offers

quite speciﬁc products.

To prevent damage to the electrical

units, high pressure washing to clean

the engine compartment is strictly

prohibited.

RUNNING OUT OF FUEL

(DIESEL)

If you should run out of fuel, it is nec-

essary to re-prime the circuit:

- ﬁll the fuel tank with at least ﬁve li-

tres of diesel,

- squeeze and release the manual

re-priming pump, under the bonnet

under the protective cover, until fuel

appears in the transparent pipe,

- operate the starter until the engine

starts.

FUEL SUPPLY CUT-OFF

(PETROL)

In a serious collision, a mechanism

prevents fuel from reaching the en-

gine.

To re-establish the fuel supply, press

the switch on the corner of the front

right-hand suspension assembly, un-

der the bonnet.

Air filter and passenger

compartment filter

Have the ﬁlter elements replaced regu-

larly.

If you drive in dusty conditions,

change them twice as often.

Brake pads

Brake pad wear depends on the style

of driving, in particular for vehicles

which are used in town, over short

distances.

It may be necessary to check the

thickness of the pads, even between

services.

Disc and drum wear

For information relating to the wear of

the surfaces of the discs and drums,

contact a PEUGEOT dealer.

Manual gearbox

This does not require an oil change.

Check the level in accordance with the

manufacturer’s servicing schedule.

To check the main levels and cer-

tain components, in accordance

with the manufacturer’s servicing

schedule, refer to the pages of

the servicing booklet which corre-

spond to your vehicle’s engine.

Handbrake

Where the handbrake travel is too

great or there is a reduction in the

performance of the system, the

handbrake should be adjusted, even

between services.

Have the system checked by a

PEUGEOT dealer.

Practical information

90 -

CHANGING A WHEEL

Parking the vehicle

- If possible, park the vehicle on lev-

el, stable and non-slippery ground.

- Apply the handbrake, switch off the

ignition and engage ﬁrst or reverse

gear.

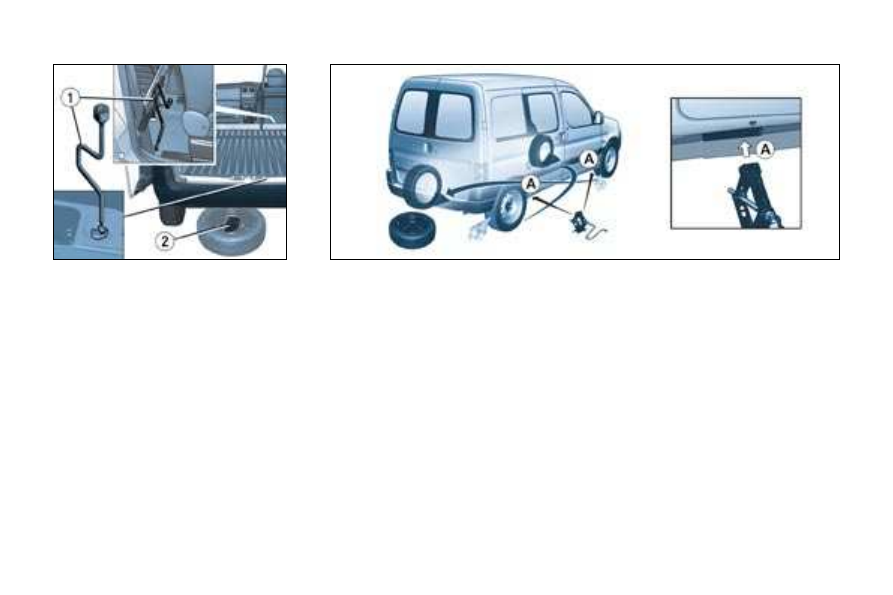

Access to the spare wheel and

the jack

The wheel is located outside the ve-

hicle, under the rear ﬂoor, supported

by a metal carrier.

- Remove the jack and the wheel-

brace

1, secured behind the driv-

er’s seat.

- Using the wheelbrace

1, slacken

the spare wheel carrier retaining

bolt, located on the inside near the

closing system.

- Lift the carrier to release the hook

rearwards, then lower it.

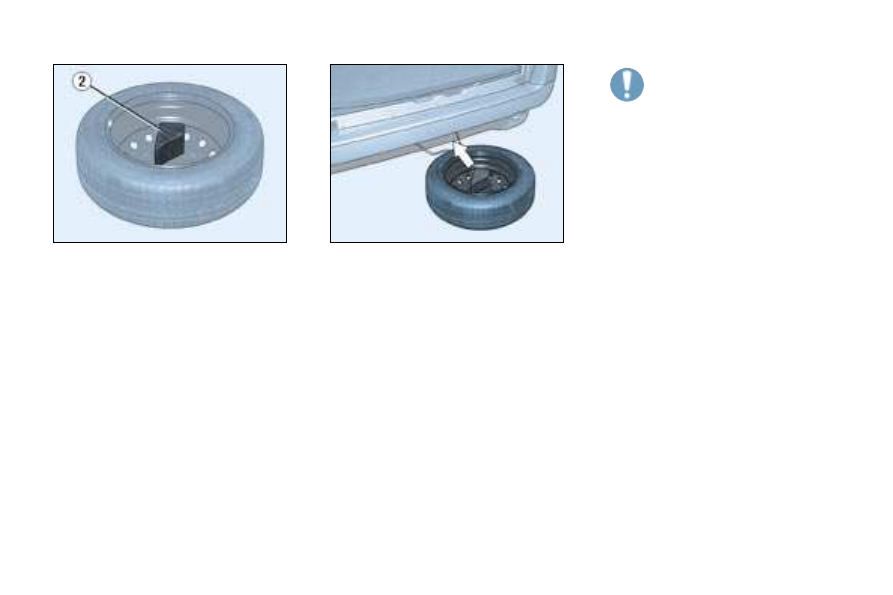

- Remove the chock

2 located in the

spare wheel.

Removing a wheel

- Chock the rear of the wheel di-

agonally opposite the wheel to be

changed, using the chock

- Remove the wheel trim using the

wheelbrace

1, by pulling at the

valve passage hole.

- Slacken the wheel bolts.

- Place the jack under the locating

point on the sub-frame

A that is

closest to the wheel to be changed.

Ensure that the entire surface of

the jack base plate is in contact

with the ground.

- Extend the jack, completely un-

screw the bolts and remove the

wheel.

Practical information -

For your safety, always

change a wheel:

- on level, stable and non slippery

ground,

- with the handbrake applied,

- with ﬁrst or reverse gear engaged,

- with the vehicle chocked,

- never go underneath a vehicle

raised using a jack (use an axle

stand).

Reﬁtting the wheel

- After positioning the wheel, light-

ly pre-tighten the bolts using the

wheelbrace.

- Compress the jack and release it.

- Fully tighten the bolts using the

wheelbrace.

- Replace the trim, starting at the

valve passage hole, and press it on

using the palm of the hand.

Replacing the wheel in the

carrier

- Replace the chock

2 in the wheel.

- Replace the wheel in the carrier.

- Lift the wheel then the carrier and

reposition the hook.

- Do not forget to fully tighten the

spare wheel carrier retaining bolt.

- Stow the wheelbrace

1 and the

jack.

After changing the wheel

- Have the tightening of the bolts

and the pressure of the spare tyre

checked as soon as possible by a

PEUGEOT dealer.

- Have the punctured tyre repaired

and replace it on the vehicle as

soon as possible.

Practical information

92 -

CHANGING A BULB

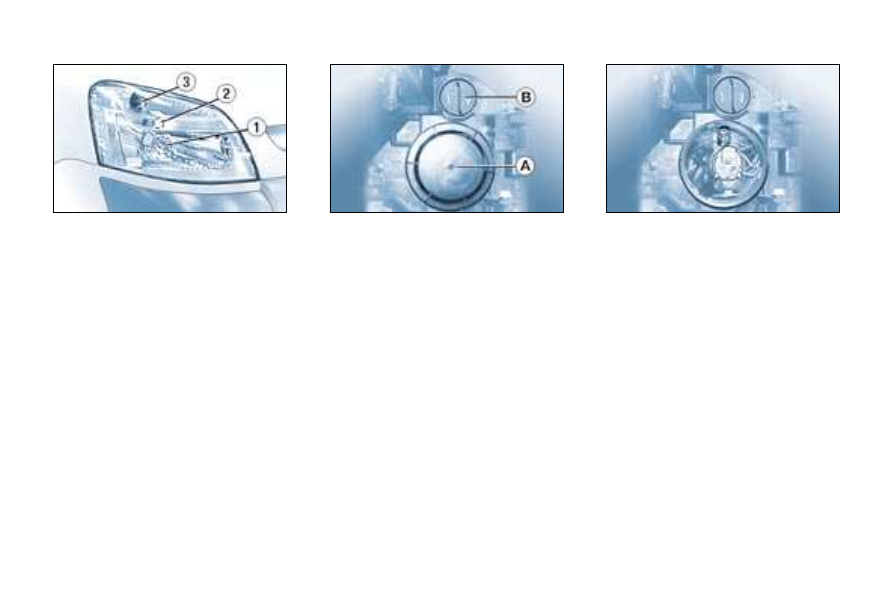

Front lights

1. Dipped beam headlamps/Main

beam headlamps

(H4-60/55 W)

- Turn and remove the protector

- Disconnect the connector.

- Unclip the spring.

- Remove and replace bulb.

2. Side lights (W 5 W)

- Turn and remove the protector

- Pull the bulb holder rearwards.

- Change the bulb.

3. Direction indicators

(PY 21 W amber)

- Turn the bulb holder

B a quarter

turn and remove it.

- Change the bulb.

Note: in certain weather conditions

(low temperatures, humidity),

the

presence of condensation on the

inside of the headlamp glass is

normal; it disappears a few minutes

after the lights have been switched

on.

Practical information -

Only use H4 bulbs manufac-

tured by:

- GE/TUNGSRAM,

- PHILIPS,

- OSRAM,

to avoid damaging the headlamps.

These meet the anti-UV (ultra-violet)

speciﬁcations necessary for the cor-

rect operation and reliability of the

headlamps.

The headlamps are ﬁtted with a poly-

carbonate lens coated with a protec-

tive varnish. You are strongly advised

to avoid cleaning them using a dry or

abrasive cloth and using detergent

products or solvents.

Use a soft, damp cloth.

Direction indicator side repeaters

(WY 5 W amber)

- Push the transparent cover for-

wards or rearwards and release it.

- Turn the bulb holder a quarter turn.

- Change the bulb.

Amber coloured bulbs (di-

rection indicators and side

repeaters) must be replaced

by bulbs of identical speciﬁ-

cation and colour.

Practical information

94 -

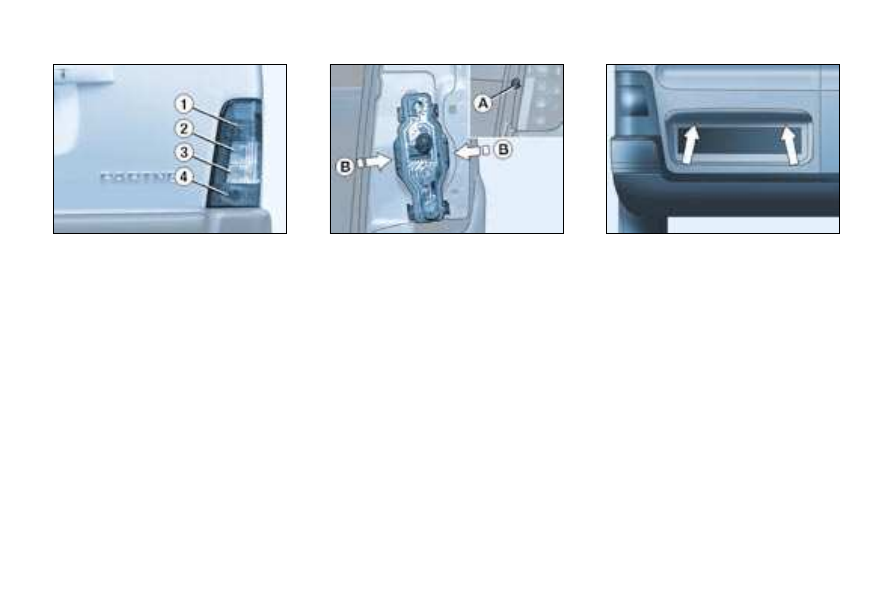

Rear lights

1 - Fog lamp (P 21 W).

2 - Direction indicators (P 21 W).

3 - Reversing lights (P 21 W).

4 - Brake lights/Side lights

(P 21/5 W).

Open the rear door.

Unscrew the nut

Push the light unit gently towards

the interior of the vehicle to unclip

the two side retaining clips,

Remove the light unit and discon-

nect it.

Unclip the bulb holder by pressing

the tabs

Change the faulty bulb.

Number plate lights (W 5 W)



Insert a thin screwdriver into one

of the external holes of the lens.



Push it outwards to unclip it.



Remove the lens.



Change the faulty bulb.

Content .. 4 5 6 7 ..
