Peugeot Bipper (2015 year). Instruction - part 6

EASE OF USE and COMFORT

Practical information

Bipper_en_Chap04_ergonomie_ed02-2014

Modular vertical grille

Operations:

3. lift the catch, located at the lower part of

the grille.

4. Pivot the grille and insert the catch in the

space provided on the passenger seat
back.

1. Place the passenger seat in the folded

position.

2. lift the catch, located at the upper part of

the grille.

A two-part partition grille is available.
Associated with the folding front passenger
seat, the grille increases the driver's safety
by separating them from the front load.

Practical information

Bipper_en_Chap04_ergonomie_ed02-2014

REAR FITTINGS

Stowing rings

there are 4 stowing rings on the rear floor to
secure your luggage.

Luggage retaining net

Hooked onto the stowing rings, this enables
you to secure your luggage.

Rear shelf

unfold the shelf to conceal the contents of
the boot from view.
Fold the shelf back on itself for easier
access to the contents of the boot.
Stow the shelf behind the rear bench seat
when loading bulky items vertically.

Removing the shelf

Fold the shelf back on itself.
Lift the shelf to approximately 60°.
unclip the shelf's side fixings from its
supports.
Remove the shelf.
Stow the folded shelf in the location behind
the rear bench seat.
to refit the shelf, carry out these operations
in reverse order.

EASE OF USE and COMFORT

Practical information

Bipper_en_Chap04_ergonomie_ed02-2014

Retaining straps

there are two retaining straps on the left-
hand side of the boot.
they secure the tool kit.

Torch

A magnetic torch is provided on the right-
hand side of the boot.
Remove the torch from its base by
pressing the button then pivoting the torch
downwards by 90 degrees.
to switch on the torch, slide the switch
forwards.
to change the 4 batteries (NiMH type),
remove the protective cover, located on the
torch.
to put the torch back in place, engage it in the
notches on the base and pivot it upwards.
the torch's batteries recharge automatically
while driving.
A boot lamp is installed in the centre of the
torch base (refer to the "Interior lighting"
section).

Practical information

Bipper_en_Chap04_ergonomie_ed02-2014

INTERIOR LIGHTING

Front courtesy lamp

this is located in the centre of the roof.
It is switched on by:
- tilting the lens,

- opening or closing a door,

- locking or unlocking the vehicle.

It switches off automatically, after a few
minutes, if the doors remain open, or when
the ignition is switched on.
the courtesy lamp unit may be fitted with an
alarm sensor, a microphone for the hands-
free kit and reading lamps.
the reading lamps have right-hand and
left-hand switches.

Rear courtesy lamp

this is located on the upper part of the rear
right side.
Press the side of the courtesy lamp lens to
switch it on or off.
It comes on automatically when a door is
opened (Combi).
It comes on automatically when opening
a sliding side door or the side-hinged rear
doors (light vans).

Good practice

It switches off automatically:
- if the switch is not pressed down,
- in all cases within approximately

15 minutes if the doors remain open,

-  on closing the doors, after a timed period,
-  when the ignition is switched on,
-  when locking.

Boot lamp

this is located in the centre of the torch
base.
the lamp operates in accordance with the
three positions of the switch below.

Permanently on.

In this "AUTO" position, it comes
on gradually when the vehicle is
unlocked and when a rear door or
the tailgate is opened.

It switches off automatically, after a few
minutes, if a rear door or the tailgate
remains open, or when the ignition is
switched on.

Permanently off.

When closing the doors, the time
before the front and rear courtesy

lamps go out may not be same.

TECHNOLOGY

on BOARD

Trip computer

Bipper_en_Chap05_technologie_ed02-2014

TRIP COMPUTER

If tRIP B is activated in the vehicle
configuration menu:
- trip B,

- Average fuel consumption B,

- Average speed B,

- trip duration B.

Zero reset
Press the TRIP button for more than two
seconds to reset the displayed data to zero.

using the TRIP button, located at the end of
the wiper stalk, you can display the following
information in succession:
- Ambient temperature,

- Range,

- trip A,

- Average fuel consumption A,

- Current fuel consumption A,

- Average speed A,

- trip duration A.

Press the SET / Back button for more than
two seconds to return to the home screen.

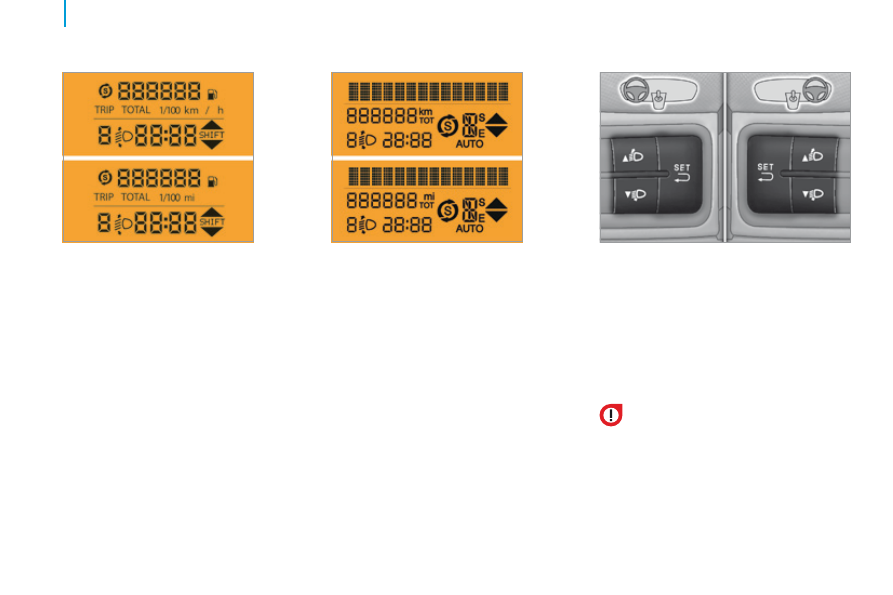

Vehicle configuration

Bipper_en_Chap05_technologie_ed02-2014

Level 1 screen

- Speed (speed beep).

- time (Setting the time).

- Buzz (Volume for announcements).

- unit (units of measurement).

- Bag p (Passenger's airbag).

Refer to the corresponding line of the
configuration - personalisation table on the
following pages.

CONFIGURATION /
PERSONALISATION OF THE VEHICLE

Level 2 screen

Refer to the corresponding line of the
configuration - personalisation table on the
following pages.

Control panel

the side control panel located beside the
steering wheel provides access to screen
menus allowing personalisation of some of
your systems.
eight languages are available: Italian,
english, german, French, Spanish,
Portuguese, Dutch and turkish.

As a safety precaution, the menus can
only be accessed when the ignition is
off (engine off).

TECHNOLOGY

on BOARD

Vehicle configuration

Bipper_en_Chap05_technologie_ed02-2014

Menu...

Press...

Sub-
menu...

Press...

Select...

Confirm
and exit

Enables you to...

1 Speed beep

Increase

Activate/Deactivate the audible
signal indicating exceeding of the
programmed speed.
Modify the speed setting.

Decrease

OFF

2 Activate trip B

Activate

Display a second trip,
"trip B".

OFF

Deactivate

3 Set

time

Hours

Increase

Adjust the clock

Decrease

Format

24 h

Select the display mode for the
clock.

12 h

4 Set date

Year /
Month / Day

Increase

Adjust the date.

Decrease

This button enables
you to:
- access the menus and

sub-menus,

This button enables you to:
- scroll up through a menu,

- increase a value.

This button enables you to:
- scroll down through a menu,

- decrease a value.

- confirm your selections within a menu,

- exit from the menus.

A long press enables you to return to the
home screen.

Vehicle configuration

Bipper_en_Chap05_technologie_ed02-2014

Menu...

Press...

Sub-menu...

Press...

Select...

Confirm
and exit

Enables you to...

5 See radio

Display the name of the station.
Display the CD track
number.

OFF

6 Autoclose

While moving

Activate/Deactivate the
automatic locking of the doors
above 12 mph (20 km/h)

OFF

7 Measurement unit

Distances

Select the distance display
unit.

Mi(les)

temperature

°C

Select the temperature display
unit.

°F

Consumption

km/l

Select the fuel consumption
display unit.

l/100 km

8 language

list of
languages
available

Select the display language.

9 Volume of

announcements

Increase

Increase/Decrease the volume
of the signals and warnings
(the change is immediate when
the button is pressed).

Decrease

10 Button

volume

Increase

Increase/Decrease the volume
for the buttons.

Decrease

TECHNOLOGY

on BOARD

Vehicle configuration

Bipper_en_Chap05_technologie_ed02-2014

Menu...

Press...

Sub-menu...

Press...

Select...

Confirm
and exit

Enables you to...

11 Service

(Km/Miles before
oil change)

Display the miles/kilometres
remaining before the next oil
change.

Display the engine
oil level.

12 Bag p

Yes

Activate the passenger's front
airbag.

OFF

Yes

Deactivate the passenger's
front airbag.

13 exit from menu

Quit the menu.
Press the arrow at the bottom
to go to the first menu.

Parking sensors

Bipper_en_Chap05_technologie_ed02-2014

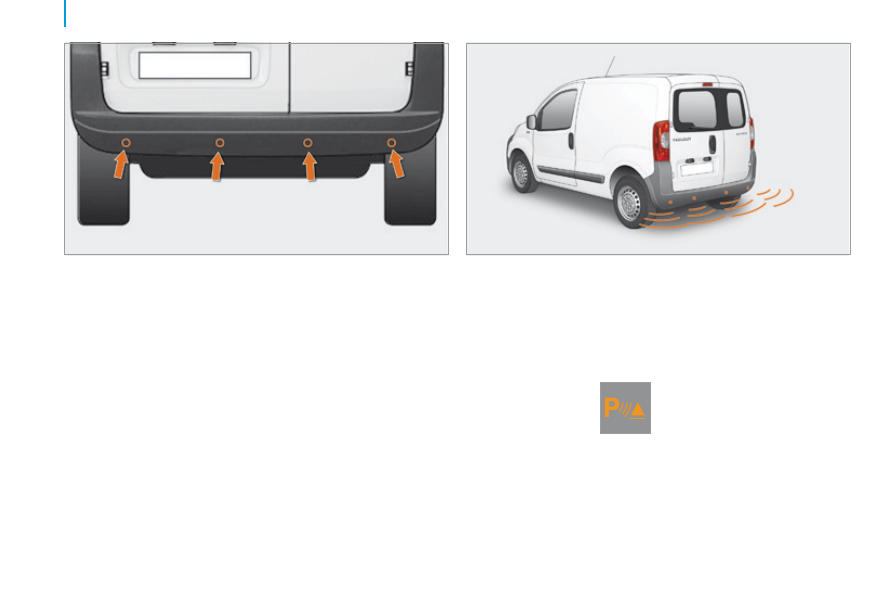

REAR PARKING SENSORS

the audible system consists of four
proximity sensors, fitted in the rear bumper.
It detects any obstacle which comes within
range: person, vehicle, tree, fence, behind
the vehicle during the manoeuvre.
However, it will not be able to detect
obstacles located immediately below the
bumper.
An object, such as a stake, a roadworks
cone or any other similar object may be
detected at the beginning of the manoeuvre
but may no longer be detected when the
vehicle moves close to it.
this system does not take the place of
vigilance on the part of the driver.

Ending operation

Come out of reverse gear and into neutral.

Operating fault

If this warning lamp or the service
warning lamp comes on in the instrument
panel, accompanied by a message in the
screen, contact a PeugeOt dealer or a
qualified workshop.

Good practice

In bad weather or in winter, ensure that the
sensors are not covered with mud, ice or
snow.

Operation

engage reverse gear with the gear lever.
the proximity information is indicated by an
audible signal which becomes more frequent
as the vehicle approaches the obstacle.
When the distance between the rear of
the vehicle and the obstacle is less than
approximately thirty centimetres, the audible
signal becomes continuous.
this function will be deactivated
automatically if a trailer is being towed.
You are advised to obtain a towbar
recommended by PeugeOt and have it
installed by a qualified workshop.

TECHNOLOGY

on BOARD

Audio equipment

Bipper_en_Chap05_technologie_ed02-2014

Volume Increase/
Decrease.

On.

Off.

Mute On/Off.

Selection of the CD/CD MP3 source.
use the left/right arrows to select the
previous/next track.

use the left/right arrows to fast forward/
backward playing of the current track.

In CD MP3 mode: use the up/down arrows
to change folder.

Setting the audio options: bass, treble, fader (front/rear), balance
(left/right), loudness, eQ Preset (equaliser).
use the up/down arrows to select the option.
use the left/right arrows to increase or decrease the value of the option
or change the equaliser.

Access to the menu.
use the up/down arrows to
select one of the following
functions:
●  AF switching.
●  Traffic info.
●  Regional mode.
●  MP3 display.
●  Speed volume.
●  External audio vol.
●  Radio off.
●  Restore default.
use the left/right arrows to
change the setting of the
function selected.

CD eject.

Selection of the FM waveband.

Automatic storing of stations
(autostore AS).

Selection of the AM waveband.
use the left/right arrows for an automatic station search.
use the up/down arrows for a manual station search.

1/2/3/4/5/6: selection of the stored station.

Storing a station.

Control panel

FIRST STEPS

Requires a
long press.

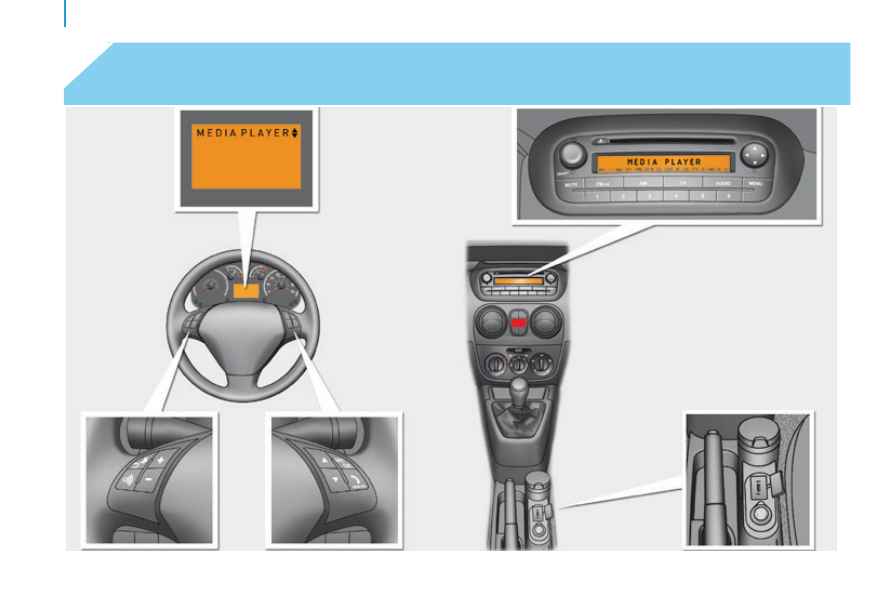

Audio equipment

Bipper_en_Chap05_technologie_ed02-2014

FIRST STEPS

Steering
mounted
controls

Increase volume.

Mute On / Off.

Bluetooth hands-free system*.

Reduce volume.

RADIO: select the next preset station
down.
CD: select the previous track.
CD MP3: select the previous folder.

Change audio source: RADIO /
CD / CD MP3.
Select waveband: FM1 / FM2 /
FMt / MW / lW.

Bluetooth hands-free system*.

RADIO: select the next preset station up.
CD: select the next track
CD MP3: select the next folder.

* For more information on the using the Bluetooth hands-free system,

refer to the corresponding section.

TECHNOLOGY

on BOARD

Audio equipment

Bipper_en_Chap05_technologie_ed02-2014

"AUDIO FUNCTIONS" MENU

RDS "AF Switching"

the RDS (Radio Data System) enables you
to continue listening to the same station,
regardless of the frequency that it uses in
your current location. the audio equipment
continuously searches for the transmitter
which offers the best reception for the
station.
Press the "3" or "4" button to activate (ON)
or deactivate (OFF) the RDS.
On the FM waveband, "AF" appears on
the display if the RDS is activated and the
station is broadcasting with the RDS.

"Traffic Info"

All traffic information announcements will be
given priority regardless of which source is
currently playing.
the eON (enhanced Other Networks) system
links stations which belong to the same network.
It allows you to receive traffic information
transmitted by a station which belongs to the
same network as the station to which you
are listening.

"Regional Mode"

Some stations, organised in a network,
broadcast regional programmes in the
various areas which they serve. the regional
mode allows you to choose to continue
listening to the same programme.
Press the "3" or "4" button to activate (ON)
or deactivate (OFF) the Reg function.
On the FM waveband, "lOC" appears on the
display if the Reg function is activated and
the station finds a local frequency.

"MP3 Display"

Press the "3" or "4" button to display the
track number or the MP3 CD information
(Artist/Album/Folder/File/title/time elapsed).

Automatic volume control
"Speed Volume"

Press the "3" or "4" button to minimise
(lOW), maximise (HIgH) or deactivate
(OFF) the automatic control of the volume in
relation to the vehicle speed.

The volume of the traffic information is
independent of the volume of the other sources.
You can adjust it using the volume button during
traffic announcements; this setting will be stored
for the next announcement.
Press the "3" or "4" button to activate (ON) or
deactivate (OFF) the tA function.
On the FM waveband, "tA" appears on the
display if the tA function is activated and
"TPM" appears if the station broadcasts traffic
information.

"External Audio Vol"

Press the "3" or "4" button to decrease
(down to 0 minimum), increase (up to
40 maximum) or deactivate (OFF) the
volume of the external source (e.g.: hands-
free kit).

Programmed switching off "Radio Off"

Press the "3" or "4" button to programme
the switch-off time of "00 MIN" or "20 MIN".
this countdown is taken into account with
the doors closed and the key in the STOP
position.

"Restore Default"

Press the "3" or "4" button to retain the
modified values (NO) or restore the default
values (YeS).
"Restoring" appears on the display during
the resetting of the configuration values.

"MP3" appears on the display if the function
is activated and the CD contains tracks in
the MP3 format.

Press the MENU button
on the audio equipment to
gain access to the "Audio
functions" menu.
Press the "5" or "6" button to
select one of the configurable
audio functions below.

Audio equipment

Bipper_en_Chap05_technologie_ed02-2014

PLAYING A CD OR AN MP3 COMPILATION

Insert circular compact discs only.
Some anti-pirating systems, on original
discs or CDs copied using a personal

recorder, may cause faults which are no reflection on the
quality of the original player.

Insert a CD or an MP3 compilation in
the player, play begins automatically.
If the player already contains a disc,
press the CD button.

Press one of the buttons to select a
track on the CD.

the MP3 format, an abbreviation of MPeg 1.2 & 2.5 Audio
layer 3, is an audio compression standard which permits the
recording of several tens of music files on a single disc.

MP3

In order to be able to play a recorded CDR or CDRW, when
recording it is preferable to select standards ISO 9660
level 1.2 or Joliet.
If the disc is recorded in another format, it may not be played
correctly.

It is recommended that the same recording standard is
always used for an individual disc, with as low a speed as
possible (4x maximum) for optimum sound quality.
In the particular case of a multi-session CD, the Joliet
standard is recommended.

the audio equipment will only play files with the extension
".mp3" with a sampling rate of 22.05 KHz or 44.1 KHz. No
other type of file (.wma, .mp4, m3u...) can be played.

It is advisable to restrict file names to 20 characters without
using special characters (e.g.: () " " ? ; , space ) to avoid any
playing or displaying problems.

TECHNOLOGY

on BOARD

Bluetooth hands-free system

Bipper_en_Chap05_technologie_ed02-2014

INTRODUCTION

this system allows you to:
- send and receive calls via the Bluetooth

connection with your mobile telephone,

- display the names of your contacts and numbers from the directory of your mobile phone in the instrument panel screen,

- use voice commands to make a call and manage your contacts while keeping both hands on the steering wheel,

- hear your text messages via the voice synthesiser built into the system,

- listen to MP3, WMA, AAC, M4A, MP4 and WAV audio files from a uSB storage device,

- display information on the track being played in the radio screen (title, artist, etc…),

- control vocally a portable music player (iPod

type),

- recharge your portable music player (iPod

type) via the uSB port.

BLUETOOTH HANDS-FREE SYSTEM

KEY

Indicates that a long press is required to start the action described.

Voice mode

Speak the designated voice command clearly and distinctly.

Requires a press on the steering mounted "voice" control before speaking the desired voice command.

Bluetooth hands-free system

Bipper_en_Chap05_technologie_ed02-2014

PRESENTATION

Display, USB port, controls

Content .. 4 5 6 7 ..
