Peugeot 1007 (2008 year). Instruction

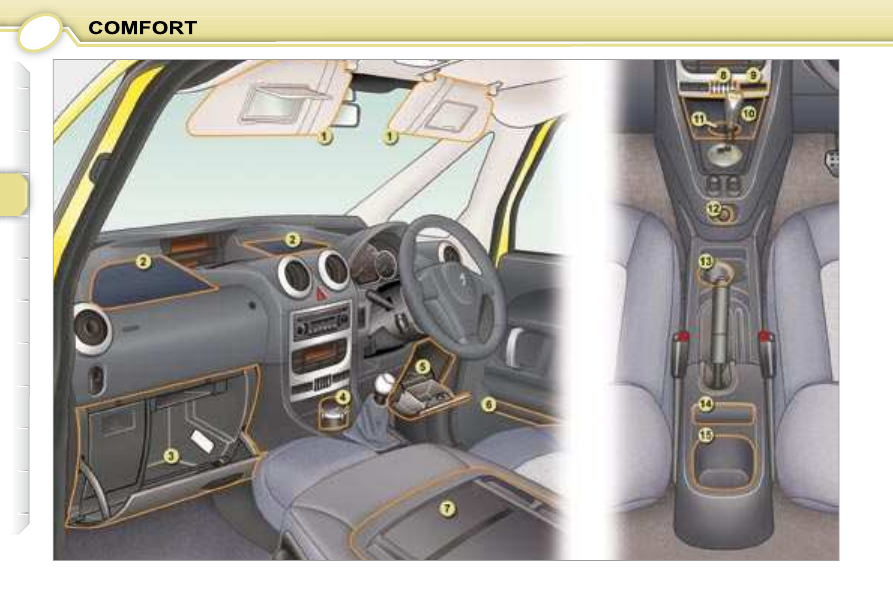

FRONT INTERIOR LAYOUT

  5. Storage compartment
To open, raise the handle.
This  contains  the  passenger  air  bag
disarming switch.
This  permits  the  storage  of  small
objects.

CHILD MONITORING MIRROR

This mirror enables the driver or
front passenger to observe all the
rear seats.
Fitted on its own ball joint, it provides
a panoramic view of the rear interior
of the vehicle.

AREAS FOR TOLL CARDS/
CAR PARK TICKETS

With colour screen DT only.

1. Sun visor
Each sun visor has a courtesy mirror
with concealer and a ticket holder.

2. Storage trays on the fascia

  3. Glove box
To open the glove box, lift the handle.
The  glove  box  lights  when  the  lid  is
opened.
The  lid  has  two  opening  positions,
intermediate and full.
It  contains  a  ventilation  nozzle  that
can be closed, distributing the same
conditioned  air  as  the  vents  of  the
passenger  compartment,  and  three
sockets  *  for connecting audio/video
equipment  (refer  to  the  "Audio  and
Telematics"  section  for  activation  of
the auxiliary input sockets).
The  layout  allows  storage  of  a  pen,
the  vehicle  handbook,  a  pair  of
spectacles, maps, etc.
It  provides  access  to  the  fascia
fuse box.

4. Enclosed storage

compartment/Movable ashtray

This can be placed in the positions
marked 11 , 13 and 15 .

6. Door storage trays
Before opening the door, ensure that

there are no objects protruding from
the tray.

  7. Writing table
When  the  front  passenger  seat  is
placed in the table position, you have
a  table  with  two  pieces  of  elastic  to
retain A4  format  documents,  as  well
as pen holders.

8. Coin storage

9. Card holder

10. Storage compartment/Buttons

and navigator
(Screen C without Audio RD4)

11. Can holder

12. Lighter/12 volt accessories

socket (100 W max.)

This is supplied with current from the
running position.

13. Can holder

14. Mobile storage

The athermic windscreen has a non-

reﬂ ective zone located above the

base of the interior mirror.
It is intended for afﬁ xing toll cards

and/or car park tickets.

15. Bottle storage

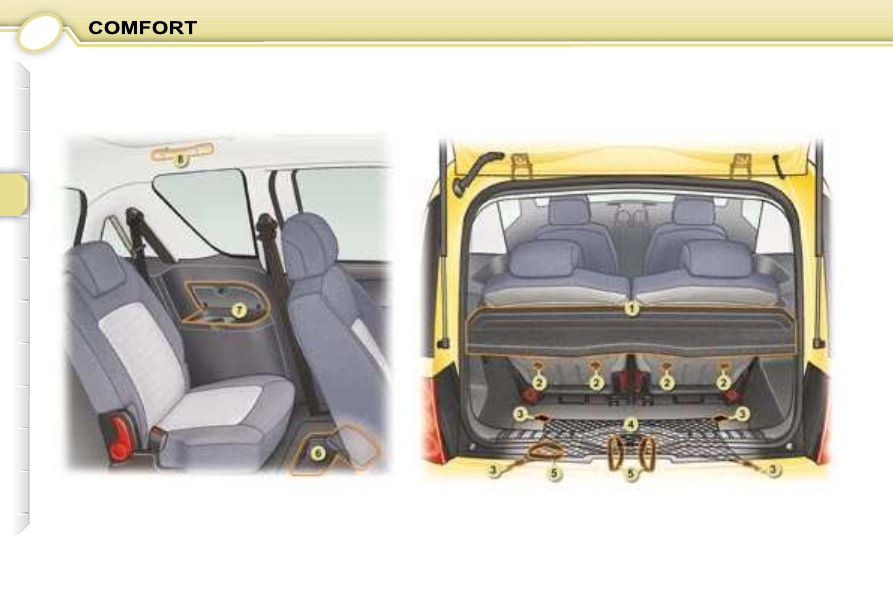

REAR INTERIOR LAYOUT

  5. Retaining straps
These  secure  the  warning  triangle,
the tool kit, oil cans...

1. Rear parcel shelf
To remove the shelf:
-

tilt and slightly raise the shelf,

pull upwards on each side to
detach it from its fasteners.

There are several options for storing
the shelf:
-

either behind the rear seats,

or ﬂ at in the boot.

2. Retaining hooks

3. Stowing rings

  4. Luggage retaining net
Hooked  onto  the  stowing  rings,  this
enables your luggage to be secured.

6. Storage trays in the ﬂ oor
The right storage tray houses the

subwoofer of the JBL audio system.

  7. Armrests/Side storage trays
These  have  recesses  for  storing  a
can and a bottle.

8. Grab handles with coat hook

THE REMOTE CONTROL KEY

The  remote  control  permits  locking,
deadlocking,  unlocking  and   locating
of  the  vehicle,  as  well  as  folding  and
unfolding of the exterior mirrors. It does
not work when the ignition is on.
The  key  permits  mechanical  and

independent operation of the fuel ﬁ ller

cap and passenger air bag  disarming
switch as well as switching on of the
ignition.
From  the  driver’s  door,  the  key
permits  electrical  control  of  the
locking,  deadlocking  and  unlocking
of the  vehicle, as well as folding and
unfolding of the exterior mirrors.
If  one  of  the  doors  or  the  tailgate
is  open,  the  central  locking  does
not work.

Using the key
Turn the key in the lock on the driver’s
door to lock the vehicle.
Normal locking is conﬁ rmed by ﬁ xed

lighting of the direction indicators for
approximately two seconds.
The exterior mirrors fold at the
same time.

Using the key
Turn the key in the lock on the driver’s
door to unlock the vehicle.
Unlocking is conﬁ rmed by rapid

ﬂ a-shing of the direction indicators

for approximately two seconds.
The exterior mirrors unfold at the
same time.

Folding/Unfolding the key

To  fold  the  key,  press  button   A   then
fold  the  key  into  the  casing  of  the
remote control.
To unfold the key, press button  A .

Unlocking

Normal locking

When the vehicle is locked, if

unlocking is activated inadver-

tently, without the doors being
opened within 30 seconds, the

vehicle will lock  automatically.
The  folding  and  unfolding  of  the
exterior  mirrors  can  be  deactivated
by a  PEUGEOT  dealer.
The  remote  control  does  not  work
when the ignition is on.

  Using the remote control
  Press button   B  to lock the vehicle.
  Pressing  button  B  for  more  than
2 seconds  permits automatic    closing
of the windows and sunroof in  addition
to locking.
Each  action  is  conﬁ rmed  by  ﬁ xed

lighting of the direction indicators for
approximately two seconds.
The exterior mirrors fold at the
same time.

Using the remote control
Press button C to unlock the vehicle.
This is conﬁ rmed by rapid ﬂ ashing of

the direction indicators.
The exterior mirrors unfold at the
same time.

Deadlocking

Deadlocking renders the internal and
external door controls inoperative.
It also deactivates the internal central
locking button.

  Using the remote control
  Pressing button B  locks the    vehicle
or pressing  button  B  for  more
than  2  seconds     permits    automatic

clo-sing of the windows and sunroof

in addition to locking.
A second press

within ﬁ ve seconds

deadlocks the vehicle.
Each action is conﬁ rmed by ﬁ xed

lighting of the direction indicators for
approximately two seconds.

Opening/Closing the
"Sesame" doors

  Pressing  button    D   or   E   opens  or
closes the left or right door.
This press unlocks the vehicle before
opening the corresponding door.
  A second press  stops the  movement
of the corresponding door.
  A third press  reverses the  movement
of the corresponding door.

Using the key
Turn the key in the lock on the driver’s
door to lock the vehicle.
Within the next ﬁ ve seconds, turn the

key again to deadlock the vehicle.
Each action is conﬁ rmed by ﬁ xed

lighting of the direction indicators for
approximately two seconds.

Key in ignition

A buzzer sounds on opening the  driver’s
door,  if  the  key  has  been  left  in  the
ignition.

   Locating your vehicle
To  locate  your  vehicle,  if  you  have
locked it, in a car park:
      press button  B , the courtesy

lights come on and the direction

indicators ﬂ ash for a few

seconds.

If the deadlocking is opera-

ted from inside the vehicle, it
will change to normal locking
when the vehicle is started.

When closing the windows and

sunroof using the remote con-

trol, the user must ensure that
no one is preventing correct

closing of the windows and sunroof.
Never leave anyone inside the
vehicle when it is deadlocked.

ELECTRONIC ENGINE
IMMOBILISER

This locks the engine control system
a few moments after the ignition has

been switched off and therefore pre-

vents starting of the vehicle by any-

one who does not have the key.
The  ignition  key  has  an  electronic
chip which has a special code. When
the ignition is switched on, the code is
recognised and starting is possible.
  If  the  system  does  not  function
correctly,   the  service  warning  light
comes  on,  accompanied  by  an
audible signal and a message on the
multifunction display.
In  this  case,  your  vehicle  will  not
start. Contact a  PEUGEOT  dealer as
soon as possible.
  Lost keys
Visit  a   PEUGEOT   dealer  with  the

vehicle’s V5 registration certiﬁ cate

and your personal identiﬁ cation docu-

ments.
A PEUGEOT dealer will be able to

retrieve the key code and the trans-

ponder code required to order a
replacement key.

Programming the remote
control

Following  changing  of  the  remote
control  battery  or  disconnection  of
the vehicle battery, the remote  control
must be reprogrammed.
      Wait at least one minute before

using the remote control.

 Switch on the ignition.
 Press button B or C for at least

ﬁ ve seconds within the next ten

seconds.

 Switch off the ignition.
 Wait at least one minute before

using the remote control.

The remote control is now working
again.

Changing the remote control
battery

Battery ref.: CR1620/3 volts.
The information "battery ﬂ at" is given

by displaying of the service warning
light, accompanied by an audible

signal and a message on the multi-

function display.
To  replace  the  battery,  unclip  the
casing using a coin at the notch.
If  the  remote  control  does  not  work
after  the  battery  has  been  changed,

re-programme the remote control.

  Make  a  careful  note  of  the
number  on  each  key.  The
key number is coded on the
label attached to the key.

    If  the  keys  are  lost,  a   PEUGEOT
dealer can rapidly supply you with
new keys.
  The  high  frequency  remote  con-
trol  is  a  sensitive  system;  do  not
operate it while it is in your pocket
as there is a possibility that it may
unlock  your  vehicle,  without  you
being aware of it.
  The remote control does not ope-
rate when the key is in the ignition,
even when the ignition is switched
off, except for reprogramming.
  Do  not  operate  the  deadlocking
function  if  there  is  anyone  inside
the vehicle.
  Driving with the doors locked may
make  access  to  the  passenger
compartment  by  the  emergency

services more difﬁ cult in an emer-

gency.
  As  a  safety  precaution  (with  chil-
dren on board), remove the ignition
key  when  you  leave  the  vehicle,
even for a short time.
  Do not repeatedly press the button
of your remote control out of range
and  out  of  sight  of  your  vehicle.
You run the risk of stopping it from
working  and  the  remote  control
would have to be reprogrammed.

    When  purchasing  a  second-hand
vehicle, have the key codes memo-
rised by a  PEUGEOT  dealer to en-
sure that the keys in your posses-
sion  are  the  only  ones  which  can
start the vehicle.

       Do  not  throw  the  remote
control  batteries  away,  they
contain  metals  which  are
harmful to the environment.

Take them to an approved collection
point.

Do not make any modiﬁ cations to

the electronic engine immobiliser
system.

ELECTRONIC ENGINE
IMMOBILISER

This locks the engine control system
a few moments after the ignition has

been switched off and therefore pre-

vents starting of the vehicle by any-

vehicle’s V5 registration certiﬁ cate

and your personal identiﬁ cation docu-

ments.
A PEUGEOT dealer will be able to

retrieve the key code and the trans-

ponder code required to order a
replacement key.

Programming the remote
control

Following  changing  of  the  remote
control  battery  or  disconnection  of
the vehicle battery, the remote  control
must be reprogrammed.
      Wait at least one minute before

using the remote control.

 Switch on the ignition.
 Press button B or C for at least

ﬁ ve seconds within the next ten

seconds.

 Switch off the ignition.
 Wait at least one minute before

using the remote control.

The remote control is now working
again.

Changing the remote control
battery

Battery ref.: CR1620/3 volts.
The information "battery ﬂ at" is given

by displaying of the service warning
light, accompanied by an audible

signal and a message on the multi-

function display.
To  replace  the  battery,  unclip  the
casing using a coin at the notch.
If  the  remote  control  does  not  work
after  the  battery  has  been  changed,

re-programme the remote control.

  Make  a  careful  note  of  the
number  on  each  key.  The
key number is coded on the
label attached to the key.

services more difﬁ cult in an emer-

    When  purchasing  a  second-hand
vehicle, have the key codes memo-
rised by a  PEUGEOT  dealer to en-
sure that the keys in your posses-
sion  are  the  only  ones  which  can
start the vehicle.

       Do  not  throw  the  remote
control  batteries  away,  they
contain  metals  which  are
harmful to the environment.

Take them to an approved collection
point.

Do not make any modiﬁ cations to

the electronic engine immobiliser
system.

ALARM

The alarm offers two types of
protection.
-

external ; the alarm sounds if

one of the doors, the bonnet
or the tailgate is opened ,

internal ; the alarm sounds

if  there  is  air  movement  in
the  passenger  compartment
(a  broken  window  or  movement
within the car).

The alarm also has an anti-tamper

function.
If there is an attempt to tamper with
the following equipment:
-

the wires to the siren or the

control unit, the siren sounds

accompanied by ﬂ ashing of the

direction indicators.

the battery, the siren sounds.

Complete setting and
disarming of the alarm

  Complete disarming of the alarm
Press  the  unlocking  button  on  the
remote control.
The  direction  indicators  ﬂ ash  for

two seconds.
The  red  indicator  light  on  the  switch
1  goes out.
  Note:  if the indicator light continues to

ﬂ ash after de-activation of the alarm,

it is a sign that the alarm has been
triggered during your absence. The

ﬂ ashing will stop when the ignition is

switched on.

When  the  alarm  is  set,
if  a  door,  the  tailgate  or
the   bonnet  is  not  closed
correctly,  the  siren  sounds

for a  moment. If the vehicle is closed
correctly in the following 45 seconds,
the  alarm  is  set.  In  all  cases,  the
alarm is set after 45 seconds.

Automatic setting

The

alarm

set

automatically

2  minutes  after  the  last  door  or  the
boot is closed.
To prevent the alarm being triggered
when  a  door  or  the  boot  is  opened,
the  remote  control  unlocking  button
must be pressed again.

Locking the vehicle without
alarm

To lock the vehicle without activating
the alarm (for example when washing),
insert the key in the lock, then lock it.

  Complete setting of the alarm
  Switch off the ignition and get out
of the vehicle.
Lock or deadlock the vehicle.
The  direction  indicators  light  for
two seconds.
The red indicator light on the switch  1

ﬂ ashes once a second.
5 seconds later, external protection
is set.
45 seconds later, internal protection
is set.

  Note:   when  the  alarm  is  triggered,
the  siren  sounds  for  thirty  seconds.
However,  after  the  siren  stops,  the
alarm remains set.

Selection of the type of
protection

Remote control failure

Unlock the doors using the key.
Open the door.
The alarm is triggered.
Switch on the ignition.
The  electronic  engine  immobiliser
system recognises the key.
The  siren  stops  and  the  alarm  is
disarmed.

Do not make any modi-

ﬁ cations to the alarm

system, this could result in
malfunctions.

To de-activate external protection
only
Press the unlocking button on the
remote control.
The direction indicators ﬂ ash for two

seconds.
The red indicator light on the switch
1 goes out.

Work on the battery

The alarm must not be set when the
battery is disconnected. Otherwise,
the siren will sound.
After reconnecting the battery:
-

lock or deadlock, then unlock

the vehicle using the remote
control,

the alarm will be operational

again the next time the vehicle
is locked or deadlocked.

  To set the alarm to external
protection only
If you want to leave a window  partially
open, or a pet inside the vehicle, you
need  to  select  external  protection
only:
   -

switch off the ignition,

within the next ten seconds,

press the control button 1 until
the warning light comes on
continuously,

get out of the vehicle,

lock or deadlock the vehicle,

the direction indicators light for

two seconds,

the red indicator light on the

switch 1

ﬂ ashes once a second.

ELECTRIC WINDOWS

1. Driver’s electric window

switch.

2. Passenger electric window

switch.

One-touch electric window
with safety auto-reverse

You have two options:

   -    Manual mode:
Press or pull switch  1  gently.
The  window  stops  as  soon
as the switch is released.

Automatic mode:

Press or pull switch 1

fully. The win-

dow opens or closes completely
when the switch is released.
Pressing the switch again stops the
movement of the window.

Note: the electrical functions of

the one-touch electric windows are

deactivated approximately one minute
after the ignition is switched off.

Safety auto-reverse
In automatic mode, when the window
rises and meets an obstacle, it stops
and partially lowers again.

In  the  case  of  unwanted
opening  of  the  window  on
closing  or  if  the  window  will
not  rise,  lower  it   completely

and raise it again immediately, by

pulling the switch until the win-

dow  closes  completely.  Continue  to
press  the  switch  for  approximately
one second after closing.
  The safety auto-reverse function is not
operational during these operations.

You can close all of the
windows using the remote
control

when

locking

(refer to the section "Access -

§ Remote control key").

The electric window switches are not
active  when  the  door  concerned  is
open.
The  movement  of  a  window  stops  if
the door is opened. A second  action
on  the  electric  window  switch  will
only be taken into account when the
door is closed.

Always remove the key from
the ignition when leaving
the vehicle, even for a short
time.

In the event of contact when opera-

ting the windows, you must reverse
the movement of the window. To do
this, press the switch concerned.
When

the

driver

operates

the

passenger window switches, he must
ensure that no one is preventing
correct closing of the window.
The

driver

must

ensure

that

passengers use the electric windows
correctly.
Be aware of children when operating
the windows.

"SESAME" DOORS

The  exterior  and  interior  handles
only  permit  triggering  of  the  electric
movement of the door when it is fully
closed or fully open.
Opening  and  closing  of  the  doors  is
accompanied by an audible signal.

Closing from outside
Give a ﬁ rm, fast push forwards on the

handle,  without  guiding  the  door,  to
trigger  the  electric  movement  of  the
door.

  Opening from outside
Using  your  hand,  tilt  the  handle
towards  the  rear  of  the  vehicle  and
remove  your  hand  from  the  handle
when  the  electric  movement  of  the
door begins.

  Locking/Unlocking from inside
Press button  A , the red warning light
comes on when the vehicle is locked
and switches off when it is unlocked.
This locks/unlocks the doors and the
tailgate.
If  the  vehicle  is  locked  or  dead-

locked from outside, the red warning

light ﬂ ashes and button A does not

function. In this case, use the key or
the remote control for unlocking.

Opening/Closing from inside
The opening and closing operates in
the same way as from outside.
None of the door opening switches

function when the vehicle is dead-

locked.

To open using the interior
handle: tilt the handle, with

the palm of your hand to-

wards the door.

  Automatic central locking
The  doors  can  lock  automatically
when  you  are  driving  (at  a  speed  of
more than 6 mph (10 km/h).
You  can  activate  or  deactivate  this
function.

Driving with the doors locked
may make access to the
passenger compartment by
the emergency services more

difﬁ cult in an emergency.

  Activation
With  the  ignition  on,  press  and  hold
button  A .
Activation  of  the  function  is  accom-

panied by an audible signal and a
message on the multifunction display.

  Deactivation
With  the  ignition  on,  press  and  hold
button  A .
Deactivation

the

function

accompanied  by  an  audible  signal
and  a  message  on  the  multifunction
display.

"Door open" alert

when the vehicle is moving,

by  lighting  of  the  "door  open"
warning  light,  accompanied  by
an audible signal and a message
on the multifunction display for a
few seconds.

  Opening/Closing using the
remote control
Press button  C  or  D  to open or close
the left or right door.
The  opening  and  closing  of  the
door  is  accompanied  by  an  audible
signal.
2nd  press  on  button   C   or   D   during
opening/closing    interruption of the
movement.
3rd press on button  C  or  D    

move-

ment of the door in the opposite
direction.

You are advised to use the

remote control or the con-

trols as much as possible.

  Opening/Closing from the front
Press  switch   B   to  open  or  close  the
corresponding door.
Choosing the movement of the door
using the controls:
   -

pull  opens the door,

push  closes,

second press  stops the

movement,

the controls do not function

above 3 mph (5 km/h).

If a door or the boot is not
closed properly, you are
warned:

when the engine is running,

by lighting of the "door open"
warning light, accompanied by
a message on the multifunction
display for a few seconds.

General
recommendations

Always check that it is safe to operate
the door and be sure, in particular, not
to leave children or animals near the
door controls without supervision.
When opening the door, with the win-

dow  open,  ensure  that  no  person,
animal  or  object  is  hanging  through
the window.
Before  any  opening  or  closing  and
during  any  movement  of  the  doors,
ensure  that  no  person,  animal  or
object  is  preventing  the  required
manoeuvre,  either  inside  or  outside
the vehicle.
It  is  imperative  that  the  doors  are

ope-rated only when the vehicle is

stationary.
For your safety and for that of your

passengers, as well as for correct ope-

ration  of  the  doors,  you  are  strongly
advised not to drive with a door open.
The  audible  warning,  the  lighting  of
the "door open" warning light and the
message on the multifunction display
are there to remind you.
Lock  your  vehicle  when  using  an
automatic carwash.

The doors and the overall
dimensions of the vehicle

Safety/Obstacle detection

The  obstacle  detection  system  is
triggered  when  an  obstacle  of  a
certain  physical  resistance  hinders
the movement of the door.
       If  an  obstacle  is  detected  while

the door is closing, the door
stops then opens fully.

If an obstacle is detected while

the  door  is  opening,  the  door
stops. When you have removed
the obstacle, complete or restart
the  action  using  buttons   C   or
D   on  the  remote  control  or  the
controls  B .

When open, a door never protrudes
beyond the rear bumper.

When open, a door exceeds the
width of the exterior mirror by 8 mm,
be sure to take this into account when
you park alongside a wall, a post or
a high kerb...

Peugeot 1007 (2008 year). Instruction - part 5
