225

Technical data

* The kerb weight is equal to the unladen weight + driver (75 kg).
** The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an equal amount; warning,

towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.

WEIGHTS AND TOWED LOADS (in kg)

Diesel engine

2.2 litre Turbo HDi

200 hp

Gearbox

Automatic

(6-speed)

Model codes

8D4HLA

8E4HLA

Outline

Saloon

Unladen weight

1 540

1 660

Kerb weight *

1 615

1 735

Gross vehicle weight (GVW)

2 155

2 280

Gross train weight (GTW)

on a 12% gradient

3 755

3 880

Braked trailer (within GTW limit)

on a 10 % or 12 % gradient

1 700

1 600

Braked trailer **
(with load transfer with the GTW limit)

1 875

1 900

Unbraked trailer

750

Recommended nose weight

226

Technical data

Saloon

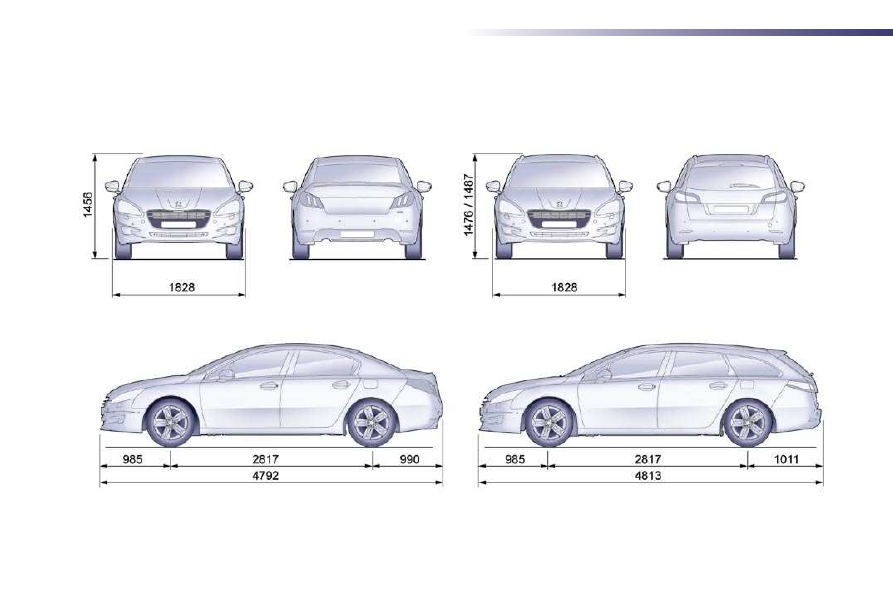

Dimensions (in mm)

227

Technical data

Identiﬁ cation markings

A. Vehicle Identification Number (VIN)

under the bonnet.

This number is engraved on the bodywork
near the damper support.

The inflation pressures must be
checked when the tyres are cold, at
least once a month.

If the inflation pressures are too low,
this increases fuel consumption.

B. Vehicle identification Number (VIN) on

the windscreen lower crossmember.

This number is indicated on a self-
adhesive label which is visible through the
windscreen.

C. Manufacturer's label.

The VIN is indicated on a self-destroying
label affixed to the door aperture, on the
right-hand side.

D. Tyre/paint label.

This label is affixed to the door aperture, on
the driver's side.

It bears the following information:
-

the tyre inflation pressures with and without
load,

the wheel rim and tyre sizes,

the brands of tyre recommended by the
manufacturer,

the inflation pressure of the spare wheel,

the paint colour code.

230

EMERGENCY OR ASSISTANCE CALL

EMERGENCY CALL

In an emergency, press this button for more than
2 seconds. Flashing of the green indicator lamp and a

voice message conﬁ rm that the call has been made to the

PEUGEOT Emergency team * .

Pressing this button again immediately cancels the request. The green
indicator lamp goes off.

ASSISTANCE CALL

When the ignition is switched on, the
green indicator lamp comes on for
3 seconds indicating that the system is
operating correctly.

f the orange indicator lamp ﬂ ashes: there

is a system malfunction.

f the orange indicator lamp ﬂ ashes: there

If the orange indicator lamp is on

continuously: the backup battery must be

replaced.
In both cases, consult a PEUGEOT
dealer.

Pressing this button again immediately cancels the request.
The cancellation is conﬁ rmed by a voice message.

Press this button for more than 2 seconds to request

assistance if the vehicle breaks down.

A voice message conﬁ rms that the call has been made * .

OPERATION OF THE SYSTEM

The green indicator lamp remains on (without ﬂ ashing) when

communication is established. It goes off at the end of communication.

This call is dealt with by the PEUGEOT Emergency team which receives
locating information from the vehicle and can send a detailed alert to the
appropriate emergency services. In countries in which the team is not
operational, or when the locating service has been expressly declined,

the call is dealt with directly by the emergency services (112) without the

vehicle location.

If an impact is detected by the airbag ECU, and independently
of the deployment of any airbags, an emergency call is made
automatically.

* This service is subject to conditions and availability.
Consult a PEUGEOT dealer.

If you purchased your vehicle outside the PEUGEOT dealer network,

we invite you to have a dealer check the conﬁ guration of these services

and, if desired, modiﬁ ed to suit your wishes. In a multi-lingual country,

conﬁ guration is possible in the ofﬁ cial national language of your choice.

231

The system is protected in such a way that it will only
operate in your vehicle. If it is to be installed in another

vehicle, contact a PEUGEOT dealer for conﬁ guration of

the system.

SATELLITE NAVIGATION SYSTEM
MULTIMEDIA BLUETOOTH TELEPHONE
AUDIO SYSTEM

01 First steps - Control panel

For safety reasons, the driver must carry out operations

which require prolonged attention while the vehicle is

stationary.
When the engine is switched off and to prevent

discharging of the battery, the system switches off

following the activation of the energy economy mode.

CONTENTS

02 Steering mounted controls

03 General operation

04 Navigation - Guidance

05 Traffic information

06 Using the telephone

07 Contacts - ADDR BOOK

08 Radio

09 Music media players

10 Audio settings

11 Configuration

12 Screen menu map

232

234

235

237

251

254

262

265

268

274

275

276

Frequently asked questions

279

232

01 FIRST STEPS

CONTROL PANEL

Buttons 2, 3, 4, 5, 6 and 12: selection of the left or right of the screen, when a Menu is displayed in the screen.

233

1. Rotary control:

- Short press engine not running: on/off.

- Short press engine running: mute on/off.
- Rotation: volume adjustment (each source

is independent, including TA messages

and navigation information).

2. Radio source, access to the " FM/AM band "

menu and display the list of stations.

3. Access to the " MEDIA " menu and display the

list of tracks.

4. Access to the " Navigation - guidance " menu

and display the last destinations.

5. Access to the "

Trafﬁ c information " menu

and display the current trafﬁ c alerts.

6. Access to the " Telephone " menu and display

the recent calls list.

7. Access to the "

Conﬁ guration " menu.

Long press: access to the GPS coverage and

the navigation demonstration mode.

8. MODE button:

Selection of the type of permanent display.

9. ESC: abandon the operation in progress, up

one level in the menu

Long press: return to permanent display.

10. CD eject

Continuous press: reinitialisation of the
system.

11. According to context:

Selection of the previous/next line in a list or

menu.

Selection of the previous/next media folder.

Step by step selection of the previous/next

radio frequency.

Selection of the next/previous MP3 folder.

Move up/down in " Move the map " mode.

12. According to context:

Automatic selection of the next lower/higher

radio frequency

Selection of the previous/next CD, MP3 or

media track

Selection of left/right on the screen when a

menu is displayed.

Move left/right in " Move the map " mode.

13. Buttons 1 to 6:

Short press: selection of the stored radio
station.

Long press: store the current radio station.

14. Dial for selection and OK conﬁ rmation

Selection of an item on the screen or in a

list in a menu, then conﬁ rmation with a short

press.

Other than for menus and lists, a short press

displays a contextual menu depending on the

current screen.

Rotation with map displayed: zoom the map
scale in and out.

15. Access to " Audio settings ": musical

ambience, base, treble, loudness,

distribution, left/right balance, front/rear

balance, automatic volume correction.

16. TA (Trafﬁ c Announcement) function On/Off.

17. Display black screen (DARK).
18. Selection of audio source:

CD, USB, AUX, Bluetooth, Radio.

19. Display the list of stations received, the CD/

MP3 tracks or folders.

Long press: manage the sorting of MP3/WMA

ﬁ les/update the list of stations received.

20. Selection of FM and AM wavebands.

21. Display the list of contacts/Access to the

"Directory of contacts" menu.

22. Reject an incoming call or end the call in

progress.

FIRST STEPS

234

02 STEERING MOUNTED CONTROLS

Increase volume.

- Mute/restore sound.

Decrease volume.

Rotation

Radio -automatic selection of

next/previous frequency.

Media: previous/next track.

Press then rotation: access to
6 preset stations.

- Change the audio source.

TEL button:

Accept an incoming call

Call in progress: access to telephone

menu: hang up, secret mode, hands-

free mode.

- TEL button (long press):

Reject an incoming call or end a call

in progress.

When not making a call, access to

the telephone menu (Dial, Contacts,

Calls log, Voice mailbox).

Select the type of permanent
display on the screen.

Radio: display the list of stations.

Media: display the list of tracks.

235

For a detailed global view of the menus available, refer to the

"Screen menu map" section.

For cleaning the screen, the use of a soft, non-abrasive cloth

(spectacles cloth) is recommended, with no additional product.

RADIO/MEDIA

" TELEPHONE "
(If conversation in progress)

SETUP: PARAMETERS
date and time, display parameters, sound.

Changing the audio source:
RADIO: radio broadcasts.
MUSIC

: playing MEDIA.

Press the MODE button several times in succession for access to the following displays:

GENERAL OPERATION

" FULL SCREEN MAP "

" MAP IN WINDOW "

236

A press on the OK dial gives access to

short-cut menus according to the display

on the screen.

RADIO:

Activate/Deactivate TA

Activate/Deactivate RDS

GENERAL OPERATION

DISPLAY ACCORDING TO CONTEXT

MUSIC MEDIA PLAYERS,
CD or USB (according to
media):

Play modes:

Normal

Random

Random on all media

Repetition

TELEPHONE (call in
progress):

Private mode

FULL SCREEN MAP OR IN A
NEW WINDOW:

Stop/Restore guidance

Select destination

Enter an address

Directory

GPS coordinates

Divert route

Move the map

Info. on location

Select as destination

Select as stage

Save this place (contacts)

Quit map mode

Guidance criteria

Put call on hold

DTMF ring tones

Hang up

237

" Navigation - guidance

Navigation - guidance

Navigation - guidance "

To delete the list of recent destinations, select " Guidance
options

" in the navigation menu then select " Delete last

destinations

" and conﬁ rm. Select " Yes

" and conﬁ rm. Select "

" then conﬁ rm.

Deleting just one destination is not possible.

Go from the list to the menu (left/right).

NAVIGATION - GUIDANCE

Access to the "NAVIGATION" menu

Press NAV .

Updates for the mapping

are on CD available from
PEUGEOT dealers.

A long press on the end of the

lighting control stalk repeats

the last navigation message.

238

Press NAV to display the
" Navigation - guidance " menu.

TOWARDS A NEW DESTINATION

NAVIGATION - GUIDANCE

SELECTING A DESTINATION

Select " Select destination " and

conﬁ rm, then select " Enter an address "

and conﬁ rm.

Select the " Country " function then

conﬁ rm.

Select " Town

" function then conﬁ rm to

enter the destination town.

Select the letters in the name of the

town one at a time, conﬁ rming each one

with the dial.

Selection the town from the list offered, then conﬁ rm

A pre-set list (by entering the ﬁ rst few letters) of the towns in the country selected

can be accessed directly by selecting and conﬁ rming List on the screen.

List

Turn the dial and select " OK " then

conﬁ rm.

If possible, enter the " Road " and " N°/X "
information in the same way.

Select " Archive

" to save the address entered in a contact ﬁ le.

The system allows up to 400 contact ﬁ les to be recorded.

Conﬁ rm " OK " to start guidance.

Select the guidance criteria: " Fastest

route ", " Shortest route " or optimised
" Distance/Time ", then select the
desired restriction criteria: " With tolls ",
" With Ferry ", or "

Trafﬁ c info " then

conﬁ rm " OK ".

239

SELECTING A DESTINATION

TO ONE OF THE RECENT DESTINATIONS

Press NAV twice to open the list of
recent destinations.

Select the desired destination and

conﬁ rm to start guidance.

TOWARDS A CONTACT IN THE CONTACTS DIRECTORY

Select " Select destination " and

conﬁ rm, then select " Directory " and

conﬁ rm.

Selection the desired destination from

your contacts and conﬁ rm " OK " to start

the guidance.

Press NAV to display the
" Navigation - guidance " menu.

Navigation towards a contact imported from your telephone is only

possible if the address is compatible with the system.

240

Select " Select destination " and

conﬁ rm, then select " GPS coordinates "

and conﬁ rm.

Enter the GPS coordinates and conﬁ rm

" OK

" to start the guidance.

Press NAV to display the
" Navigation - guidance " menu.

NAVIGATION - GUIDANCE

TOWARDS GPS COORDINATES

TOWARDS A POINT ON THE MAP

With the map displayed, press OK to

display the contextual menu. Select

" Move the map

" and conﬁ rm.

Press OK

to display the contextual

menu for " Move the map " mode.

Select " Select as destination " or
" Select as stage

" and conﬁ rm.

Move the cursor using the screen

navigation buttons  ,  ,  ,  to

identify the desired destination.

241

TOWARDS POINTS OF INTEREST (POI)

NAVIGATION - GUIDANCE

The points of interest (POI) indicate all of the service locations in the vicinity

(hotels, various businesses, airports...).

Select the " Enter an address " function

and conﬁ rm, then select Select

destination

and conﬁ rm.

To select a POI close to your current
location, select " POI

" and conﬁ rm, then

select " Around the current place " and

conﬁ rm.

To select a POI as a stage on the route,

select " POI

" and conﬁ rm, then select " On

the route

" and conﬁ rm.

To select a POI as a destination, ﬁ rst

enter the country and town (see "Towards

a new destination"), select " POI " and

conﬁ rm, ﬁ nally select " Near " and conﬁ rm.

Near

Search for POIs in the categories

suggested in the following pages.

Select " Search by Name " to search for POIs by name and not by

proximity.

Press NAV to display the
" Navigation - guidance " menu.

Select the POI and conﬁ rm " OK " to start

the guidance.

242

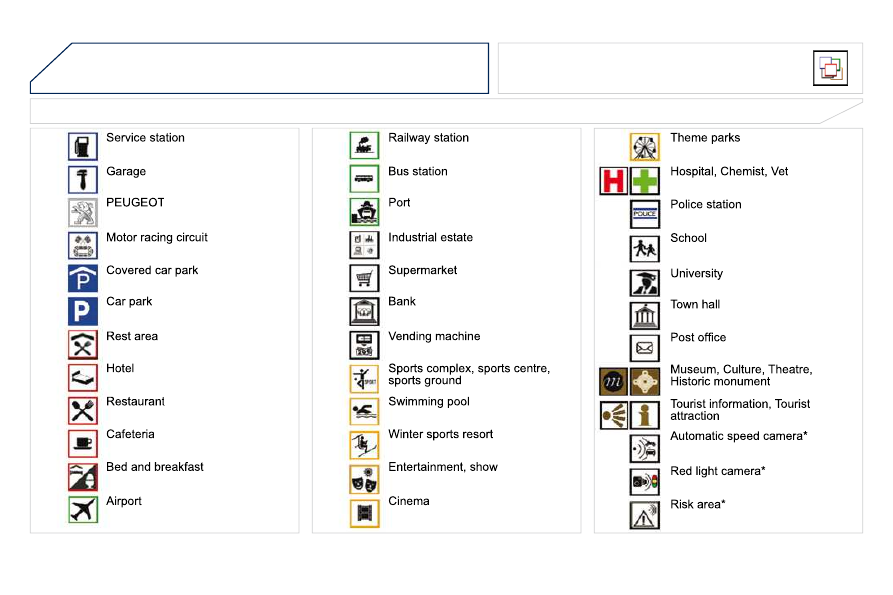

LIST OF PRINCIPAL POINTS OF INTEREST (POI)

NAVIGATION - GUIDANCE

This icon appears when several POIs are grouped

together in the same area. Zooming in on this icon

shows details of the POIs.

* According to availability in the

country.

Content .. 14 15 16 17 ..
