Peugeot 508 Dag (2010.5). Instruction

194

Practical information

Fuse

N°

Rating

(A)

Functions

Driver's electric window panel, 12 V socket for rear seats.

12 V socket in boot.

One-touch rear window.

One-touch front window.

F11

Trailer unit.

F12

Audio amplifier.

F15

Panoramic sunroof blind (SW).

F16

Driver's electric window switch panel.

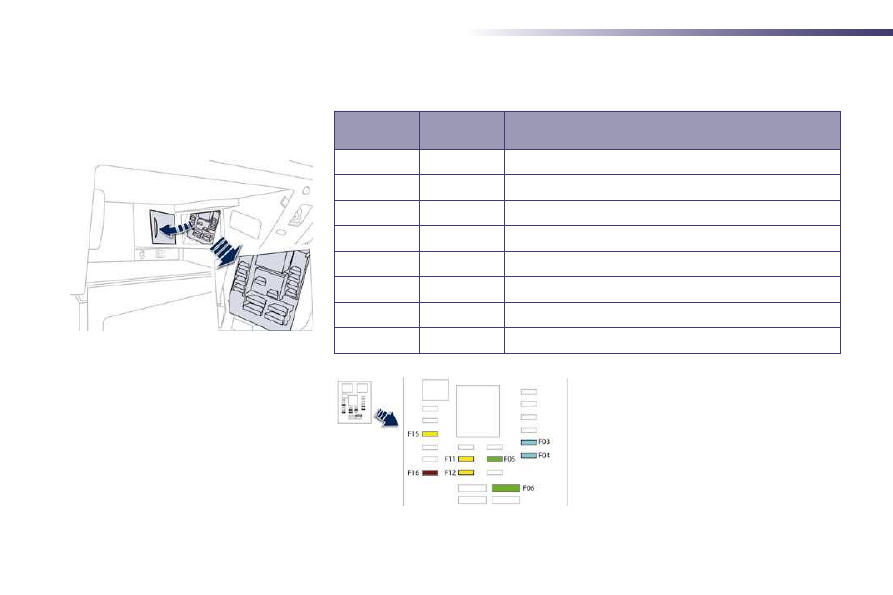

Fuses behind the glove box

195

Practical information

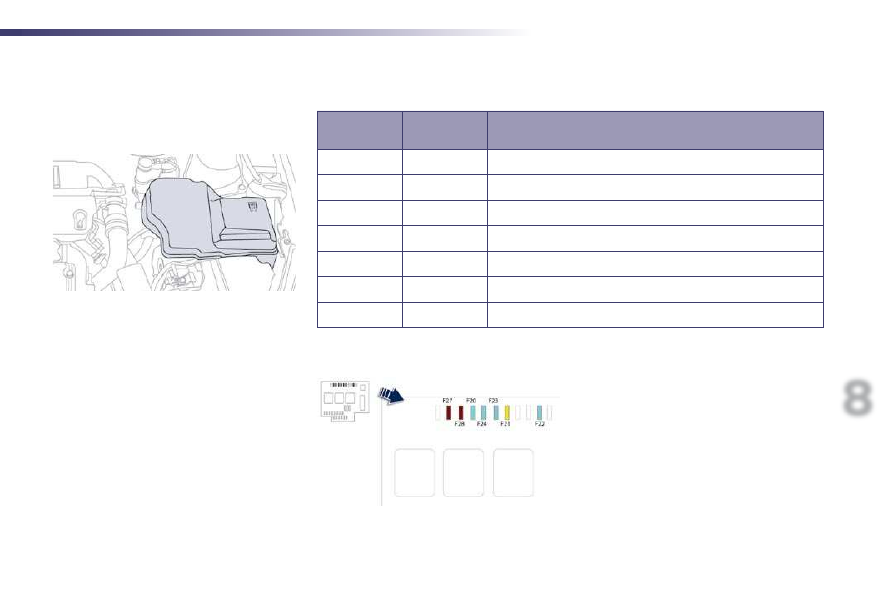

Engine compartment fuses

Access to the fuses

 Unclip the cover.
 Change the fuse (see corresponding

paragraph).

 When you have finished, close the cover

carefully to ensure correct sealing of the
fusebox.

Fuse

N°

Rating

(A)

Functions

F20

Front/rear screenwash pump.

F21

Headlamp wash pump.

F22

Horn.

F23

Right-hand main beam headlamp.

F24

Left-hand main beam headlamp.

F27

Left hand lamp mask.

F28

Right hand lamp mask.

The fusebox is placed in the engine
compartment near the battery.

196

Practical information

12 V battery

Procedure for charging your battery when it is flat or for starting the engine using another battery.

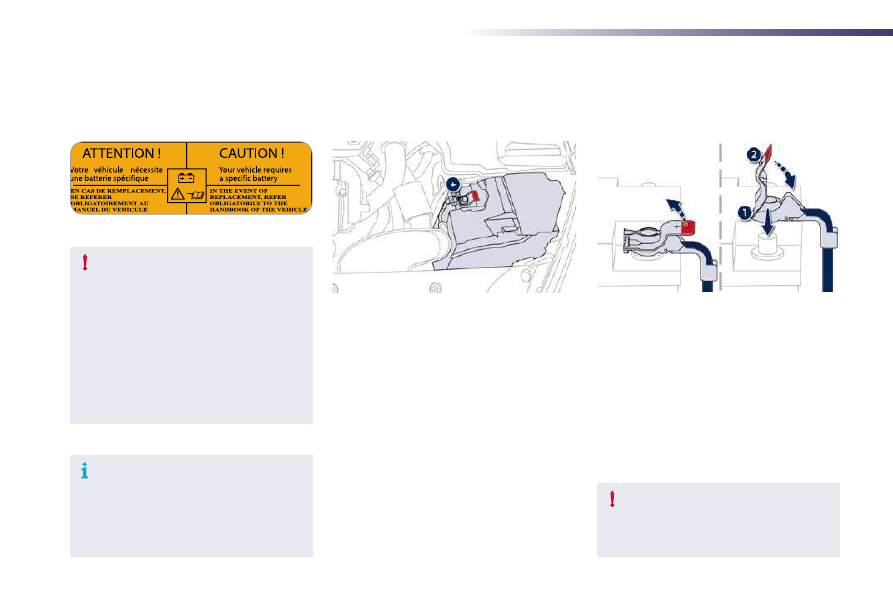

The presence of this label indicates
the use of a 12 V lead-acid battery with
special technology and specification, for
which the involvement of a PEUGEOT
dealer or qualified workshop is required
when replacing or disconnecting the
battery.
Failure to observe this recommendation
may cause premature wear of the
battery.

After refitting the battery, the Stop &
Start system will only be active after
several hours depending on the climatic
conditions and the state of charge of the
battery (up to about 8 hours).

The battery is located under the bonnet.
To gain access to it:
 open the bonnet using the interior release

lever, then the exterior safety catch,

 remove the plastic cover to gain access to

the two terminals,

 unclip the fusebox to remove the battery, if

necessary.

Access to the battery

 Raise the locking tab fully.

Disconnecting the cables

Reconnecting the cables

 Position the open clip 1 of the cable on the

positive terminal (+) of the battery.

 Press vertically on the clip 1 to position it

correctly against the battery.

 Lock the clip by spreading the positioning

lug and then lowering the tab 2 .

Do not force the tab as locking will not
be possible if the clip is not positioned
correctly; start the procedure again.

197

Practical information

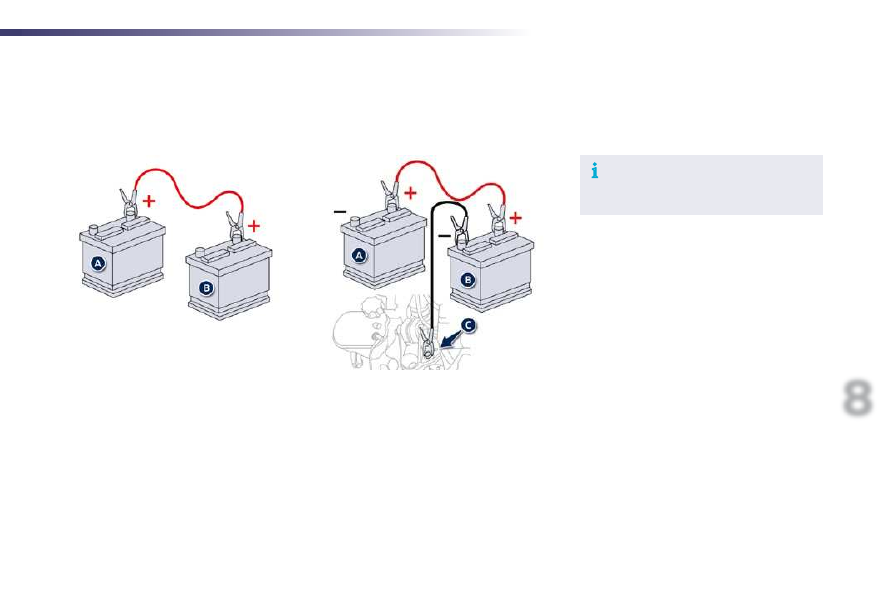

 Connect the red cable to the positive

terminal (+) of the flat battery A , then to the
positive terminal (+) of the slave battery B .

Starting using another
battery

 Disconnect the battery from the vehicle.
 Follow the instructions for use provided by

the manufacturer of the charger.

 Reconnect starting with the negative

terminal (-).

 Check that the terminals and connectors

are clean. If they are covered with sulphate
(whitish or greenish deposit), remove them
and clean them.

Charging the battery using
a battery charger

The Stop & Start battery does not have
to be disconnected for charging.

 Connect one end of the green or black

cable to the negative terminal (-) of the
slave battery B .

 Connect the other end of the green or black

cable to the earth point C on your vehicle
(engine mounting).

 Operate the starter, let the engine run.
 Wait until the engine returns to idle and

disconnect the cables.

198

Practical information

The batteries contain harmful
substances such as sulphuric acid
and lead. They must be disposed of in
accordance with regulations and must
not, in any circumstances, be discarded
with household waste.
Take used remote control batteries and
vehicle batteries to a special collection
point.

Do not disconnect the terminals while
the engine is running.
Do not charge the batteries without
disconnecting the terminals first.
Do not push the vehicle to start the
engine if it is fitted with a 6-speed
electronic gear control gearbox or an
automatic gearbox.

It is advisable to disconnect the battery
if the vehicle is to be left unused for
more than one month.

Before disconnecting the battery

Wait 2 minutes after switching off the ignition
before disconnecting the battery.
Close the windows and the doors before
disconnecting the battery.

Following reconnection of the
battery

Following reconnection of the battery, switch on
the ignition and wait 1 minute before starting to
permit initialisation of the electronic systems.
However, if problems remain following this
operation, contact a PEUGEOT dealer or a
qualified workshop.
Referring to the corresponding section, you
must yourself reinitialise:
-

the remote control key,

the panoramic sunroof blind,

the GPS satellite navigation system.

Load reduction mode

System which manages the use of certain
functions according to the level of charge
remaining in the battery.
When the vehicle is being driven, the load
reduction function temporarily deactivates
certain functions, such as the air conditioning,
the heated rear screen...
The deactivated functions are reactivated
automatically as soon as conditions permit.

198

Practical information

It is advisable to disconnect the battery
if the vehicle is to be left unused for
more than one month.

Before disconnecting the battery

Wait 2 minutes after switching off the ignition
before disconnecting the battery.
Close the windows and the doors before
disconnecting the battery.

Following reconnection of the
battery

the remote control key,

the panoramic sunroof blind,

the GPS satellite navigation system.

Load reduction mode

199

Practical information

System which manages the duration of use of
certain functions to conserve a sufficient level
of charge in the battery.
After the engine has stopped, you can still use
functions such as the audio and telematics
system, windscreen wipers, dipped beam
headlamps, courtesy lamps, etc. for a
maximum combined duration of thirty minutes.

Energy economy mode

Switching to economy
mode

A message then appears in the instrument
panel screen indicating that the vehicle has
switched to economy mode and the active
functions are put on standby.
If a telephone call is being made at this time,
it will be maintained for around 10 minutes
with the Bluetooth hands-free system of your
Peugeot Connect Sound or Peugeot Connect
Navigation.

Exiting economy mode

These functions are reactivated automatically
next time the vehicle is driven.
 In order to resume the use of these

functions immediately, start the engine and
let it run:
- for less than ten minutes, to use

the equipment for approximately
five minutes,

- for more than ten minutes, to use the

equipment for up to approximately
thirty minutes.

Let the engine run for the duration specified to
ensure that the battery charge is sufficient.
Do not repeatedly and continuously restart the
engine in order to charge the battery.
A flat battery prevents the engine from starting
(refer to the "Battery" section).

200

Practical information

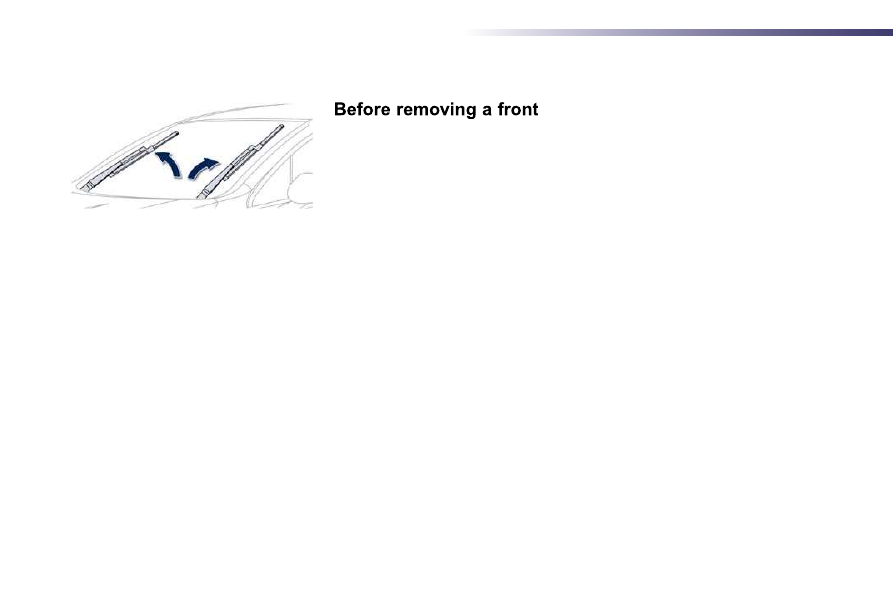

Changing a wiper blade

wiper blade

 Within one minute after switching off

the ignition, operate the wiper stalk to
position the wiper blades vertically on the
windscreen.

Removing

 Raise the corresponding wiper arm.
 Unclip the wiper blade and remove it.

Fitting

 Put the corresponding new wiper blade in

place and clip it.

 Fold down the wiper arm carefully.

After fitting a front wiper
blade

 Switch on the ignition.
 Operate the wiper stalk again to park the

wiper blades.

201

Practical information

Towing the vehicle

Procedure for having your vehicle towed or for towing another vehicle using a removable towing eye.

Towing your vehicle

Towing another vehicle

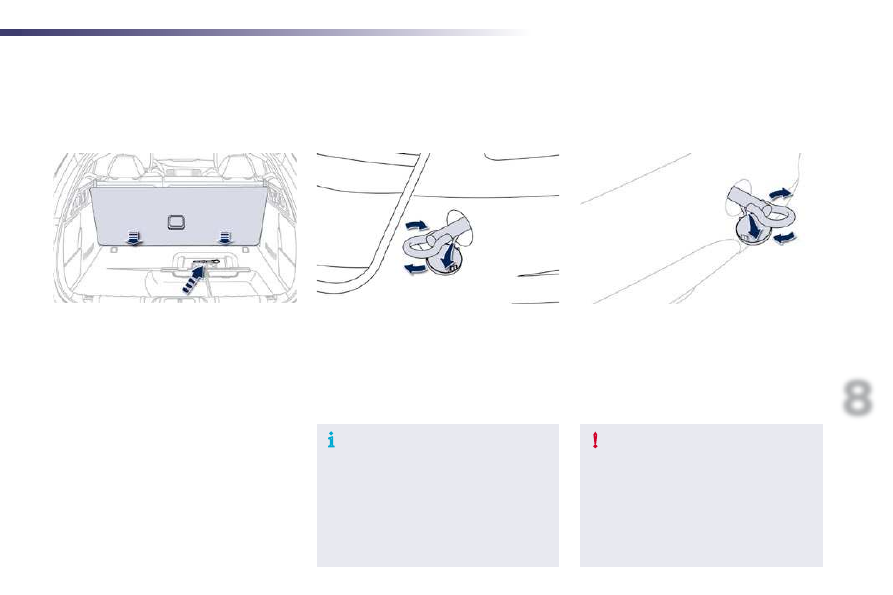

Access to the tools

The towing eye is installed in the boot under
the floor.
To gain access to it:
   open the boot,
   position the floor vertically,
   remove the towing eye.

 On the front bumper, unclip the cover by

pressing at the bottom.

   Screw the towing eye in fully.
   Install the towing bar.
   Switch on the hazard warning lamps on the

towed vehicle.

 On the rear bumper, unclip the cover by

pressing at the bottom.

   Screw the towing eye in fully.
   Install the towing bar.
   Switch on the hazard warning lamps on the

towed vehicle.

When towing with all four wheels on the
ground, always use a towing bar.
When towing with only two wheels on
the ground, always use professional
lifting equipment.
When towing with the engine off, there
is no longer any braking or steering
assistance.

 Place the gear lever in neutral

(position N on the electronic gear
control gearbox or automatic
gearbox).

Failure to observe this special
condition could result in damage
to certain braking components and
the absence of braking assistance
the next time the engine is started.

202

Practical information

Towing a trailer, a caravan, etc.

We recommend the use of genuine
PEUGEOT towbars and their harnesses
that have been tested and approved
from the design stage of your vehicle,
and that the fitting of the towbar is
entrusted to a PEUGEOT dealer or a
qualified workshop.
If the trailer is not fitted by a PEUGEOT
dealer, it is imperative that it is fitted
using the vehicle's electrical pre-
equipment, in accordance with the
manufacturer's instructions.

Towbar suitable for the attachment of a
trailer or caravan with additional lighting and
signalling.
Your vehicle is primarily designed for
transporting people and luggage, but it may
also be used for towing a trailer.

Driving with a trailer places greater demands
on the towing vehicle and the driver must take
particular care.

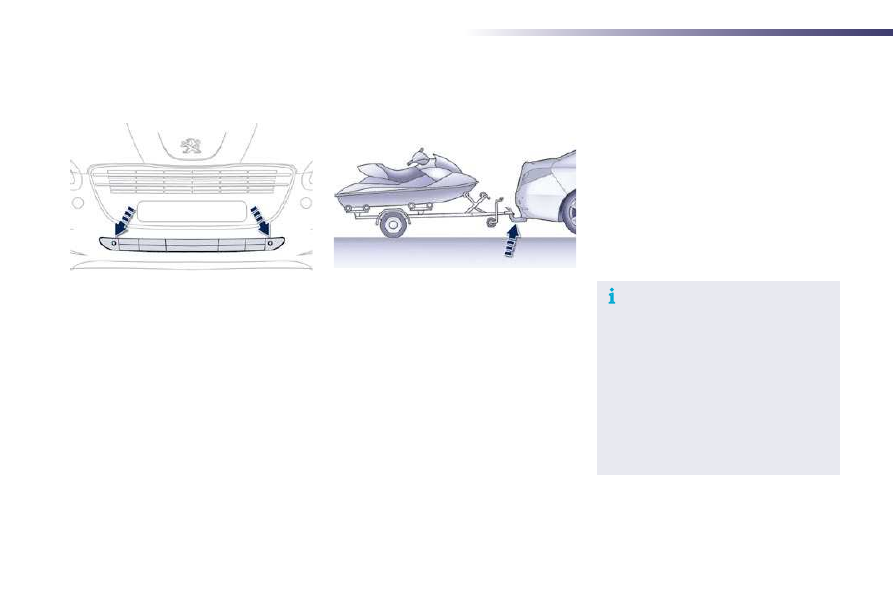

Blanking cover

When towing, you must remove the blanking
cover in the front bumper if your vehicle has
one.
Contact a PEUGEOT dealer or a qualified
workshop for this.

202

Practical information

Towing a trailer, a caravan, etc.

Driving with a trailer places greater demands
on the towing vehicle and the driver must take
particular care.

Blanking cover

When towing, you must remove the blanking
cover in the front bumper if your vehicle has
one.
Contact a PEUGEOT dealer or a qualified
workshop for this.

203

Practical information

Driving advice

Distribution of loads

 Distribute the load in the trailer so that the

heaviest items are as close as possible to
the axle and the nose weight approaches
the maximum permitted without
exceeding it.

Air density decreases with altitude, thus
reducing engine performance. Above
1 000 metres, the maximum towed load must
be reduced by 10 % for every 1 000 metres of
altitude.
Refer to the "Technical Data" section for details
of the weights and towed loads which apply to
your vehicle.

Side wind

 Take into account the increased sensitivity

to side wind.

Cooling

Towing a trailer on a slope increases the
temperature of the coolant.
As the fan is electrically controlled, its cooling
capacity is not dependent on the engine speed.
 To lower the engine speed, reduce your

speed.

The maximum towed load on a long incline
depends on the gradient and the ambient
temperature.
In all cases, keep a check on the coolant
temperature.

 If the warning lamp and the

STOP warning lamp come on,
stop the vehicle and switch off
the engine as soon as possible.

Braking

Towing a trailer increases the braking distance.

Tyres

 Check the tyre pressures of the towing

vehicle and of the trailer, observing the
recommended pressures.

Lighting

 Check the electrical lighting and signalling

on the trailer.

The rear parking sensors will be
deactivated automatically if a genuine
PEUGEOT towbar is used.

204

Practical information

Fitting roof bars

Maximum authorised weight on the roof
rack, for a loading height not exceeding
40 cm (with the exception of bicycle
carriers):
-

Saloon: 70 kg

SW: 100 kg

If the height exceeds 40 cm, adapt the
speed of the vehicle to the profile of the
road to avoid damaging the roof bars
and the fixings on the roof.
Be sure to refer to national legislation in
order to comply with the regulations for
transporting objects which are longer
than the vehicle.

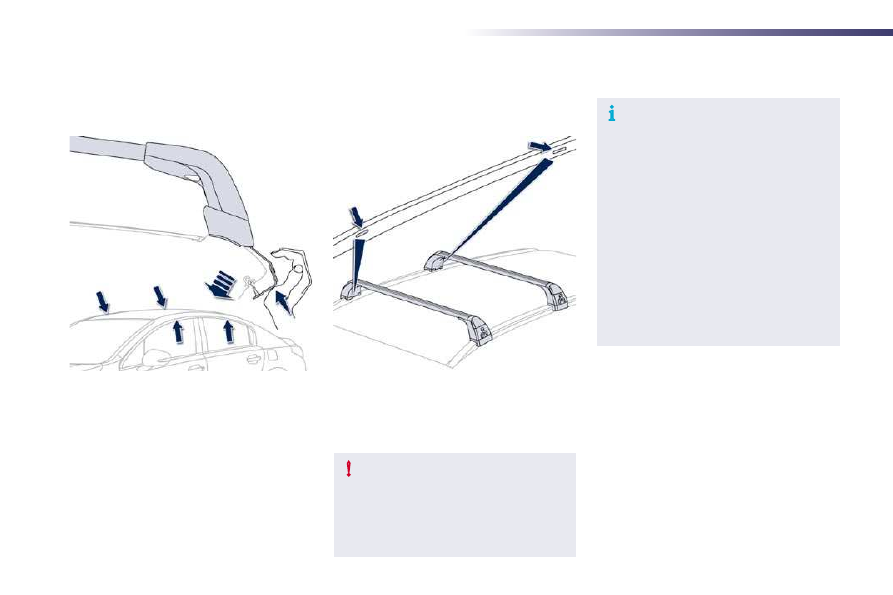

Saloon: there are retaining pins in the door
apertures.

When fitting transverse roof bars, take care to
position them correctly:

SW: there are markings on each of the
longitudinal bars.

Use accessories recommended
by PEUGEOT observing the
manufacturer's recommendations and
fitting instructions so as to avoid the
risk of damaging the body (deformation,
scratches, ...).

205

Practical information

Accessories

A wide range of accessories and genuine parts is offered by the PEUGEOT dealer network.
These accessories and parts have been tested and approved for reliability and safety.
They are all adapted to your vehicle and benefit from PEUGEOT's recommendation and warranty.

"Comfort":

cool box, smoker's kit, 230 V socket, torch...

"Transport solutions":

booster seats and child seats, boot tray, roof
box, ski carrier, towbar-mounted bicycle carrier,
towbars (swan-neck, quickly detachable ball,
folding), harnesses, sliding floor, utility vehicle
conversion kit, ...
The trailer towbar and its harness must be
fitted by a PEUGEOT dealer.

"Style":

spoiler, front and rear mud flaps, aluminium gear
lever knob, alloy wheels (16", 17", 18", 19"), body
kit, door mirror shells, door air deflectors, ...

To avoid any risk of jamming of the pedals:
- ensure that the mat is positioned and

secured correctly,

- never fit one mat on top of another.

"Safety and security":

speed limiter/cruise control, anti-theft alarm,
microwave unit, window etching, wheel security
bolts, breathalyser, first aid kit, warning
triangle, high visibility vest, stolen vehicle
tracking system, winter equipment (17" wheels
for snow chains), reversing camera, front and
rear parking sensors, boot spacers...

"Protection":

mats * , seat covers, vehicle covers, sun blinds,
boot net, load protection net, dog guard, door
and boot sill protectors, resin side rubbing
strips...

206

Practical information

The fitting of electrical equipment
or accessories which are not
recommended by PEUGEOT may result
in a failure of your vehicle's electronic
system and excessive electrical
consumption.
Please note this specific warning. You
are advised to contact a PEUGEOT
representative to be shown the range
of recommended equipment and
accessories.

Installation of radio
communication
transmitters

Before installing on your vehicle any
after-market radio communication
transmitter with external aerial,
we recommend that you contact
a PEUGEOT dealer.
The PEUGEOT dealer network will give
you the specification for transmitters
which can be fitted (frequency,
maximum power, aerial position,
specific installation requirements), in
line with the Vehicle Electromagnetic
Compatibility Directive (2004/104/EC).

Depending on the legislation in force
in the country, it may be compulsory
to have a high visibility safety vest,
warning triangle and spare bulbs and
fuses available in the vehicle.

You can also obtain products for cleaning and
maintenance (exterior and interior) and topping
up fluids (screenwash, ...), as well as refills
(cartridge for temporary tyre repair kit...) from
PEUGEOT dealers.

"Multimedia":

audio systems, portable navigation system,
Takara/Sony portable video screen, Bluetooth
system, speakers, DVD player, Wi-Fi, speed
camera alert, video support, microwave unit...

208

Checks

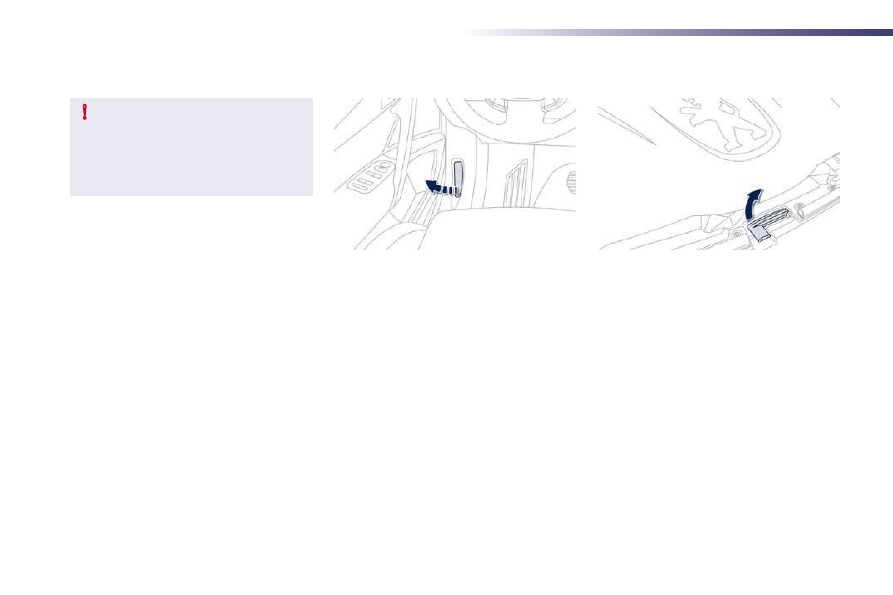

Opening the bonnet

Opening

 From inside : pull the release lever,

located on the left below the dashboard,
towards you.

Before doing anything under the bonnet,
switch off the Stop & Start system to
avoid any risk of injury resulting from an
automatic change to START mode.

Closing

 Lower the bonnet and release it at the end

of its travel.

 Check that it is latched correctly.

 From the outside : lift the safety catch and

raise the bonnet.

A bonnet strut opens the bonnet and holds it
open.

Peugeot 508 Dag (2010.5). Instruction - part 14
