Peugeot 508 Dag (2010.5). Instruction - part 4

Access

Selective unlocking

 To unlock the driver's door only

press the open padlock once.

Using the remote control

This is set via the instrument panel
screen configuration menu.
Complete unlocking is activated by
default.

Using the electronic key

 To unlock only the driver's door with the

electronic key on your person, pass your
hand behind the driver's door handle then
pull the handle to open the door.

 To unlock the vehicle completely, pass your

hand behind one of the passenger door
handles, on the side of the vehicle where
the electronic key is located, then pull the
door handle.

Each unlocking is confirmed by rapid
flashing of the direction indicators for
approximately two seconds.
According to version, the door mirrors
unfold at the same time as the first
unlocking action.

Unlocking the boot

Using the remote control

 Press this button to unlock the

vehicle and open the boot.

Using the electronic key

 With the electronic key in the defined zone,

press button 1 (Saloon) or lift lever 2 (SW)
to unlock the vehicle and open the boot.

 To unlock the other doors and the boot,

press the open padlock again

Access

Boot only function activated

This is set in the instrument panel
configuration menu.

This function is deactivated by default.
 use of the remote control or the electronic

key then unlocks and/or opens only the
boot.

Don't forget to lock your boot
afterwards.

Locking the vehicle
Normal locking

Using the key

 Turn the key towards the rear of the vehicle

to lock the vehicle completely.

Using the remote control

 Press the closed padlock to lock

the vehicle completely.

Using the electronic key

 With the electronic key in the defined zone,

press with a finger on the door handle (at
the markings) to lock the vehicle.

 From the boot (SW only), with the

electronic key in the defined zone, press a
button to lock the vehicle.

Access

As a safety measure (children on
board), never leave the vehicle without
taking your key, even for a short period.

Guard against theft when the electronic
key is in the defined zone with the
vehicle unlocked.

Maintaining any locking action
automatically closes the windows and
sunroof.
Locking is confirmed by fixed
lighting of the direction indicators for
approximately two seconds.
According to version, the door mirrors
fold at the same time.

If one of the doors or the boot is still
open or if an electronic key has been
left inside the vehicle, the central
locking does not take place.
When the vehicle is locked, if it is
unlocked inadvertently, it will relock
automatically after about thirty seconds
unless a door is opened.

It is not possible to lock the vehicle if an
electronic key is left inside the vehicle.
After a long period of parking, the
automatic detection functions of the
electronic key are inhibited so as to not
discharge the vehicle's battery. You
should then use the remote control
function of the electronic key to unlock
the vehicle.

The folding and unfolding of the door
mirrors by the remote control can be
deactivated by a PEUGEOT dealer.

Deadlocking

Deadlocking renders the exterior and
interior door controls inoperative.
It also deactivates the manual central
control button.
Therefore, never leave anyone inside
the vehicle when it is deadlocked.

Using the key

 Turn the key to the rear in the driver's door

lock to lock the vehicle completely.

 Turn the key to the rear again within five

seconds to deadlock the vehicle.

Access

lighting of the direction indicators for
approximately two seconds.

Using the remote control

 Press the closed padlock to lock

the vehicle completely or press
the closed padlock for more
than two seconds to close the
windows automatically in addition
to locking.

Using the electronic key

By the doors:
 With the electronic key in the defined zone,

press a finger on the door handle (at the
markings) to lock the vehicle.

 Within five seconds, press the door handle

again to deadlock the vehicle.

By the tailgate (SW only):
 With the electronic key in the defined zone,

press the button to lock the vehicle.

 Within five seconds, press the button to

deadlock the vehicle.

 Press the closed padlock again within five

seconds to deadlock the vehicle.

Access

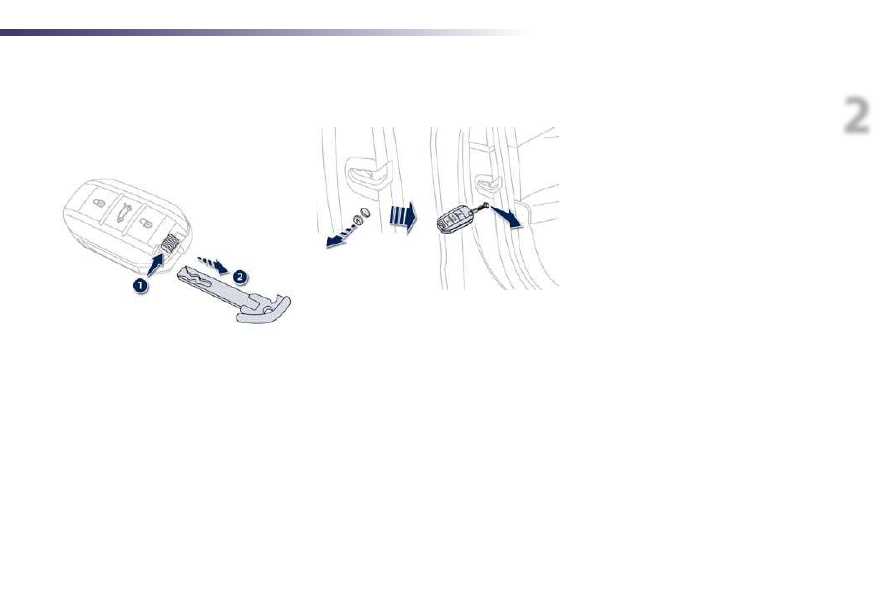

Emergency procedure

Emergency unlocking/
locking
using the electronic key

The integral key is used to lock and unlock the
vehicle when the electronic key cannot operate:
-

cell battery flat, vehicle battery discharged
or disconnected, ...

vehicle located in an area with strong
electromagnetic emissions.

 Pull on button 1 , to extract the integral key 2 .
 Unlock or lock the vehicle using the key.

Manual locking

Driver's door

Insert the key in the lock to lock or unlock the
door.

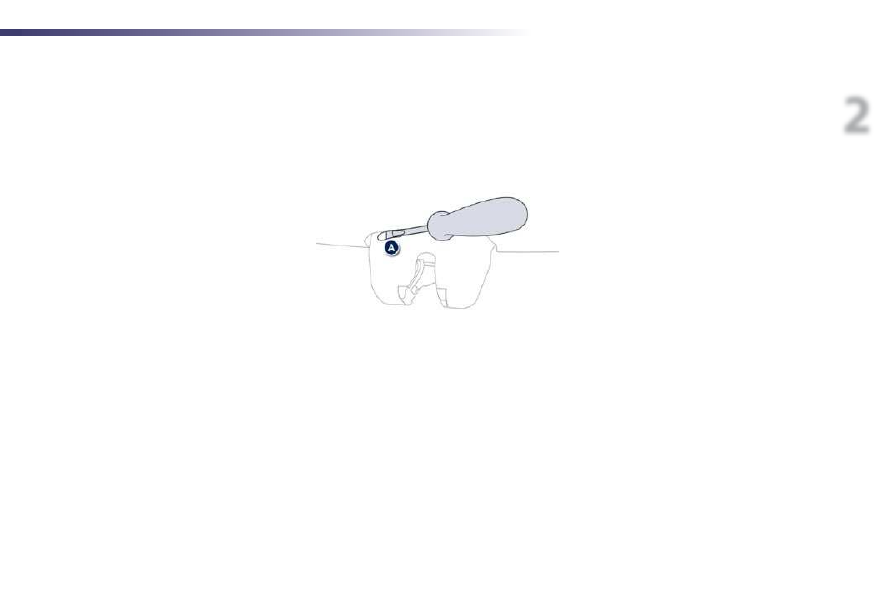

Passenger doors

 On the rear doors, check that the child lock

is not on.

 Remove the black cap located on the edge

of the door, using the key.

 Insert the key into the aperture without

forcing, then without turning, move the latch
sideways towards the inside of the door.

 Remove the key and refit the cap.

Remote control problem

Following disconnection of the vehicle battery,
replacement of the remote control battery or
in the event of a remote control malfunction,
you can no longer unlock, lock or locate your
vehicle.
 First of all, use the key in the lock to unlock

or lock your vehicle.

 Then, reinitialise the remote control.
If the problem persists, contact a PEUGEOT
dealer or a qualified workshop as soon as
possible.

Reinitialisation with the remote
control

 Switch on the ignition.
 Immediately press one of the remote

control buttons for a few seconds.

 Switch off the ignition.
The remote control is fully operational again.

Access

Changing the battery of the key

Battery ref.: CR2032/3 volts.
This replacement battery is available from a
PEUGEOT dealer or a qualified workshop.
A message appears in the instrument panel
screen when replacement of the battery is
needed.
 Unclip the cover using a small screwdriver

at the cutout.

   Lift off the cover.
   Remove the flat battery from its location.
   Fit the new battery into its location

observing the original direction of fitment.

 Clip the cover onto the casing.

Do not throw the remote control
batteries away, they contain metals
which are harmful to the environment.
Take them to an approved collection
point.

Reinitialisation with the
electronic key

 Switch of the ignition.
 Immediately press one of the remote

control buttons for a few seconds.

 Switch on the ignition
The electronic key is fully operational again.

Changing the battery of the
electronic key

Battery ref.: CR2032/3 volts.
This replacement battery is available from a
PEUGEOT dealer or a qualified workshop.
A message is displayed in the instrument panel
screen when replacement of the battery is
needed.
 Unclip the cover using a pointed object at

the key ring.

 Slide the flat battery out of its location.
 Slide the new battery into its location

observing the original direction of fitment.

 Clip the cover in place starting at the front.
 Reinitialise the electronic key.

Access

Changing the battery of the key

at the cutout.

   Lift off the cover.
   Remove the flat battery from its location.
   Fit the new battery into its location

observing the original direction of fitment.

 Clip the cover onto the casing.

Do not throw the remote control
batteries away, they contain metals
which are harmful to the environment.
Take them to an approved collection
point.

Reinitialisation with the
electronic key

 Switch of the ignition.
 Immediately press one of the remote

control buttons for a few seconds.

 Switch on the ignition
The electronic key is fully operational again.

Changing the battery of the
electronic key

the key ring.

 Slide the flat battery out of its location.
 Slide the new battery into its location

observing the original direction of fitment.

 Clip the cover in place starting at the front.
 Reinitialise the electronic key.

Access

System which protects and provides a deterrent
against theft and break-ins. It provides the
following types of monitoring:

Alarm

- Exterior perimeter

The system checks for opening of the vehicle.
The alarm is triggered if anyone tries to open a
door, the boot or the bonnet...

- Interior volumetric

The system checks for any variation in the
volume in the passenger compartment.
The alarm is triggered if anyone breaks a
window, enters the passenger compartment or
moves inside the vehicle.

- Tilt

The system checks for any change in the
attitude of the vehicle.
The alarm is triggered if the vehicle is lifted,
moved or knocked.

Self-protection function

The system checks for the putting out of
service of its components.
The alarm is triggered if the battery, the
central control unit or the wires of the
siren are put out of service or damaged.

For all work on the alarm system,
contact a PEUGEOT dealer or a
qualified workshop.

Locking the vehicle with full
alarm system

Activation

 Switch off the ignition and get out of the vehicle.

 Press the locking button on the

remote control or lock the vehicle
using the Keyless Entry and
Starting system.

The monitoring system is active: the indicator
lamp on the button flashes once per second.
After the locking button on the remote control
is pressed or the vehicle locked using the
Keyless Entry and Starting system, the exterior
perimeter monitoring is activated after a delay
of 5 seconds and the interior volumetric and
anti-tilt monitoring after a delay of 45 seconds.
If an opening (door, boot...) is not closed
fully, the vehicle is not locked but the exterior
perimeter monitoring will be activated after a
delay of 45 seconds at the same time as the
interior volumetric and anti-tilt monitoring.

 Press the unlocking button on

the remote control or unlock the
vehicle using the Keyless Entry
and Starting system.

Deactivation of the volumetric
monitoring

The volumetric protection system is
deactivated: the indicator lamp in the
button goes off.

Access

Locking the vehicle
with exterior perimeter
monitoring only

Deactivate the interior volumetric and anti-lift
monitoring to avoid unwanted triggering of the
alarm in certain cases such as:
-

leaving a window partially open,

washing your vehicle,

changing a wheel,

having your vehicle towed,

transportation by sea.

Deactivation of the interior
volumetric and anti-tilt monitoring

 Switch of the ignition and within

ten seconds, press this button
until the indicator lamp is on
continuously.

 Get out of the vehicle.
 Press the locking button on

the remote control immediately
or lock the vehicle using the
Keyless Entry and Starting
system.

The exterior perimeter monitoring alone is
activated: the indicator lamp in the button
flashes once per second.
To be effective, this deactivation must be carried
out each time the ignition is switched off.

Reactivation of the interior
volumetric and anti-tilt monitoring

Triggering of the alarm

This is indicated by sounding of the siren and
flashing of the direction indicators for thirty seconds.
The monitoring functions remain active until
the alarm has been triggered eleven times in
succession.

 Press the unlocking button on

the remote control or unlock the
vehicle using the Keyless Entry
and Starting system to deactivate
the exterior perimeter monitoring.

 Press the locking button on the

remote control or lock the vehicle
using the Keyless Entry and
Starting system to activate all the
monitoring functions.

The indicator lamp in the button
again flashes once per second.

When the vehicle is unlocked using
the remote control or unlocked
using the Keyless Entry and Starting
system, rapid flashing of the indicator

lamp in the button informs you that the alarm
was triggered during your absence. When
the ignition is switched on, this flashing stops
immediately.

Failure of the remote control

To deactivate the monitoring functions:
 Unlock the vehicle using the key in the

driver's door lock.

 Open the door; the alarm is triggered.
 Switch on the ignition; the alarm stops. The

indicator lamp in the button switches off.

Locking the vehicle without
activating the alarm

 Lock or deadlock the vehicle using the key

in the driver's door lock.

Operating fault

When the ignition is switched on, fixed
illumination of the indicator lamp in the button
indicates a fault in the system.
Have it checked by a PEUGEOT dealer or a
qualified workshop.

* According to country.

Automatic activation *

2 minutes after the last door or the boot is
closed, the system is activated automatically.
 To avoid triggering the alarm on entering

the vehicle, first press the unlocking button
on the remote control or unlock the vehicle
using the Keyless Entry and Starting
system.

Access

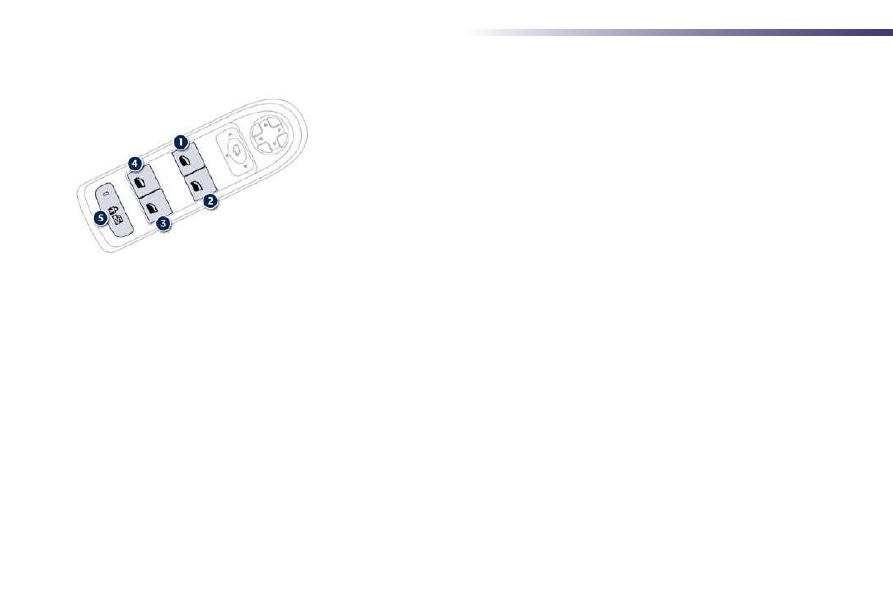

Electric windows

1. Left hand front electric window switch.
2. Right hand front electric window

switch.

3.    Right hand rear electric window switch.
4.    Left hand rear electric window switch.
5.    Deactivating the rear electric window

switches,
locking the rear doors

(child lock).

Manual operation
To open or close the window, press or pull the
switch gently. The window stops as soon as the
switch is released.

Automatic operation
(depending on version)
To open or close the window, press or pull
switch fully: the window opens or closes
completely when the switch is released.
Pressing the switch again stops the movement
of the window.
The electric window switches remain
operational for approximately one minute after
the key has been removed from the ignition.
Once this time has elapsed, the electric
windows will not operate. To reactivate them,
switch the ignition on again.

Safety anti-pinch

When the window rises and meets an obstacle,
it stops and immediately partially lowers again.
In the event of unwanted opening of the
window on closing, press the switch until the
window opens completely, then pull the switch
immediately until the window closes. Continue
to hold the switch for approximately one second
after the window has closed.
The safety anti-pinch function is not active
during this operation.

Deactivating the rear window
controls

For the safety of your children, press
switch 5 to prevent operation of the rear
windows irrespective of their position.
The interior controls for the rear doors are also
deactivated.
When the button is pressed down, the switches
are deactivated. When the button is raised, the
switches are active.

Access

Reinitialisation of
the electric windows

Always remove the key from the ignition
when leaving the vehicle, even for a
short time.
In the event of contact during operation
of the windows, you must reverse the
movement of the window. To do this,
press the switch concerned.
When operating the passenger electric
window switches, the driver must
ensure that no one is preventing correct
closing of the windows.
The driver must ensure that the
passengers use the electric windows
correctly.
Be aware of children when operating
the windows.

Following reconnection of the battery, the
safety anti-pinch function must be reinitialised.
The safety anti-pinch function is not active
during these operations:
-

lower the window completely, then raise
it, it will rise in steps of a few centimetres
each time the switch is pressed. Repeat
the operation until the window closes
completely,

continue to press the switch for at least one
second after reaching this position, window
closed.

Access

Boot

Saloon

 After unlocking the vehicle completely

using the remote control or the key, press
this button.

 After unlocking the vehicle completely

using the remote control or the key, press
at the top (on lever A ), and raise the

tailgate.

From the inside

Hold this button down until unlocking of the
boot is heard.

Opening

Closing

 Lower the tailgate using the interior grab

handle.

If the tailgate is not closed correctly:

when the engine is running ,
this warning lamp and a
message in the instrument panel
screen appear for a few seconds,

when the vehicle is moving (speed above
6 mph (10 km/h)), this warning lamp and
a message, accompanied by an audible
signal, appear in the instrument panel
screen for a few seconds.

Access

Motorised tailgate (SW)

Opening

Vehicle locked/deadlocked

 Press this button A on the

remote control.

Vehicle unlocked

 Press button A on the remote control, or

press the push button B on the tailgate.

From the inside

 Press this button to unlock and open the

tailgate.

Access

Closing

 Press this button C to close the

tailgate electrically.

Do not hinder closing of the tailgate: any
obstacle to closing causes the tailgate to stop
and rise a few centimetres automatically.
To close the tailgate manually: move the
tailgate slightly up then down to disengage it
from its drive then lower it until closed.

To avoid the risk of injury, ensure
that no one is close to the rear of the
vehicle when opening or closing the
tailgate.

Adjusting the opening height

During motorised opening, if clearance above
the vehicle is limited, or to make it easier to
reach the tailgate grip, stop it manually at
the desired height. The height is stored and
confirmed by an audible signal.
To change the height: during motorised
opening, lift the tailgate to the desired height.

While electric opening or closing of the tailgate
is in progress, you can stop its movement at
any time:
 press the interior button or button A on

the remote control or button B or C on the
tailgate.

Stopping the opening or
closing

Access

Emergency release
(Saloon and SW)

System for mechanical unlocking of the boot in
the event of a battery or central locking fault.

Unlocking

 Fold back the rear seats to gain access to

the lock from inside the boot.

 Insert a small screwdriver into hole A of the

lock to unlock the tailgate.

"Boot open" warning

With the engine running or when the vehicle is
moving, if the tailgate is not properly closed,
a message accompanied by an audible signal
(from 6 mph (10 km/h)) is displayed in the
instrument panel screen.

Access

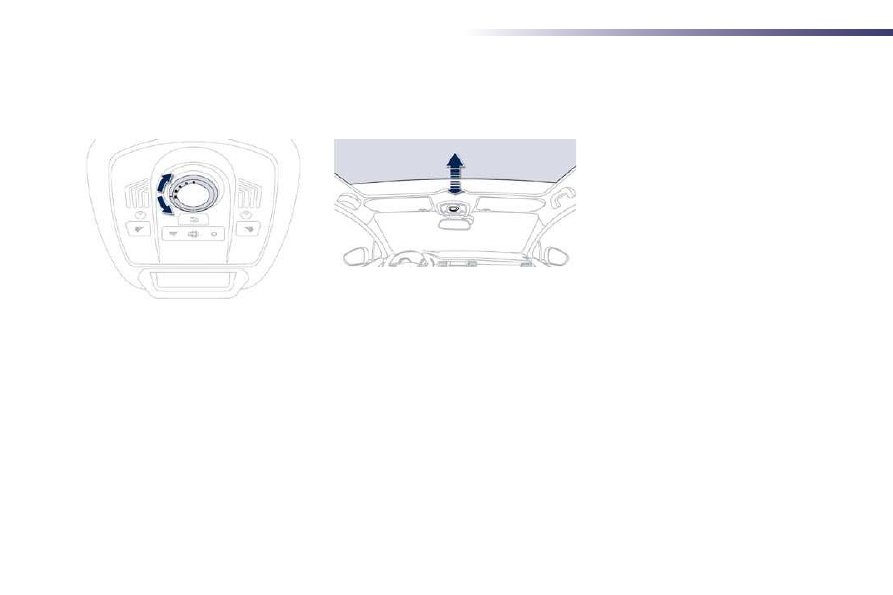

Panoramic sunroof (SW)

Your vehicle is fitted with a tinted glass
panoramic sunroof which increases the light
and visibility in the passenger compartment. Its
electric blind helps control the temperature and
noise level in the passenger compartment.

The blind is controlled electrically by a rotary
opening dial.

Opening

Turn the dial to the left (several possible
opening settings).

Safety anti-pinch

If the blind encounters an obstacle during
closing, it stops and partially opens again to the
2nd position.
If the blind fails to close at a second attempt,
it may be necessary to force the closing of the
blind using the reinitialisation procedure.

Closing

Return the dial to the initial position.
If the position of the blind does not agree with
the position indicated by the dial, press the dial
to open the blind to this position.

Electric blind

Content .. 2 3 4 5 ..
