TYRE UNDER-INFLATION
DETECTION

Sensors check the tyre pressure dur-
ing driving and trigger a warning in the
event of malfunction.

Pressure Check

With  the  ignition  on  and  the
vehicle having been stationary
for approximately 15 minutes,
and  after  the  engine  oil  level,
this  indicator  light  comes  on

on the instrument panel screen to indi-
cate that the system is measuring the
tyre pressures.

Pressure OK

This  indicator  light  comes
on  on  the  instrument  panel
screen if all of the tyre pres-
sure  values  measured  are
correct.

If  this  indicator  light  does  not  appear,
contact  a   PEUGEOT   dealer  to  have
the system checked.

Puncture

This  warning  light,  accom-
panied by the audible  signal
and  the  message  on  the
multi-function  display  loca-
ting the wheel concerned, is

followed  by  illumination  of  the   STOP
warning light.
Stop  immediately,  avoiding  any  sud-
den  movement  of  the  steering  wheel
and the brakes.
Change  the  damaged  wheel  (punc-

tured or very deﬂ ated tyre), and have

the tyre pressure checked as soon as
possible.

   Note:  this message is also dis-
played when one of the wheels
is  away  from  the   vehicle  (be-
ing  repaired)  or  when  one  or
more wheels without a sensor

are ﬁ tted.

All repairs and changing of

tyres on a wheel ﬁ tted with this

system must be carried out by
a PEUGEOT dealer.

If, when changing a tyre, you install a
wheel  which  is  not  detected  by  your
vehicle,  you  must  have  the  system
reinitialised by a  PEUGEOT  dealer.
The tyre under-inﬂ ation detection sys-

tem is an aid to driving which does not
replace  the  need  for  the  driver  to  be
vigilant or to drive responsibly.
This  system  does  not  eliminate  the
need to have the tyre pressure checked
regularly (see manufacturer's label) to
ensure that the optimum dynamic per-
formance of the vehicle is maintained
and  prevent  premature  wear  of  the
tyres,  particularly  in  arduous  driving
conditions (heavy load, high speed).
The  tyre  pressures  must  be  checked
cold, at least once a month. Remember
to  check  the  pressure  of  the  spare
wheel.
The tyre under-inﬂ ation detection sys-

tem  may  experience  temporary  inter-
ference due to radioelectric emissions
on  a  frequency  close  to  that  used  by
the system.

Flat tyre

This  warning  light  is  accom-
panied by the audible si gnal
and  the  message  on  the
multi-function  display  loca-
ting the wheel concerned.

If this warning light comes on, have
the tyre pressure checked as soon as
possible.

Sensor(s) not detected or faulty

This  warning  light  is  accom-
panied by the audible si gnal
and  the  message  on  the
multi-function  display  which

indicates that under-inﬂ ation

detection is absent from one (or seve-
ral) wheel(s) or that there is a fault in
the system.
Contact a PEUGEOT dealer to replace
the faulty sensor(s).

104

Bonnet strut

Secure the strut in its housing to hold
the bonnet open.
Before closing the bonnet, replace the
strut in its clip.

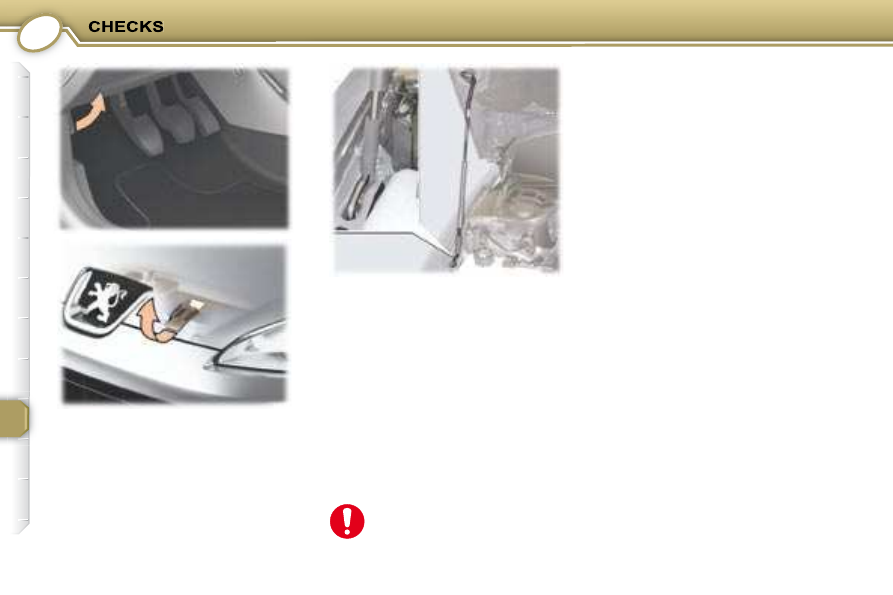

OPENING THE BONNET

  From  inside:   pull  the  handle  on
the  left-hand  side  under  the  fascia
towards you.
  From outside:  lift the catch and raise
the bonnet.

To avoid any risk of burns, only
handle the bonnet strut by the
protective foam.

To close
Lower the bonnet and release it at the
end of its travel. Check that the bonnet
is properly locked.

105

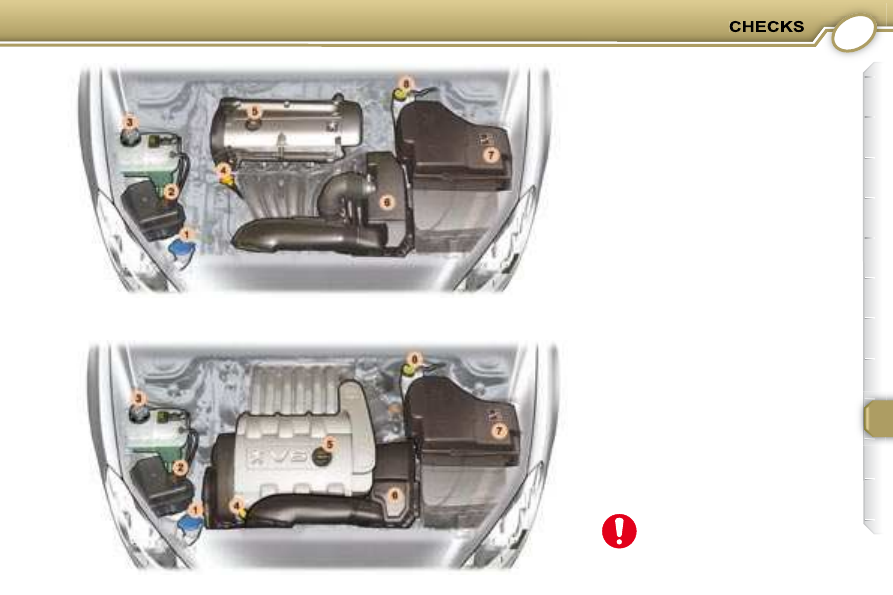

2.2 LITRE 16V AND 3 LITRE
V6 24V PETROL INJECTION
ENGINES

1. Windscreen/headlamp wash

reservoir.

2. Power steering reservoir.

3. Coolant reservoir.

4. Dipstick.

Engine oil ﬁ ller cap.

Air ﬁ lter.

7. Fuse box.

Brake and clutch ﬂ uid reservoir.

If you have to remove or reﬁ t

the engine style cover, handle
it with care to avoid damaging

the ﬁ xing clips.

106

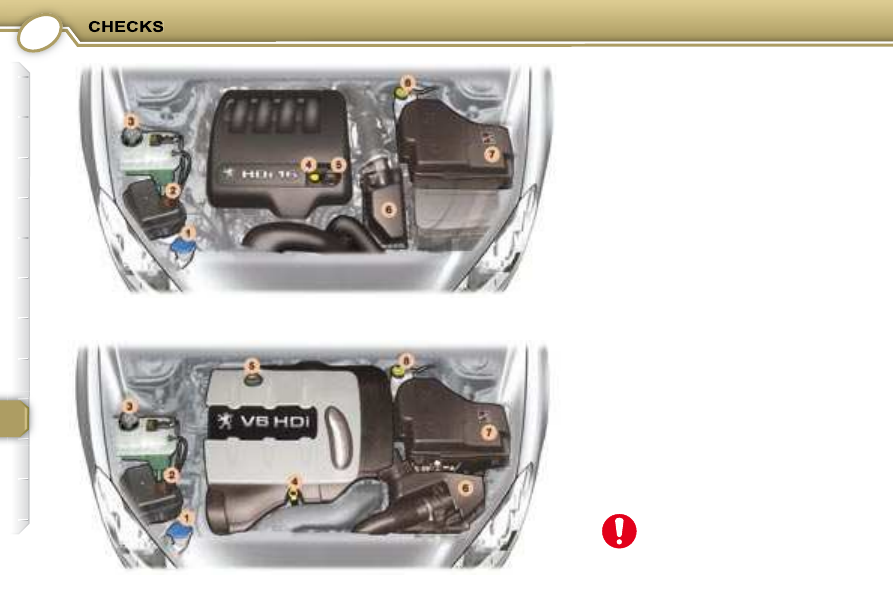

2 LITRE 16V HDI AND
2.7 LITRE V6 24V HDI DIESEL
ENGINES

1. Windscreen/headlamp wash

reservoir.

2. Power steering reservoir.

3. Coolant reservoir.

4. Dipstick.

Engine oil ﬁ ller cap.

Air ﬁ lter.

7. Fuse box.

Brake ﬂ uid reservoir.

If you have to remove or reﬁ t

the engine style cover, handle
it with care to avoid damaging

the ﬁ xing clips.

107

To  maintain  the  reliability  of
engines  and  emission  control
systems,  the  use  of  additives
in engine oil is prohibited.

Cooling system

CHECKING THE LEVELS

These are normal maintenance opera-
tions which keep your vehicle in good
working order. Consult the instruc-
tions in the PEUGEOT network, on
the Service Box site or in the servicing
booklet enclosed with this handbook.

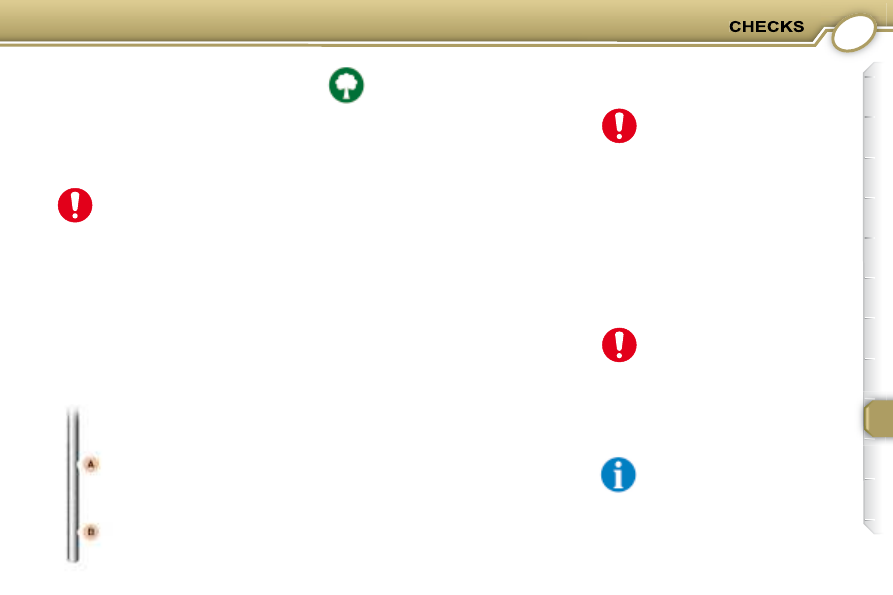

Dipstick

There  are  two  marks  on
the dipstick:
  A  = maximum
Never ﬁ ll past this mark.
  B  = minimum

Oil level

 Check the level regularly and top

up between changes.

Check the level with the vehicle level,
the engine having been off for more
than 15 minutes, using the dipstick.

Important: if you have to re-

move/reﬁ t the engine style cover,

handle it with care to avoid

damaging the ﬁ xing clips.

Oil change
It is imperative that this is carried out

at the intervals speciﬁ ed and the visco-

sity  of  the  oil  chosen  must  meet  the
requirements  laid  down  in  the  manu-
facturer's  servicing  schedule.  Consult
the  instructions  in  the   PEUGEOT
network or on the Service Box site.
  Note:   avoid  used  oil  coming  into
prolonged  contact  with  the  skin.
Empty the used oil into the containers
provided  for  this  purpose  in  the
PEUGEOT  network.

Oil filter

Replace  the  cartridge  regularly  in
accordance  with  the  recommenda-
tions of the servicing schedule.

Brake fluid change

Use the ﬂ uid recommended by the

manufacturer, which fulﬁ ls DOT4

Standards.
It is imperative that the brake ﬂ uid is

changed at the intervals speciﬁ ed in

accordance with the manufacturer's
servicing schedule.
Note: avoid all contact with the skin,

the brake ﬂ uid is harmful to health and

very corrosive.

Use only the ﬂ uid recommended

by the manufacturer.

  Note:  the coolant does not need to be
changed.
When the engine is warm, the tempera-
ture of the coolant is controlled by the
engine fan. As this fan can operate with
the ignition key removed and because
the cooling system is pressurised, wait
for  at  least  one  hour  after  the  engine
has  stopped  before  carrying  out  any
work.

Slacken the cap to the ﬁ rst

notch to release the pressure to
prevent any risk of scalding.
When the pressure has dropped,

remove the cap and top up the level with
coolant.

The engine fan can operate
after the vehicle has stopped.

108

Used oil

Do not dispose of used oil,

brake ﬂ uid or coolant into

drains or onto the ground.

Windscreen and headlamp
wash level

For best quality cleaning and for your
safety, to see and be seen, we would
advise that you use products of the
PEUGEOT Universal range.

At  the  start  of  winter,  have
your  battery  checked  by  a
PEUGEOT  dealer.

Battery

CHECKS

Have the ﬁ lter elements re-

placed regularly. If you drive
in dusty conditions, change
them twice as often.

Air filter and passenger compartment filter

Brake  pad  wear  depends
on  the  style  of  driving,  in
parti cular  for  vehicles  which
are used in town, over short
distances.

Brake pads

It may be necessary to check
the thickness of the pads,
even between services.

Where the handbrake travel is
too great or there is a reduc-
tion in the performance of the
system, the handbrake should
be adjusted.

Have the system checked by a
PEUGEOT dealer.

Handbrake

To  ensure  the  best  perfor-
mance  from  components  as
important  as  the  power  stee-
ring  and  the  braking  system,

the manufacturer selects and offers

speciﬁ c products, only use products

recommended by  PEUGEOT .
To  prevent  damage  to  the  electrical
units,  high  pressure  washing  of  the
engine compartment is strictly  prohib-
ited .

Use the ﬂ uid recommended by the

manufacturer.
 Open the reservoir, with the engine

at  ambient  temperature,  the  level
should  always  be  above  the  MIN
mark, close to the MAX mark.

Particle emission filter -
Additive reservoir (Diesel)

It is imperative that the maintenance

of the particle emission ﬁ lter and the

ﬁ lling of the additive reservoir are

carried  out  by  a   PEUGEOT   dealer  in
accordance  with  the  manufacturer's
servicing schedule.

Disc wear status

For any information relating to checking
disc wear, contact a PEUGEOT dealer.

Power steering fluid level

108

Used oil

Do not dispose of used oil,

brake ﬂ uid or coolant into

drains or onto the ground.

Windscreen and headlamp
wash level

For best quality cleaning and for your
safety, to see and be seen, we would
advise that you use products of the
PEUGEOT Universal range.

At  the  start  of  winter,  have
your  battery  checked  by  a
PEUGEOT  dealer.

Battery

CHECKS

Have the ﬁ lter elements re-

placed regularly. If you drive
in dusty conditions, change
them twice as often.

Air filter and passenger compartment filter

Brake  pad  wear  depends
on  the  style  of  driving,  in
parti cular  for  vehicles  which
are used in town, over short
distances.

Brake pads

It may be necessary to check
the thickness of the pads,
even between services.

Where the handbrake travel is
too great or there is a reduc-
tion in the performance of the
system, the handbrake should
be adjusted.

Have the system checked by a
PEUGEOT dealer.

Handbrake

To  ensure  the  best  perfor-
mance  from  components  as
important  as  the  power  stee-
ring  and  the  braking  system,

the manufacturer selects and offers

speciﬁ c products, only use products

recommended by  PEUGEOT .
To  prevent  damage  to  the  electrical
units,  high  pressure  washing  of  the
engine compartment is strictly  prohib-
ited .

Use the ﬂ uid recommended by the

manufacturer.
 Open the reservoir, with the engine

at  ambient  temperature,  the  level
should  always  be  above  the  MIN
mark, close to the MAX mark.

Particle emission filter -
Additive reservoir (Diesel)

It is imperative that the maintenance

of the particle emission ﬁ lter and the

ﬁ lling of the additive reservoir are

carried  out  by  a   PEUGEOT   dealer  in
accordance  with  the  manufacturer's
servicing schedule.

Disc wear status

For any information relating to checking
disc wear, contact a PEUGEOT dealer.

Power steering fluid level

CHANGING A WHEEL

 Park the vehicle on level, stable

and non-slippery ground.

 Apply the handbrake, switch off the

ignition and engage ﬁ rst or reverse

gear (position P for the automatic
gearbox).

Weight of the spare wheel: approxi-
mately 20 kg.

Never go underneath a ve-
hicle which is supported only
by a jack.



Lift the ﬂ oor using the lifting handle.



Fold the ﬂ oor back fully towards

the back of the boot.

Access to the spare wheel and the
jack in the boot

The ﬂ oor must be retained in the raised

position as shown in the illustration.

  Recommendations when using the
temporary spare wheel *
Your  vehicle  may  be  equipped  with  a
spare  wheel  with  a  different  rim  from
the standard wheel.
After use, be sure to replace it as soon
as possible.
Observe the following advice to avoid
altering the handling of the vehicle:
   -

do not drive above 50 mph (80 km/h),

- do not ﬁ t a wheel trim,
-

drive carefully,

- check the inﬂ ation pressure indi-

cated on the label.

* According to version and country.

110

After changing the wheel:
-

have the tightening of the bolts and
the tyre pressure of the spare wheel
checked as soon as possible.

have the punctured wheel repaired and

reﬁ t it to the vehicle as soon as possible.

have the spare wheel checked and
replace it in its boot recess.

  Fitting a wheel
      Position the wheel.
     Tighten the bolts by hand.
     Partly  tighten  the  bolts  using  the

wheelbrace 1 .

 Fold the jack 2 and remove it.
 Fully tighten the bolts using the

wheelbrace 1 .



For vehicles with alloy wheels, reﬁ t

the covers.

 Put the tool holder back in position.

This helps to keep the boot ﬂ oor in its

correct position, to prevent any defor-

mation of the ﬂ oor when loaded.

 Tighten the spare wheel securing

strap to prevent noise and for your
safety in the event of impact.

Reminder: for your safety, always
change a wheel:
-

on level, stable, non-slippery ground,

with the handbrake applied,

- with ﬁ rst or reverse gear engaged (po-

sition P for the automatic gearbox),

never go underneath a vehicle
which is supported only by a jack.

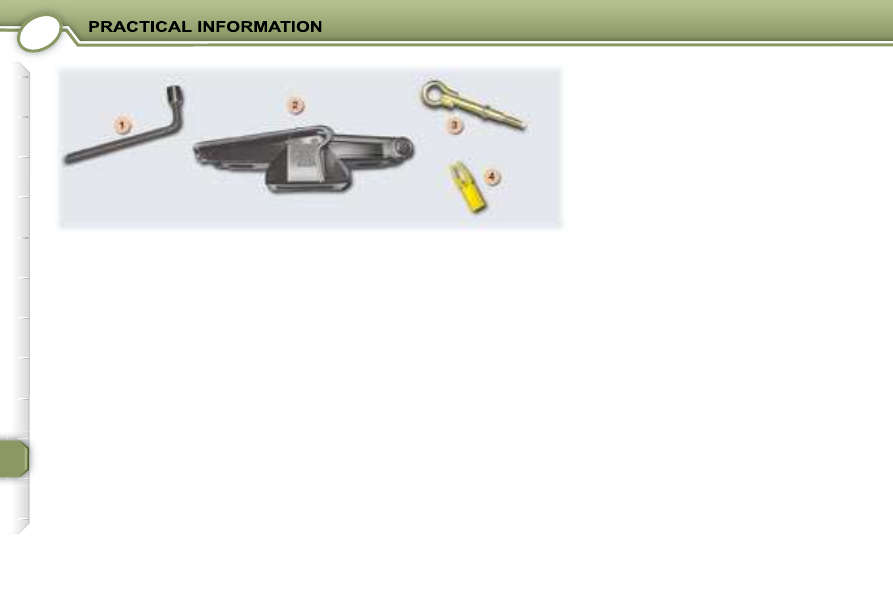

  Tools available
The  following  tools  are  located  in
the  holder  in  the  centre  of  the  spare
wheel:
   1.   Wheelbrace.

Permits removal of the wheel trim
and removal of the wheel securing
bolts.

2. Jack

with

integrated

handle.

Permits raising of the vehicle.

3. Removable towing eye.

See corresponding section.

4. Bolt cover tool. Permits removal of

the bolt protectors (covers) on alloy
wheels.

Removal
 For vehicles with alloy wheels,

remove the covers using tool 4 .

 Loosen the wheel bolts.
 Place the jack 2 in one of the four

locations underneath the vehicle
(the nearest one to the wheel to be
changed).

 Extend the jack 2 until its base is in

contact with the ground.

 Unscrew the bolts and remove the

wheel.

111

  Bolt covers
Alloy  wheel  bolts  are  covered  by
chrome trims.
Use the yellow tool to remove the trims
before slackening the bolts.

Fitting the spare wheel
If your vehicle is ﬁ tted with a steel spare

wheel, when ﬁ tting it, it is normal when

tightening the bolts to notice that the
washers do not come into contact with
the rim. The spare wheel is secured by
the cone shape of each bolt.

VERY COLD CLIMATE
SCREEN *

The very cold climate screen is a par-

tial removable cover which is ﬁ xed

onto the air intake grille to prevent the
accumulation of snow due to direct
splashes.
Once it has been ﬁ tted on your vehi-

cle, it is imperative that it is removed
when the ambient temperature condi-
tions rise above 10°C again.
Consult a PEUGEOT dealer.

* According to country.

Special features of alloy wheels

Anti-theft bolts

Your wheels are ﬁ tted with anti-theft

bolts  (one  per  wheel),  placed  under
chrome trims which must be removed
using the yellow tool, before the bolts
are  unscrewed  using  the  anti-theft
socket and the wheel brace  1 .

Fitting snow tyres
If you ﬁ t snow tyres mounted on steel

wheels onto your vehicle, it is  essential
to  use  special  bolts  available  from  your
PEUGEOT  dealer.

  Note:   this  anti-theft  socket
was  given  to  you  on  delivery
of your vehicle  with the  dupli-
cate keys. Make a careful note

of  the  code  number  engraved  on  the
head of the anti-theft socket. This will
enable  you  to  obtain  a  duplicate  anti-
theft  socket  from  a  Peugeot  dealer.
You  are  advised  to  do  the  same  for
the duplicate keys and not to leave the

conﬁ dential card in the vehicle.

Punctured tyre warning
light

Information on the instrument
panel:

Tyre under-inﬂ ation

detection system warning
light

These original wheels are ﬁ tted with a

pressure sensor (see paragraph "Tyre

under-inﬂ ation detection"). The alarm

which detects the removal or absence

of a wheel ﬁ tted with the indicator

sensor  signals  the  anomaly.  Have
the  wheel  repaired  and  checked  by  a
PEUGEOT  dealer.

111

  Bolt covers
Alloy  wheel  bolts  are  covered  by
chrome trims.
Use the yellow tool to remove the trims
before slackening the bolts.

Fitting the spare wheel
If your vehicle is ﬁ tted with a steel spare

wheel, when ﬁ tting it, it is normal when

tightening the bolts to notice that the
washers do not come into contact with
the rim. The spare wheel is secured by
the cone shape of each bolt.

VERY COLD CLIMATE
SCREEN *

The very cold climate screen is a par-

tial removable cover which is ﬁ xed

onto the air intake grille to prevent the
accumulation of snow due to direct
splashes.
Once it has been ﬁ tted on your vehi-

cle, it is imperative that it is removed
when the ambient temperature condi-
tions rise above 10°C again.
Consult a PEUGEOT dealer.

* According to country.

Special features of alloy wheels

Anti-theft bolts

Your wheels are ﬁ tted with anti-theft

bolts  (one  per  wheel),  placed  under
chrome trims which must be removed
using the yellow tool, before the bolts
are  unscrewed  using  the  anti-theft
socket and the wheel brace  1 .

Fitting snow tyres
If you ﬁ t snow tyres mounted on steel

wheels onto your vehicle, it is  essential
to  use  special  bolts  available  from  your
PEUGEOT  dealer.

  Note:   this  anti-theft  socket
was  given  to  you  on  delivery
of your vehicle  with the  dupli-
cate keys. Make a careful note

conﬁ dential card in the vehicle.

Punctured tyre warning
light

Information on the instrument
panel:

Tyre under-inﬂ ation

detection system warning
light

These original wheels are ﬁ tted with a

pressure sensor (see paragraph "Tyre

under-inﬂ ation detection"). The alarm

which detects the removal or absence

of a wheel ﬁ tted with the indicator

sensor  signals  the  anomaly.  Have
the  wheel  repaired  and  checked  by  a
PEUGEOT  dealer.

112

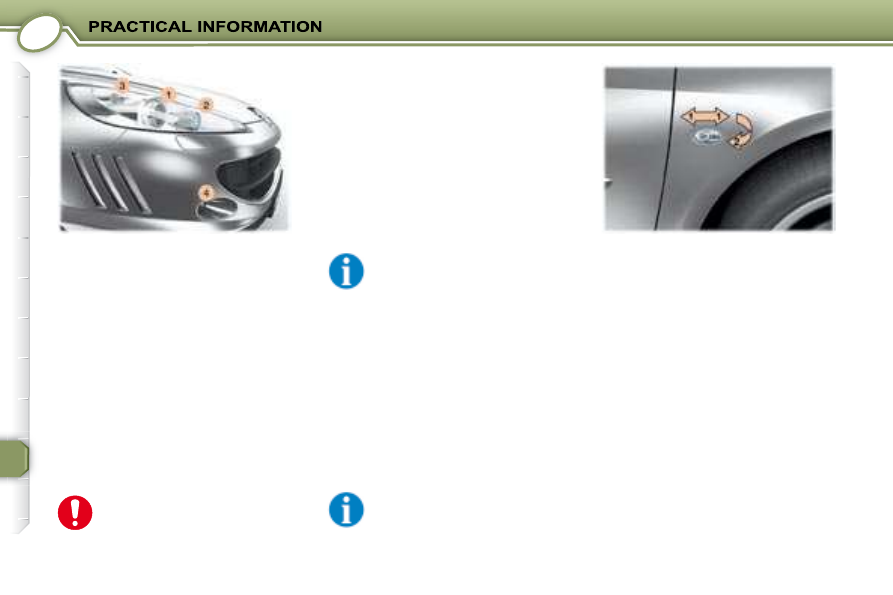

CHANGING A FRONT BULB

Handle the bulbs with a dry cloth.

2 - Side lights: W 5 W (COOL BLUE

 Turn the access cap a quarter turn,

remove the bulb and change it.

3 - Direction indicators:

PY 21 W (DIADEM

      Turn the access cap a quarter turn,
     Remove the bulb holder.
     Change the bulb.

4 - Front fog lamps: H11 - 55 W.
The headlamps are ﬁ tted with polycar-

bonate  glass  with  a  protective  coating.
Do not clean them with a dry or abrasive
cloth,  nor  with  a  detergent  or  solvent
product.
Ensure  that  the  liquid  used  to  ﬁ ll  the

wash-wipe and headlamp wash reser-
voir is of good quality.

Integrated direction indicator side
repeaters
 Push the repeater forwards or

backwards and release it.

     Unclip the repeater and change it.
Repeaters  can  be  obtained  from  a
PEUGEOT  dealer.

Front lights

In the engine compartment, remove
the cover secured by one or two but-

terﬂ y screws, a plastic retainer clip and

two quarter turn screws.

1 - Dipped beam and main beam

headlamps: D1S - 35 W xenon bulb.

WARNING: RISK OF
ELECTROCUTION

Coloured bulbs (side lights
and direction indicators) must
be replaced with bulbs of iden-

tical speciﬁ cation and colour.

In  certain  climatic  conditions
(low  temperature,  humidity),
condensation  on  the  inside
surface of the headlamp glass

is normal; it disappears a few minutes
after the lights are switched on.

Xenon bulbs must be replaced by a
PEUGEOT dealer.

113

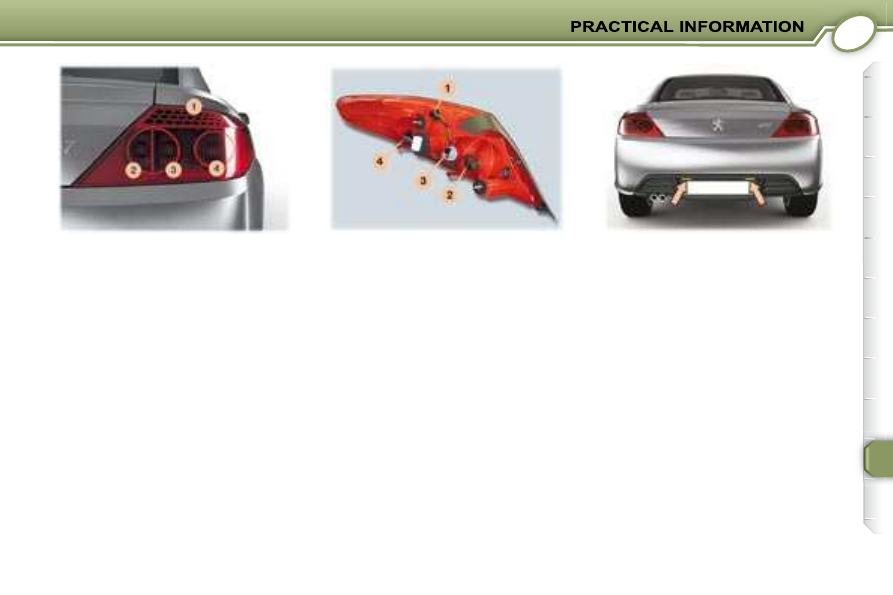

CHANGING A REAR BULB

1. Direction indicators: W 16W.

2. Fog lamps: P21 W.

3. Reversing lights: P21 W.

4. Brake lights/side lights: P21/5 W.

 Fold down the panel to gain ac-

cess to the light.



Unscrew the 2 light ﬁ xing nuts in-

side the boot.

     Disconnect the connector.
     Pull the light towards the outside.
     Unscrew  the  bulb  holder  sleeve  a

quarter of a turn.

 Unscrew the faulty bulb and

change it.

 Screw in the bulb holder sleeve a

quarter of a turn.

 Put the light back in place from the

outside.

 Reconnect the connector.


Screw on the 2 light ﬁ xing nuts in-

side the boot. When reﬁ tting, en-

sure that the light is positioned and

ﬁ xed correctly.

Number plate lights: W 5 W.
 Remove the transparent cover us-

ing a screwdriver.

 Change the faulty bulb.

Third brake light: diodes.
Contact a PEUGEOT dealer for re-
placement.

114

CHANGING A FUSE

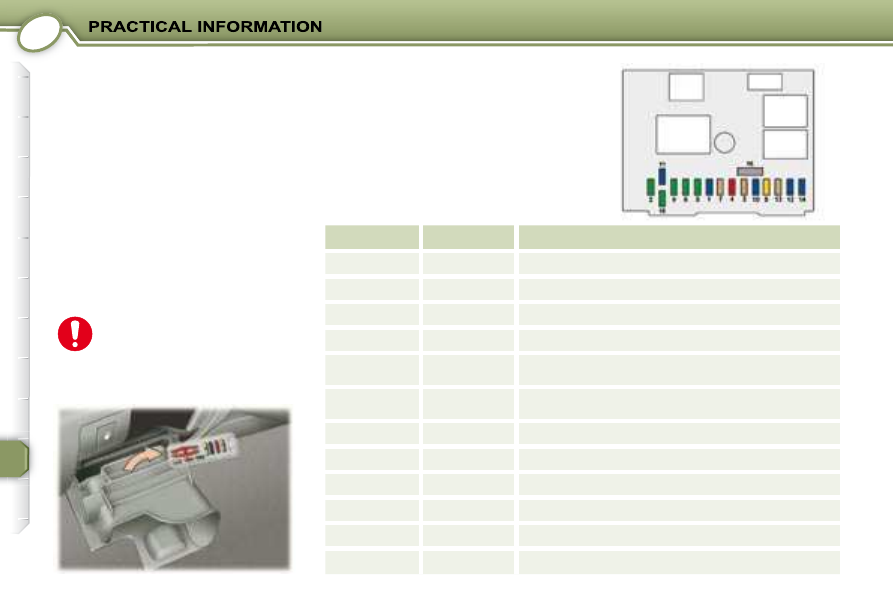

The fuse boxes are placed in the lower
part of the fascia (driver's side), in the
engine compartment (left-hand side)
and in the left boot trim.

Fascia fuses

To  access  the  fuses,  open  the  cover
of  the  storage  compartment  on  the
driver's  side.  Tilt  the  fuse  box  down-
wards.

Replacing a fuse

Before replacing a fuse, the cause of
the incident must be found and recti-

ﬁ ed. The fuse numbers are indicated

on the fuse box.

Always replace a faulty fuse
with a fuse of the same rating
(same colour).

Use  the  special  pliers  located  on  the
support next to the fuse box, this sup-
port  also  contains  the  replacement
fuses.

Fuse N°

Rating

Functions

G29

Not used.

G30

5 A

Heated rear screen.

G31

5 A

Tyre under-inﬂ ation detection, CD changer.

G32

Not used.

G33

5 A

Power steering electropump unit, dual-function
brake switch.

G34

5 A

Dual-function brake switch, automatic gearbox
relay.

G35

5 A

Steering wheel angle sensor and ESP gyrometer sensor.

G36

25 A

Hi-Fi ampliﬁ er.

G37

15 A

Automatic gearbox.

G38

20 A

Heated seats.

G39

30 A

Passenger seat memory unit.

G40

30 A

Driver's seat memory unit.

114

CHANGING A FUSE

The fuse boxes are placed in the lower
part of the fascia (driver's side), in the
engine compartment (left-hand side)
and in the left boot trim.

Fascia fuses

To  access  the  fuses,  open  the  cover
of  the  storage  compartment  on  the
driver's  side.  Tilt  the  fuse  box  down-
wards.

Replacing a fuse

Before replacing a fuse, the cause of
the incident must be found and recti-

ﬁ ed. The fuse numbers are indicated

on the fuse box.

Always replace a faulty fuse
with a fuse of the same rating
(same colour).

Use  the  special  pliers  located  on  the
support next to the fuse box, this sup-
port  also  contains  the  replacement
fuses.

Fuse N°

Rating

Functions

G29

Not used.

G30

5 A

Heated rear screen.

G31

5 A

Tyre under-inﬂ ation detection, CD changer.

G32

Not used.

G33

5 A

Power steering electropump unit, dual-function
brake switch.

G34

5 A

Dual-function brake switch, automatic gearbox
relay.

G35

5 A

Steering wheel angle sensor and ESP gyrometer sensor.

G36

25 A

Hi-Fi ampliﬁ er.

G37

15 A

Automatic gearbox.

G38

20 A

Heated seats.

G39

30 A

Passenger seat memory unit.

G40

30 A

Driver's seat memory unit.

115

Fuse N°

Rating

Functions

Not used.

30 A

Locking and deadlocking.

5 A

Air bags and pre-tensioners control unit.

10 A

Automatic gearbox switch, diagnostic socket, electrochromatic mirror.

30 A

Driver and passenger electric windows.

30 A

Sunroof.

5 A

Glove box light, map reading lights, courtesy lights, courtesy mirrors.

20 A

Multifunction display, audio equipment, top-of-column, trailer fuse box (accessory), alarm,
alarm siren.

30 A

Front lighter, 12 V rear socket, glove box light, map reading lights, courtesy lights, courtesy
mirrors.

F10

15 A

Tyre under-inﬂ ation detection, CD changer.

F11

15 A

Diagnostic socket, ignition switch.

F12

15 A

Trailer fuse box (accessory), parking assistance control unit supply, passenger seat
memory unit, rain and brightness sensor.

F13

5 A

Windscreen wipers relay control, engine fuse box.

F14

15 A

Driver's seat memory unit, instrument panel, air bags and pre-tensioners control unit, air
conditioning control panel, steering wheel adjustment switch, hands-free kit.

F15

30 A

Locking and deadlocking.

F16

PARC shunt.

Peugeot 407 C Dag (2008 year). Instruction - part 8
