Peugeot 407 C Dag (2008 year). Instruction - part 1

Sunroof
This roof improves the ventilation and
light in the passenger compartment.

Visual and audible front parking
assistance
This equipment warns you if an obstacle
is detected in front of the vehicle in forward
gear.

Visual and audible rear parking
assistance
This equipment warns you if an obstacle
is detected behind the vehicle when re-
versing.

Tyre under-inﬂ ation detection
This equipment checks the pressure of
the tyres while driving and warns you if a
malfunction occurs.

 72

 100

 102

100

Directional headlamps
This additional lighting automatically pro-
vides additional visibility when cornering.

 76

   A.   Unfolding/Folding of the key.
  B.   Normal locking or deadlocking.
  C.   Complete or selective unlocking.
  D.   Unlocking of the boot.

1. Bonnet opening control.
2. Opening of the bonnet.

 104

Low fuel level

 73

Fuel ﬁ ller ﬂ ap opening button.

Opening of the fuel ﬁ ller ﬂ ap.

3. Opening and hooking of the fuel

tank cap.

Capacity of the tank: approximately
67 litres.

  When this warning light
comes on on the instru-
ment  panel,  you  have
enough fuel left to drive
approximately 30 miles
(50 km).

 64

Fuel tank

Bonnet

Remote control key

 71

Boot

Sunroof

 72

1. Opening of the sunroof.
2. Closing of the sunroof.

Doors

To facilitate opening of the door,
the window lowers automatically
by a few centimetres.
It rises and adjusts automati-

cally when the door is closed to guaran-
tee perfect sealing.

 After unlocking the vehicle, pull the

door handle.

To open the boot, press the button and
raise the tailgate.

 70

If the permanent locking of the
boot is activated, the boot can
only be opened using the button
on the remote control.

Automatic air conditioning
This automatic air conditioning system

guarantees comfort and a sufﬁ cient circula-

tion of air in the passenger compartment.

  Cruise control/speed limiter
This  cruise  control  system  automatically
maintains the vehicle speed at the value
programmed  by  the  driver,  without  any
action on the accelerator pedal.
The  speed  limiter  system  prevents  the
vehicle from exceeding the programmed
speed.

Audio and communication systems
This equipment beneﬁ ts from the latest

technology: MP3 compatible audio equip-
ment, Bluetooth hands-free kit, colour
screen, audio system, auxiliary sockets.

  6-speed automatic gearbox
This  equipment  offers  driving  in  auto-
adaptive  mode  enhanced  by  a  selection
suited to dynamic driving conditions.

 40

 96

 130

 93

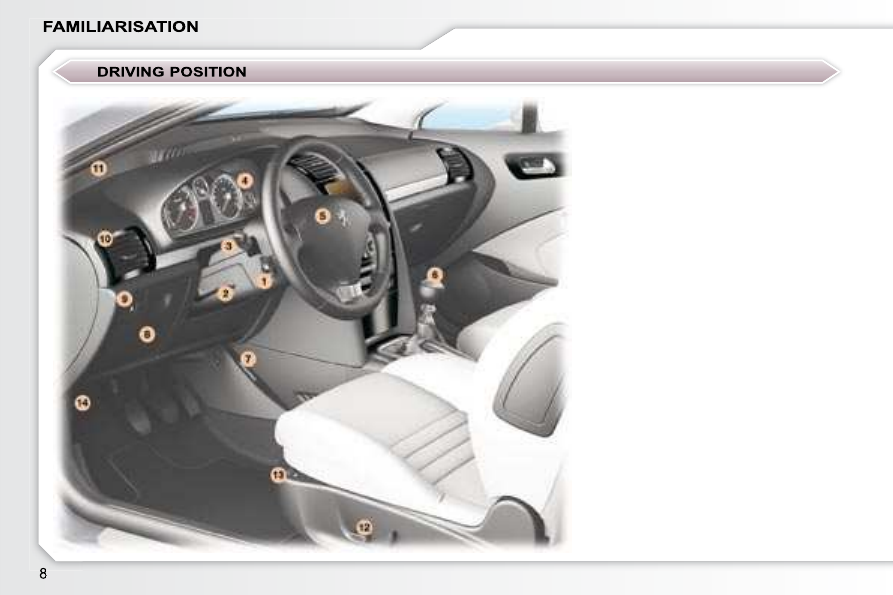

1. Cruise control/speed limiter switches.

2. Steering wheel height and depth

adjustment.

3. Lights and direction indicators controls.

4. Instrument panel.

5. Driver's air bag.

Horn.

6. Gear lever.

7. Driver's footwell air outlet.

8. Fascia fuse box.

Fuel ﬁ ller ﬂ ap opening button.

10. Adjustable and closing side vent.

11. Speakers (tweeters).

12. Driver's seat electric controls.

13. Driver's heated seat control.

14. Bonnet release.

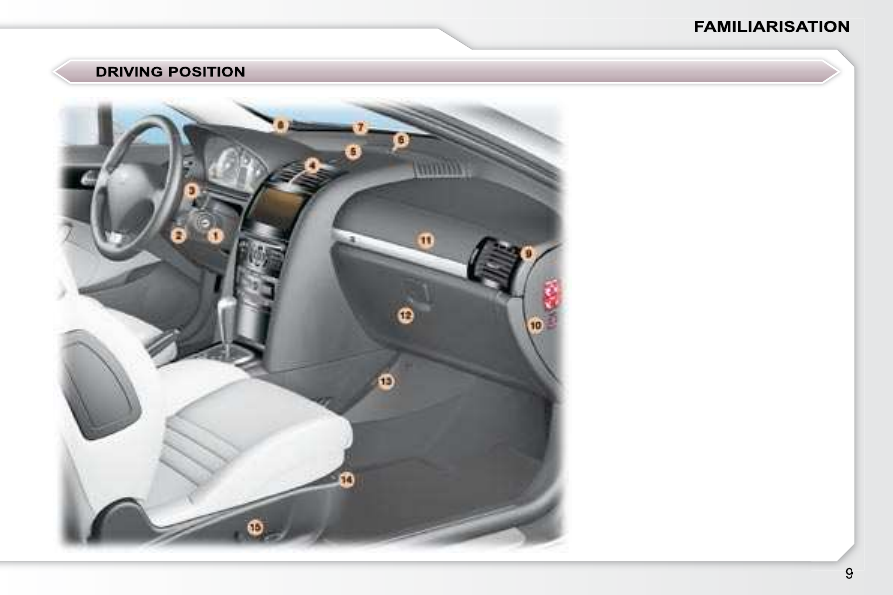

1. Steering lock and ignition.

2. Audio equipment steering wheel

control.

3. Wipers/wash-wipe and trip computer

controls.

4. Adjustable and closing central vents.

5. Air diffuser vent grille.

6. Sunshine sensor.

7. Windscreen deicing and demisting

vent.

8. Speakers (tweeters).

9. Adjustable and closing side vent.

10. Disarming of the passenger air bag * .

11. Passenger air bag.

12. Glove box/Video sockets.

13. Passenger footwell air outlet.

14. Passenger heated seat control.

15. Passenger seat electric controls.

* According to country.

1. Multifunction display.

2. Audio and telematics system.

3. Automatic air conditioning controls.

4. Deactivation of the parking assistance.

Central locking from the inside.

Alarm control.

Hazard warning lights.

SPORT suspension control.

Deactivation of the ESP system.

5. Front ashtray/lighter (100 W max).

6. Gear lever.

7. Handbrake.

8. Retractable cup/can holder.

9. Armrest with storage compartment.

10. 12 volt accessories socket

(100 W max).

11. Rear ashtray.

 130

 159

WIP Sound

WIP Com

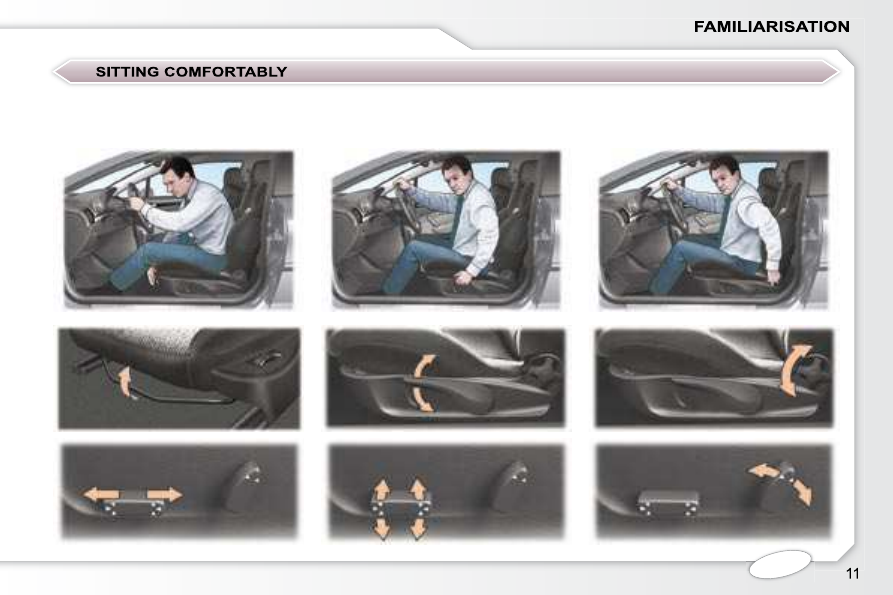

Height and angle of the driver's seat
cushion

Seat back angle

Front seat adjustment

 51

Forwards-backwards

 53

  Manual
When stationary, unlock the steering wheel
by pushing the control forwards. Adjust the
height  and  depth  of  the  steering  wheel
then lock by pulling the control fully.

  Electric
When  stationary,  adjust  the  height  or
depth  of  the  steering  wheel  by  moving
the control:
      forwards  or  rearwards  to  adjust  the

depth.

 upwards or downwards to adjust the

height.

 50

1. Driver's seat handle.
2. Passenger seat courtesy handle.

Steering wheel adjustment

Access to the rear seats

Switch on the ignition and press switch 1 :
-

indicator light 2 on (switch pressed):
automatic operation.

indicator  light   2   off:  automatic  system
off. The  mirror  remains  at  its  clearest
status.

A. Exterior mirrors selection, adjustment

and folding control.

  1.    Selection of the driver's mirror.
  2.    Selection of the passenger mirror.
  3.    Folding of the mirrors.

Interior mirror adjustment

 49

 48

Exterior mirrors adjustment

Memorising driving positions

The memorisation takes into account the
electric adjustment of the driver's seat,
steering wheel and exterior mirrors.

You can memorise two driving positions
using buttons M/1 and M/2 .

 55

Front seat belt

1. Fastening.
2. Height adjustment.

 86

   1.    Stop  position.
  2.    Running  position.
  3.    Starting  position.

Ignition switch

B. Windows manual or automatic open-

ing and closing control.

1. Driver's electric window.
2. Passenger electric window.

Electric windows

 69

The position is indicated on the instrument panel by the corresponding indicator light.

Ring A

Automatic  switching  on  of
the lights
Activate  or  deactivate  the
function  from  the  multi-

function display conﬁ gura-

tion menu.

Ring B

Front fog lamps
(one press)

Front fog lamps and rear
fog lamps (two presses)

 74

Fast wipe.

Normal wipe.

Intermittent wipe.

Park.

AUTO. Automatic wipe then single

wipe.

A. Wash-wipe.

 77

Wipers

Lighting

Lights off

Automatic switching on of
the lights.

Side lights

Dipped headlamps/
Main beam headlamps

Driver and passenger automatic programme
(comfort).

Driver's side temperature adjustment.
Passenger side temperature adjustment.

Air ﬂ ow adjustment.

Ventilation off.

Passenger air distribution adjustment.

Front visibility control.

Exterior air intake.
Exterior air recirculation.

Rear screen demisting.

 40

Driver's air distribution adjustment.

Automatic air conditioning (Dual zone)

 20

With the ignition on, the orange and red
warning lights come on.
With the engine running, these warning
lights should switch off.
If a warning light remains on, refer to the
page concerned.

Lighting of the indicator light indicates the
status of the corresponding function.

A. With the ignition on, the fuel gauge

needle should rise.

B. With the engine running, the associa-

ted low level warning light should
switch off.

C. With the ignition on, the oil level indica-

tor should display "OIL OK" for a few
seconds.

If the levels are not correct, top up the level
which is low.

Warning lights

 22

Controls bar

Instrument panel

 100

A. Deactivation of the front and/

or rear parking assistance.

B. Central locking.

C. Deactivation of the interior

protection alarm.

D. Hazard warning lights.

E. Selection of the electronically

controlled suspension.

F. Deactivation of the electronic

stability programme ESP.

 70

 68

 83

 95

 84

 89

   1.   Insert the key.
  2.   Select the  "OFF"  position.
  3.   Remove the key keeping the switch

in this position.

* According to country.

Passenger air bag disarmed

This warning light remains on
on the instrument panel whilst
the air bag is disarmed.

Front passenger air bag *

When the ignition is switched on, if a front
occupant  has  not  fastened  his  seat  belt
and if the vehicle speed is below 12 mph
(20  km/h),  you  are  warned  by  the  seat
belt warning light which comes on.
The  warning  light  switches  off  when  the
seat belt(s) concerned is(are) fastened.
If  the  vehicle  speed  is  above  12  mph
(20 km/h), you are warned by the seat belt

warning light which ﬂ ashes, an audible

signal and a message on the multifunc-
tion display locating the seat belt(s) which
is(are) not fastened.

Detection of fastening of the front
seat belts

 86

To guarantee the safety of your child, it is
essential that you disarm the passenger air
bag when you install a "rear facing" child
seat on the front passenger seat. Otherwise,
the child would risk being seriously injured

or killed if the air bag were to inﬂ ate.

Cruise control

This prevents the vehicle from excee ding
the speed programmed by the driver
(minimum speed 20 mph (30 km/h)).
1. Selection/Switching off of the speed

limiter mode.

  2.   Decrease of the programmed value.
  3.   Increase of the programmed value.
  4.   Speed limiter on/off.
The values must be set with the engine
running.

 96

Speed limiter

 98

This  enables  the  vehicle  to  maintain
a  constant  speed  programmed  by  the
driver.
   1.   Selection/Switching off of the cruise

control mode.

2. Decrease of the programmed value

and storing of a speed.

3. Increase of the programmed value

and storing of a speed.

  4.   Cruise control on/off.
In order to be programmed or activated,
the  vehicle  speed  must  be  higher  than
25  mph  (40  km/h),  with  at  least  fourth
gear engaged on the manual gearbox.

The cruise control or speed limiter mode
appears on the instrument panel when
it is selected.

Cruise control

Speed limiter

Display on the instrument panel
