In the event of a breakdown

308_en_Chap08_en-cas-de-panne_ed01-2016

this kit is installed in the storage box, under the
boot floor.

this kit consists of a compressor and a sealant
cartridge.
It allows the temporary repair of a tyre.
You are then able to go to the nearest garage.
It is designed to repair most punctures which
could affect the tyre, located on the tyre tread
or shoulder.
Its compressor can be used to check and
adjust the pressure of the tyre.

temporary puncture repair kit

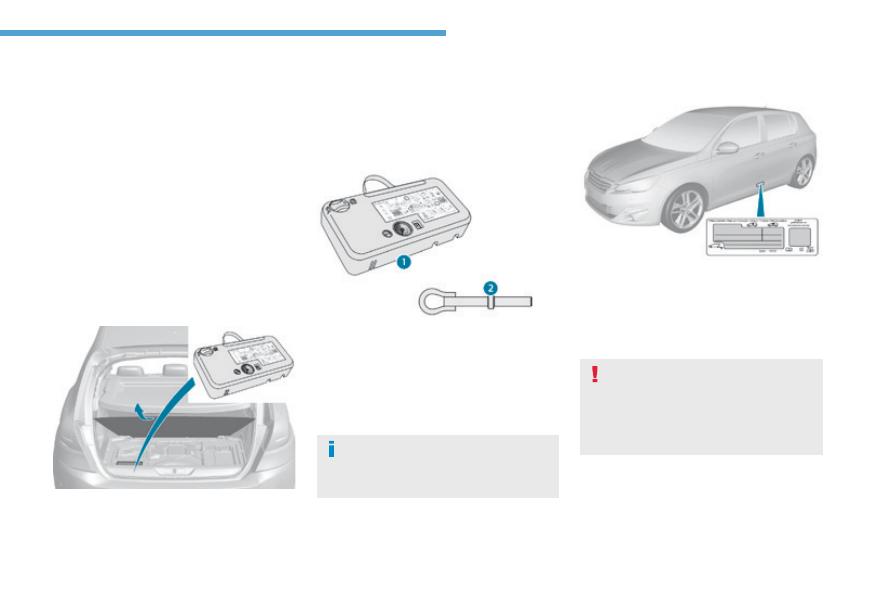

Access to the kit

1. 12 V compressor.

to temporarily repair a tyre using an
integral sealant cartridge and adjust the
tyre pressure.

2. towing eye.

the tyre inflation pressures are given on
this label.

the 12 V socket at the rear of the
vehicle allows the connection of the
compressor for long enough to repair or
inflate a tyre.

For more information on Towing, refer
to the corresponding section.

List of tools

these tools are specific to your vehicle and can
vary according to equipment. Do not use them
for other purposes.

240

In the event of a breakdown

308_en_Chap08_en-cas-de-panne_ed01-2016

A. "Sealant" or "Air" position selector.
B. On

"I" / off "O" switch.

C. Deflation button.
D. Pressure gauge (in bars and psi).

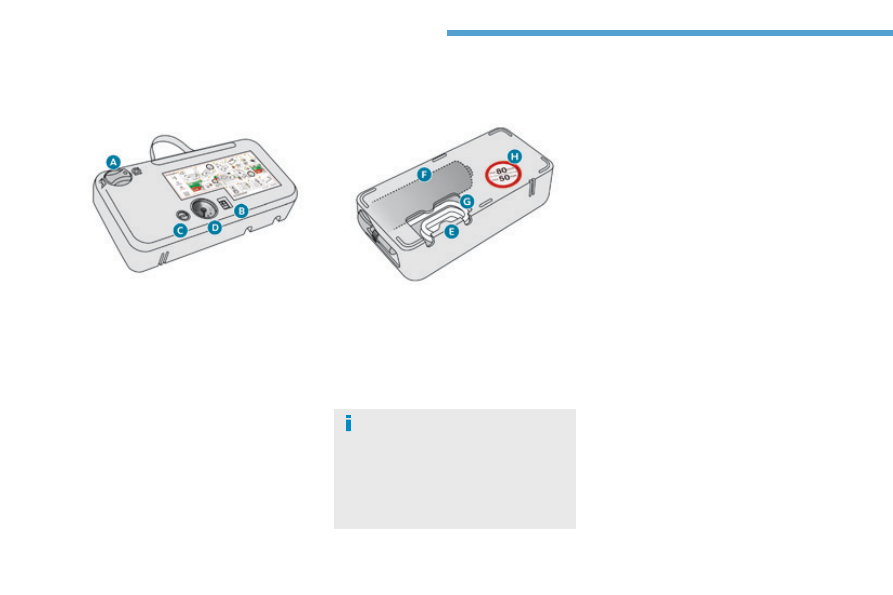

Description of the kit

E. Compartment housing a cable with an

adaptor for a 12 V socket.

F.  Sealant cartridge.
G.  White pipe with cap for repair and inflation.
H.  Speed limit sticker.

the speed limit sticker H must be
affixed to the vehicle's steering wheel to
remind you that a wheel is in temporary
use.
Do not exceed a speed of 50 mph
(80 km/h) when driving with a tyre
repaired using this type of kit.

241

In the event of a breakdown

308_en_Chap08_en-cas-de-panne_ed01-2016

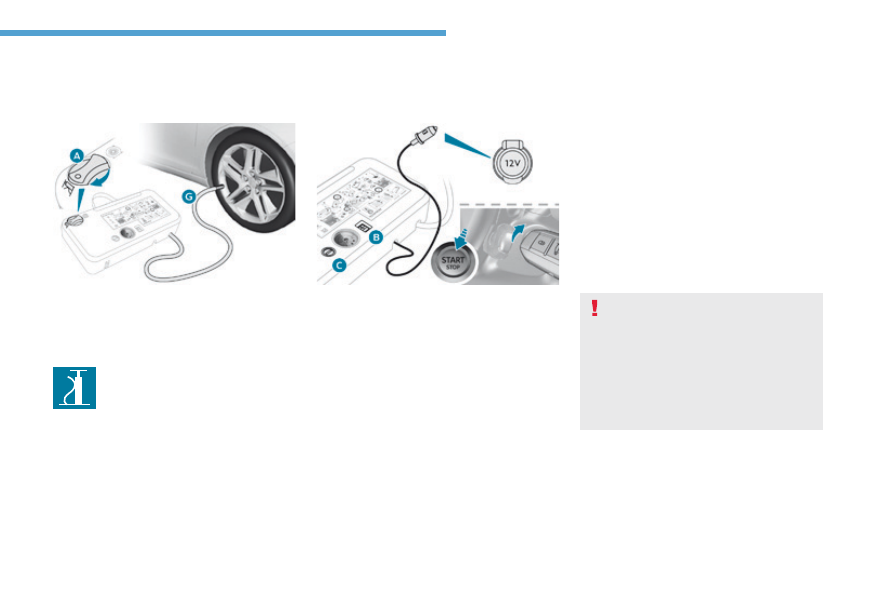

Repair procedure

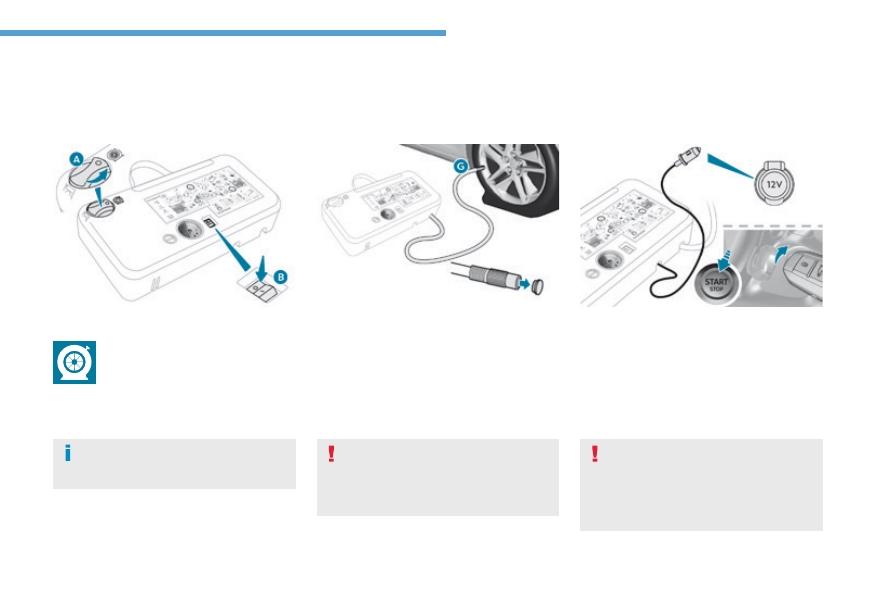

1. Sealing

F  uncoil the white pipe G fully.
F  unscrew the cap from the white pipe.
F  Connect the white pipe to the valve of the

tyre to be repaired.

F Connect the compressor's electric plug to

the vehicle's 12 V socket.

F Start the vehicle and leave the engine

running.

take care, this product is harmful if
swallowed and causes irritation to the eyes.
Keep this product out of the reach of
children.

Avoid removing any foreign bodies
which have penetrated into the tyre.

Do not start the compressor before
connecting the white pipe to the tyre
valve: the sealant product would be
expelled through the pipe.

F Switch off the ignition.

F turn the selector A to the

"sealant" position.

F Check that the switch B is in position "O".

242

In the event of a breakdown

308_en_Chap08_en-cas-de-panne_ed01-2016

If after around 5 to 7 minutes the
pressure is not attained, this indicates
that the tyre is not repairable; contact
a PeugeOt dealer or a qualified
workshop for assistance.

F Switch on the compressor by moving

the switch B to position "I" until the tyre
pressure reaches 2.0 bars.

the sealant is injected into the tyre under
pressure; do not disconnect the pipe from
the valve during this operation (risk of
splashing).

F Remove the kit and screw the cap back on

the white pipe.

take care to avoid staining your vehicle
with traces of fluid. Keep the kit to hand.

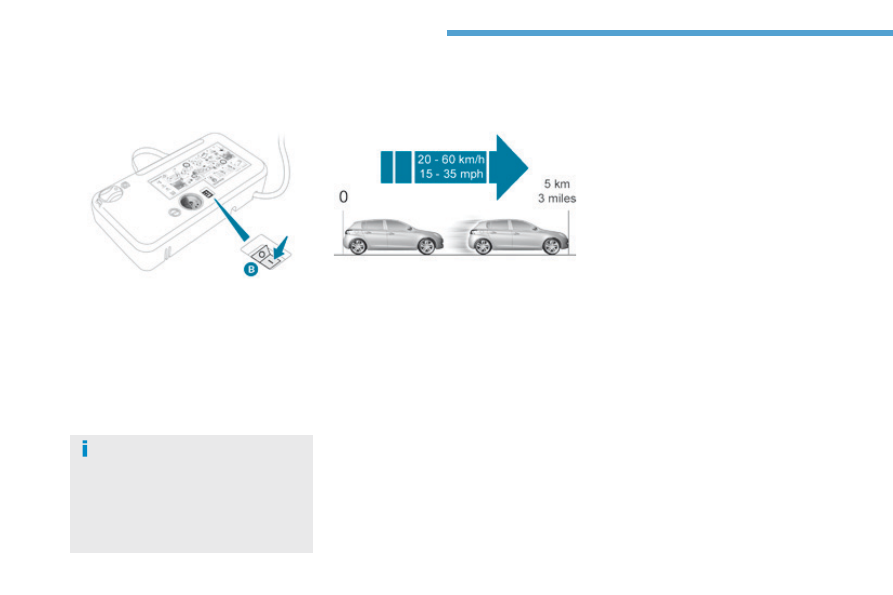

F Drive immediately for approximately

three miles (five kilometres), at reduced
speed (between 12 and 37 mph (20 and
60 km/h)), to plug the puncture.

F Stop to check the repair and the tyre

pressure using the kit.

243

In the event of a breakdown

308_en_Chap08_en-cas-de-panne_ed01-2016

F Connect the compressor's electric plug to

the vehicle's 12 V socket.

F Start the vehicle again and leave the

engine running.

F Adjust the pressure using the compressor

(to inflate: switch B in position "I"; to
deflate: switch B in position "O" and press
button C), in accordance with the vehicle's
tyre pressure label (located on the left-
hand door aperture).

A loss of pressure indicates that the
puncture has not been fully plugged;
contact a PeugeOt dealer or qualified
workshop for assistance.

F Remove and stow the kit.
F Drive at reduced speed (50 mph [80 km/h]

max) limiting the distance travelled to
approximately 120 miles (200 km).

As soon as possible, go to a PeugeOt
dealer or a qualified workshop.
You must inform the technician that you
have used this kit. After inspection, the
technician will advise you on whether
the tyre can be repaired or if it must be
replaced.

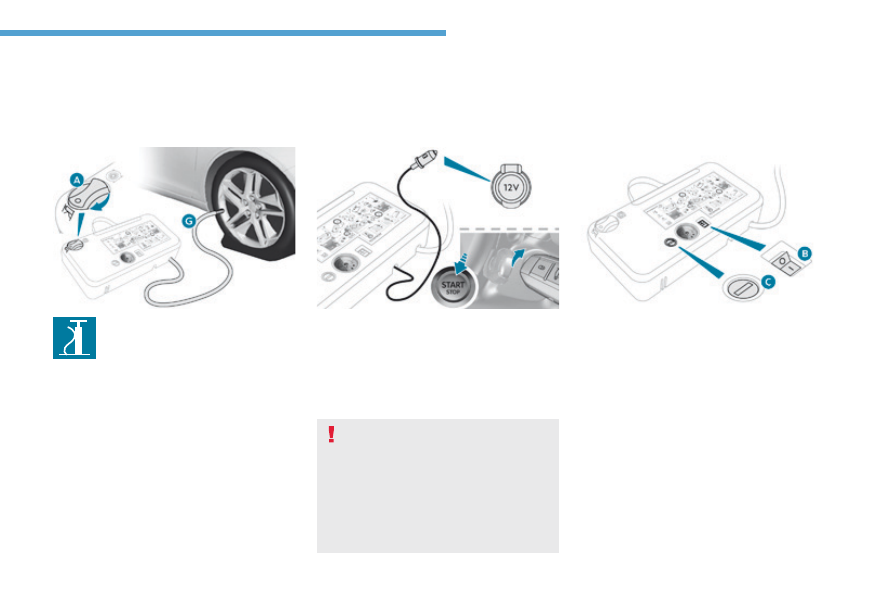

2. Inflation

F turn the selector A to the "Air"

position.

F uncoil the white pipe G fully.
F Connect the white pipe to the tyre valve.

244

In the event of a breakdown

308_en_Chap08_en-cas-de-panne_ed01-2016

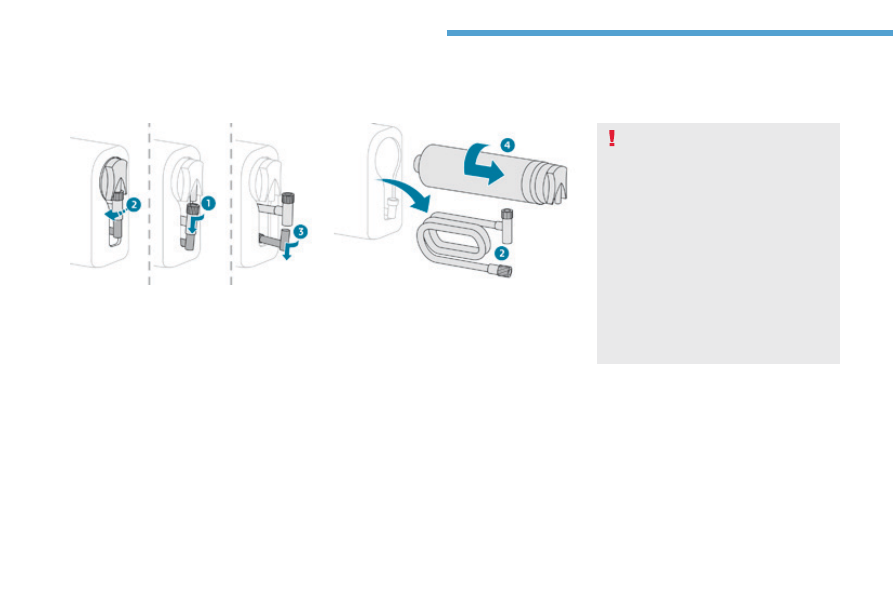

Removing the pipe and cartridge

F turn the pipe assembly 2 to the left until it

contacts the unit.

F Disconnect the union 1 from the cartridge

by turning it a quarter turn anti-clockwise.

F extract the pipe assembly 2, then

disconnect the union 3 from the air delivery
pipe by turning it a quarter turn anti-
clockwise.

Beware of discharges of fluid.
the expiry date of the fluid is indicated
on the cartridge.
the sealant cartridge is designed for
single use; even if only partly used, it
must be replaced.
After use, do not discard the cartridge
into the environment, take it to an
authorised waste disposal site or a
PeugeOt dealer.
Do not forget to obtain a new sealant
cartridge, available from PeugeOt
dealers or from a qualified workshop.

F  Remove the pipe assembly 2.
F  Support the compressor vertically.
F  unscrew the cartridge 4 from the bottom.
to fit the new cartridge and new pipe, carry out
these operations in reverse order.

245

In the event of a breakdown

308_en_Chap08_en-cas-de-panne_ed01-2016

Checking / adjusting tyre pressures

You can also use the compressor without
injecting any product, to check and if necessary
adjust your tyre pressures.

F turn the selector A to the "Air"

position.

F Connect the compressor's electrical

connector to the vehicle's 12 V socket.

F Start the vehicle and let the engine run.
F Adjust the pressure using the compressor

(to inflate: switch B in position "I"; to
deflate: switch B in position "O" and press
button C), according to the vehicle's tyre
pressure label.

F Remove the kit then stow it.

Should the pressure of one or more
tyres be adjusted, it is necessary to
reinitialise the under-inflation detection
system.
For more information on Under-
inflation detection, refer to the
corresponding section.

F uncoil the white pipe G fully.
F Connect the pipe to the tyre valve.

246

In the event of a breakdown

308_en_Chap08_en-cas-de-panne_ed01-2016

Spare wheel

the tools are installed in the boot under the
floor.

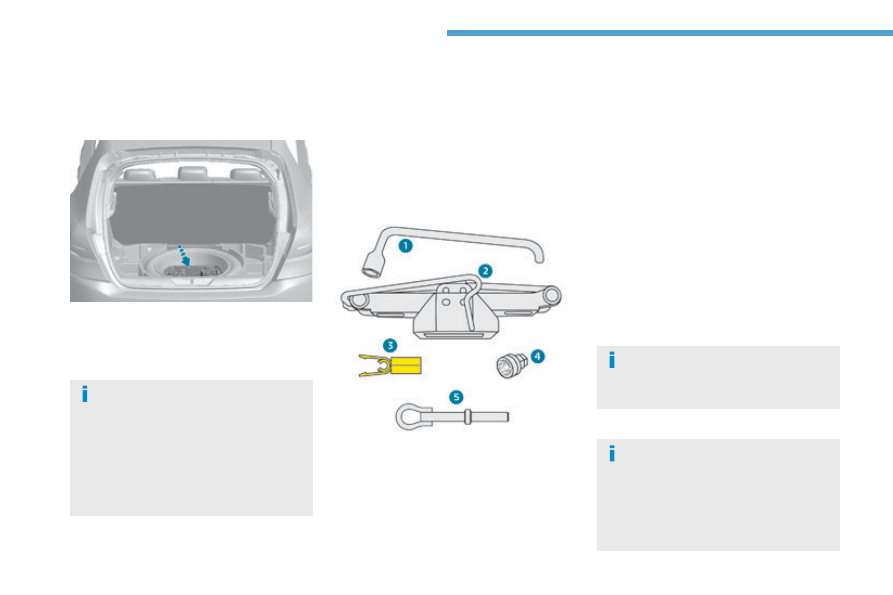

Access to the tooling

1. Wheelbrace.

For removing the wheel trim and removing
the wheel bolts.

2. Jack with integral handle.

For raising the vehicle.

3. Wheel bolt cover removal tool.

For removing the bolt head protectors on
alloy wheels.

4. Socket for the security bolts (located in the

glove box).

For adapting the wheelbrace to the special
"security" bolts.

5. towing eye.

Procedure for changing a wheel with a damaged or punctured tyre for the spare wheel using the tools provided with the vehicle.

For more information on Towing, refer
to the corresponding section.

Wheel with trim

When refitting the wheel, refit the trim
starting by placing its notch facing the
valve and press around its edge with
the palm of your hand.

List of tools

these tools are specific to your vehicle and can
vary according to the level of equipment. Do
not use them for other purposes.

the jack must only be used to change a
wheel with a damaged tyre.
the jack does not require any
maintenance.

the jack conforms to european
legislation, such as defined in the
Machinery Directive 2006/42/Ce.

247

In the event of a breakdown

308_en_Chap08_en-cas-de-panne_ed01-2016

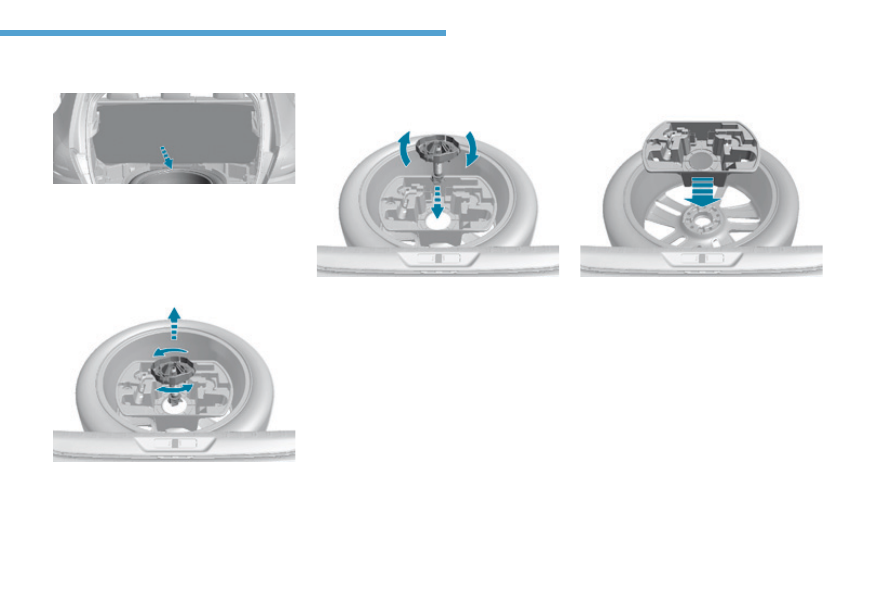

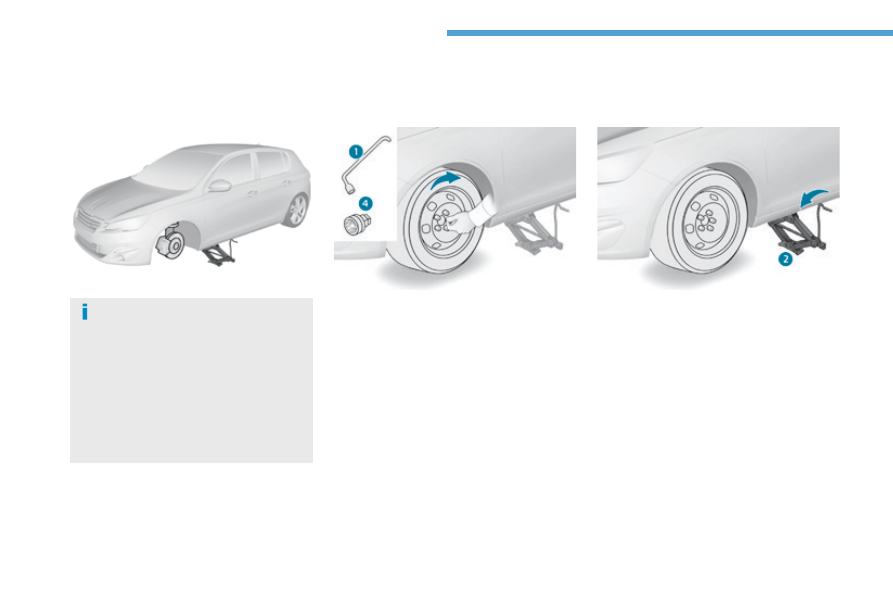

Taking out the wheel

F  unscrew the (coloured) central nut.
F  Remove the fixing parts (nut and bolt).
F  Raise the spare wheel towards you from

the rear.

F take the wheel out of the boot.

Access to the spare wheel

the spare wheel is located in the boot under
the floor.
Depending on the country of sale, the spare
wheel may be steel, alloy or of the "space-
saver" type.

Putting the wheel back in place

F Put the box back in place in the centre of

the wheel and clip it.

F Put the polystyrene storage box back in

place.

F Put the wheel back in its housing.
F unscrew the (coloured) central nut by a few

turns on the bolt.

F Put the fixing parts (nut and bolt) in place in

the middle of the wheel.

F tighten fully until the central nut clicks to

retain the wheel correctly.

248

In the event of a breakdown

308_en_Chap08_en-cas-de-panne_ed01-2016

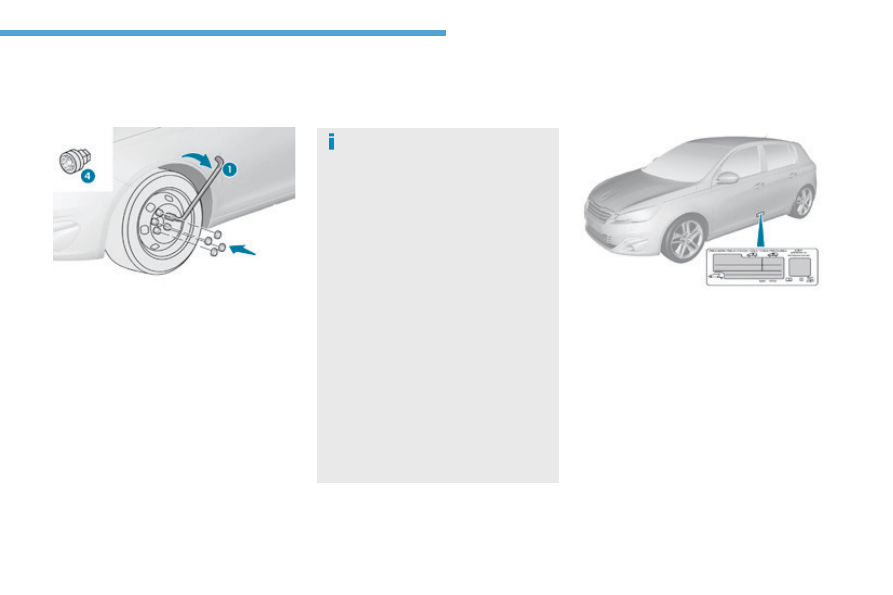

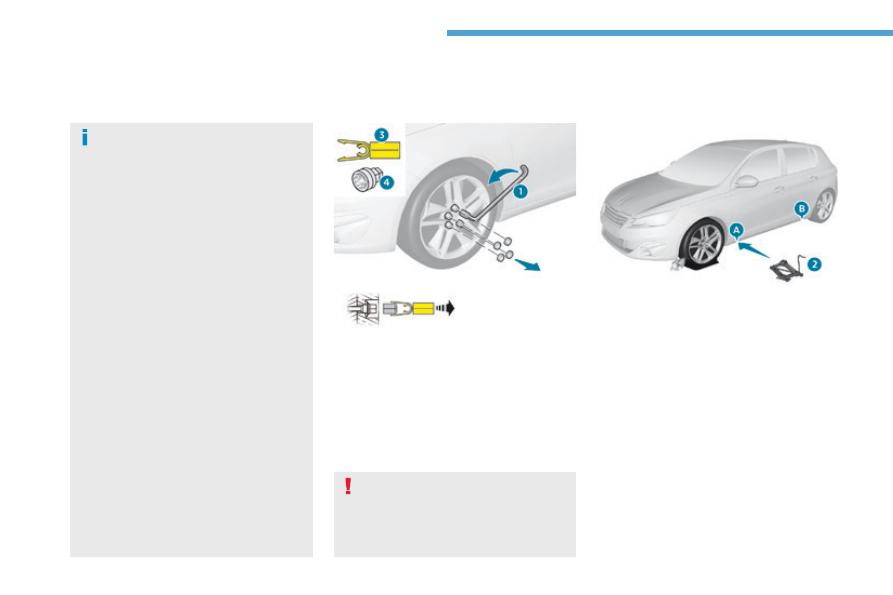

F Remove the bolt cover(s) using the tool 3

(according to equipment).

F Fit the security socket 4 on the

wheelbrace 1 to slacken the security bolt (if
fitted).

F Slacken the other bolts using the

wheelbrace 1 only.

F Position the foot of the jack on the ground,

ensuring that it is directly below the
vehicle's jacking point A or B, the one
closest to the wheel to be changed.

Removing a wheel

Parking the vehicle

Immobilise the vehicle where it does not
block traffic: the ground must be level,
stable and not slippery.

Switch off the ignition.

With a manual parking brake, apply the
parking brake and check that the brake
warning lamp is on.

With an electric parking brake, if not
programmed in automatic mode, apply
the parking brake and check that the
brake warning lamp and the P indicator
lamp in the parking brake control lever
are on.

With a manual gearbox, engage first
gear to block the wheels.

With an automatic gearbox, place
the selector at position P to block the
wheels.
the occupants must get out of the
vehicle and wait where they are safe.
Never go underneath a vehicle raised
using a jack; use an axle stand.

Do not use:
-

the jack for any other purpose than
lifting the vehicle,

a jack other than the one supplied
by the manufacturer.

249

In the event of a breakdown

308_en_Chap08_en-cas-de-panne_ed01-2016

ensure that the jack is stable. If the ground is slippery or loose, the jack may slip or drop -
Risk of injury!
ensure that the jack is positioned only at one of the jacking points A or B under the vehicle,
making sure that the vehicle's contact surface is centred on the head of the jack. Otherwise
there is a risk of damage to the vehicle and/or of the jack dropping - Risk of injury!

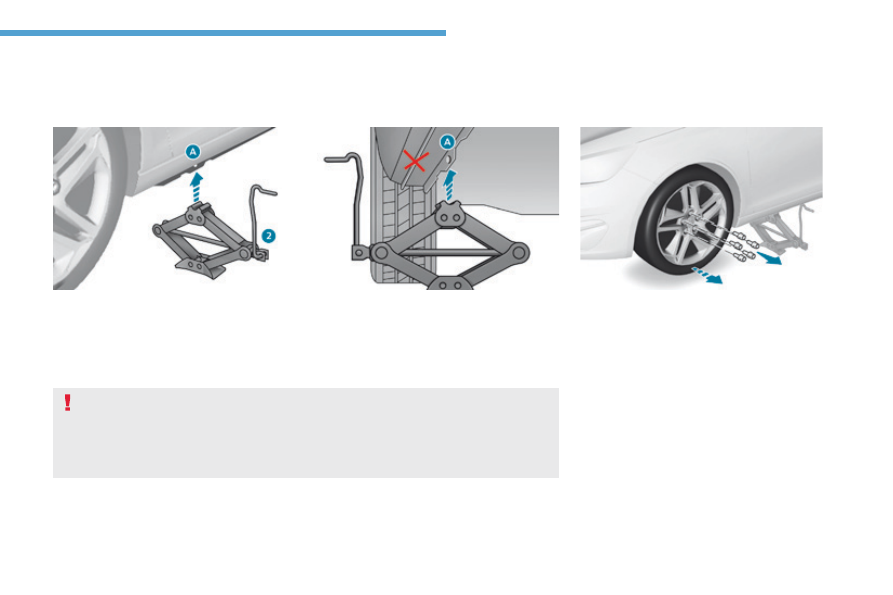

F Remove the bolts and store them in a clean

place.

F Remove the wheel.

F extend the jack 2 until its head comes into

contact with the jacking point A or B used,
with the contact surface A or B on the
vehicle correctly engaged with the central
part of the head of the jack.

F Raise the vehicle until there is sufficient

space between the wheel and the ground
to admit the spare (not punctured) wheel
easily.

250

In the event of a breakdown

308_en_Chap08_en-cas-de-panne_ed01-2016

Fitting a wheel

Fitting the "space-saver"
spare wheel

If your vehicle is fitted with alloy wheels,
when tightening the bolts on fitting, it
is normal to notice that the washers
do not come into contact with the
"space-saver" spare wheel. the wheel
is secured by the conical surface of
each bolt.

F  Put the wheel in place on the hub.
F  Screw in the bolts fully by hand.
F  Pre-tighten the security bolt using the

wheelbrace 1 fitted with the security
socket 4 (according to equipment).

F Pre-tighten the other bolts using the

wheelbrace 1 only.

F Lower the vehicle fully.
F Fold the jack 2 and detach it.

251

In the event of a breakdown

308_en_Chap08_en-cas-de-panne_ed01-2016

F tighten the security bolt using the

wheelbrace 1 fitted with the security
socket 4 (according to equipment).

F tighten the other bolts using the

wheelbrace 1 only.

F Refit the bolt cover(s) (according to

version).

F Store the tools in the box.

the tyre inflation pressures are given on
this label.

After changing a wheel

to store the punctured wheel in the boot
correctly, first remove the central cover.
When using the "space-saver" type
spare wheel, do not exceed 50 mph
(80 km/h).
Have the tightening of the bolts and the
pressure of the spare wheel checked
by a PeugeOt dealer or a qualified
workshop without delay.
Have the punctured wheel repaired
and refitted to the vehicle as soon as
possible.
If your vehicle has tyre under-inflation
detection, check the tyre pressures then
reinitialise the system.
For more information on Under-
inflation detection, refer to the
corresponding section.

252

In the event of a breakdown

308_en_Chap08_en-cas-de-panne_ed01-2016

Changing a bulb

Front lamps

Model with "full LED" technology
headlamps

Model with halogen headlamps

For H7 type bulbs with lugs... take care to
observe their correct installation so as to
ensure the best lighting performance.

Front fog lamps (H11)

Direction indicators
(GT version)

For the replacement of this type of LeD lamp,
contact a PeugeOt dealer or a qualified
workshop.
A replacement kit for the LeDs is available from
PeugeOt dealers.

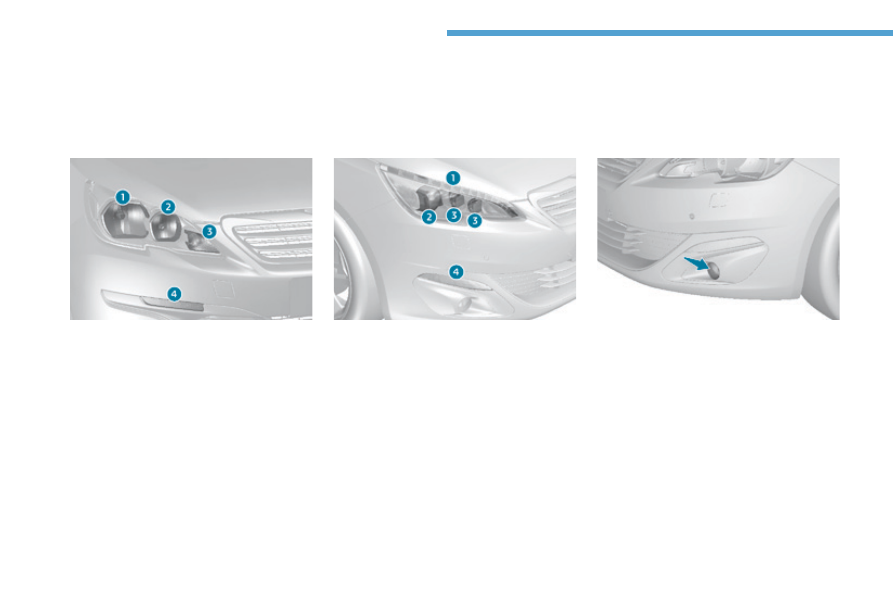

1.  Dipped beam headlamps (H7-55W).
2.  Main beam headlamps (HB3).
3.  Direction indicators (PY21-21W).
4.  Daytime running lamps / sidelamps

(light emitting diodes - LeDs).

1. Daytime running lamps / sidelamps (light

emitting diodes - LeDs).

2. Dipped beam headlamps (light emitting

diodes - full LeDs).

3. Main beam headlamps (light emitting

diodes - full LeDs).

4. Direction indicators (PY21-21W).

253

In the event of a breakdown

308_en_Chap08_en-cas-de-panne_ed01-2016

In some weather conditions (e.g. low
temperature or humidity), the presence
of misting on the internal surface of the
glass of the headlamps and rear lamps
is normal; it disappears after the lamps
have been on for a few minutes.

the headlamps have polycarbonate
lenses with a protective coating:
F do not clean them using a dry

or abrasive cloth, nor with a
detergent or solvent product,

F use a sponge and soapy water or a

pH neutral product,

F when using a high pressure washer

on persistent marks, do not keep
the lance directed towards the
lamps or their edges for too long,
so as not to damage their protective
coating and seals.

Changing a bulb should only be done
after the headlamp has been switched
off for several minutes (risk of serious
burns).
F Do not touch the bulb directly with

your fingers, use a lint-free cloth.

It is imperative to use only anti-
ultraviolet (uV) type bulbs to avoid
damaging the headlamp.
Always replace a failed bulb with a
new bulb with the same type and
specification.

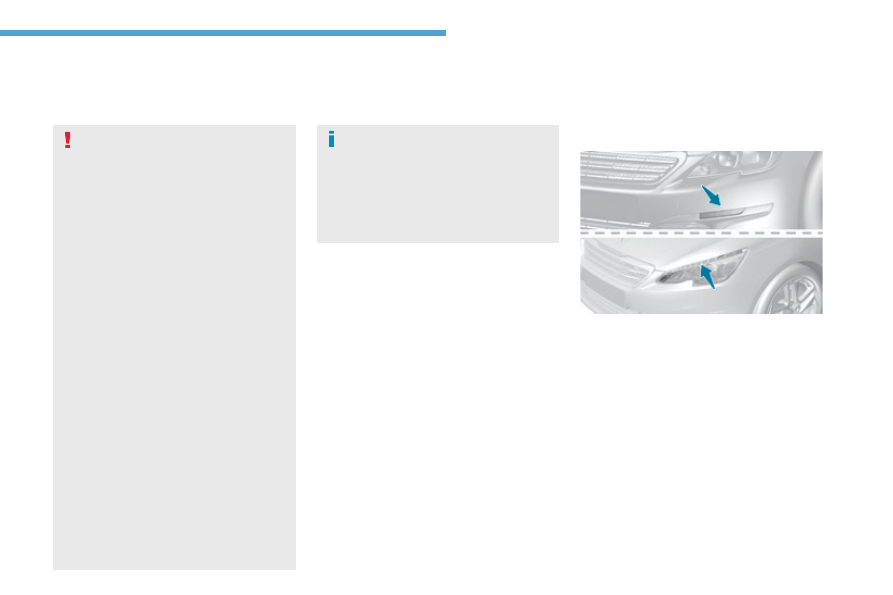

Daytime running lamps / sidelamps

For the replacement of this type of LeD lamp
and lighting guides, contact a PeugeOt dealer
or a qualified workshop.
A replacement kit for the LeDs is available from
PeugeOt dealers.

254

In the event of a breakdown

308_en_Chap08_en-cas-de-panne_ed01-2016

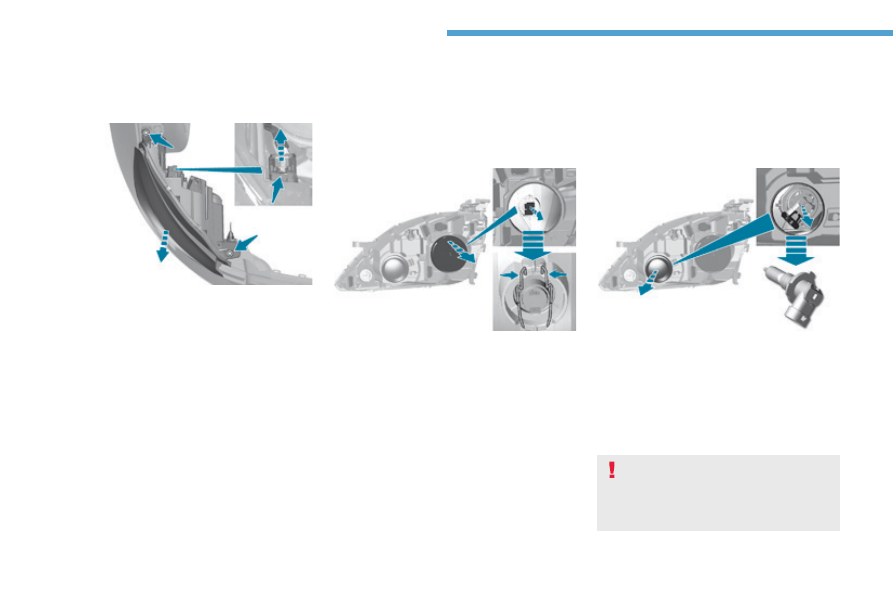

F Remove the protective plastic cover by

pulling on the tab.

F turn the connector (with its bulb) towards

the top (1/4 turn).

F Remove the bulb by pulling it out and change it.
For reassembly, carry out these operations in
reverse order.

F Remove the protective plastic cover by

pulling on the tab.

F Disconnect the bulb connector.
F Disengage the two springs (press then

move them outwards).

F extract the bulb by pulling and change it.
For reassembly, carry out these operations in
reverse order.

Be aware that the area behind the
right-hand headlamp (facing forwards)
may be hot, with the risk of burns
(overflow pipe).

to allow the headlamp to be moved forward
a few centimetres for access to the bulbs,
proceed as follows

F Move the orange clip towards the rear

then while pressing on the black part
(located above the orange clip) pull on the
connector.

F Remove the two screws holding the lamp.
F Disengage the rear pin then the front

centre piece.

F Move the lamp forwards.

Tips for removing the headlamp (halogen model)

Dipped beam headlamps
(halogen model)

Main beam headlamps
(halogen model)

Peugeot 308 (2017 year). Instruction - part 16
